New

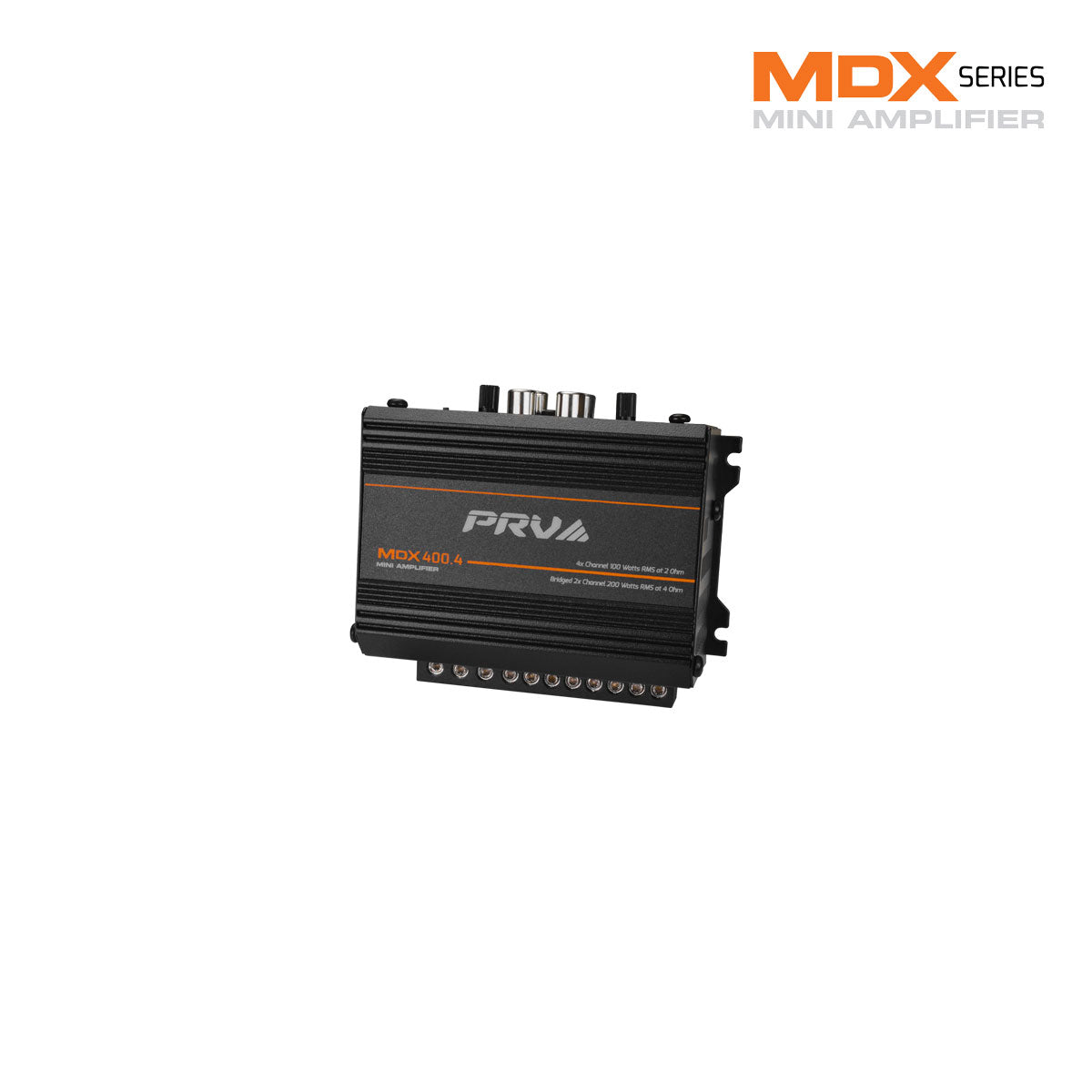

PRV MDX400.4 2 Ohm Amplifier

PRV MDX400.4 2 Ohm Amplifier

SKU: MDX400.4 2 Ohm
New

PRV MDX400.4 2 Ohm Amplifier

PRV MDX400.4 2 Ohm Amplifier

SKU: MDX400.4 2 Ohm

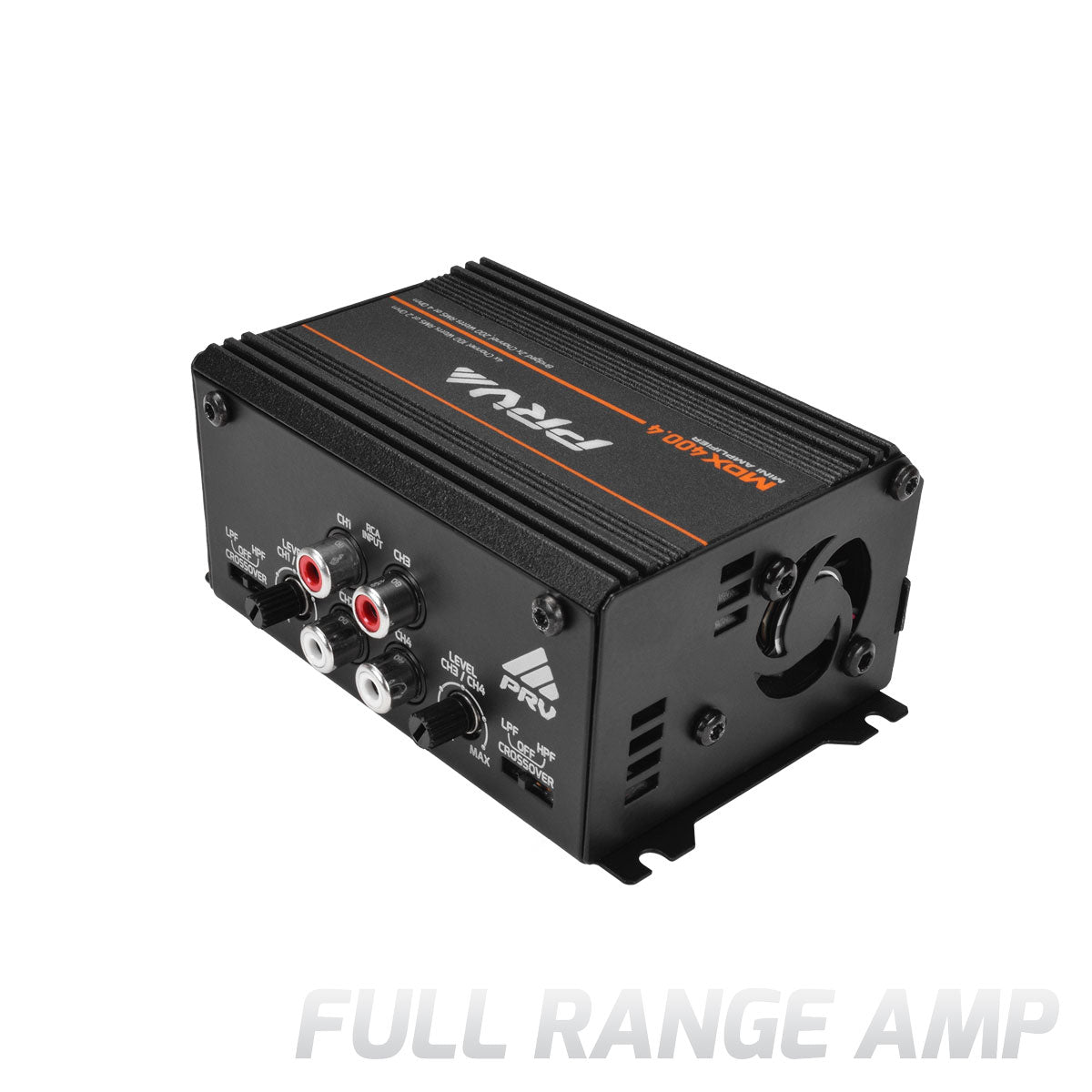

  • Full Range Amp
  • MINI 4 Channel
  • 4x 100 Watts 2 Ohm
$79.91
$0.00

Out of stock

  • Full Range Amp
  • MINI 4 Channel
  • 4x 100 Watts 2 Ohm

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The mini MDX400.4 2 Ohm delivers 400 Watts RMS power over 4 channels in a compact, modern amplifier.

Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

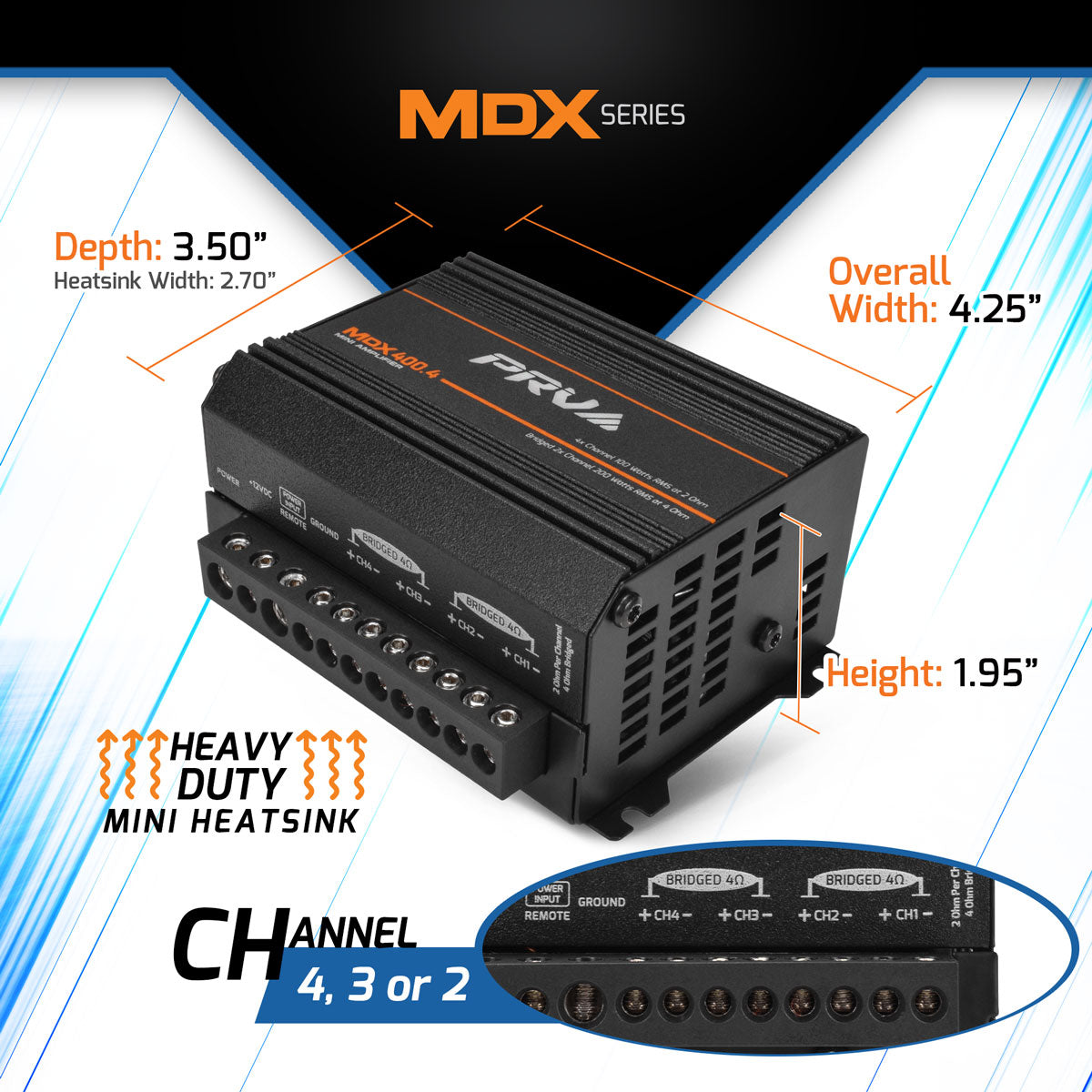

  • COMPACT MINI DESIGN – A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 4.25″ Width by 3.50″ Length and only 1.95″ Height.
  • MULTICHANNELS – 4 x 100 watts at 2 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
  • BRIDGEABLE – 2 Channel Bridged – Double the power output to your speakers by bridging two channels. 2x 200 Watts RMS at a minimum impedance of 4 Ohms per bridged channel.
  • INNOVATION – The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams.

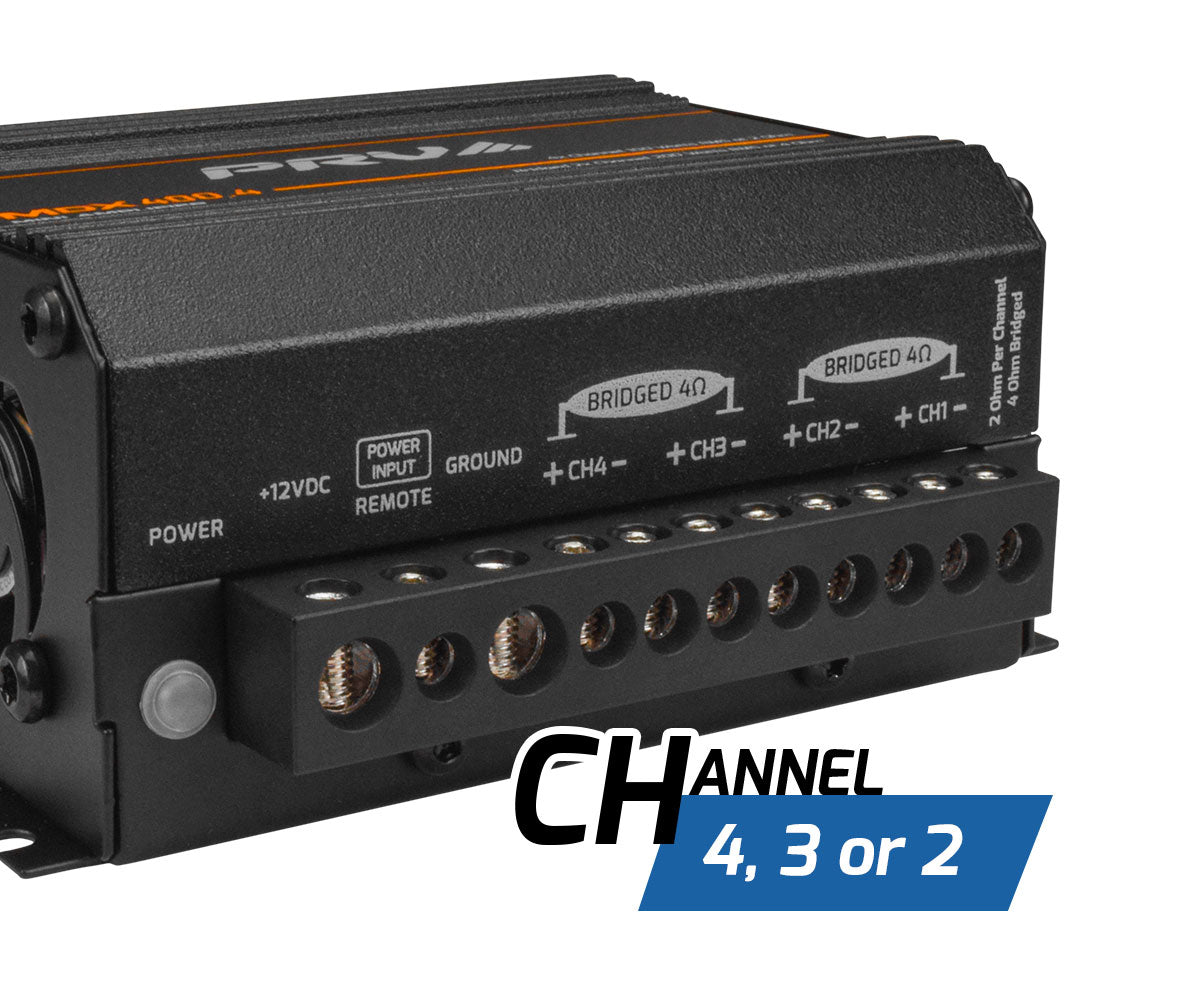

Its multichannel technology eliminates the need for multiple amplifiers, when you can use this amplifier in 4, 3 or 2 channel configurations.

The MDX Series is ideal for motorsport applications such as custom motorcycles, powerwheels, ATVs and Slingshots!

100 Watts at 2 Ohm per Channel
70 Watts at 4 Ohm per Channel
200 Watts at 4 Ohm per Bridged Channel

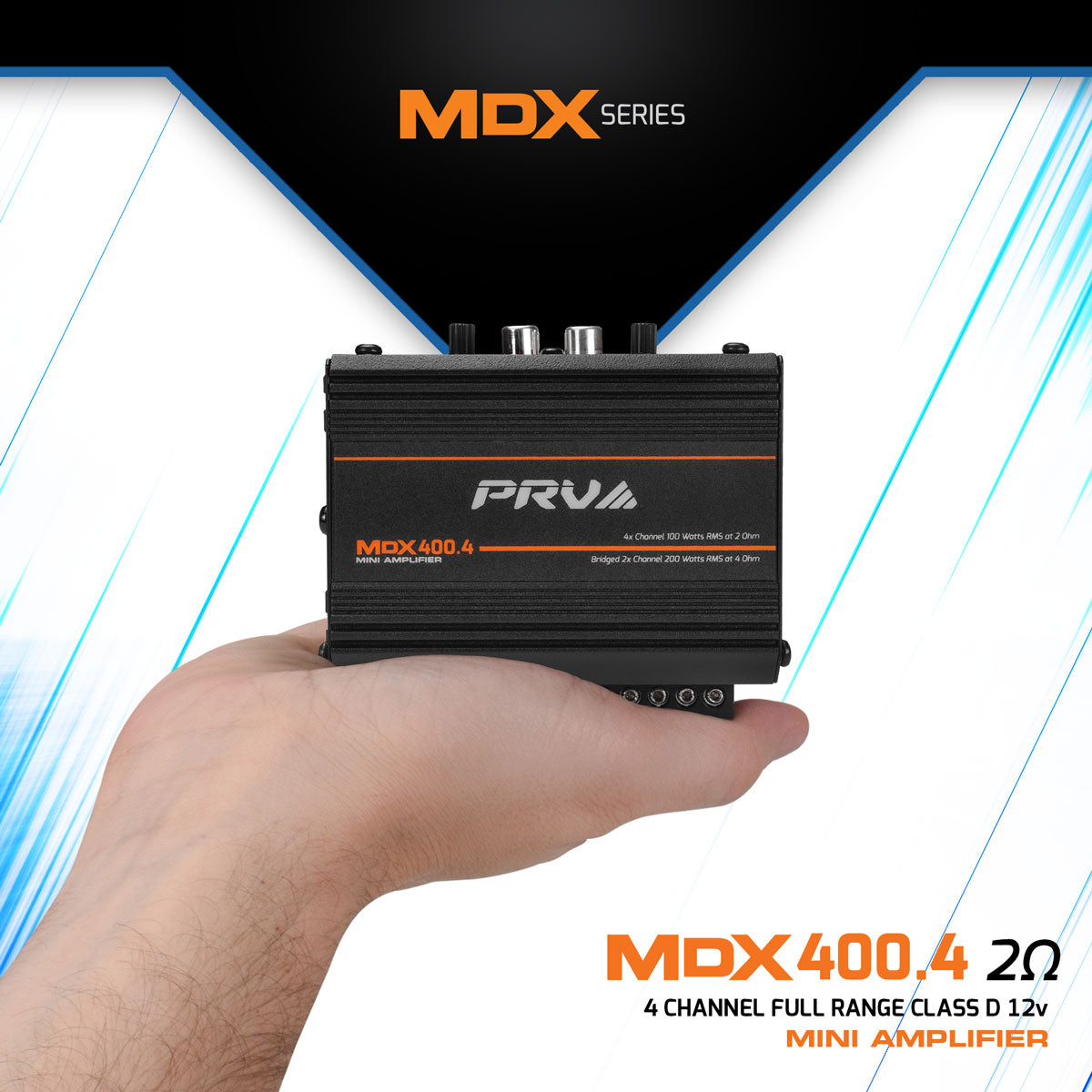

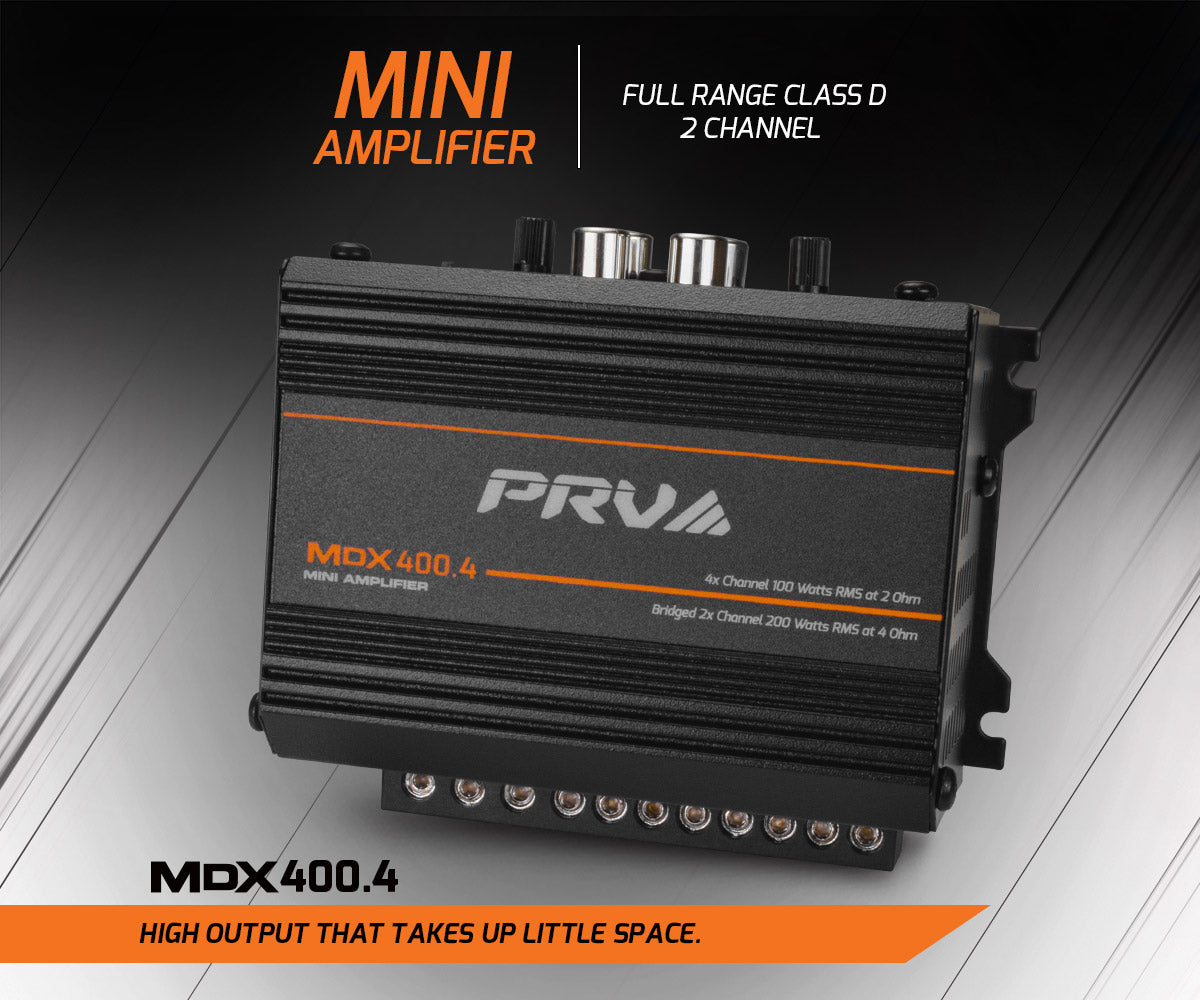

High Output that takes up little space!

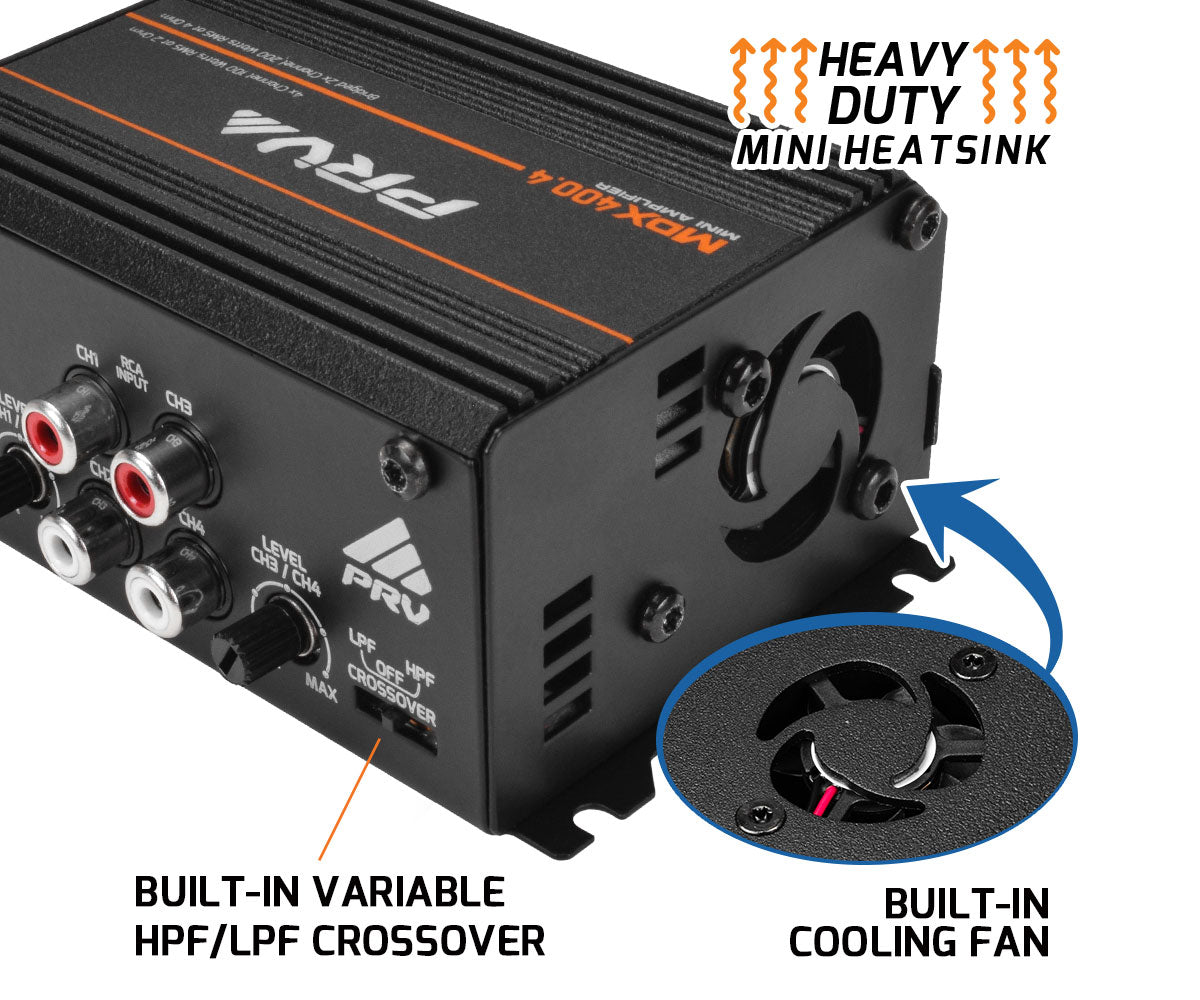

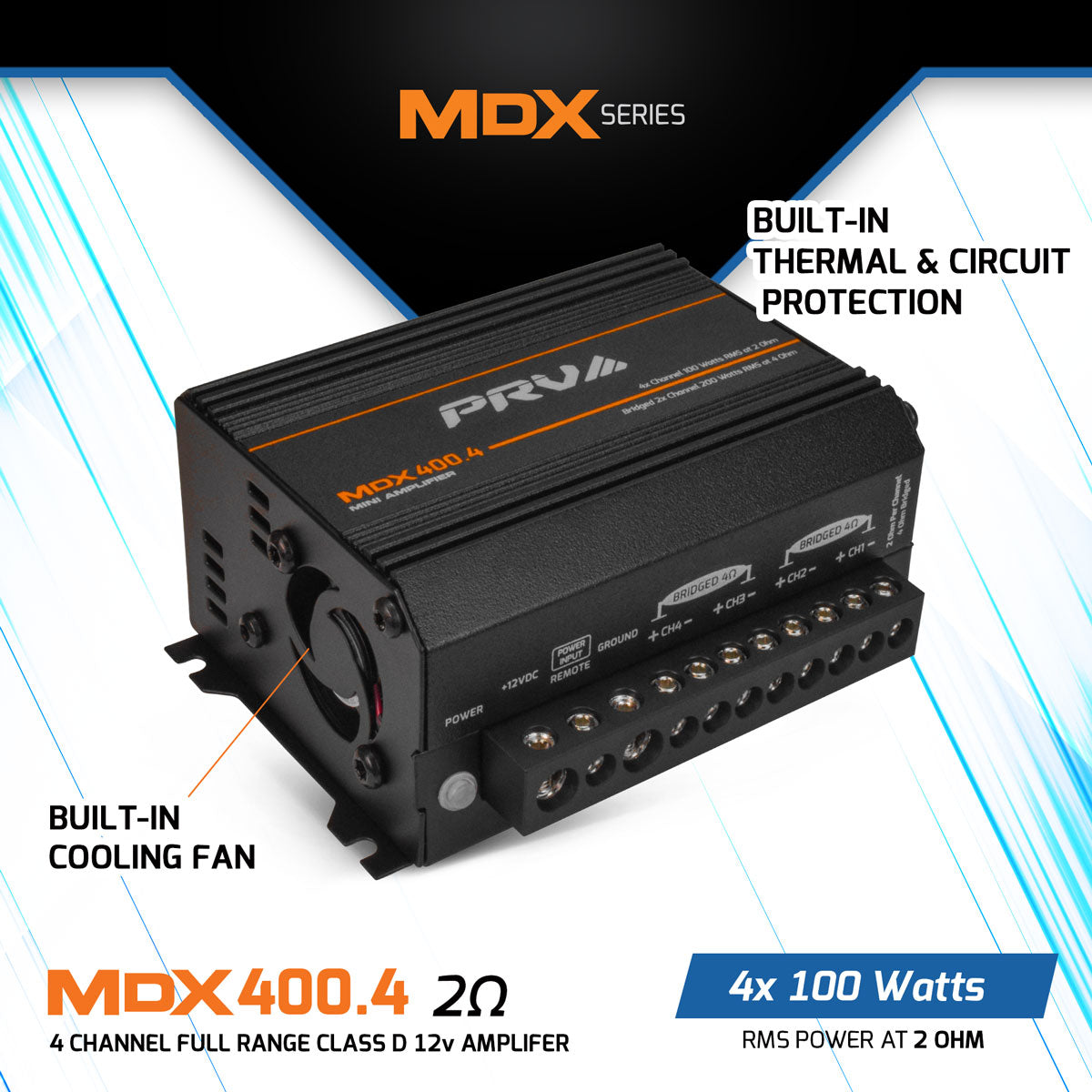

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.

At only 0.87 lbs allows any custom system to achieve the highest performance and weight ratio possible.

PRV Audio MDX400.4 2 Ohm MINI 4 Channel Car Audio Amplifier 4 x 100 Watts RMS at 2 Ohm

Popular Installation configurations with this amplifier:

4 Channel Configuration for 4 Ohm Components – Stereo System
Its 4 channels allow you to install 1x 4 Ohm speakers or tweeters one per channel, giving up to 70 watts per component.
Perfect for Car Stereo, using TW150SD-4 as tweeters and RS65-PRO as mids.

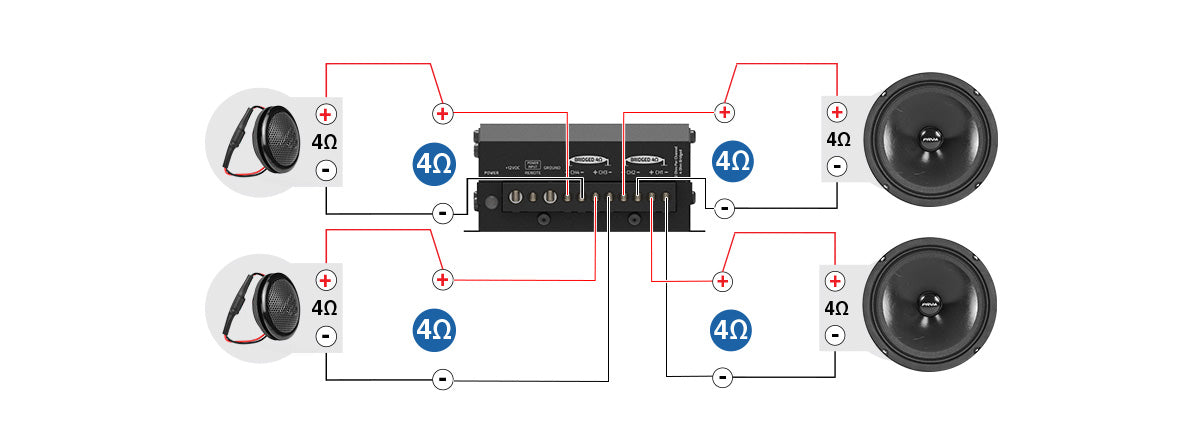

4 Channel Configuration for 4 Ohm Components

Its 4 channels allow you to install 2x 4 Ohm speakers, drivers or tweeters in parallel per channel, giving up to50 watts per component.

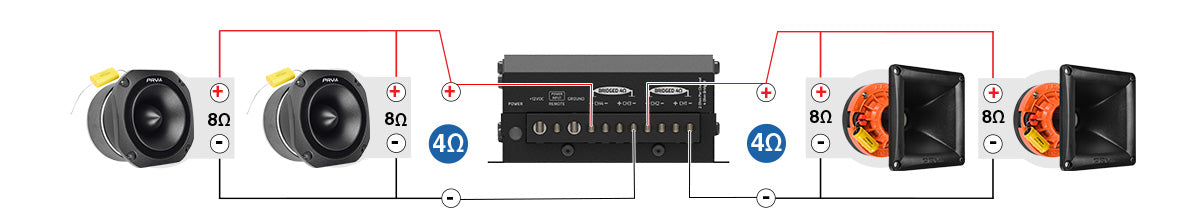

2 Channel Configuration (Bridged) for 8 Ohm components
Its high power output channels allow you to install 2x 8 Ohm speakers or drivers in parallel per channel, giving up to 100 watts per component.

Technical Details

GENERAL SPECIFICATIONS

  • Imdedance 2 Ohm per Channel
  • Channels 4 Channel
  • Rated RMS Power at 14.0 V at 2 Ohm 4x 100 Watts RMS
  • Rated RMS Power at 14.0 V at 4 Ohm 4x 70 Watts RMS
  • Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 200 Watts RMS
  • Average Efficiency 84%
  • Operating Voltage 9 to 16 Volts
  • Musical Current Draw 20A

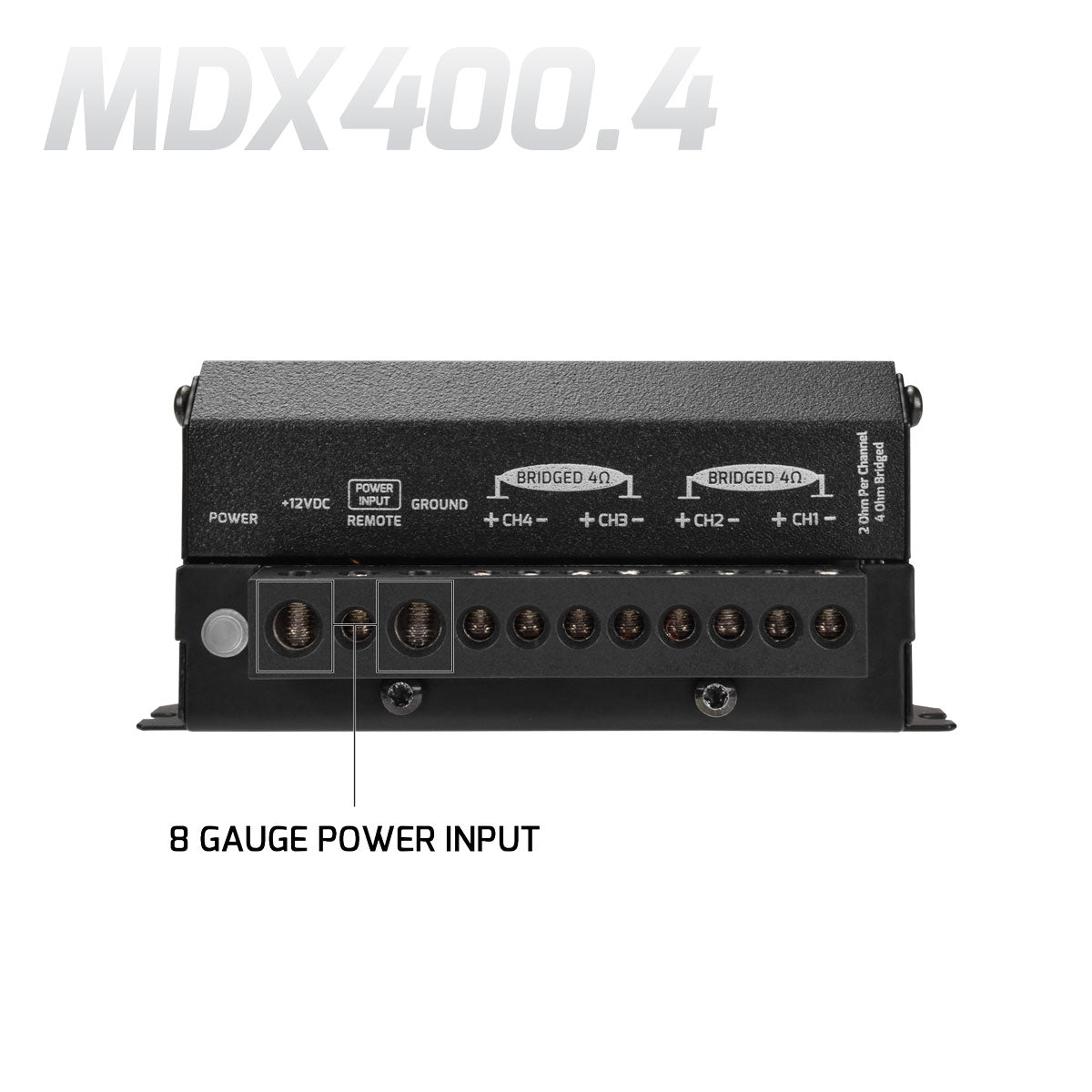

  • Minimum Power Wire Input (OFC) 8 Gauge wires

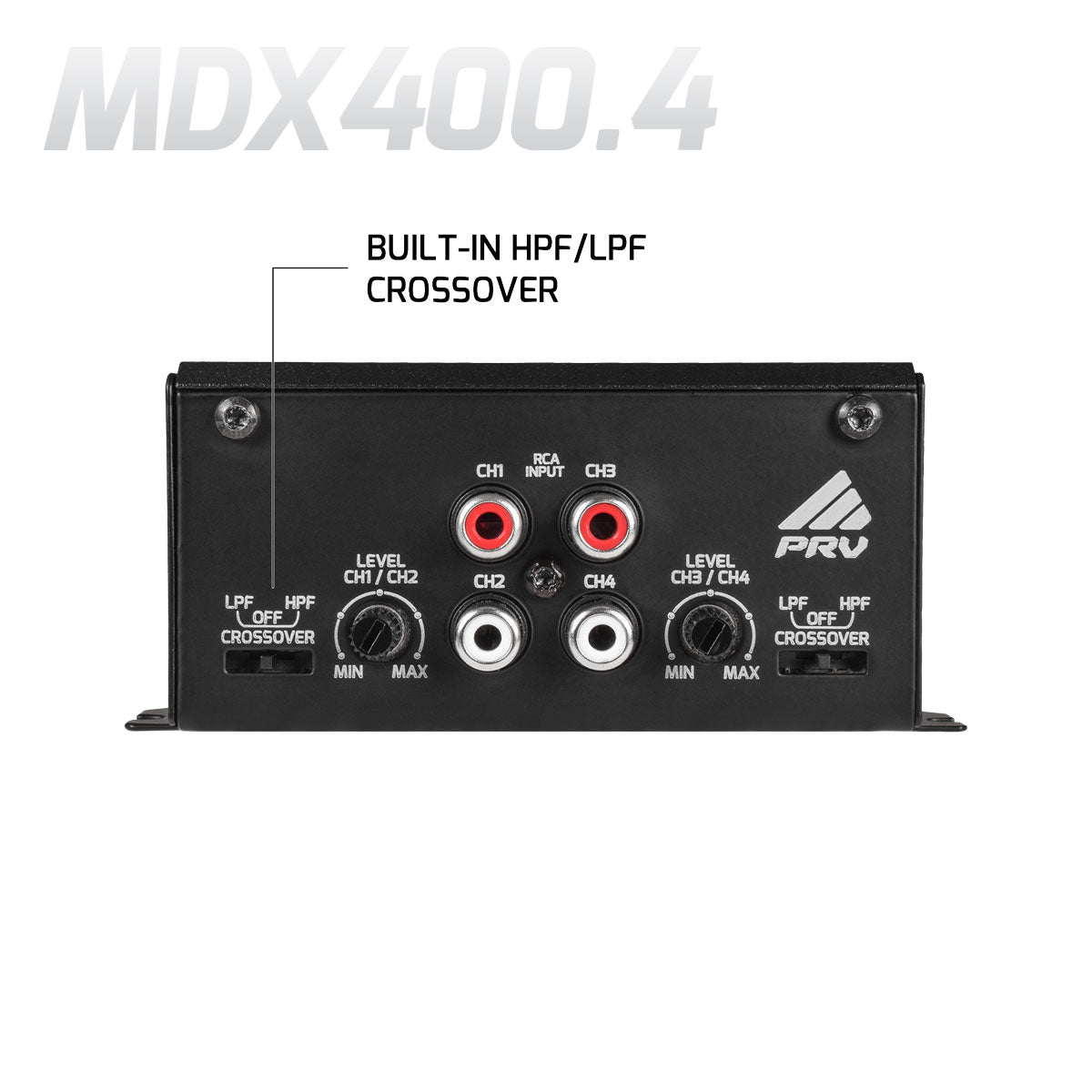

  • Built-in Crossover Fixed HPF & LPF at 80 Hz
  • Minimum Speaker Wire Output 16 Gauge
  • Frequency Response(-3dB) 10 – 20,000 Hz
  • Min. Input Sensitivity for Max. Output 0.2 to 4v
  • Signal Input RCA Cables
  • Signal to Noise >90 dB
  • Protection System High Temperature / Short circuit on Output
  • Heat Sink Type Mini Heavy Duty Cast Aluminum
  • Dimensions (W x D x H) 4.25″ x 3.50″ x 1.95″
  • Weight 0.87 Lbs

EXTRA INFO

PRV MDX400.4 2 Ohm Amplifier DATASHEET Download
PRV MDX400.4 2 Ohm Amplifier DATASHEET Download
