PRV TW150SD-4 (PAIR) Tweeter

PRV TW150SD-4 (PAIR) Tweeter

SKU: SKU:TW150SD-4

Category: All Products, PRV Audio
Tags: SOFT DOME
Skip to product information

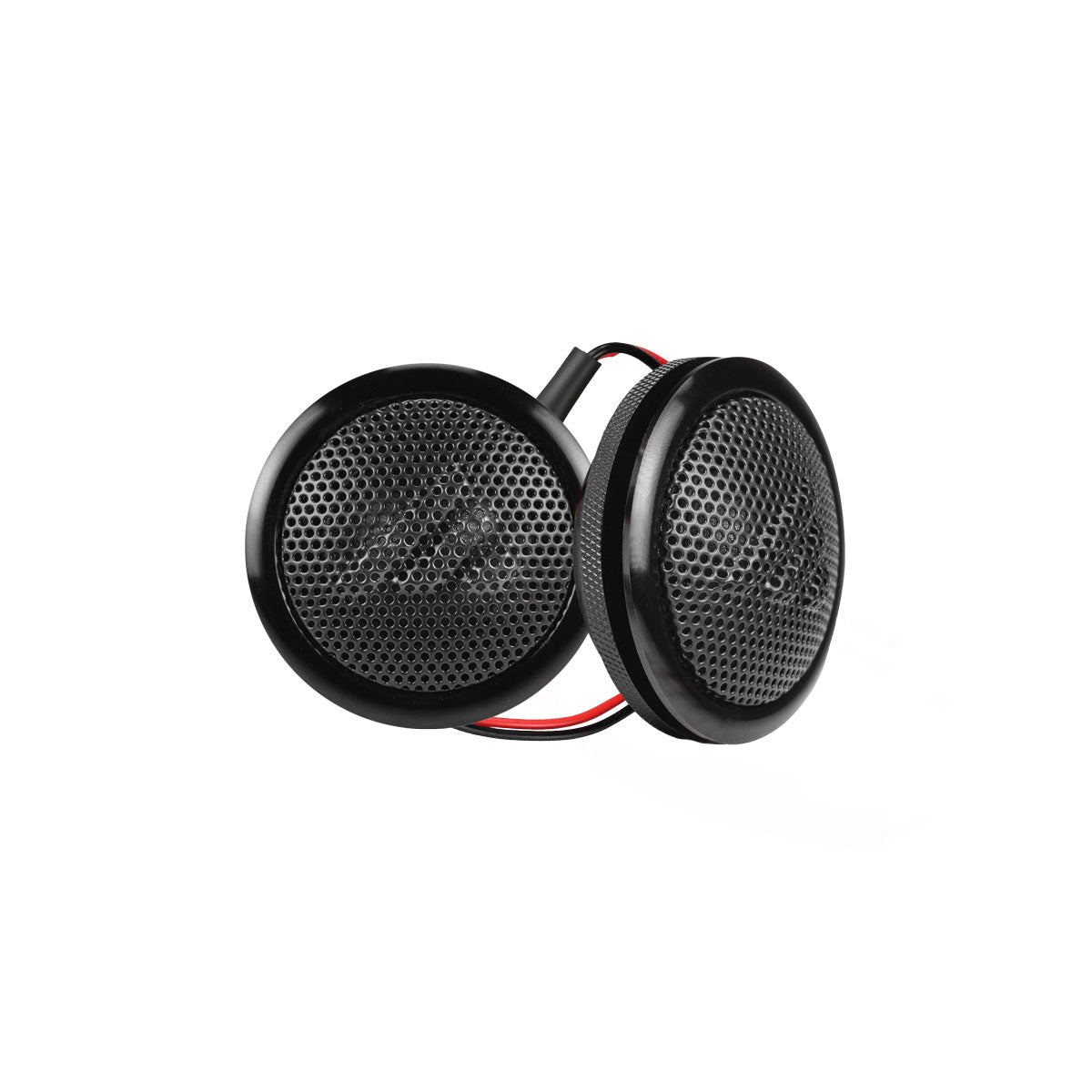

PRV TW150SD-4 (PAIR) Tweeter

PRV TW150SD-4 (PAIR) Tweeter

SKU: SKU:TW150SD-4

  • 32mm Silk Dome Tweeter
  • Neodymium Magnet
  • 94 dB - 120 Watts
$49.91
$62.39

In stock

  • 32mm Silk Dome Tweeter
  • Neodymium Magnet
  • 94 dB - 120 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

PRV Soft Dome Tweeter TW150SD-4 with Built-In Crossover 240 Watts PAIR / 4 Ohm

The New TW150SD-4 is here to change the silk dome tweeter market (also referred to as a soft dome) with a new design, featuring a large 32mm dome with a 1.1” voice coil able to handle 120 Watts, and offering remarkable clarity and exceptional response above 2Khz.

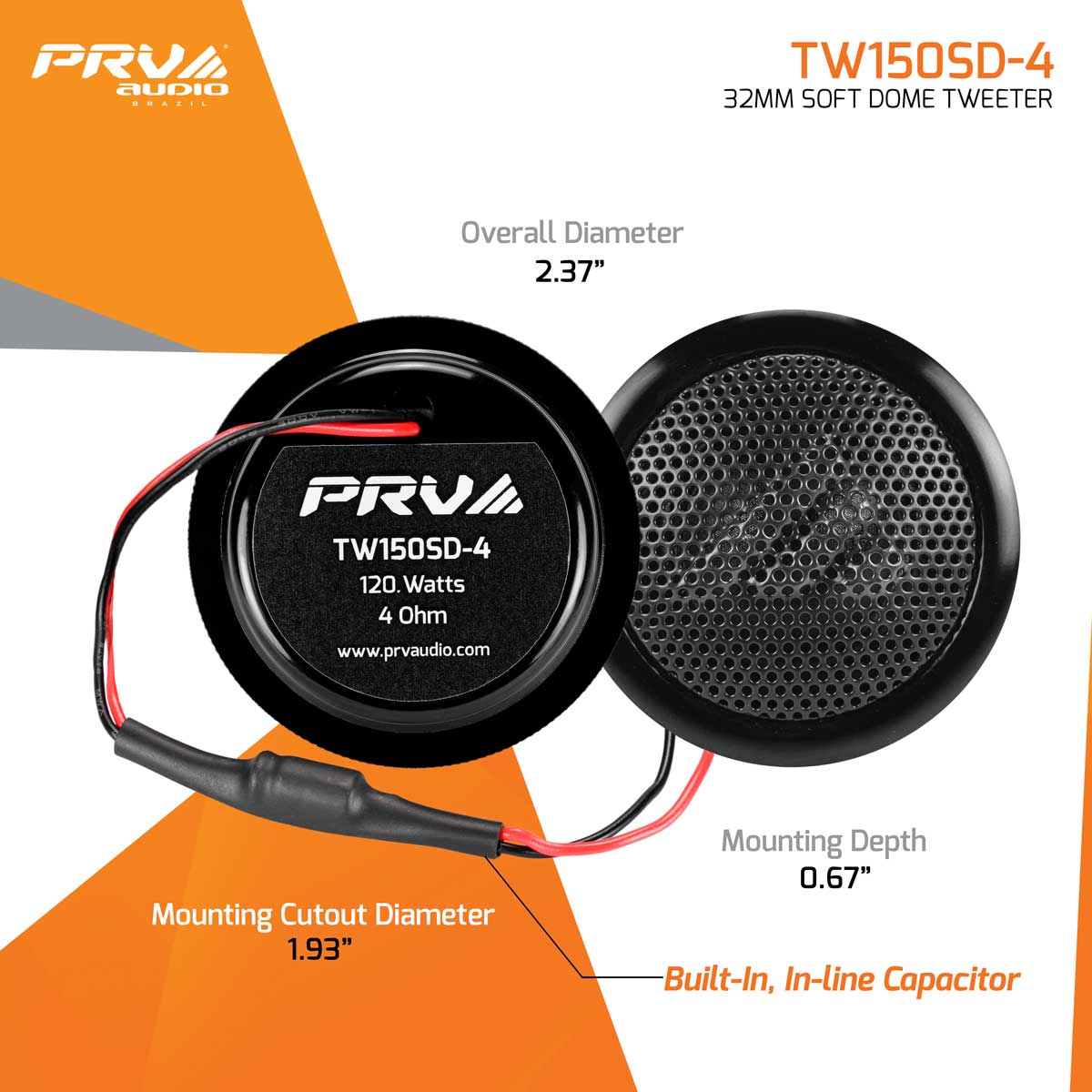

With an overall diameter of 2.37”, and requiring a cutout mounting hole of 1.93”, these 4 Ohm tweeters are a great drop-in upgrade to vehicles with standard 2” factory tweeters, or can even transform your sound system with very little modification, using an easy flush-mount screw-on ring.

  • 32 mm dome with 1.1″ voice coil – 4 Ohm
  • High-Strength neodymium magnet within compact machined housing
  • Non-fatigue cloth diaphragm, for extended frequency response
  • Ultra-high sensitivity of 94dB to deliver high output.

These tweeters are the preferred choice for high-end car audio and motorcycle systems, made to be easily mountable anywhere, with its shallow profile, allowing installation in tight spaces.

Featuring high-strength neodymium magnets acting as a powerhouse, ensuring high efficiency while still keeping size small.

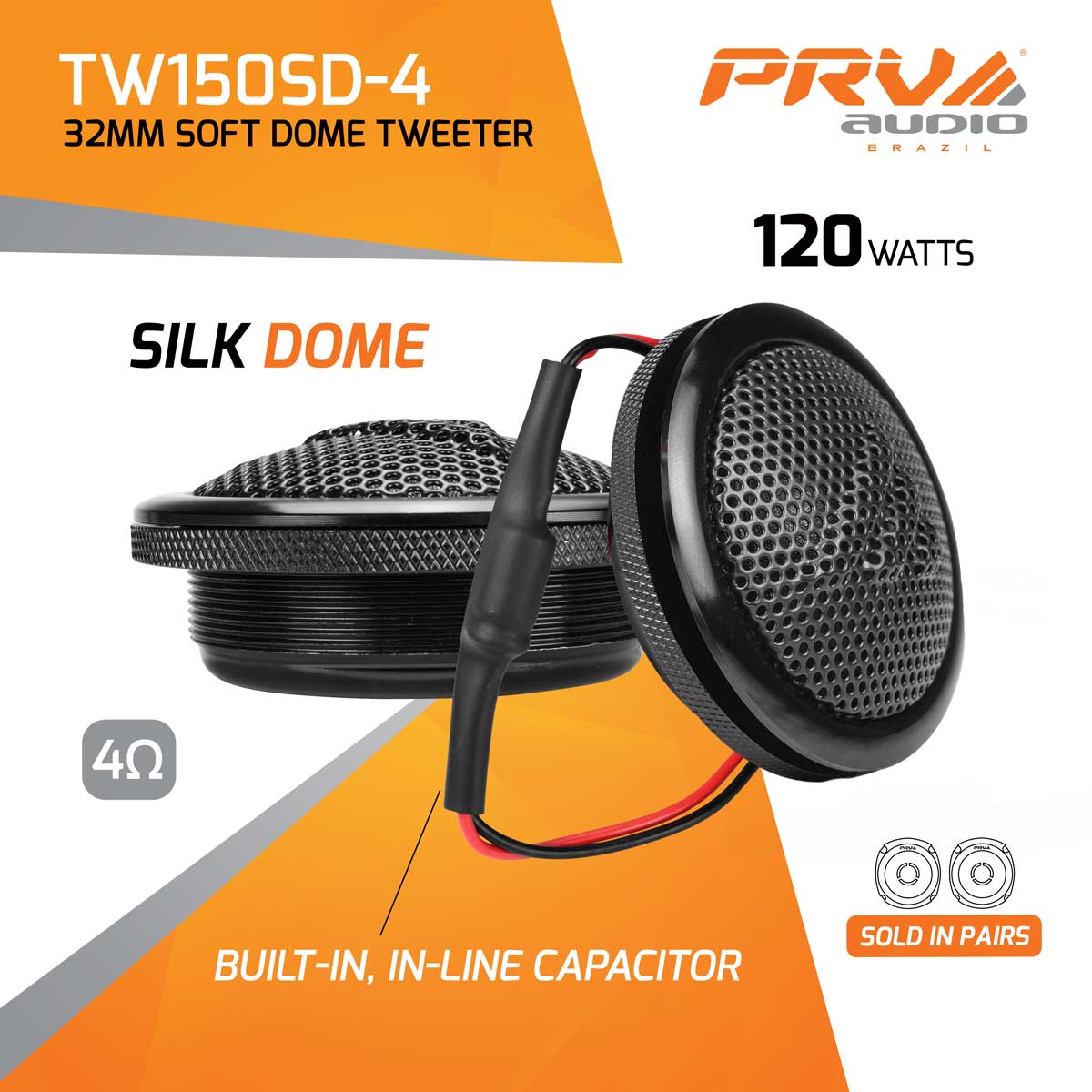

Furthermore, these neodymium tweeters are designed to keep up with high efficiency loudspeakers, having a premium high sound output that easily integrate with your system. The built-in inline capacitor smooths down low frequencies helping deliver clean high frequencies with amazing detail.

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 60 Watts
  • Continuous Program Power (RMS)** 120 Watts
  • Max Peak Power*** 240 Watts
  • Recommended Hi Pass Crossover" "For Full Power Handling 3500 Hz 12db/oct Crossover
  • Frequency Response at -10dB 2,000 – 20,000 Hz
  • Voice Coil Diameter 1.1” (28 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Diaphragm Silk
  • Magnet Type Neodymium

EXTRA INFO

  • Overall Depth 1.03″ (26.2 mm)
  • Mounting Depth 0.67″ (17 mm)
  • Overall Diameter 2.37″ (60.2 mm)

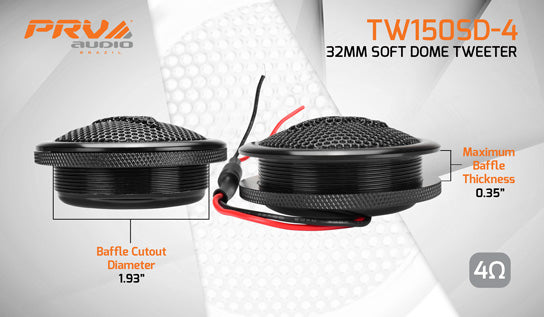

  • Front Mount Baffle Cutout 1.93″ (50 mm)
  • Net Weight 0.29 lbs (0.13 kg)
  • Shipping Weight 0.73 lbs (0.33 kg)
  • Carton Dimensions WxLxH 2.83″ x 6.18″ x 1.65″ (72 x 157 x 42 mm)
