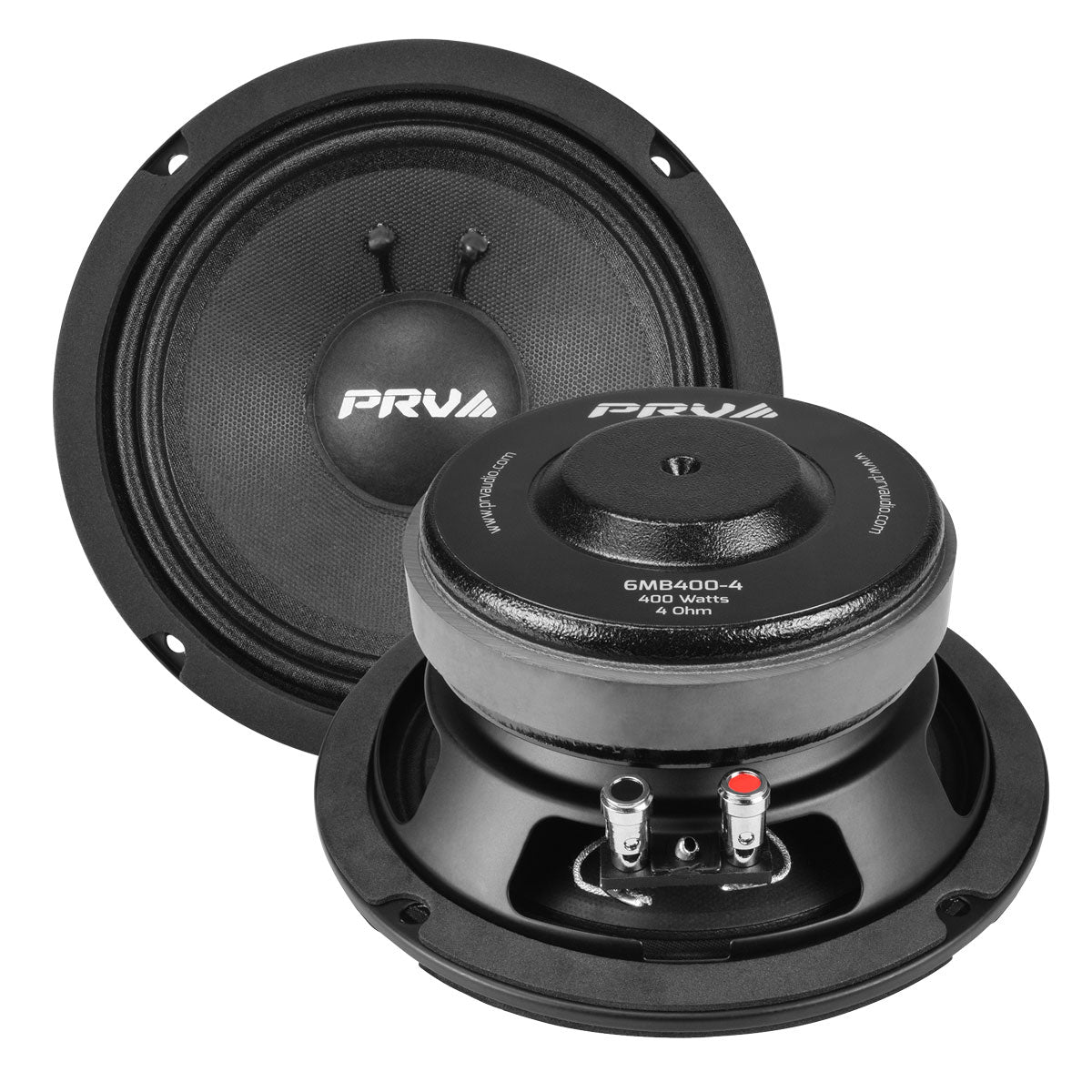

PRV 6MB400-4 Midbass

PRV 6MB400-4 Midbass

SKU: 6MB400-4
New

PRV 6MB400-4 Midbass

PRV 6MB400-4 Midbass

SKU: 6MB400-4

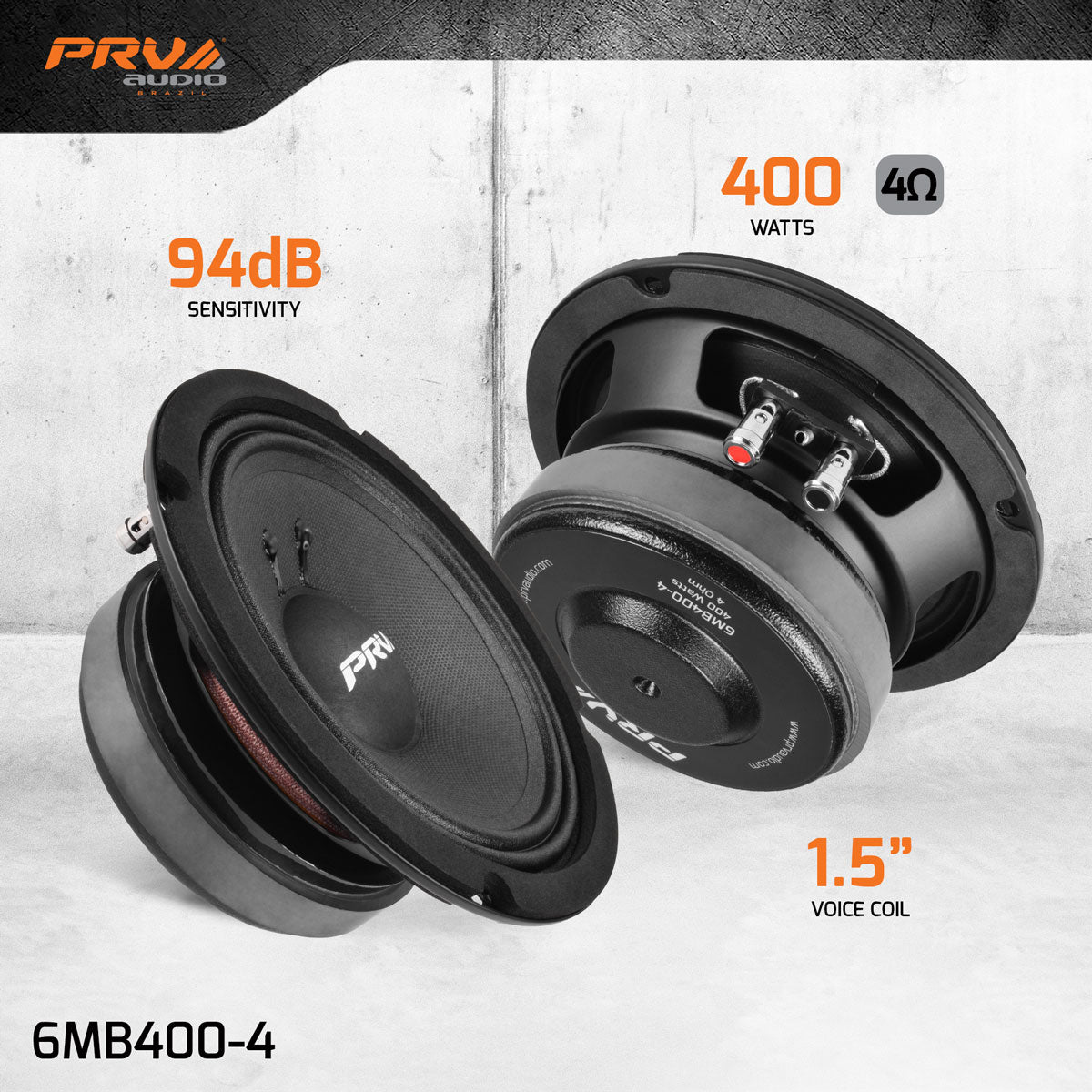

  • 6.5” Midbass – 4 Ohm
  • Ferrite Magnet
  • 94 dB – 400 Watts
$39.91
$47.89

In stock
  • 6.5” Midbass – 4 Ohm
  • Ferrite Magnet
  • 94 dB – 400 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The 6MB400-4 was designed to provide outstanding durability as well as a smooth punch of mid bass. This 6.5″ professional loudspeaker midbass is purpose-built to cover the critical frequency range in a three-way speaker setup, but also works great as a door speaker in car audio applications, a pro audio version is available at 8 Ohm,6MB400.

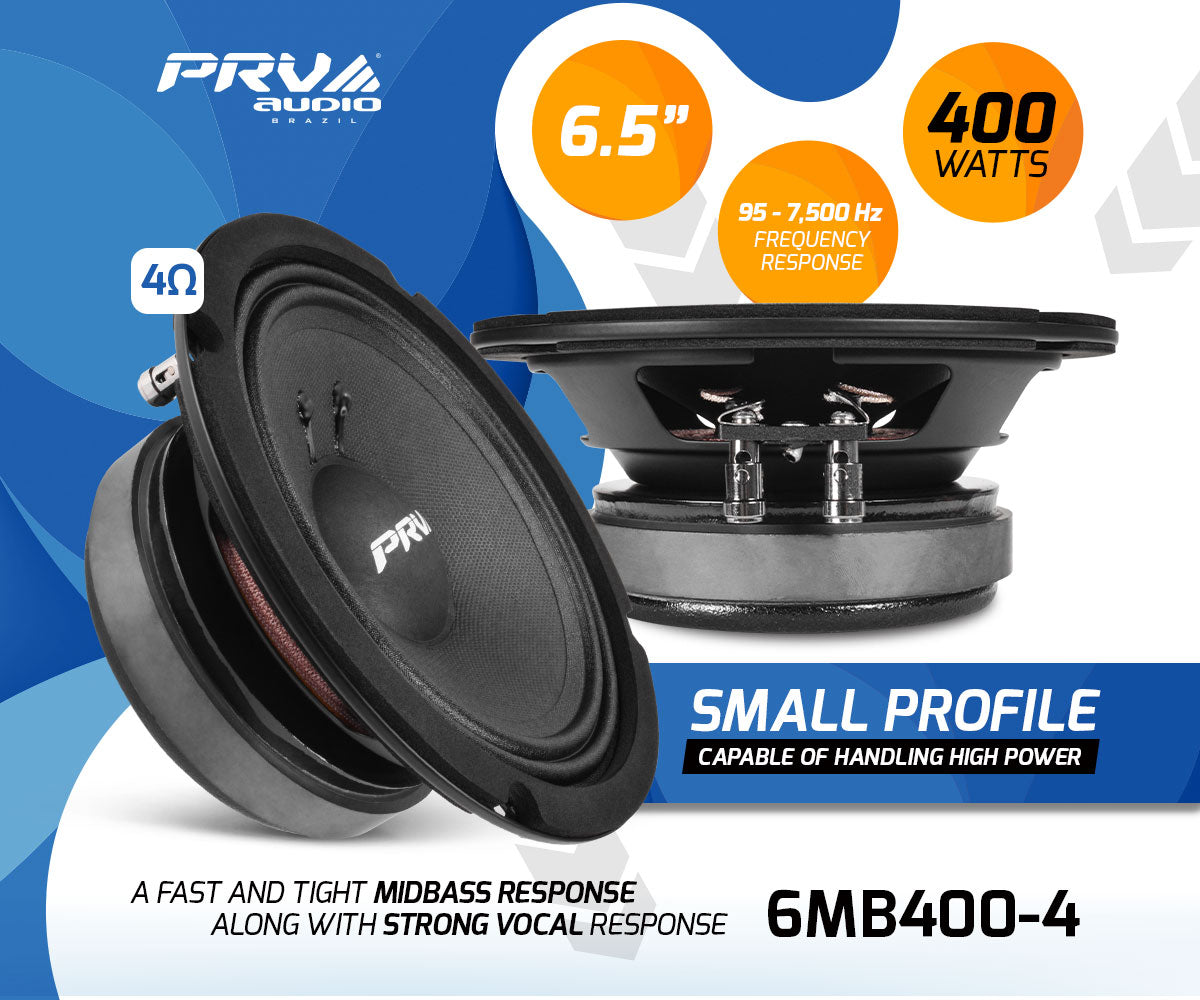

  • A fast and tight midbass response along with a strong vocal response
  • Small profile design capable of handling high power
  • Natural paper cone and double-roll surround for smooth response
  • Handles 400 Watts, guaranteeing endurance at loudest volumes
  • Impressive choice for car audio sound systems – 4 Ohm impedance

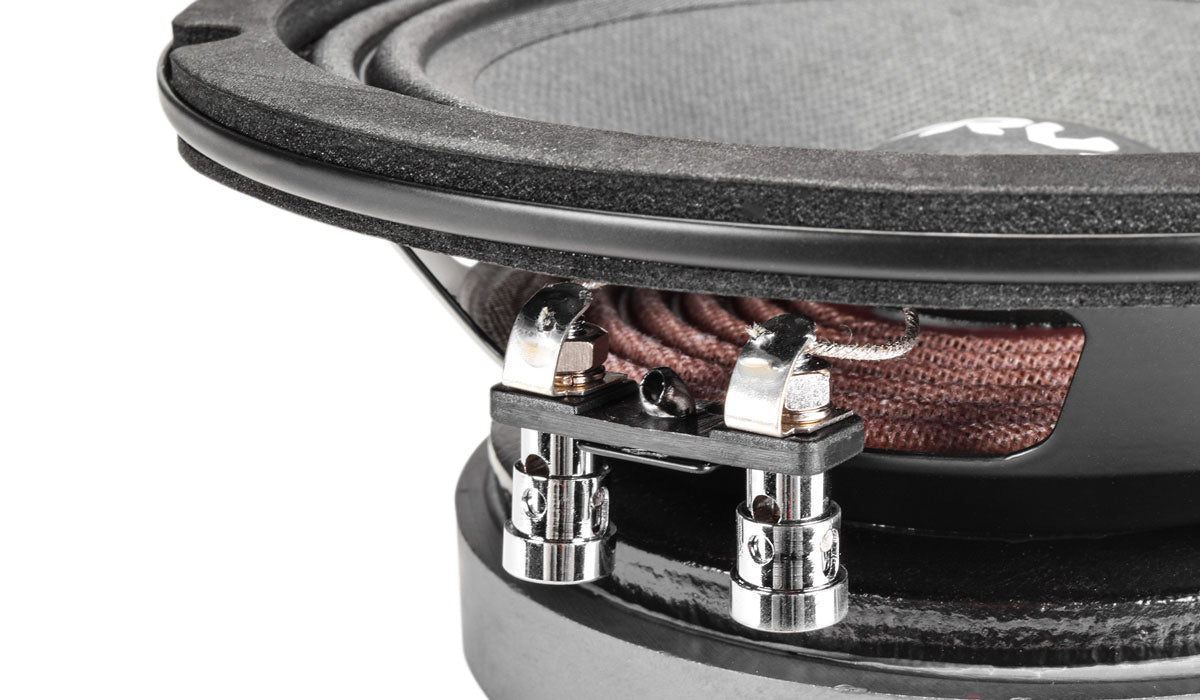

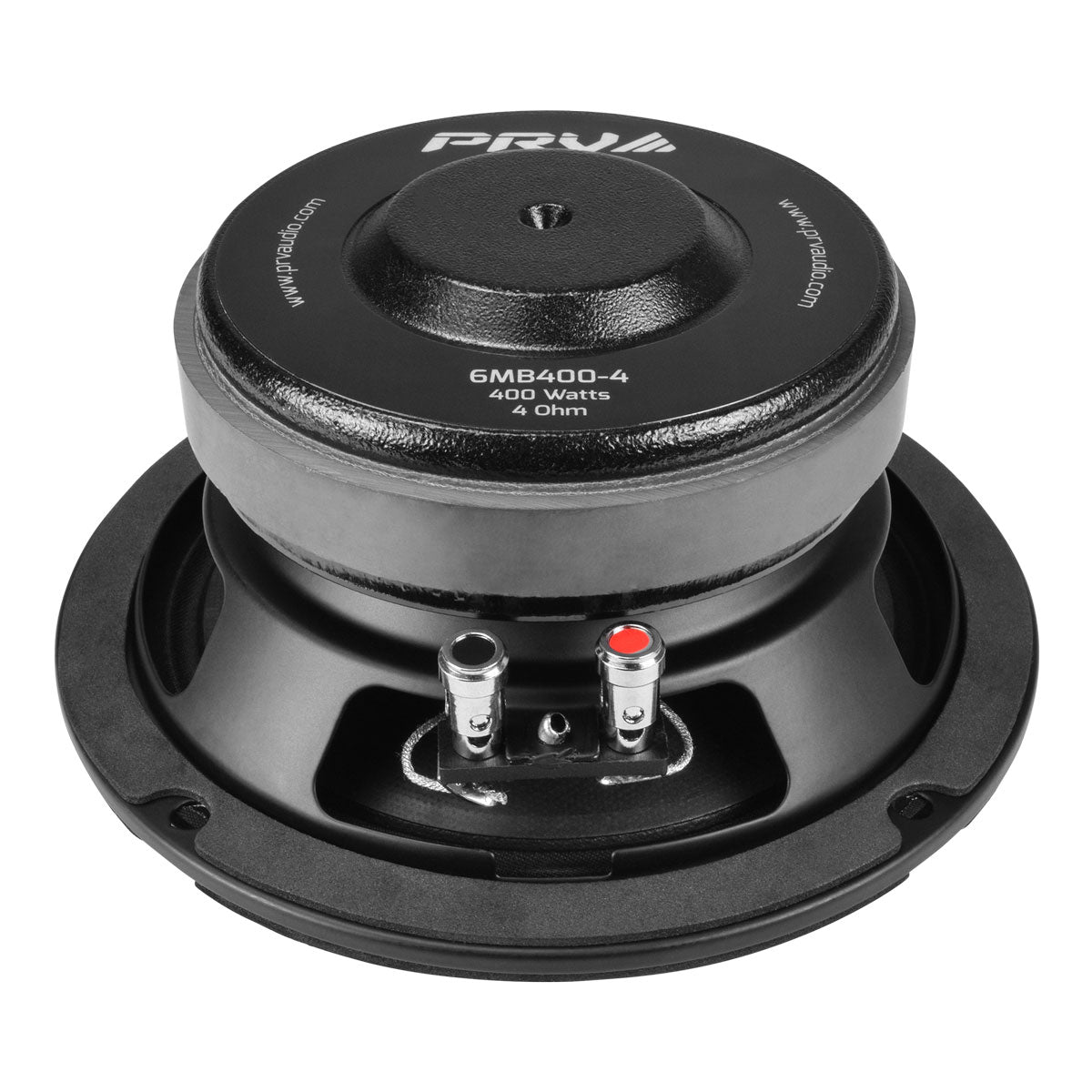

Built with many premium components to ensure absolute high sound fidelity, one of which is its compact push terminals, which connect to its silver tinsel lead wires attached to its high temperature CCAW voice coil.

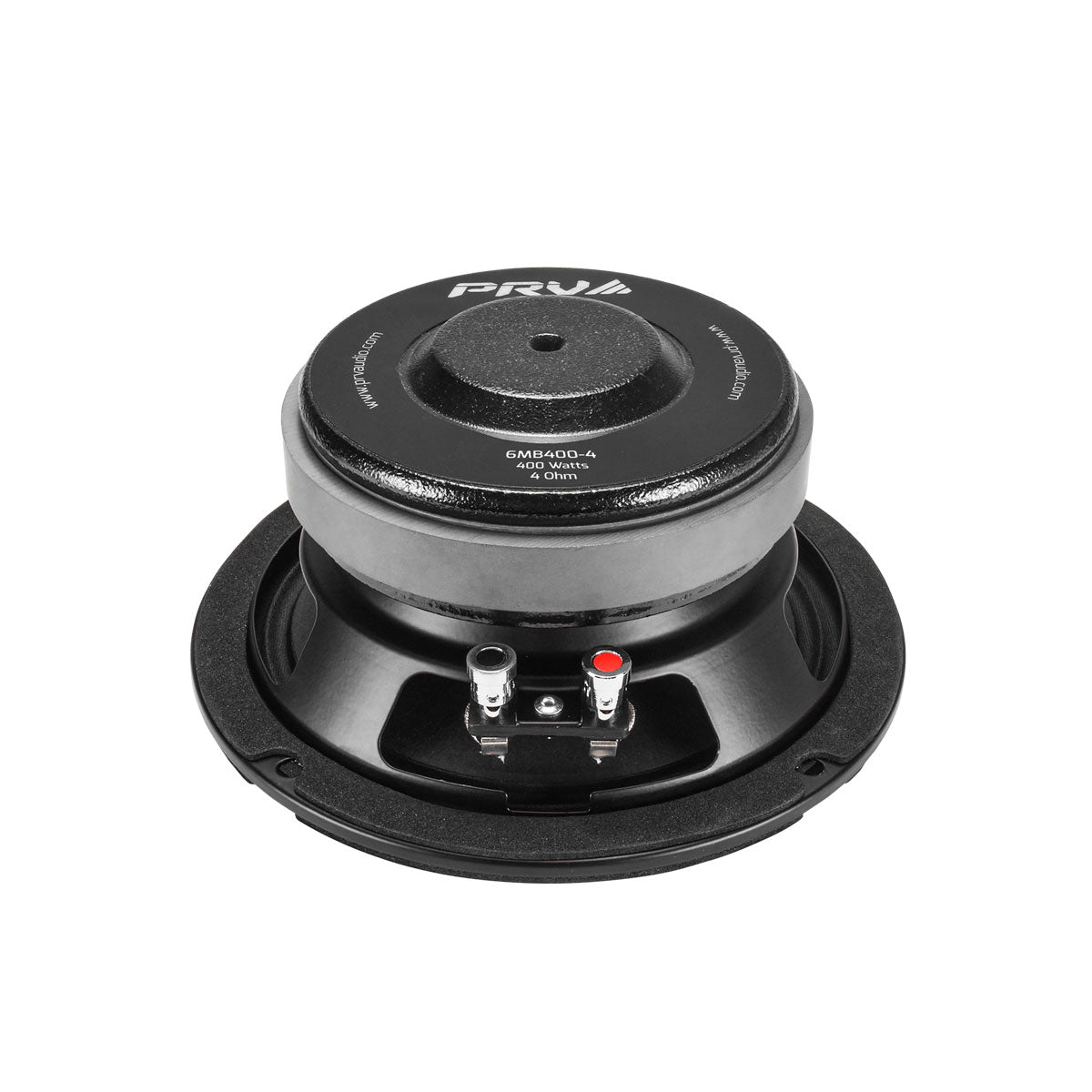

Don’t underestimate its compact motor design! Featuring the latest technology, we can increase tremendously the magnet field without huge magnet, making this midbass one of its kinda, small profile capable of handling high power!

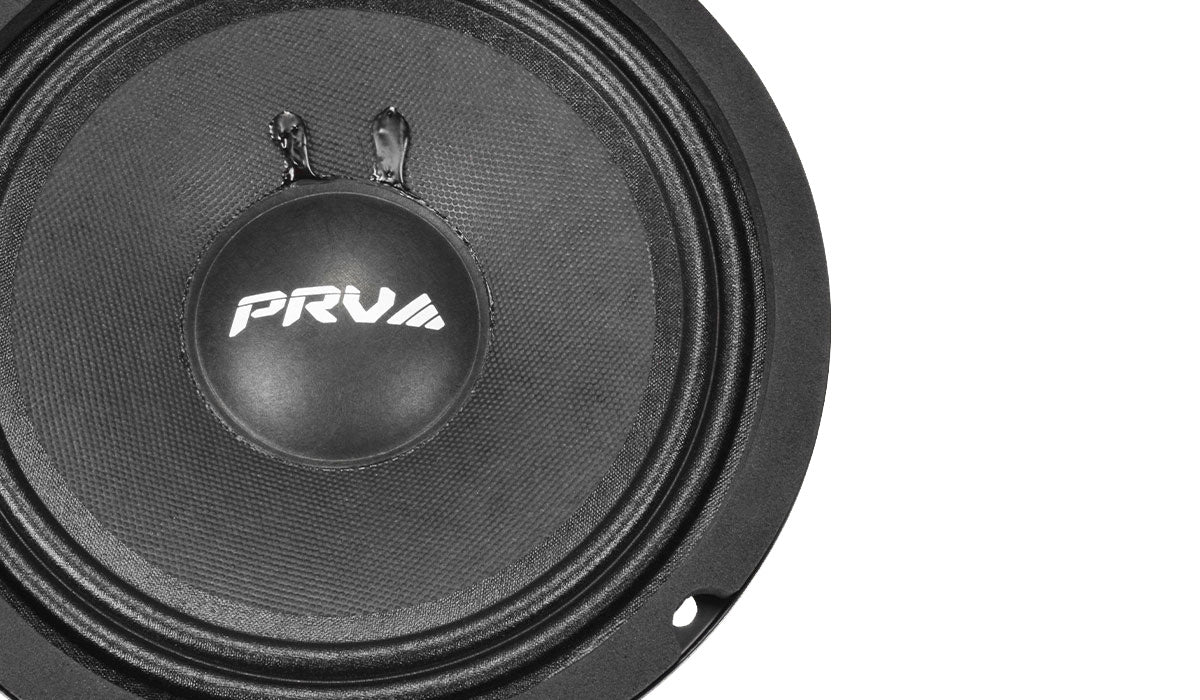

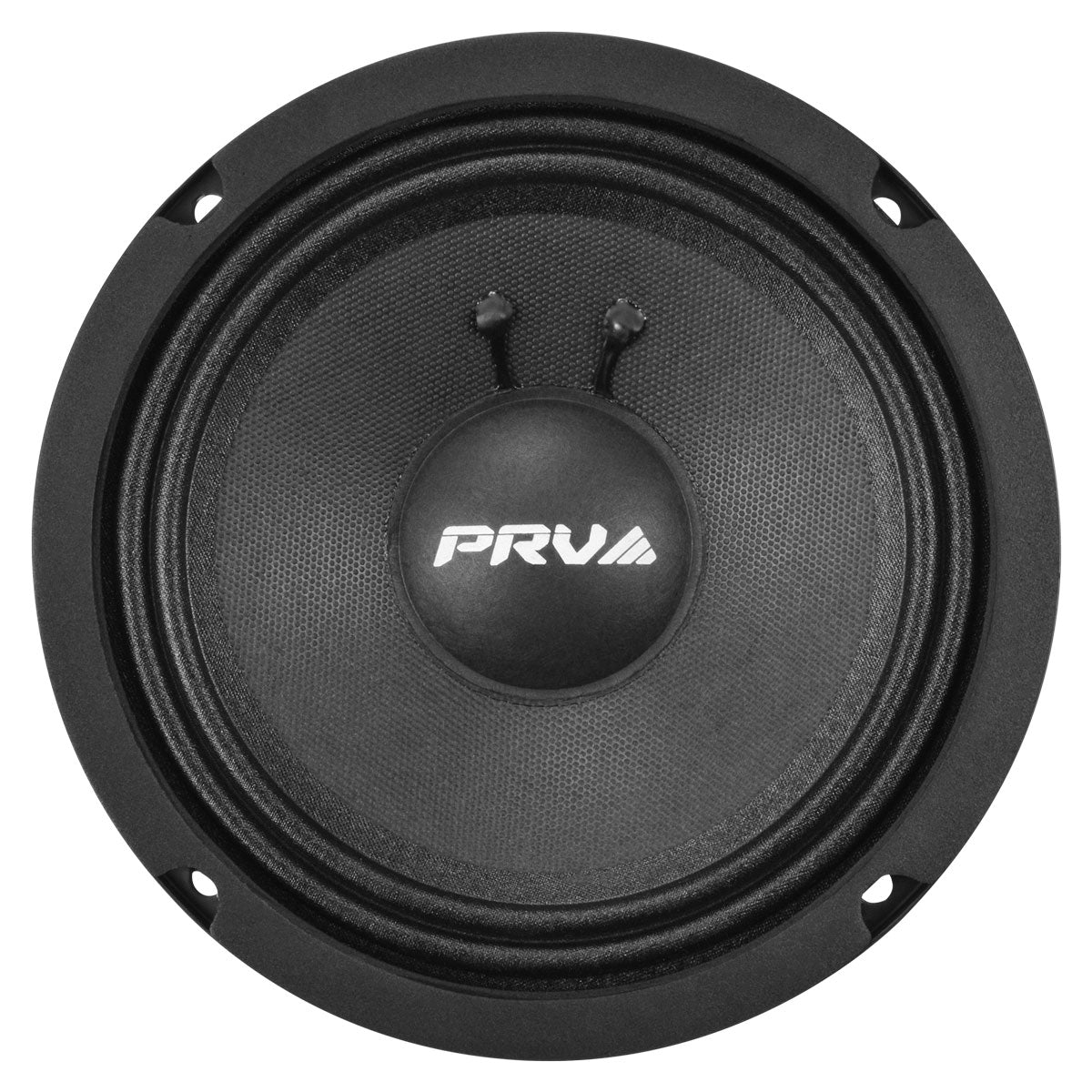

Featuring a naturally damp paper cone, this professional speaker is able to cover a wide range of frequencies from 95 Hz to 7,500 Hz in three-way systems.

Developed to perform well in tight enclosures, its double roll surround keeps cone travel linear at high excursion. The right combination of cone and suspension gives this speaker an excellent human vocal reproduction with dynamic midbass sound.

PRV 6.5″ Midbass Speaker 6MB400-4 PRO Audio 400 Watts / 4 Ohm

Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP or the amplifier filter, when using the recommended power below:

Stereo System, Low Power
2 Speakers – 1x QS800.4 2 Ohm, One Speaker per Channel ( using CH1 & CH2)
• Fixed HPF from amplifier – 90 Hz at 12 dB per octave filter Crossover
– May use the other 2 free channels on the amplifier for tweeters.

Stereo System, High Power
2 or 4 Speakers – 1x MDX1200.2 2 Ohm, 1 or 2 Speakers per Channel
• Fixed HPF from amplifier – 80 Hz at 12 dB per octave filter Crossover
when using up to 300 Watts RMS musical power

Custom System, High Power
4 Speakers – 1x MDX1800.1 at 1 Ohm, 4 speakers in parallel
• 90 Hz at 18 dB per octave filter Crossover / BT18
when using up to 400 Watts RMS musical power

If you have compression drivers on your system the recommended LPF is 4,200 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 6.5″ (165mm)
  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 200 Watts
  • Continuous Program Power (RMS)** 400 Watts
  • Max Peak Power*** 800 Watts
  • Sensitivity 2.83V at 1m94 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 95 Hz 12db Per Octave Crossover

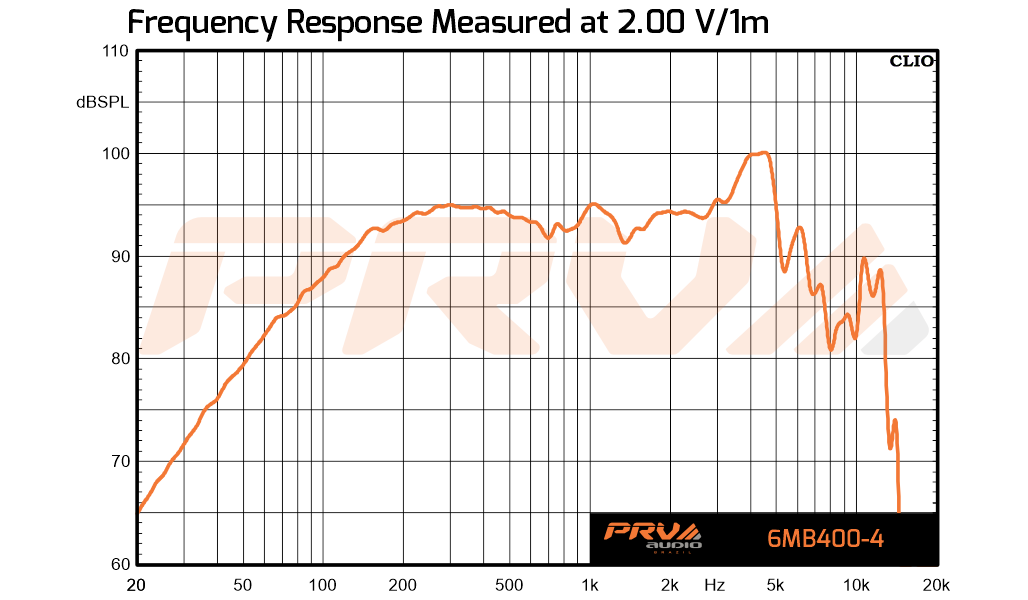

  • Frequency Response at -10dB 95 – 7,500 Hz
  • Voice Coil Diameter 1.5″ (38 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth10.0 mm
  • Former Material Kapton
  • Magnetic Gap Depth 8.0 mm
  • Frame Material Stamped Steel
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 5.3 l
  • Excursion (mathematical)**
    • Xmax
    • 3.00 mm
  • Free Air Resonance
    • Fs
    • 124.8 Hz
  • Mechanical Factor
    • Qms
    • 9.53
  • Electrical Factor
    • Qes
    • 0.56
  • Total Factor
    • Qts
    • 0.52
  • Cone Area
    • Sd
    • 147 cm²
  • Mechanical Mass
    • Mms
    • 9.30 g
  • BI Factor
    • Bl
    • 6.58 Tm
  • Dc Resistance
    • Re
    • 3.3 Ohm
  • Inductance
    • Le
    • 0.36 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 8.29 g
  • Mechanical Compliance
    • Cms
    • 0.174 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 6MB400-4 Midbass DATASHEET Download

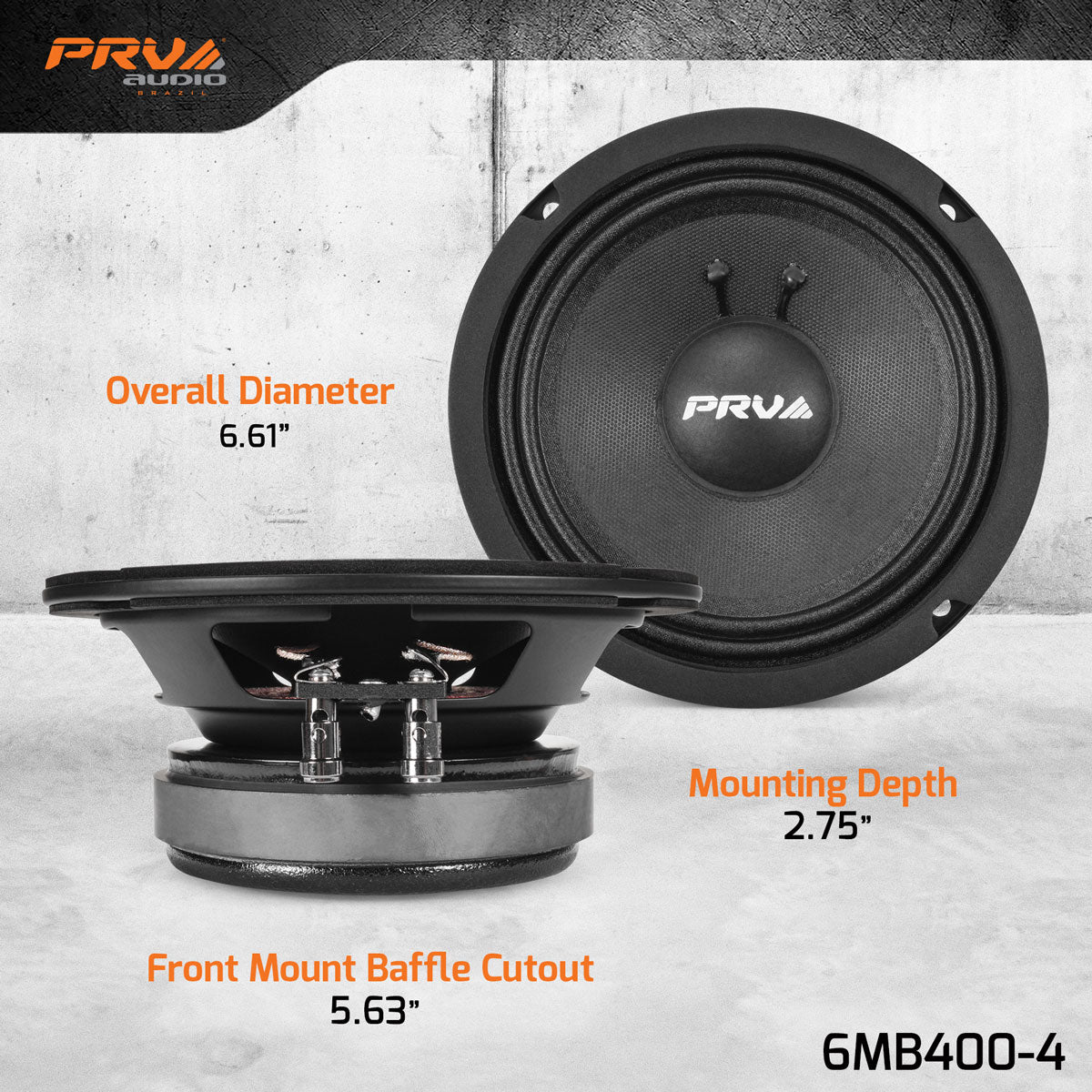

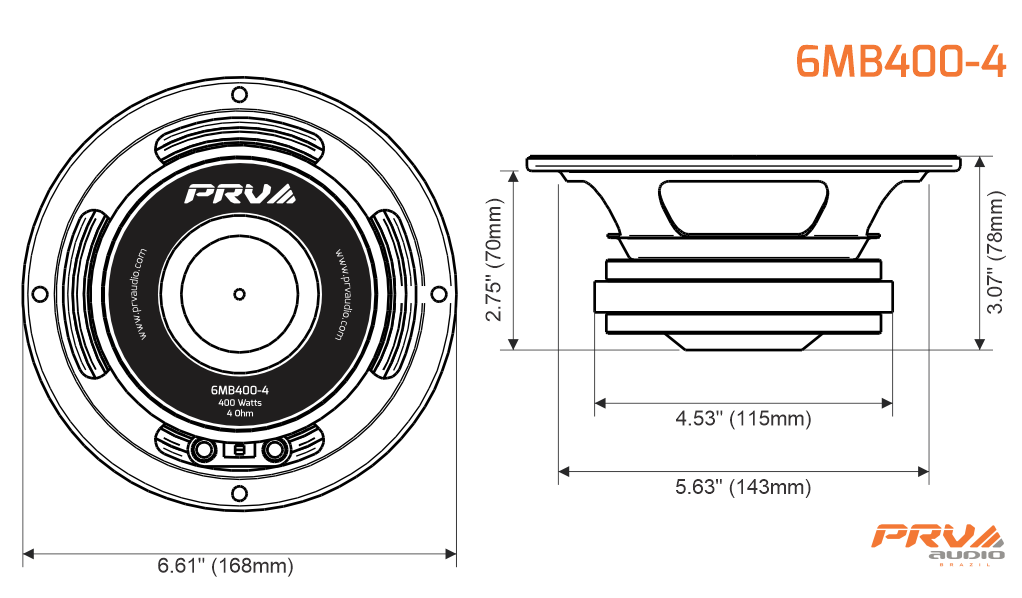

  • Overall Depth 3.07″ (78 mm)
  • Mounting Depth 2.75″ (70 mm)
  • Overall Diameter 6.61″ (168 mm)
  • Front Mount Baffle Cutout 5.63″ (143 mm)
  • Net Weight 4.80 Lbs (2.16 kg)
  • Shipping Weight 5.10 Lbs (2.32 kg)
  • Carton Dimensions WxLxH 7.09″ x 7.09″ x 3.35″ (180 x 180 x 85 mm)
PRV 6MB400-4 Midbass DATASHEET Download
