Black Friday Special

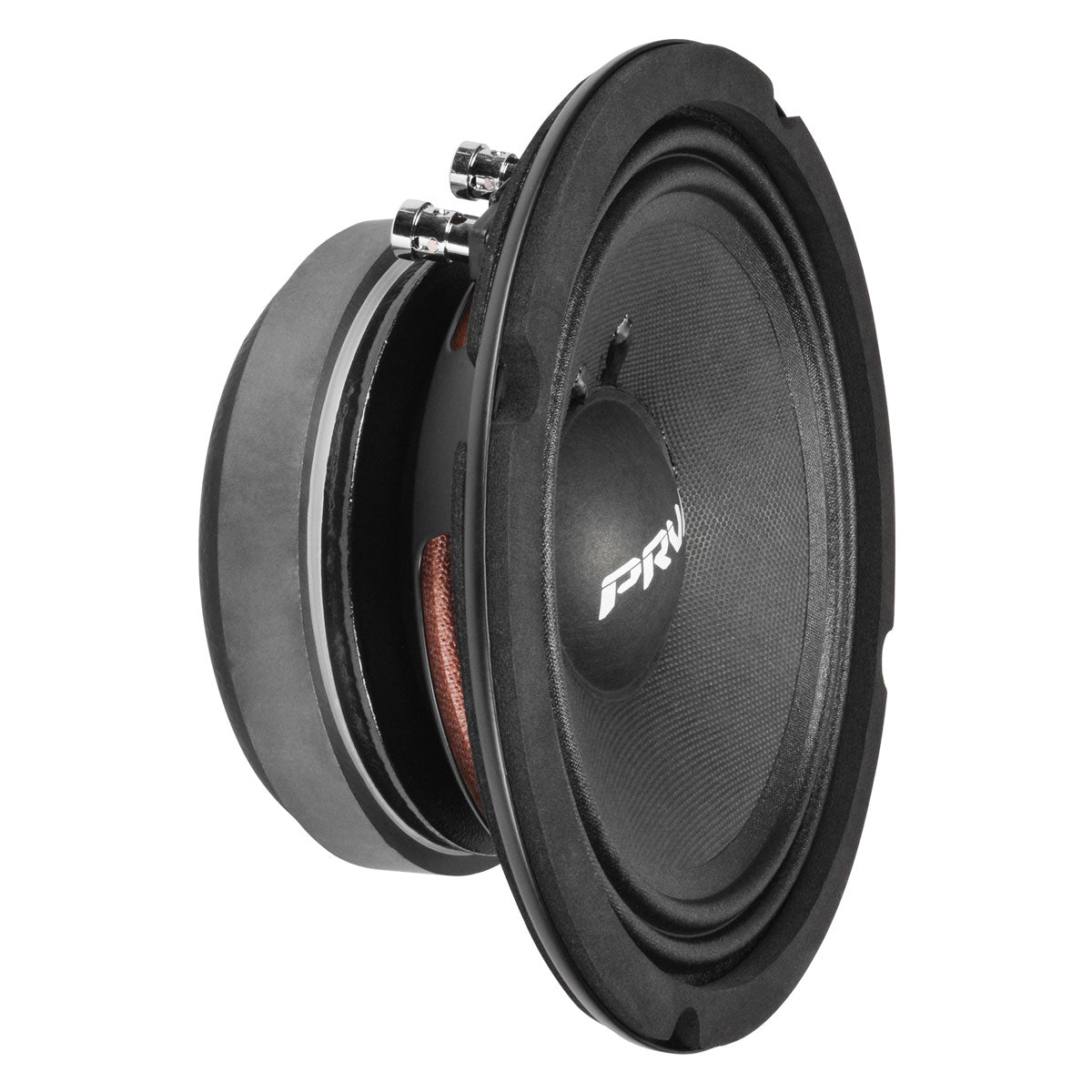

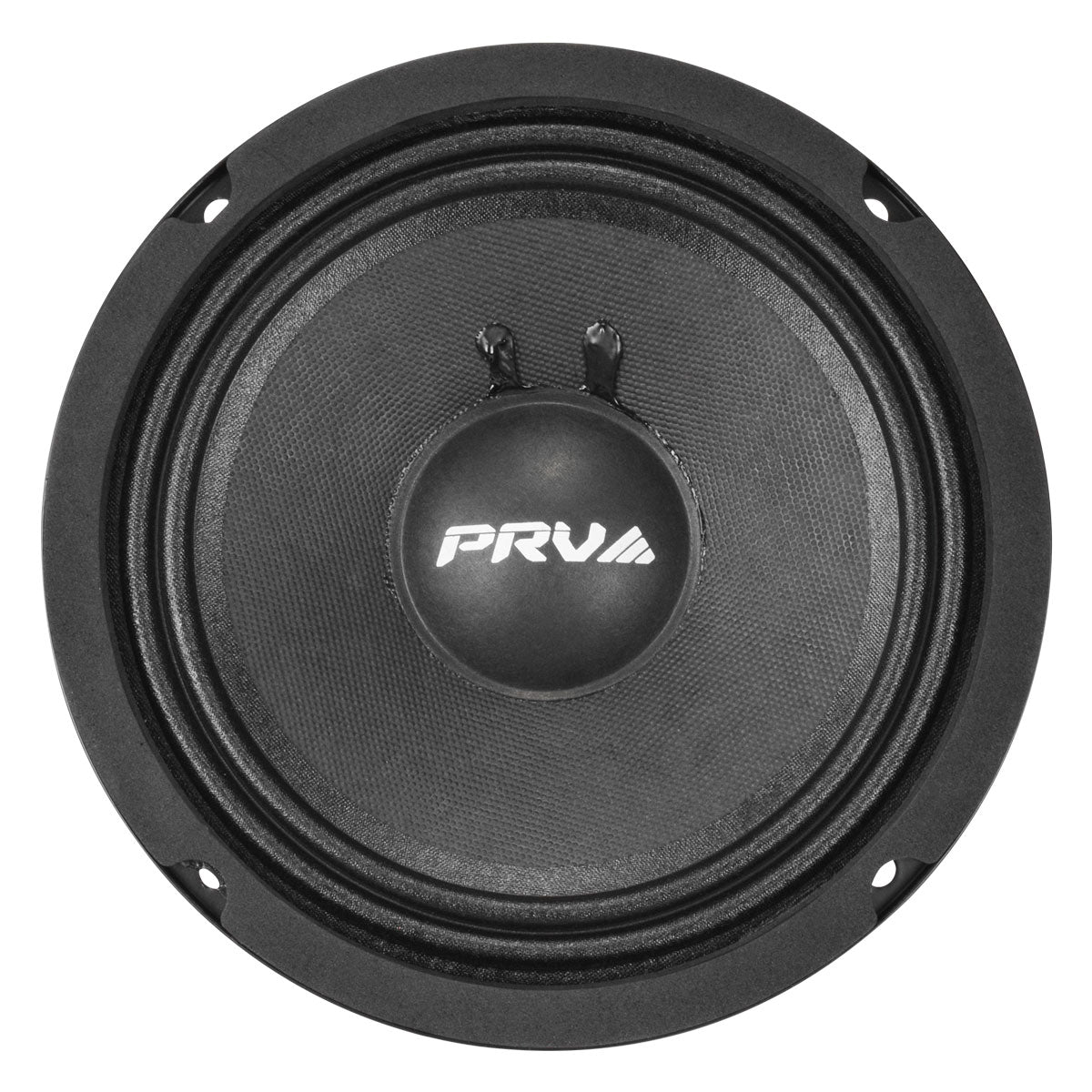

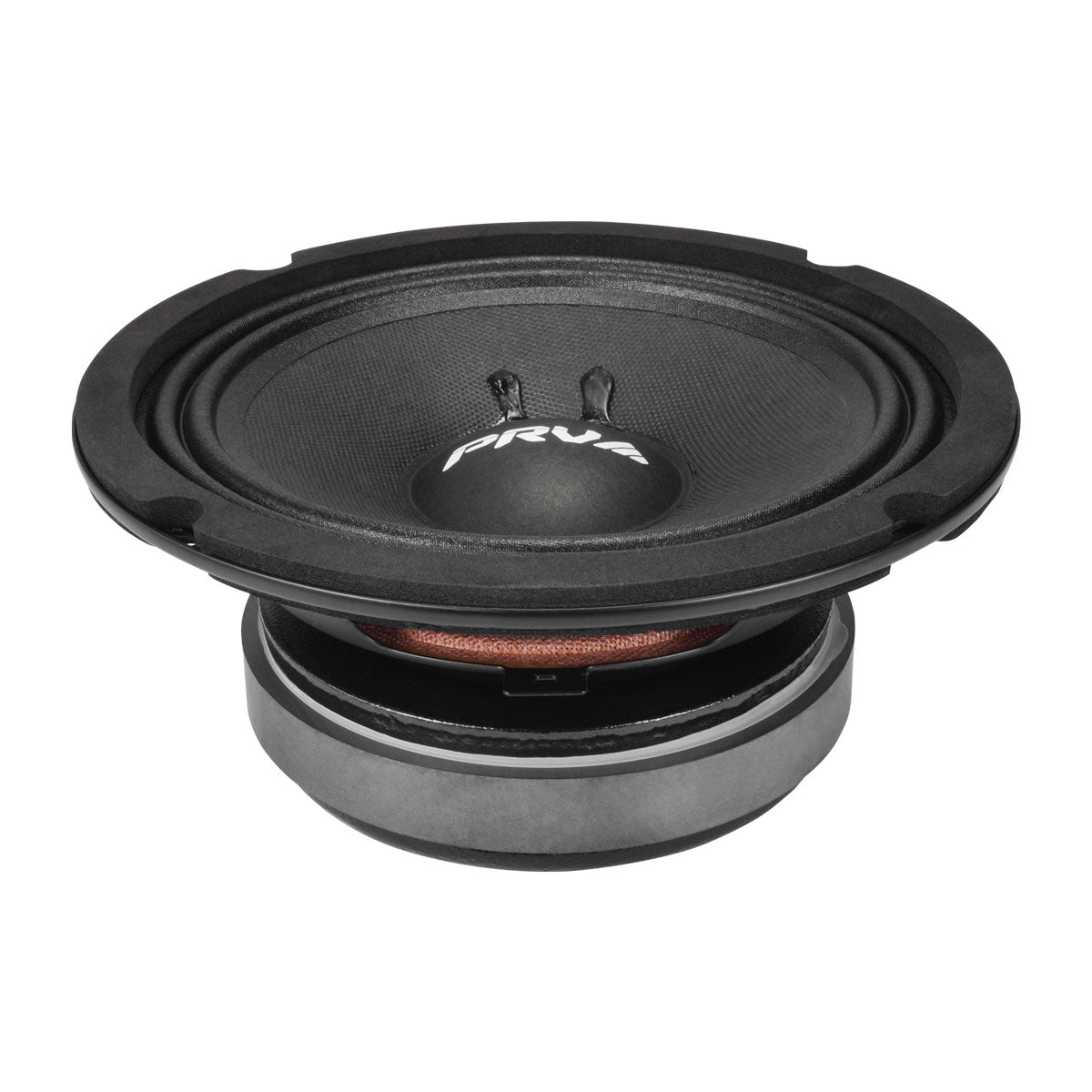

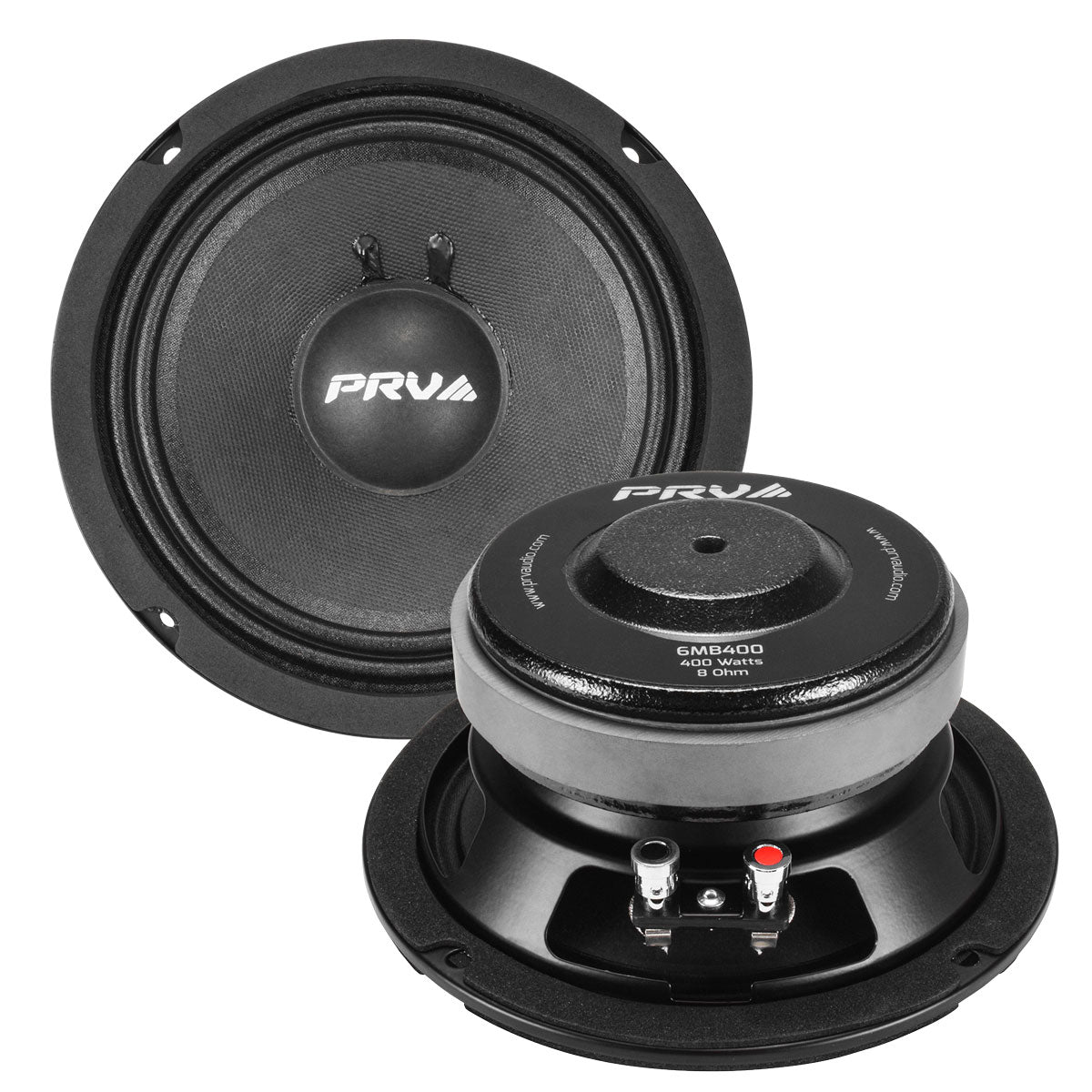

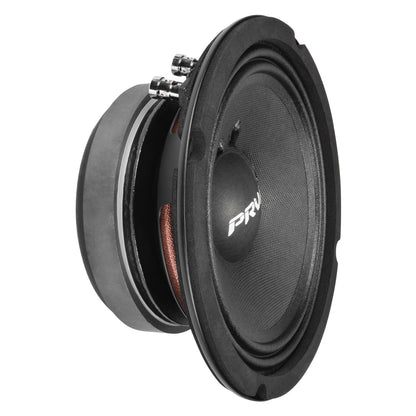

PRV 6MB400 Midbass

PRV 6MB400 Midbass

SKU: 6MB400
Black Friday Special

PRV 6MB400 Midbass

PRV 6MB400 Midbass

SKU: 6MB400

  • 6.5" Midbass - 8 Ohm

  • Ferrite Magnet

  • 94 dB - 400 Watts

$20.65
$49.89

In stock

  • 6.5" Midbass - 8 Ohm

  • Ferrite Magnet

  • 94 dB - 400 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The 6MB400 was designed to provide outstanding durability as well as a smooth punch of mid bass. This 6.5″ professional loudspeaker midbass is purpose-built to cover the critical frequency range in a three-way speaker setup, but also works great as a door speaker in car audio applications. The future is here! Smaller and more powerful mids.

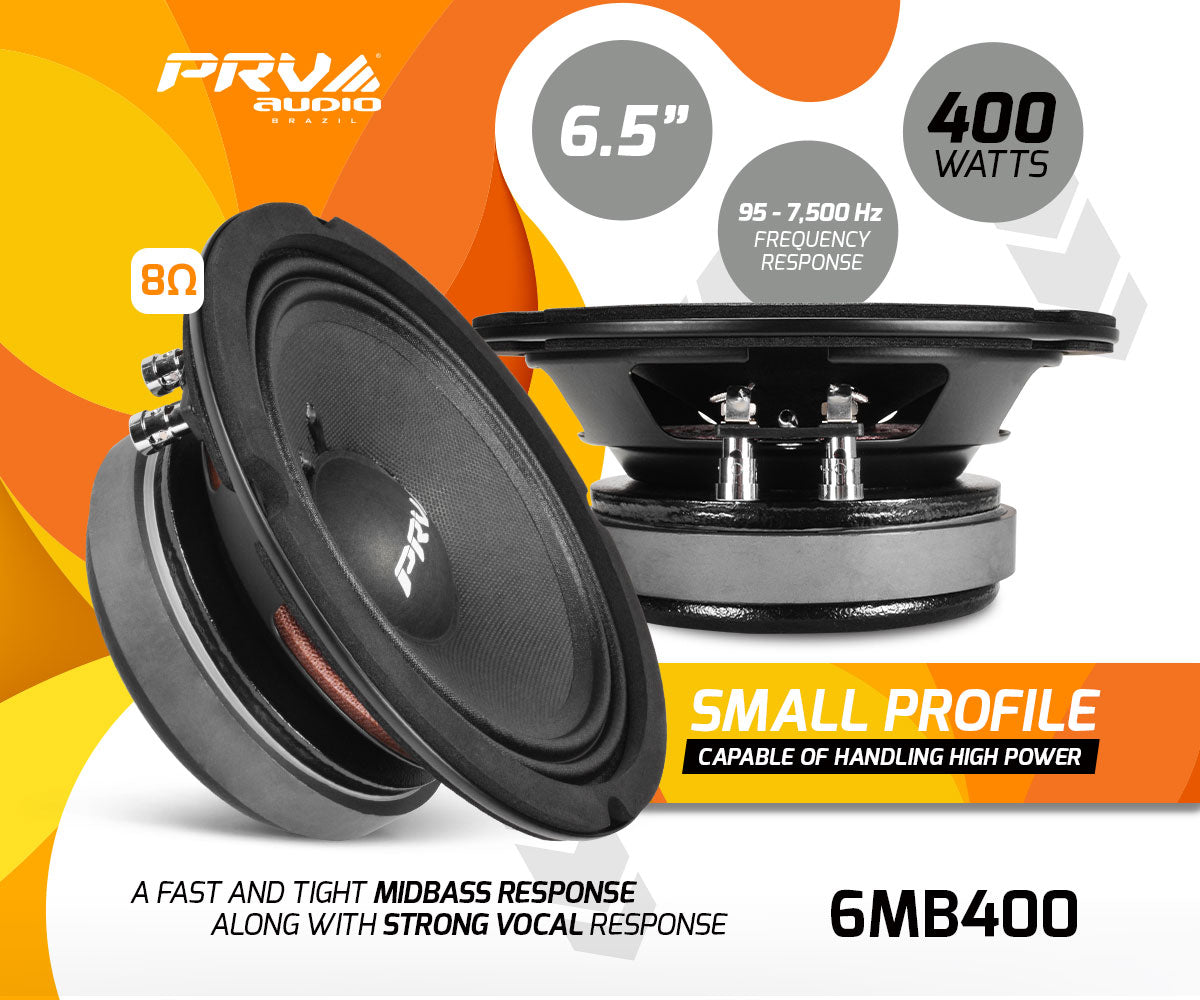

  • A fast and tight midbass response along with a strong vocal response
  • Small profile capable of handling high power, smaller but yet powerful

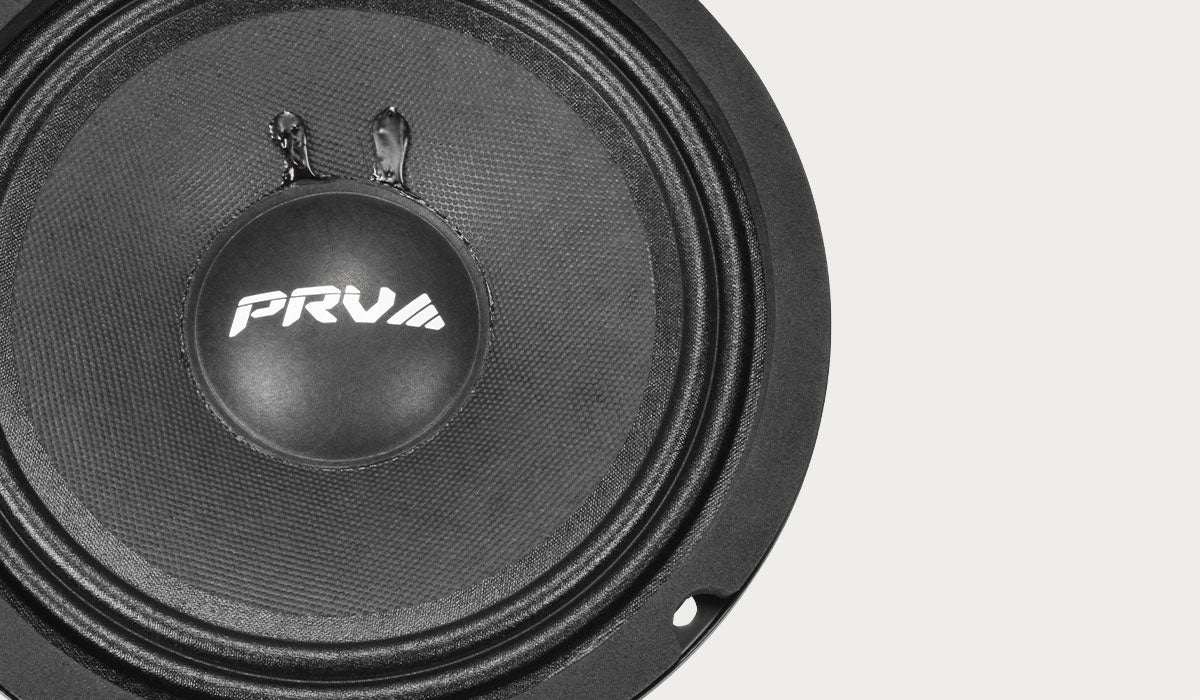

  • Natural paper cone and double-roll surround for smooth response
  • Handles 400 Watts, guaranteeing endurance at loudest volumes
  • Impressive choice for high output home, car, and professional audio systems – 8 Ohm impedance

Built with many premium components to ensure absolute high sound fidelity, one of which is its compact push terminals, which connect to its silver tinsel lead wires attached to its high temperature CCAW voice coil.

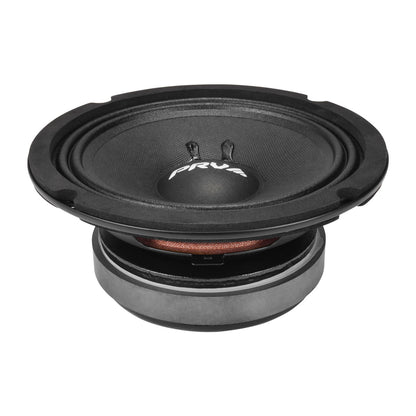

Don’t underestimate its compact motor design! Featuring the latest technology we can increase tremendously the magnet field without huge magnet, making this midbass one of its kinda, small profile capable of handling high power!

Featuring a naturally damped paper cone this professional speaker is able to cover a wide range of frequencies from 95 Hz to 7,500 Hz in three-way systems.

Developed to perform well in tight enclosures, its double roll surround keeps cone travel linear at high excursion. This gives this speaker unsurpassed human vocal reproduction with dynamic midbass sound.

PRV 6.5″ Midbass PRO Audio Speaker 6MB400 High Ouput 400 Watts / 8 Ohm

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

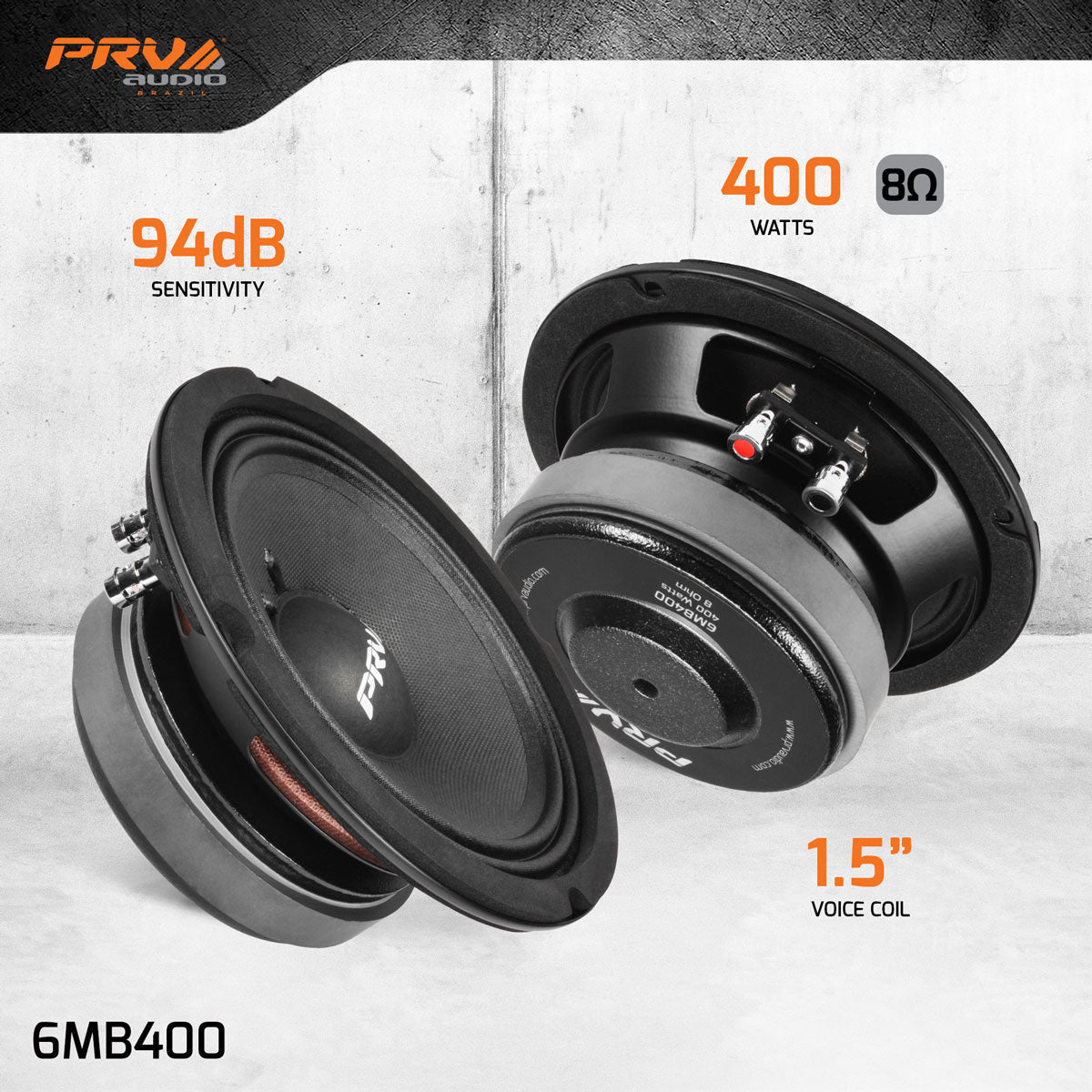

  • Nominal Diameter 6.5″ (152 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 200 Watts
  • Continuous Program Power (RMS)** 400 Watts
  • Program Power*** 400 Watts
  • Max Peak Power*** 800 Watts
  • Sensitivity 2.83V at 1m 94 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 95 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 95 – 7,500 Hz
  • Voice Coil Diameter 1.5″ (38 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth12.0 mm
  • Former Material Kapton
  • Magnetic Gap Depth 8.0 mm
  • Frame Material Stamped Steel

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 5.69 l
  • Excursion (mathematical)**
    • Xmax
    • 4.00 mm
  • Free Air Resonance
    • Fs
    • 117.4 Hz
  • Mechanical Factor
    • Qms
    • 8.97
  • Electrical Factor
    • Qes
    • 0.64
  • Total Factor
    • Qts
    • 0.60
  • Cone Area
    • Sd
    • 147 cm²
  • Mechanical Mass
    • Mms
    • 9.80 g
  • BI Factor
    • Bl
    • 8.26 Tm
  • Dc Resistance
    • Re
    • 6.1 Ohm
  • Inductance
    • Le
    • 0.53 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 7.79 g
  • Mechanical Compliance
    • Cms
    • 0.187 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 6MB400 Midbass DATASHEET Download

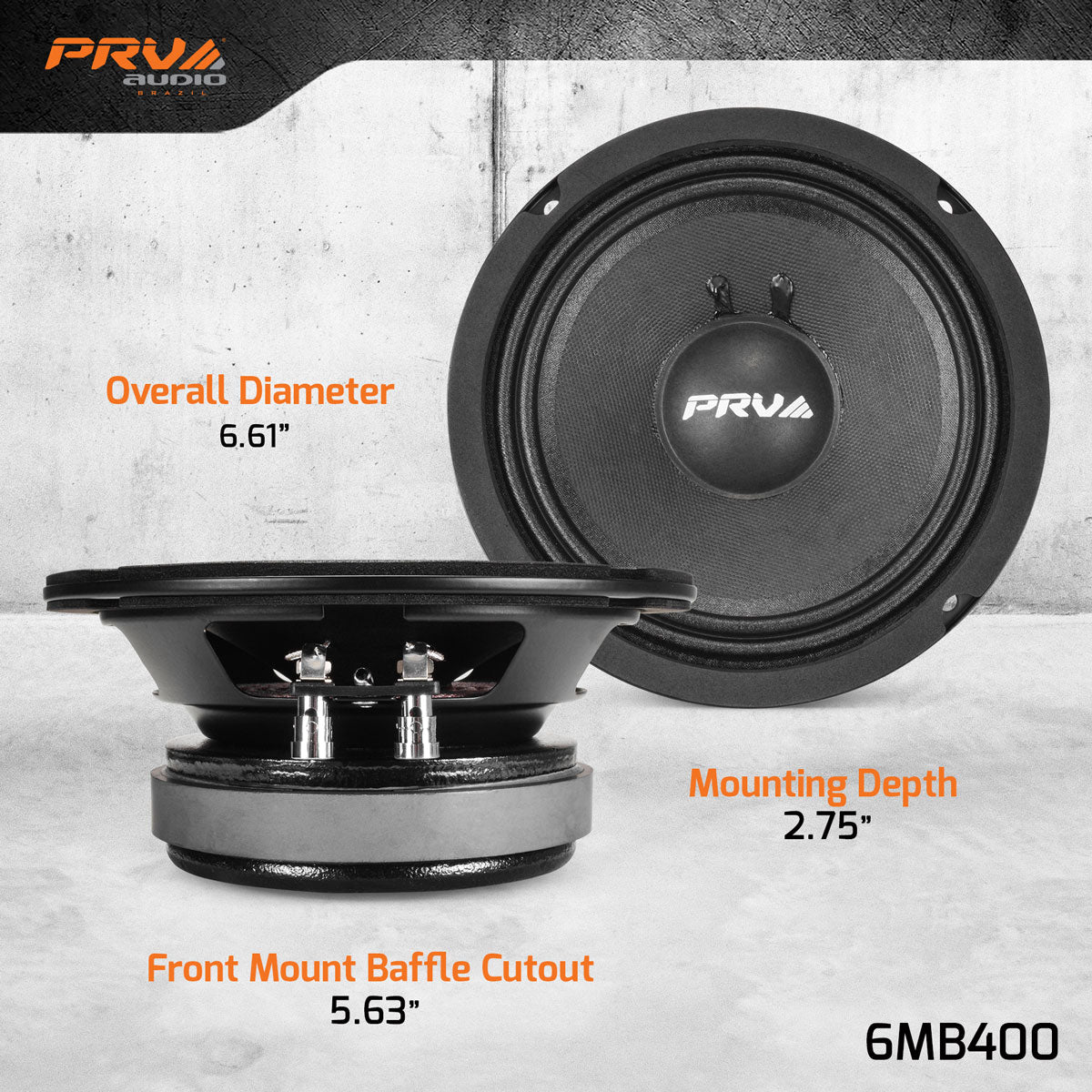

  • Overall Depth 3.07″ (78 mm)
  • Mounting Depth 2.75″ (70 mm)
  • Overall Diameter 6.61″ (168 mm)
  • Front Mount Baffle Cutout 5.63″ (143 mm)
  • Net Weight 4.80 Lbs (2.16 kg)
  • Shipping Weight 5.10 Lbs (2.32 kg)
  • Carton Dimensions WxLxH 7.09″ x 7.09″ x 3.35″ (180 x 180 x 85 mm)
PRV 6MB400 Midbass DATASHEET Download
