PRV 2MR50-NDY

PRV 2MR50-NDY

SKU:

PRV 2MR50-NDY

PRV 2MR50-NDY

SKU:

$0.00

Out of stock

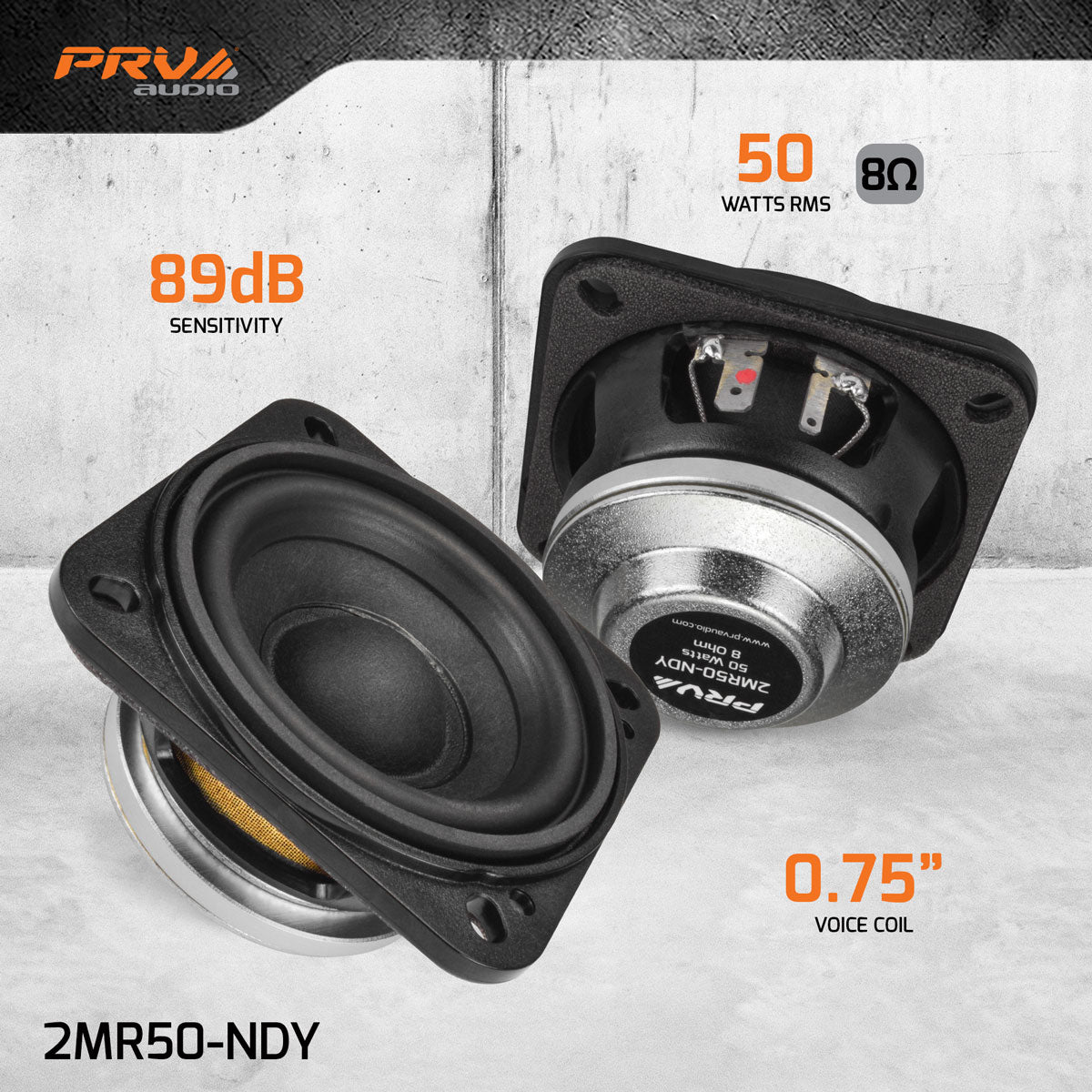

  • 2” Midrange – 8 Ohm
  • Neodymium Magnet
  • 89 dB – 50 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

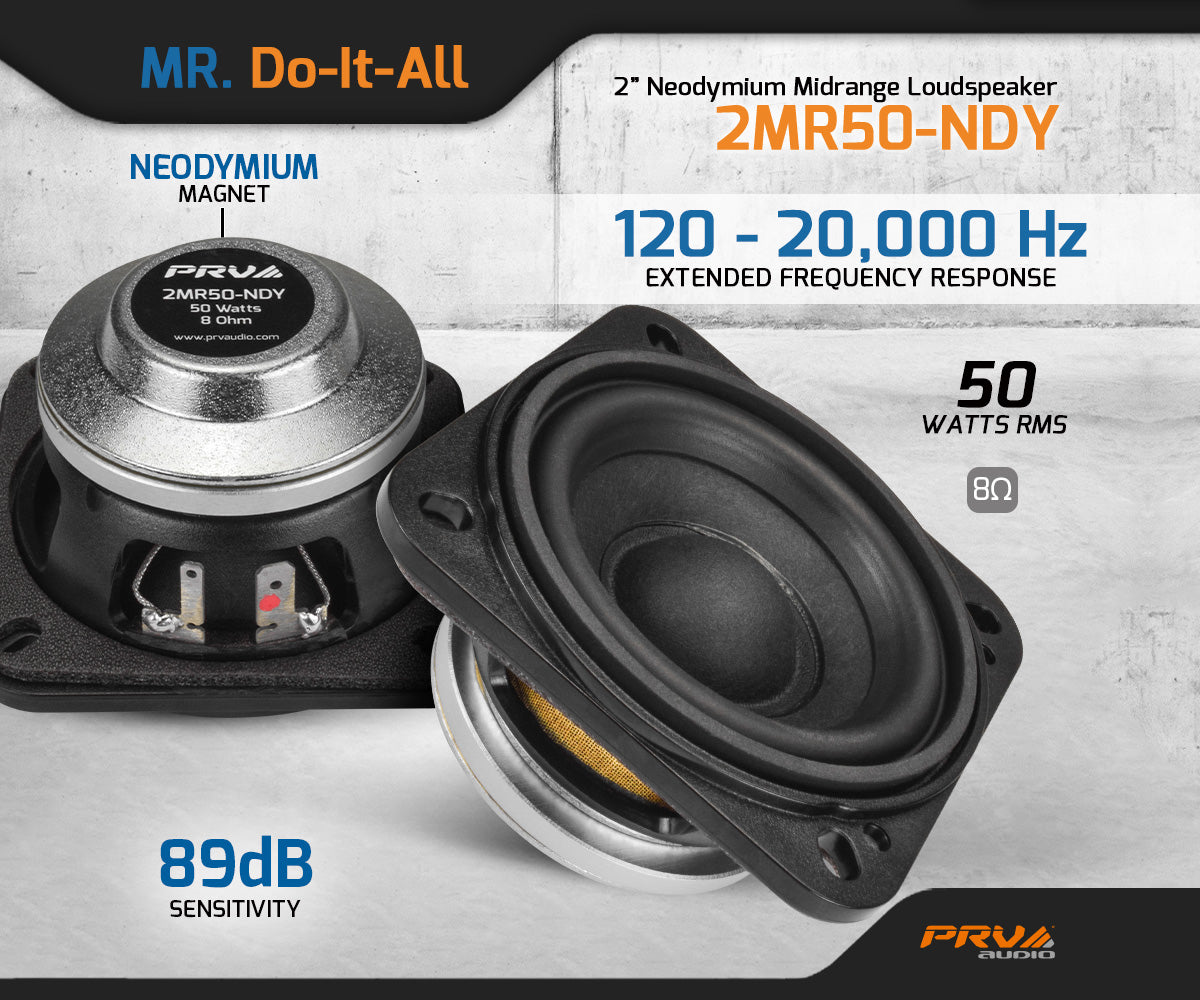

PRV 2″ Full-Range Neodymium Speaker 2MR50-NDY PRO Audio Midrange 50 Watts RMS / 8 Ohm

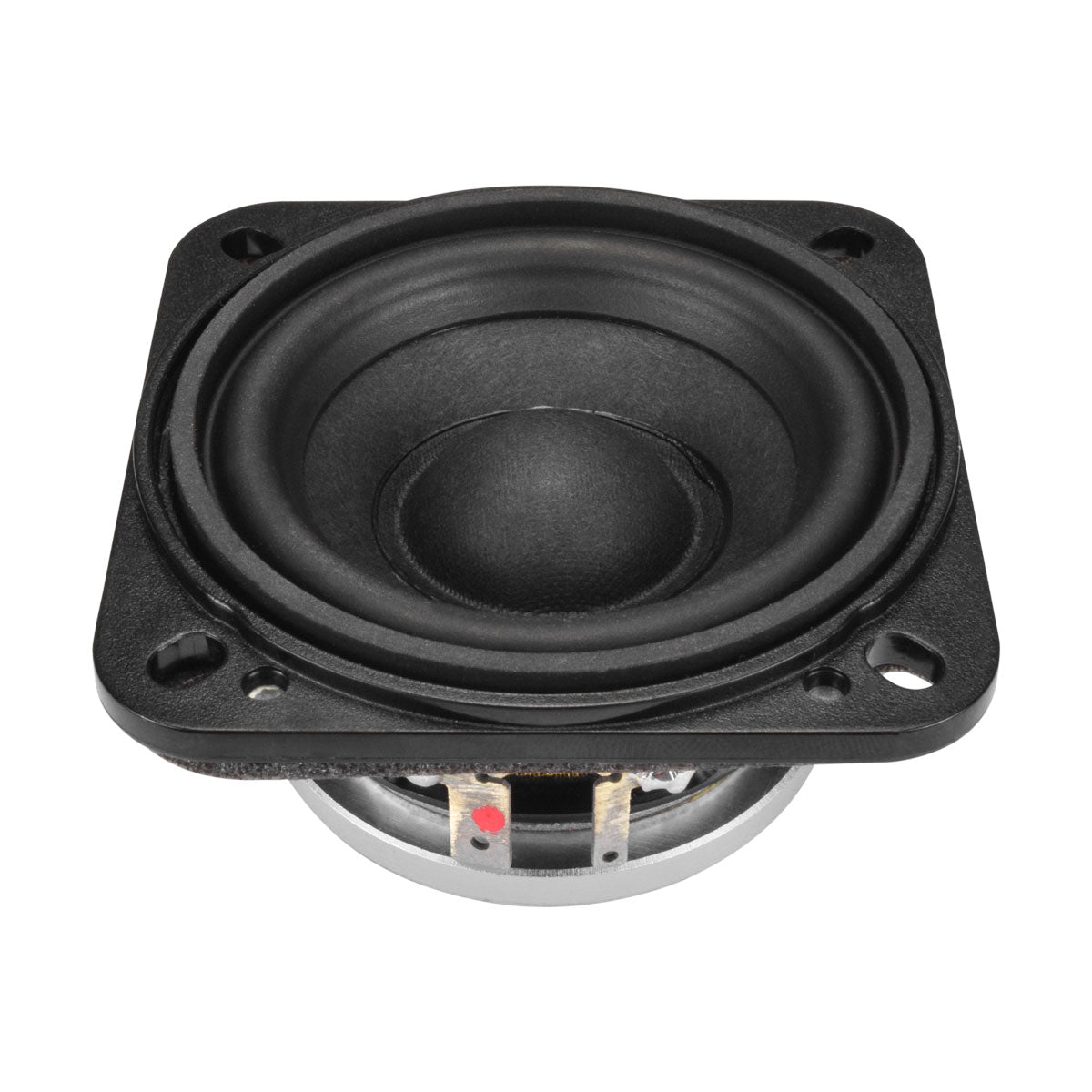

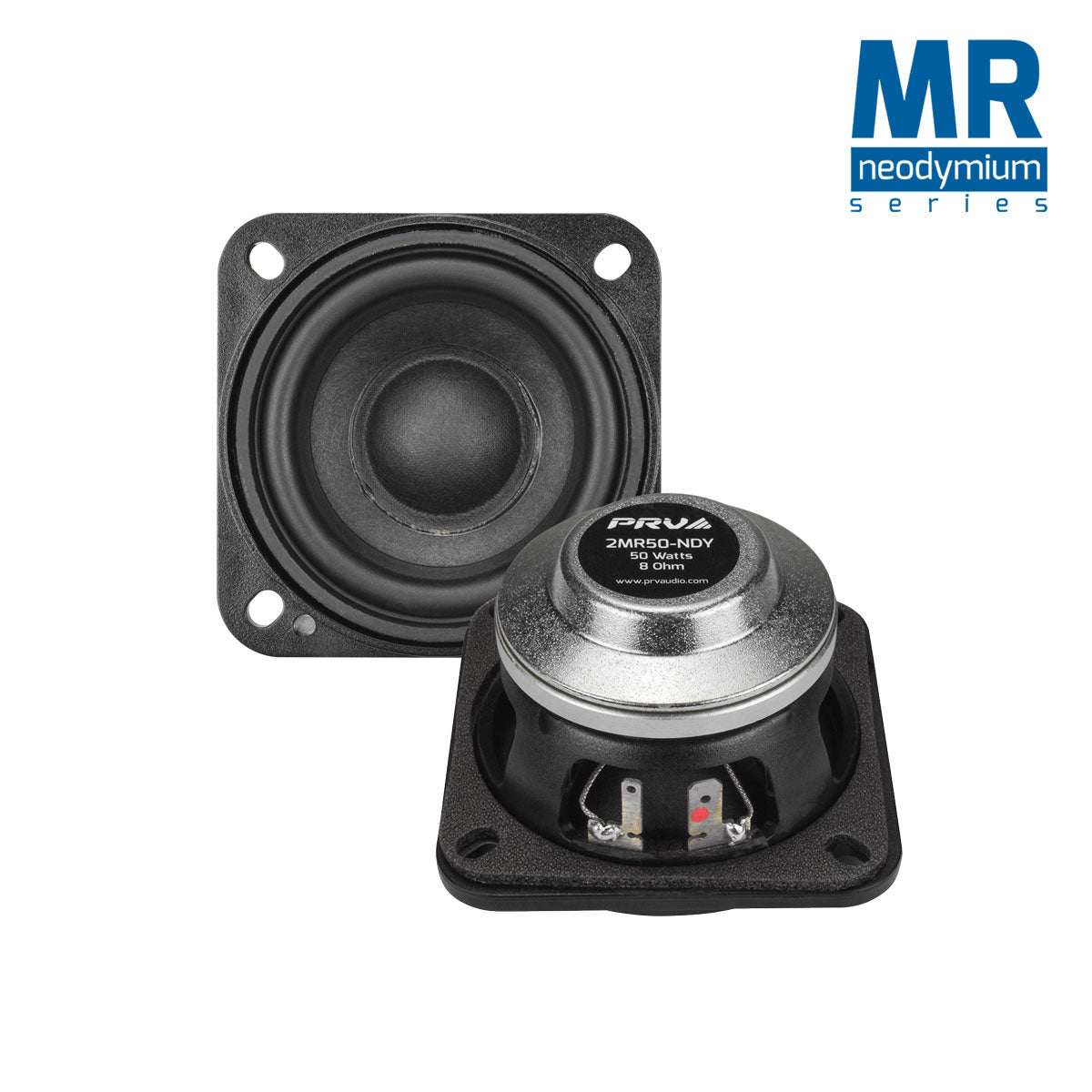

The PRV Audio 2MR50-NDY is a compact 2″ full-range neodymium speaker engineered to deliver impressive sound quality and high output in applications where space and weight are critical.

Designed for versatility, you can use this speaker in so many different projects. These include portable Bluetooth speakers, soundbars, custom pillars and high-output line array configurations or even the new trend of the mini stuntwall on RC cars.

  • Extended Full-Range Performance: Natural sound reproduction, low distortion, and impressive high-frequency capability. 125 – 20,000Hz Frequency Range.

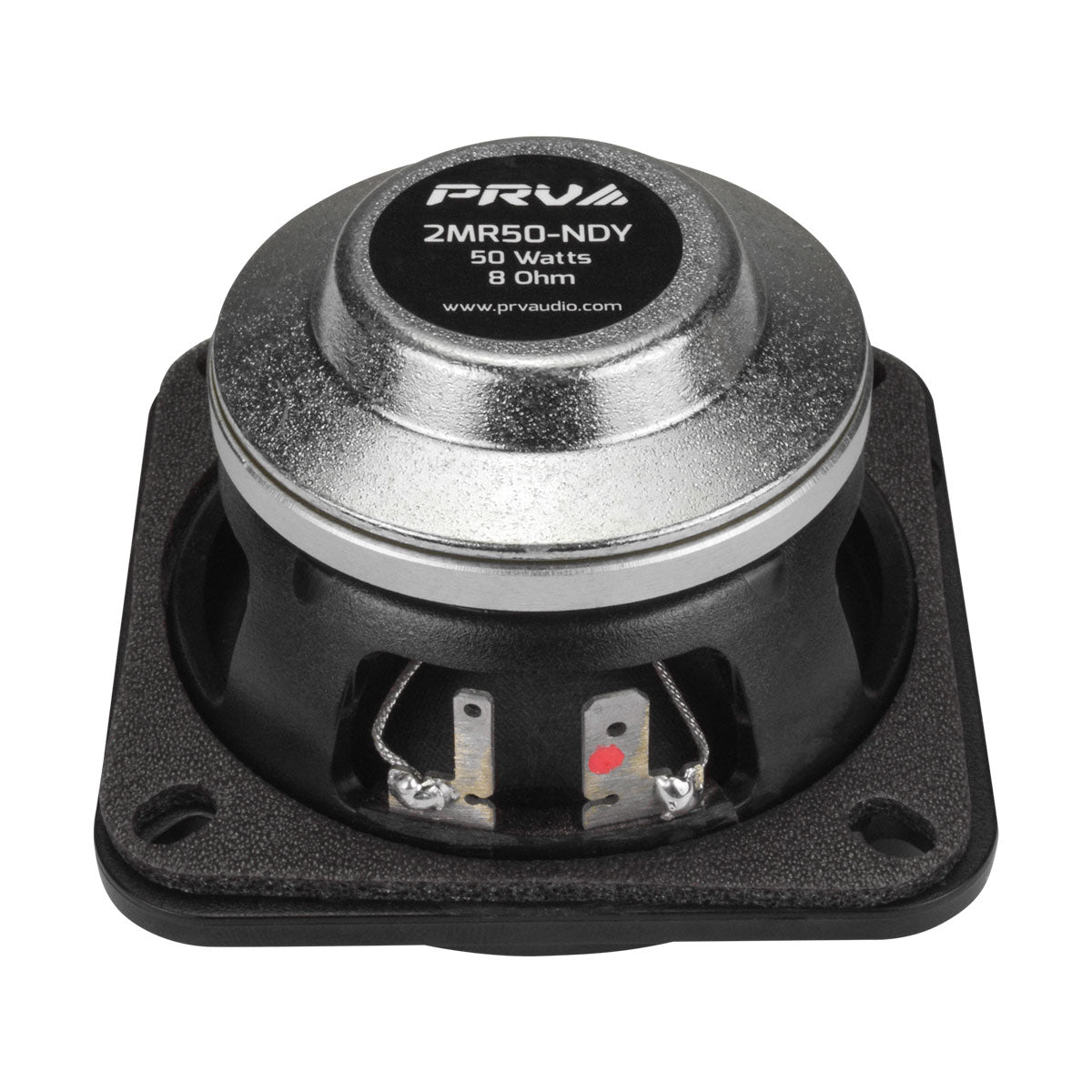

  • Compact Neodymium Motor: Strong neodymium motor, increases efficiency on a compact design.

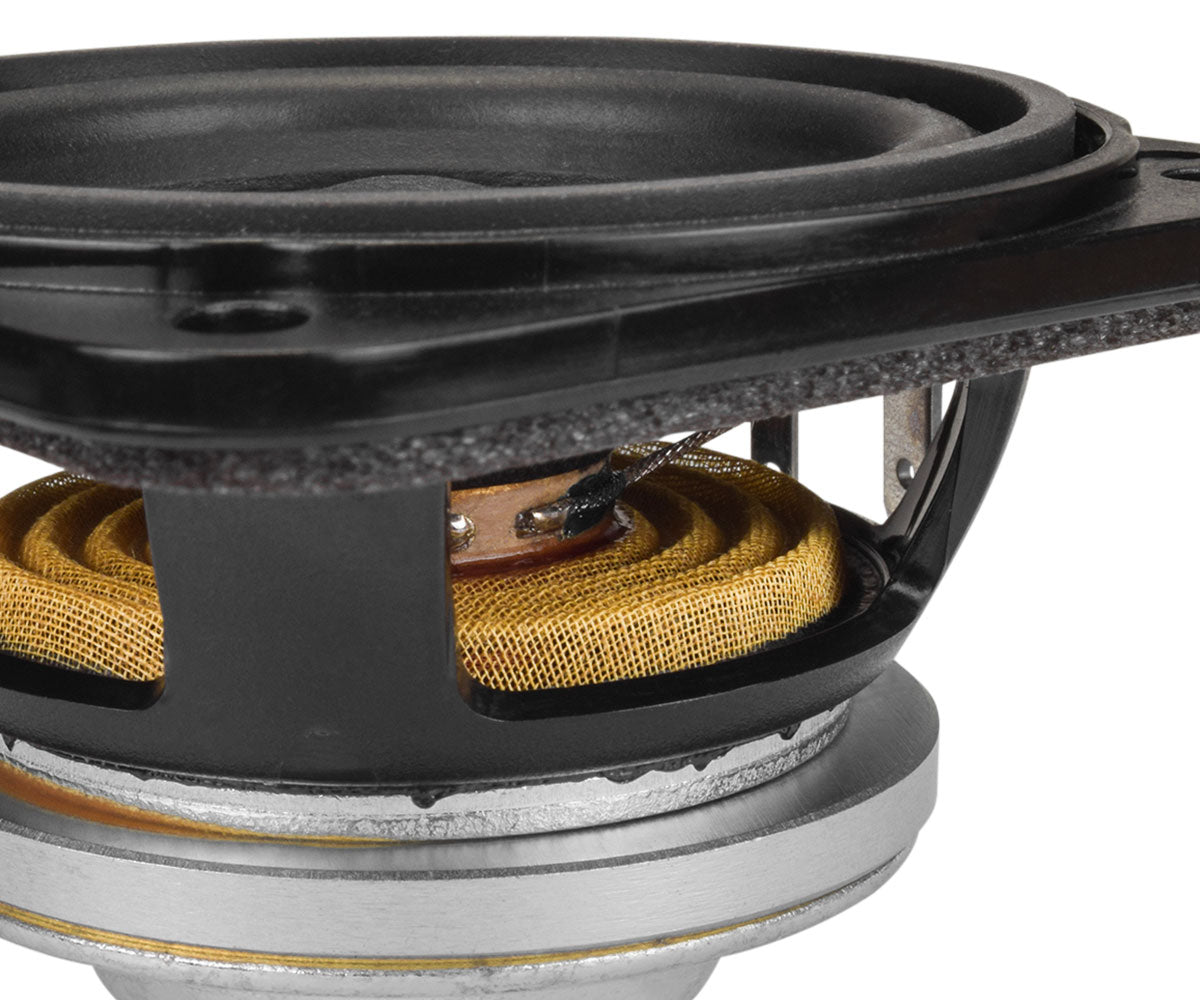

  • Large Diameter Voice Coil of 0.75” - 50 Watts RMS Music Power Handling, with a 89 dB Sensitivity, capable of generating a lot sound with a small cone!

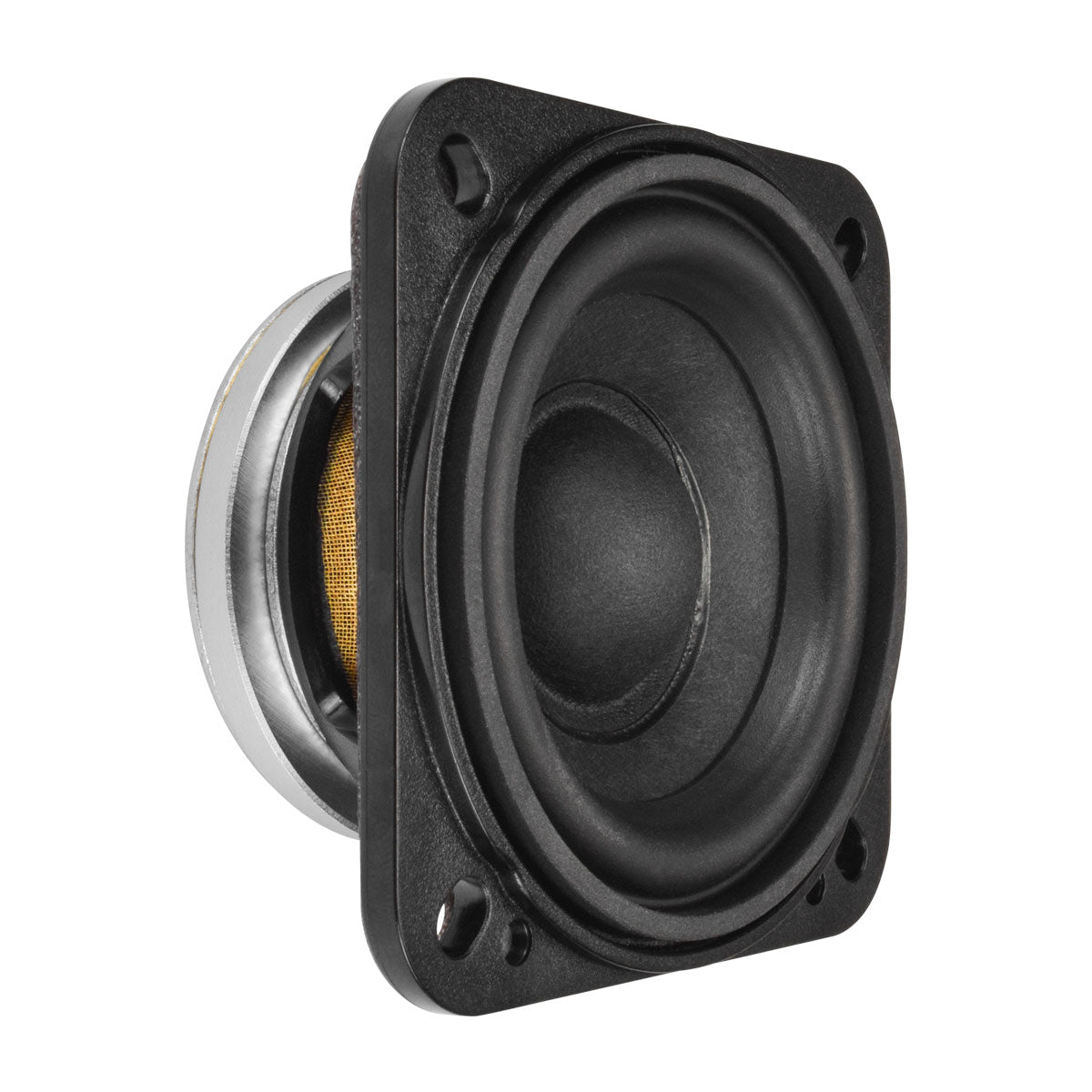

  • Flexible Mounting Design: Oversized mounting flange supports front or rear mounting for easy installation.
  • Versatile Audio Applications: Ideal for Bluetooth speakers, column systems, soundbars, line arrays, and custom car audio systems. 8 Ohm Impedance.

Featuring an extended frequency response and exceptionally wide directivity, this speaker delivers natural sound reproduction, low distortion, and remarkable high-frequency output in a compact design.

Its lightweight construction and extremely low-profile design also make it suitable for custom installations where mounting depth and available space are limited.

Powered by a strong neodymium motor and a 0.75″ voice coil, the 2MR50-NDY combines high efficiency with reliable power handling. With 89 dB sensitivity and 50 Watts RMS power rating this driver produces remarkable output for its size.

For DIY enthusiasts and professional system builders, the oversized mounting basket provides additional installation flexibility. This allows the speaker to be mounted either at the front or rear of the enclosure.

Whether you're developing a compact portable speaker or designing a custom multi-speaker audio system, the 2MR50-NDY delivers the efficiency, clarity, and versatility needed for your next project.

Super well balanced frequency response from 125 to 20,000Hz, making this a MR. Do-It-All with high fidelity sound as a midbass, midrange or full-range speaker.

Installation Guide for Car Audio Applications:

4-8 Speakers – 1x MDX400.4 2 Ohm, 1 or 2 speakers per channel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 50 Watts RMS musical power ( without clipping )

  • 150 Hz at 12 dB per octave filter Crossover / BT12
  • 140 Hz at 18 dB per octave filter Crossover / BT18

If you have tweeters on your system the recommended LPF is 9,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 2.5"
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 25 Watts
  • Rated AES Power Handling (RMS)** 25 Watts
  • Continuous Program Power (RMS)** 50 Watts RMS*
  • Program Power*** 50 Watts
  • Max Peak Power*** 100 Watts
  • Sensitivity 2.83V at 1m89 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 150 Hz*

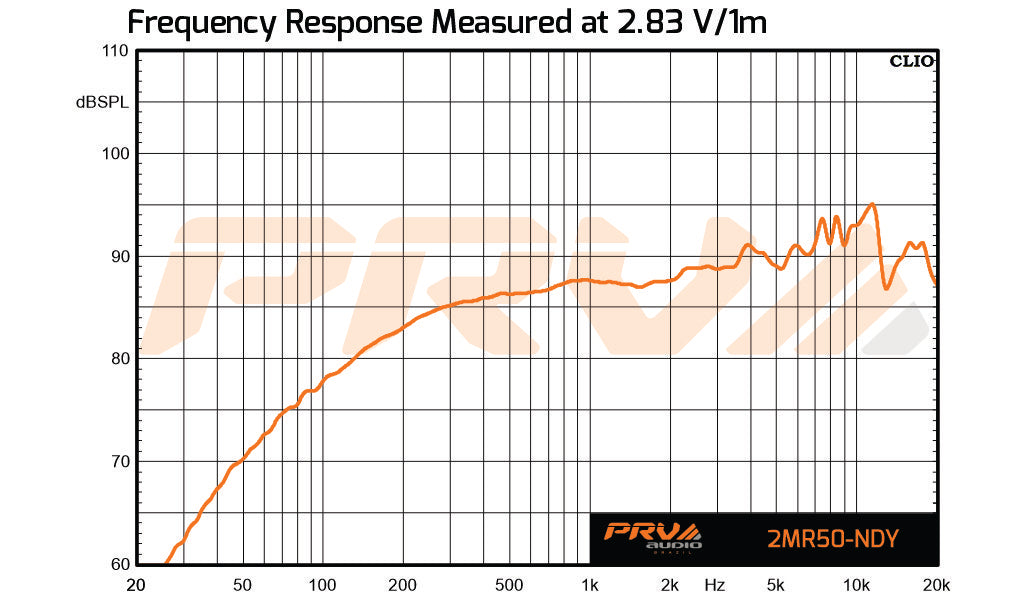

  • Frequency Response at -10dB 125 - 20,000 Hz
  • Voice Coil Diameter 3/4" (19 mm)
  • Voice Coil Wire Aluminum
  • Voice Coil Winding Depth6.8 mm
  • Former Material Kapton
  • Magnetic Gap Depth 3.0 mm
  • Frame Material Plastic (PC)

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • 0.44 L
  • Excursion (mathematical)**
    • 2.90 mm
  • Free Air Resonance
    • 123.8 Hz
  • Mechanical Factor
    • 3.84
  • Electrical Factor
    • 0.41
  • Total Factor
    • 0.37
  • Cone Area
    • 20 cm²
  • Mechanical Mass
    • 2.01 g
  • BI Factor
    • 4.97 Tm

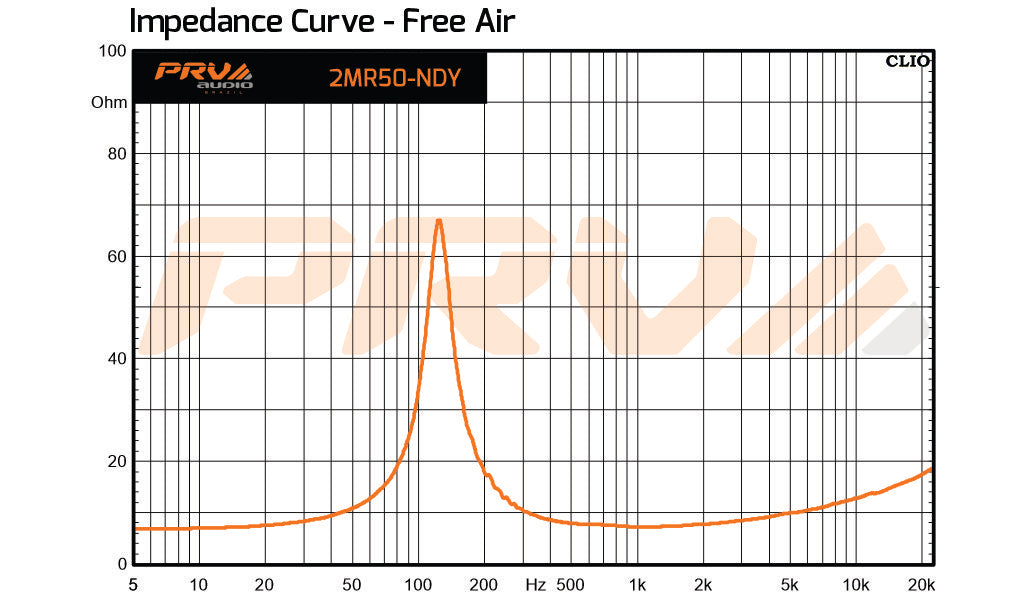

  • Dc Resistance
    • 6.5 Ohm
  • Inductance
    • 0.15 mH at 1 kHz
  • Mechanical Mass Without Air
    • 1.96 g
  • Mechanical Compliance
    • 0.82 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 2MR50-NDY DATASHEET Download

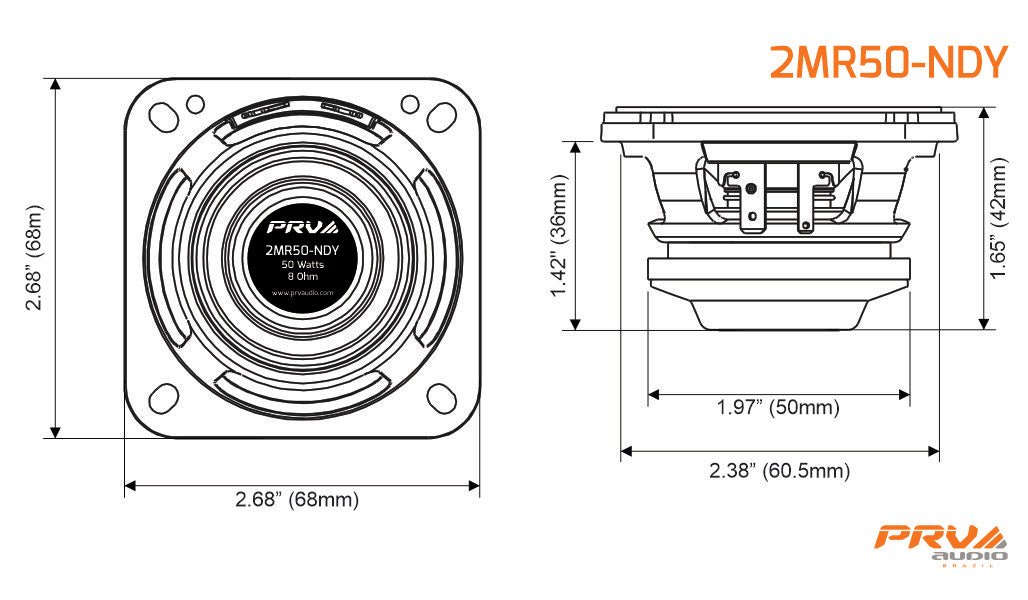

  • Overall Depth 1.65" (42 mm)
  • Mounting Depth 1.42" (36 mm)
  • Overall Diameter 2.68" (68 mm)
  • Front Mount Baffle Cutout 2.38" (60.5 mm)
  • Net Weight 0.41 Lbs (0.185 kg)
  • Shipping Weight 0.44 Lbs (0.2 kg)
  • Carton Dimensions WxLxH 3.50 x 3.50 x 2.50
PRV 2MR50-NDY DATASHEET Download
