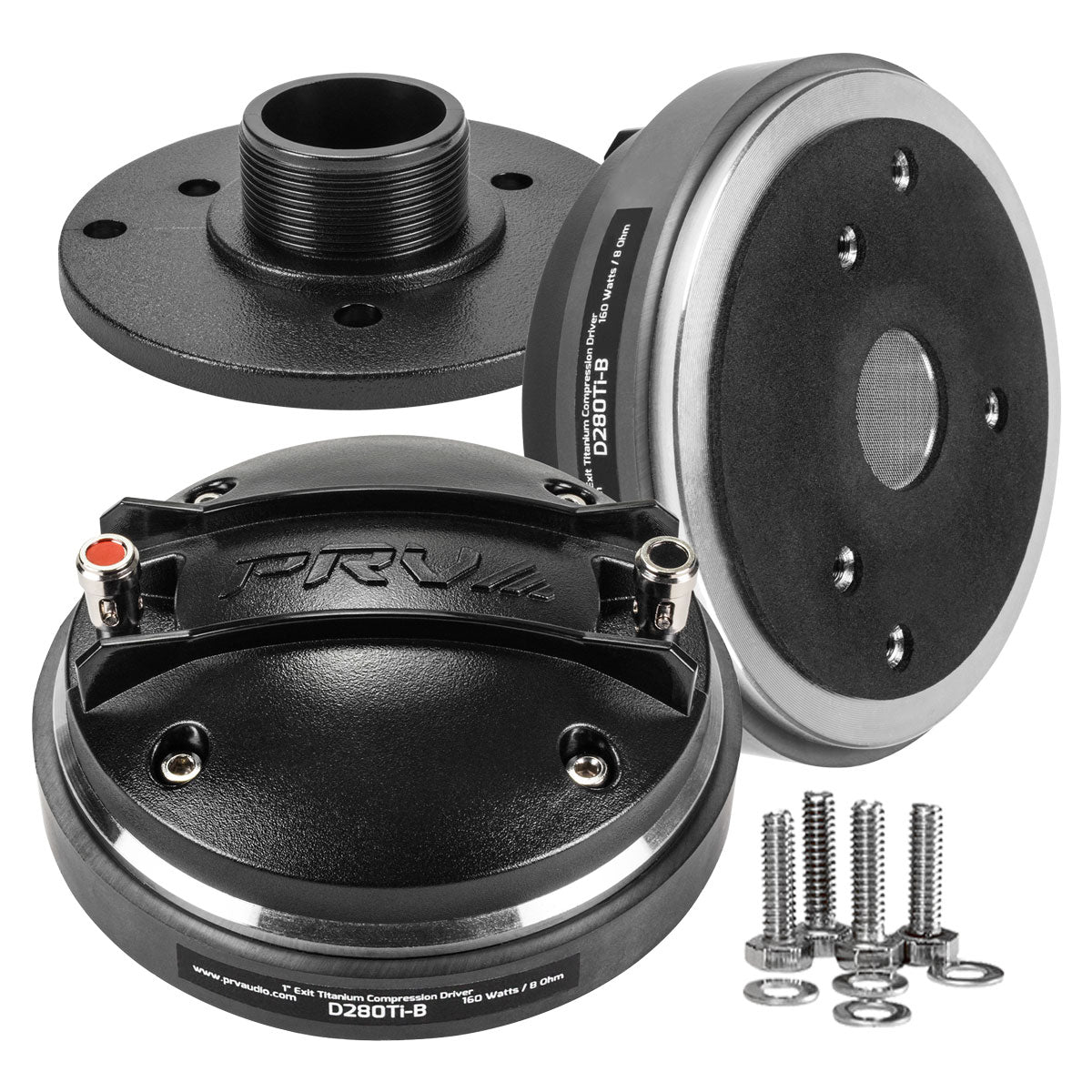

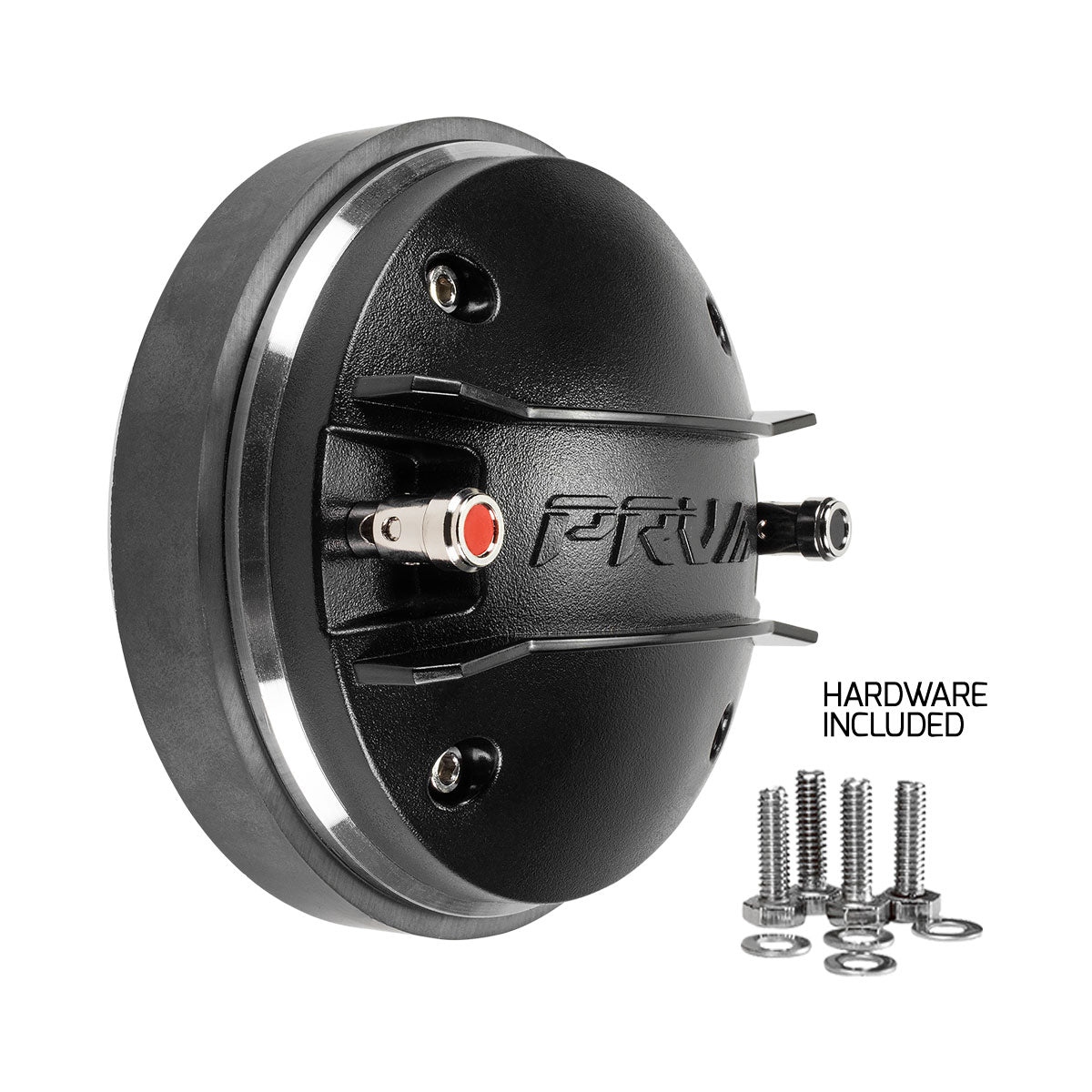

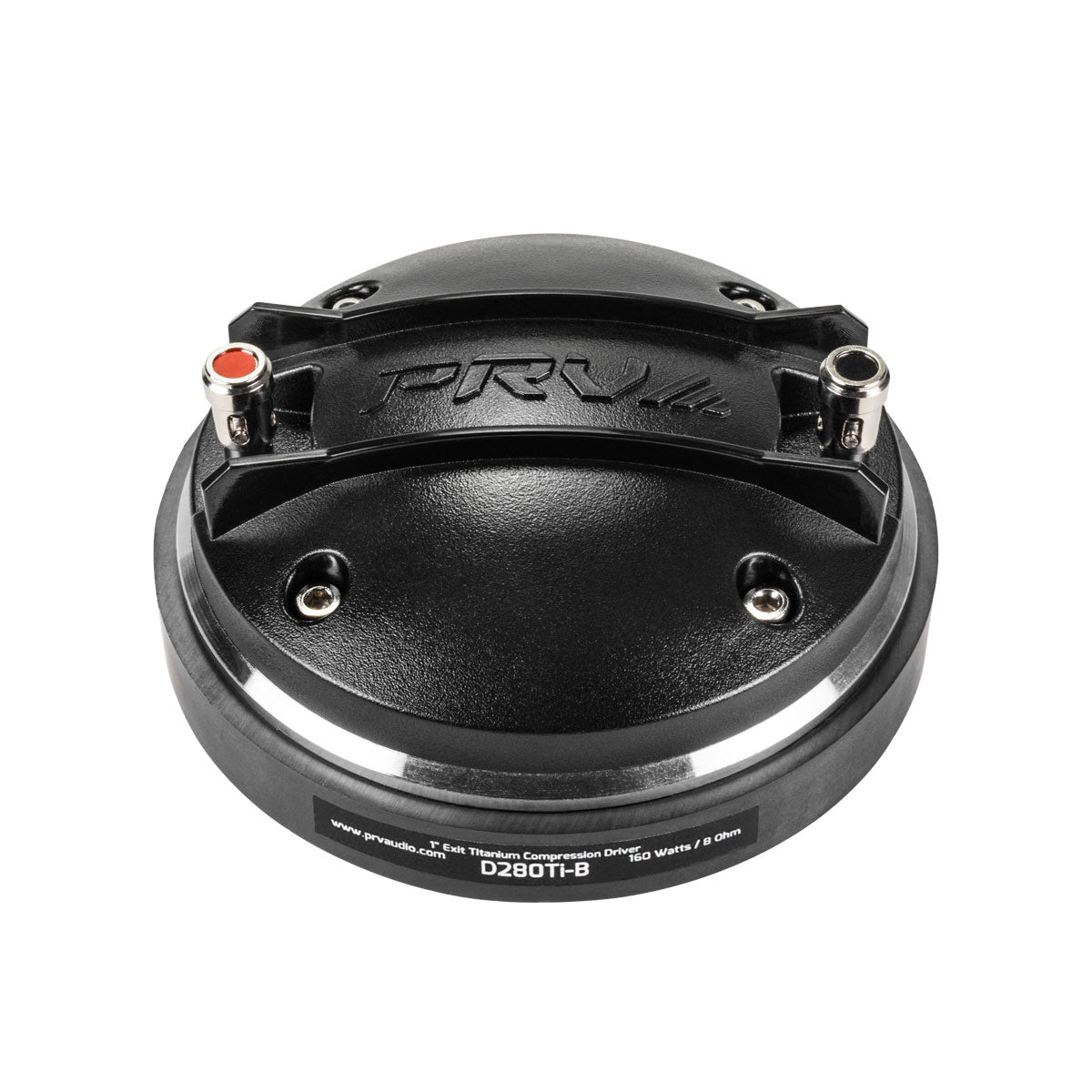

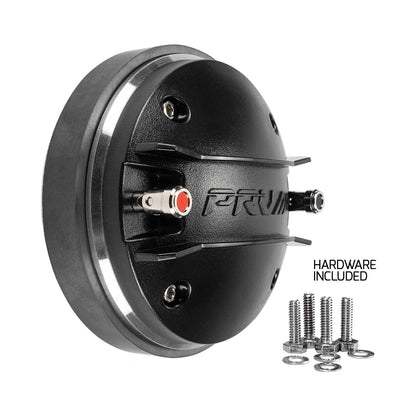

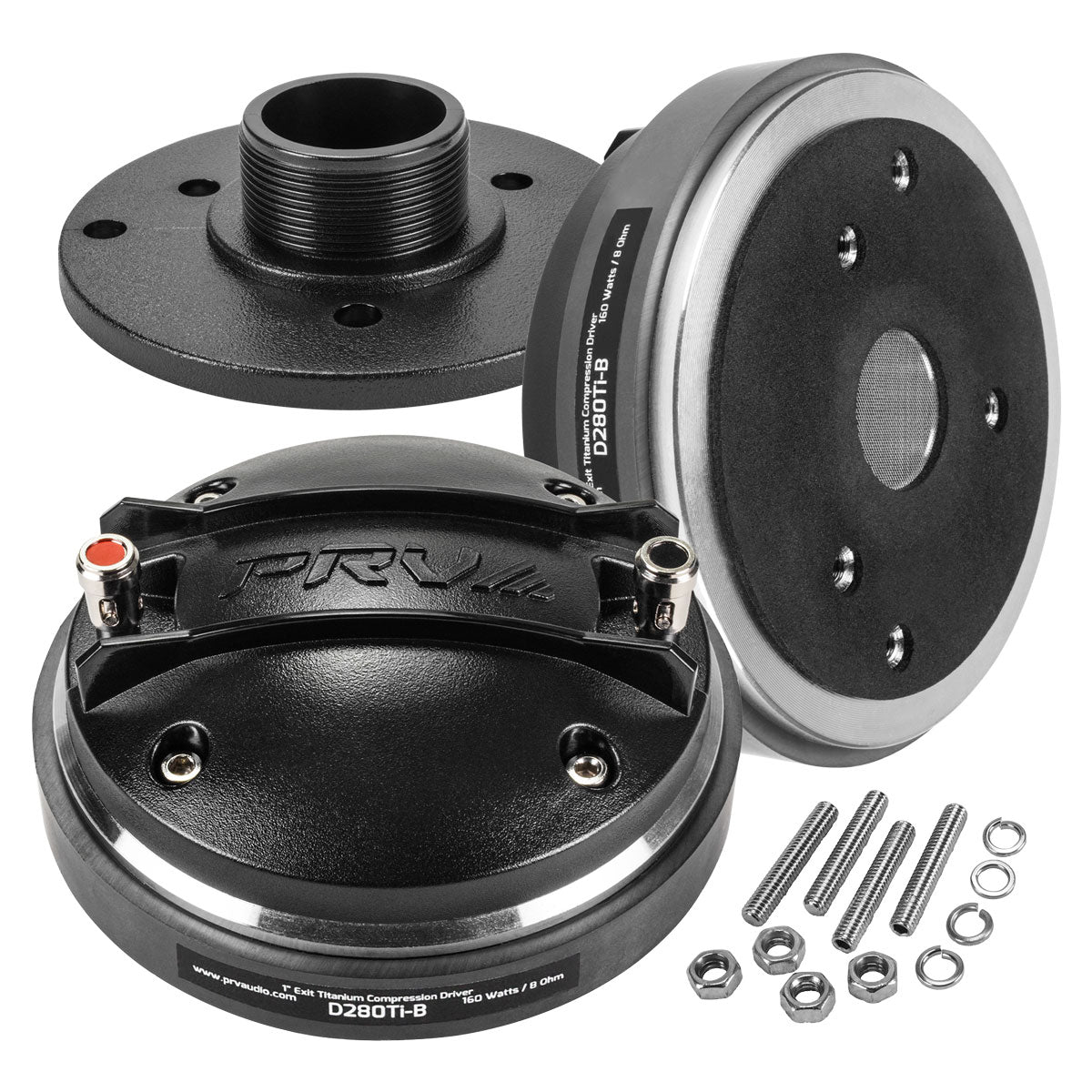

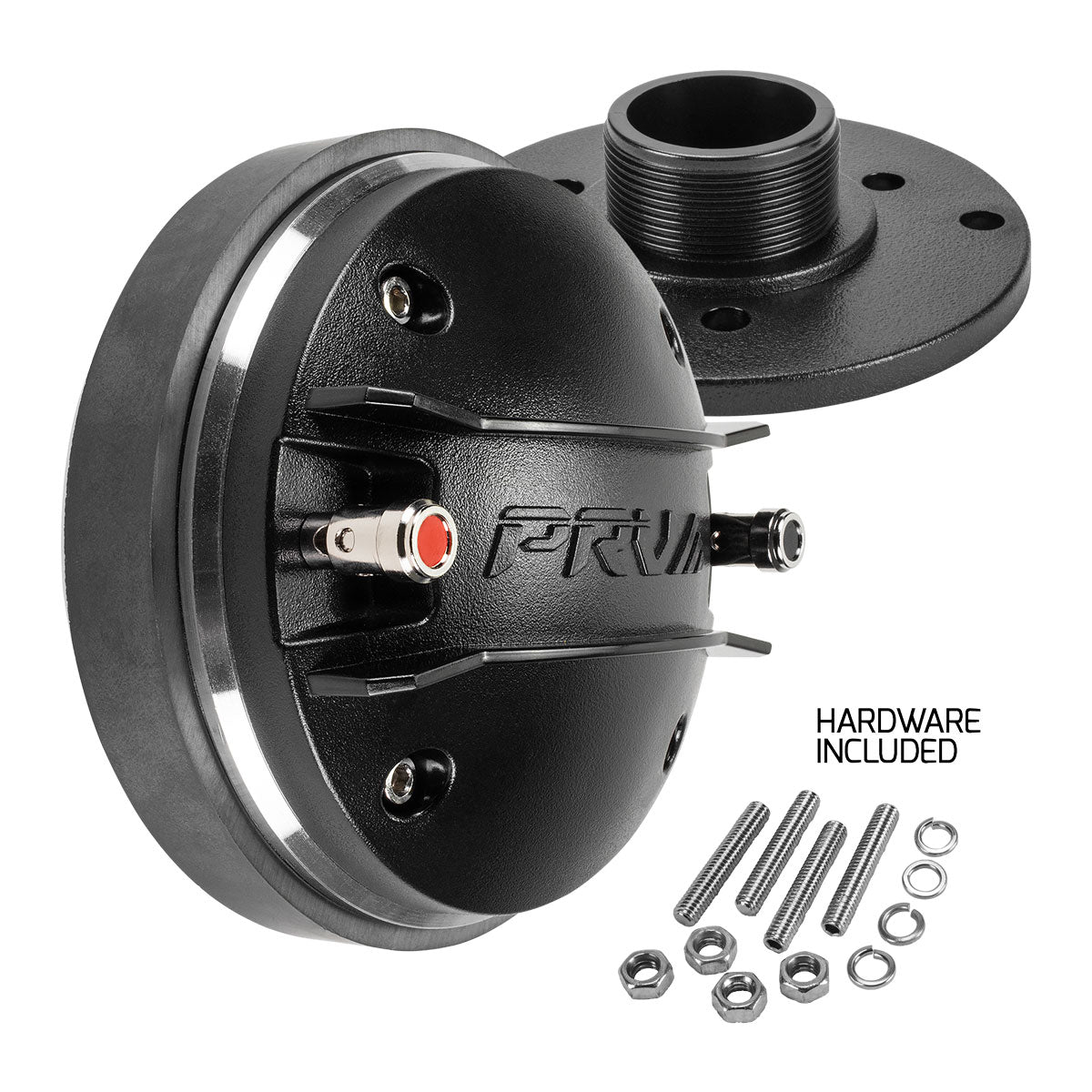

PRV D280Ti-B Driver

PRV D280Ti-B Driver

SKU: D280Ti-B

PRV D280Ti-B Driver

PRV D280Ti-B Driver

SKU: D280Ti-B

  • 1″ Bolt-On Highs Driver

  • Titanium Diaphragm

  • 109 dB – 160 Watts

$39.91
$49.89

In stock

  • 1″ Bolt-On Highs Driver

  • Titanium Diaphragm

  • 109 dB – 160 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

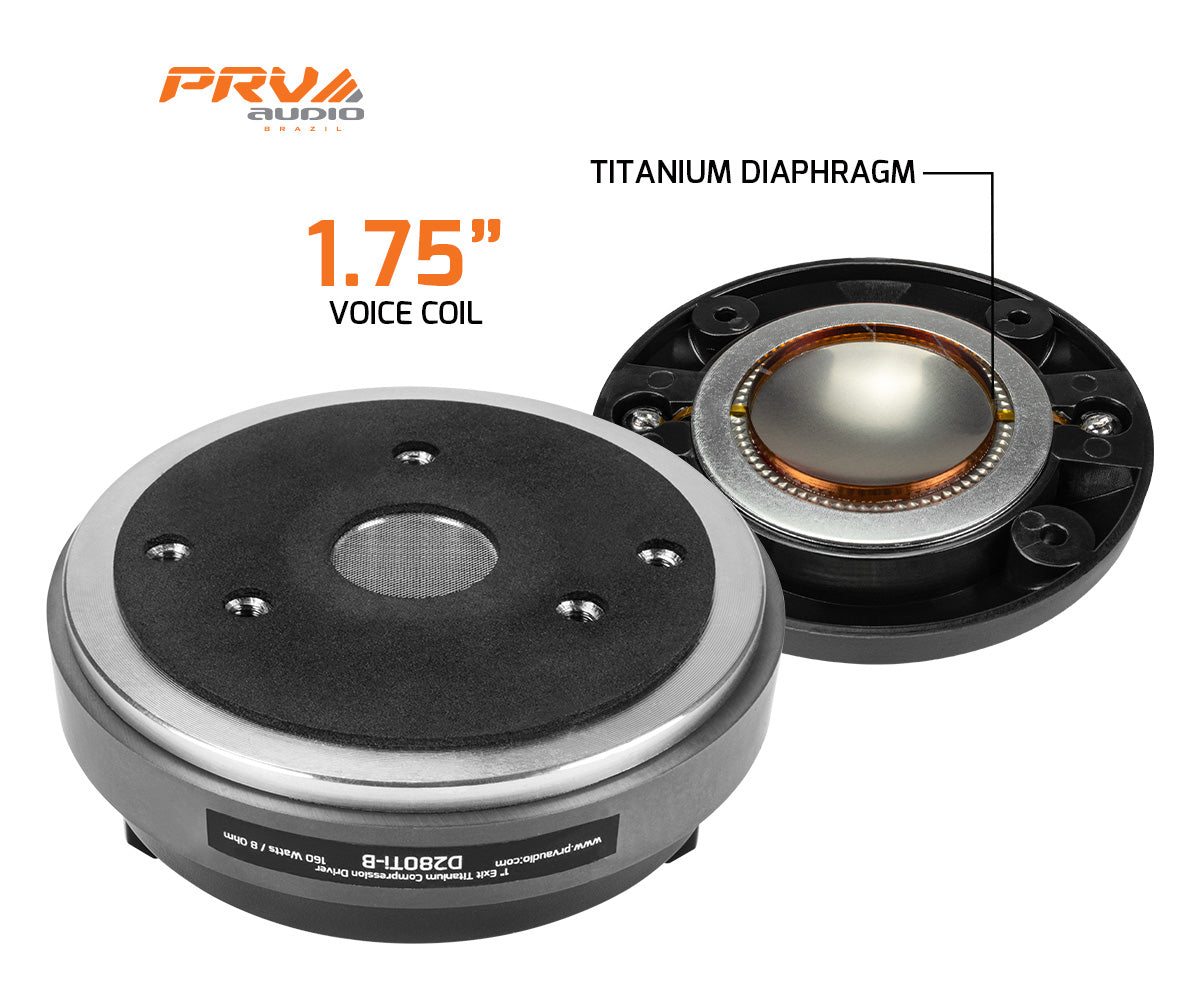

The PRV Audio D280Ti-B Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.

A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.

  • Throat Diameter: 1″
  • Type: Bolt-On
  • Nominal Impedance: 8 Ohm
  • Rated AES Power Handling (RMS): 80 Watts
  • Program Power: 160 Watts

D280Ti-B and D280Ti-S are designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.

Technical Details

GENERAL SPECIFICATIONS

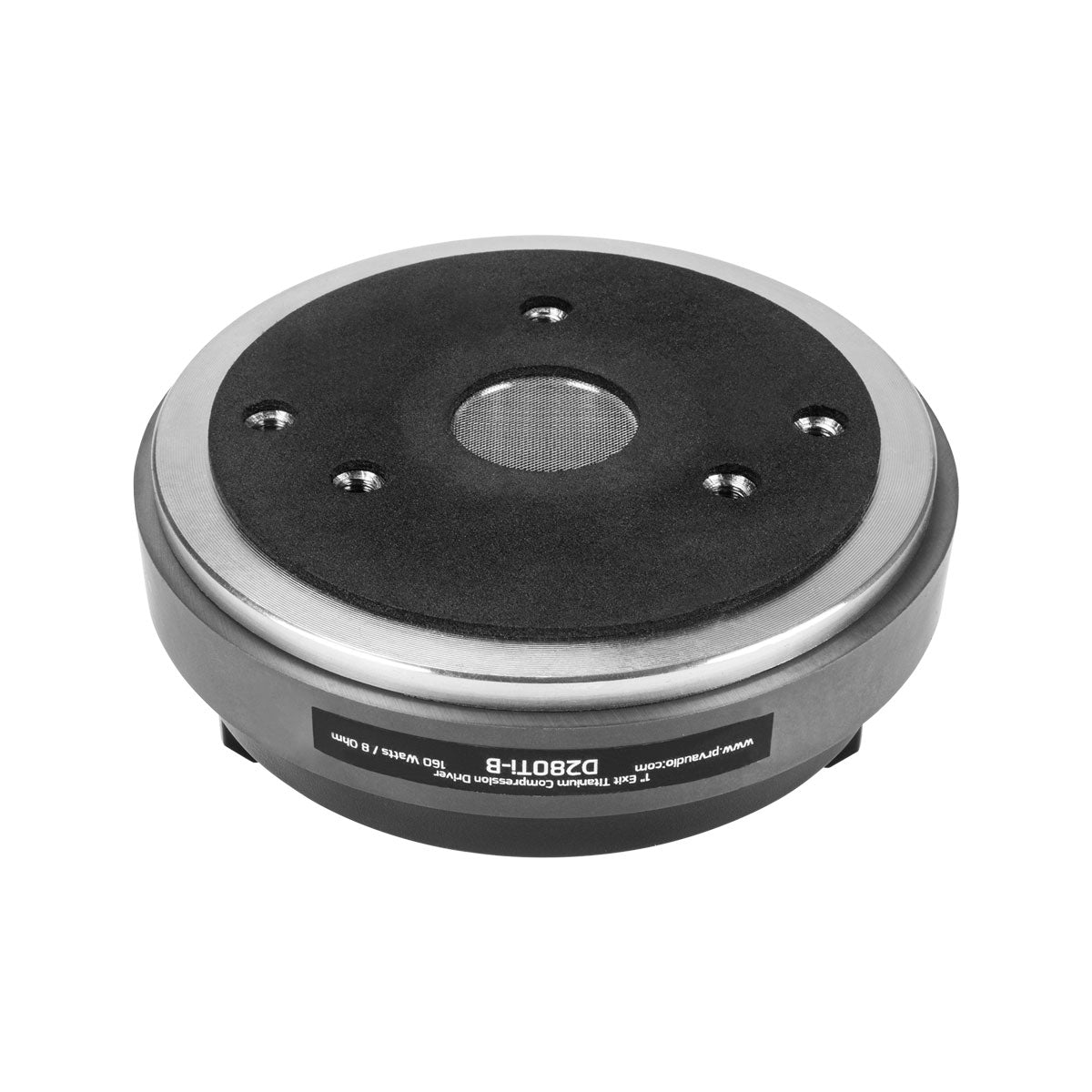

  • Exit Throat Diameter 1” (25.4mm)
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 80 Watts
  • Program Power*** 160 Watts

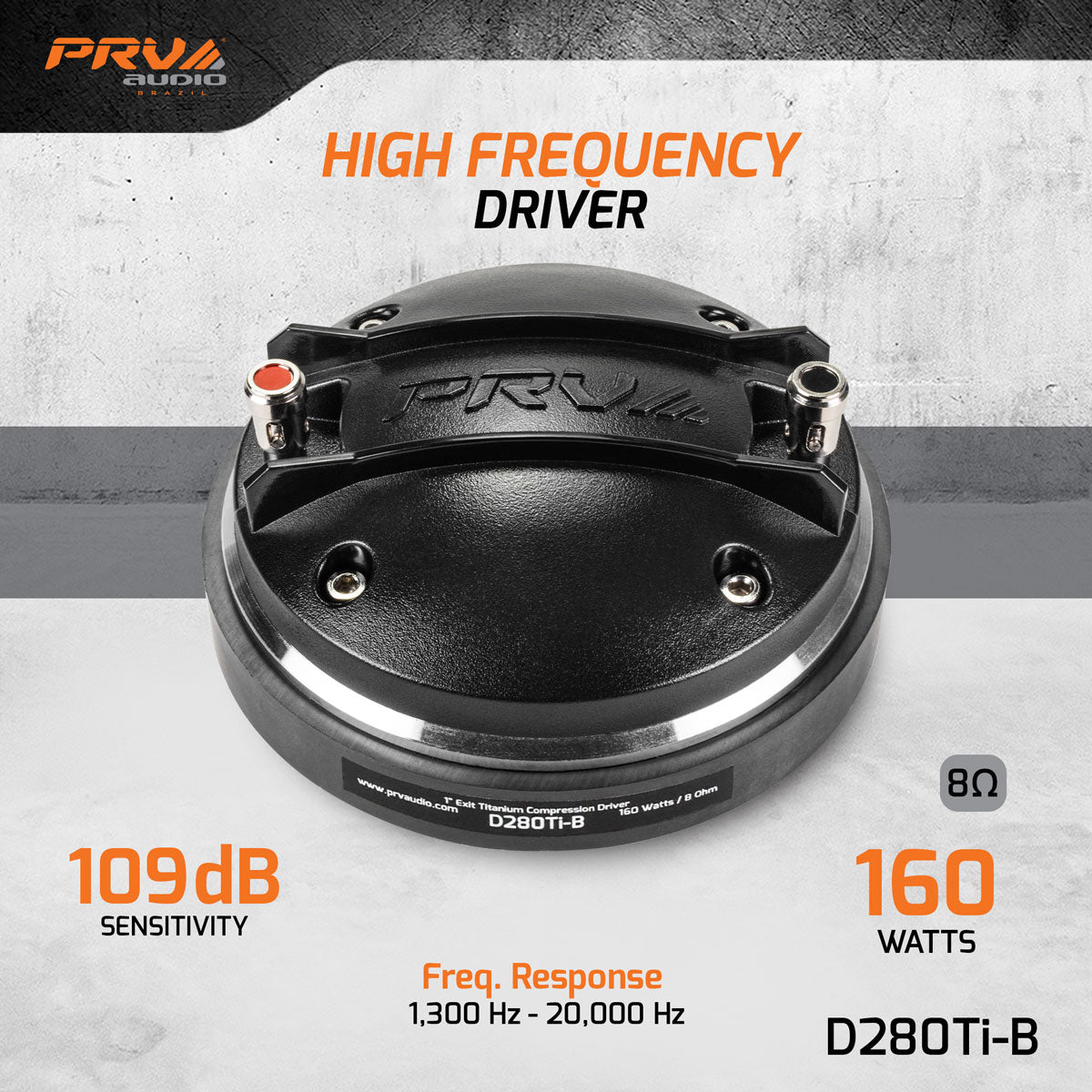

  • Sensitivity 2.83V at 1m 109 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 1800 Hz** **12db Per Octave Crossover

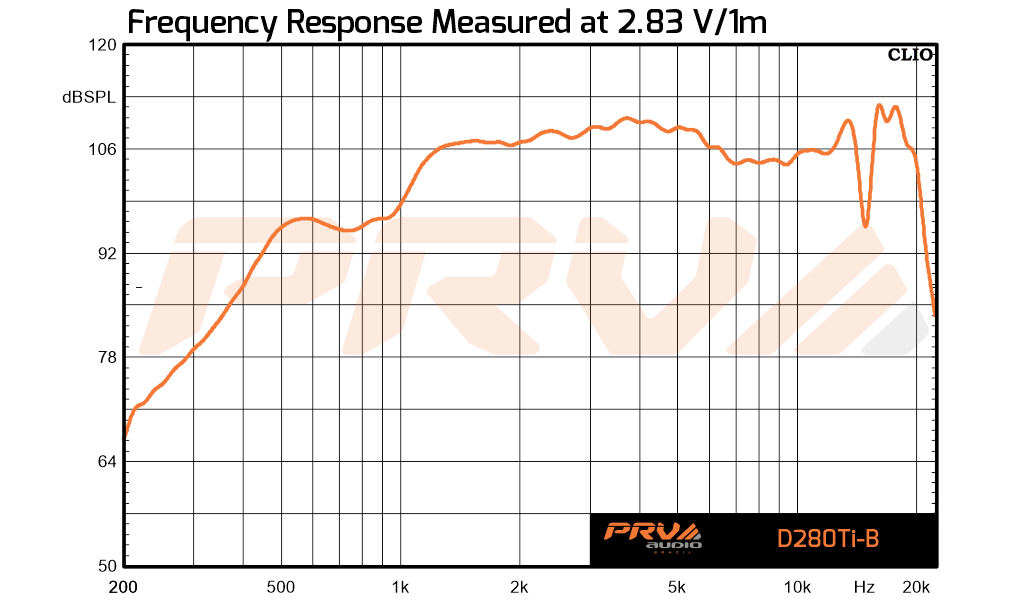

  • Frequency Response at -10dB 1,300 – 20,000 Hz
  • Voice Coil Diameter 1.75”(44.4 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Frame Material Titanium
  • Flux Density 1.65 T
  • Magnet Type Ferrite

EXTRA INFO

PRV D280Ti-B Driver DATASHEET Download

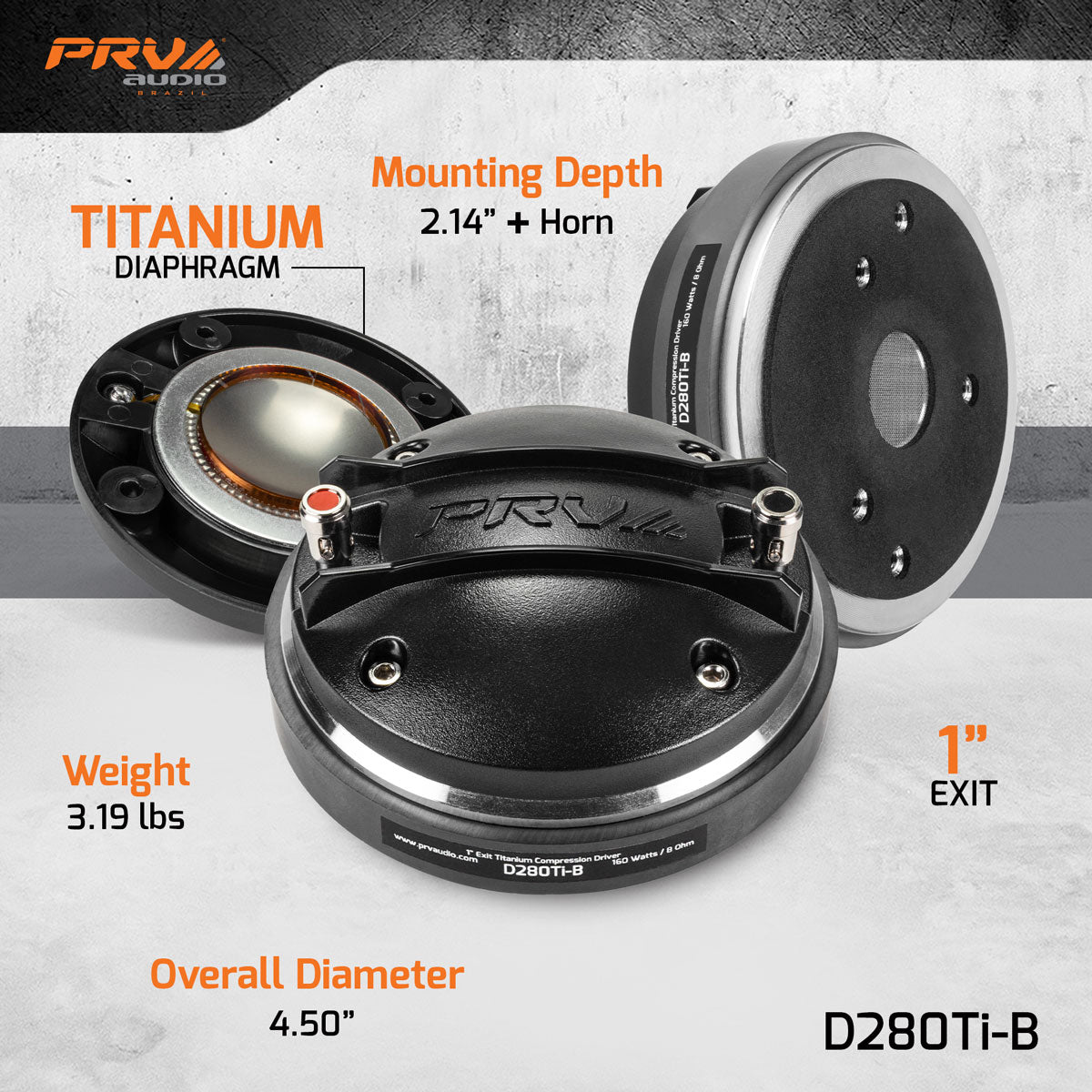

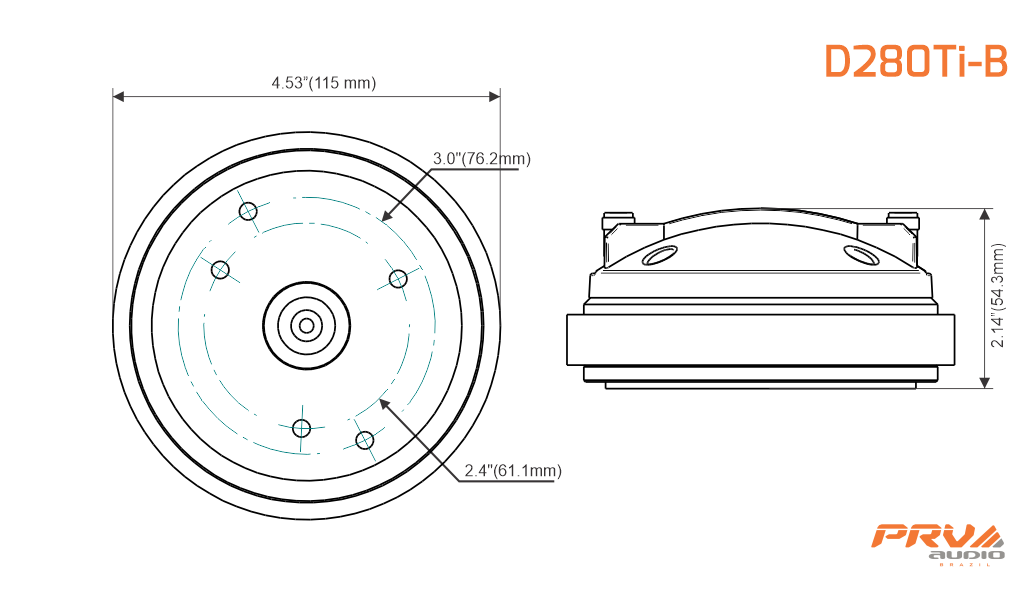

  • Overall Depth 2” (50 mm)
  • Overall Diameter 4.52” (115 mm)
  • Net Weight 3.16 lbs (1.44 kg)
  • Shipping Weight 3.50 lbs (1.58 kg)
  • Carton Dimensions WxLxH 5.31” x 5.0” x 3.15” (135 x 127 x 80 mm)
PRV D280Ti-B Driver DATASHEET Download
