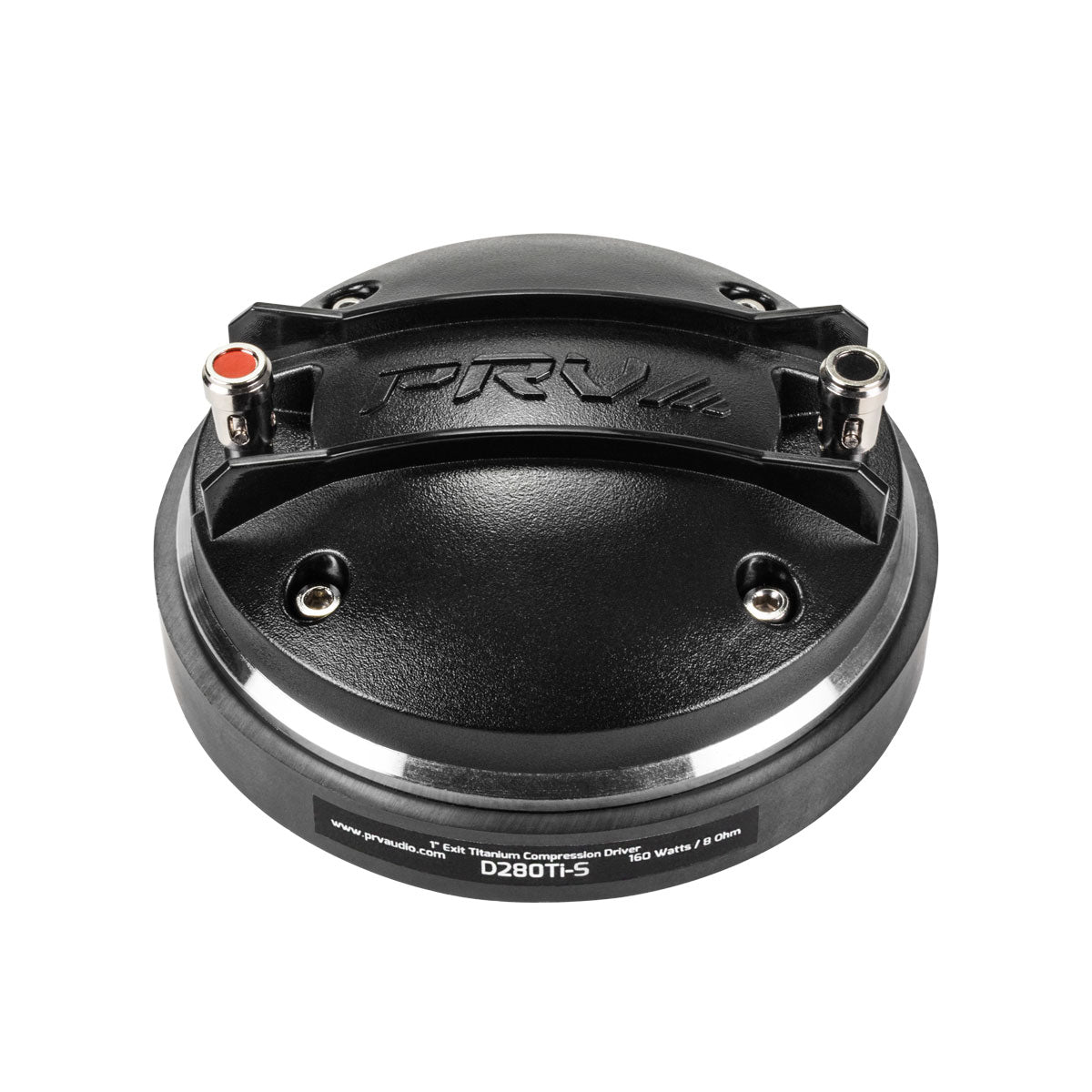

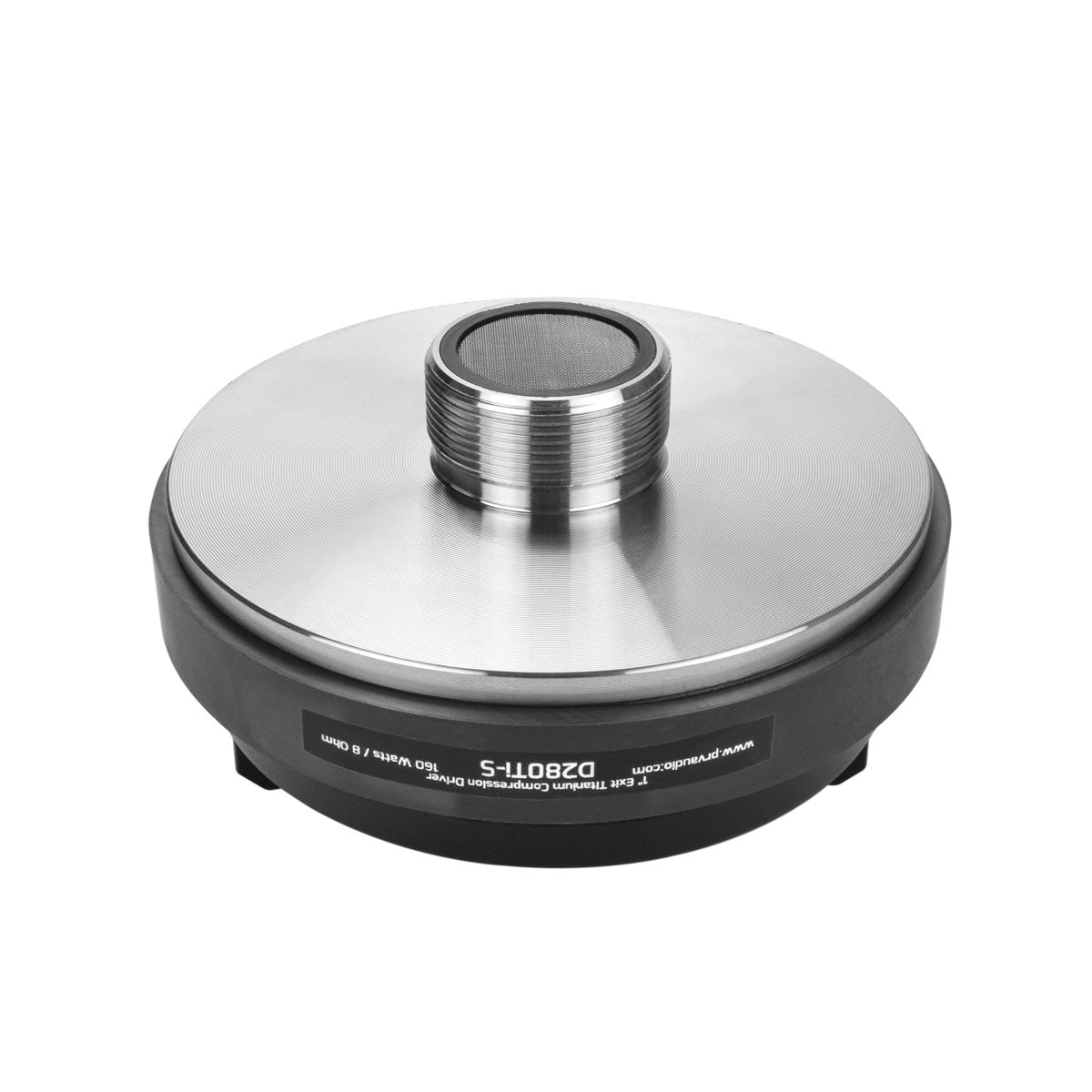

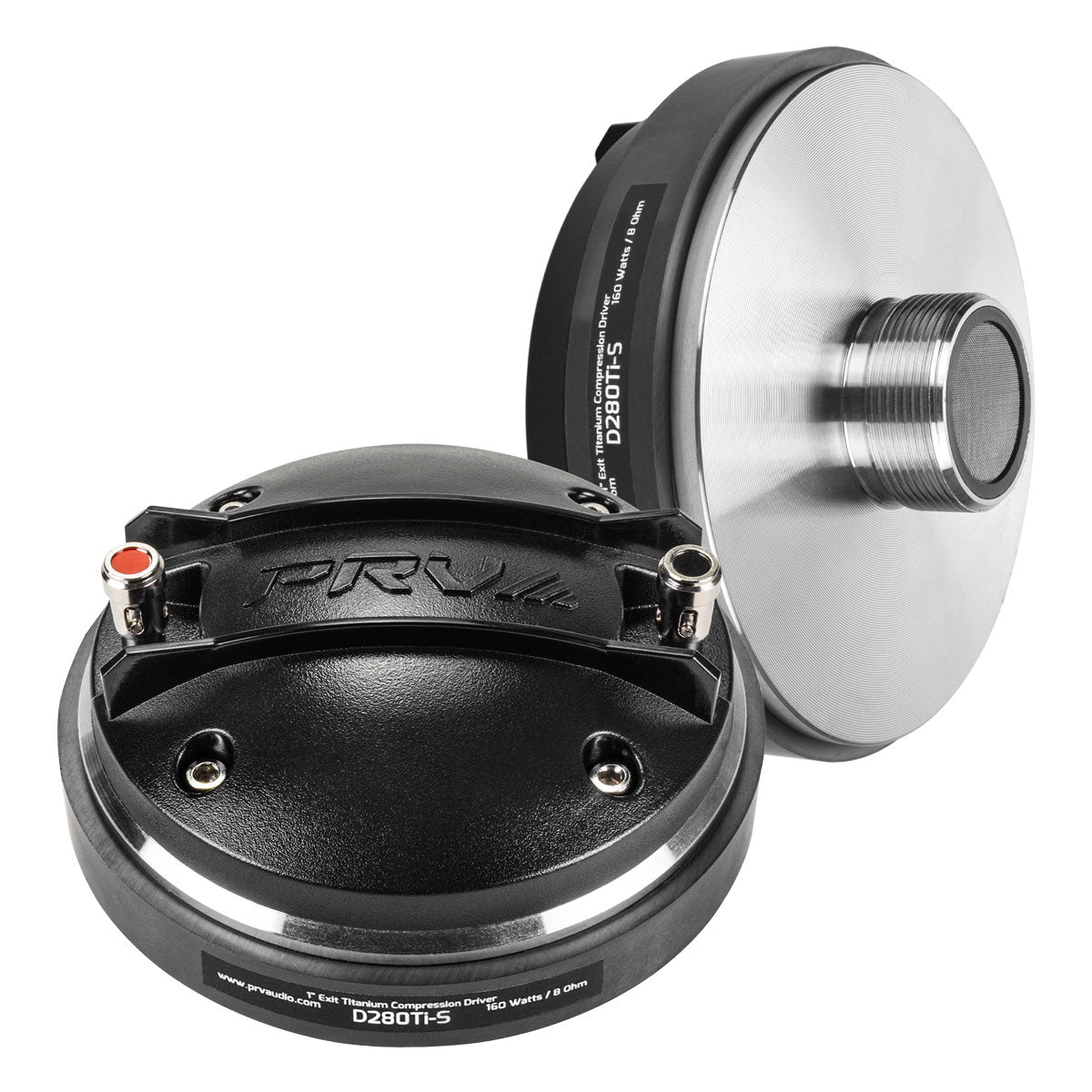

PRV D280Ti-S Driver

PRV D280Ti-S Driver

SKU: D280Ti-S

PRV D280Ti-S Driver

PRV D280Ti-S Driver

SKU: D280Ti-S

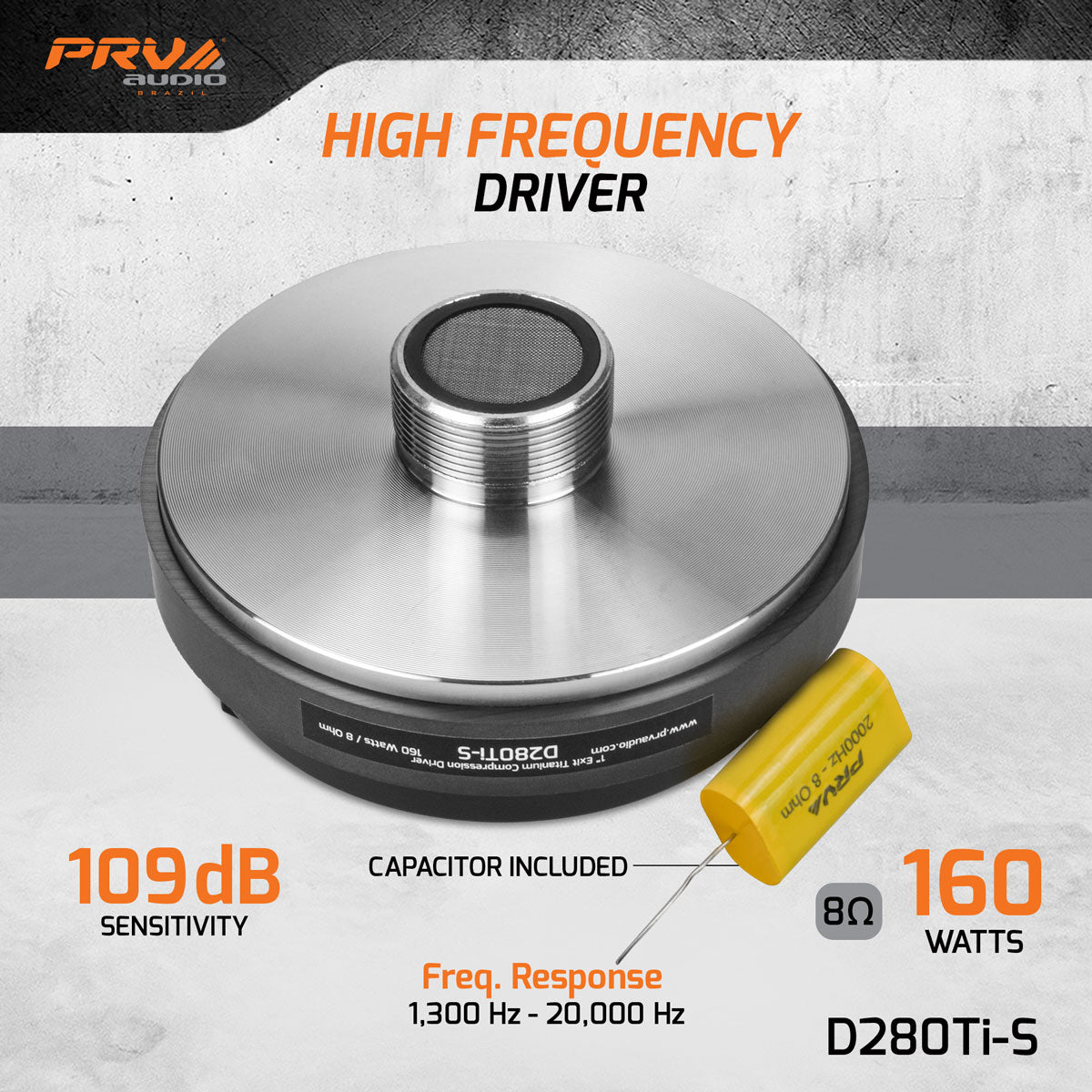

  • 1" Highs Driver

  • Titanium Diaphragm

  • 109 dB - 160 Watts

$39.91
$49.89

In stock

  • 1" Highs Driver

  • Titanium Diaphragm

  • 109 dB - 160 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

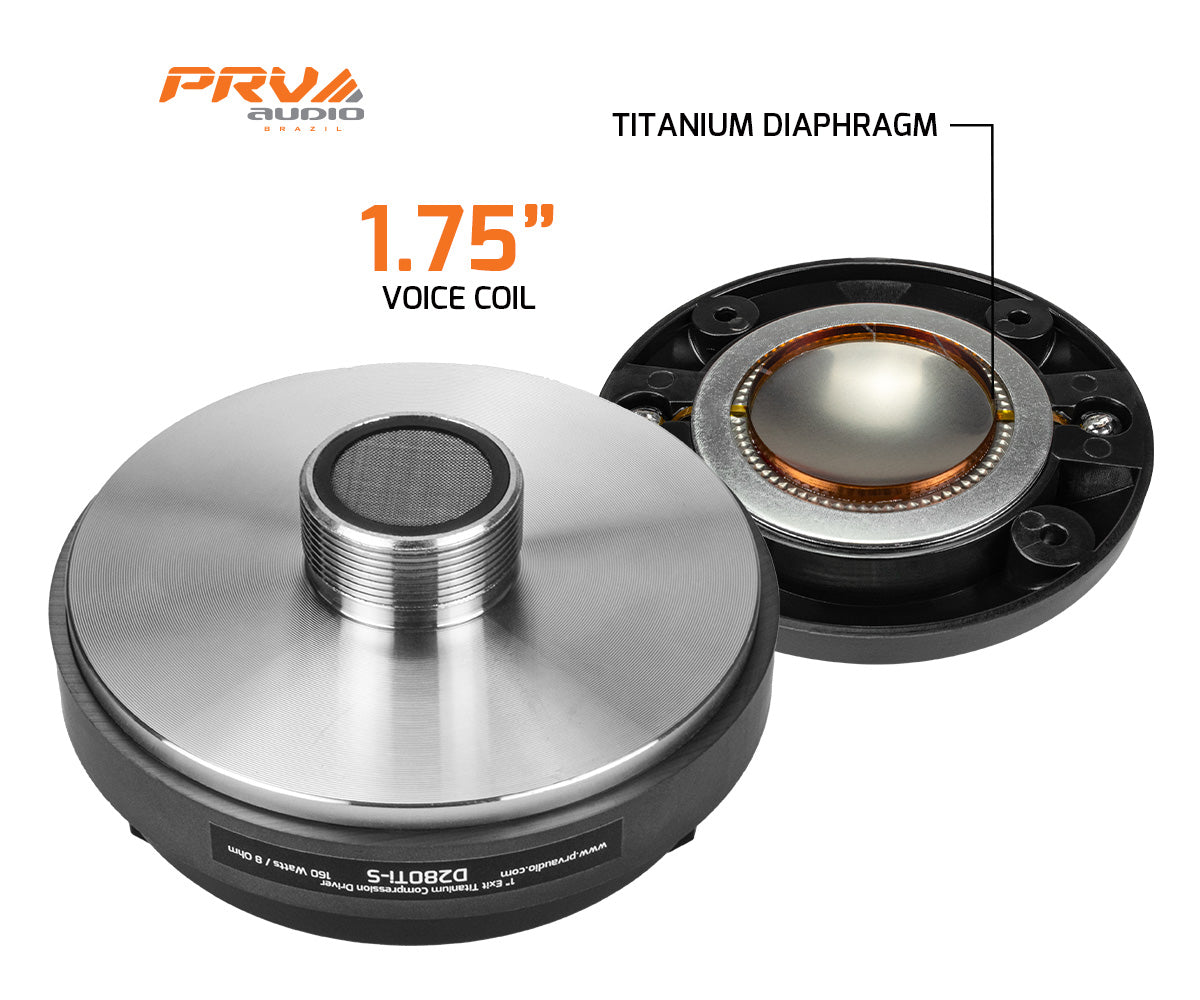

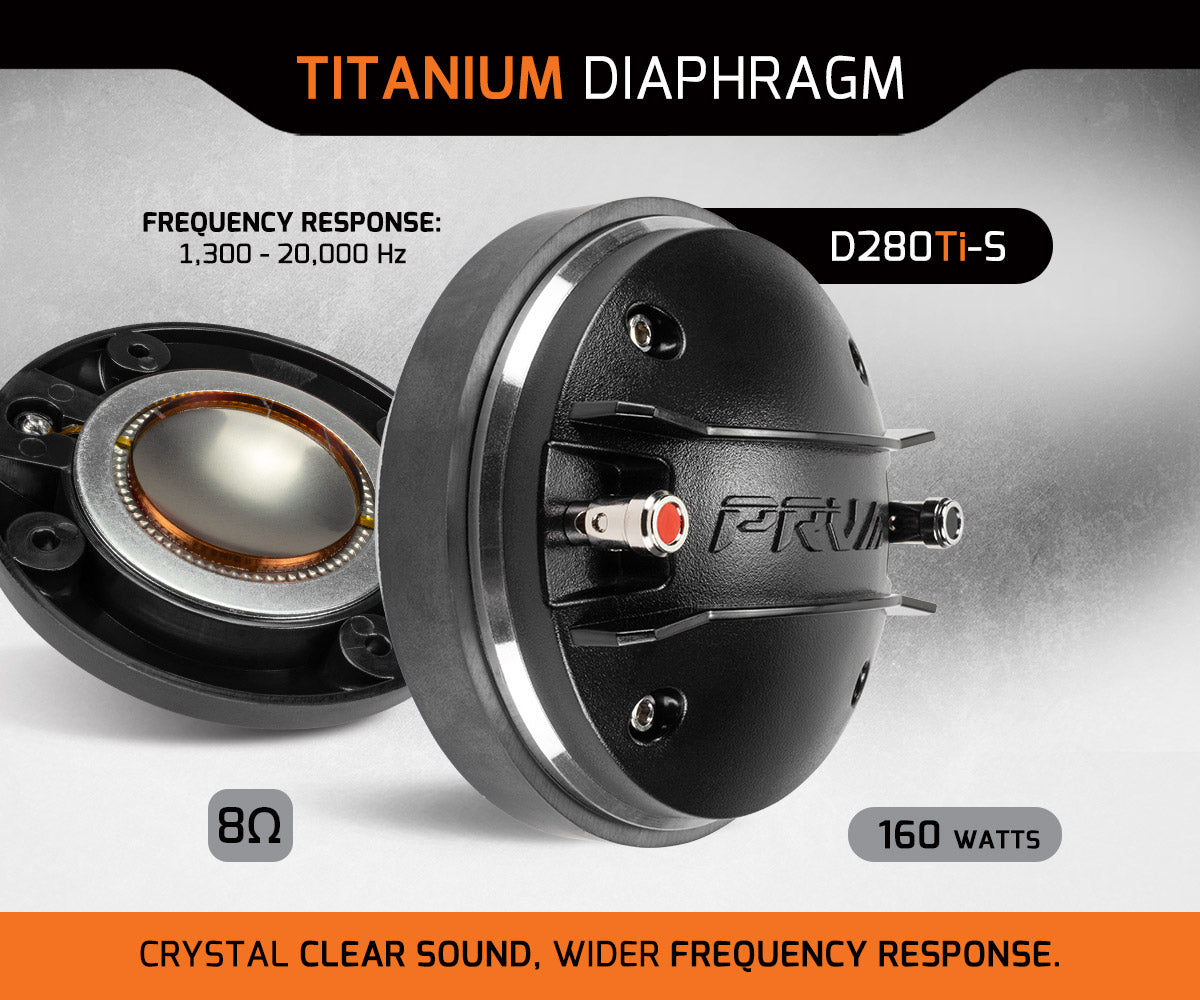

The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.

  • Throat Diameter: 1″
  • Type: Screw-On
  • Nominal Impedance: 8 Ohm
  • Rated AES Power Handling (RMS): 80 Watts
  • Program Power: 160 Watts

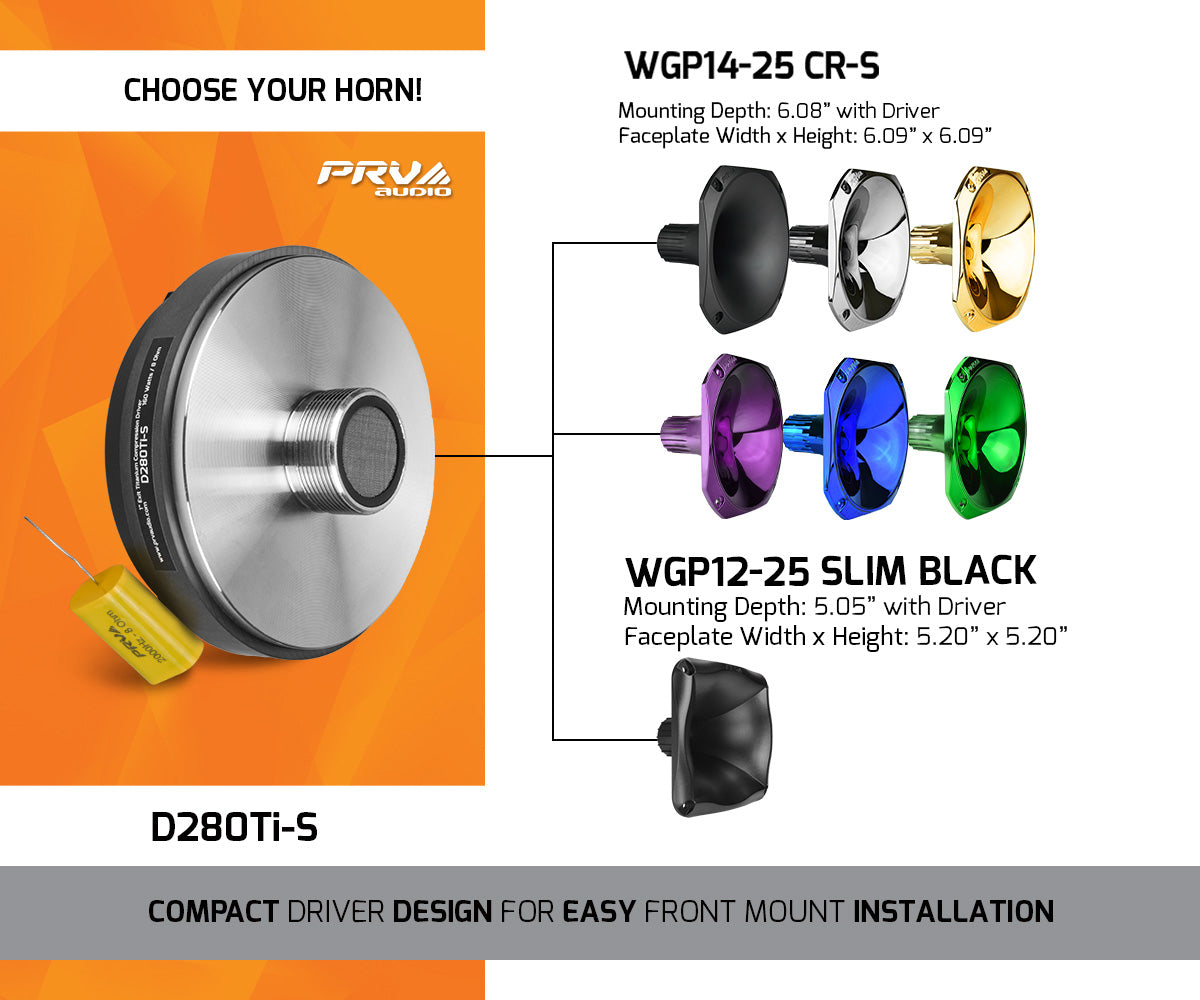

Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.

D280Ti-B and D280Ti-S are designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.

Technical Details

GENERAL SPECIFICATIONS

  • Exit Throat Diameter 1” (25.4mm)

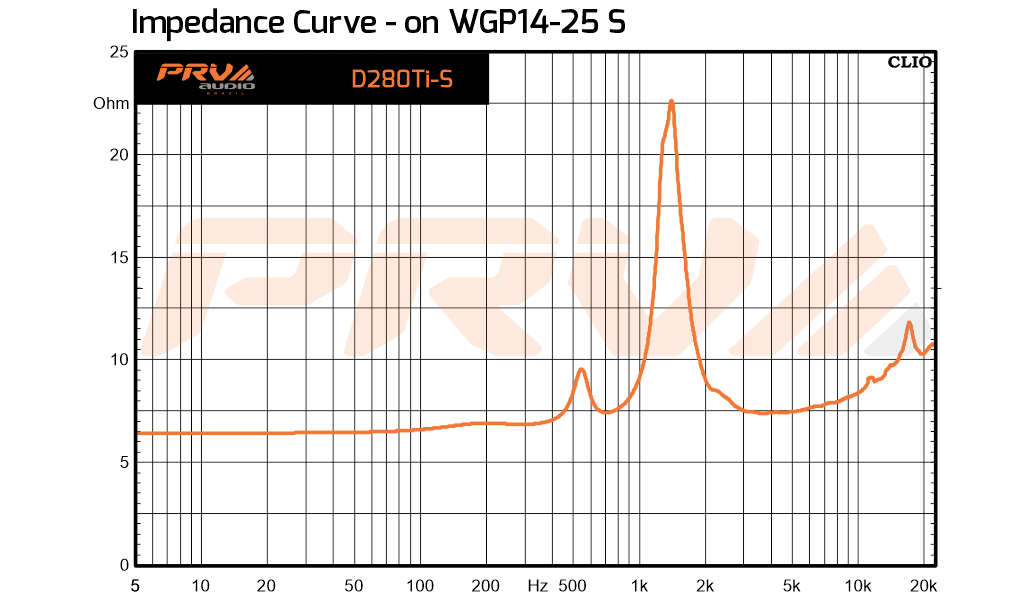

  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 80 Watts
  • Program Power*** 160 Watts
  • Sensitivity 2.83V at 1m109 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 1800 Hz** **12db Per Octave Crossover

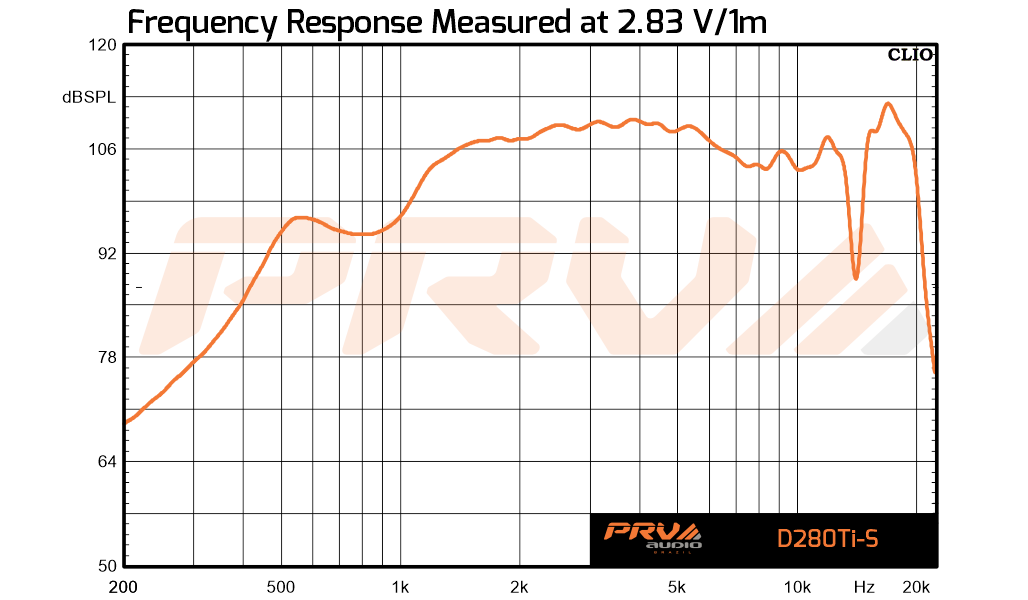

  • Frequency Response at -10dB 1,300 – 20,000 Hz
  • Voice Coil Diameter 1.75”(44.4 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Flux Density 1.65 T
  • Magnet Type Ferrite

EXTRA INFO

PRV D280Ti-S Driver DATASHEET Download

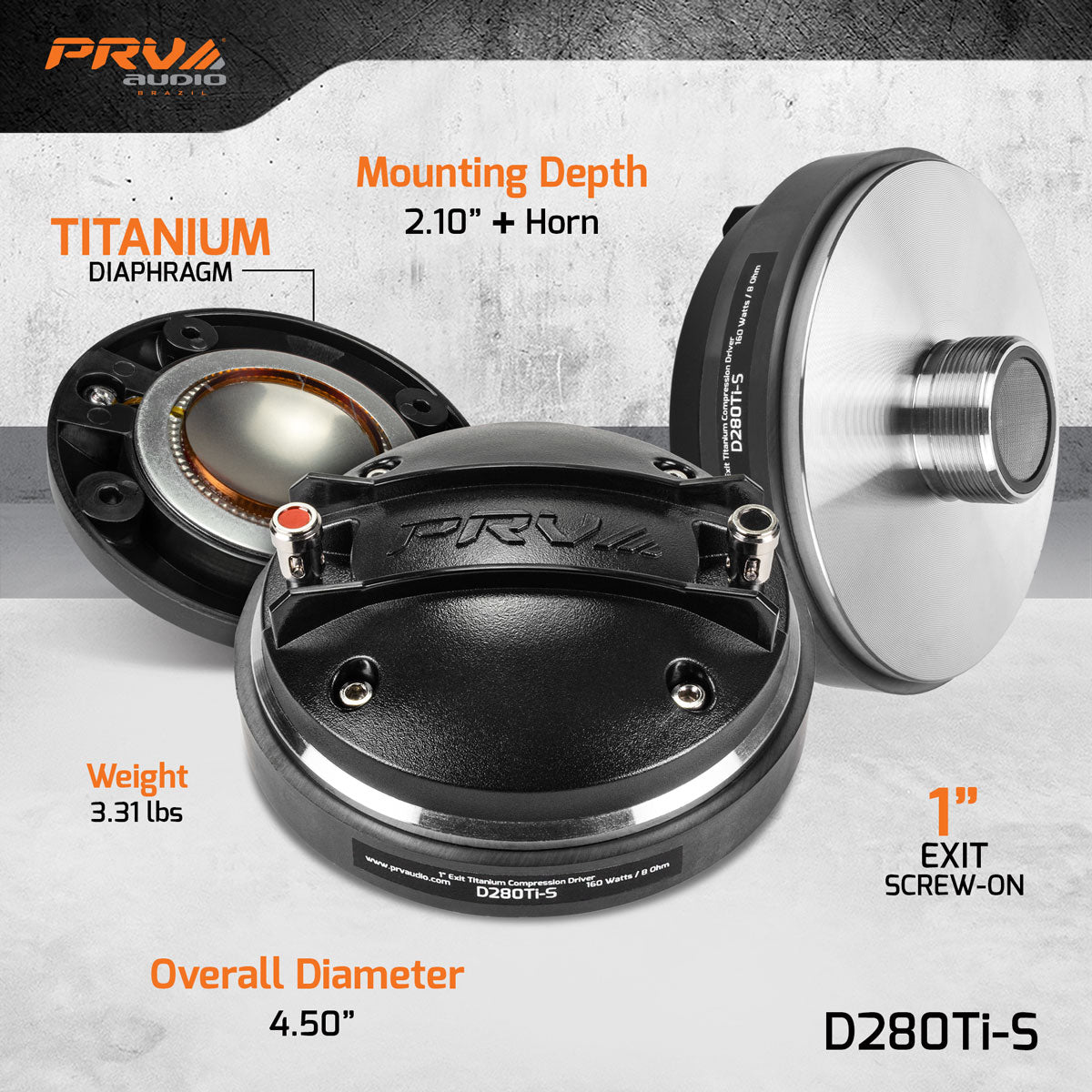

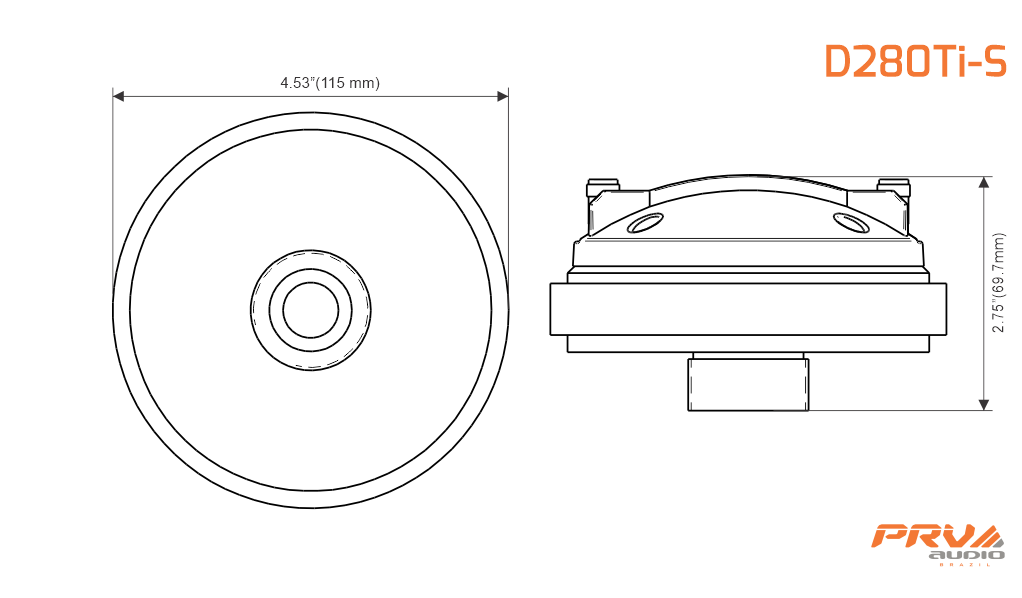

  • Overall Depth 2.56” (65 mm)
  • Overall Diameter 4.52” (115 mm)
  • Net Weight 3.31 lbs (1.5 kg)
  • Shipping Weight 3.52 lbs (1.59 kg)
  • Carton Dimensions WxLxH 5.31” x 5.0” x 2.91” (135 x 127 x 74 mm)
PRV D280Ti-S Driver DATASHEET Download
