Monthly Special

PRV MDX1800.1 2 Ohm Amplifier

PRV MDX1800.1 2 Ohm Amplifier

SKU: MDX1800.1 2 Ohm
Monthly Special

PRV MDX1800.1 2 Ohm Amplifier

PRV MDX1800.1 2 Ohm Amplifier

SKU: MDX1800.1 2 Ohm

  • Full Range Amp
  • MINI 1 Channel
  • 1800 Watts 2Ω
$104.00
$212.39

In stock
  • Full Range Amp
  • MINI 1 Channel
  • 1800 Watts 2Ω

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

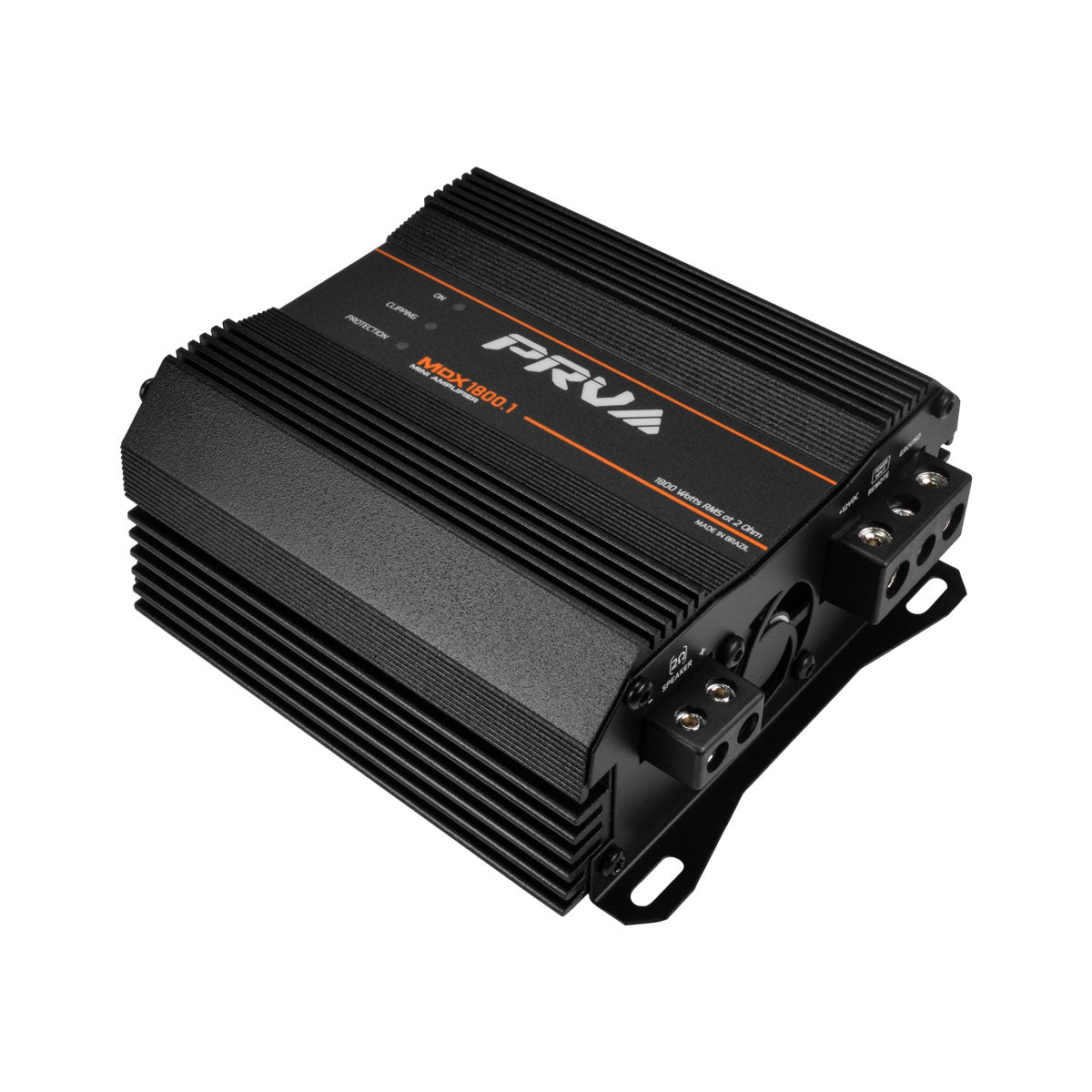

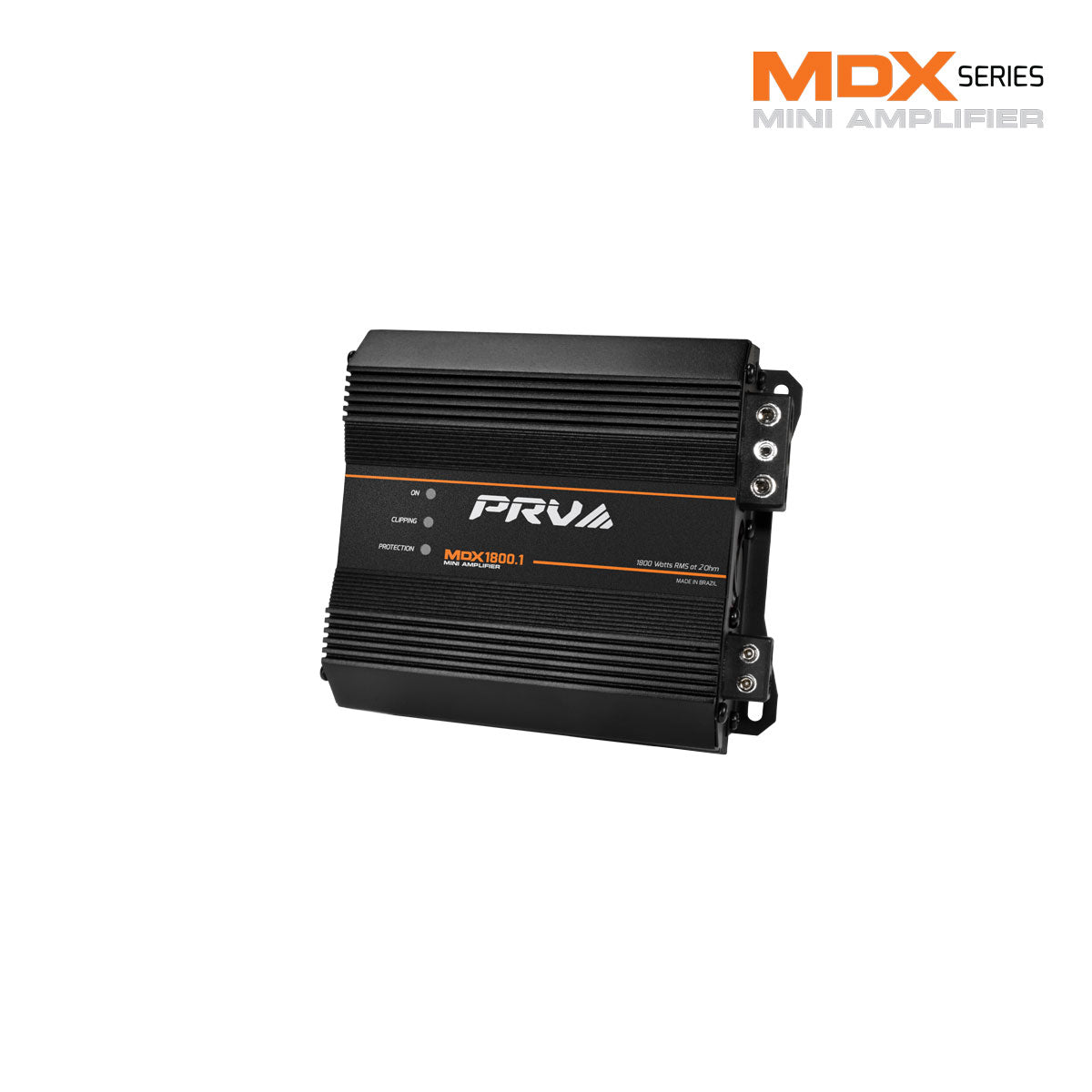

The mini MDX1800.1 2 Ohm delivers 1800 Watts RMS power to its full range 1 channel in a compact, modern amplifier.

Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

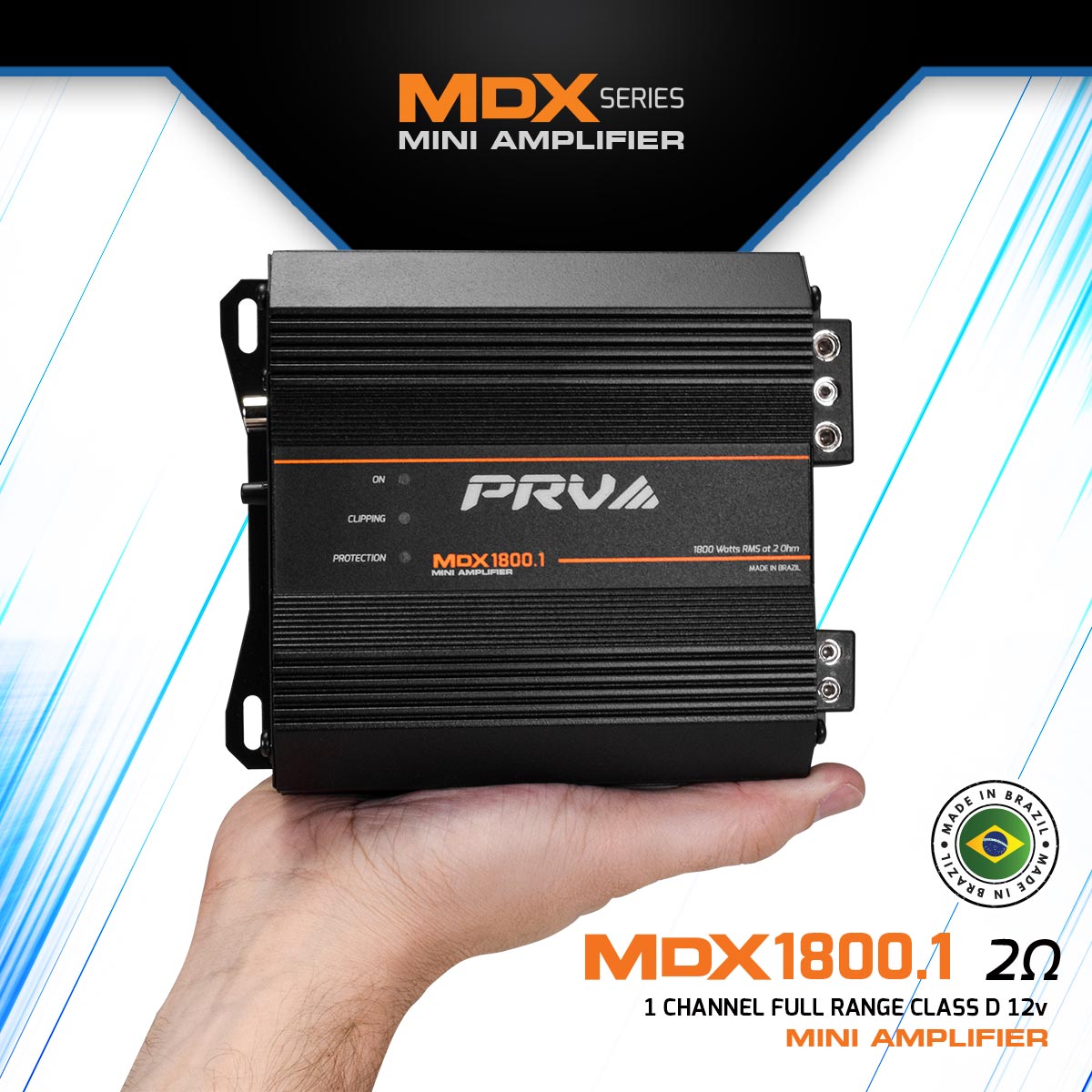

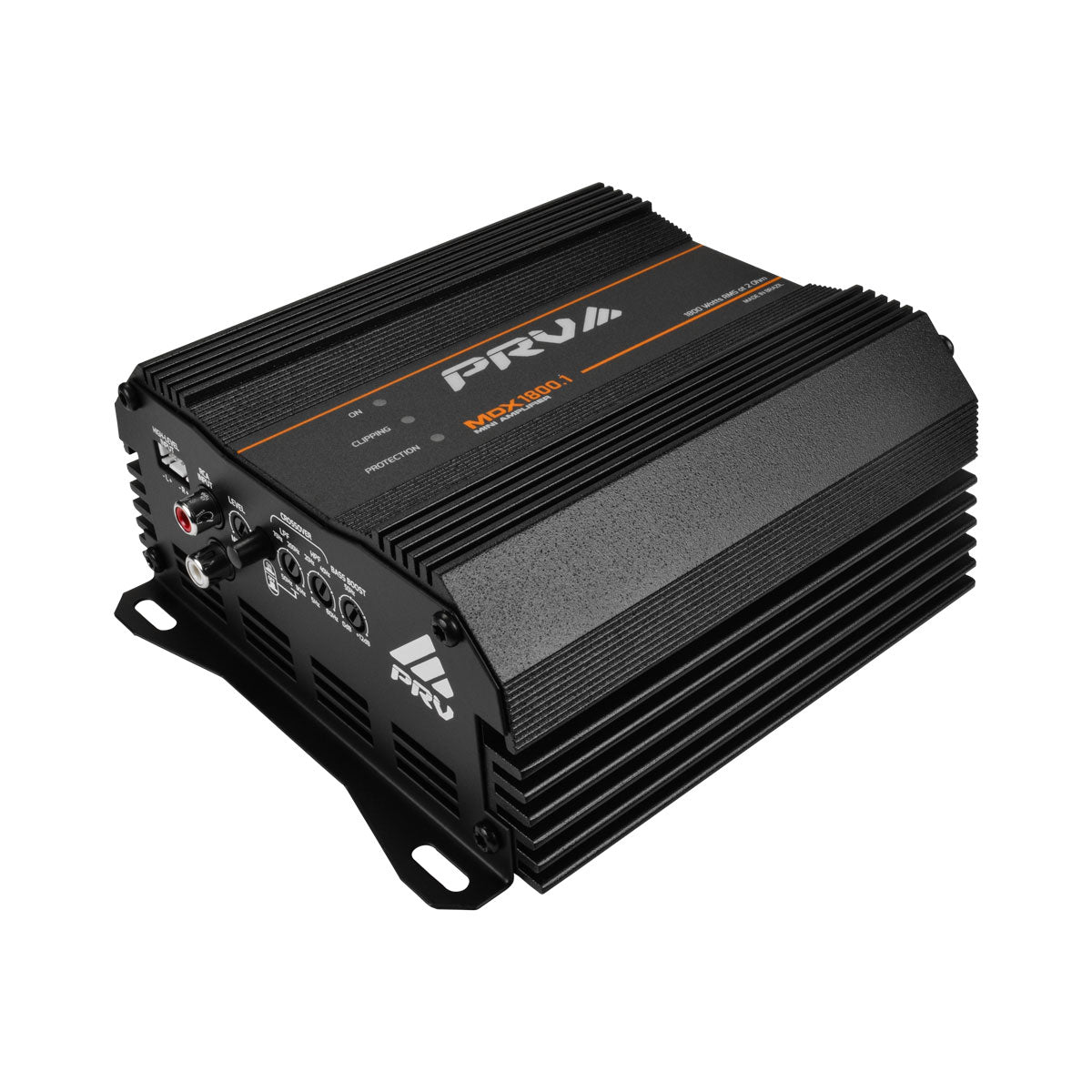

  • A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 6.60″ Width by 5.90″ Length and only 2.60″ Height.
  • Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.
  • Monoblock 1 Channel 1800 watts at 2 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
  • 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.

The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams.

Its wide frequency response allows you to use it in many different applications, such as subwoofers, midbass, midrange, full range speakers, phenolic drivers, titanium drivers, and super tweeters, among others.

1800 Watts at 2 Ohm Monoblock full range 10 to 25,000Hz.
The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!

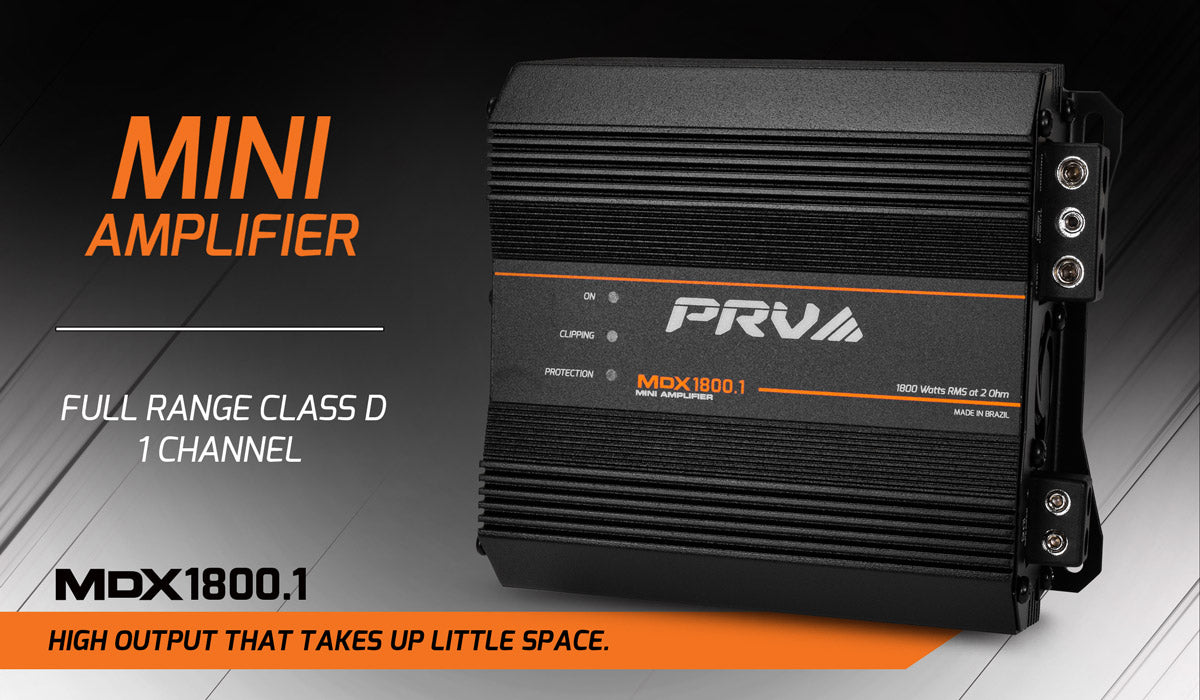

High Output that takes up little space!

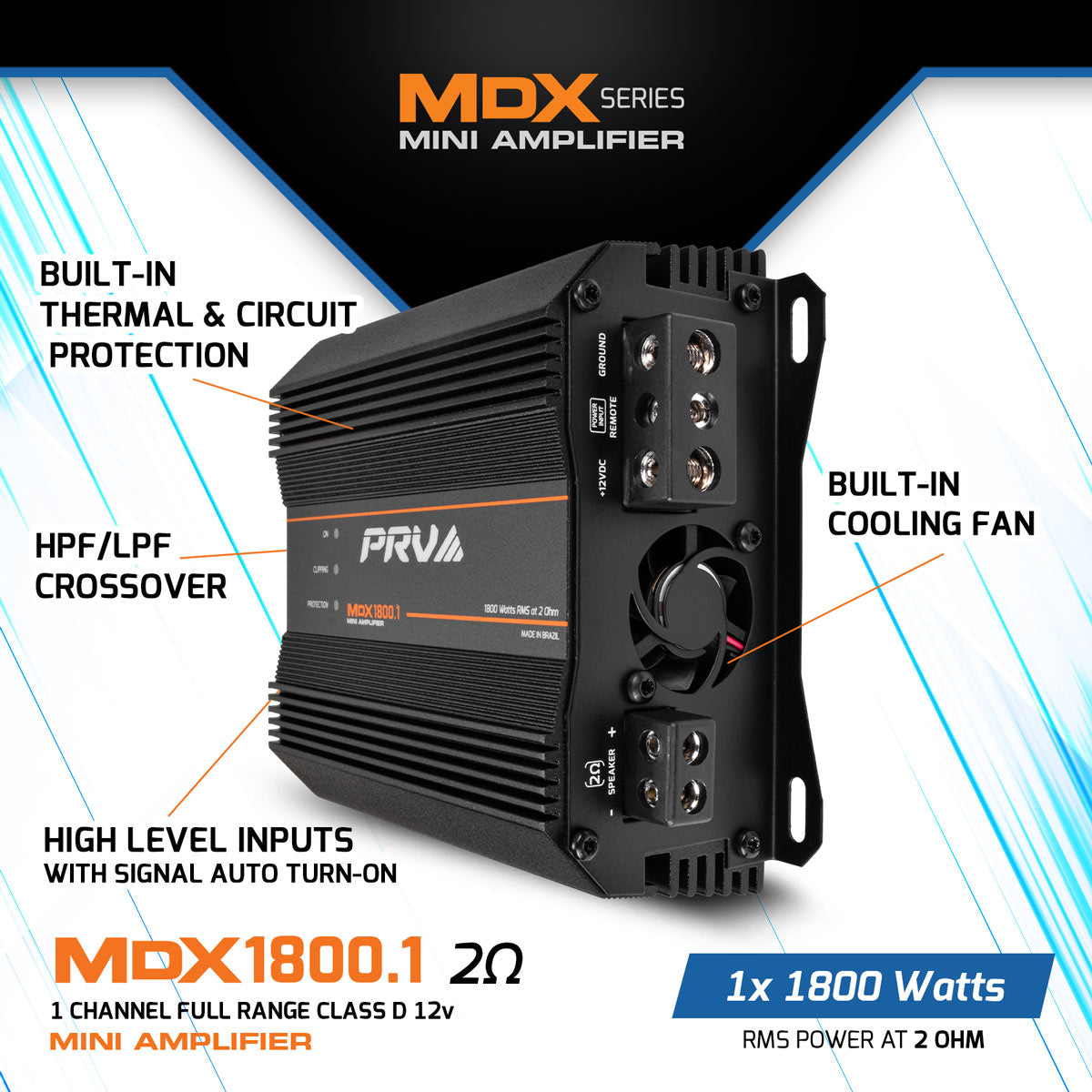

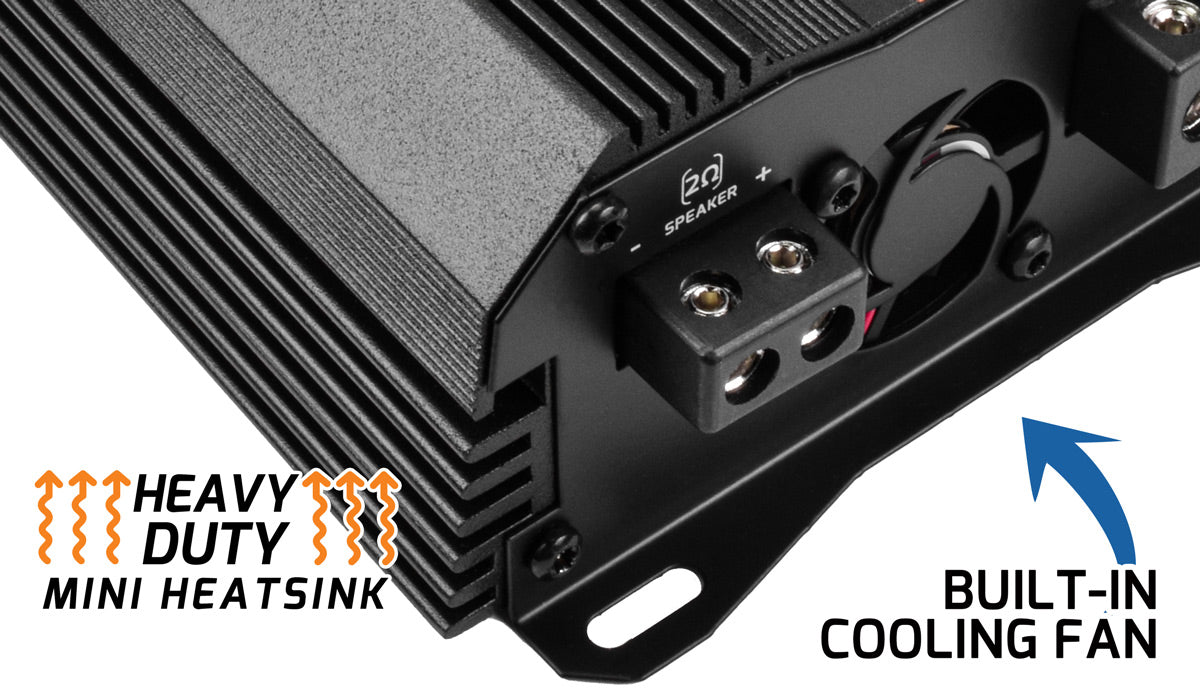

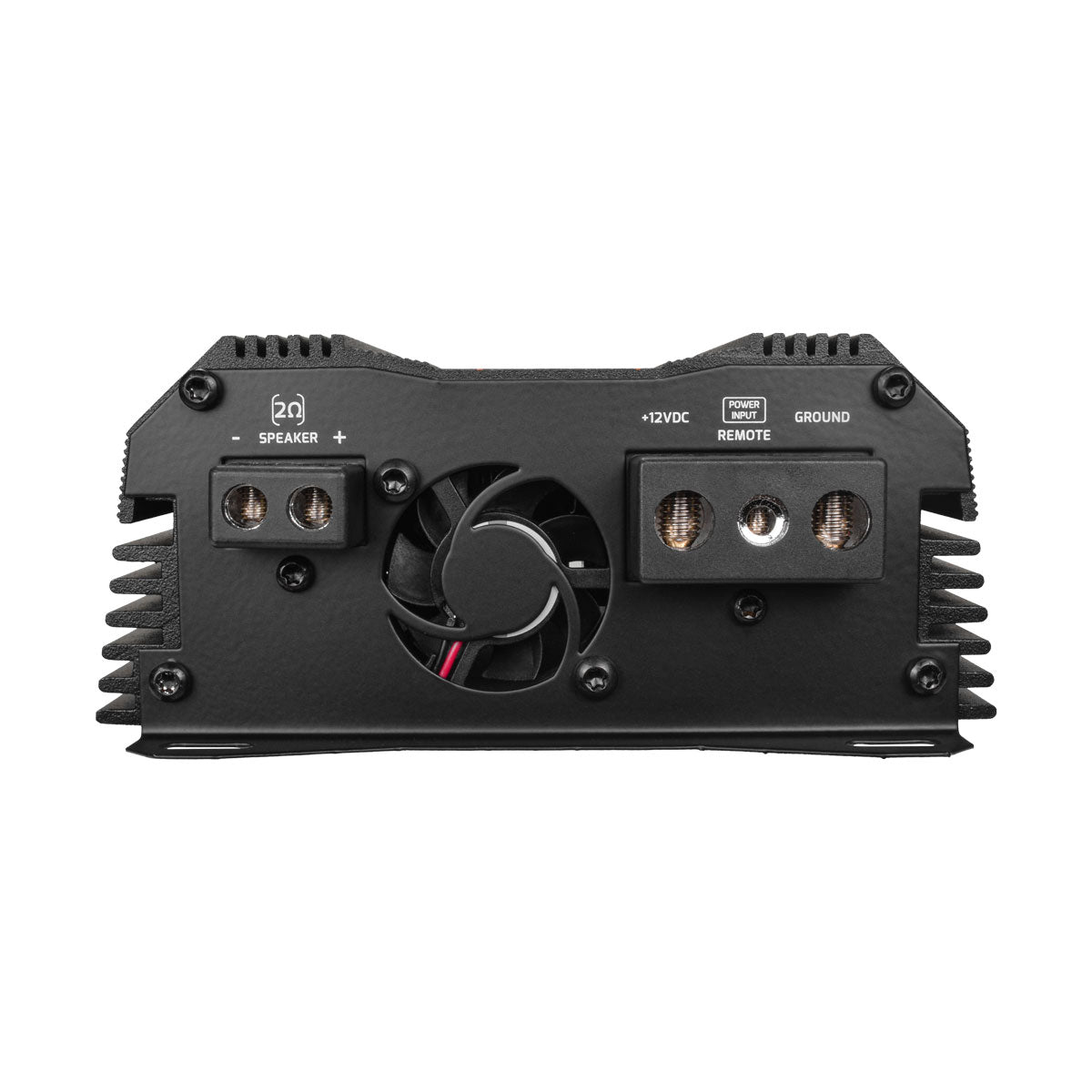

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.

At only 2.80 lbs allows any custom system to achieve the highest performance and weight ratio possible.

PRV Audio MDX1800.1 2 Ohm MINI 1 Channel Car Audio Amplifier 1800 Watts RMS at 2 Ohm – Full Range Ultra Compact Amp

Popular Installation configurations with this amplifier:

1 Channel Configuration for 8 Ohm Components
Its high power output channel allow you to install 4x 8 Ohm Speakers, drivers or tweeters in parallel at 1 Ohm, giving up to 450 watts per component.

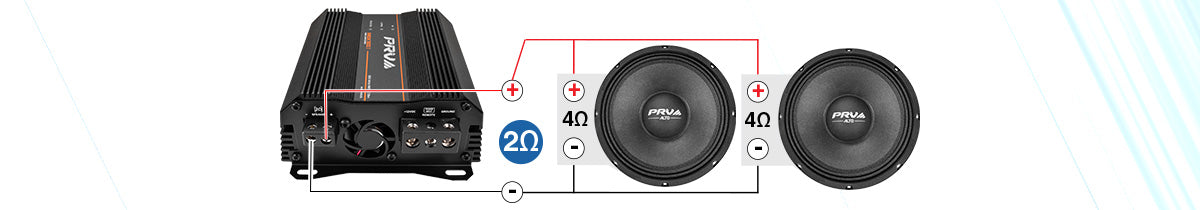

1 Channel Configuration for 4 Ohm ComponentsIts high power output channel allow you to install 2x 4 Ohm Speakers in parallel at 1 Ohm, giving up to900 watts per component.

Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.

• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.

• Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.

• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 100A fuse 12 inches away from the battery as a safety precaution.

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.

Technical Details

GENERAL SPECIFICATIONS

  • Imdedance 2 Ohm
  • Channels 1 Channel
  • Rated RMS Power at 14.0 V at 2 Ohm 1x 1800 Watts RMS
  • Rated RMS Power at 14.0 V at 4 Ohm 1x 1100 Watts RMS
  • Average Efficiency 86%
  • Operating Voltage 9 to 16 Volts
  • Musical Current Draw 75 A
  • Minimum Power Wire Input (OFC) 4 Gauge wires
  • Protection Fuse or Circuit Breaker 100 Amps

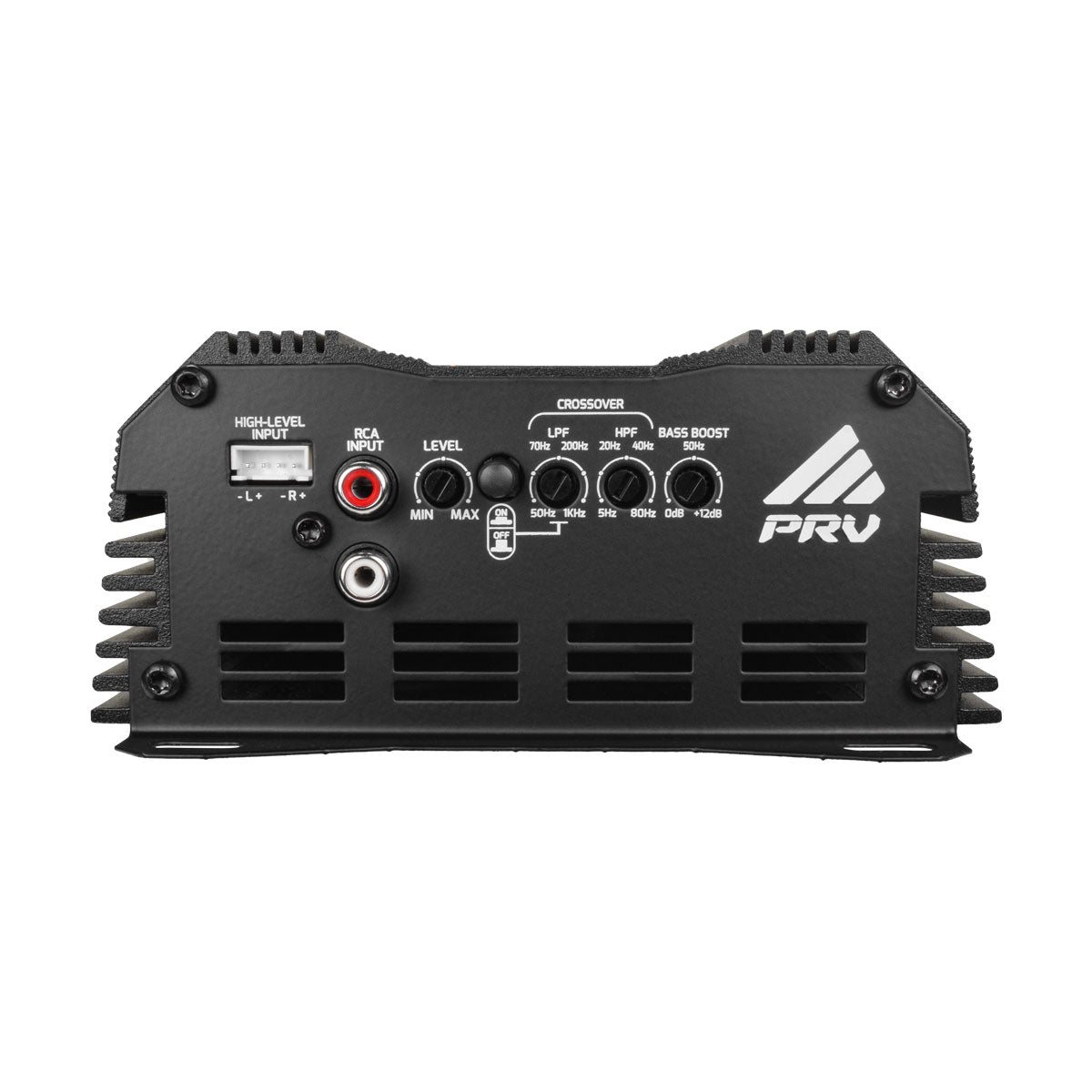

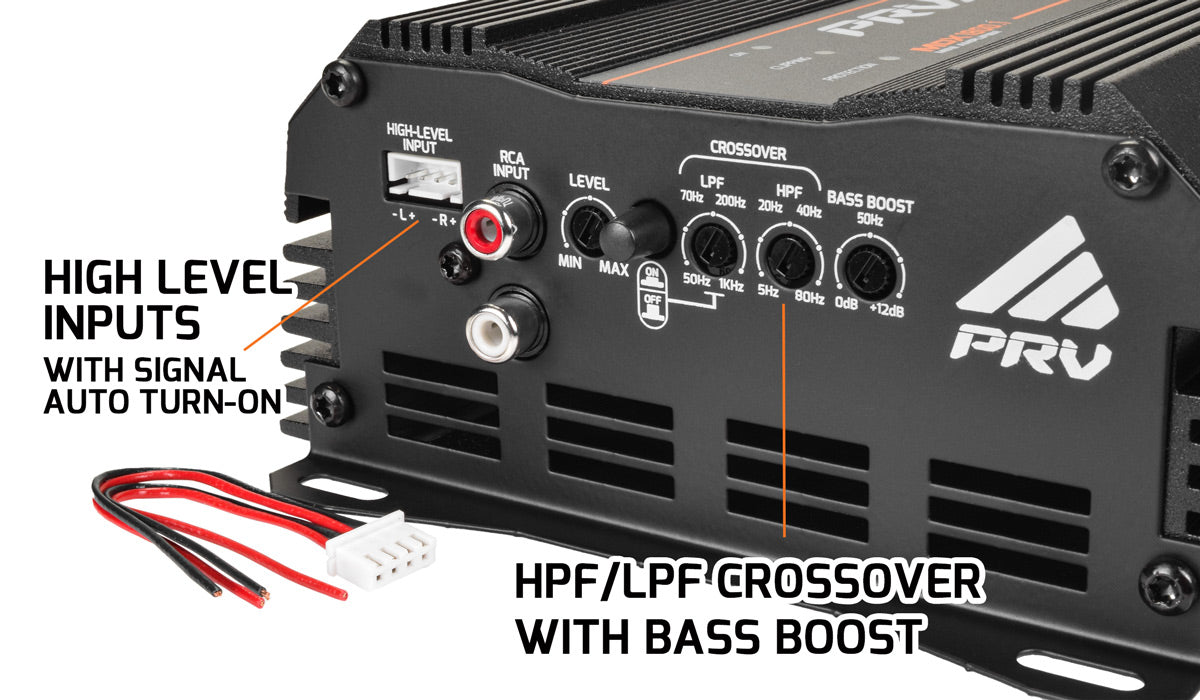

  • Built-in Crossover Variable HPF 5Hz – 80Hz & LPF 50Hz – 1kHz
  • Variable Gain Bass Boost at 50Hz 0 to +12dB
  • Minimum Speaker Wire Output 14 Gauge
  • Frequency Response(-3dB) 10 – 25,000 Hz
  • Min. Input Sensitivity for Max. Output 0.2 to 2v
  • Signal Input RCA Cables
  • Signal to Noise >90 dB
  • Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
  • Heat Sink Type Mini Heavy Duty Cast Aluminum

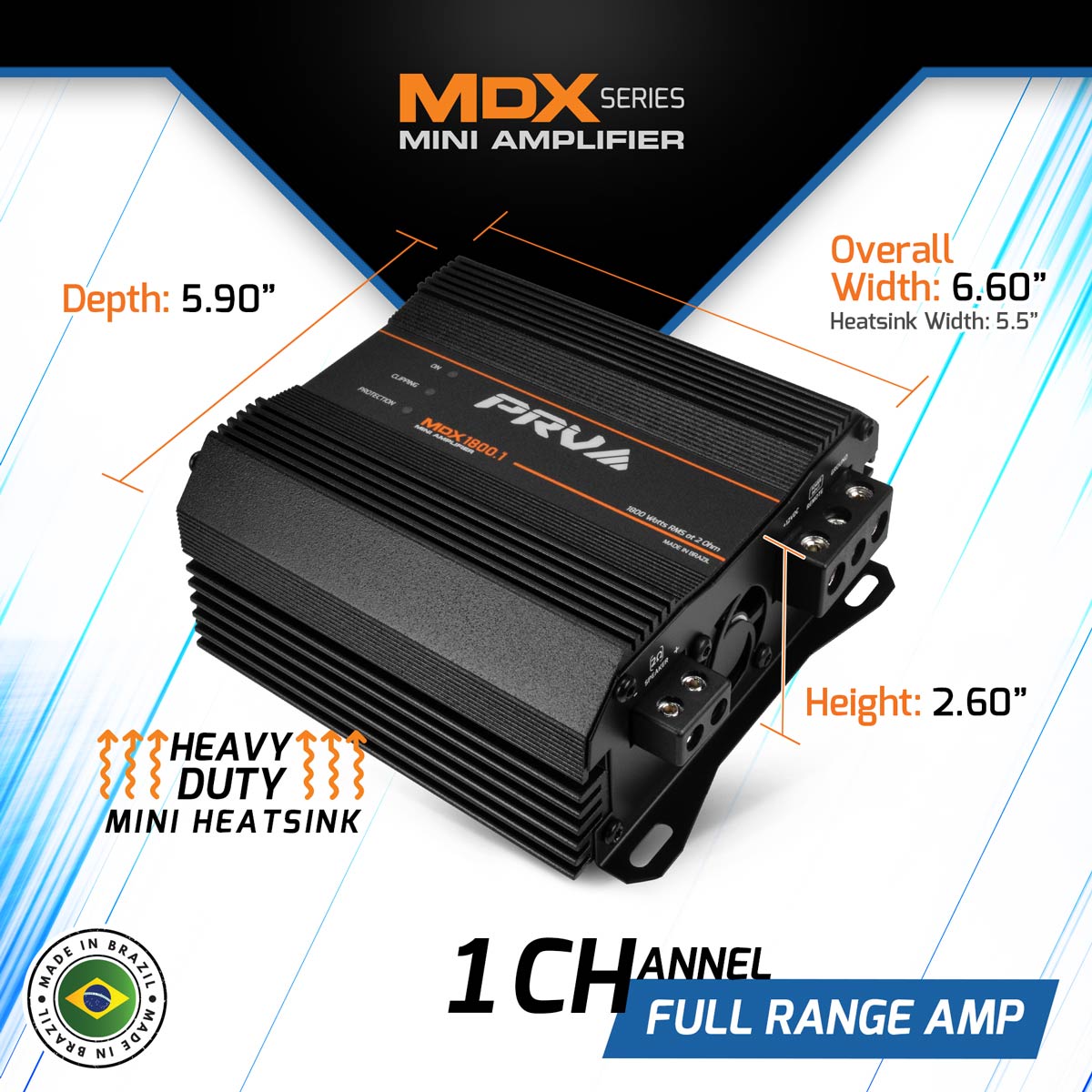

  • Dimensions (W x D x H) 6.60″ x 5.90″ x 2.60″
  • Weight 2.80 Lbs
