New

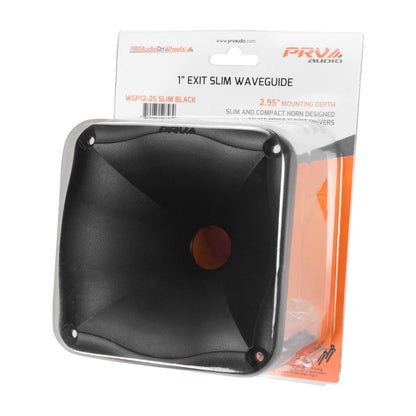

PRV WGP12-25 SLIM BLACK Waveguide

PRV WGP12-25 SLIM BLACK Waveguide

SKU: WGP12-25 SLIM BLACK
New

PRV WGP12-25 SLIM BLACK Waveguide

PRV WGP12-25 SLIM BLACK Waveguide

SKU: WGP12-25 SLIM BLACK

  • Slim 1” Exit Screw-On
  • 2.95” Mounting Depth
  • Black Finish
$19.91
$23.89

In stock
  • Slim 1” Exit Screw-On
  • 2.95” Mounting Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

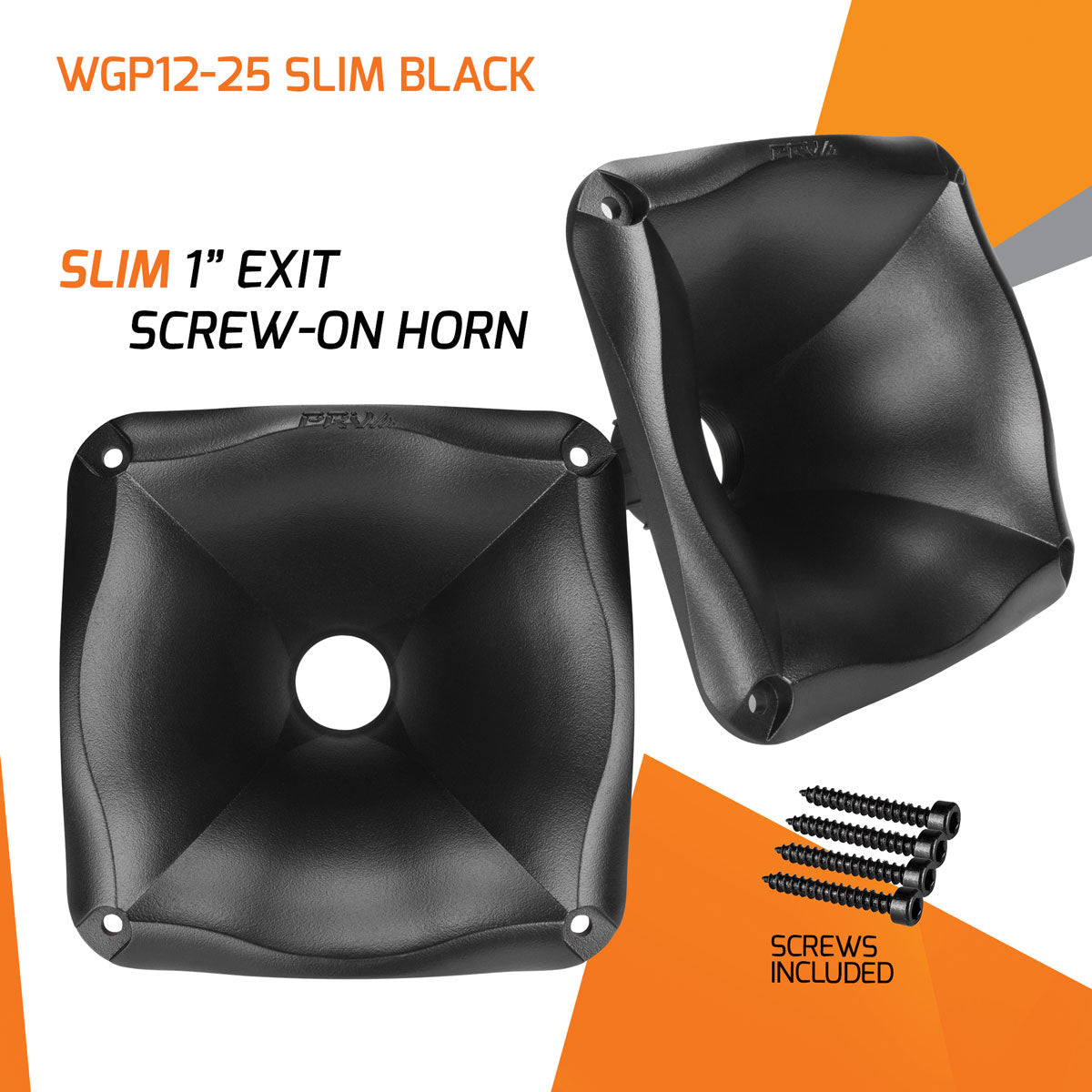

The screw-on compact waveguide WGP12-25 SLIM from PRV Audio is an exponential horn to consider when getting the most output from your 1″ compression driver is a must! At 2.95″ of depth with a faceplate of 5.20″ x 5.20″, this horn is a new compact option for high output systems.

A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WGP12-25 SLIM is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 800 Hz.

A compact version of the famous WG14-25 SLIM horn, with a smaller faceplate by 3/4 inch overall, making it smaller!

  • With amounting depth of 3.35″ and its compact 5.20″ x 5.20″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
  • Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it. Its baffle cutout is only 4.80” Diameter, which it makes easy to front mount drivers like the D290Py-S or D280Ti-S.
  • Its 60° x 60° dispersion pattern is ideal for long throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 800 Hz
  • Includes 4x screws

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 1” (25.4mm)
  • Mounting Type: Screw-on
  • Thread dimensions: 1-3/8″
  • Nominal Coverage:
  • Horizontal: 60°
  • Vertical: 60°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Black
  • Dimensions:
  • Height: 5.20” (132mm)
  • Width: 5.20” (132mm)
  • Depth: 3.35” (85mm)
  • Mount Depth: 2.95” (75mm)
  • Baffle Cutout:
  • Diameter: 4.85" (123.2mm)
  • Net weight: 0.25lb (0.115kg)

EXTRA INFO

PRV WGP12-25 SLIM BLACK Waveguide DATASHEET Download
PRV WGP12-25 SLIM BLACK Waveguide DATASHEET Download
