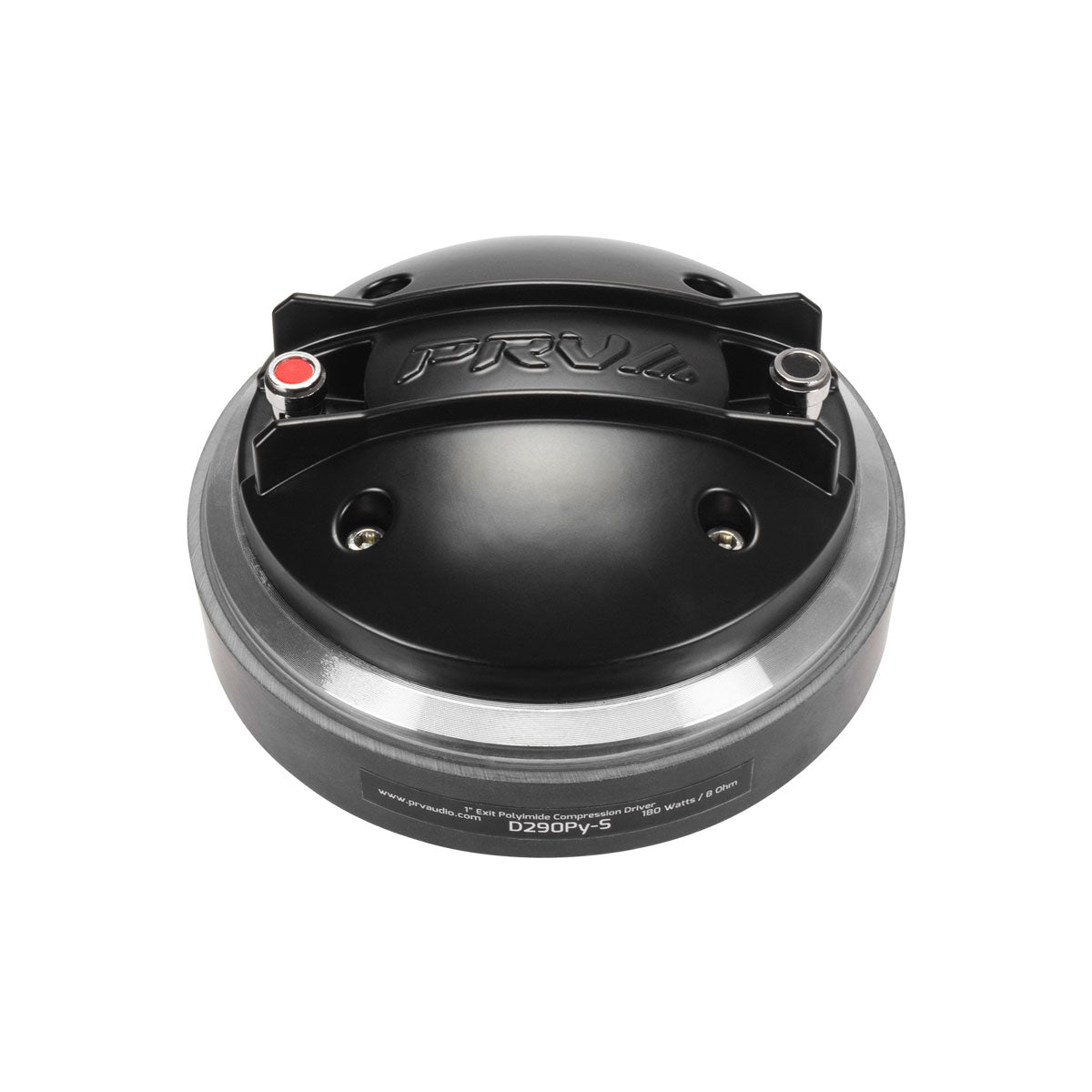

PRV D290Py-S Driver

PRV D290Py-S Driver

SKU: SKU:D290Py-S

Skip to product information

PRV D290Py-S Driver

PRV D290Py-S Driver

SKU: SKU:D290Py-S

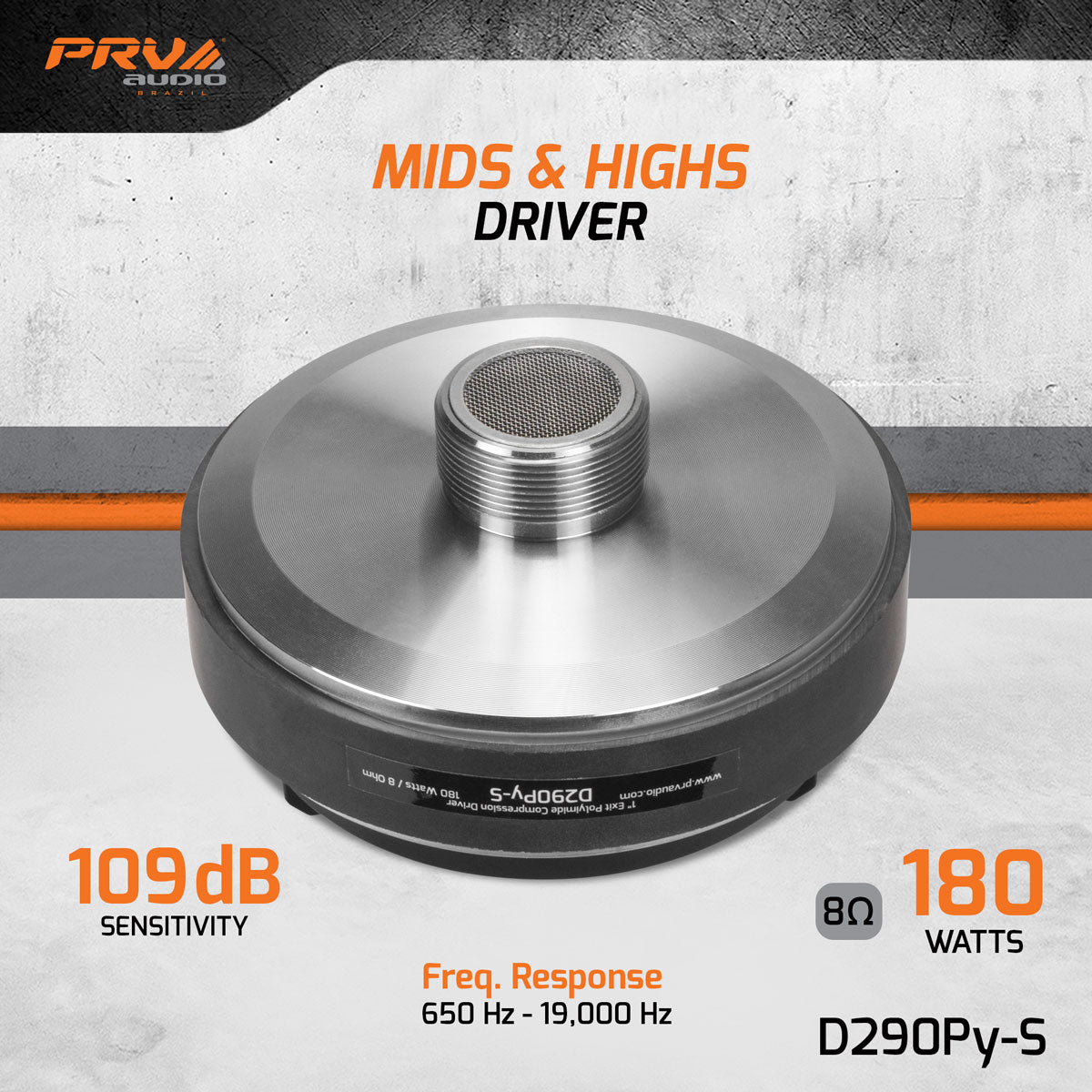

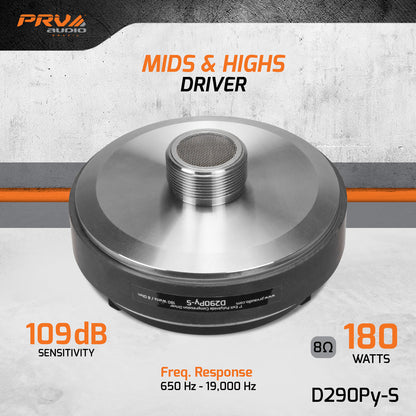

  • 1" Mids & Highs Driver
  • Polyimide Diaphragm
  • 109 dB - 180 Watts

$69.91
$87.39

Low stock

  • 1" Mids & Highs Driver
  • Polyimide Diaphragm
  • 109 dB - 180 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

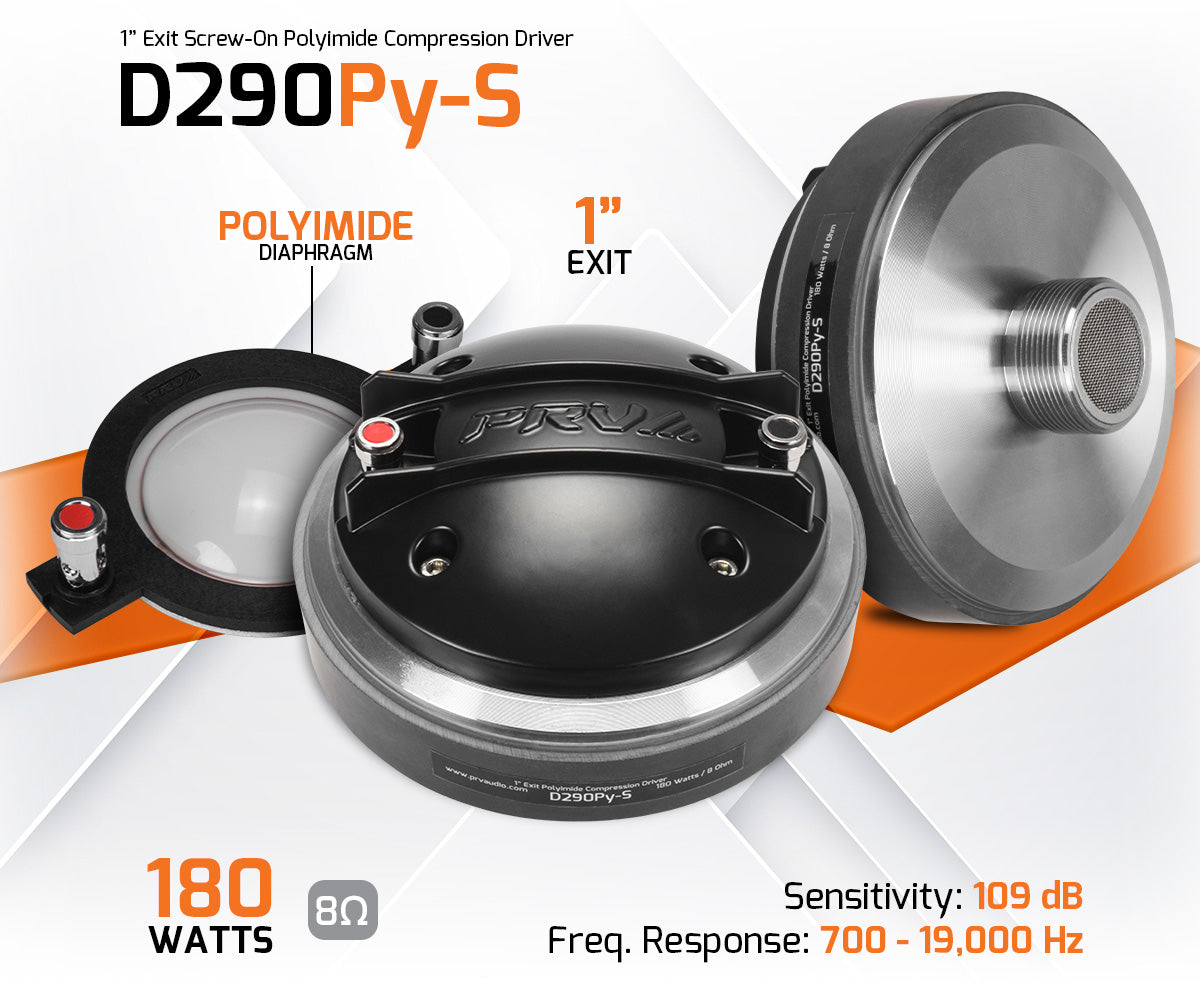

The PRV Audio D290Py-S 1″ Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.

  • Throat Diameter: 1″
  • Type: Screw-On
  • Nominal Impedance: 8 Ohm
  • Rated AES Power Handling (RMS): 90 Watts
  • Program Power: 180 Watts

The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

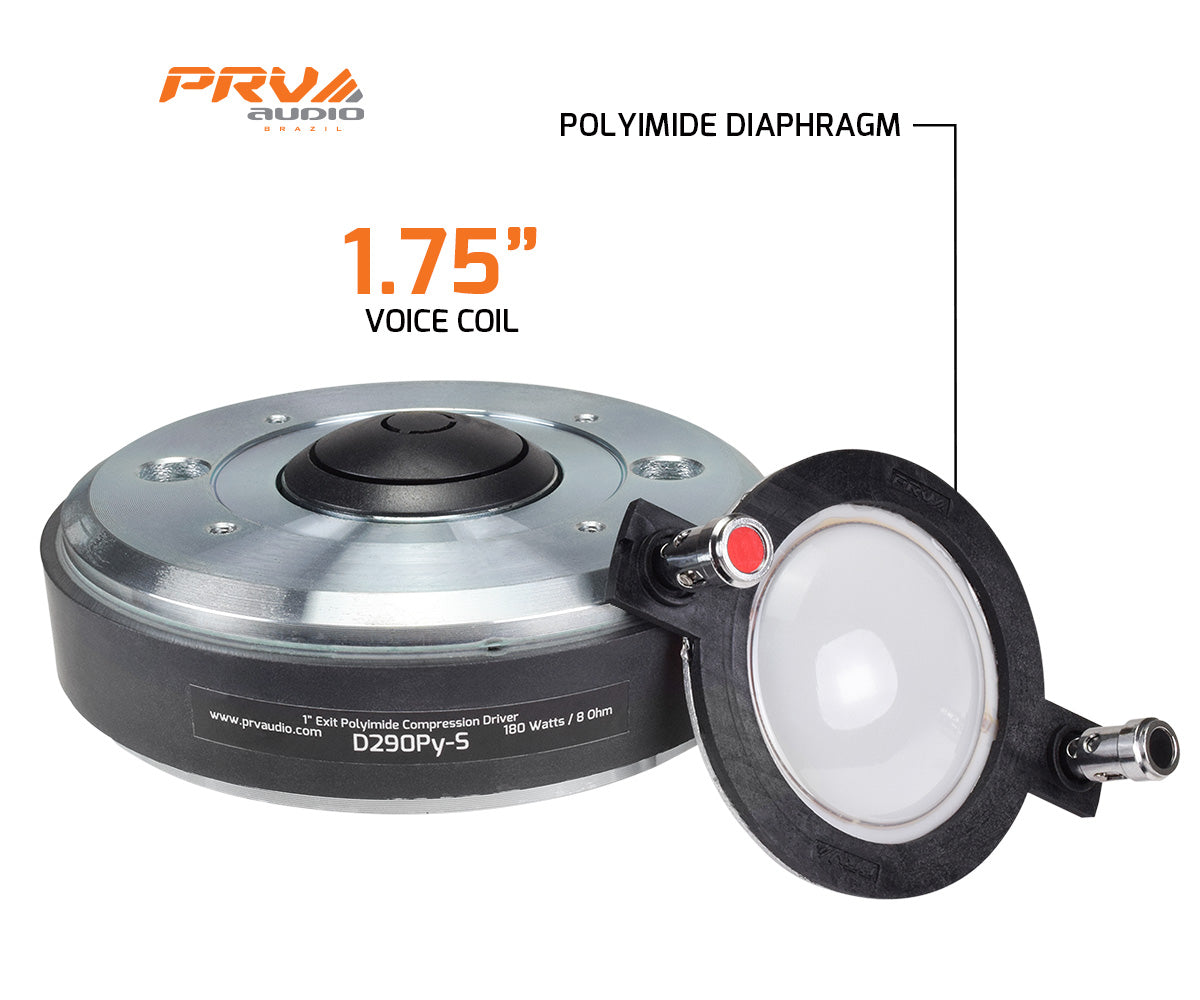

A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction. The D290Py-S is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required.

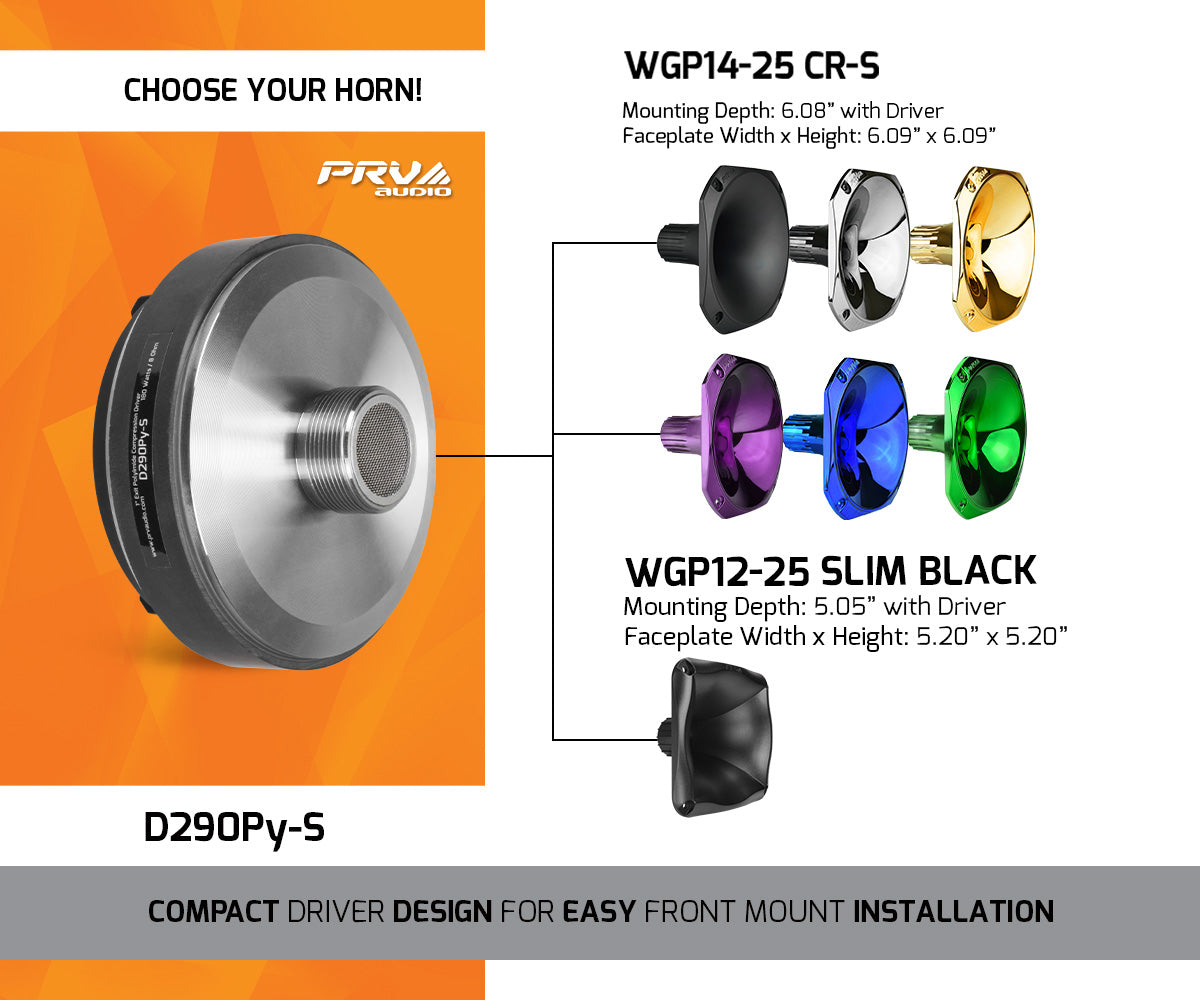

The D290Py-S is assembled with a standard 1 3/8” screw for easy replacement with current 1” horns.

Technical Details

GENERAL SPECIFICATIONS

  • Exit Throat Diameter 1” (25.4mm)
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 90 Watts
  • Program Power*** 180 Watts
  • Sensitivity 2.83V at 1m109 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 1000 Hz** **12db Per Octave Crossover

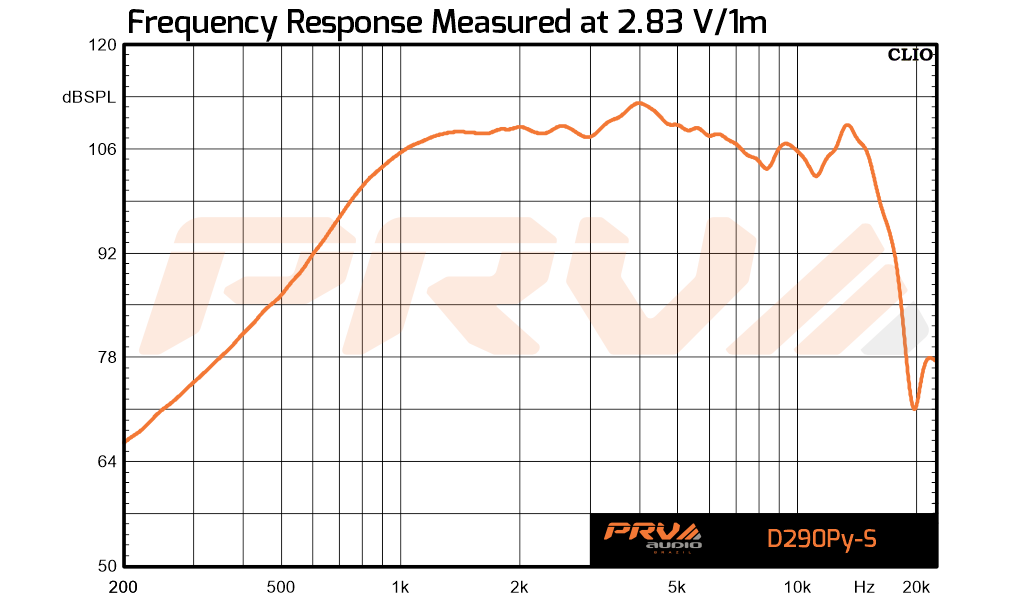

  • Frequency Response at -10dB 650 – 19,000 Hz
  • Voice Coil Diameter 1.75”(44.4 mm)
  • Voice Coil Wire Copper
  • Former Material Kapton
  • Diaphragm Polyimide
  • Flux Density 1.85 T
  • Magnet Type Ferrite

EXTRA INFO

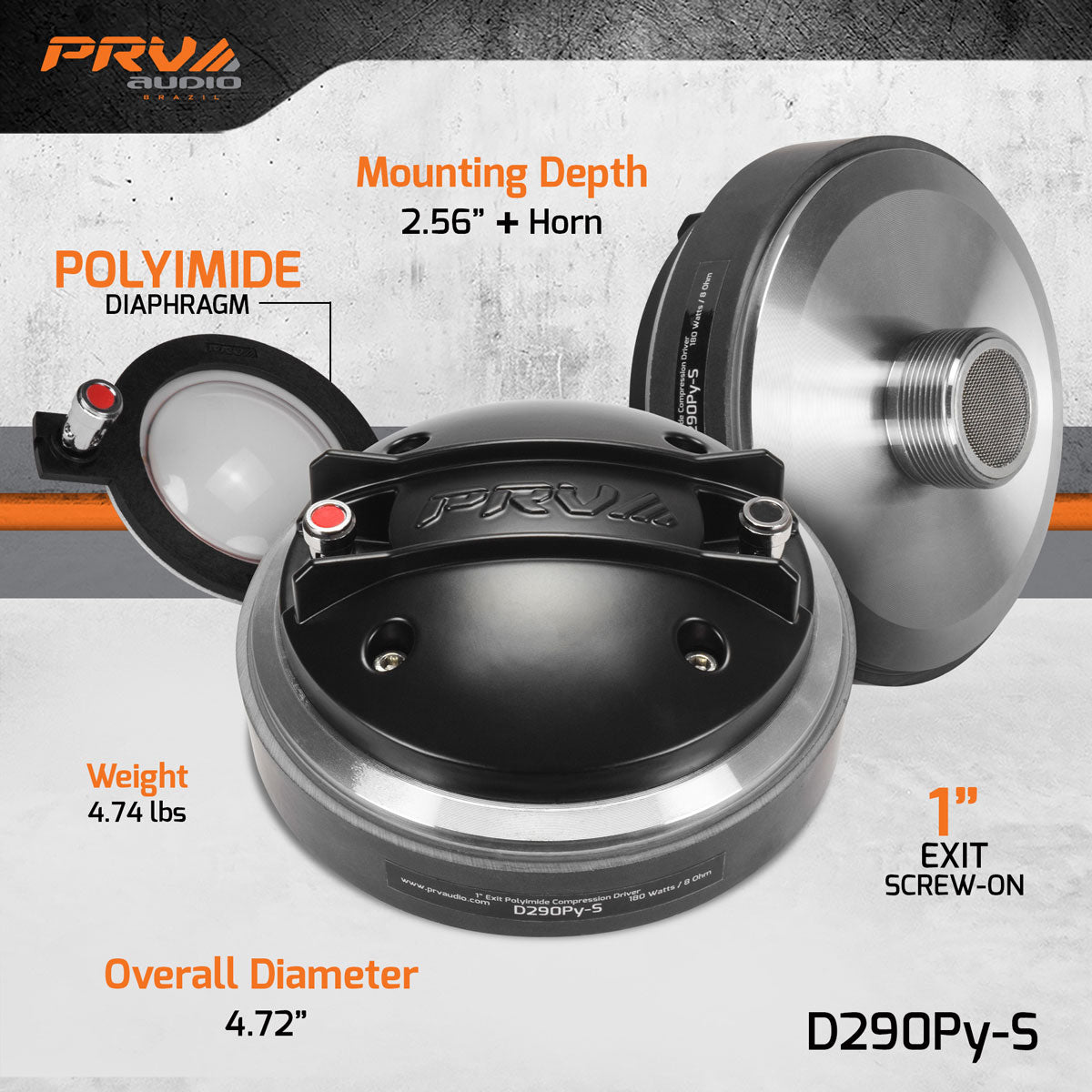

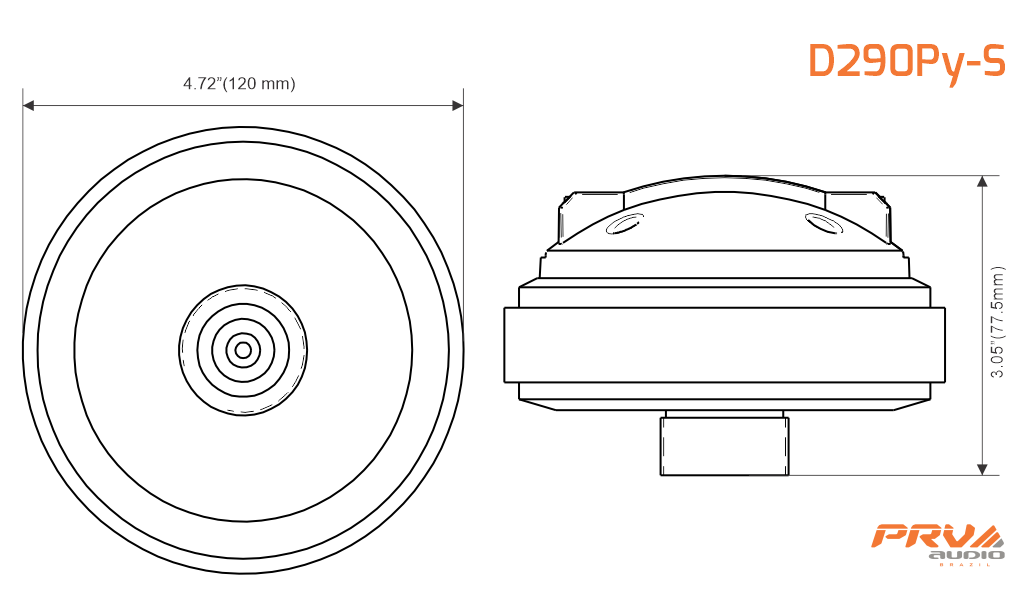

  • Overall Depth 3.07” (65 mm)
  • Overall Diameter 4.72” (120 mm)
  • Net Weight 4.96 lbs (2.25 kg)
  • Shipping Weight 5.15 lbs (2.33 kg)
  • Carton Dimensions WxLxH 5.51” x 5.31” x 3.35” (140 x 135 x 85 mm)

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

  • PRV RPD290Py

    RPD290Py
