PRV WGP14-50X SLIM Waveguide

PRV WGP14-50X SLIM Waveguide

SKU: WGP14-50X SLIM

PRV WGP14-50X SLIM Waveguide

PRV WGP14-50X SLIM Waveguide

SKU: WGP14-50X SLIM

  • Slim 2" Exit Bolt-On
  • 2.66" Mounting Depth
  • Black Finish

$19.91
$24.89

In stock
  • Slim 2" Exit Bolt-On
  • 2.66" Mounting Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

2″ Bolt-on slim waveguide WGP14-50X SLIM from PRV Audio is an exponential horn to consider for your 2″ Exit Compression Driver! At 2.66″ of mounting depth, this horn makes installation easy in tight spaces.

A standard 4 bolts mount is compatible with most 2″ compression drivers. The WGP14-50X SLIM is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1400 Hz.

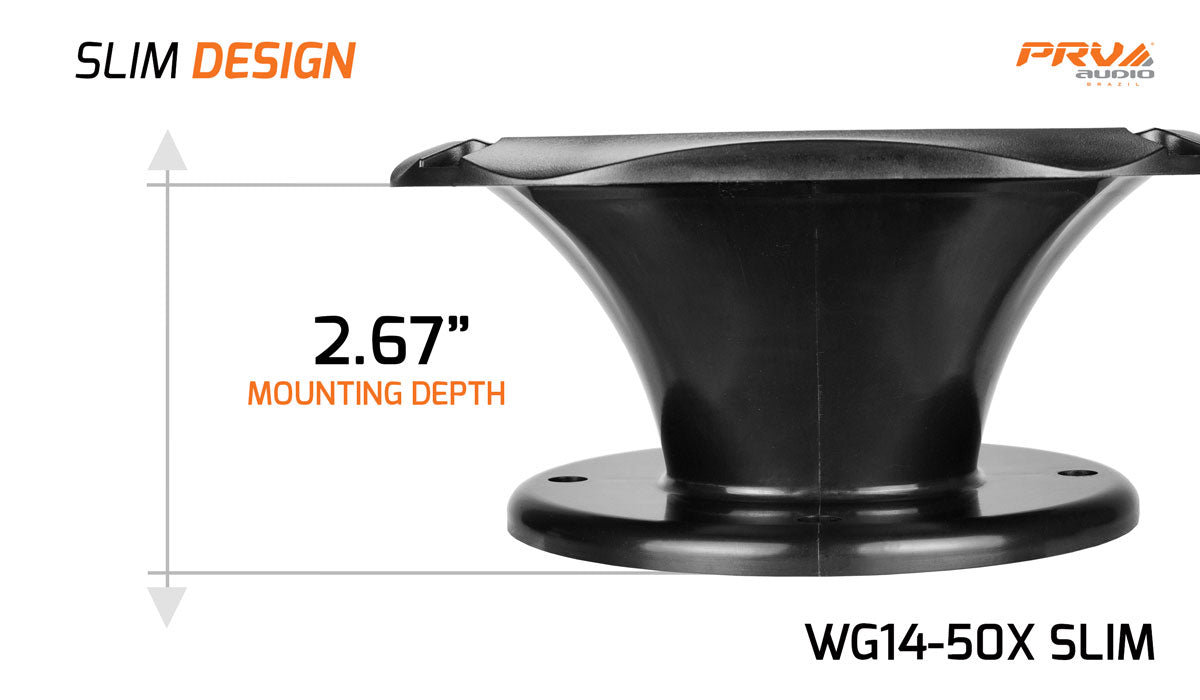

WGP14-50X SLIM Slim Design Highlights

  • Its slim mounting depth of 2.66″, with a standard 6.14″ x 6.14″ faceplate, takes up very little mounting depth, allowing you to mount a compression driver with very little mounting depth.
  • Designed to deliver big performance in very limited space, when you add any PRV 2″ Exit Driver to it.
  • Its 60° x 60° dispersion pattern is ideal for short throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 1,400 Hz

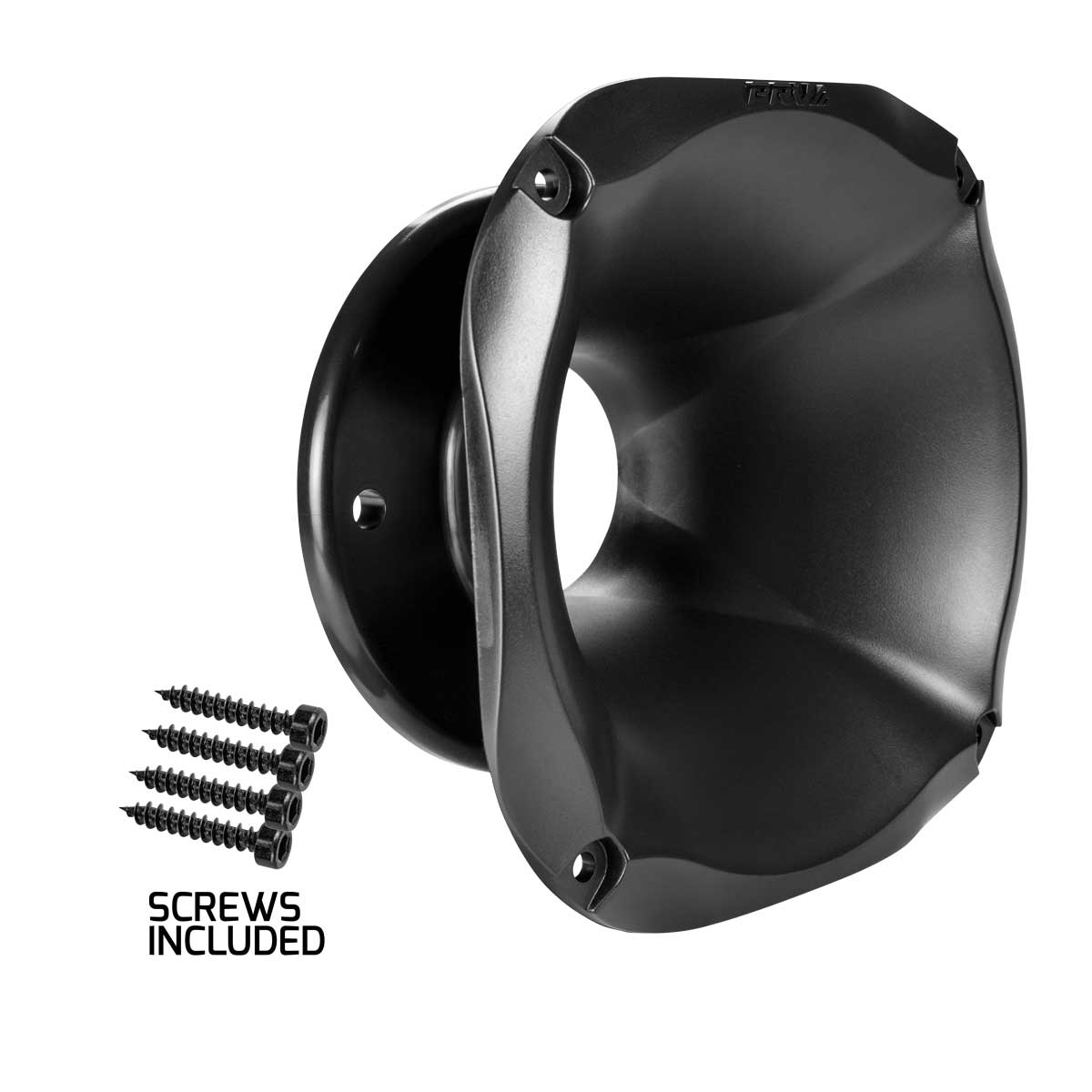

  • Includes 4x screws

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 2” (50.8 mm)
  • Mounting Type: Bolt-on
  • Hole Dimensions: 0.31″ (8 mm)
  • Bolt Circle: 4″ (102 mm)
  • Nominal Coverage:
  • Horizontal: 60°
  • Vertical: 60°
  • Flare type: Hybrid
  • Material: Plastic (ABS)
  • Finish / Coating: Black

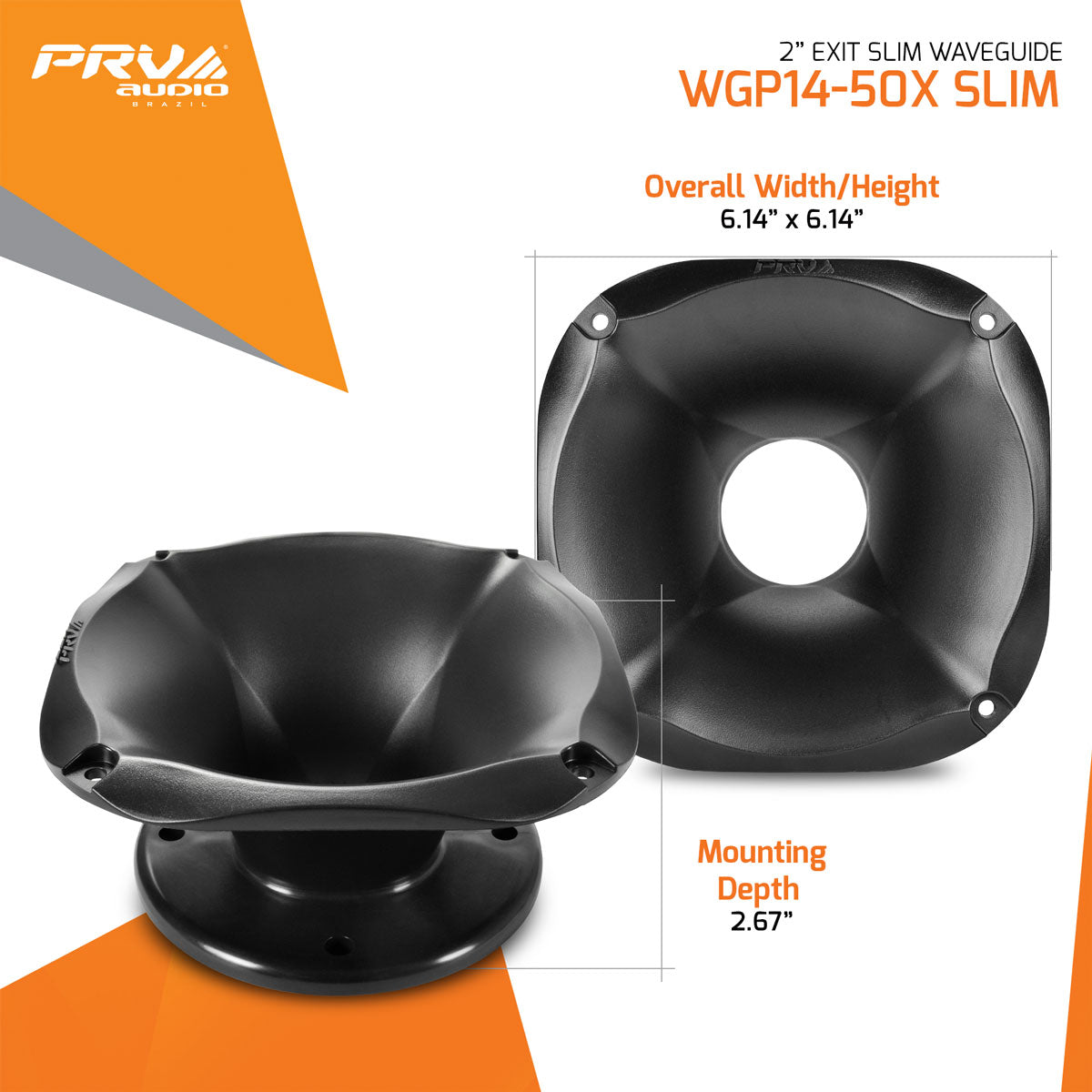

  • Dimensions:
  • Height: 6.14″ (156.0 mm)
  • Width: 6.14″ (156.0 mm)
  • Depth: 2.97″ (75.5 mm)
  • Mounting Depth: 2.67″ (67.9 mm)
  • Baffle Cutout:
  • Diameter Circle: 5.59″ (142 mm)
  • Net weight: 0.42 lb (0.19 kg)

EXTRA INFO

PRV WGP14-50X SLIM Waveguide DATASHEET Download
PRV WGP14-50X SLIM Waveguide DATASHEET Download
