PRV WG230Ti Driver + Horn Combo

PRV WG230Ti Driver + Horn Combo


  • 1" Highs Horn Driver
  • Titanium Diaphragm
  • 105 dB - 120 Watts


In stock

  • 1" Highs Horn Driver
  • Titanium Diaphragm
  • 105 dB - 120 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details


The WG230Ti compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn.

The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.

  • Throat Diameter: 1″
  • Type: Combo
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 30 Watts
  • Program Power: 60 Watts

The WG230Ti is a lightweight driver that weighs just 2.20lbs, and yet offers you outstanding response through 20kHz.  The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

The WG230Ti is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1″ screw-on design.

Technical Details


  • Exit Throat Diameter 1” (25.4mm)

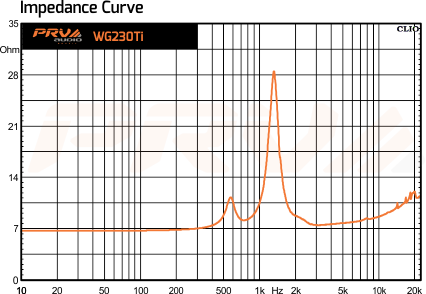

  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 30 Watts
  • Program Power*** 60 Watts
  • Sensitivity 2.83V at 1m105 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 2000 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 1,800 – 20,000 Hz
  • Voice Coil Diameter 1.4″ (35.5 mm)
  • Voice Coil Wire Copper
  • Former Material Kapton
  • Diaphragm Titanium
  • Flux Density 1.65 T
  • Magnet Type Ferrite


  • Overall Depth 5.11” (130 mm)
  • Mounting Depth 4.86” (123.5 mm)
  • Overall Width 4.54″ (115.5 mm)
  • Overall Height 4.54″ (115.5 mm)
  • Front Mount Baffle Cutout 4.16″ (102 mm)
  • Net Weight 2.20 lbs (1.00 kg)
  • Shipping Weight 2.41 lbs (1.10 kg)
  • Carton Dimensions WxLxH 4.64” x 4.64” x 5.31” (118 x 118 x 135 mm)
