Timpano 1500 Watts Car Audio Amplifier Fullrange TPT-1500 4 Ohm– 1 Channel Compact 12 volts Monoblock Fullrange Class D Car Amp
Small Footprint Technology! HD Sound Quality!
Timpano amplifiers raises power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% in a compact Class D full range amplifier.

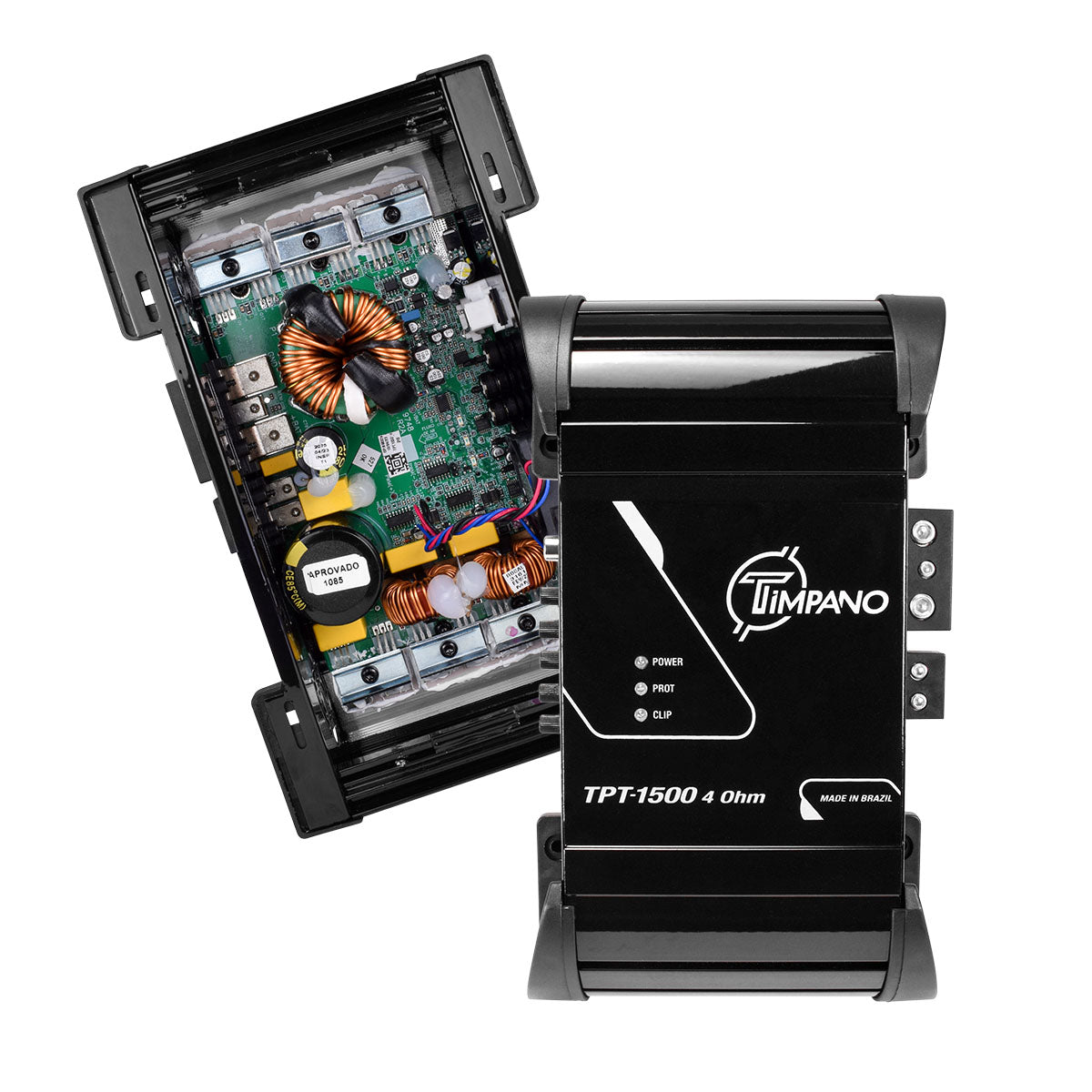

- COMPACT DESIGN: Digital class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36″ depth x 5.53″ width x 3.05″ height
- POWER: This monoblock amplifier is designed to run your system with the power it needs to perform! 1500 Watts RMS power output at 4 Ohm 1 channel. Its high efficiency rate of 86% provides more power with less battery consumption.

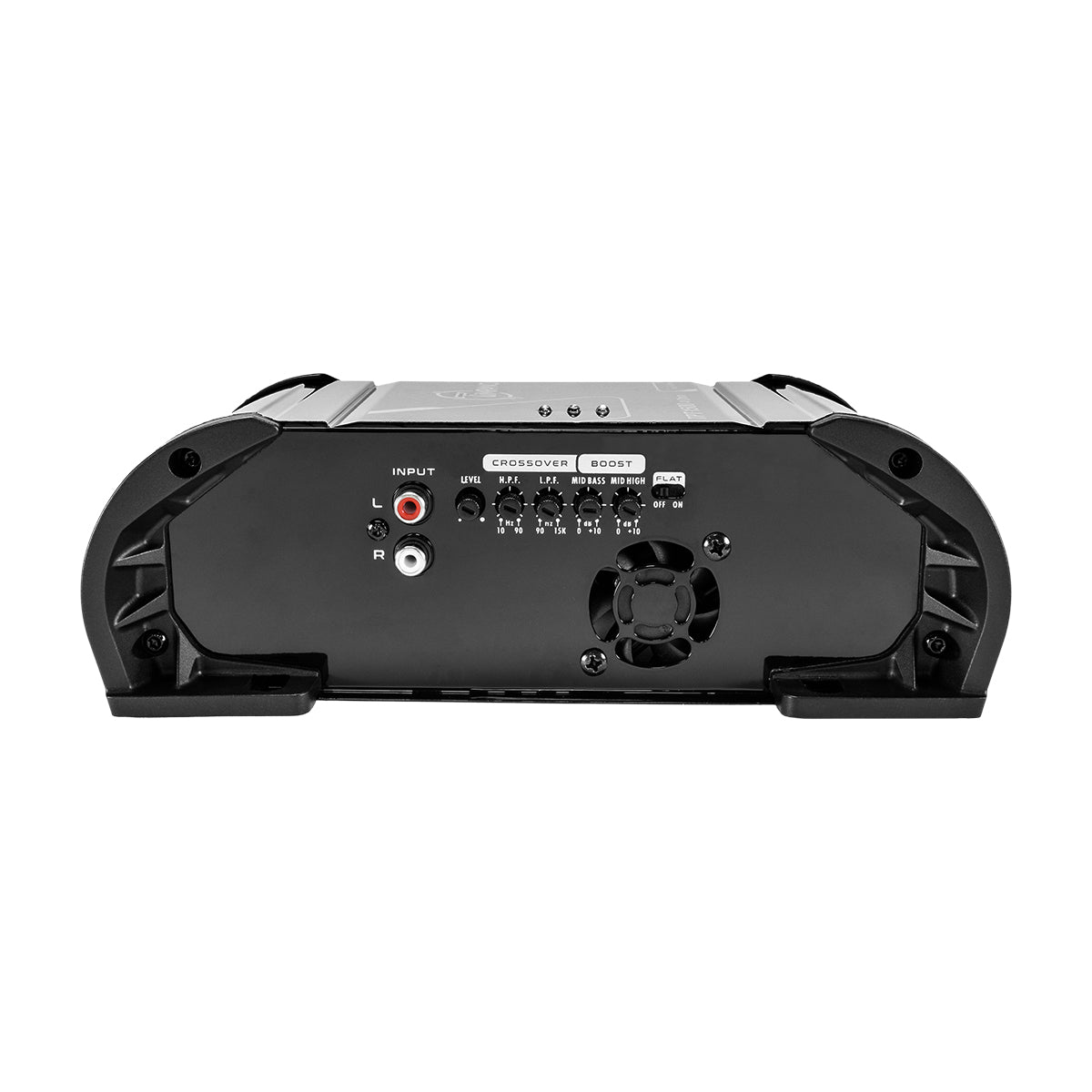

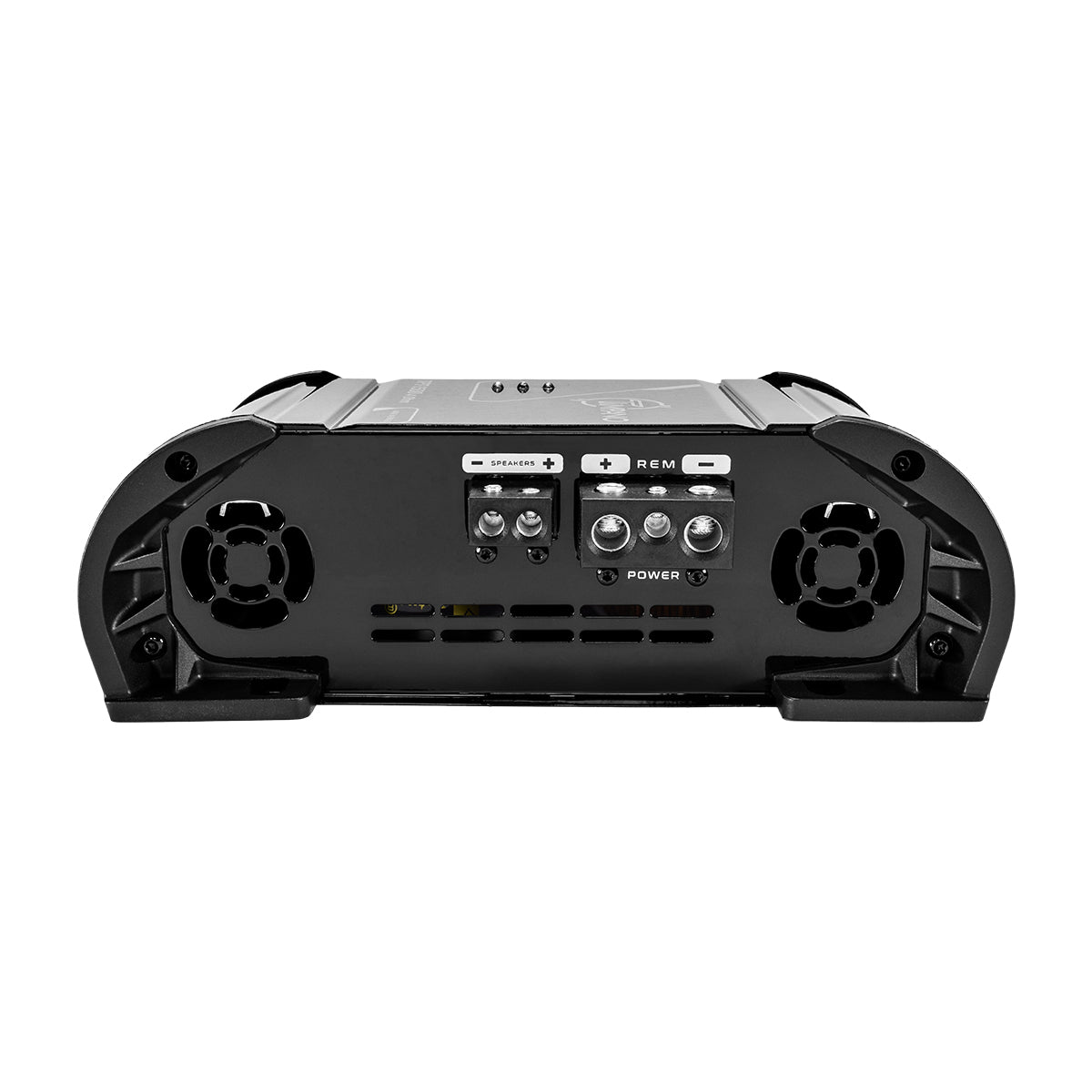

- FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your type of speaker with a HPF 10 to 90Hz and LPF 90 to 15,000Hz without a need for an external crossover or DSP. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
- TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 15,000Hz was used to give the best sound reproduction on this compact amplifier.
Additional Information:
- Number of Channels: 1
- RMS Power at 4 Ohm, 12.6 Volts: 1200 Watts RMS
- RMS Power at 8 Ohm, 12.6 Volts: 700 Watts RMS
- Supply Voltage: 9V ~ 15V
- Frequency Response: 10Hz ~ 15KHz
- Crossover Low Pass: 90Hz ~ 15KHz
- Crossover High Pass: 10Hz ~ 90Hz
- Signal to Noise: > 90 dB
- Input Impedance: 17K Ohm
- Impedance Output: 4 Ohm
- Musical Consumption: 57A

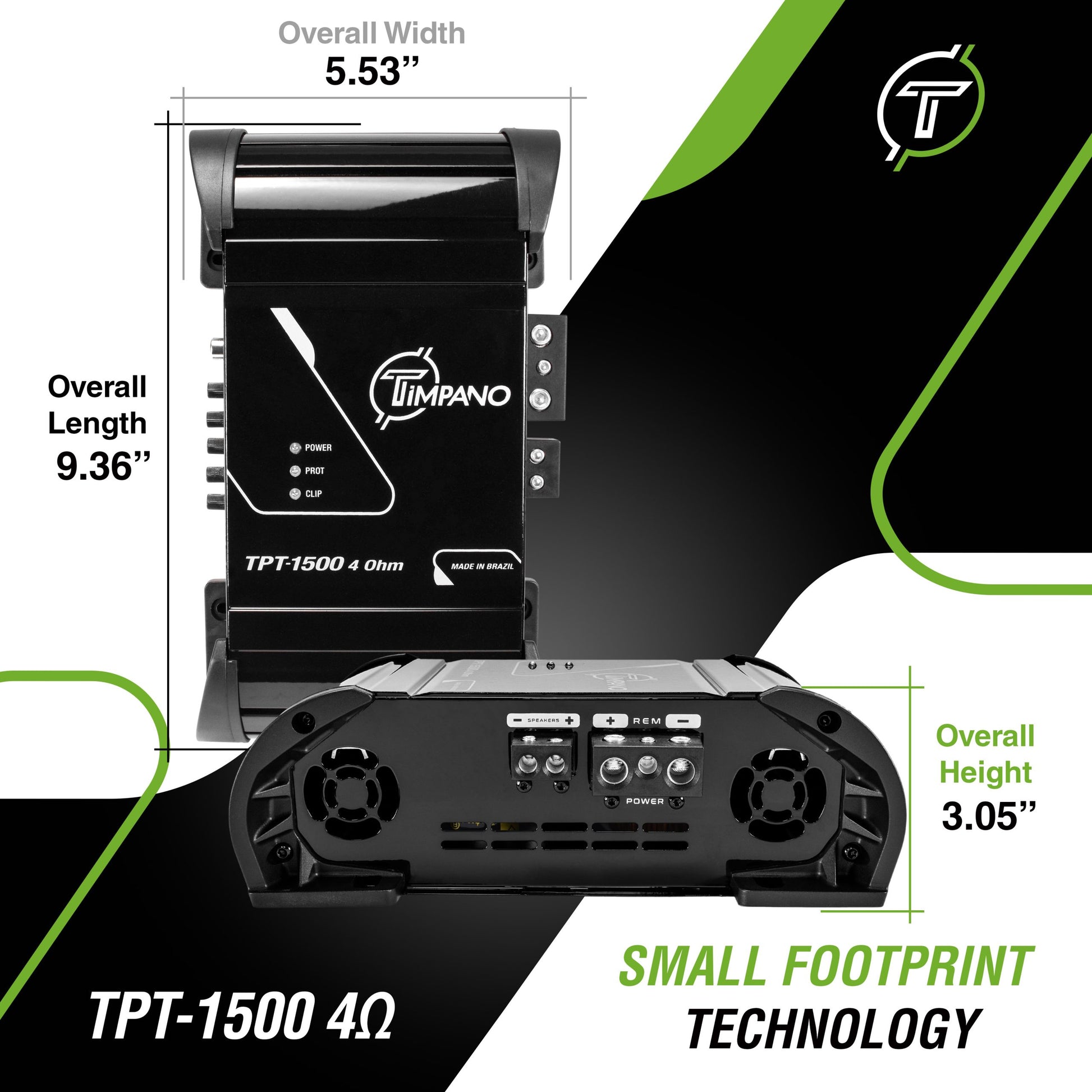

- Dimensions (L x W x H): 9.36” x 5.53” x 3.05”
- Weight: 3.50 Lbs
Features:
The TPT-1500 offer 1 channel with advanced individual equalization features for Midbass and Midhigh, plus the traditional Level, High and Low Pass Filter features. Its Fullrange frequency response from 10Hz to 15KHz allows the installation of Subwoofers, Speakers, Drivers and Tweeters.

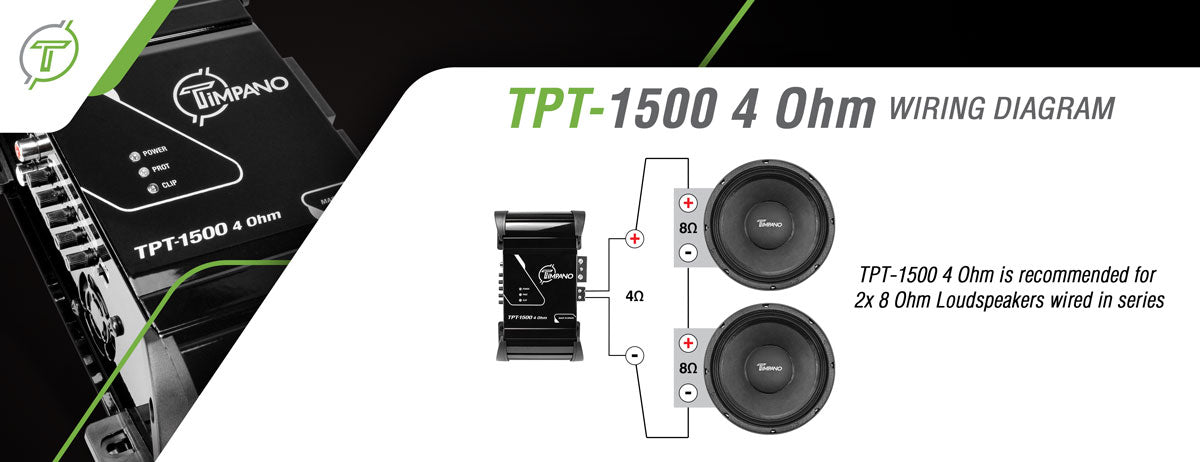

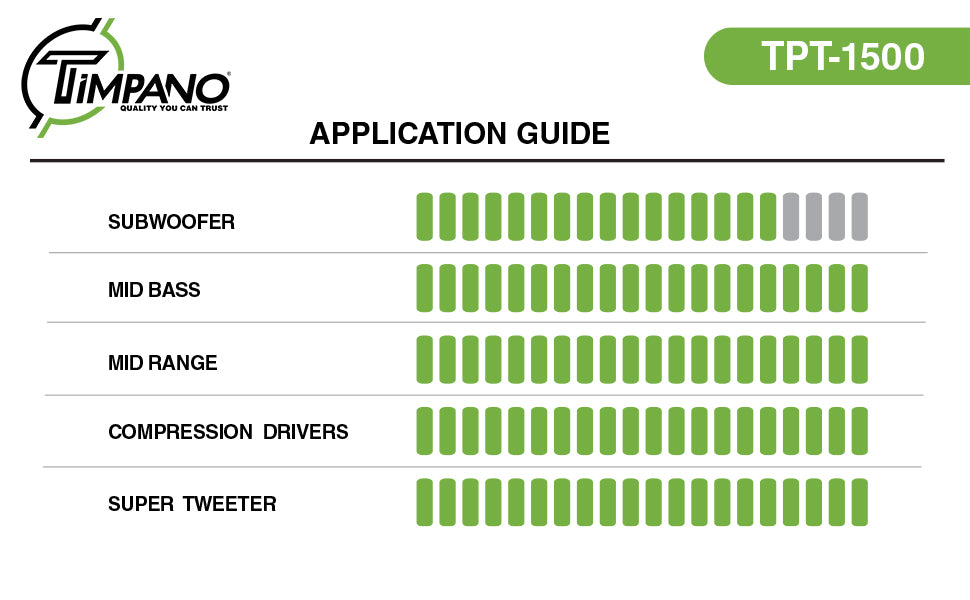

Use the guide Below for recommended applications, where you can get the full potential of your amplifier.
