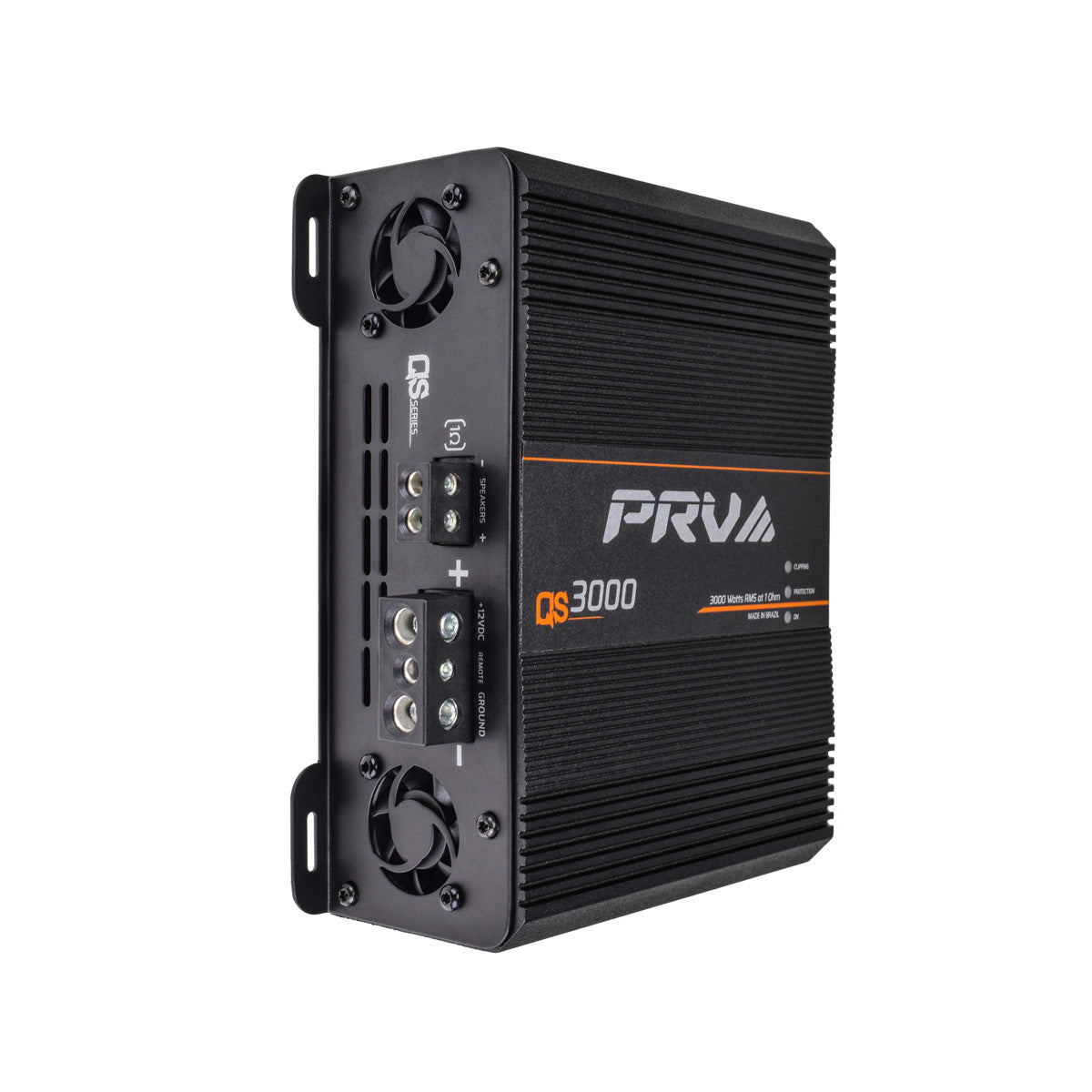

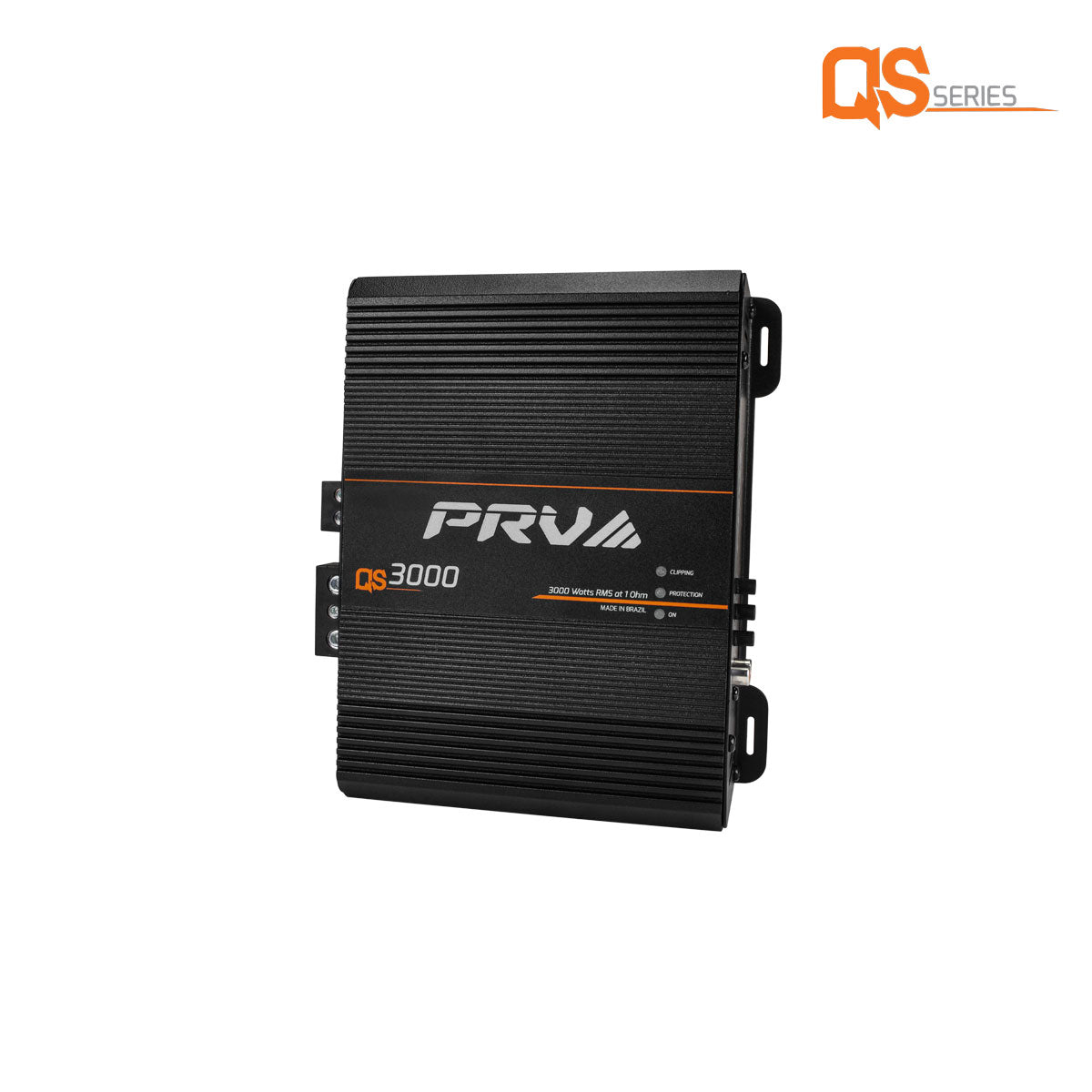

PRV QS3000 1 Ohm Amplifier
PRV QS3000 1 Ohm Amplifier
SKU: SKU:QS3000 1 Ohm
PRV QS3000 1 Ohm Amplifier
PRV QS3000 1 Ohm Amplifier
SKU: SKU:QS3000 1 Ohm
- Full Range Amp
- Compact 1 Channel
- 3000 Watts 1 Ohm
In stock
- Full Range Amp
- Compact 1 Channel
- 3000 Watts 1 Ohm
Free Shipping available on orders over $1,500.00 in the U.S.
Features

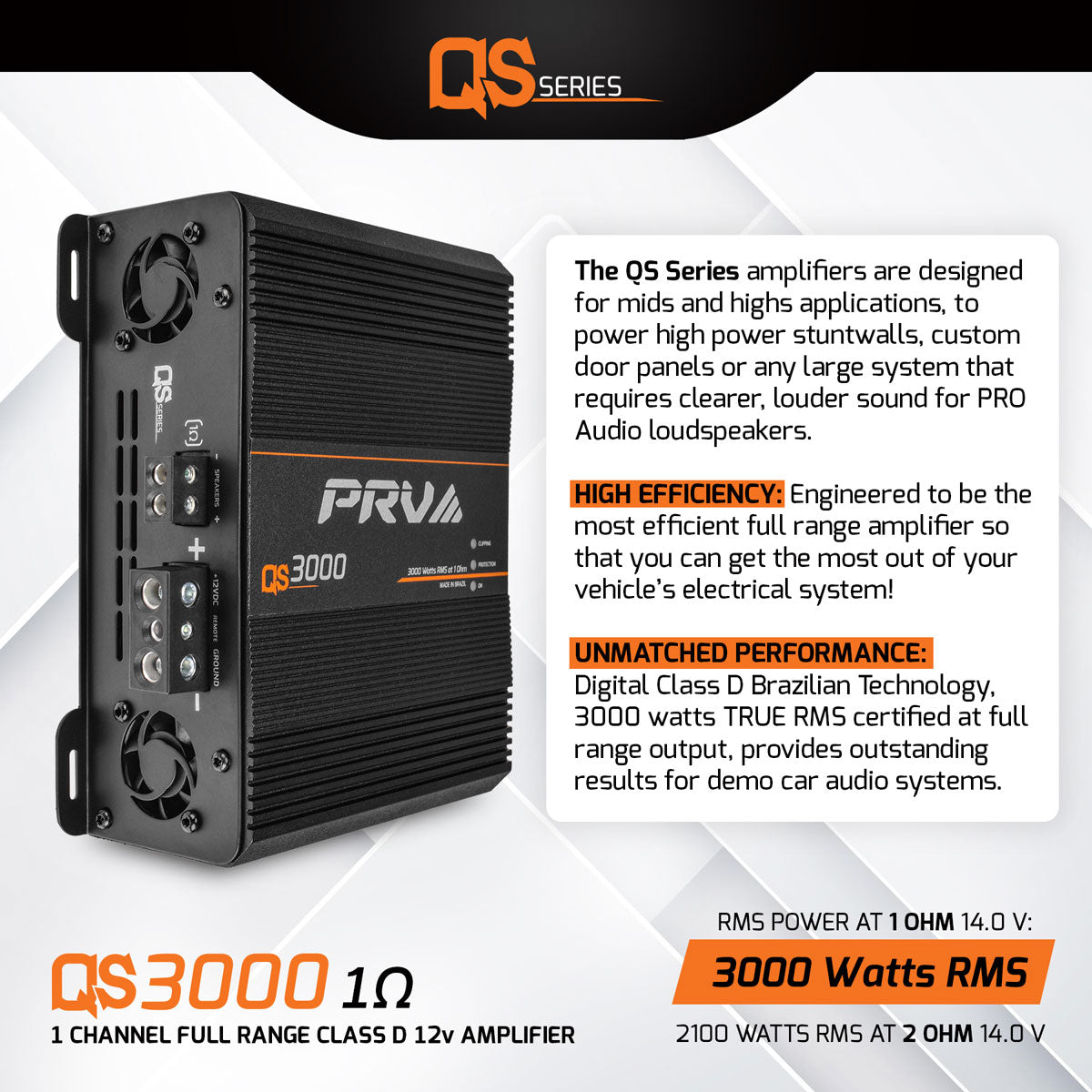

QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!
The QS3000 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 80–90% in a small aluminum heatsink.
- 3000 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology

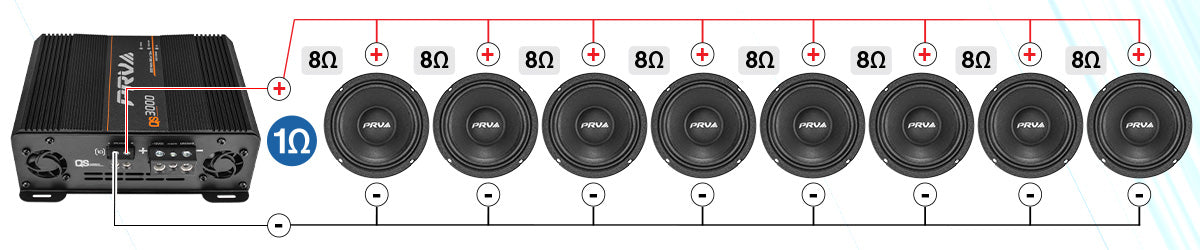

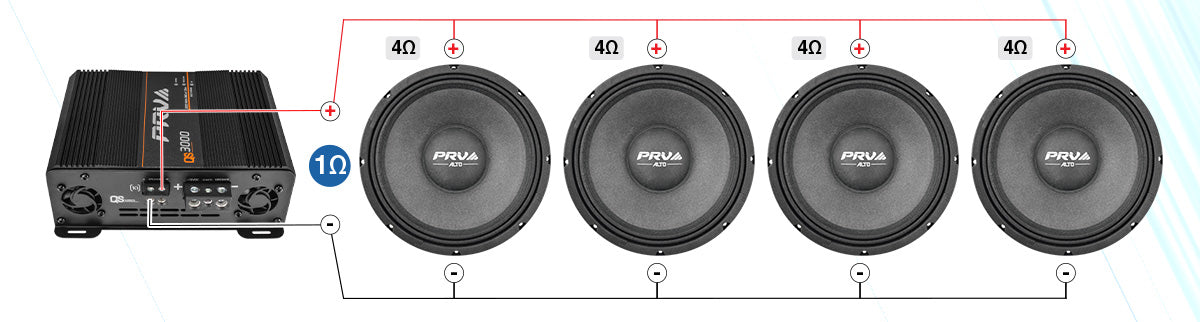

- 1 Channel car audio amplifier stable at 1 Ohm gives you the benefit of wiring multiple speakers and dividing the power.
- Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!

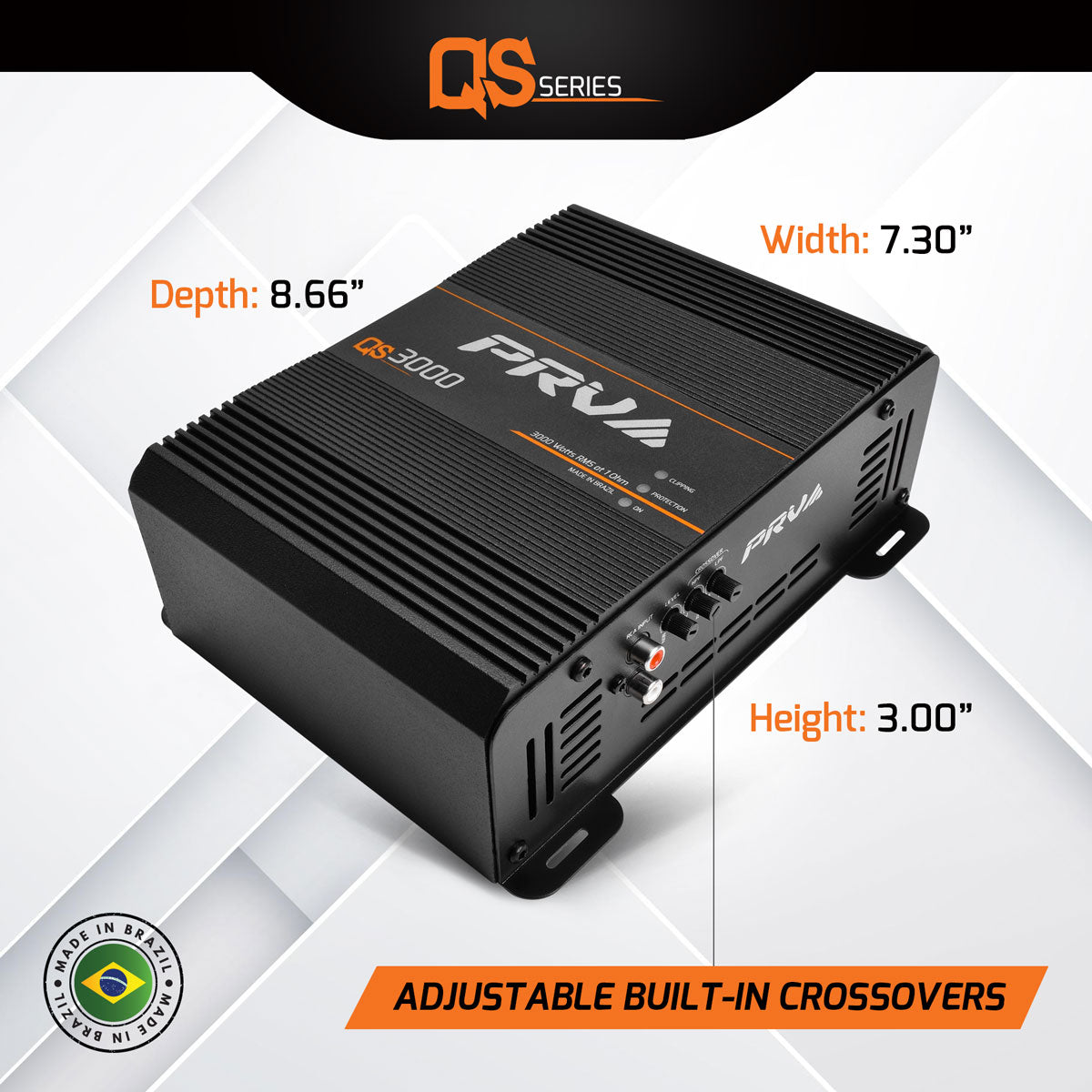

- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 8.66″ Wide x 7.30″ Length x 3.00″ Height
- 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
- Channels: 1 Channel
- Rated RMS Power at 14.0 V at 1 Ohm: 3000 Watts
- Rated RMS Power at 14.0 V at 2 Ohm: 2100 Watts
The QS series is our most recent line of full bridge high wattage amplifiers. You can count on these amplifiers to deliver incredible value for your money. QS3000 at 1 Ohm Stable, also available at 2 Ohm.
Its wide frequency response allows you to use it in many different applications, such as subwoofers, midbass, midrange, full range speakers, phenolic drivers, titanium drivers, and super tweeters, among others. This versatile amplifier is the perfect solution for daily car audio systems.

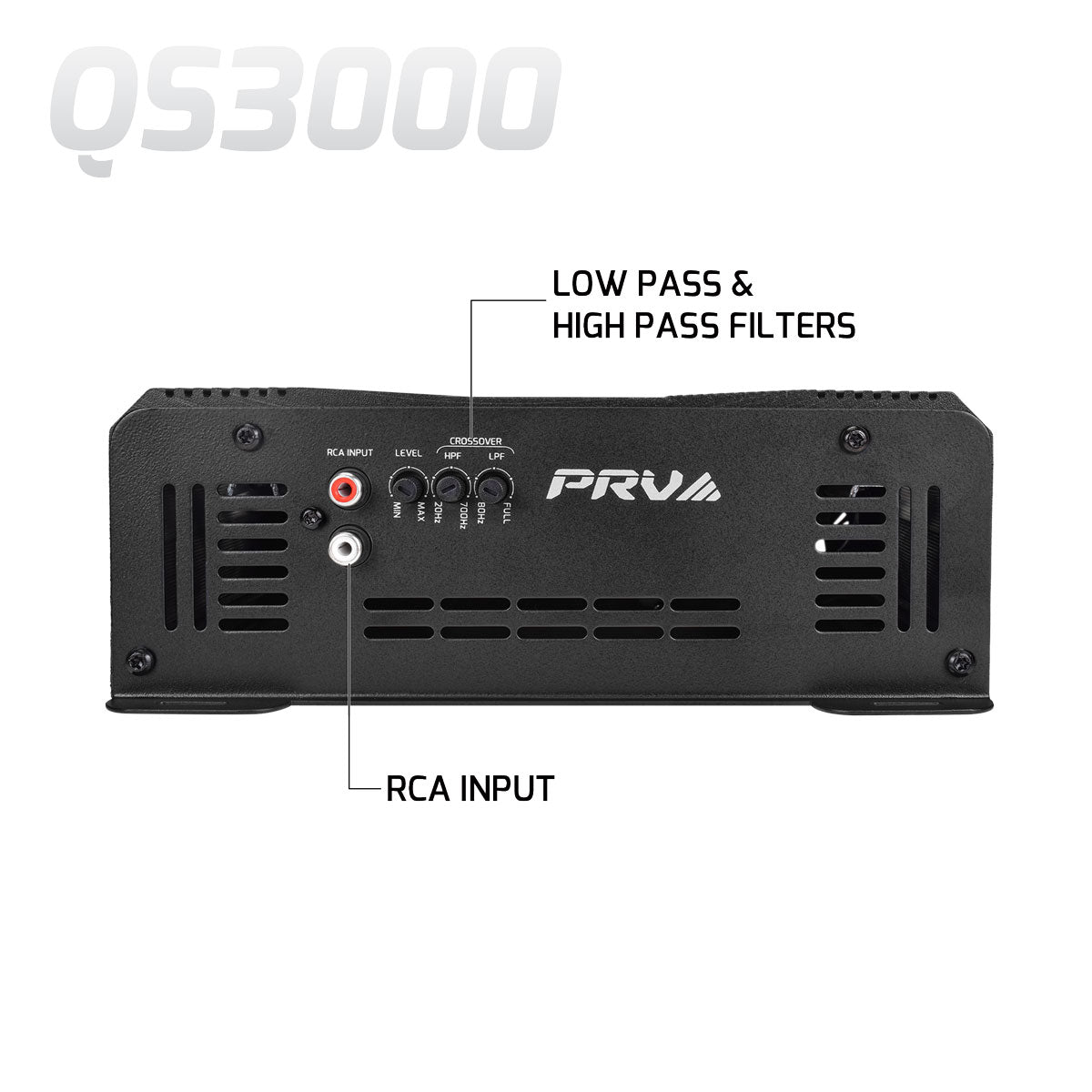

Built-in HIGH and LOW pass filters allow the user to set the right frequency range for his equipment, from deep bass all the way to high frequencies.

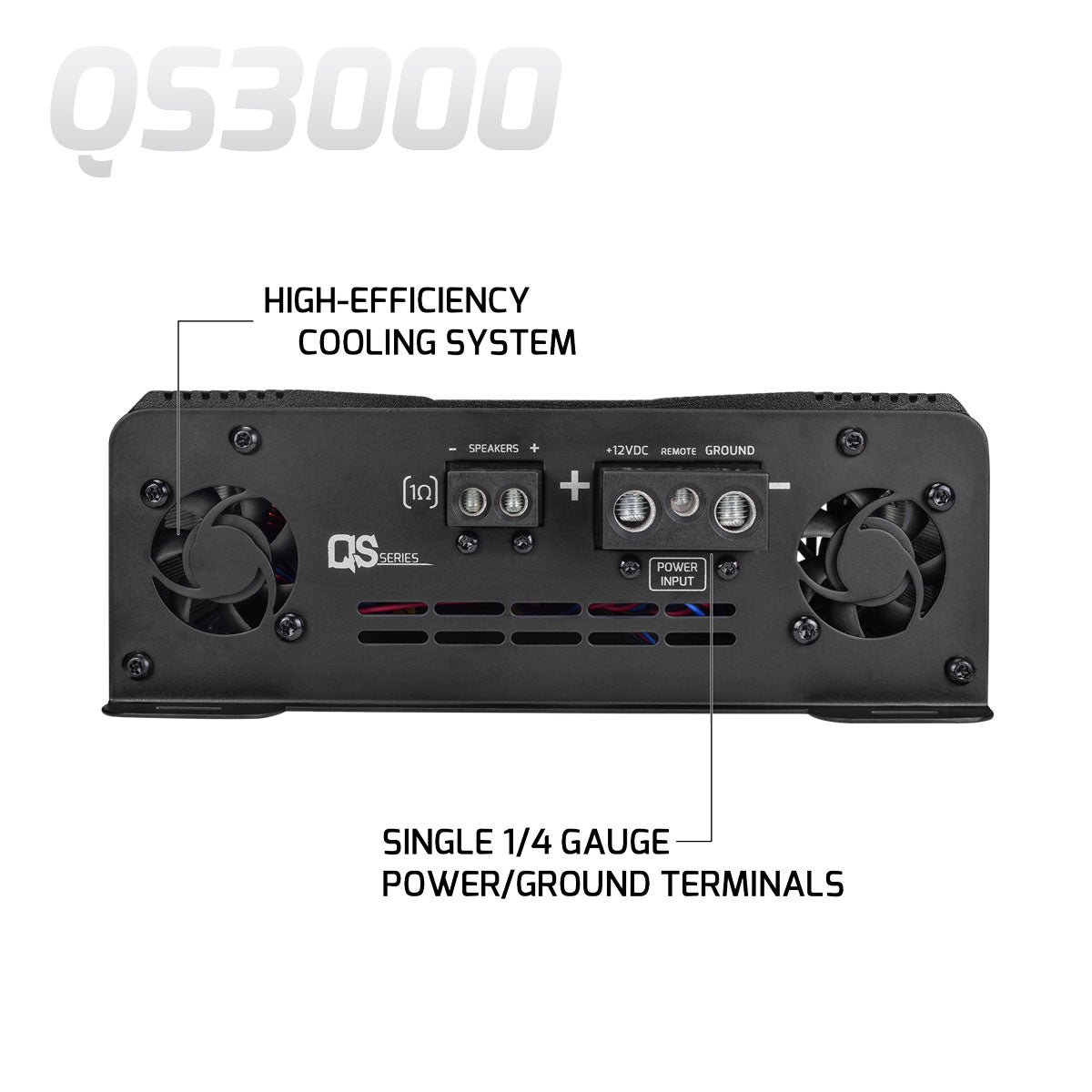

This proprietary heat dissipation design will ensure a high air flow cooling fans controls its temperature to run cool on the most demanding playlists.
The LED indicator is a simple built-in tool that allows you to easily monitor the status of your amplifier while it is in use.
Its clipping indicator flashes at the limit of its maximum power output without any distortion, providing excellent sound performance while giving you the best value! All are protected by four-stage intelligent protection circuitry.
You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 80A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.
Technical Details
- Imdedance 1 Ohm
- Channels 1 Channel
- Rated RMS Power at 14.0 V at 1 Ohm 3000 Watts
- Rated RMS Power at 14.0 V at 2 Ohm 2100 Watts
- Average Efficiency 76%
- Operating Voltage 9 to 16 Volts
- Musical Current Draw 155 A
- Minimum Power Wire Input (OFC) 4 Gauge
- Protection Fuse or Circuit Breaker 150 Amps
- Minimum Speaker Wire Output 14 Gauge
- Frequency Response(-3dB) 20 – 20,000 Hz
- Min. Input Sensitivity for Max. Output 200 mV
- Signal Input 1 Pair RCA
- Signal to Noise >90 dB
- Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
- Heat Sink Type Heavy Duty Cast Aluminum
- Dimensions (W x D x H) 8.66″ x 7.30″ x 3.00″
- Weight 5.10 Lbs
The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.
