PRV WG175Py-Nd SLIM

PRV WG175Py-Nd SLIM

SKU: WG175Py-Nd SLIM
New

PRV WG175Py-Nd SLIM

PRV WG175Py-Nd SLIM

SKU: WG175Py-Nd SLIM

  • 1” Mids & Highs Horn Driver
  • Polyimide Diaphragm
  • 108 dB – 150 Watts
$99.91
$124.89

Out of stock

  • 1” Mids & Highs Horn Driver
  • Polyimide Diaphragm
  • 108 dB – 150 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

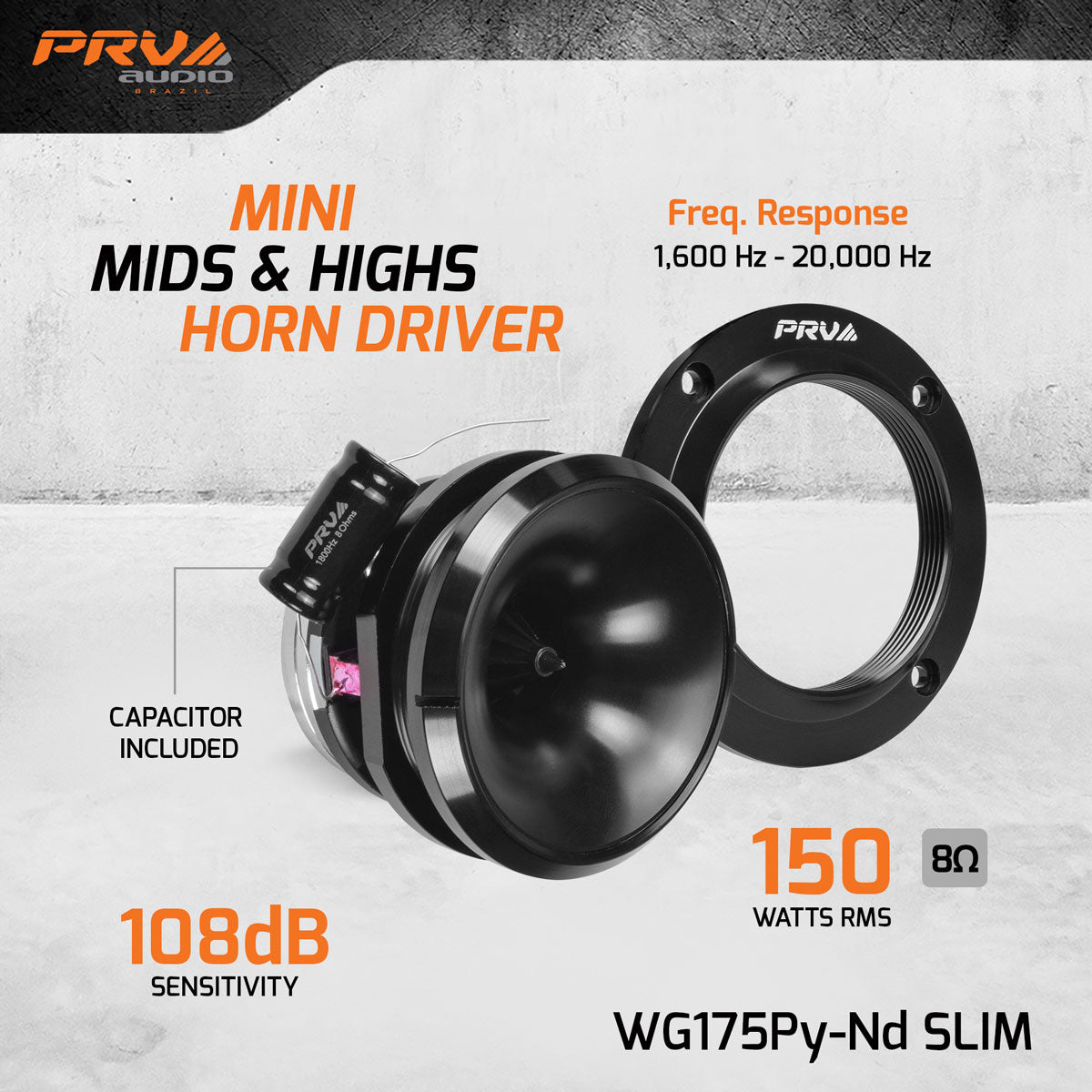

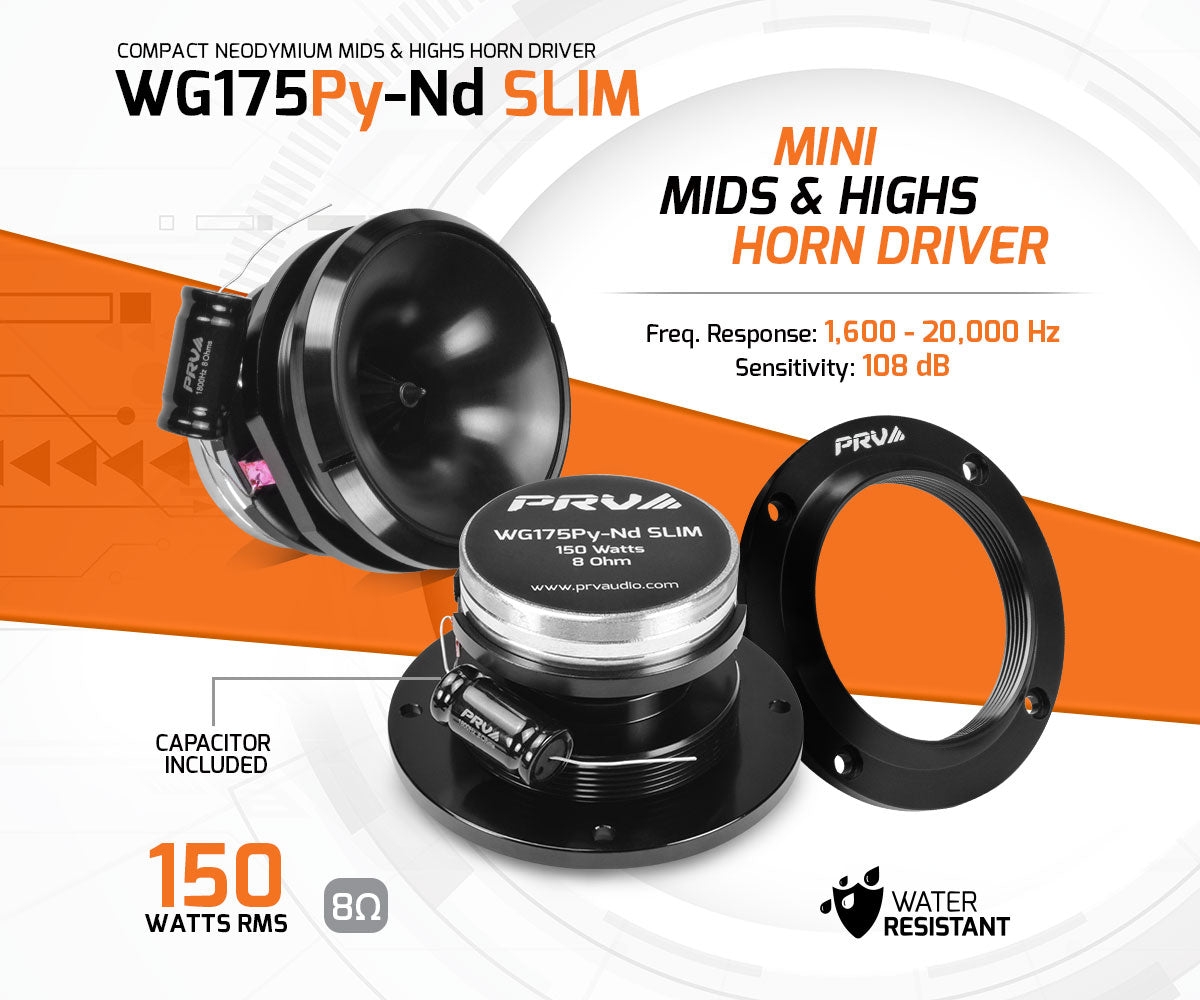

The WG175Py-Nd SLIM is a Mini Horn Mids & Highs Driver featuring a unique Polyimide diaphragm with an 8 Ohm voice coil.

This is a top-of-the-line compression driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

  • Crystal clear natural sound with wider response from 1,600 to 20,000 Hz – its diaphragm supersedes titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
  • Polyimide diaphragm with 1″ Voice Coil, providing high output along with excellent efficiency – 109 dB Sensitivity
  • Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music – Capacitor Included.
  • Mini neodymium driver, ideal for tight spaces, Great choice for custom car audio door panels where the space is limited. 8 Ohm voice coil making it easier to have multiple drivers wired to one amplifier.

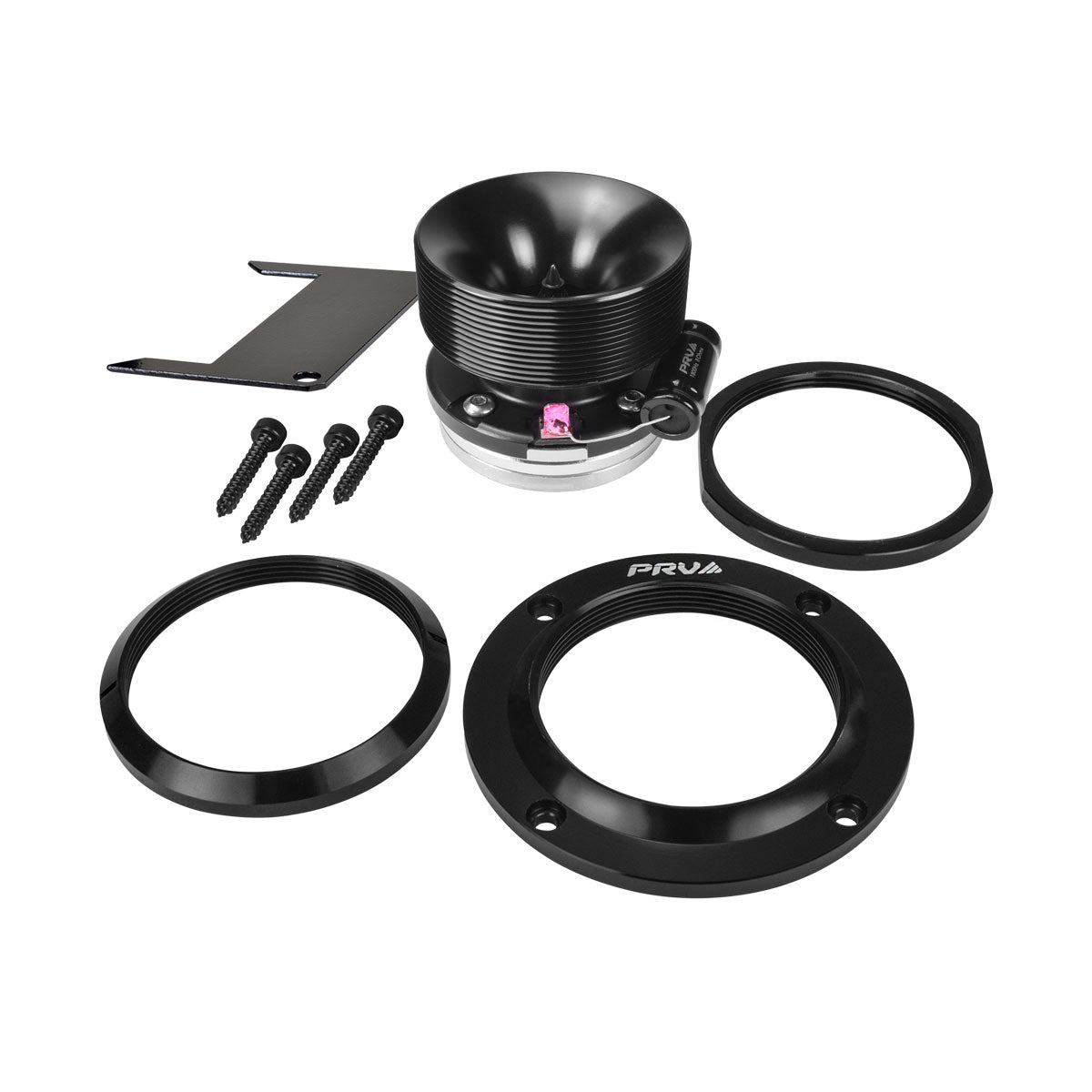

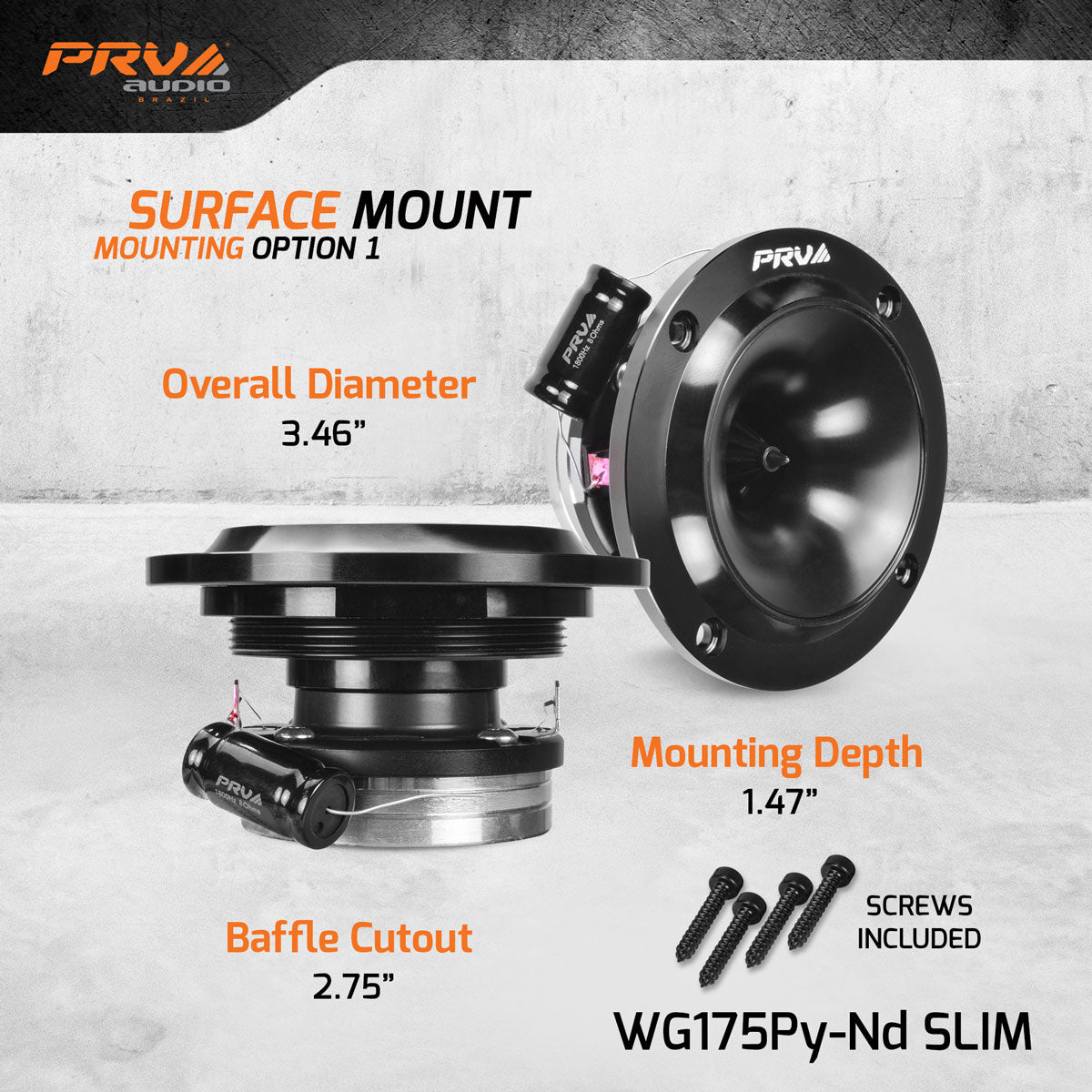

  • 2 mounting options, Flush Mount & Surface Mount (Screws Included)

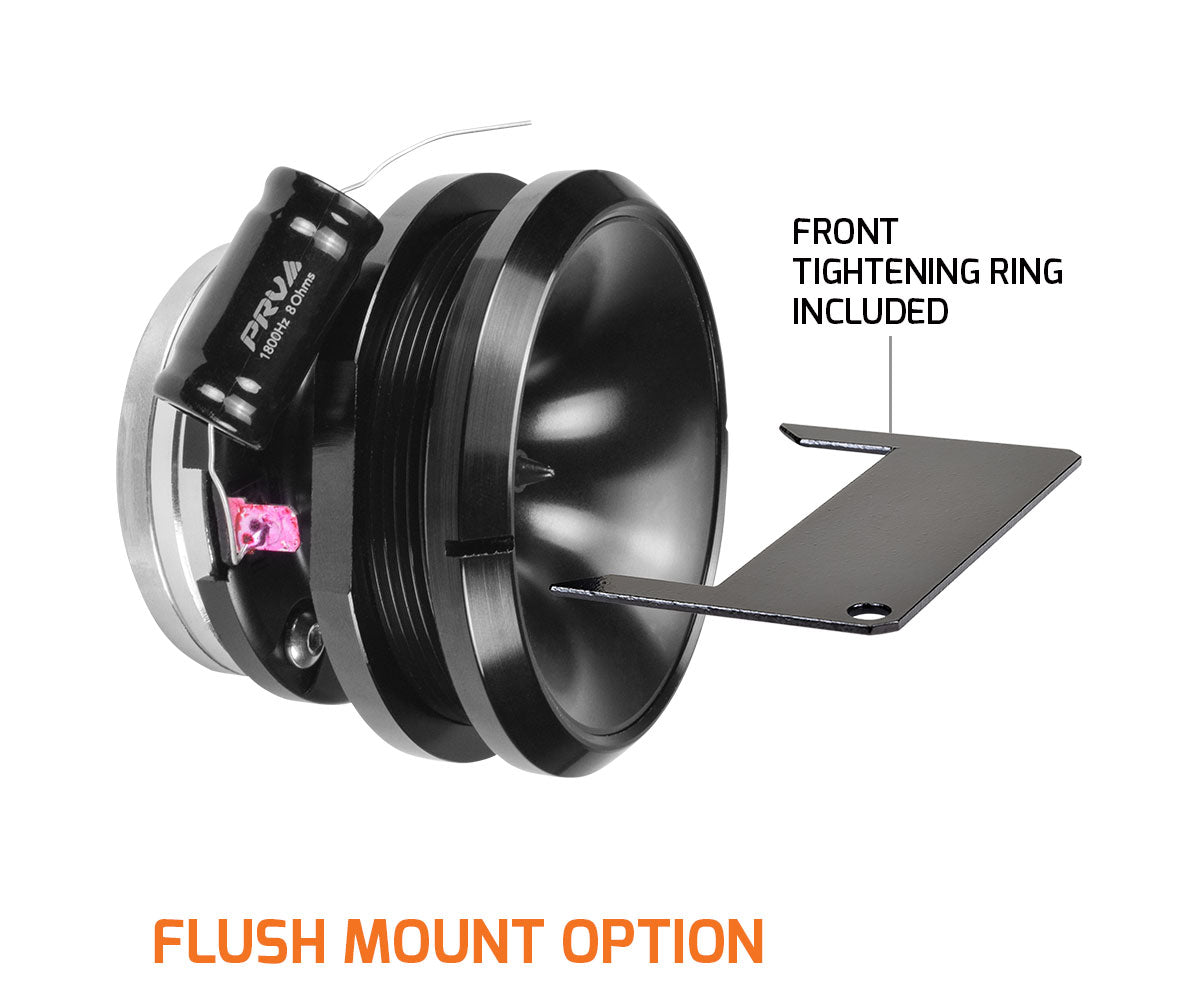

Another unique feature of the WG175Py-Nd SLIM is its mounting options for flush mount without having the treads exposed, with super clean finish.

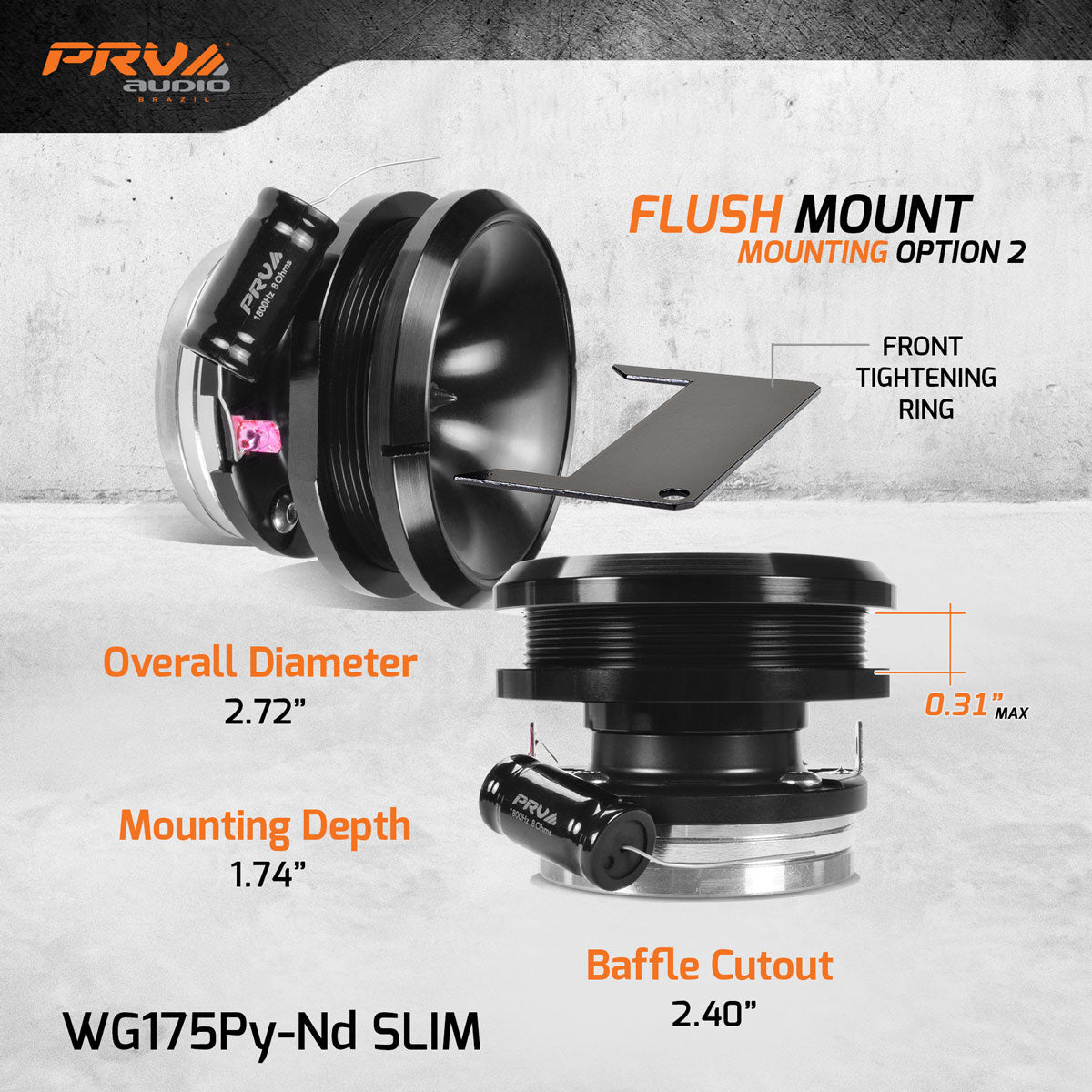

You have the option to flush mount on thin baffle cutouts as thick as 0.31” and be able to tighten it from its slotted front ring on more space constrained installations.

In this configuration, there will be only 1.47" of mounting depth, giving a super shallow profile, and easy mounting anywhere with a 2.75" baffle cutout, without having to detach the driver from the horn.

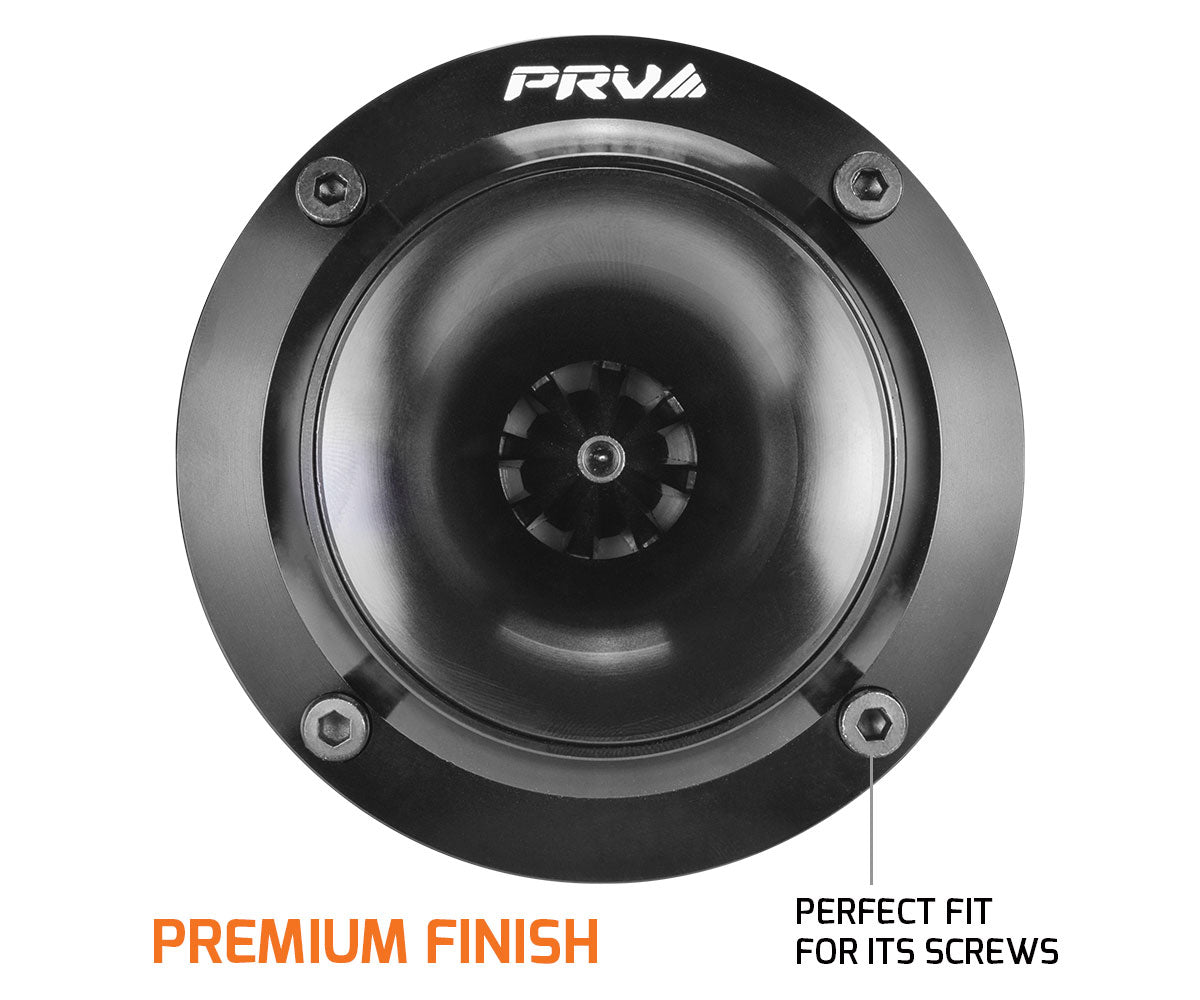

The Surface mount ring is made from high-quality aluminum, machined down to fit perfectly its screws, making sure that installation is straightforward with a premium finish.

This attention to detail in the mounting and finish provides an aesthetically pleasing look to any premium custom door panels!

Featuring high quality materials such as a high strength neodymium motor to provide a more compact design for easy installation yet maintaining a powerful magnet that solves the spacing and weight issues without sacrificing any performance.

Not only does this driver look as good as it sounds, but it is also able to take a ton of power! Up to 150 watts RMS of power handling.

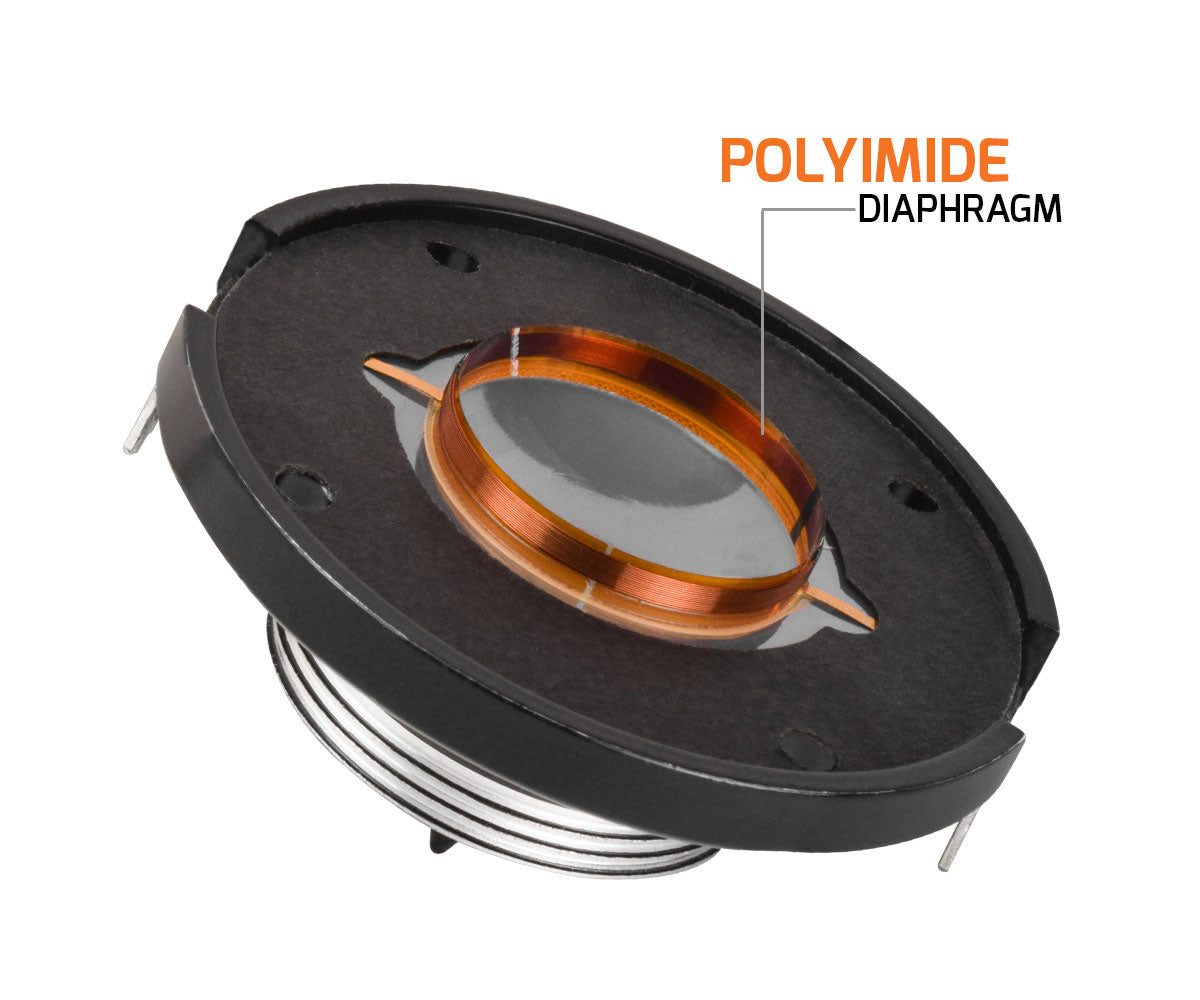

The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. This driver is built to resist the elements, perfect for outdoor use. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.

PRV Mini Mids & Highs Neodymium Horn Driver WG175Py-Nd SLIM – 150 Watts 8 Ohm Polyimide

• 4 Drivers – 1x MDX800.4 2 Ohm, 2 Drivers in parallel per bridged channel
• 8 Drivers – 1x MDX1200.2 2 Ohm, 4 Drivers in parallel per channel

Recommended Crossover Settings:
The polyimide diaphragm is attached to a 1″ diameter copper-clad aluminum wire with Kapton® former for a 150 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

  • 1800 Hz at 12 dB per octave filter Crossover / BT12
  • 1700 Hz at 18 dB per octave filter Crossover / BT18

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Impedance 8 Ohm
  • Continuous Program Power (RMS)** 150 Watts
  • Max Peak Power*** 300 Watts
