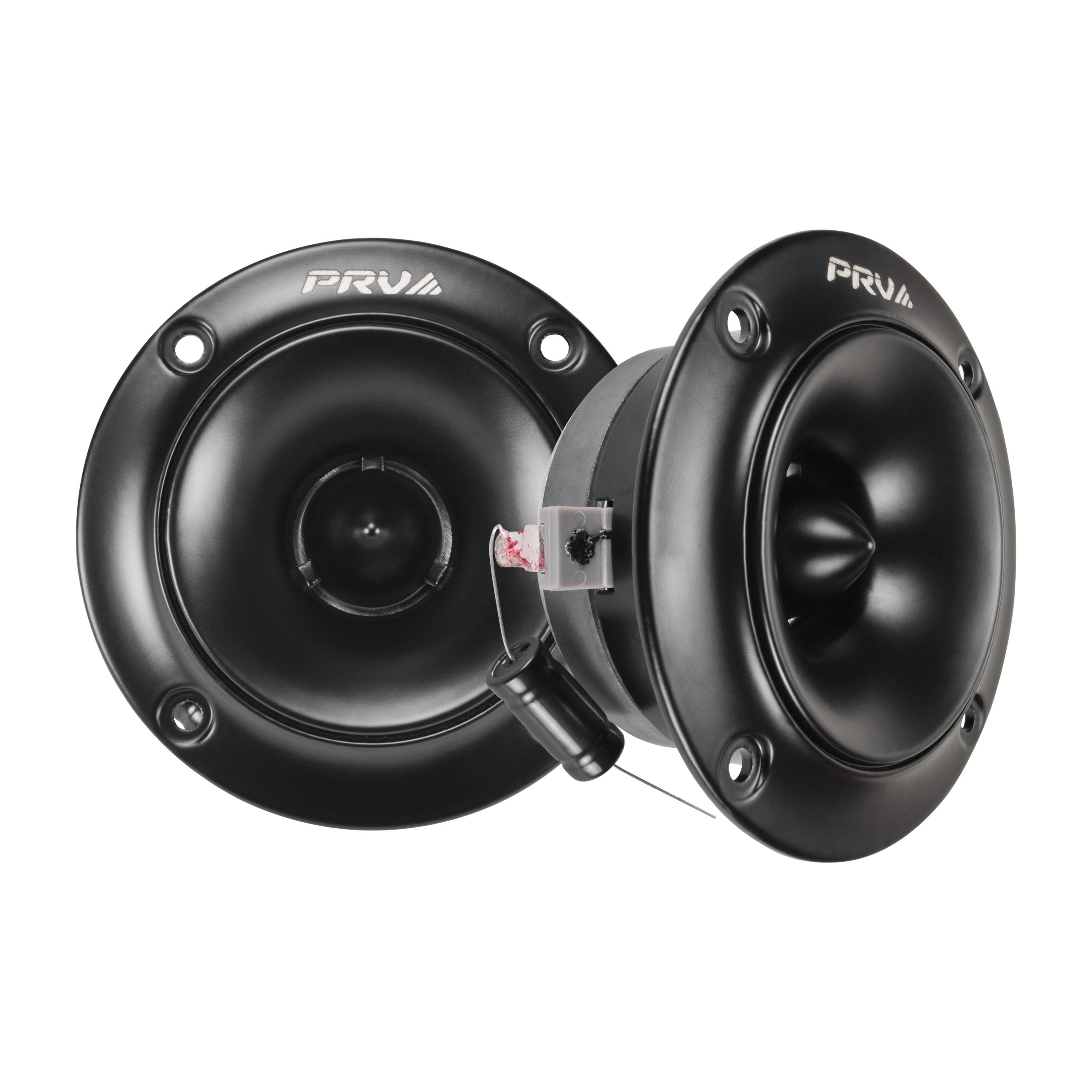

PRV TW500Ti-4 ( PAIR ) Tweeter

PRV TW500Ti-4 ( PAIR ) Tweeter

SKU:

Tags: titanium
New

PRV TW500Ti-4 ( PAIR ) Tweeter

PRV TW500Ti-4 ( PAIR ) Tweeter

SKU:

Tags: Titanium
  • Titanium Tweeter
  • Ferrite Magnet
  • 104 dB – 120 Watts
$34.91
$41.89

Out of stock

  • Titanium Tweeter
  • Ferrite Magnet
  • 104 dB – 120 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

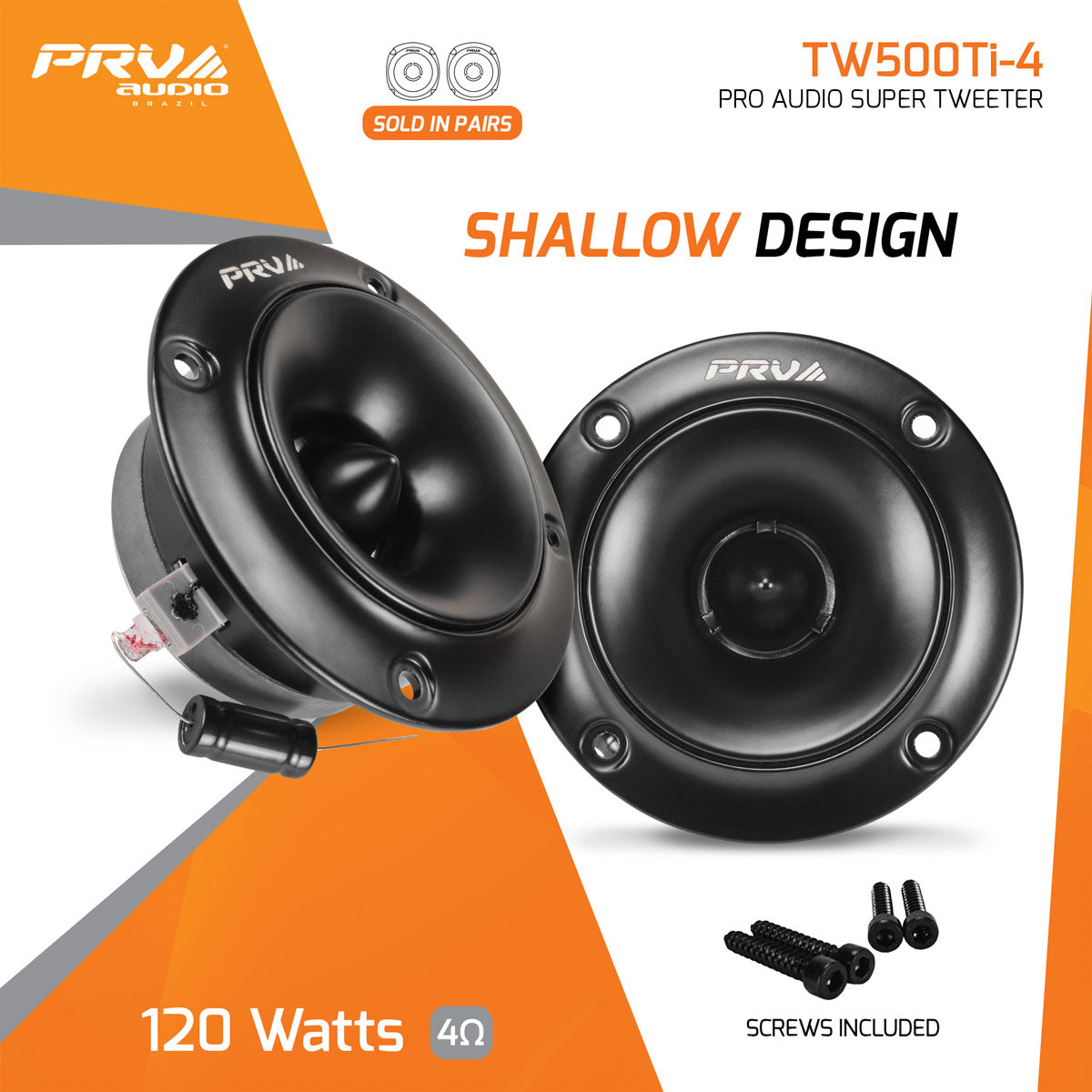

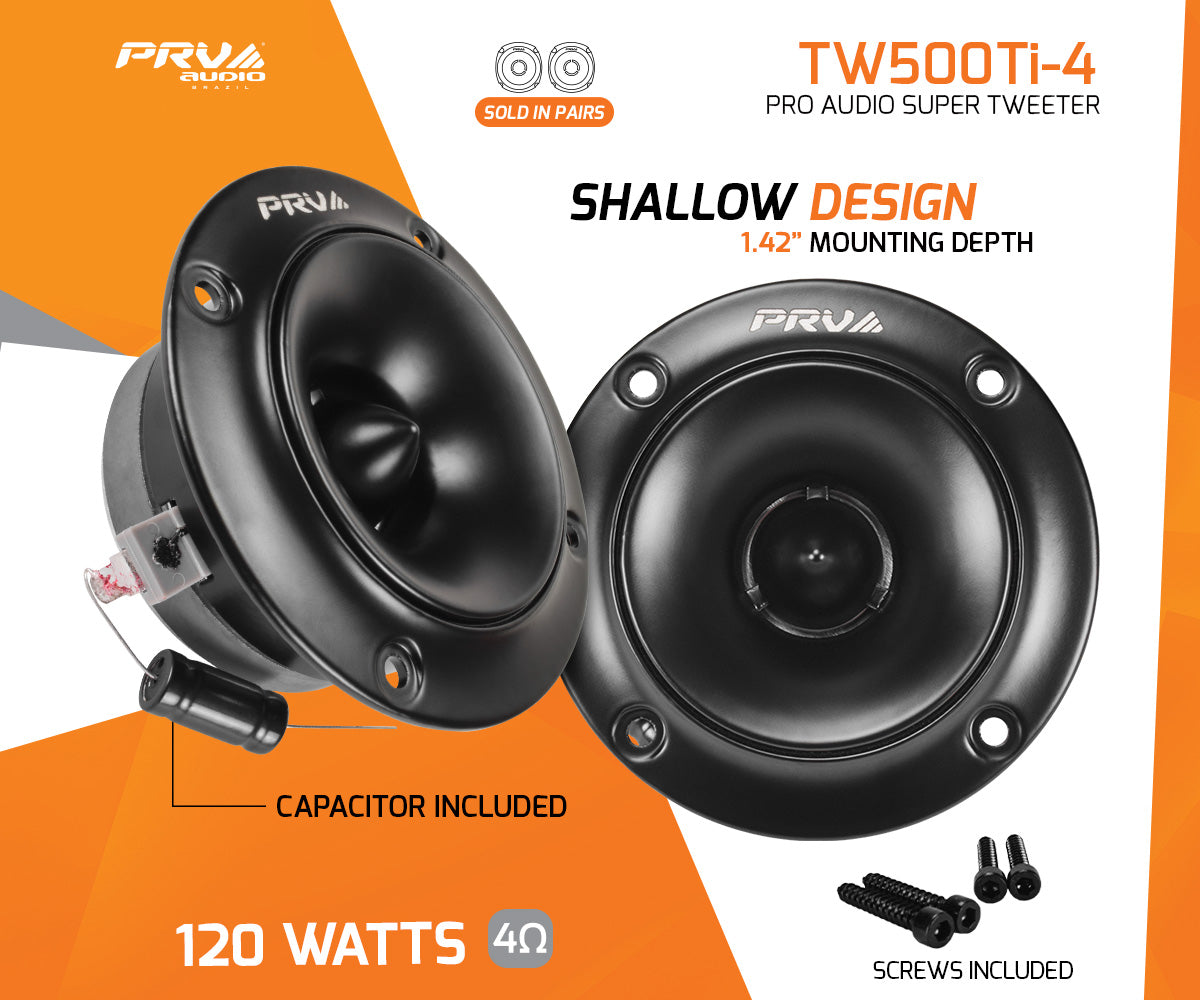

Add crystal clear sparkle to any speaker with PRV Audio’s TW500Ti-4 titanium bullet super tweeters! The 3.75″ rounded faceplate not only gives them a sleek look, but also make them good as they sound, featuring an unique shallow design to it.

They can also take a lot of power from its 1″ diameter copper-clad voice coil attached to a titanium diaphragm that is lightweight and rigid, for maximum efficiency and smooth high frequencies.

  • Designed to fit in shallow spaces without any major modifications
  • Titanium diaphragm for an accurate and detailed response
  • Designed to add high output, high frequency response to any high output system
  • 3.80” faceplate make it easy to install giving it a wide dispersion rate. screws included.
  • Built-in capacitor act as a crossover and attenuates the low frequencies for smooth frequency response.
  • Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz

These tweeters also feature a precise dispersion pattern, giving you a wide soundstage and accurate imaging. Your music will shine thanks to the TW500Ti-4 tweeters, which deliver stunning, crystal clear sound.

Designed with a rounded 3.75” aluminum faceplate that makes it easier to install, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.

PRV Shallow Car Audio Bullet Tweeters TW350TI-4 240 Watts 4 Ohm 3.75”- Easy to Mount Tweeters (Pair)

Recommended Crossover Guide:
Recommended HPF using PRV Digital Signal Processor DSP when using up to 120 Watts RMS musical power ( without clipping ) with Capacitor

  • 5000 Hz at 12 dB per octave filter Crossover / LR12 with capacitor
  • 7000 Hz at 24 dB per octave filter Crossover / LR24 without capacitor

No LPF crossover for tweeters

Maximum power handling without any crossover points:
• The tweeter’s capacitor helps attenuate low frequencies, but it cannot cut all low tones, if used parallel to a speaker or straight from a head unit, each will only be able to handle 50 Watts RMS without distortion.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

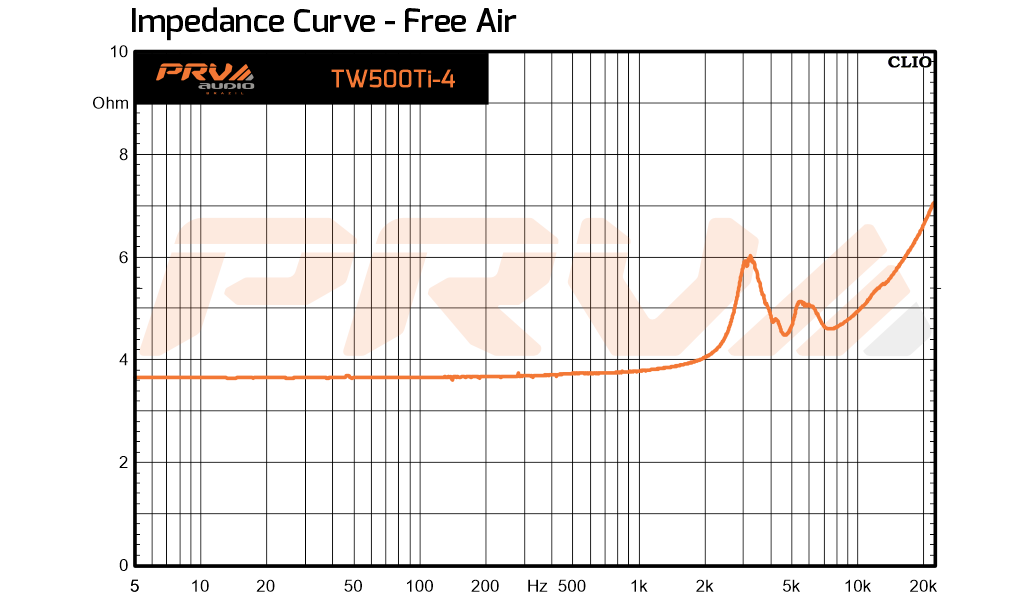

  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 60 Watts
  • Continuous Program Power (RMS)** 120 Watts
  • Continuous Program Power (RMS)** 120 Watts
  • Max Peak Power*** 240 Watts
  • Sensitivity 2.83V at 1m104 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 6000 Hz 12db/oct Crossover

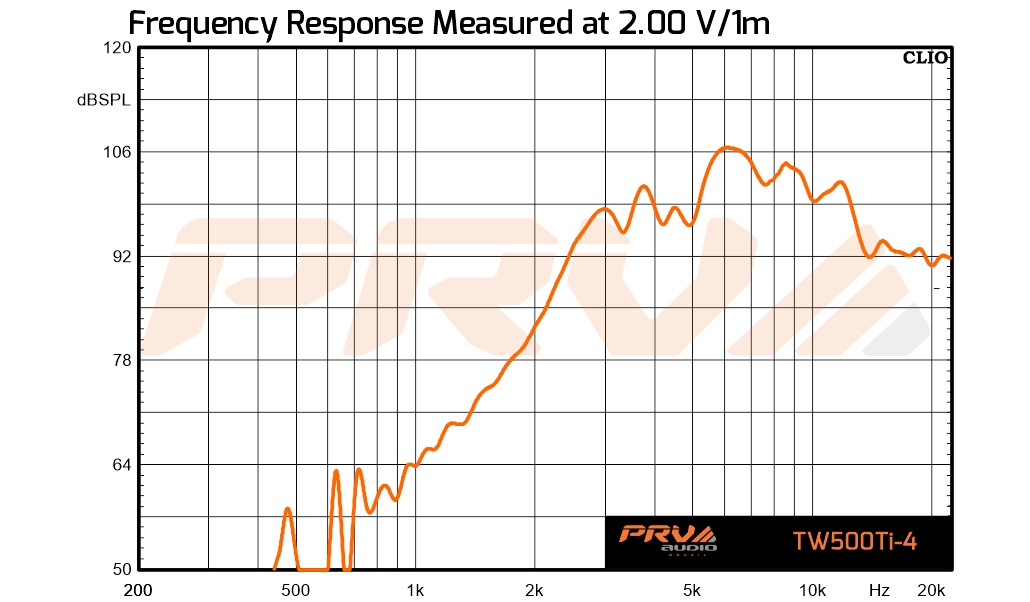

  • Frequency Response at -10dB 4,500 – 20,000Hz
  • Voice Coil Diameter 1.0″ (25 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Diaphragm Titanium
  • Flux Density 1.24 T

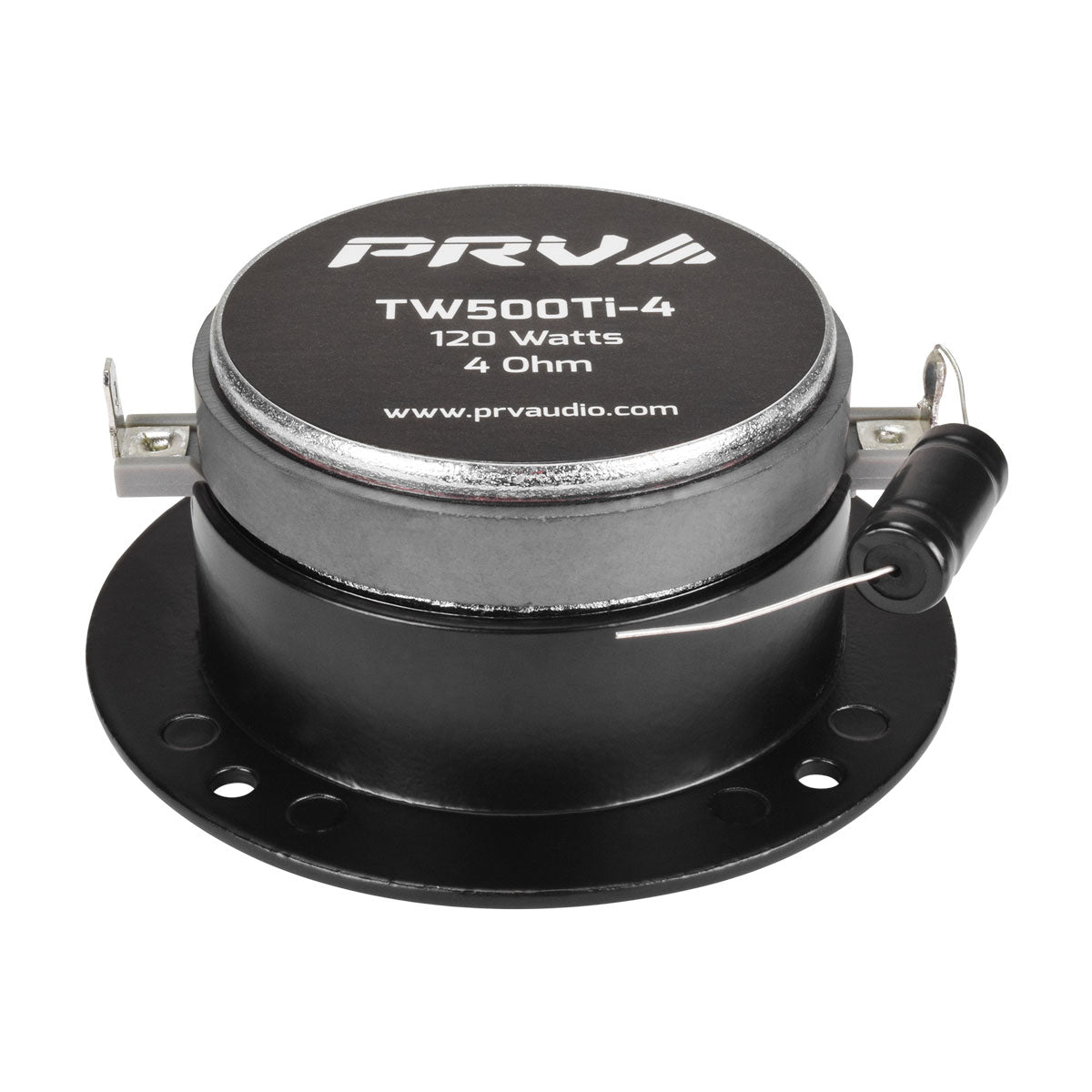

  • Magnet Type Ferrite

EXTRA INFO

PRV TW500Ti-4 ( PAIR ) Tweeter DATASHEET Download

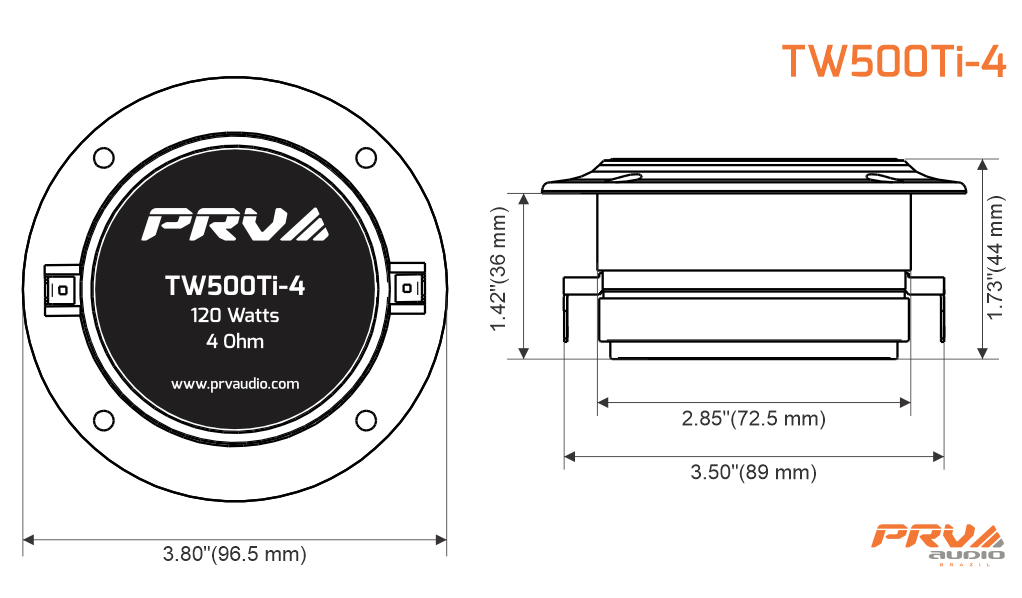

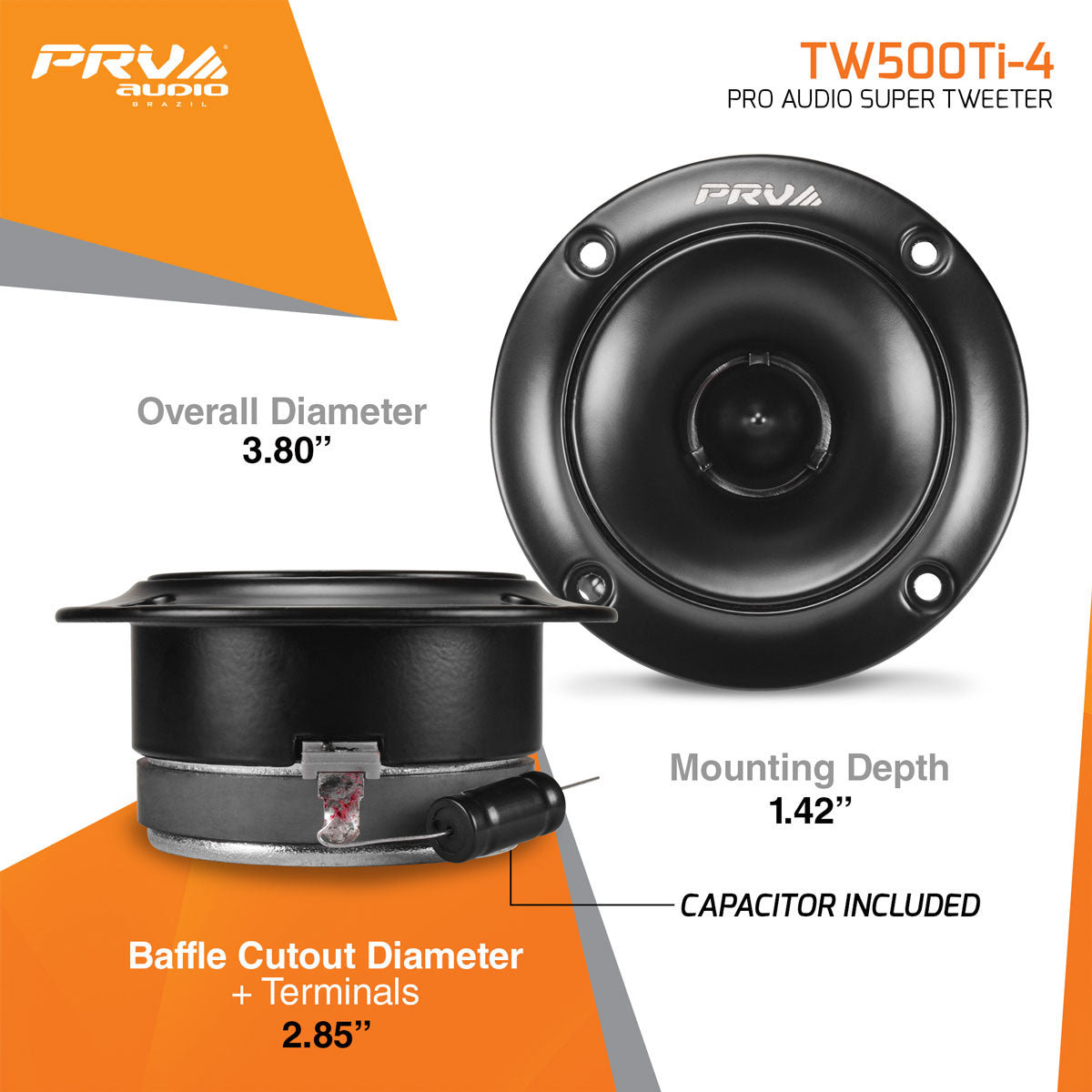

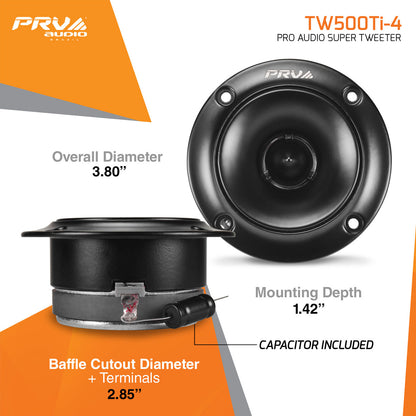

  • Overall Depth 1.73″ (44 mm)
  • Mounting Depth 1.42″ (36 mm)
  • Overall Diameter 3.80″ (96.5 mm)
  • Cutout Diameter 2.85″ (72.5 mm)
  • Net Weight 1.0 lb (0.45 kg)
  • Shipping Weight 2.53 lb (1.15 kg)
  • Carton Dimensions WxLxH 8.86″ x 5.53″ x 2.16” (225 x 115 x 55 mm)
PRV TW500Ti-4 ( PAIR ) Tweeter DATASHEET Download
