New

PRV RS10-SUBD4 Subwoofer

PRV RS10-SUBD4 Subwoofer

SKU: RS10-SUBD4
New

PRV RS10-SUBD4 Subwoofer

PRV RS10-SUBD4 Subwoofer

SKU: RS10-SUBD4

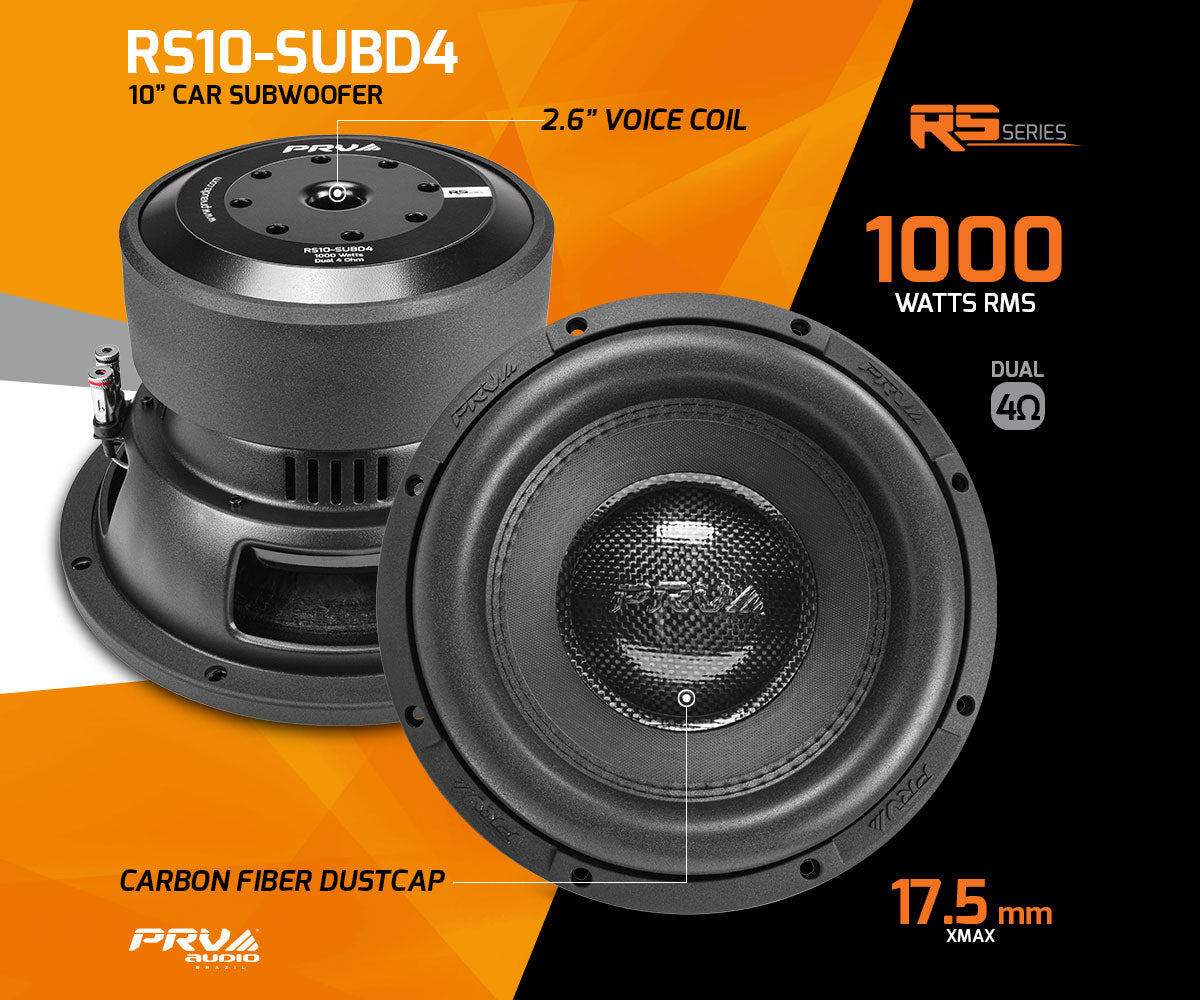

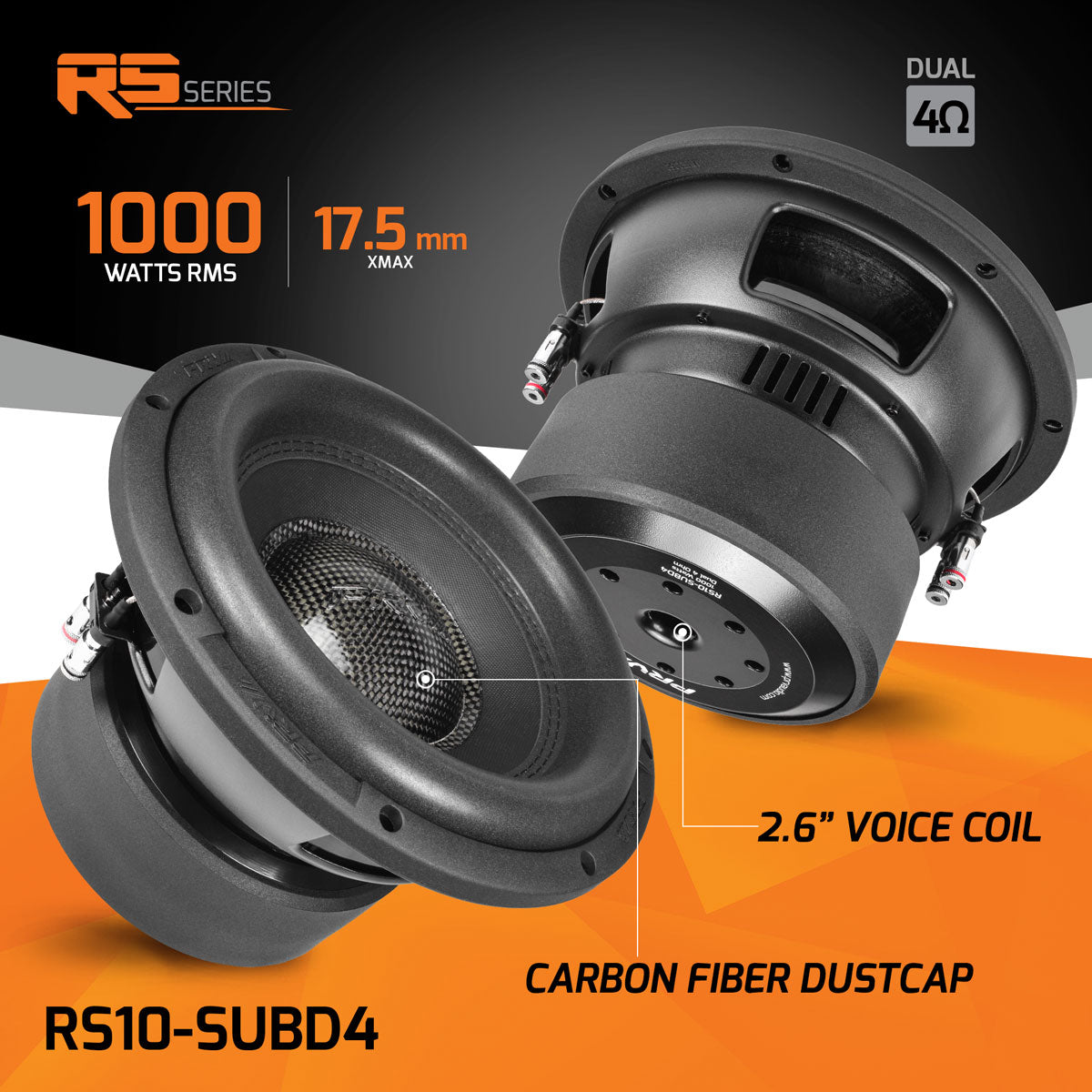

  • 10" Car Subwoofer
  • 17.5 mm Xmax
  • 1000 Watts Dual 4 Ohm
$139.91
$174.89

In stock
  • 10" Car Subwoofer
  • 17.5 mm Xmax
  • 1000 Watts Dual 4 Ohm

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.

This 10″ subwoofer will give you bass like never before! The RS10-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.

This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.

  • Bass machine that will reproduce low-end frequencies with authority with small amount of power
  • 4 layer high-temperature copper voice coil capable of handling 1000 watts RMS program power, which makes high acoustic output
  • High roll U surround gives an 17.5 mm of Xmax for low bass reproduction without any issues.
  • Side forced cooling system with vented back plate design for better heat dissipation
  • Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm

This subwoofer features a beefy magnet motor that enhances its power and bass response, allowing it to handle more power and produce richer, fuller bass tones.

Its double magnet motor combined with flexible high foam surround allows for a remarkable 17.5mm Xmax, delivering high excursion guaranteeing to put out some crazy output.

Put some extra lows in your system with this 10″ sub, which can reach 1.50″ peak-to-peak excursion before damage! Providing deep low frequency bass!

PRV 10” Car Subwoofer RS10-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax

Recommended Amplifier configurations:

The LPF on amplifiers should be set between 60 – 90 Hz when using musical power up to 1000 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.

Take your time and break them in! A brand-new sub is always a little stiff after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones

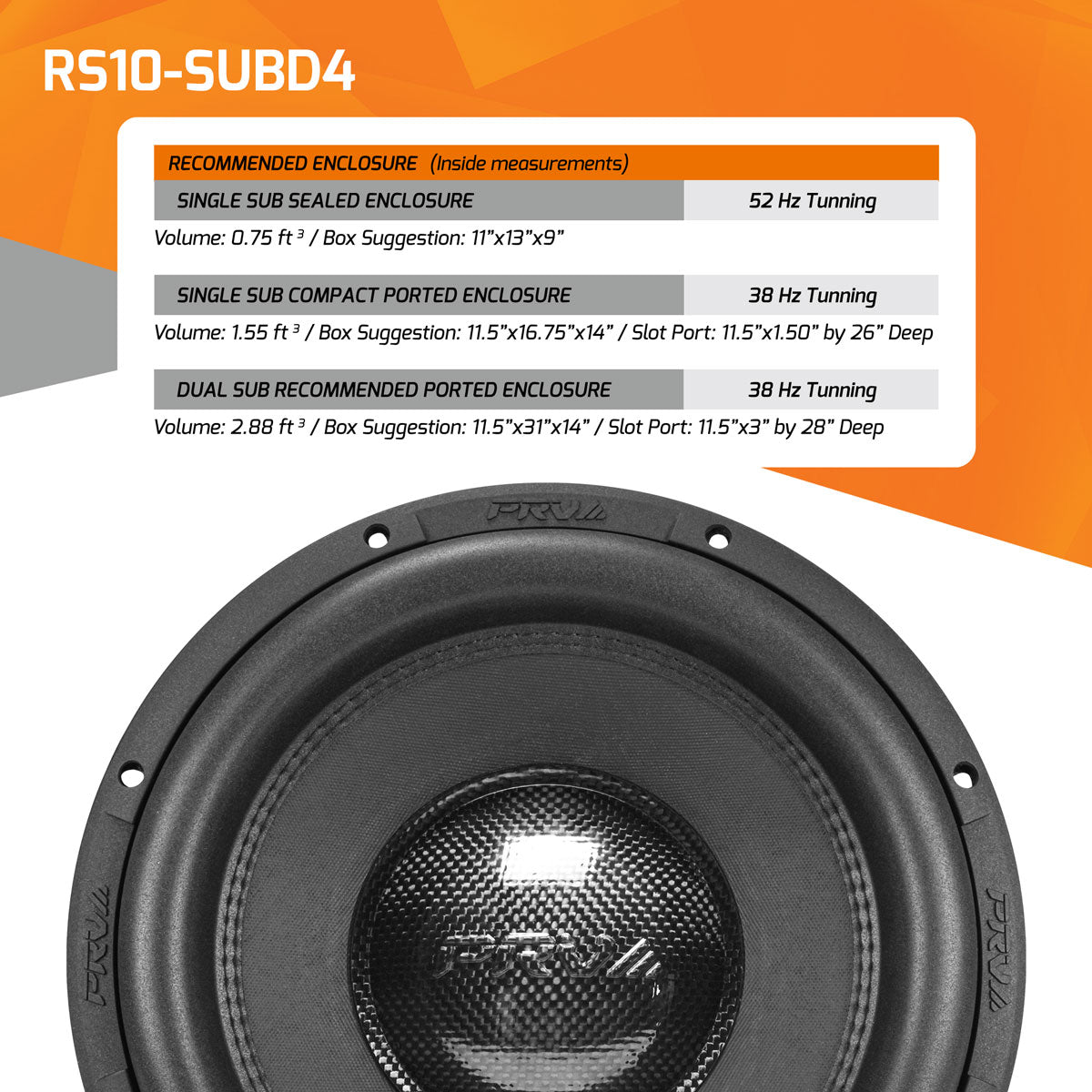

Recommended Custom Enclosures: Inside measurements based with 3/4″ wood material.
Single Sub Sealed Enclosure 52 Hz Tunning

All sealed-enclosures should be filled to 50% of poly-fil.

Volume Box Suggestion Port Size
0.75 ft3 11”x13”x9” N/A
Single Sub Compact Ported Enclosure 38 Hz Tunning
Volume Box Suggestion Port Size
1.55 ft3 11.5”x16.75”x14” Slot Port 11.5”x1.50” by 26″ Deep
Dual Sub Recommended Ported Enclosure 38 Hz Tunning
Volume Box Suggestion Port Size
2.88 ft3 11.5”x31”x14” Slot Port 11.5”x3” by 28″ Deep

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 10″ (254 mm)
  • Nominal Impedance 4 + 4 Ohm
  • Nominal Power Handling* 500 Watts
  • Continuous Program Power (RMS)** 1000 Watts
  • Max Peak Power*** 2000 Watts
  • Sensitivity 1.41V at 1m84 dB (Parallel VC)
  • Voice Coil Diameter 2.6″ (65.5 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth40.0 mm
  • Former Material Black Aluminum
  • Magnetic Gap Depth 10.0 mm
  • Frame Material Stamped Steel

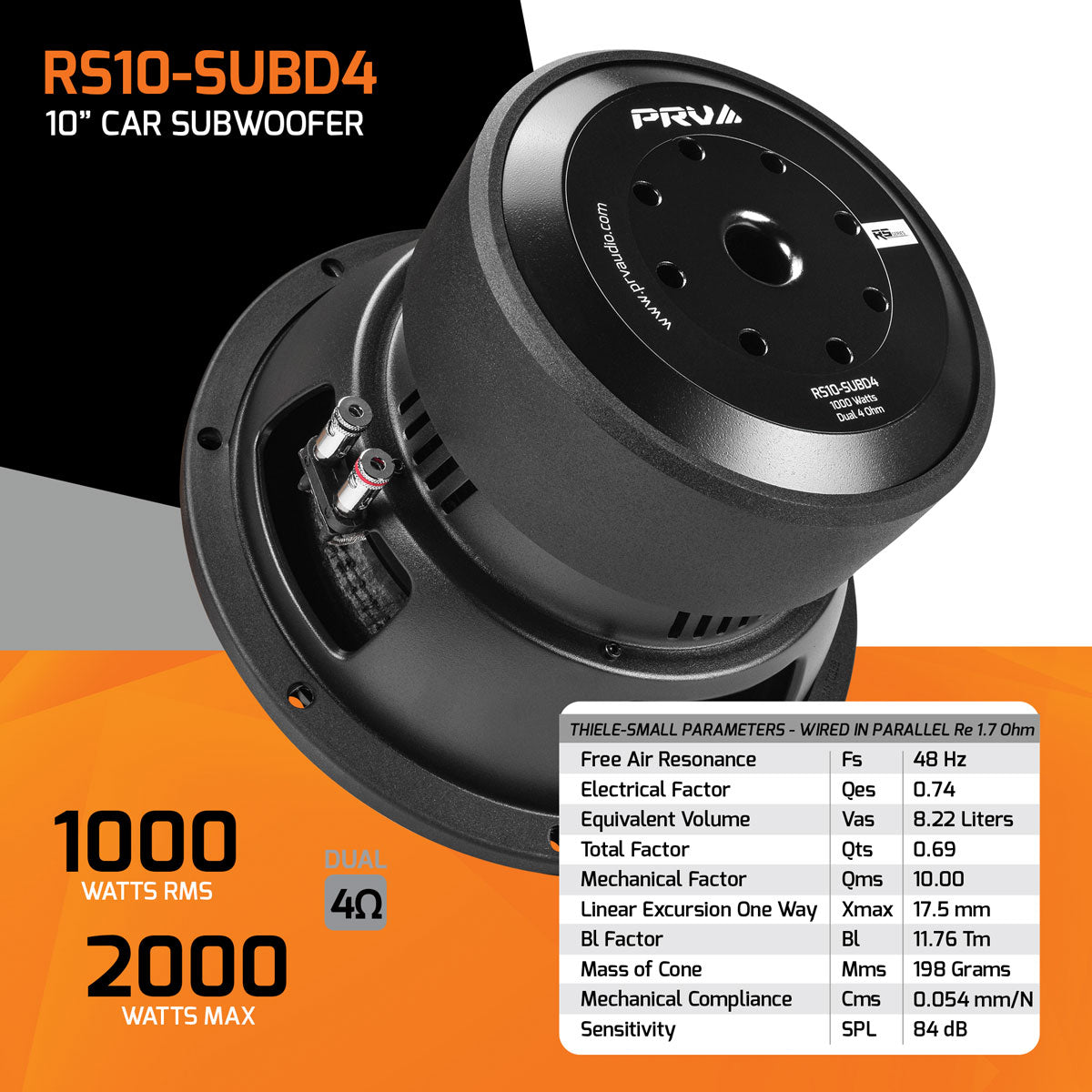

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 8.22 l
  • Excursion (mathematical)**
    • Xmax
    • 17.5 mm
  • Free Air Resonance
    • Fs
    • 48.5 Hz
  • Mechanical Factor
    • Qms
    • 10.00
  • Electrical Factor
    • Qes
    • 0.74
  • Total Factor
    • Qts
    • 0.69
  • Cone Area
    • Sd
    • 330 cm²
  • Mechanical Mass
    • Mms
    • 198.7 g
  • BI Factor
    • Bl
    • 11.76 Tm
  • Dc Resistance
    • Re
    • 1.7 Ohm
  • Inductance
    • Le
    • 1.54 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 195.3 g
  • Mechanical Compliance
    • Cms
    • 0.054 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV RS10-SUBD4 Subwoofer DATASHEET Download

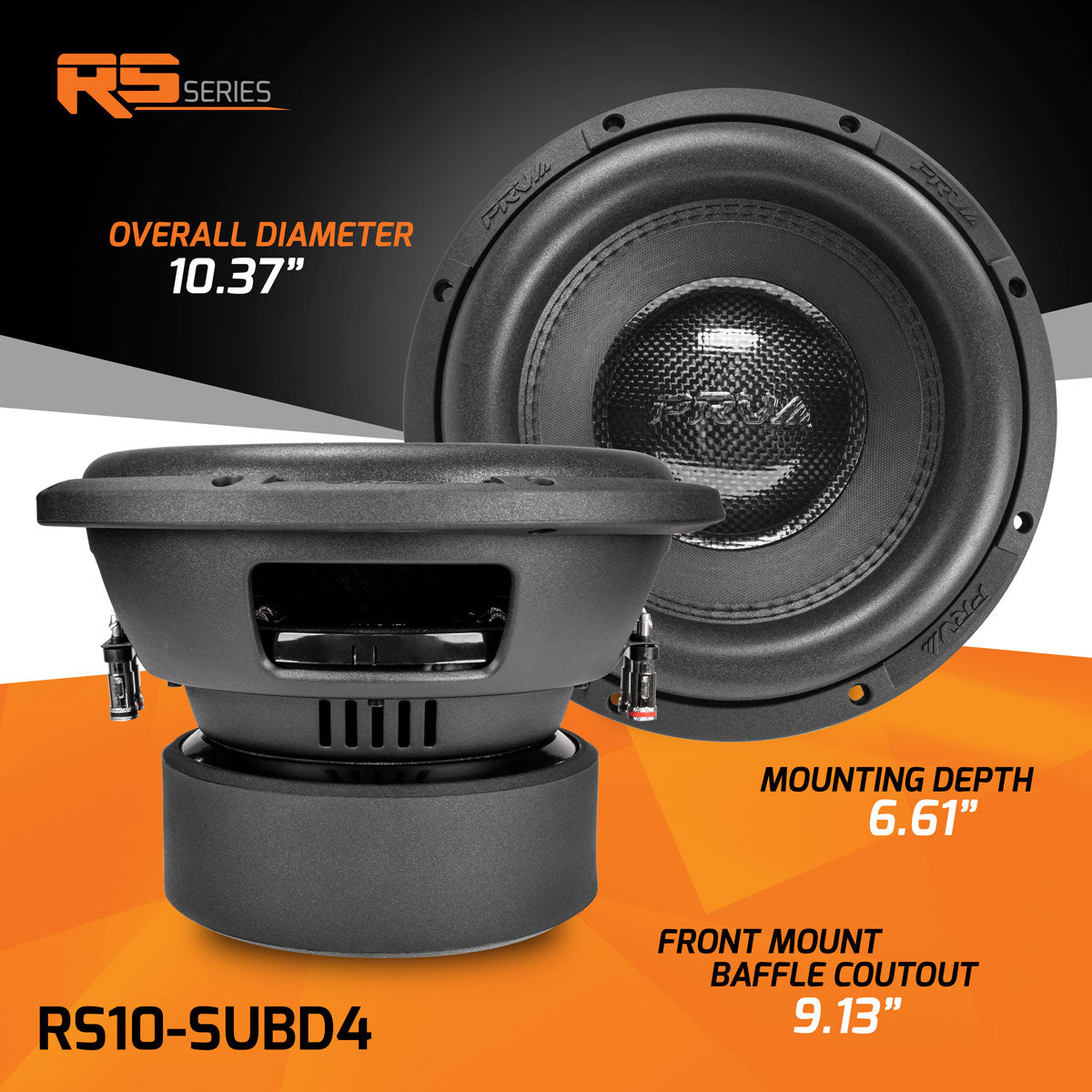

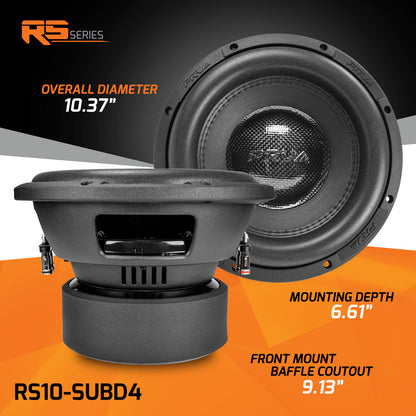

  • Overall Depth 7.16″ (182 mm)
  • Mounting Depth 6.61″ (168 mm)
  • Overall Diameter 10.37″ (263.5 mm)
  • Front Mount Baffle Cutout 9.13″ (232 mm)
  • Net Weight 21.27 Lbs (9.65 kg)
  • Shipping Weight 24.25 Lbs (11.00 kg)
  • Carton Dimensions WxLxH 11.61″ x 11.61″ x 7.87″ (295 x 295 x 200 mm)
PRV RS10-SUBD4 Subwoofer DATASHEET Download
