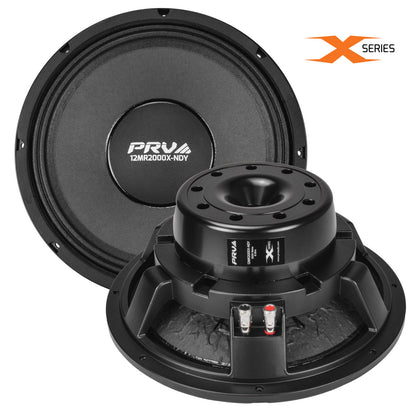

PRV 12MR2000X-NDY Midrange

PRV 12MR2000X-NDY Midrange

SKU: 12MR2000X-NDY
New

PRV 12MR2000X-NDY Midrange

PRV 12MR2000X-NDY Midrange

SKU: 12MR2000X-NDY

$399.91
$479.89

In stock
  • 12” Midrange – 8 Ohm
  • Neodymium Magnet

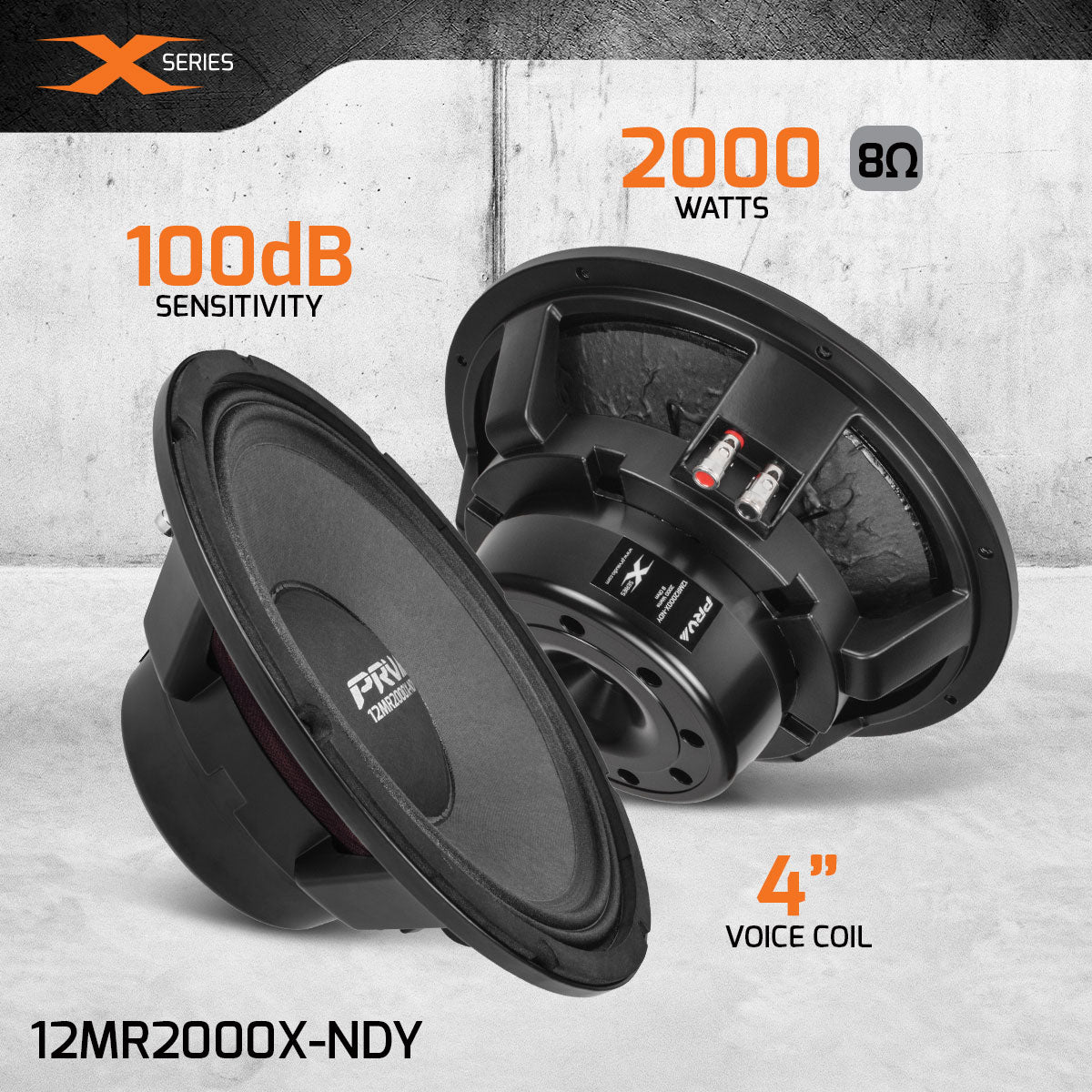

  • 100 dB – 2000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

X-treme midrange performance is what PRV Audio’s 12MR2000X-NDY is all about.Made to be a class leading midrange in the pro audio realm, this speaker has a high output sensitivity of 100 dB and only weighs 13.45 pounds. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

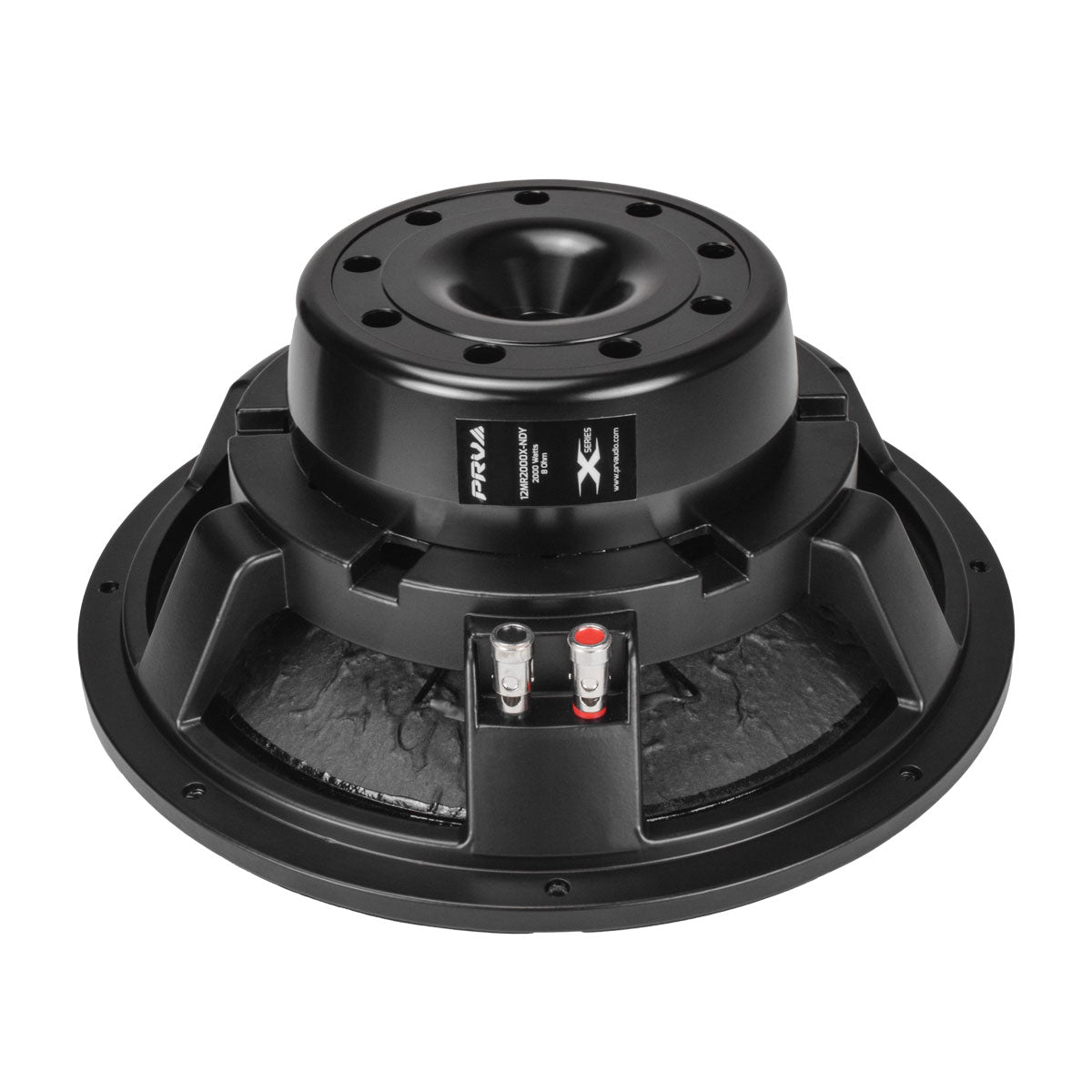

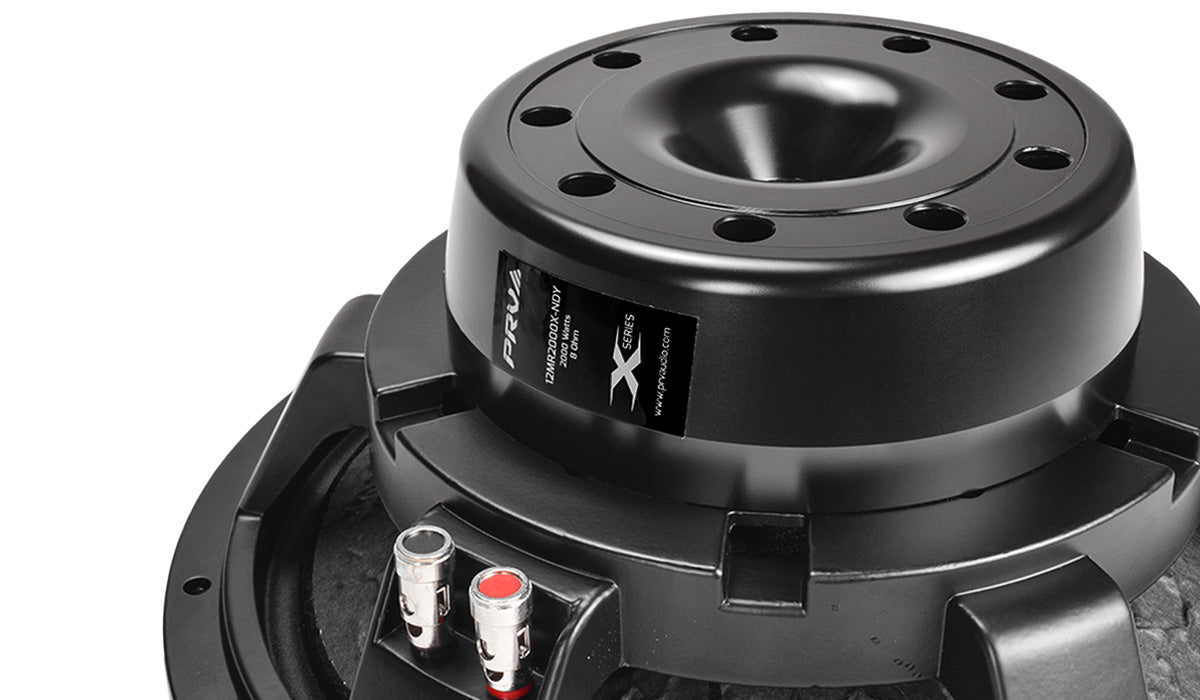

Featuring a powerful neodymium motor assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.

X Series is dedicated to delivering extreme midrange performance, capable of high output and high power handling, while delivering a smooth vocal response.

  • 2,000 Watts RMS with 100 dB efficiency for amazing output capability
  • 6.10 mm Xmax allows excellent control to deliver high impact midbass
  • Detailed vocal response and pristine instrument sound reproduction
  • Excellent performance in compact enclosures
  • Extensive venting keeps the 4” voice coil cool improving reliability when pushed to the limit

Built to perform vocals with punchy midbass, a great option for custom Chuchero® speaker box and custom door panels, where weight and performance needs to have the perfect balance.

Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio and custom builders.

The 4″ voice coil is wrapped on a glass fiber former for heat resistance and high efficiency, bringing out fine details in audio and reproducing them accurately at concert-level volume.Its composite cone is built with non-pressed paper for reduced break-up and smooth sound.

The high power handling, combined with 100 dB sensitivity, allows this mid to produce incredible dynamics and low distortion when pushed to incredible output levels.

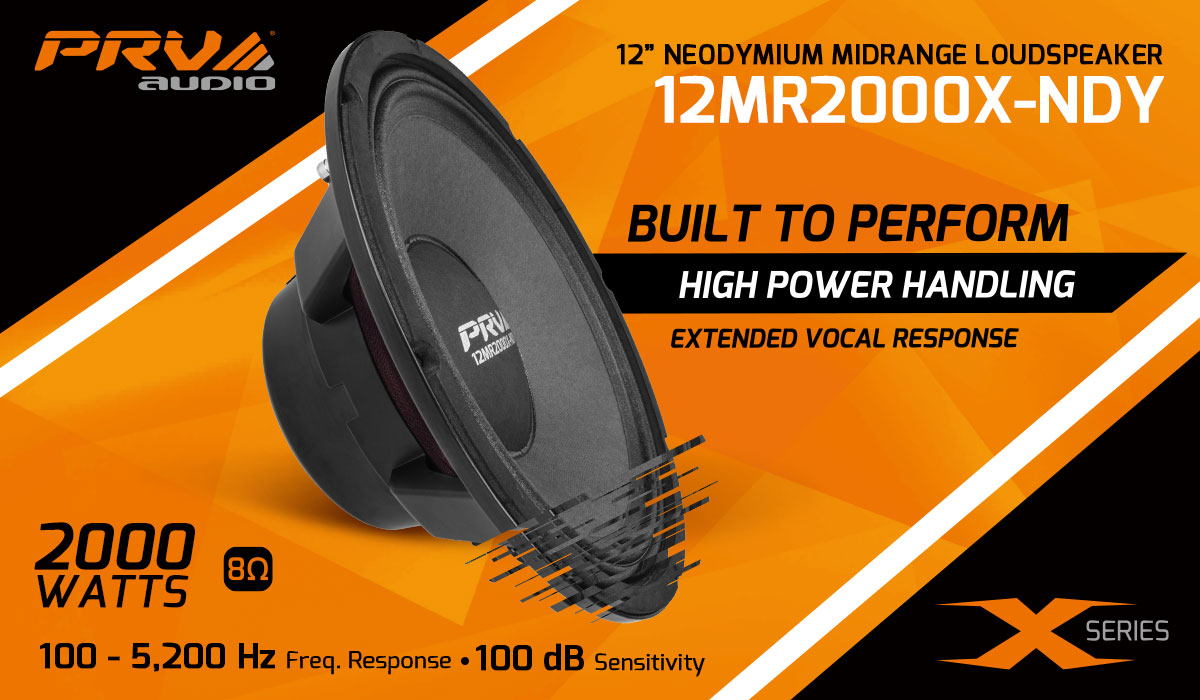

PRV 12″ Midrange Speaker 12MR2000X-NDY 2000 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker

Recommended Installation Guide:

Recommended boxes for optimal upper midrange output:
4 Triangle Ported box size: 0.50 ft3 (approx: 12”x12”x6”)
Port size: 12.5” x 0.50” x 11” deep

1 Slot Ported box size: 0.65 ft3 (approx: 14”x12”x7”)
Port size: 12” x 1.75” x 4” deep

2 Speakers – 1x QS5000 at 2 Ohm, 2 speakers in parallel
4 Speakers – 1x QS7000 at 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS16000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 2000 Watts RMS musical power ( without clipping )

  • 160 Hz at 12 dB per octave filter Crossover / BT12
  • 135 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 3,800 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 12″ (305 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 1000 Watts
  • Continuous Program Power (RMS)** 2000 Watts
  • Max Peak Power*** 4000 Watts
  • Sensitivity 2.83V at 1m100 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 160 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 100 - 5,200 Hz
  • Voice Coil Diameter 4" (100 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth18.20 mm
  • Former Material Glass Fiber
  • Magnetic Gap Depth 12.0 mm
  • Frame Material Die cast aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 35.9 l
  • Excursion (mathematical)**
    • Xmax
    • 6.10 mm
  • Free Air Resonance
    • Fs
    • 67.2 Hz
  • Mechanical Factor
    • Qms
    • 16.7
  • Electrical Factor
    • Qes
    • 0.32
  • Total Factor
    • Qts
    • 0.31
  • Cone Area
    • Sd
    • 573 cm²
  • Mechanical Mass
    • Mms
    • 71.5 g
  • BI Factor
    • Bl
    • 22.7 Tm
  • Dc Resistance
    • Re
    • 5.4 Ohm
  • Inductance
    • Le
    • 0.40 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 63.7 g
  • Mechanical Compliance
    • Cms
    • 0.078 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 12MR2000X-NDY Midrange DATASHEET Download

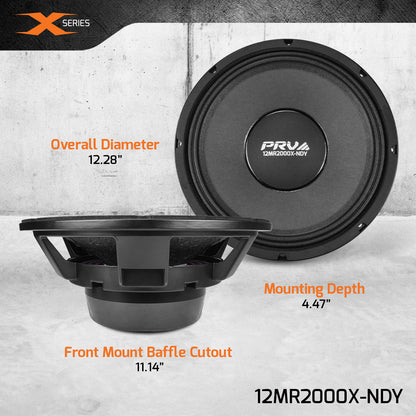

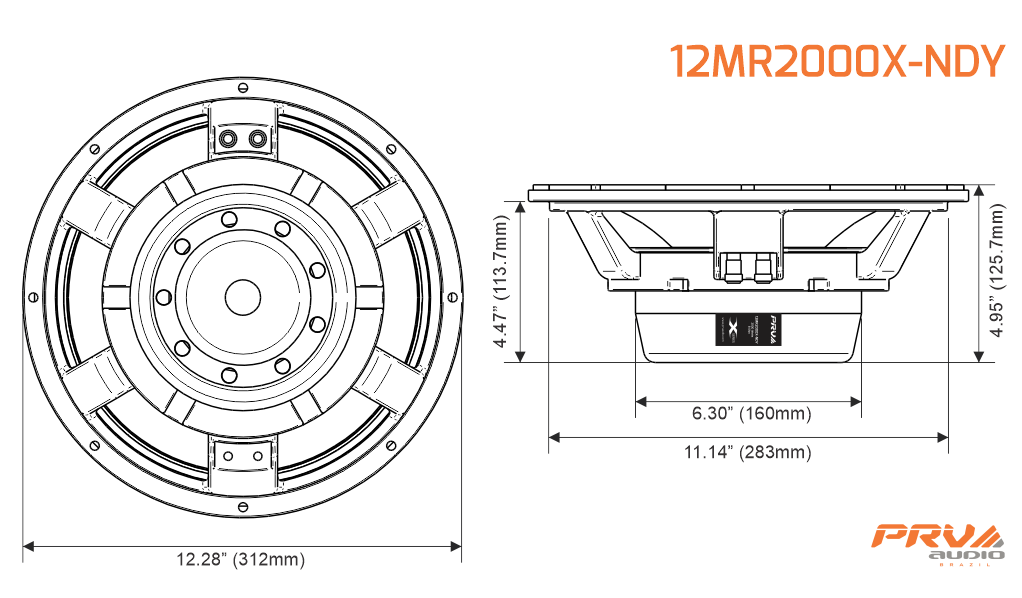

  • Overall Depth 4.95" (125.7 mm)
  • Mounting Depth 4.47" (113.7 mm)
  • Overall Diameter 12.28" (312 mm)
  • Front Mount Baffle Cutout 11.14" (283 mm)
  • Net Weight 13.45 Lbs (7.0 kg)
  • Shipping Weight 17.60 Lbs (8.0 kg)
  • Carton Dimensions WxLxH 16.14" x 16.02" x 8.46" (410 x 407 x 215 mm)
PRV 12MR2000X-NDY Midrange DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

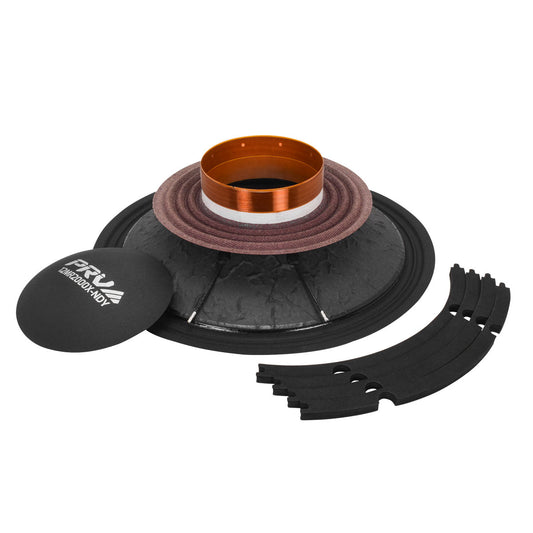

  • PRV RK12MR2000X-NDY

    PRV RK12MR2000X-NDY

    PRV RK12MR2000X-NDY

    RK12MR2000X-NDY

    Price:
    $99.91
    $119.89 $99.91
    Out of Stock
