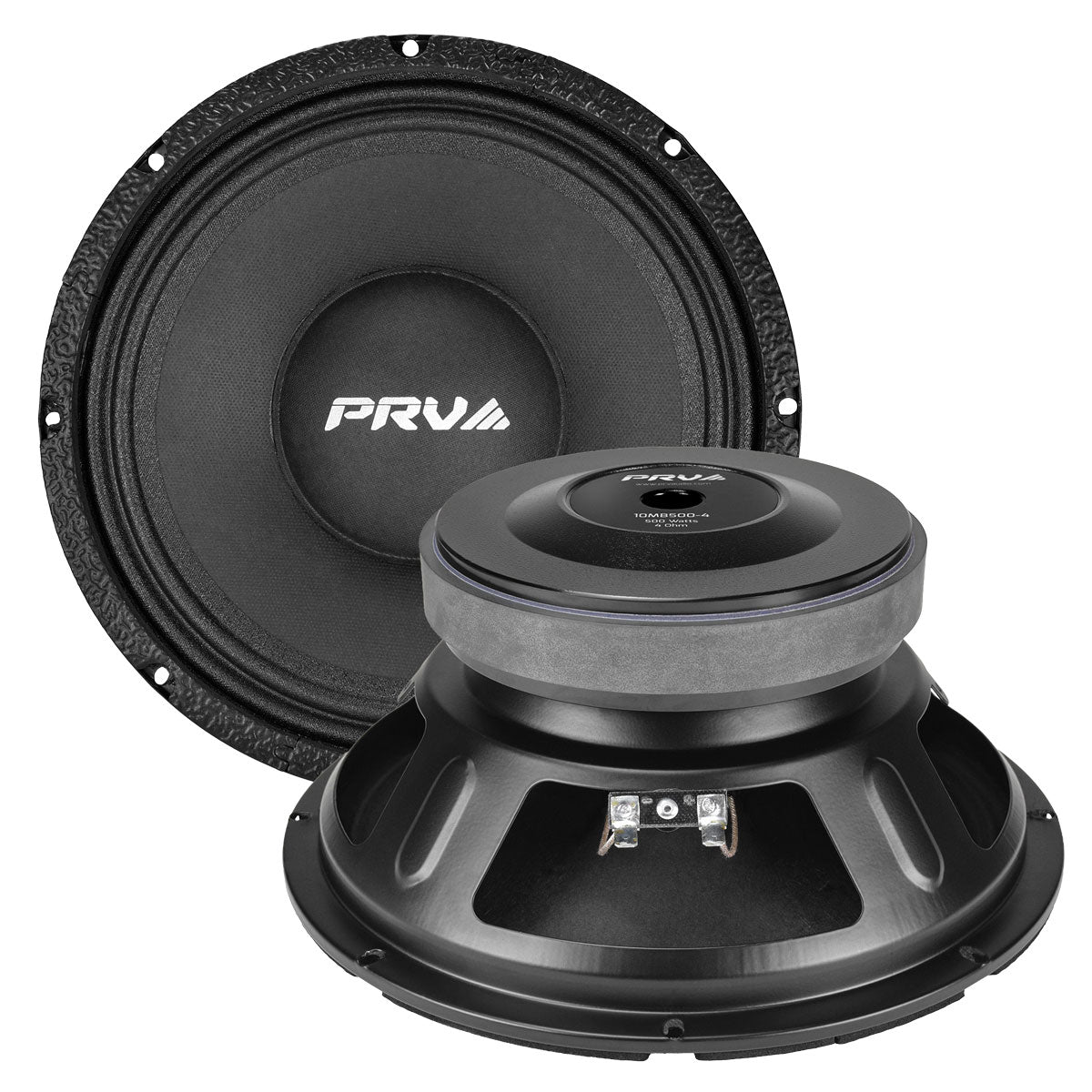

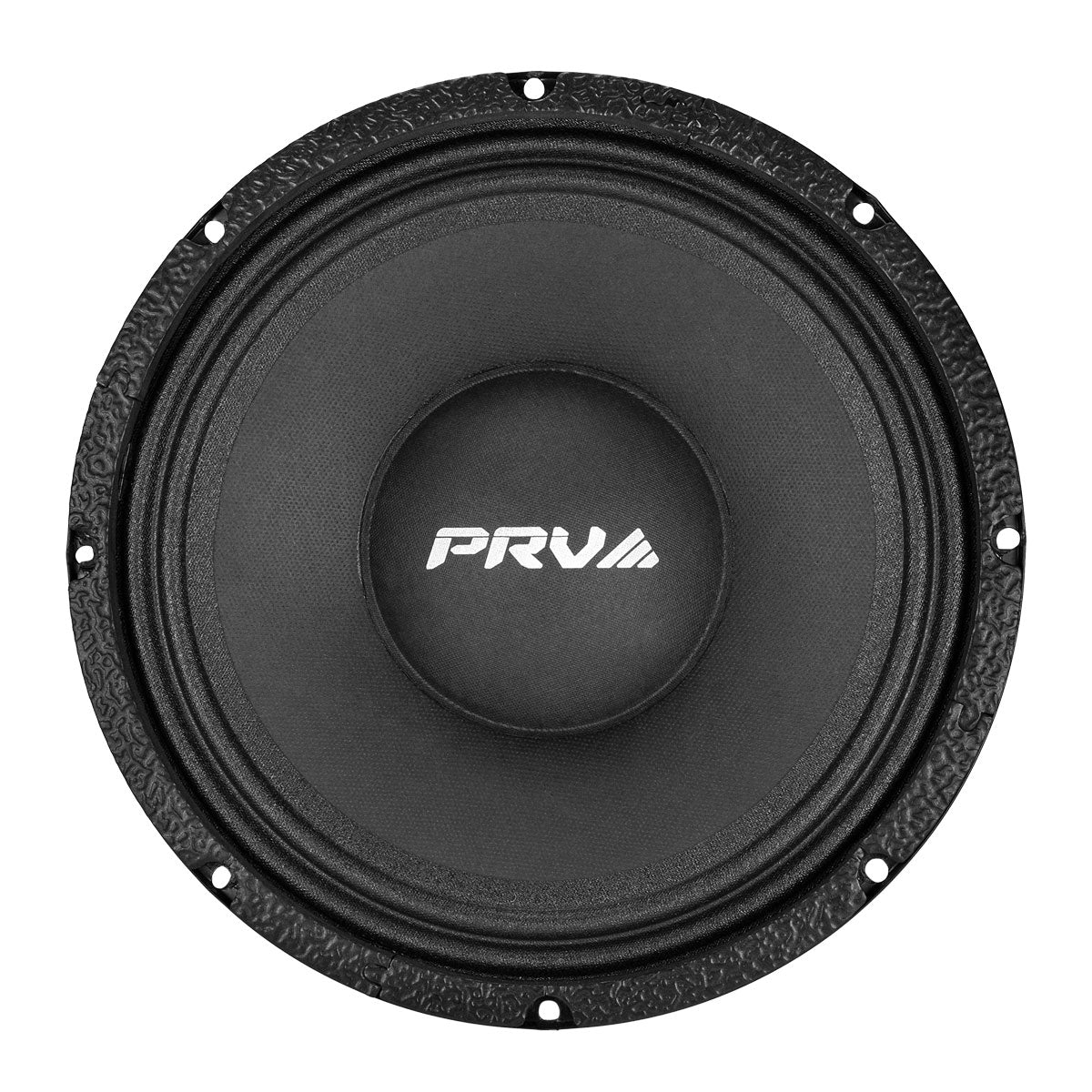

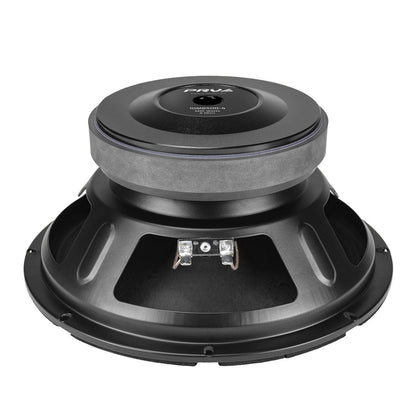

PRV 10MB500-4 Midbass

PRV 10MB500-4 Midbass

SKU: 10MB500-4
New

PRV 10MB500-4 Midbass

PRV 10MB500-4 Midbass

SKU: 10MB500-4

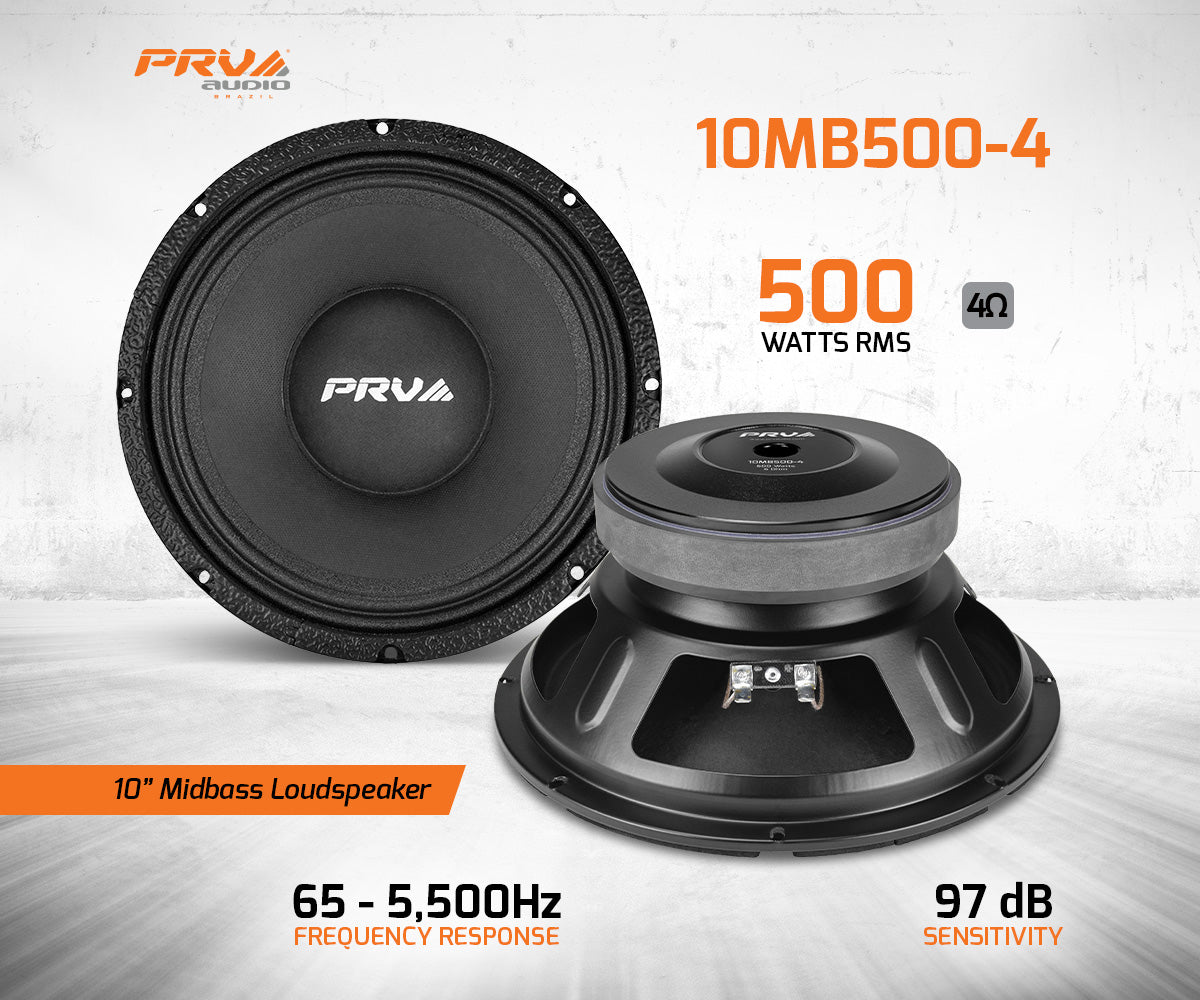

  • 10” Midbass - 4 Ohm
  • Ferrite Magnet

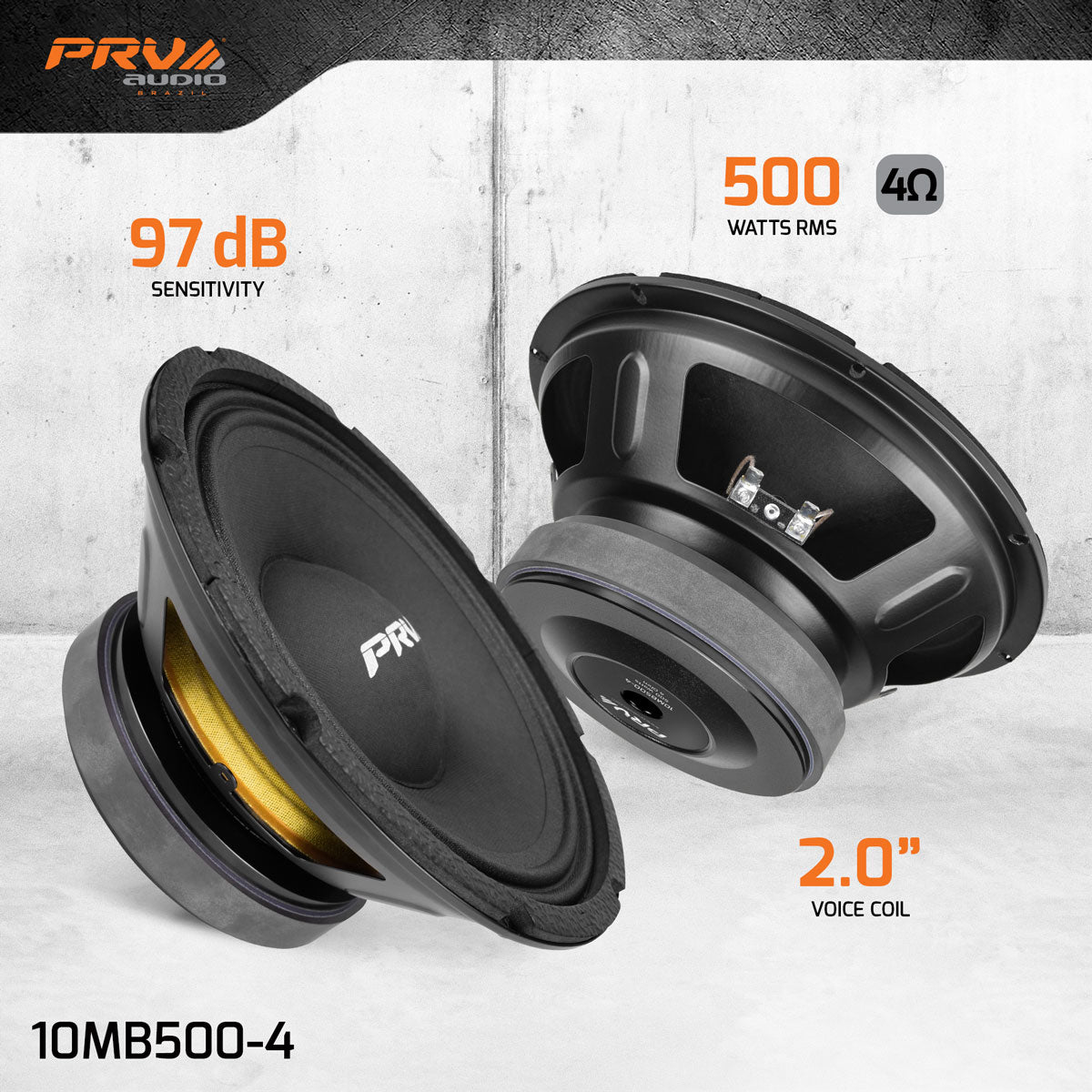

  • 97 dB - 500 Watts
$99.91
$124.89

In stock
  • 10” Midbass - 4 Ohm
  • Ferrite Magnet
  • 97 dB - 500 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The 10MB500-4 is the official PRV Audio 10″ Chuchero speaker! This midbass loudspeaker is an excellent choice for any compact enclosure where deep, punchy midbass with high vocal output reinforcement is needed.

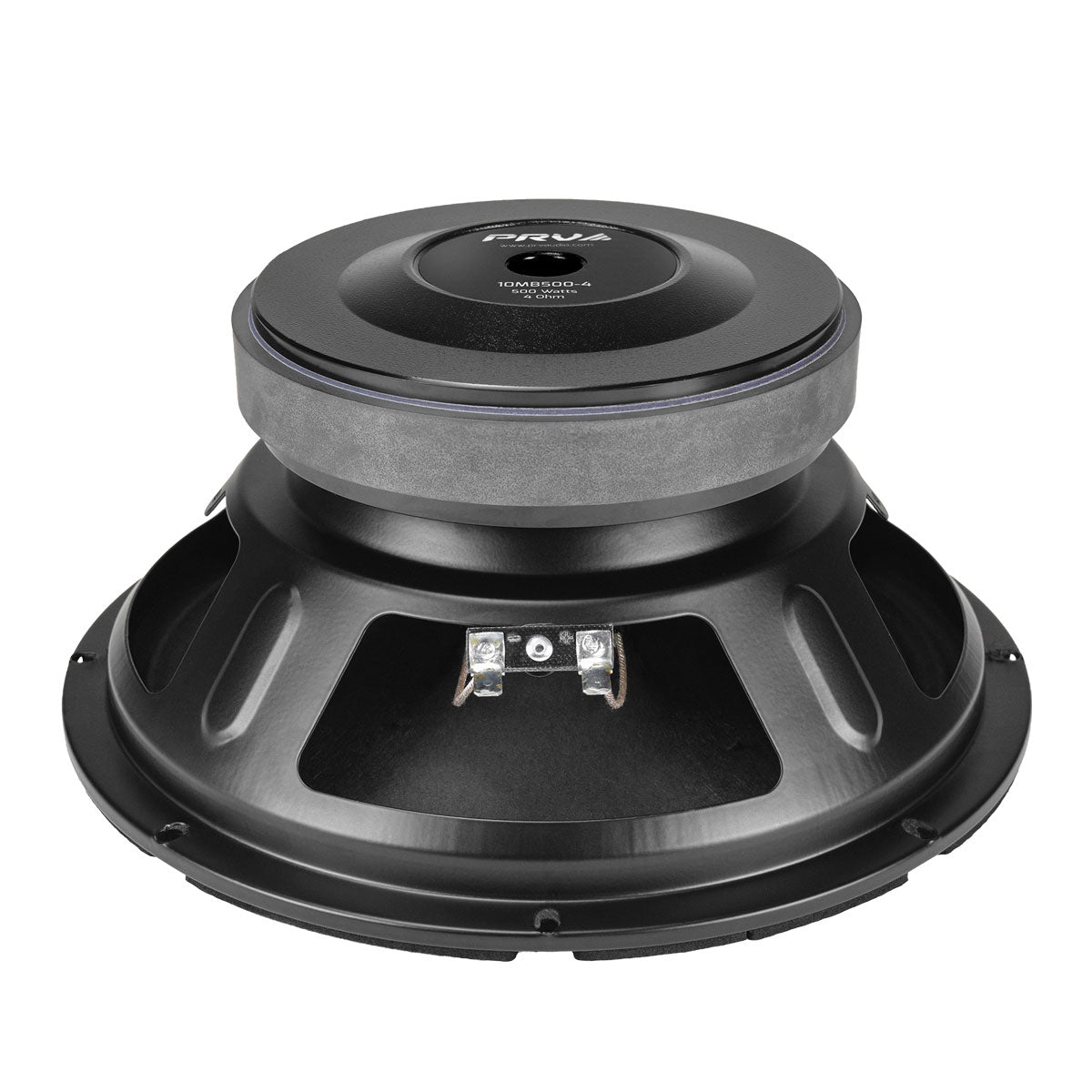

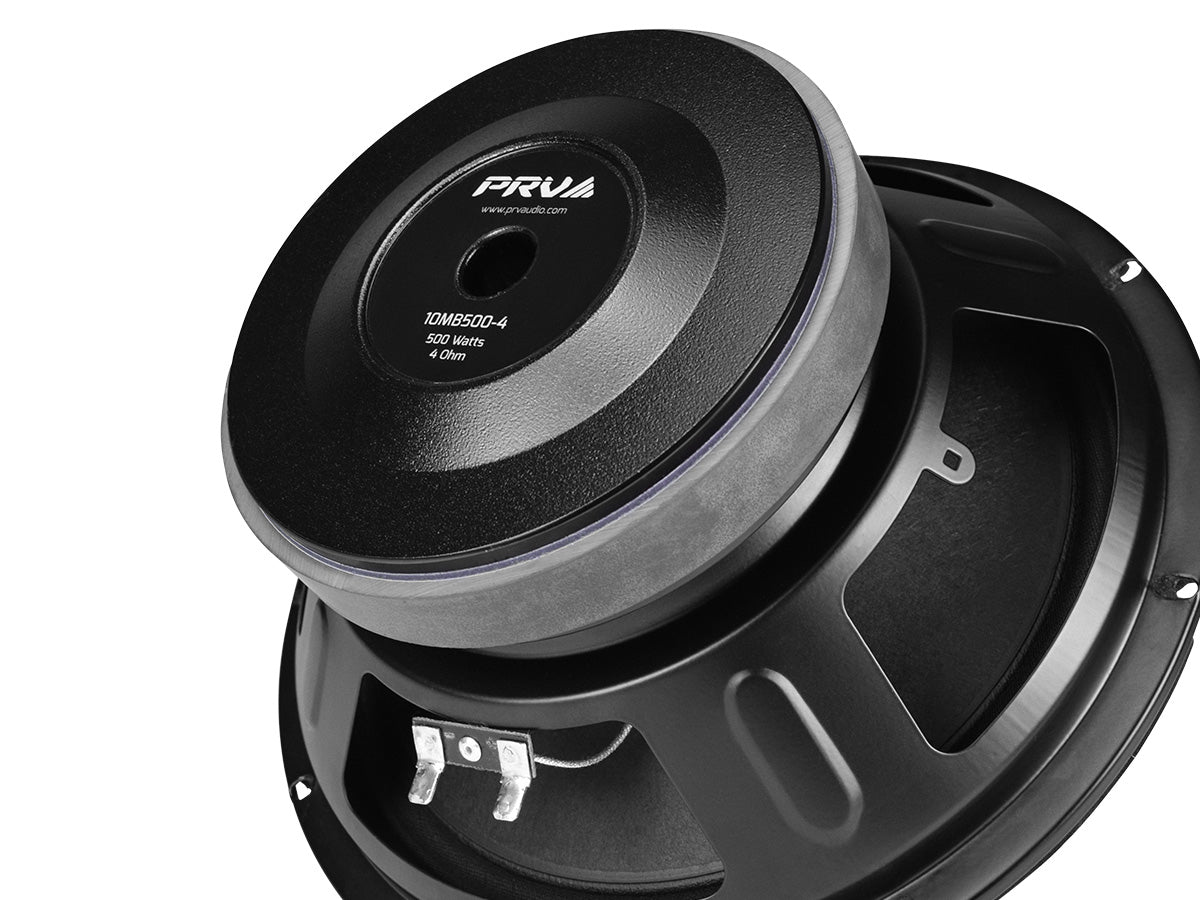

This new 10” midbass speaker has everything you want in a lightweight pro audio loudspeaker, without sacrificing performance we have designed a small profile, featuring a strong compact ferrite motor, keeping its weight under 9 pounds.

  • A deep and punchy midbass response along with a strong vocal response
  • Car audio midbass speaker that offers smooth lower response through a punchy mid bass range
  • Handles 500 Watts, guaranteeing endurance at loudest volumes
  • Impressive choice for high output custom car audio systems – 4 Ohm impedance

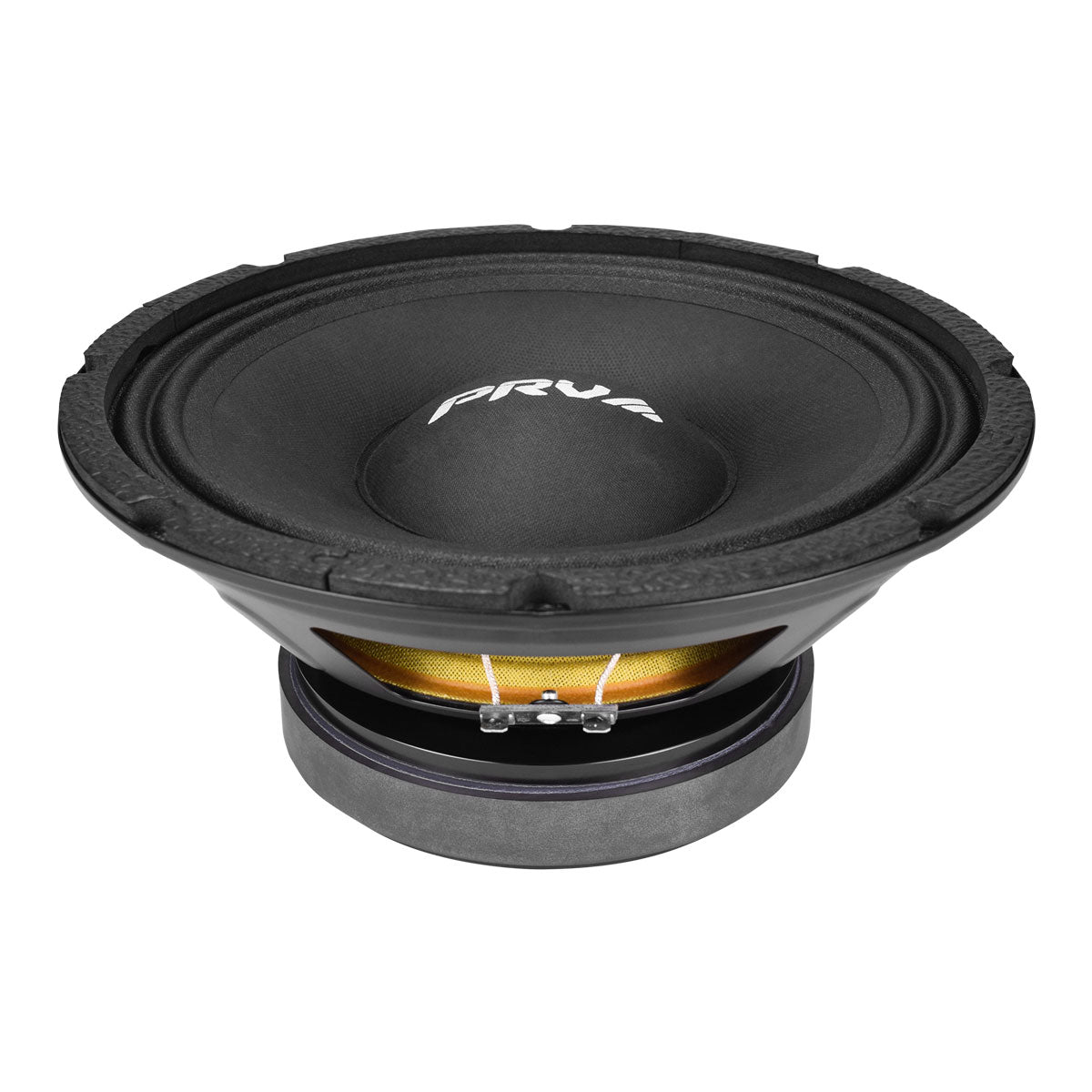

Featuring a lightweight pressed paper cone and high density pressed dust cap, it makes this midbass speaker able to cover a wide range of frequencies from 65 Hz to 5,500 Hz with authority.

Engineered to perform well in tight enclosures, this speaker features a double-roll surround that keeps cone movement linear during high midbass excursion. A precisely matched cone and voice coil design delivers an impressive 97 dB sensitivity for high output with less power.

PRV 10″ Midbass Speaker 10MB500-4 PRO Audio 500 Watts / 4 Ohm – Loudspeaker

Recommended Amplifier configurations and crossover points:

2 Speakers – 1x MDX1200.2 1 Ohm, Bridged both speakers in parallel
4 Speakers – 1x QS2000 at 1 Ohm, 4 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 500 Watts RMS musical power

  • 100 Hz at 12 dB per octave filter Crossover / BT12
  • 95 Hz at 18 dB per octave filter Crossover / BT18

If you have a compression driver on your system the recommended LPF is 2,200 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 10" (254 mm)
  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 250 Watts
  • Continuous Program Power (RMS)** 500 Watts
  • Max Peak Power*** 1000 Watts
  • Sensitivity 2.83V at 1m97 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 100 Hz 12db Per Octave Crossover

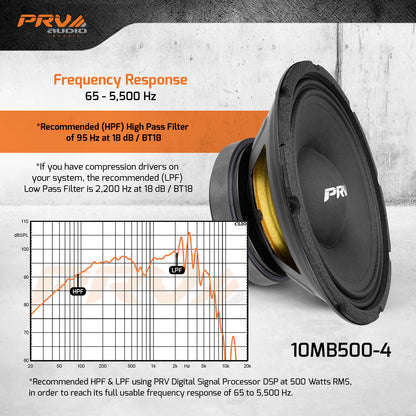

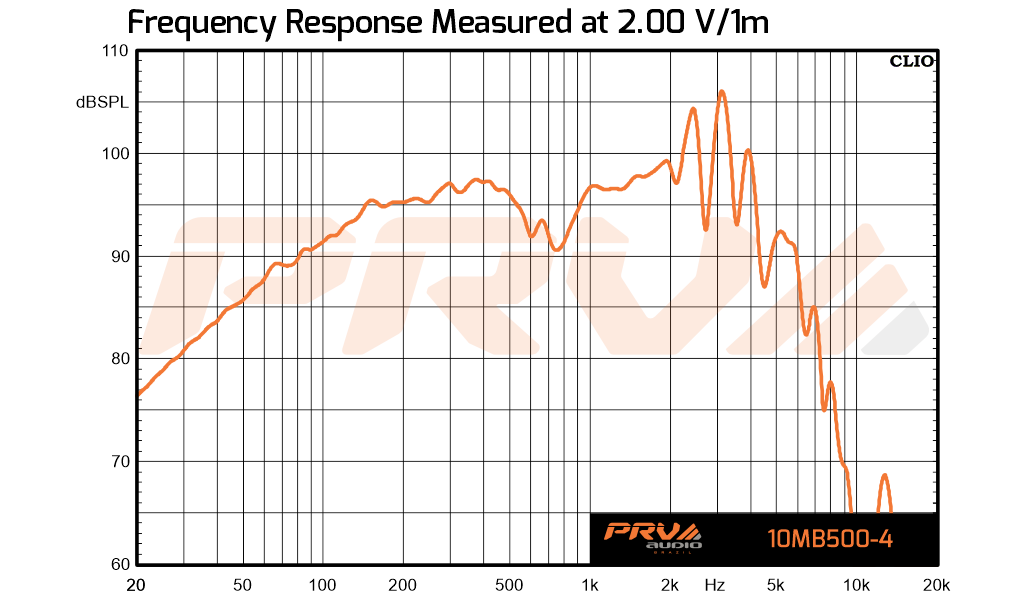

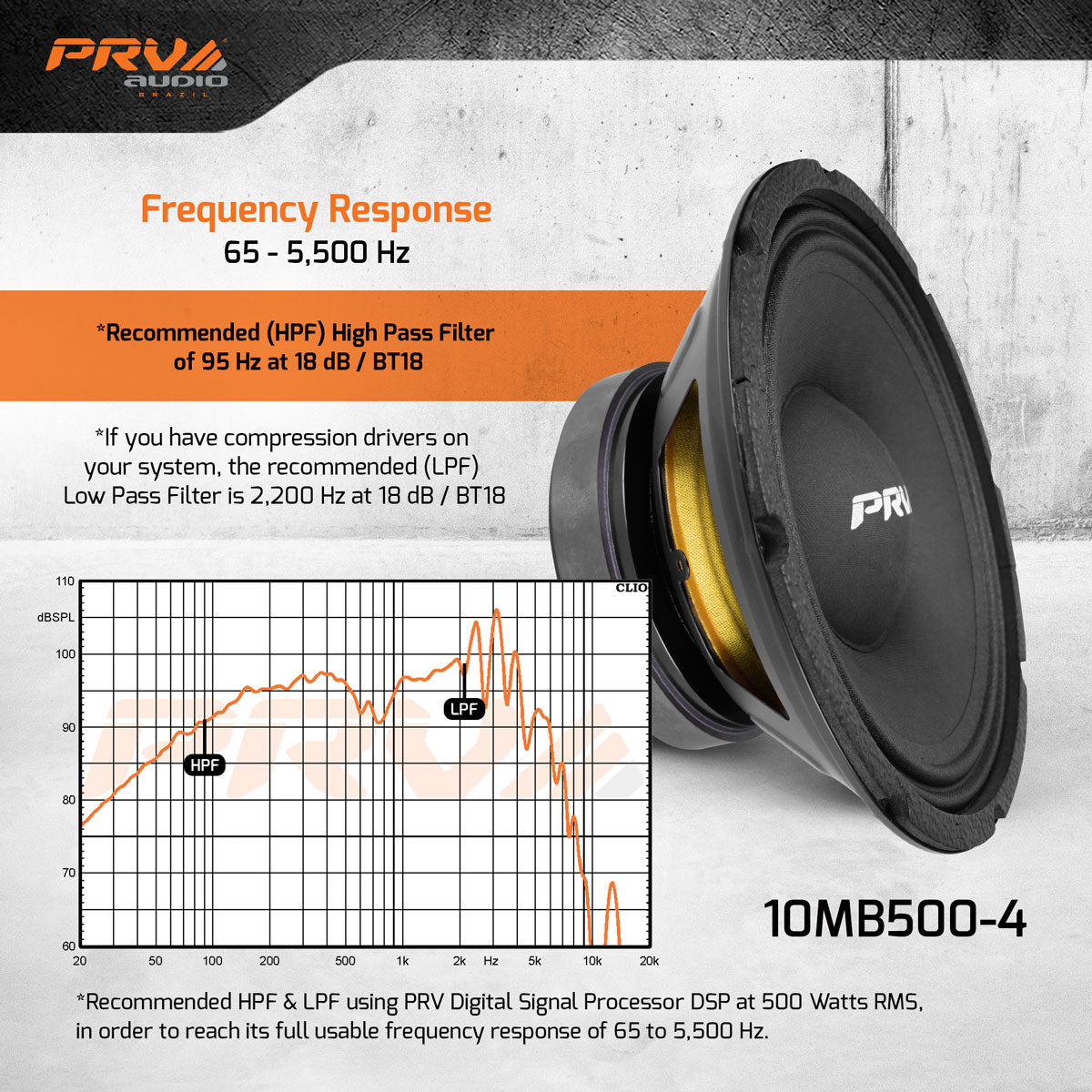

  • Frequency Response at -10dB 65 – 5,500 Hz
  • Voice Coil Diameter 2.0″ (50.5 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth13.0 mm
  • Former Material Kapton
  • Magnetic Gap Depth 8.0 mm
  • Frame Material Stamped Steel
  • Magnet Type Ferrite

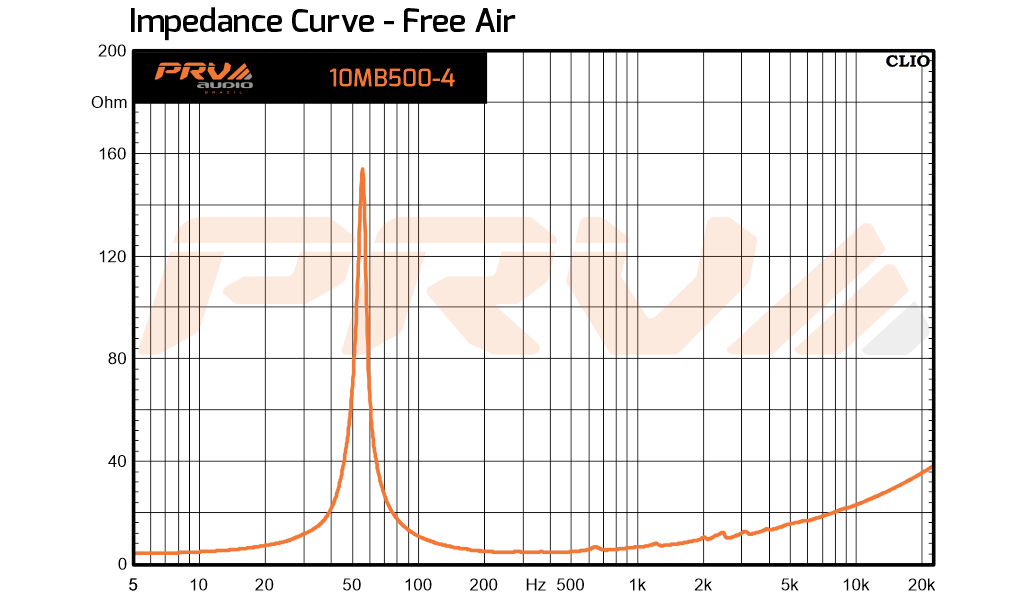

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 47.6 l
  • Excursion (mathematical)**
    • Xmax
    • 4.50 mm
  • Free Air Resonance
    • Fs
    • 55.6 Hz
  • Mechanical Factor
    • Qms
    • 12.14
  • Electrical Factor
    • Qes
    • 0.30
  • Total Factor
    • Qts
    • 0.29
  • Cone Area
    • Sd
    • 380 cm²
  • Mechanical Mass
    • Mms
    • 34.74g
  • BI Factor
    • Bl
    • 12.26 Tm
  • Dc Resistance
    • Re
    • 3.7 Ohm
  • Inductance
    • Le
    • 0.54 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 30.54 g
  • Mechanical Compliance
    • Cms
    • 0.236 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 10MB500-4 Midbass DATASHEET Download

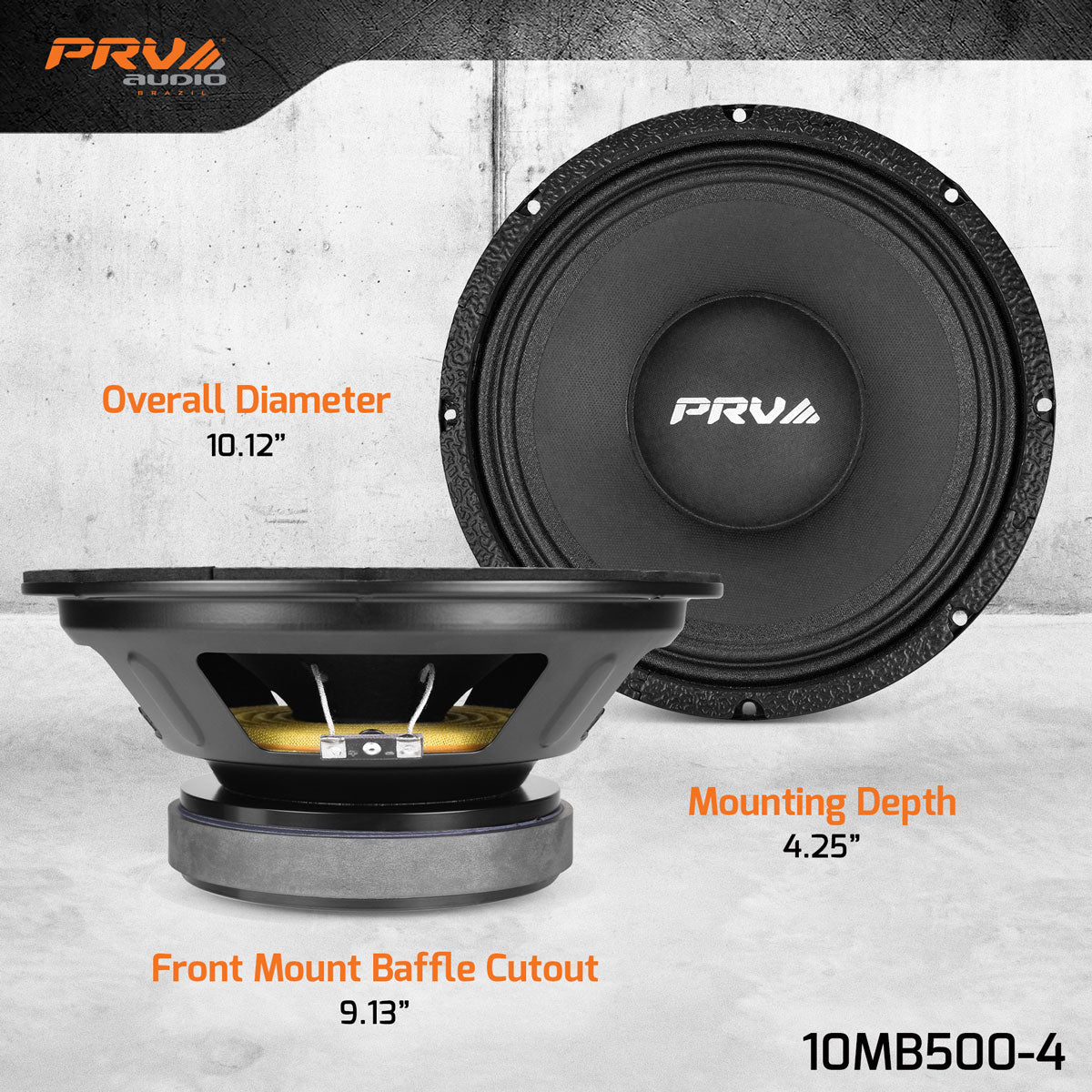

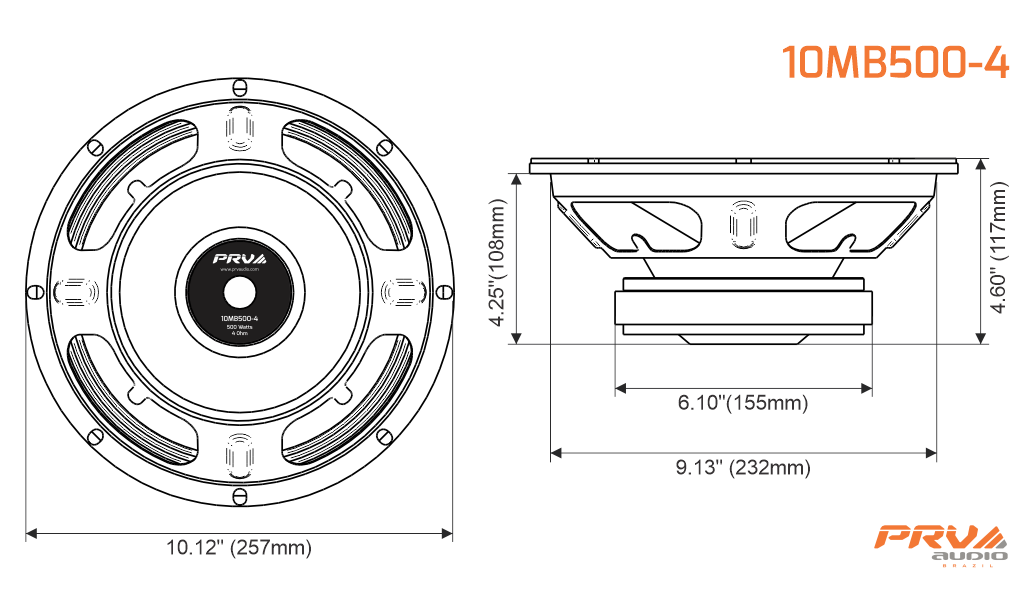

  • Overall Depth 4.60” (117 mm)
  • Mounting Depth 4.25” (108 mm)
  • Overall Diameter 10.12″ (257 mm)
  • Front Mount Baffle Cutout 9.13” (232 mm)
  • Net Weight 9.4 Lbs (4.25 kg)
  • Shipping Weight 8.6 Lbs (3.9 kg)

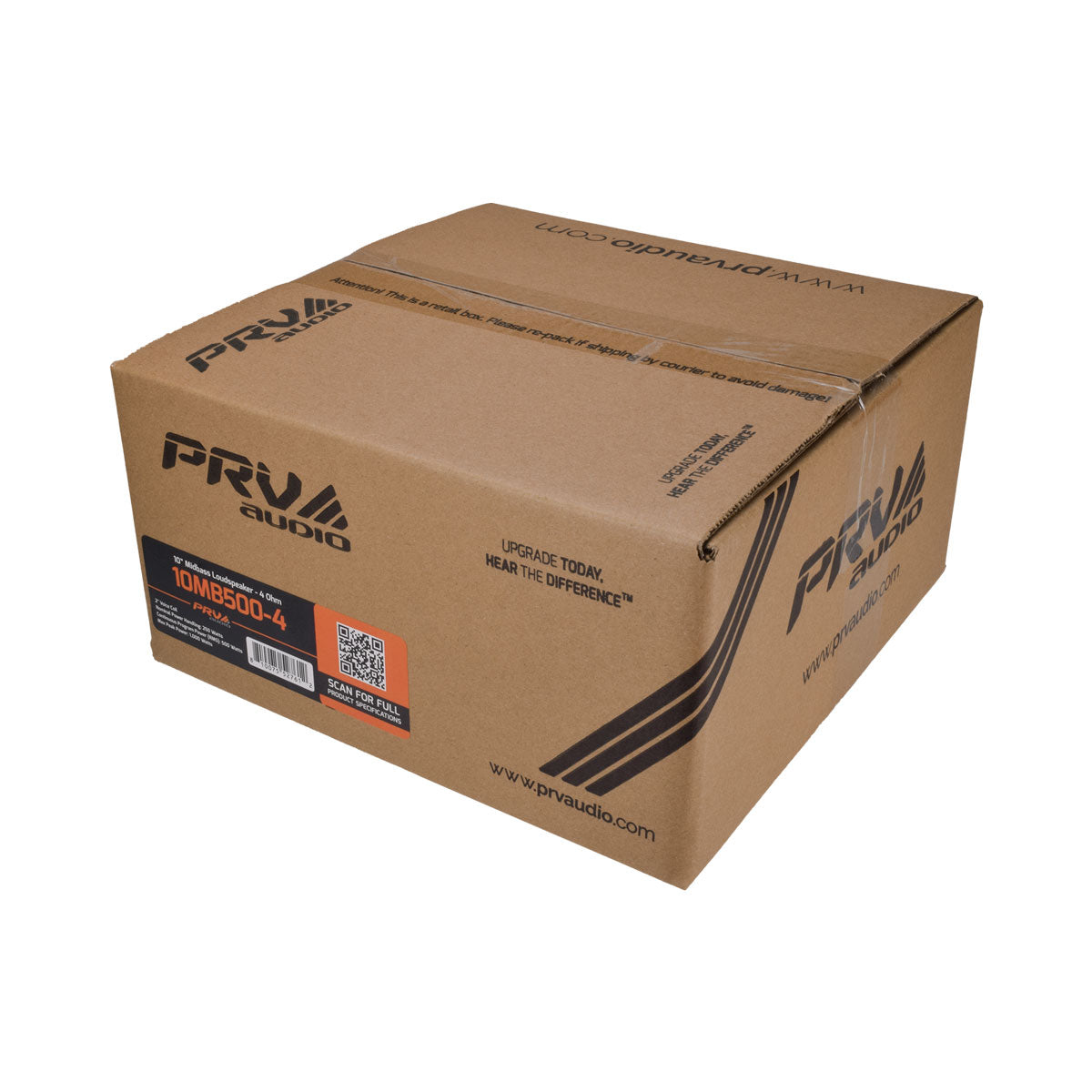

  • Carton Dimensions WxLxH 11.41” x 11.41″ x 6.10” (290 x 290 x 155 mm)
PRV 10MB500-4 Midbass DATASHEET Download
