New

PRV D3220Ti Driver

PRV D3220Ti Driver

SKU: D3220Ti
New

PRV D3220Ti Driver

PRV D3220Ti Driver

SKU: D3220Ti

  • 2" Highs Driver

  • Titanium Diaphragm

  • 108 dB - 300 Watts

$79.91
$99.89

In stock

  • 2" Highs Driver

  • Titanium Diaphragm

  • 108 dB - 300 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep a large voice coil without sacrificing performance. With a smaller design and as powerful as ever, this high frequency 2″ exit driver is taking the industry to the next level!

The new D3220Ti design still retains the same diaphragm design as the previous model. This offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1200 to 17,000 Hz) with an emphasis on the critical upper frequency range.

PRV D3220Ti 2″ High frequency Driver 300 Watts 8 Ohm – Titanium Diaphragm

  • Pure Titanium diaphragm with large 3″ Voice Coil, providing the lowest possible moving mass with excellent efficiency – 108 dB Sensitivity.

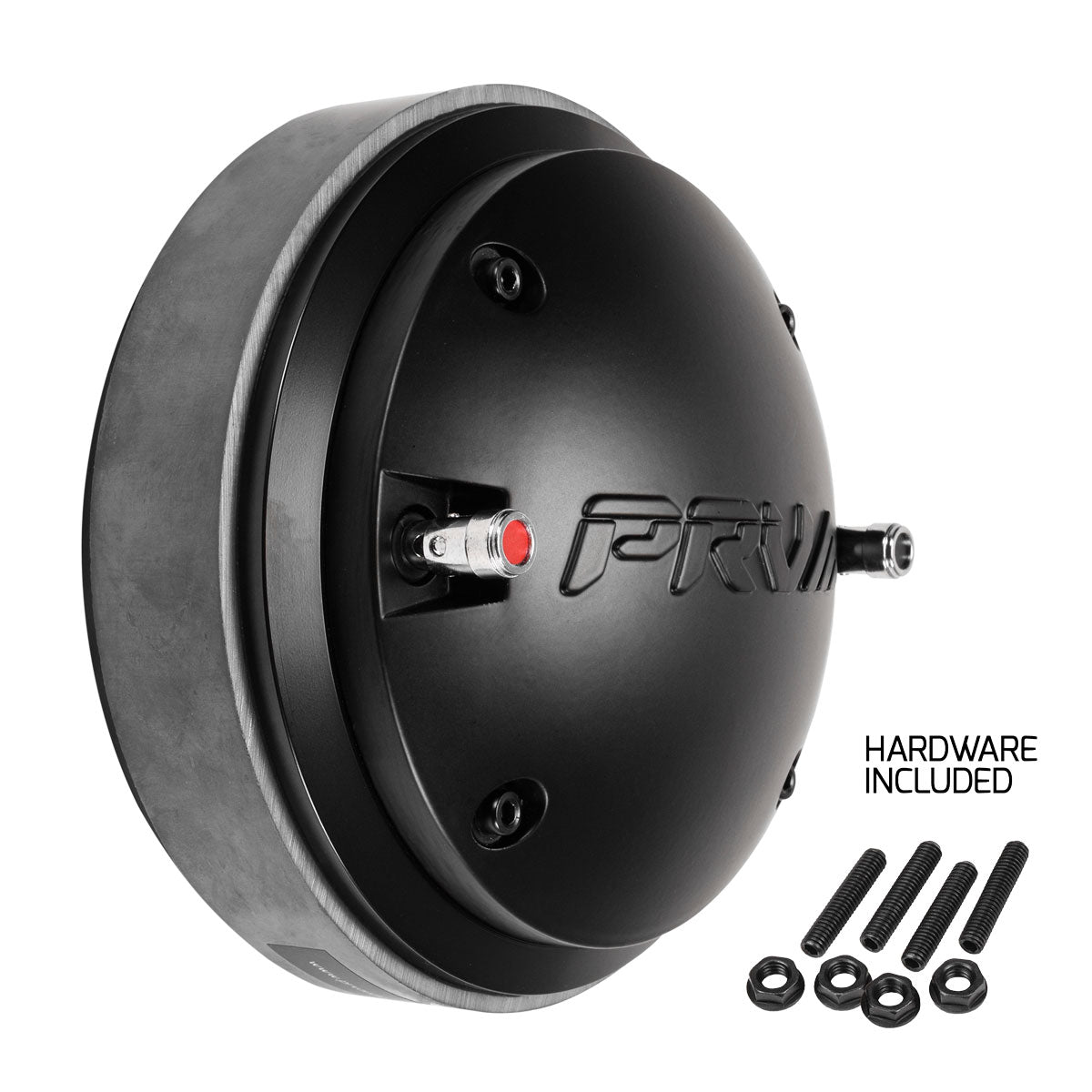

  • Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
  • 2 Inch Exit horn Driver with crystal clear, high impact highs response from 1200 to 17,000 Hz
  • PRO Audio high frequency driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

The D3220Ti ferrite titanium compression horn driver, offers the best performance for the price, features a compact magnet motor.

This allows you to use this horn driver in custom doors and stuntwall systems for vocal reinforcement. We have created a compact and powerful driver that solves the critical component spacing and weight issue in large systems.

The special diameter allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The driver diameter measures only 5.71″ having enough clearance to fit inside the 5.75″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.

Make your system unique with our colored horns. Available on Single Color,Dual Color, and Dual Tone Finish.

The titanium diaphragm is attached to a 3″ diameter copper-clad aluminum wire with Kapton® former for a high 300 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

  • 1400 Hz at 12 dB per octave filter Crossover / BT12
  • 1200 Hz at 18 dB per octave filter Crossover / BT18

The pure titanium diaphragm of this driver provides crisp output focusing on vocals and high-frequency response, making it our most famous high-frequency driver!

PRV D3220Ti 2″ High frequency Driver 300 Watts 8 Ohm – Titanium Diaphragm

Technical Details

GENERAL SPECIFICATIONS

  • Exit Throat Diameter 2” (50 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 150 Watts
  • Rated AES Power Handling (RMS)** 300 Watts
  • Program Power*** 300 Watts
  • Sensitivity 2.83V at 1m108 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 1400 Hz 12db/oct Crossover
  • Frequency Response at -10dB 1,200 – 17,000 Hz
  • Voice Coil Diameter 3” (76 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Flux Density 1.77 T

EXTRA INFO

PRV D3220Ti Driver DATASHEET Download
  • Overall Depth 3.0″ (76 mm)
  • Overall Diameter 5.71″ (145 mm)
  • Net Weight 8.9 lbs (4.0 kg)
  • Shipping Weight 9.35 lbs (4.25 kg)
  • Carton Dimensions WxLxH 6.89″ x 6.3″ x 4.0″ (175 x 160 x 102 mm)
  • Mounting Bolt CircleM6 x 4″ (102 mm)
PRV D3220Ti Driver DATASHEET Download
