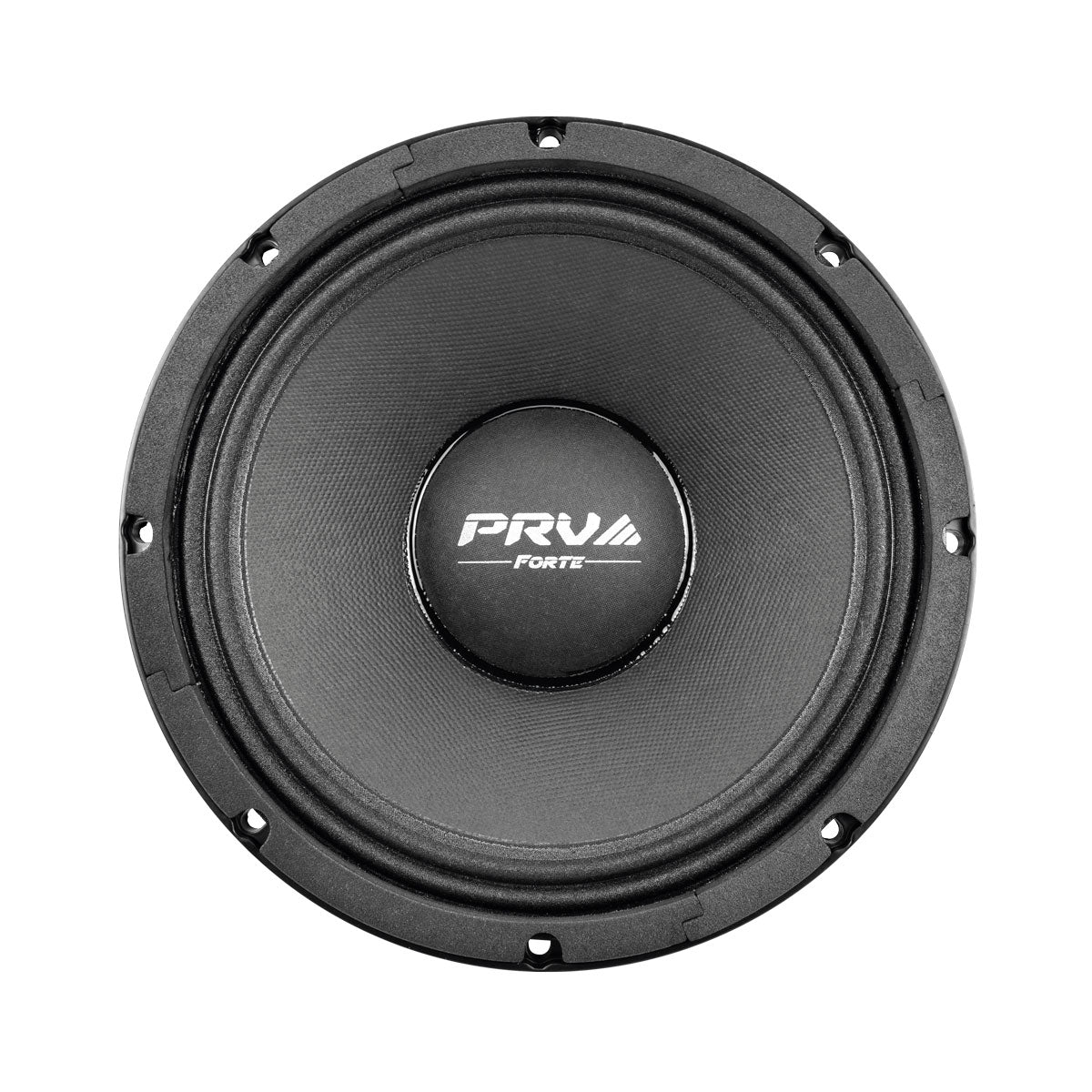

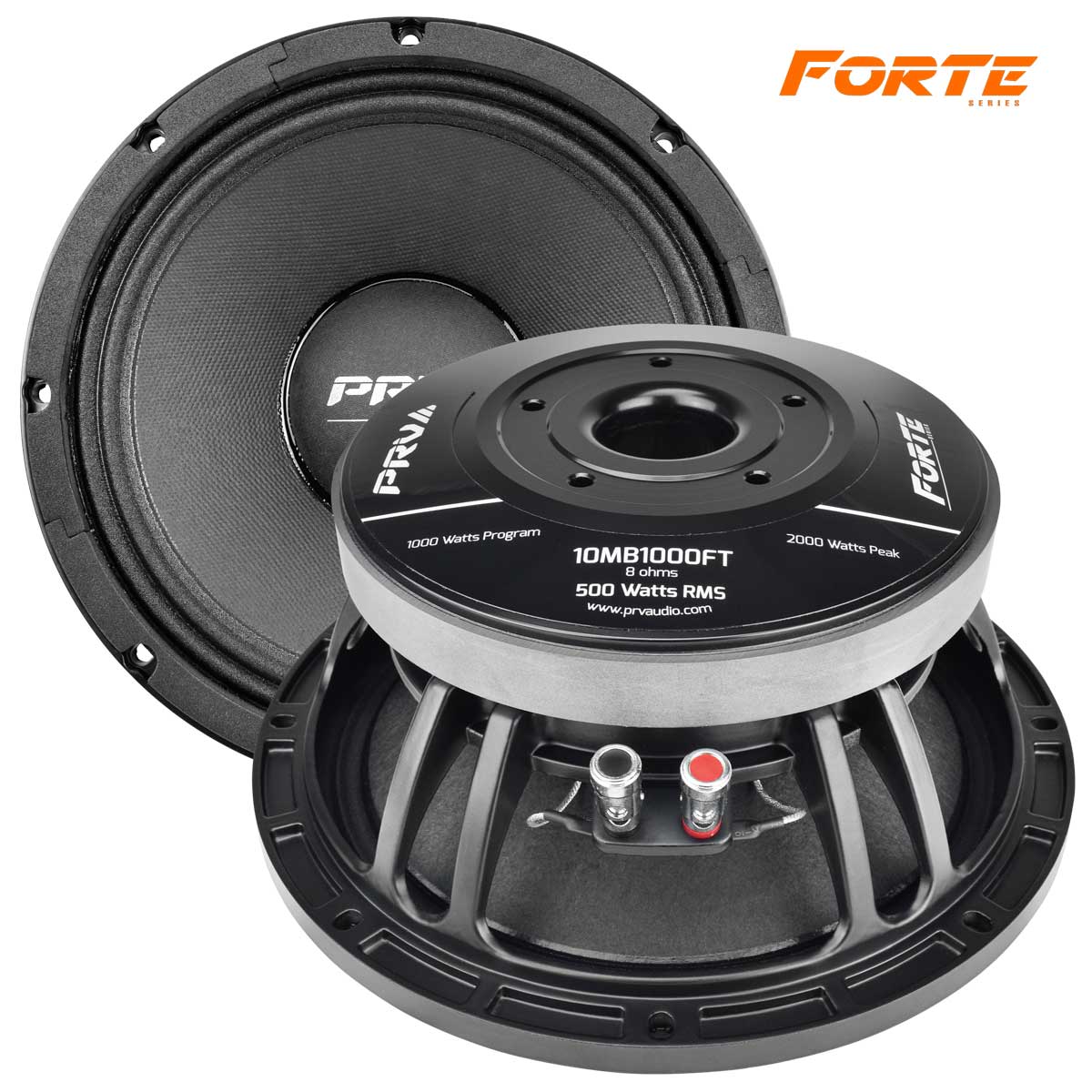

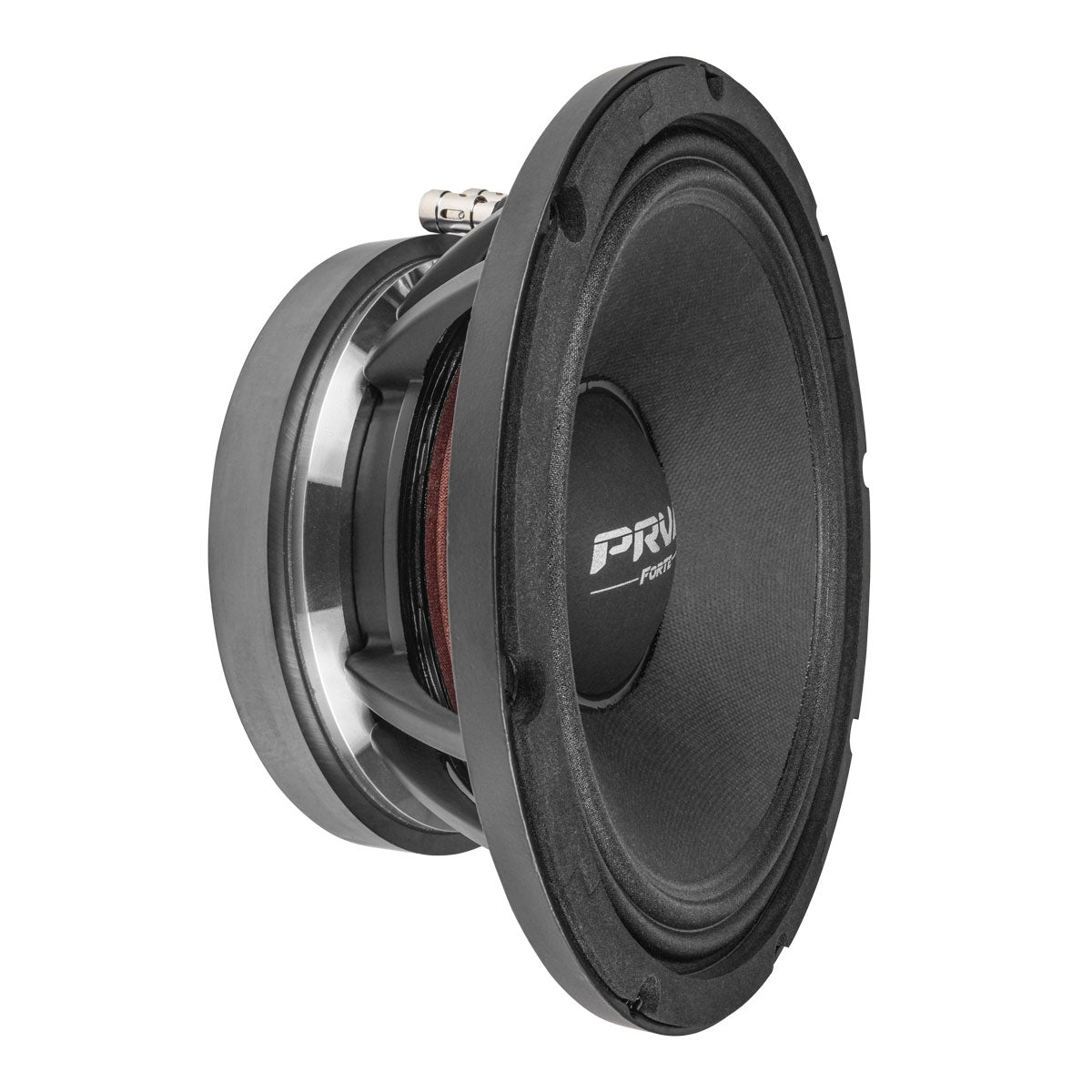

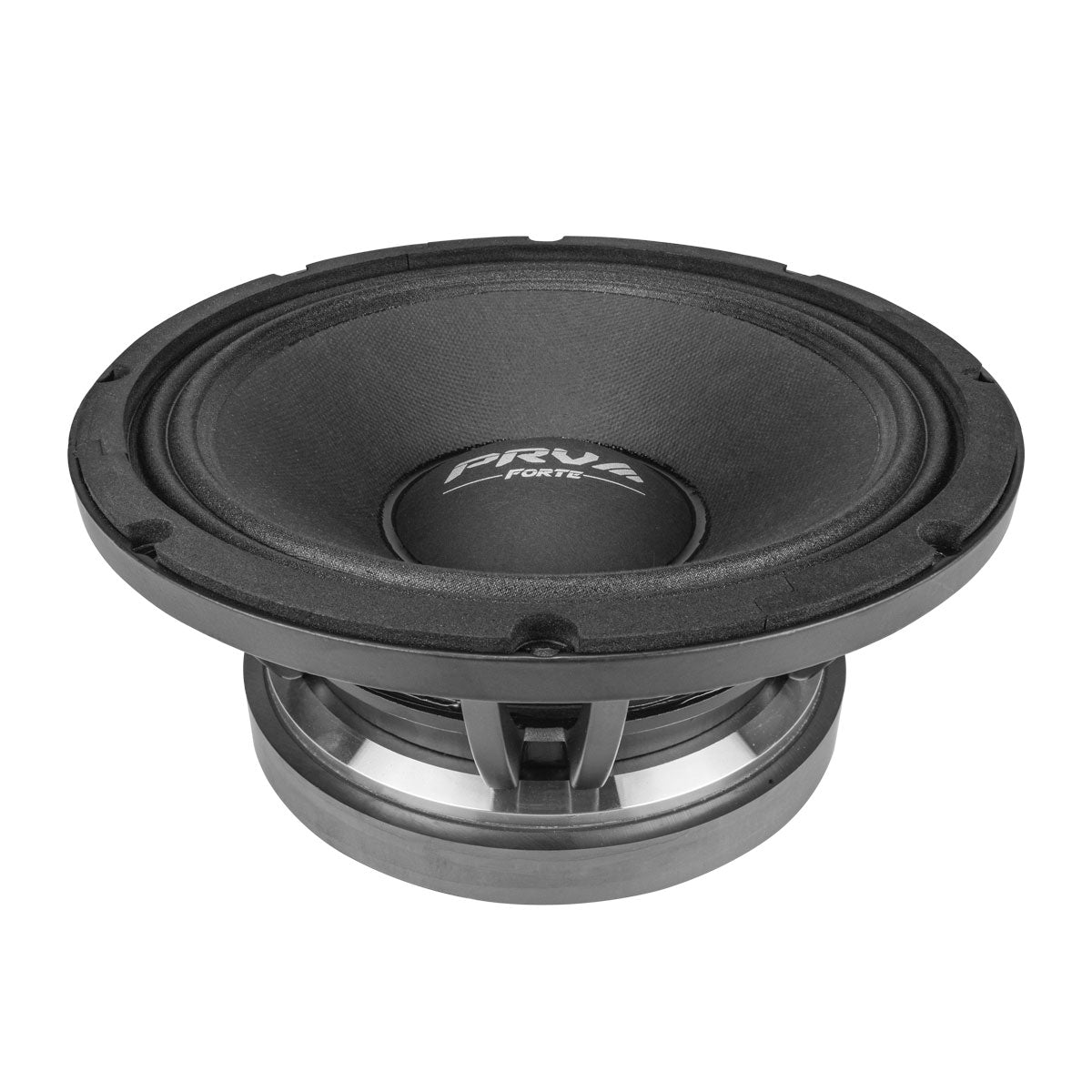

PRV 10MB1000FT Midbass

PRV 10MB1000FT Midbass

SKU: 10MB1000FT

PRV 10MB1000FT Midbass

PRV 10MB1000FT Midbass

SKU: 10MB1000FT

  • 10" Midbass - 8 Ohm

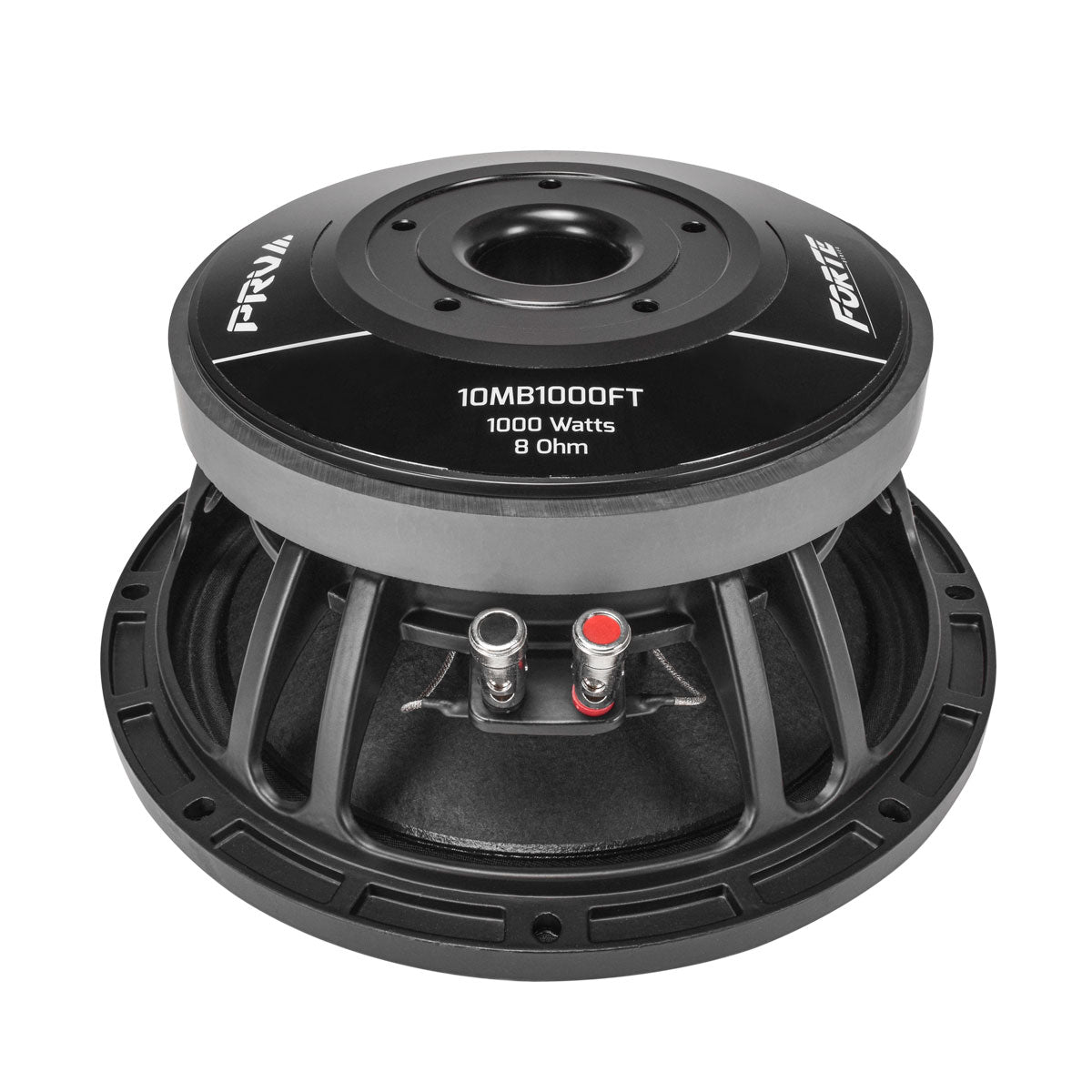

  • Ferrite Magnet

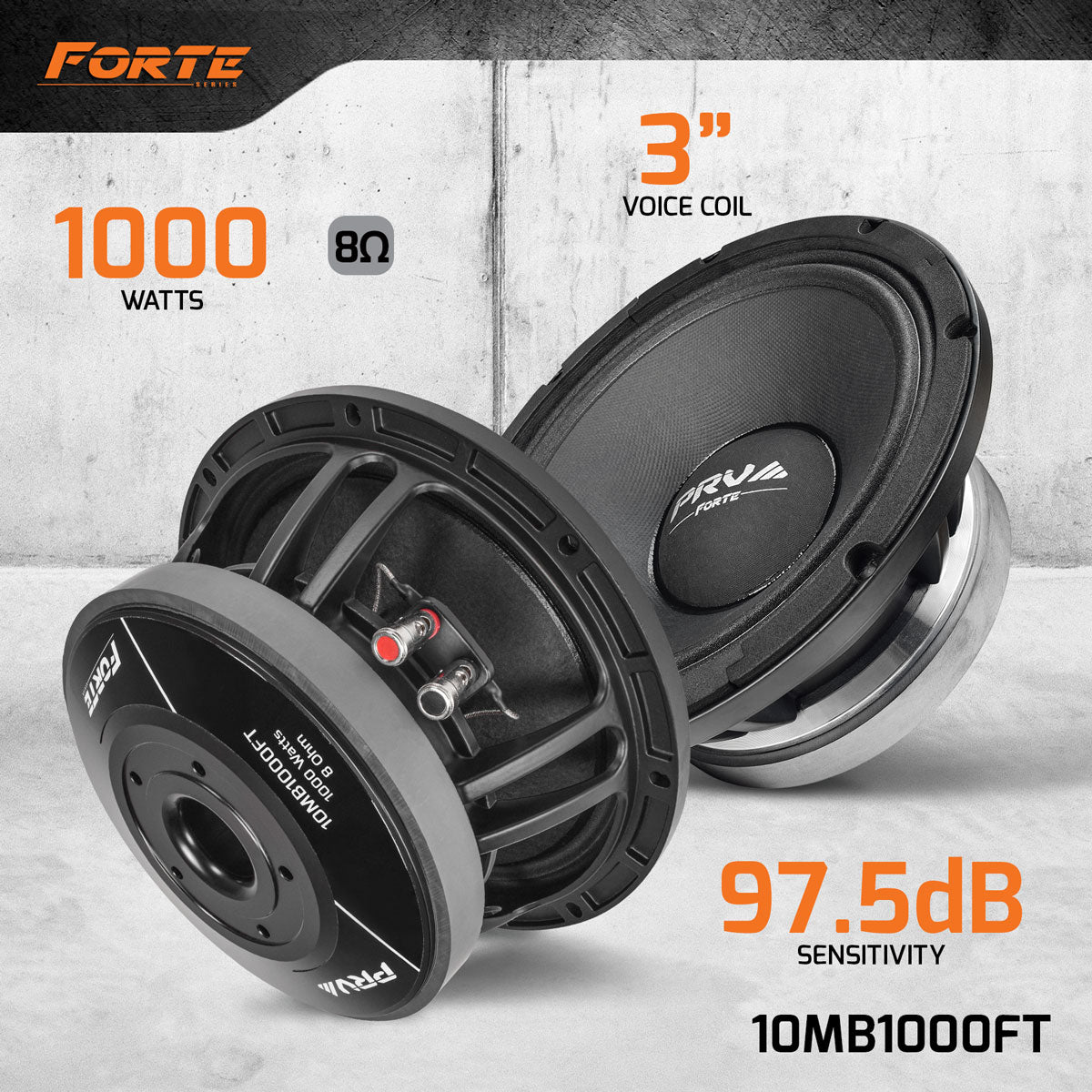

  • 97.5 dB - 1000 Watts
$159.91
$187.39

In stock
  • 10" Midbass - 8 Ohm
  • Ferrite Magnet
  • 97.5 dB - 1000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

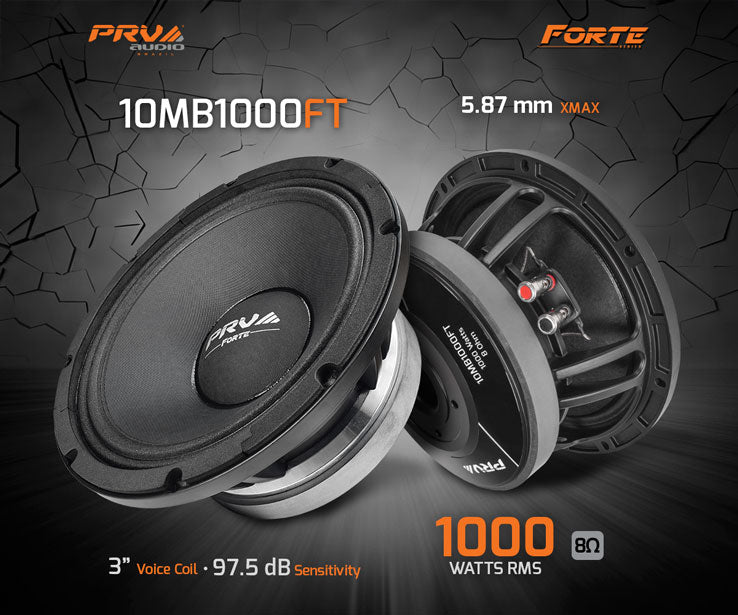

Combining high output with low distortion mid-bass response, PRV Audio’s 10MB1000FT 10″ professional mid bass loudspeaker is the perfect choice for high-powered sound reinforcement speakers, stage monitors, and even high SPL PROAudioOnWheels systems.

A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. The 10MB1000FT is a rugged 10″ mid bass that combines mid bass punch and mid clarity at remarkable SPL output with low distortion and extended mid bass response. Optimized for use in compact enclosures, this mid bass speaker is built to perform on low midbass frequencies with authority, while providing a smooth vocal response and useful response up to 7,000 Hz, making it a great choice for larger 2 and 3 way systems.

  • 3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance, 8 ohm
  • Ventilated voice coil gap reduces power compression
  • High Xmax for more mid bass output
  • 1000 watts continuous program power rating makes the high acoustical output
  • Built to Perform! It will stand up to considerable use and abuse.

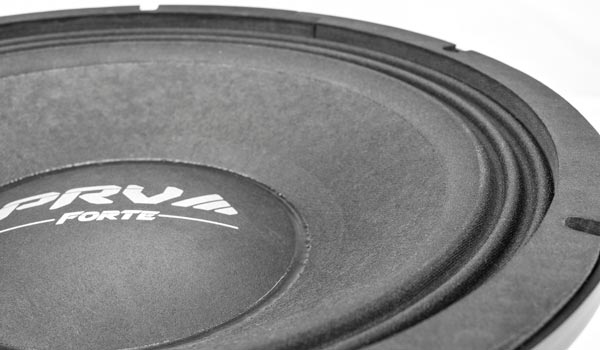

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The Perfect speaker for TUKUTEO® sound. The high sensitivity rating of 97.5 dB 1W/1M which makes it capable of generating a lot of output! This 10″ is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

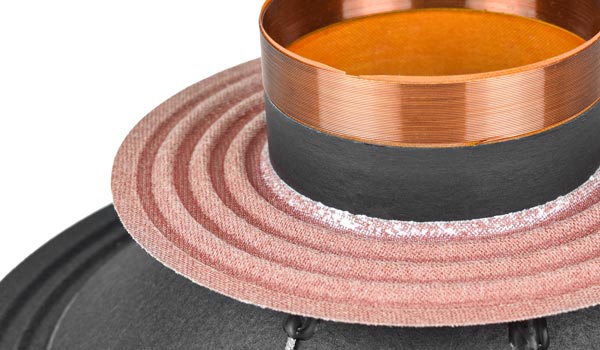

The voice coil is wound on a 3″ glass fiber with Copper Clad aluminum wire keeping weight to a minimum for an incredibly quick transient response. Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 10″ (254 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 500 Watts
  • Continuous Program Power (RMS)** 1000 Watts
  • Max Peak Power*** 2000 Watts
  • Sensitivity 2.83V at 1m97.5 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 120 Hz** **12db Per Octave Crossover

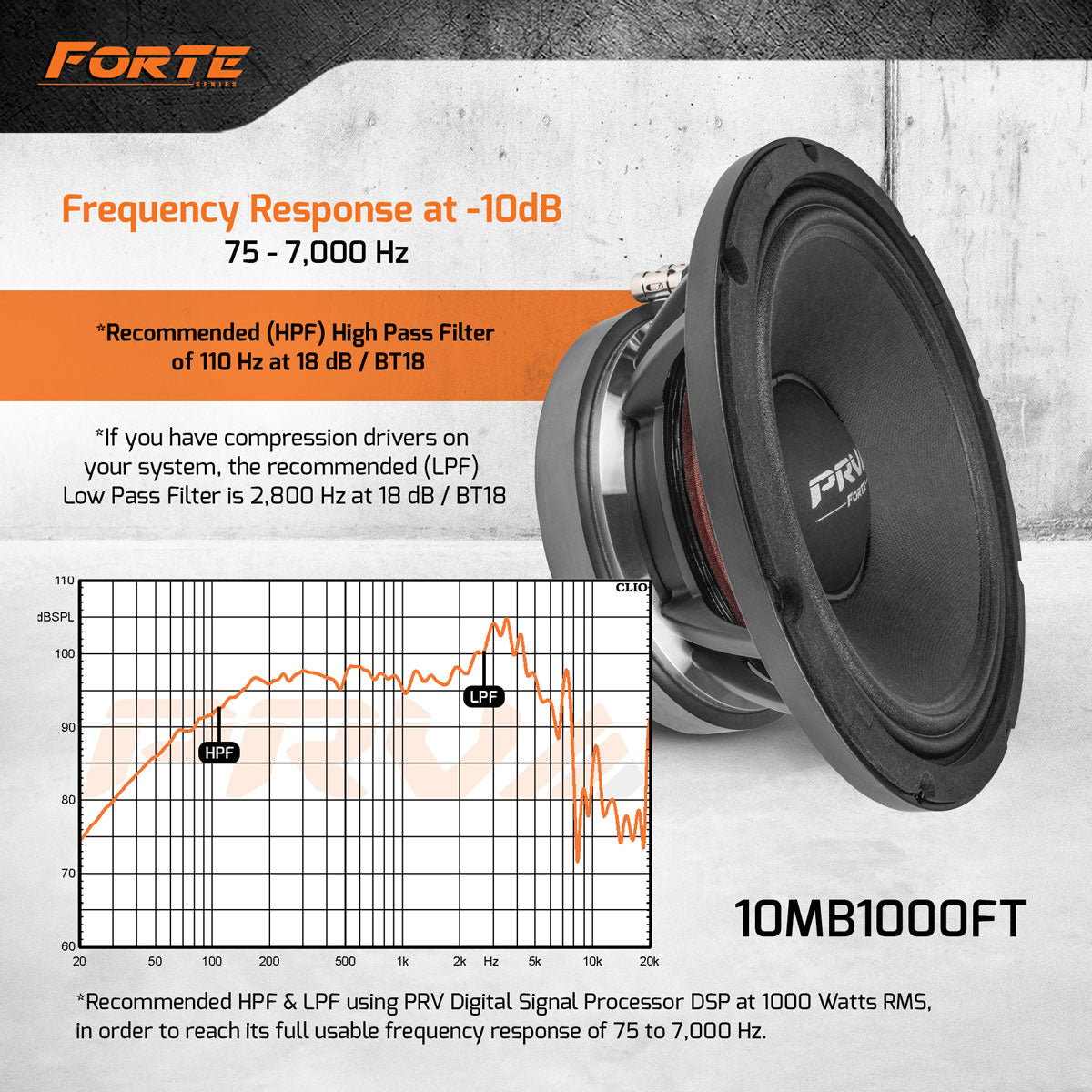

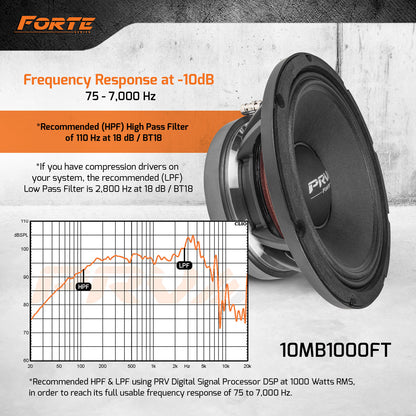

  • Frequency Response at -10dB 75- 7,000 Hz
  • Voice Coil Diameter 3″ (75 mm)
  • Voice Coil Wire 3″ (75 mm)
  • Voice Coil Winding Depth16.5 mm
  • Former Material Fiberglass
  • Magnetic Gap Depth 9.5 mm
  • Frame Material Die Cast Aluminum

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 32.3 l
  • Excursion (mathematical)**
    • Xmax
    • 5.87 mm
  • Free Air Resonance
    • Fs
    • 75.0 Hz
  • Mechanical Factor
    • Qms
    • 12.41
  • Electrical Factor
    • Qes
    • 0.33
  • Total Factor
    • Qts
    • 0.32
  • Cone Area
    • Sd
    • 380 cm²
  • Mechanical Mass
    • Mms
    • 28.10 g
  • BI Factor
    • Bl
    • 14.49 Tm
  • Dc Resistance
    • Re
    • 5.3 Ohms
  • Inductance
    • Le
    • 0.26 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 23.30 g
  • Mechanical Compliance
    • Cms
    • 0.160 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 10MB1000FT Midbass DATASHEET Download

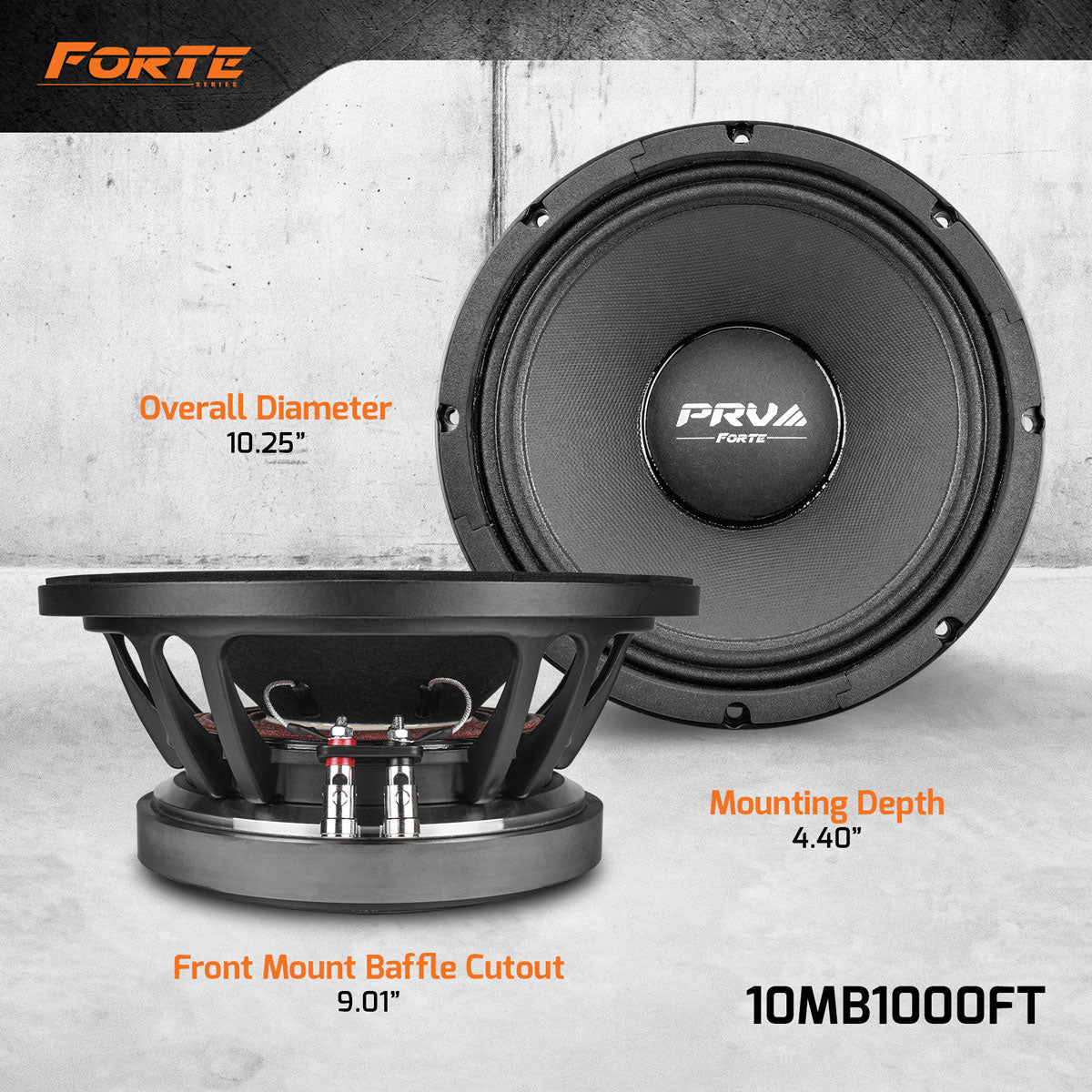

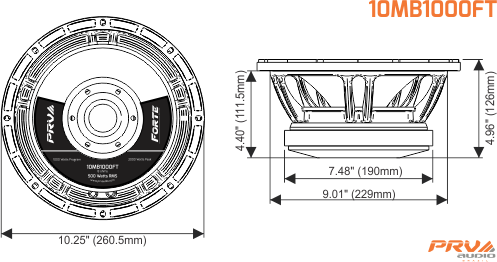

  • Overall Depth 4.96”(126 mm)
  • Mounting Depth 4.40”(111.76 mm)
  • Overall Diameter 10.25”(260.50 mm)
  • Front Mount Baffle Cutout 9.01” (229 mm)
  • Net Weight 15.0 Lbs (6.80 kg)
  • Shipping Weight 16.6 Lbs (7.54 kg)
  • Carton Dimensions WxLxH 15.55”x 15.55” x 6.30” (295 x 295 x 160mm)
PRV 10MB1000FT Midbass DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

  • PRV RK10MB1000FT

    PRV RK10MB1000FT

    PRV RK10MB1000FT

    RK10MB1000FT

    Price:
    $49.91
    $62.39 $49.91
    Out of Stock
