PRV WG2000Py SLIM Driver + Horn Combo

PRV WG2000Py SLIM Driver + Horn Combo

SKU: SKU:WG2000Py SLIM

Skip to product information
Monthly Special

PRV WG2000Py SLIM Driver + Horn Combo

PRV WG2000Py SLIM Driver + Horn Combo

SKU: SKU:WG2000Py SLIM

  • 2" Mids & Highs Horn Driver
  • Polyimide Diaphragm
  • 107 dB - 150 Watts
$69.91
$87.39

In stock

  • 2" Mids & Highs Horn Driver
  • Polyimide Diaphragm
  • 107 dB - 150 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

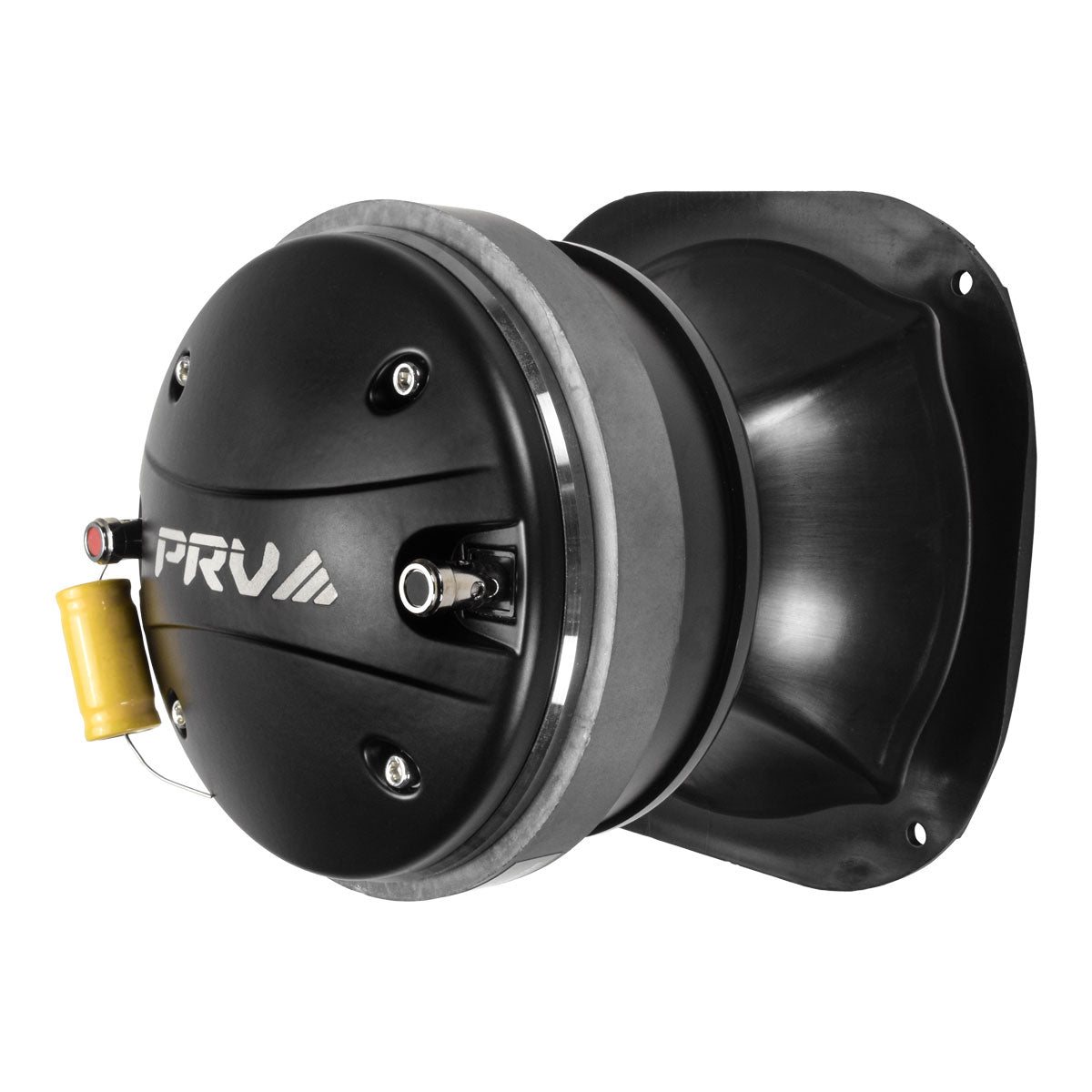

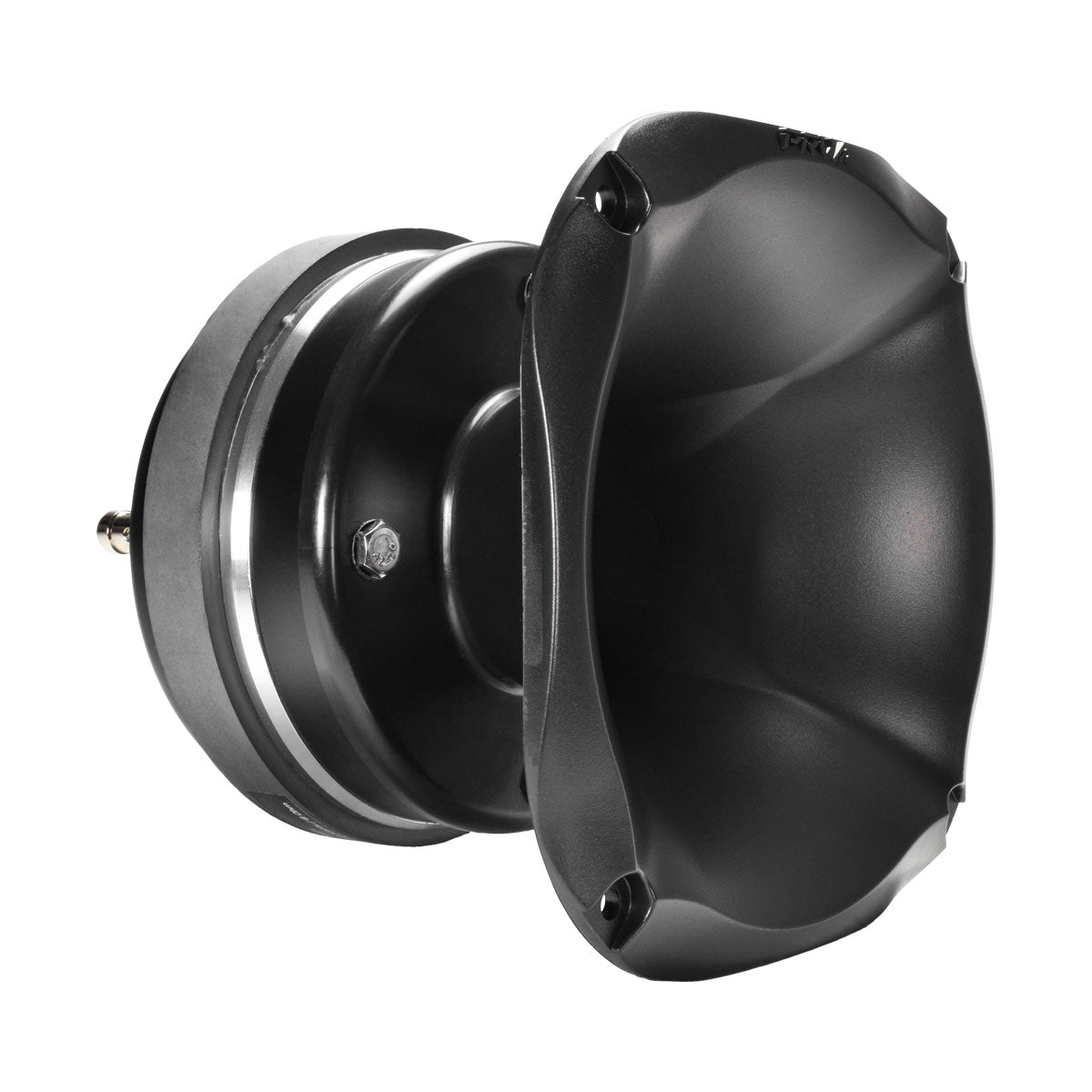

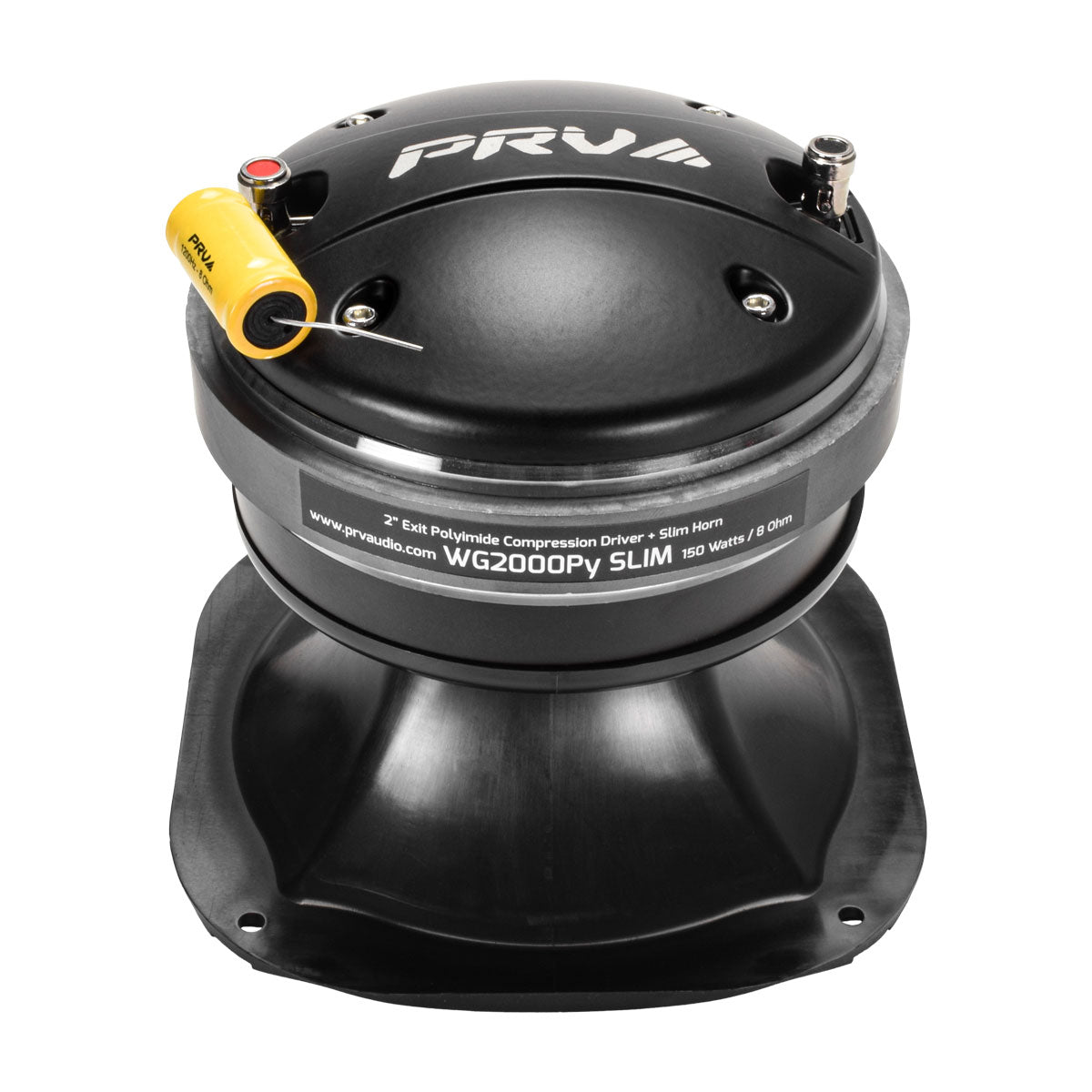

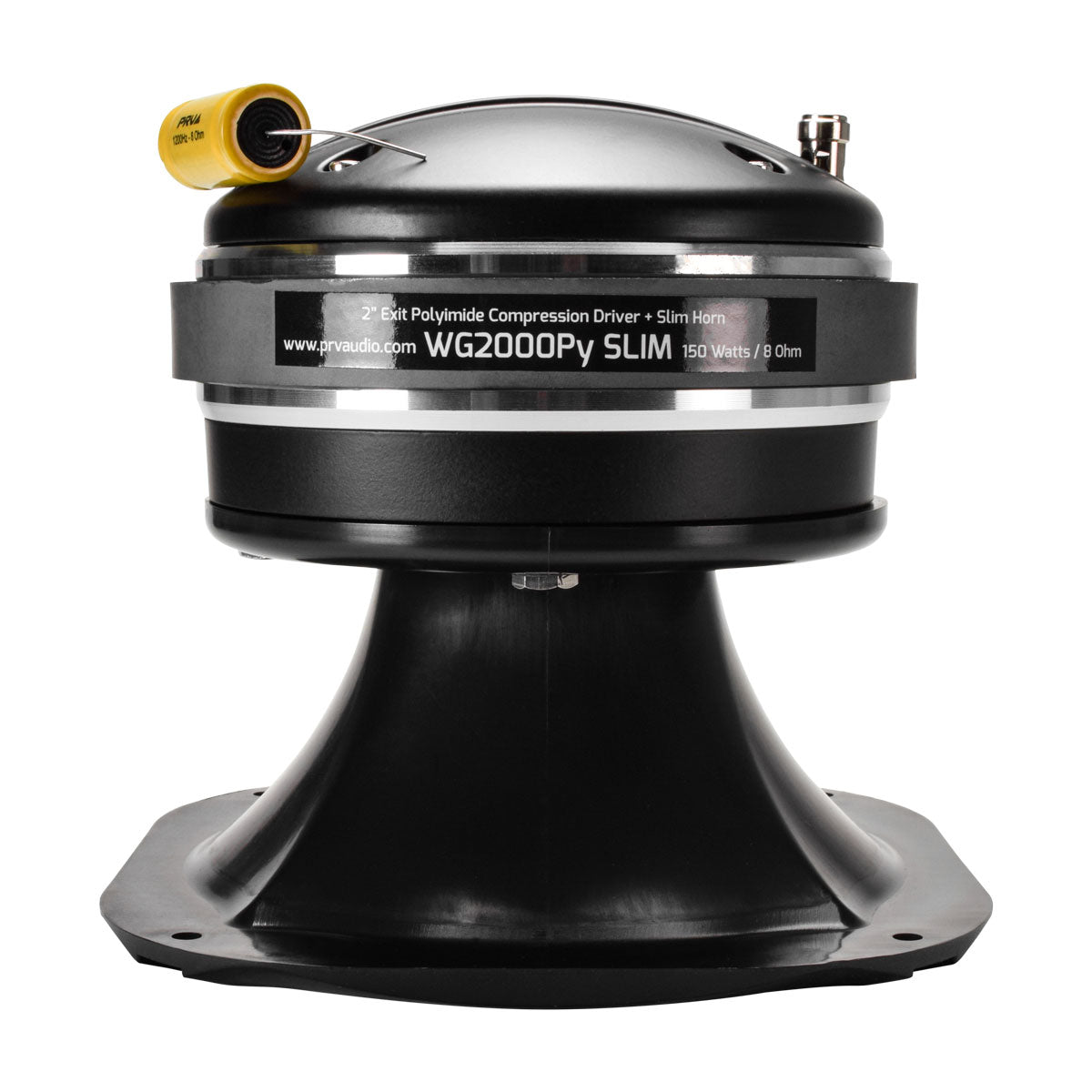

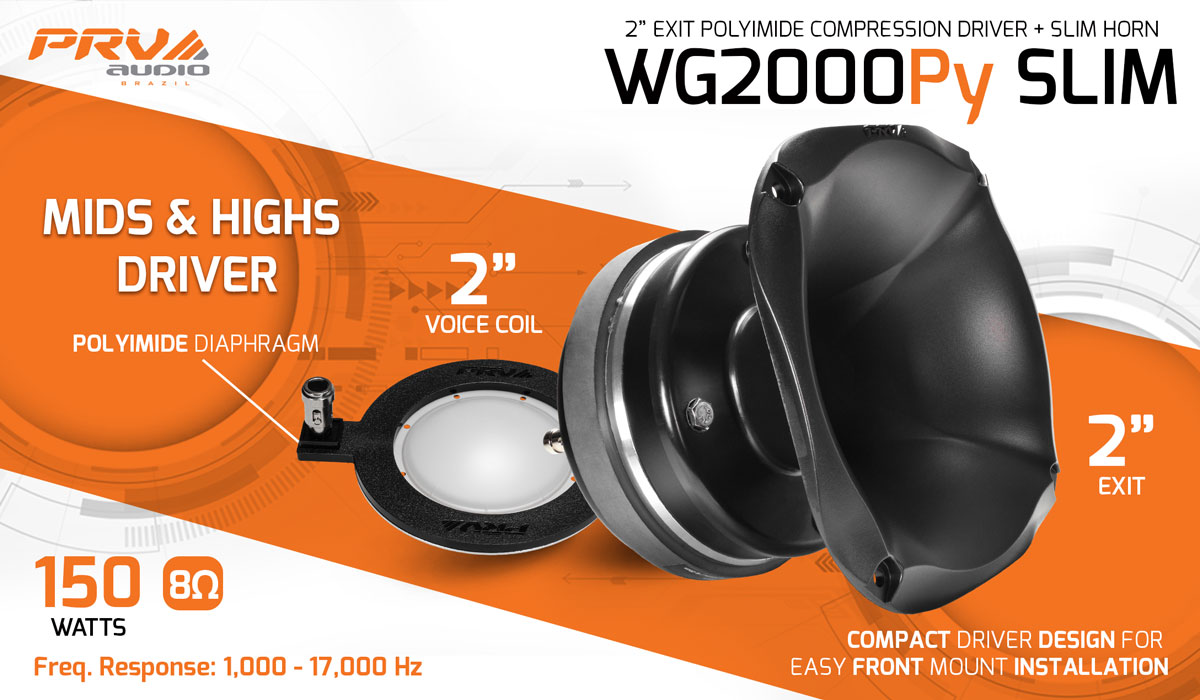

The WG2000Py SLIM is a Shallow mount 2″ horn driver featuring a Polyimide Pro Audio Compression Driver with a 2” exitWGP14-50XSlim Waveguide.

This is a top-of-the-line horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

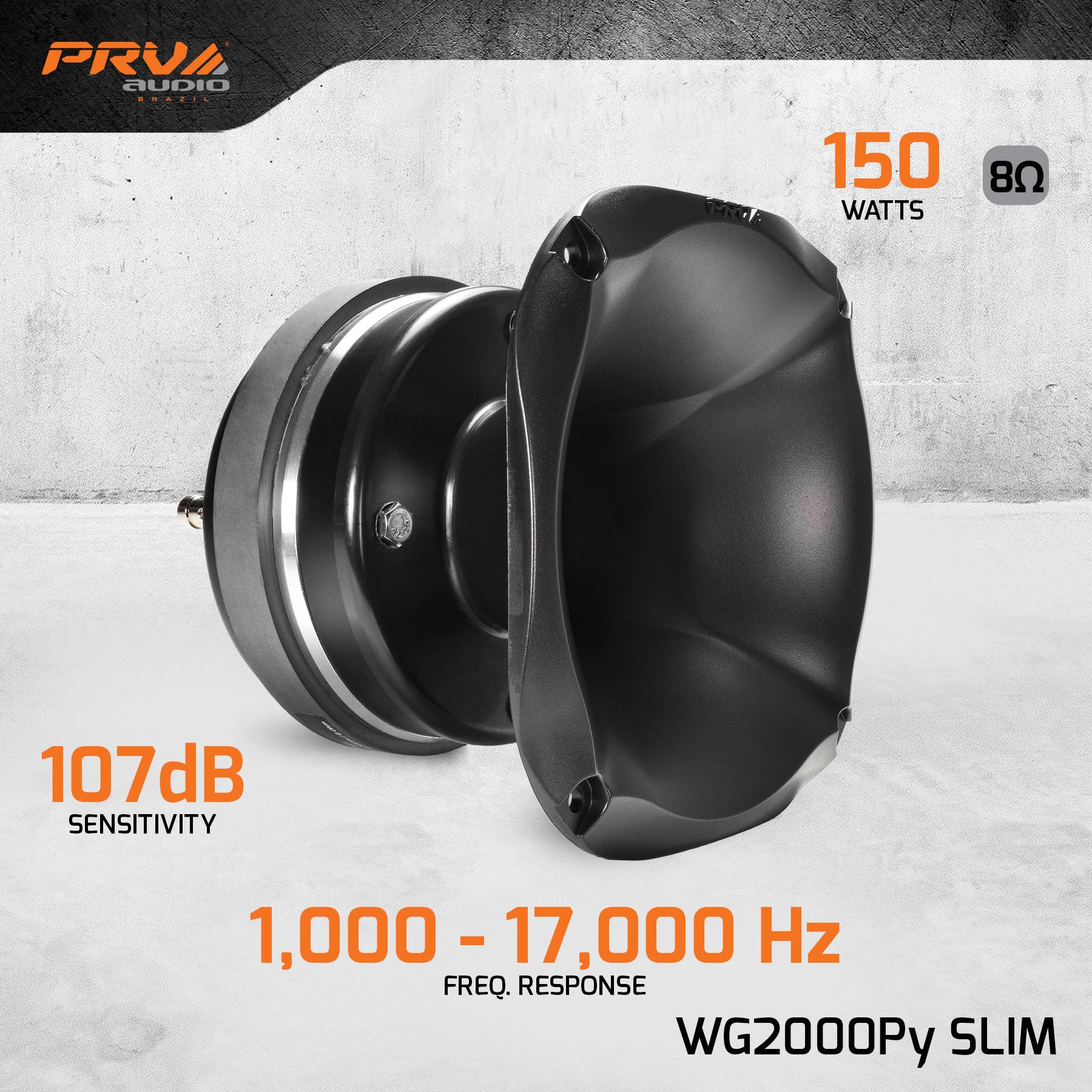

  • Polyimide diaphragm with large 2.0″ Voice Coil, providing dynamic output along with excellent efficiency – 107 dB Sensitivity
  • Mids & Highs 2″ Exit Driver + Shallow Horn WGP14-50X – Perfect as compression driver for car audio
  • Crystal clear natural sound with wider response from 1000 to 17,000 Hz
  • PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
  • Compact driver mounted on slim horn, ideal for tight spaces, increase sound output on your system with this slim solution. Great choice for custom car audio door panels

The driver’s small diameter allows front mounting, making it easy to install without detaching the driver from the WGP14-50X Horn.

Its design was developed to give custom doors a new solution for a shallow horn driver, its 2.0” voice coil allows it to push more power into it, increasing its output tremendously because of its low mass diaphragm.

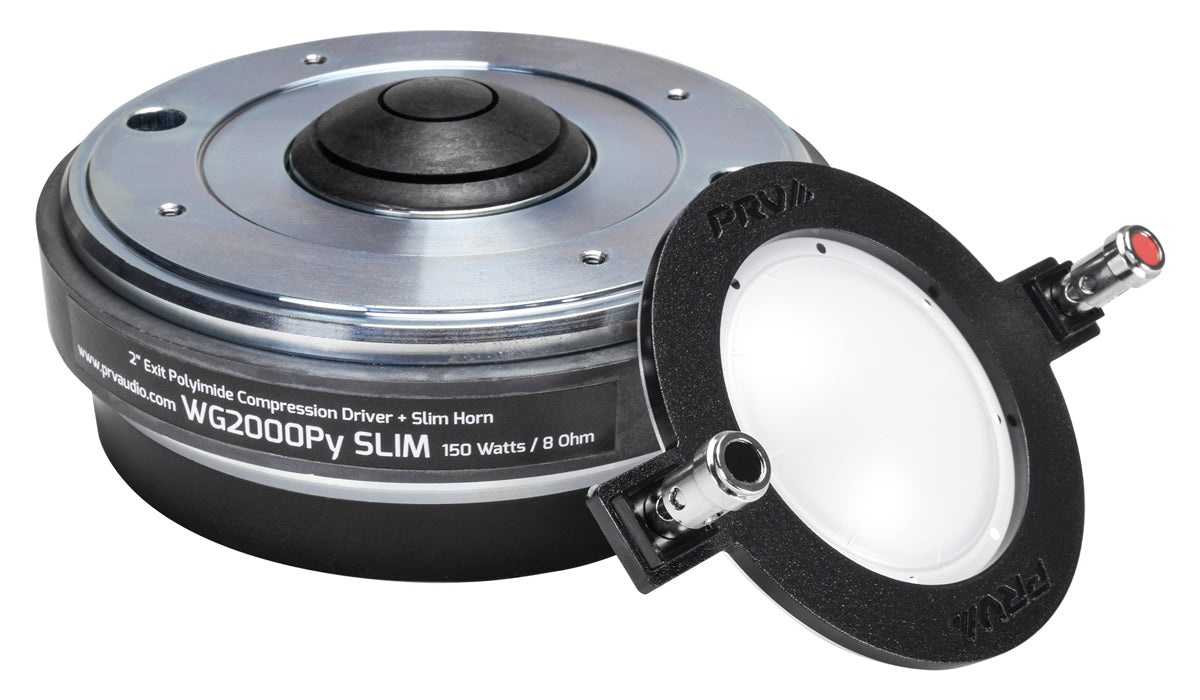

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.

The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

PRV Audio WG2000Py SLIM Shallow Mount 2″ Exit Mids & Highs Horn Driver 150 Watts 8 Ohm – Compression Horn driver for Car Audio

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Exit Throat Diameter 2" (50 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 75 Watts
  • Continuous Program Power (RMS)** 150 Watts
  • Max Peak Power*** 300 Watts
  • Sensitivity 2.83V at 1m107 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 1000 Hz*** ***12db/oct Crossover

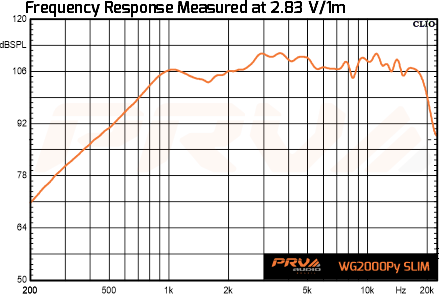

  • Frequency Response at -10dB 1000 -17,000 Hz
  • Voice Coil Diameter 2" (51 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Diaphragm Polyimide
  • Flux Density 2.10 T
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

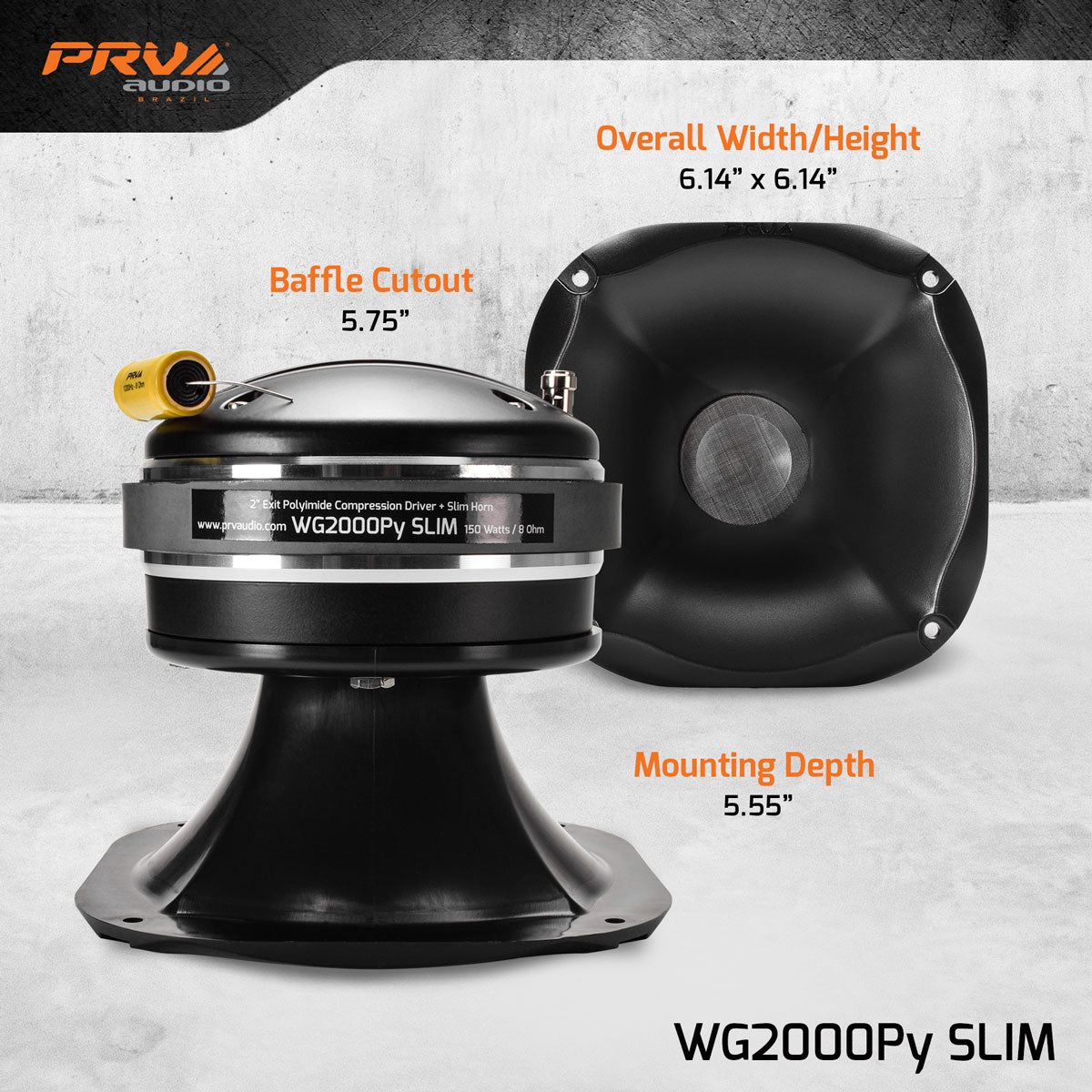

  • Overall Depth 5.87" (149 mm)

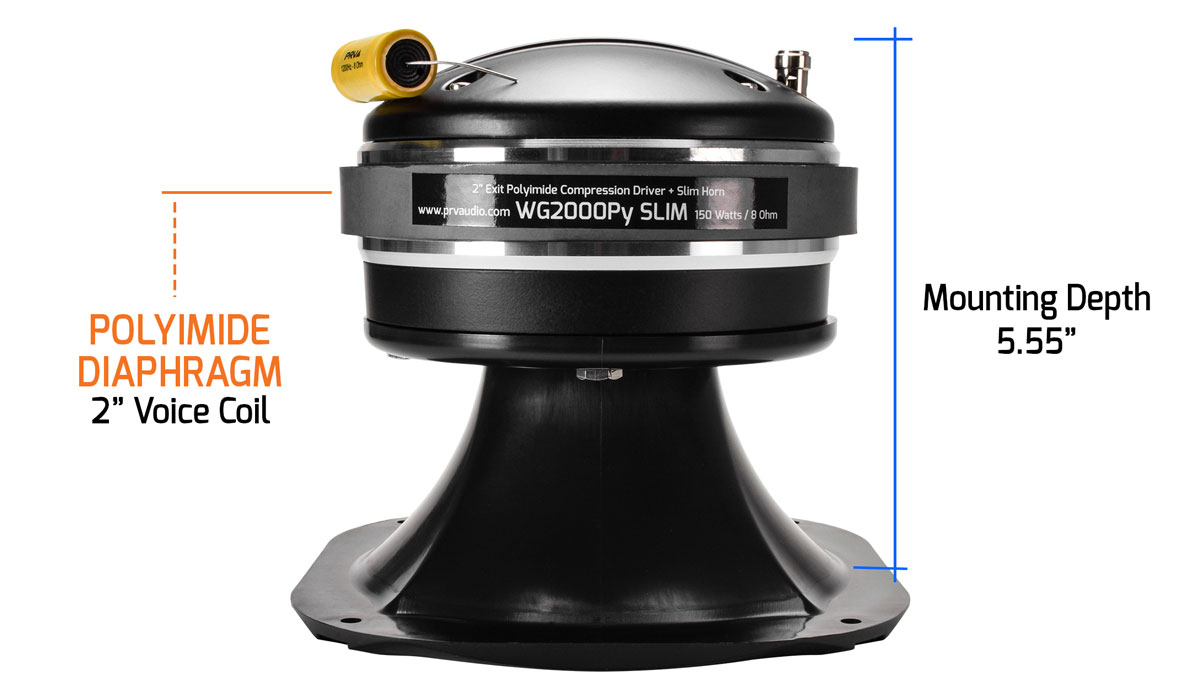

  • Mounting Depth 5.55" (141 mm)
  • Overall Width 6.14″ (156 mm)
  • Overall Height 6.14″ (156 mm)
  • Net Weight 6.45 lb (2.94 kg)
  • Shipping Weight 7.05 lb (3.20 kg)
  • Carton Dimensions WxLxH 6.89" x 6.89" x 7.48" (175mm x 175mm x 190mm)
