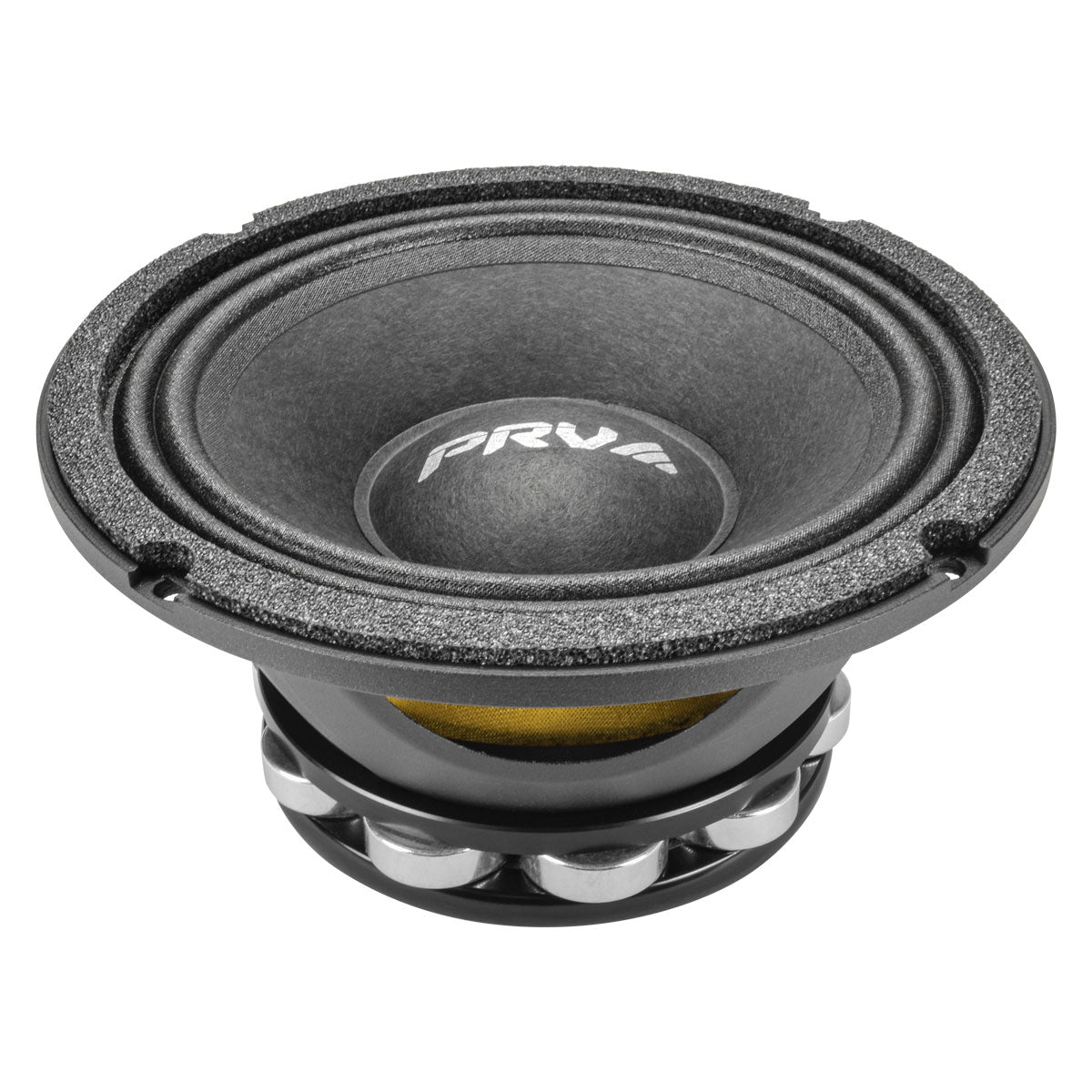

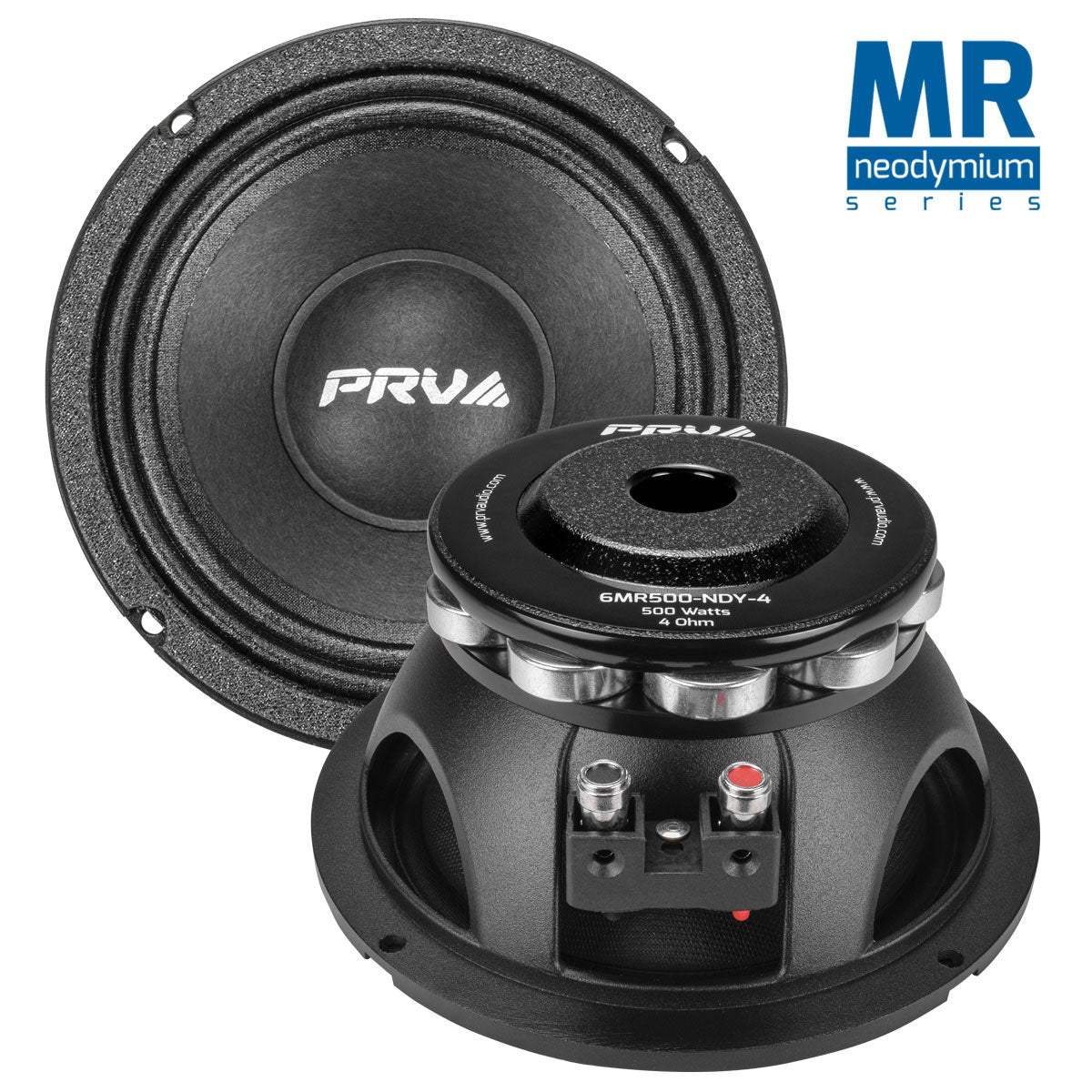

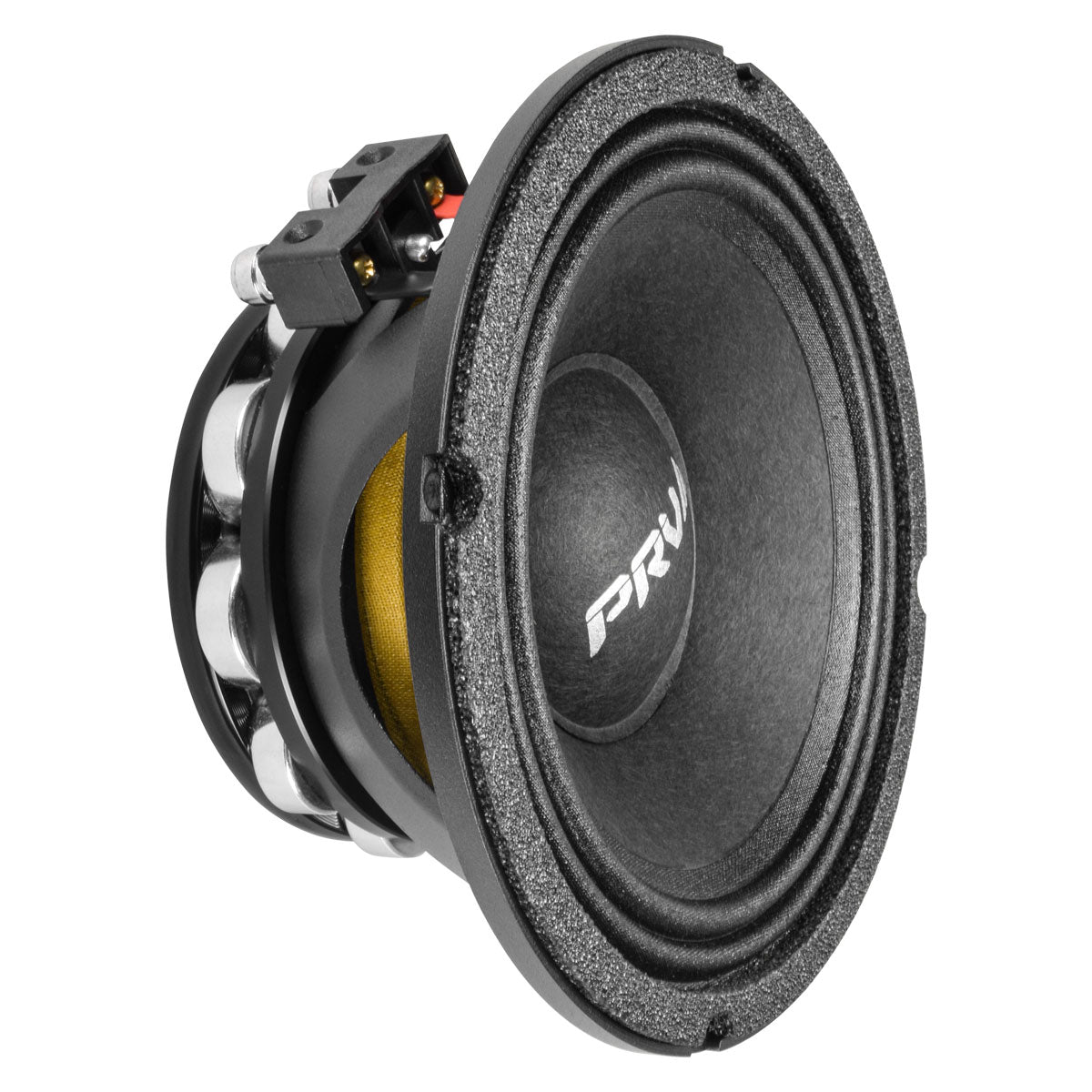

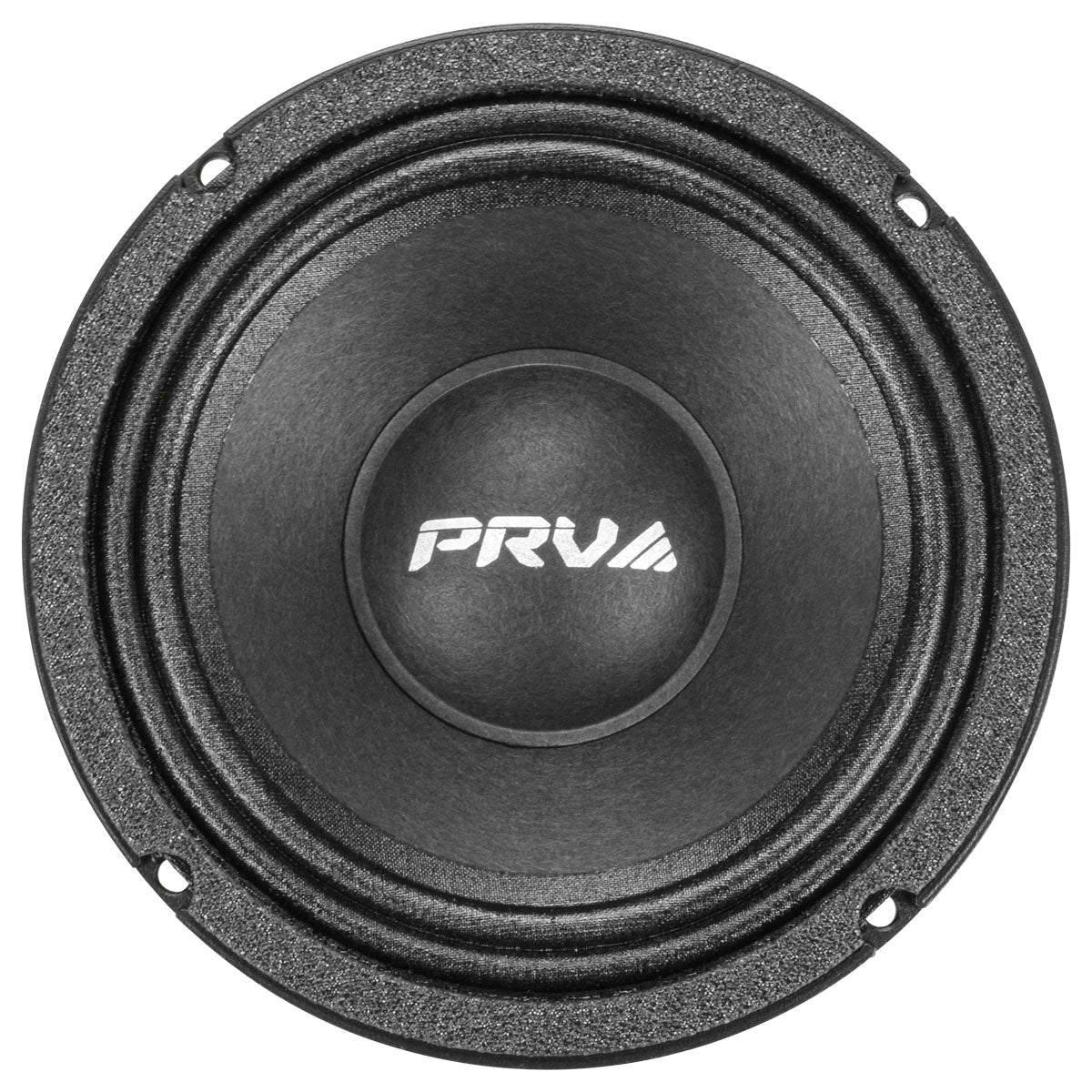

PRV 6MR500-NDY-4 Midrange

PRV 6MR500-NDY-4 Midrange

SKU: SKU:6MR500-NDY-4

Skip to product information

PRV 6MR500-NDY-4 Midrange

PRV 6MR500-NDY-4 Midrange

SKU: SKU:6MR500-NDY-4

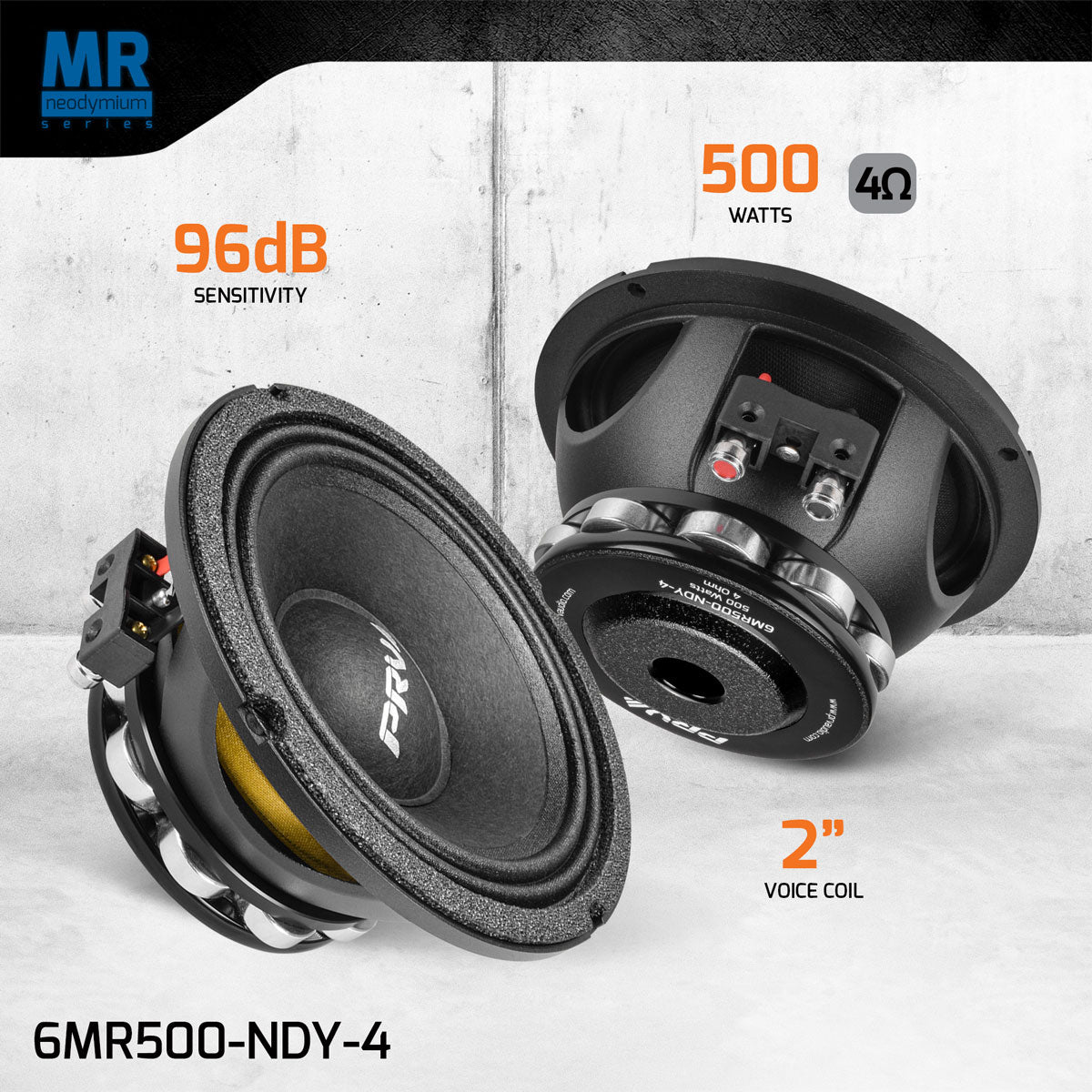

  • 6.5" Midrange - 4 Ohm
  • Neodymium Magnet
  • 96 dB - 500 Watts



$129.91
$162.39

In stock

  • 6.5" Midrange - 4 Ohm
  • Neodymium Magnet
  • 96 dB - 500 Watts



Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The PRV Audio Pro Audio Loudspeaker, 6MR500-NDY-4 and midrange woofer offers outstanding durability and a smooth full range response through 13,000 Hz. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

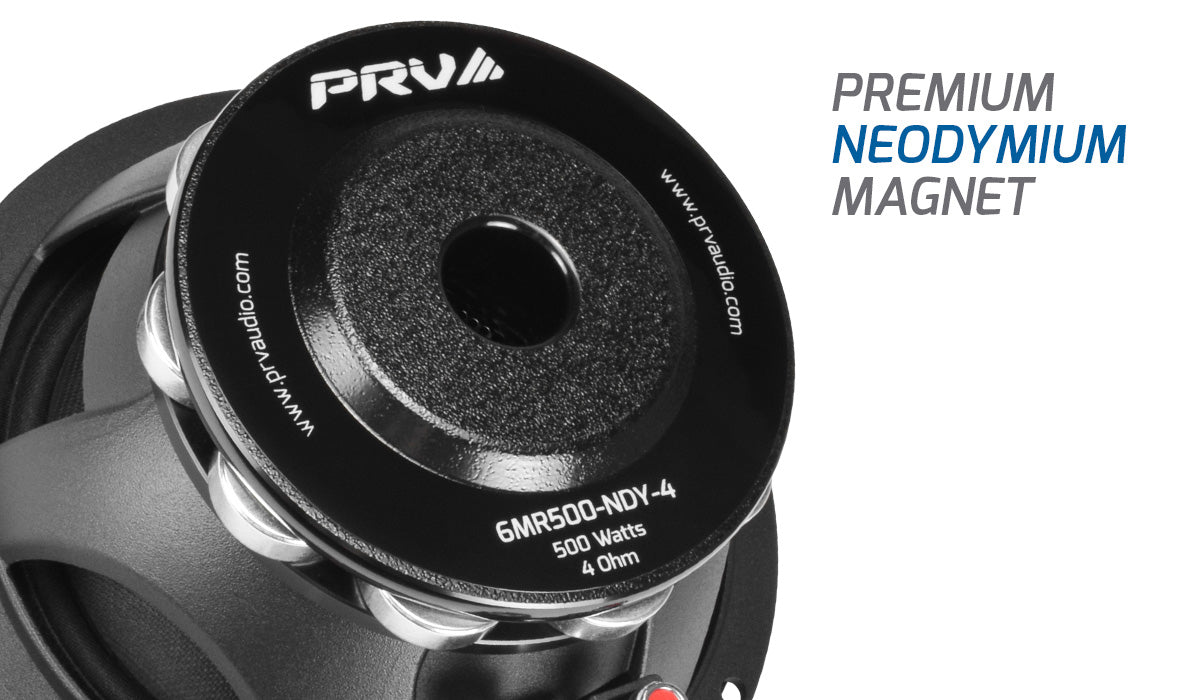

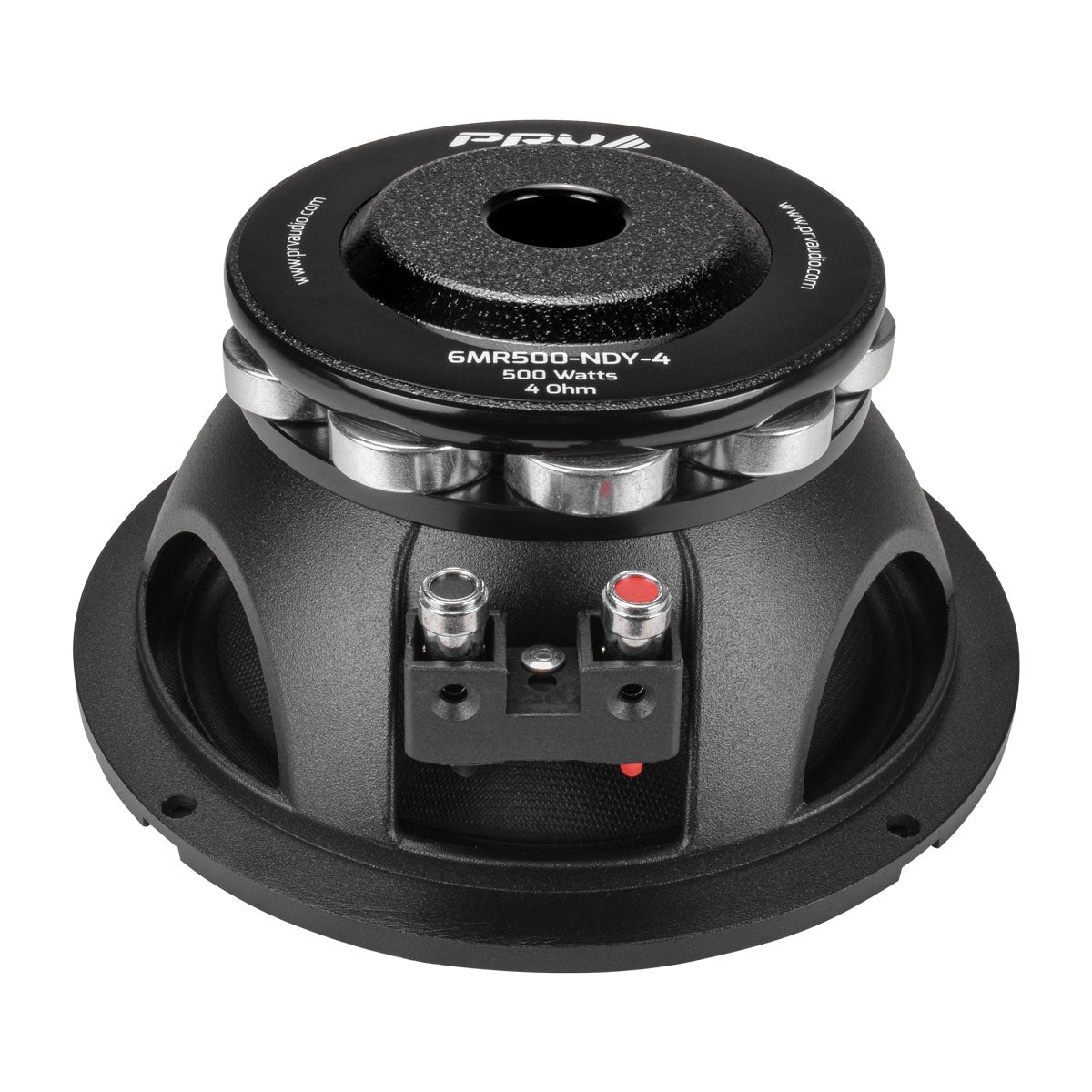

The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment. Its light weight of only 3.3 lbs helps keep your enclosures light and is a great use for car audio installers looking for high SPL midrange and upper midrange responses. For car audio enthusiast, this model is also available in 4 ohms.

  • Nominal Impedance: 4 Ohm
  • Rated AES Power Handling (RMS): 250 Watts
  • Program Power: 500 Watts
  • Sensitivity (1W/1m): 96 dB
  • Voice Coil Diameter: 2″

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 6″ (152 mm)
  • Nominal Impedance 4 Ohm
  • Rated AES Power Handling (RMS)** 250 Watts
  • Program Power*** 500 Watts
  • Sensitivity 2.83V at 1m96 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 220 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 90 – 13,000 Hz
  • Voice Coil Diameter 2″ (50 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth11.2 mm
  • Former Material Kapton
  • Magnetic Gap Depth 5.5 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 5.14 l
  • Excursion (mathematical)**
    • Xmax
    • 4.42 mm
  • Free Air Resonance
    • Fs
    • 99.8 Hz
  • Mechanical Factor
    • Qms
    • 23.1
  • Electrical Factor
    • Qes
    • 0.47
  • Total Factor
    • Qts
    • 0.43
  • Cone Area
    • Sd
    • 143 cm²
  • Mechanical Mass
    • Mms
    • 14.14 g
  • BI Factor
    • Bl
    • 8.77 Tm
  • Dc Resistance
    • Re
    • 3.8 Ohm
  • Inductance
    • Le
    • 0.05 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 13.17 g
  • Mechanical Compliance
    • Cms
    • 0.180 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

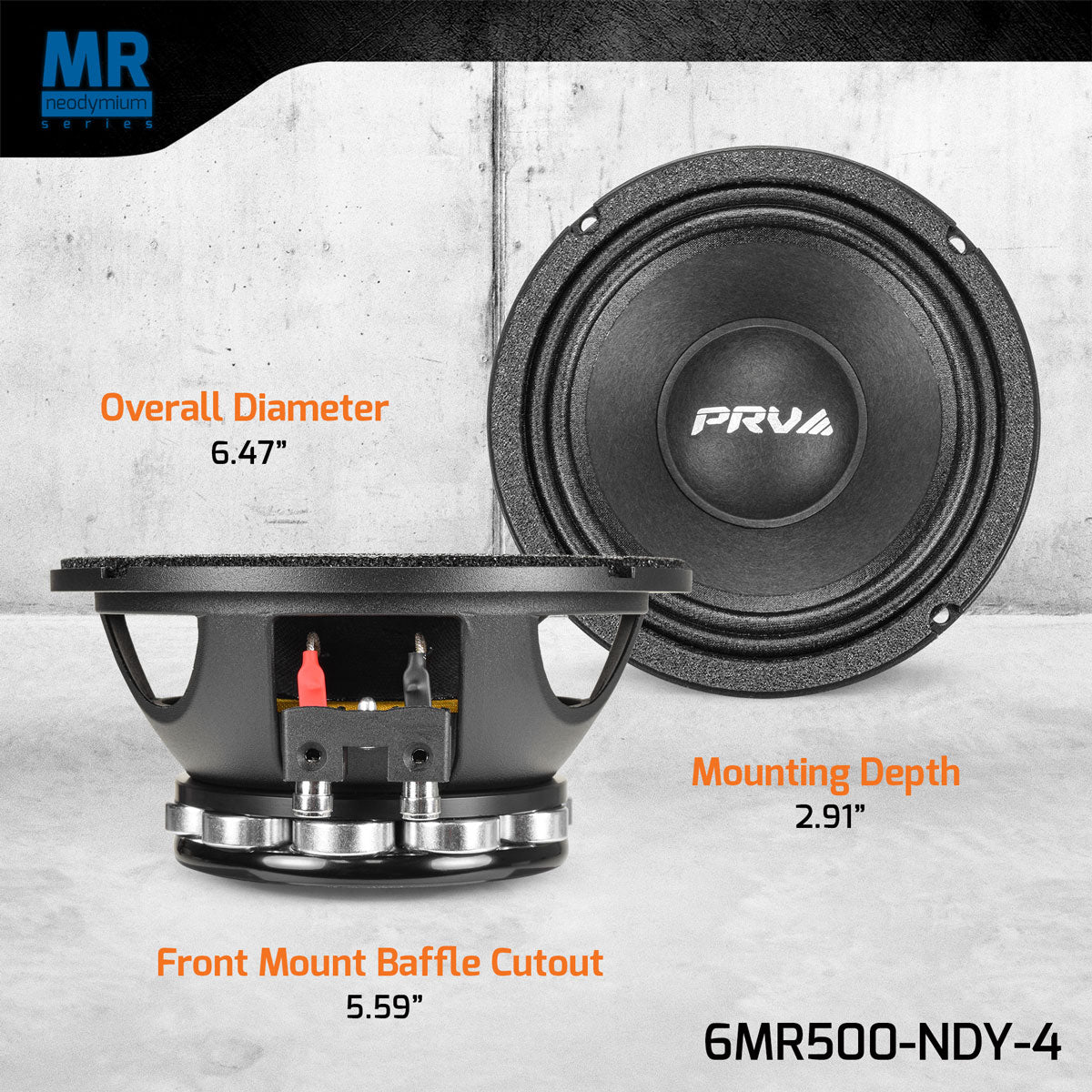

  • Overall Depth 3.22″ (82 mm)
  • Mounting Depth 2.91″ (74 mm)
  • Overall Diameter 6.47″ (164.5 mm)
  • Front Mount Baffle Cutout 5.59″ (142 mm)
  • Net Weight 3.34 Lbs (1.51 kg)
  • Shipping Weight 3.64 Lbs (1.65 kg)
  • Carton Dimensions WxLxH 7.09″ x 7.09″ x 4.37″ (155 x 155 x 95 mm)
