New

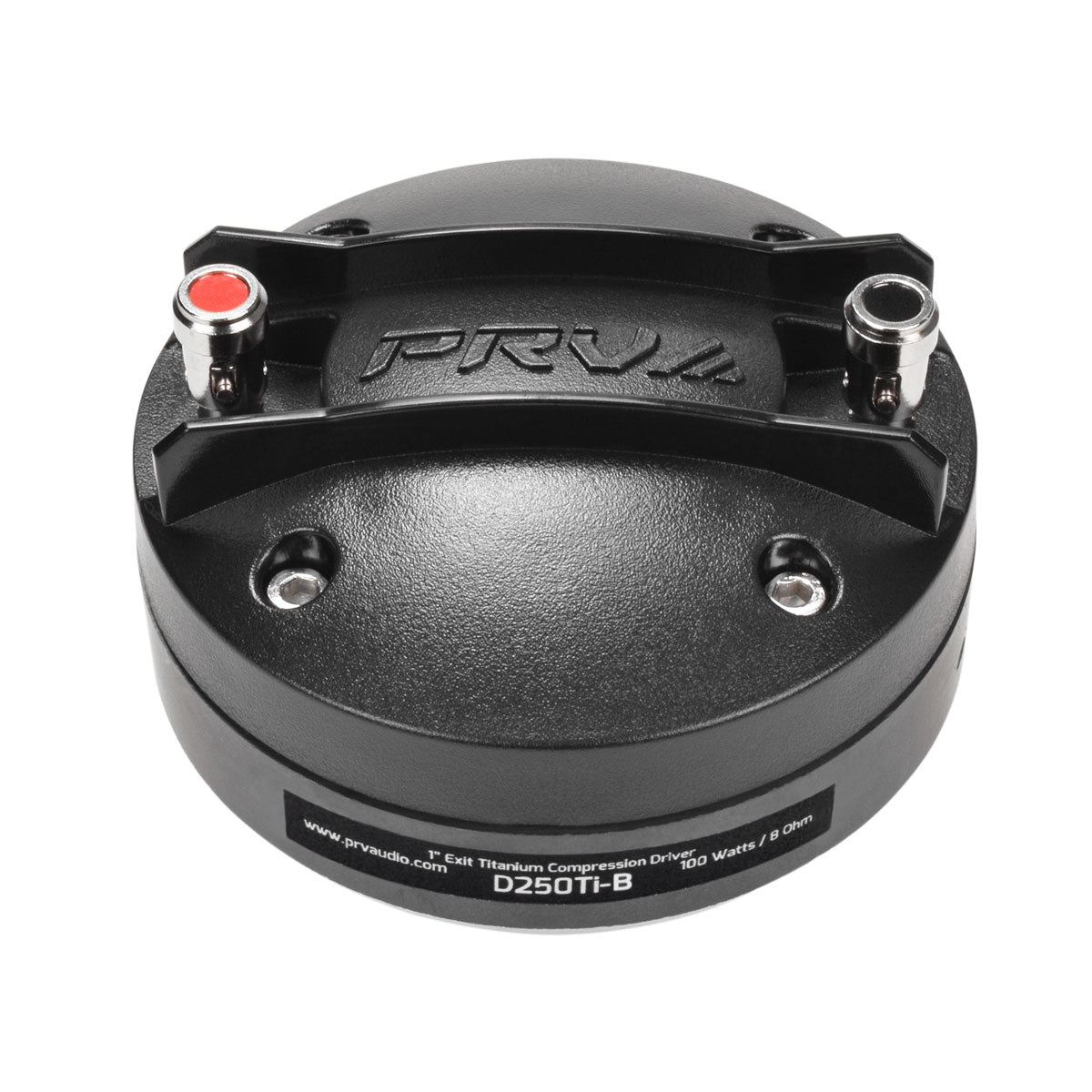

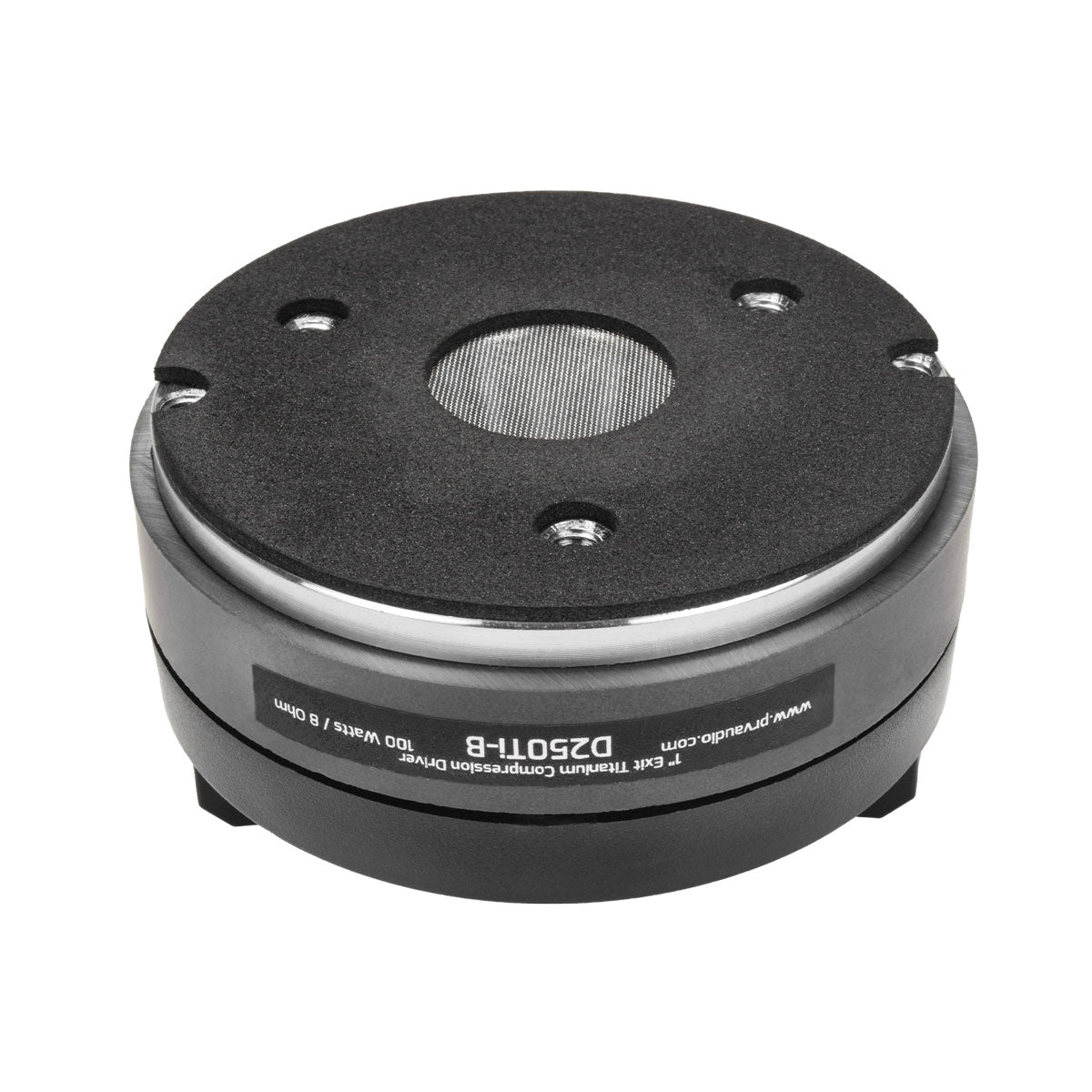

PRV D250Ti-B Driver

PRV D250Ti-B Driver

SKU: D250Ti-B
New

PRV D250Ti-B Driver

PRV D250Ti-B Driver

SKU: D250Ti-B

  • 1” Highs Driver
  • Titanium Diaphragm
  • 106 dB – 100 Watts
$29.91
$35.89

In stock
  • 1” Highs Driver
  • Titanium Diaphragm
  • 106 dB – 100 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The D250Ti-B high frequency compression driver is an excellent choice for performance and reliability as a replacement or upgrade for many DJ speaker cabinets that use a standard bolt-on horn.

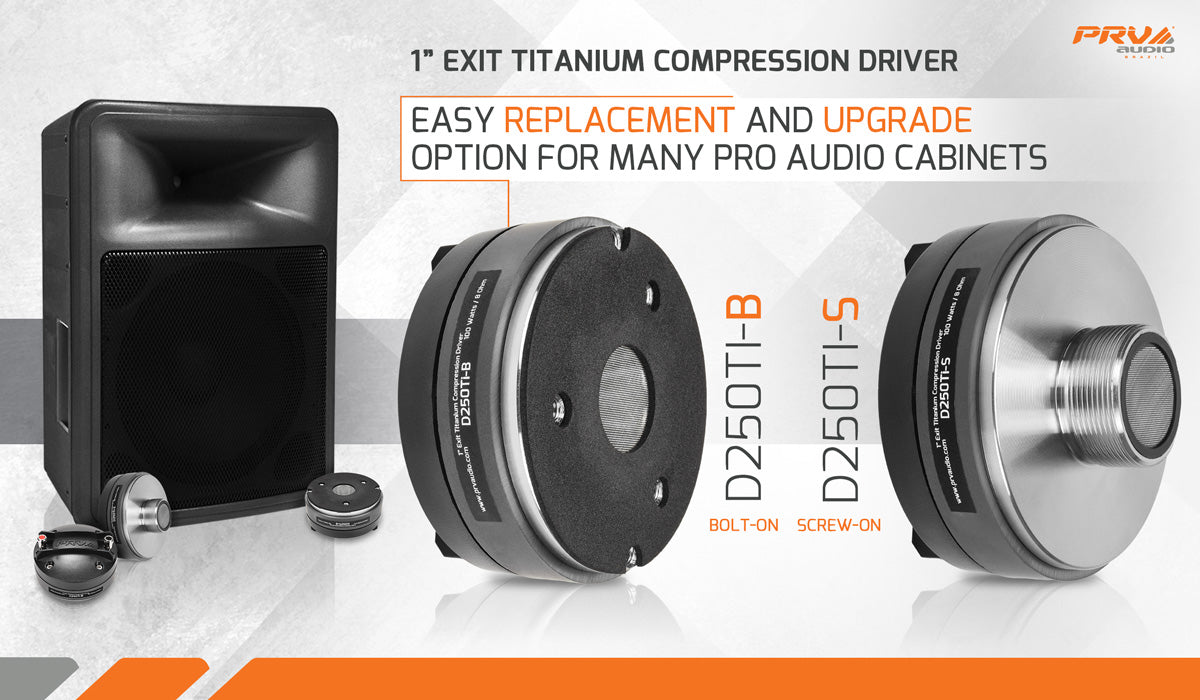

Standard 2 and 3 bolt patterns make them an easy replacement and upgrade option for many Pro audio cabinets, where manufacturers typically use the cheapest component possible. This driver’s high sensitivity translates into a clearer, more effortless sound than ever before from your speaker cabinet.

The lightweight design makes it easier to transport, which is crucial for mobile sound systems ( DJ Cabinets ) and professional touring systems. It also reduces speaker cabinets’ overall weight, making them more manageable without sacrificing performance. This balance of portability and power makes it the most popular high frequency driver in this segment.

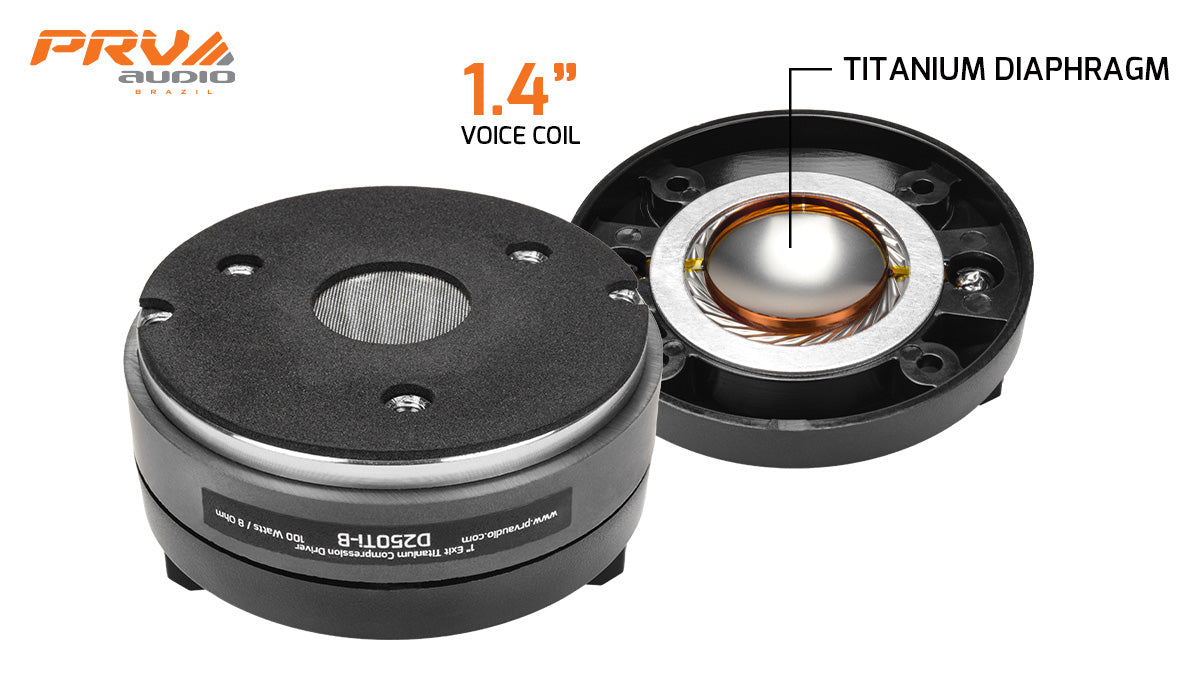

  • Pure Titanium diaphragm with efficient 1.4″ Voice Coil, providing the lowest possible moving mass with excellent output – 106 dB Sensitivity.
  • This driver offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1800 to 20,000 Hz) with a linear frequency response.

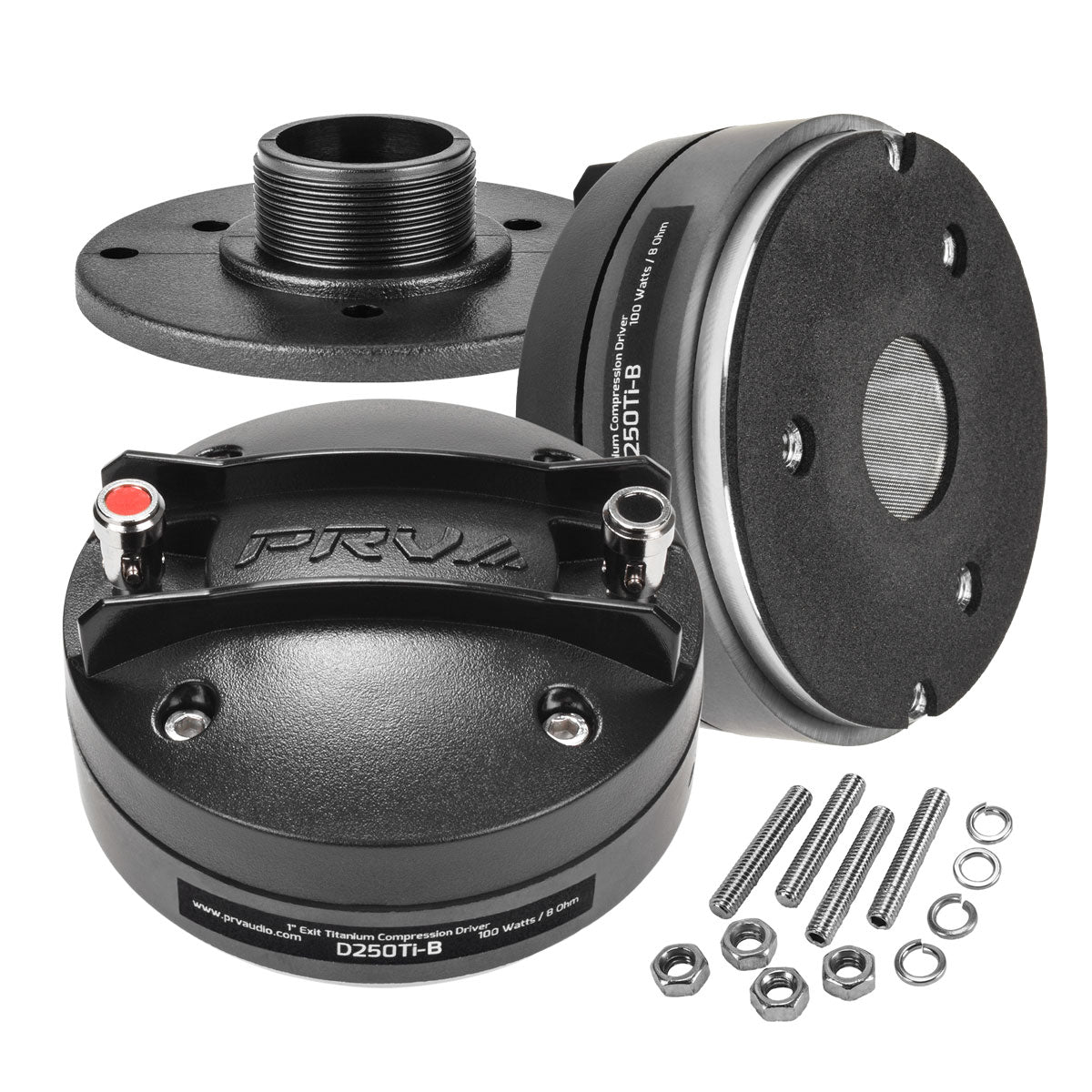

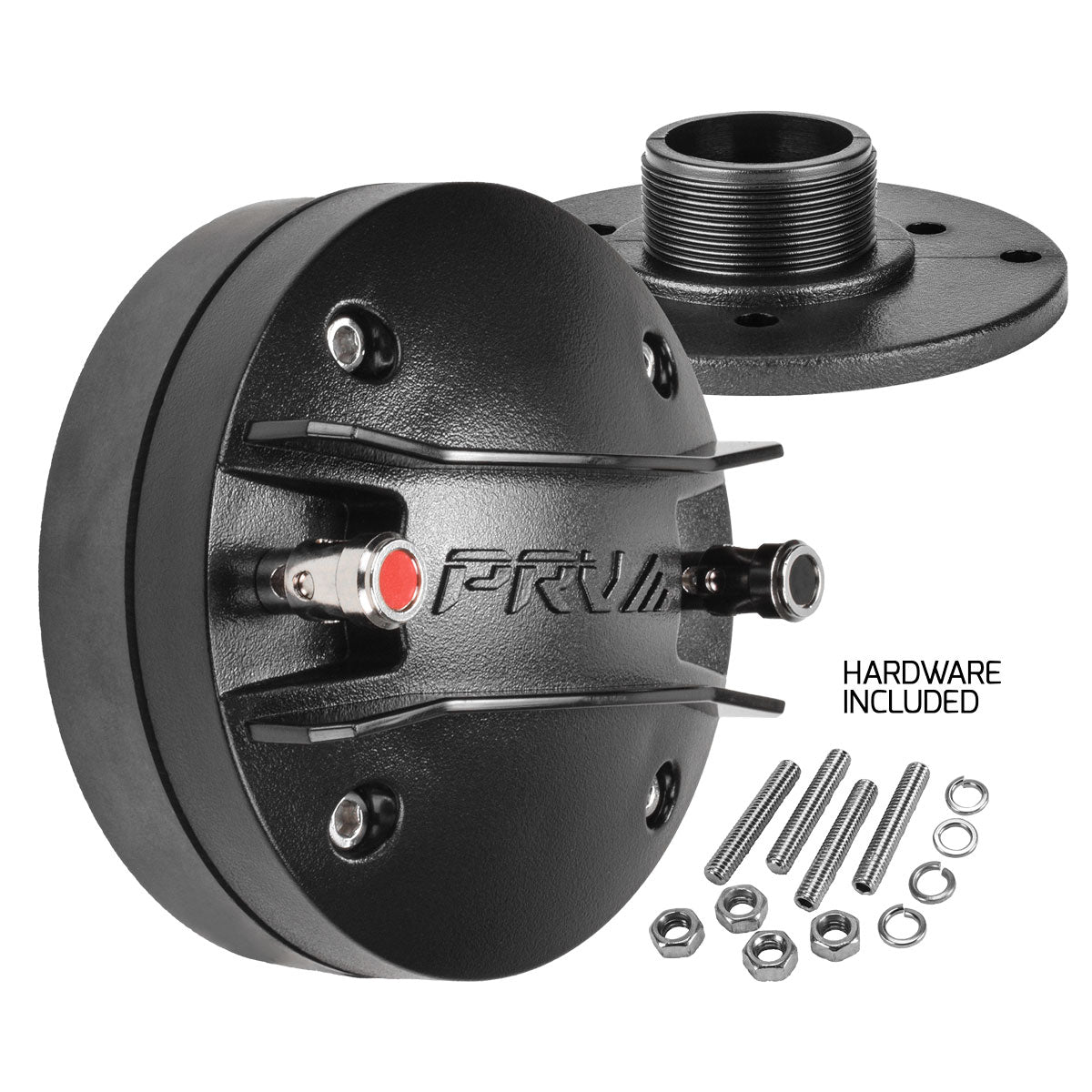

  • Easy replacement and upgrade option for any sound systems that uses a 1” exit bolt-on horn. Perfect high frequency driver for 2-Way system. Includes bolt-on to screw-on adapter with mounting hardware
  • Designed to reproduce the all-important vocal range with detailed high frequencies in the smallest profile. Only 3.54” Diameter.
  • PRO Audio high frequency driver, able to handle 100 Watts Continuous Program Power (RMS) with music. Also Available in a Screw-On Version

If you are building your own speaker cabinets from scratch or just upgrading its components, the D250Bi-S works well with10W650A10″ woofer,12W750A12″ woofer, and15W70015″ woofer for two-way speaker designs when used with the PRV Audio2DF2k2,000 Hz two-way crossover.

The one-piece titanium diaphragm reduces the amount of moving mass, which enhances the driver’s ability to produce clear and crisp high frequencies.

This configuration allows for an extended high frequency response, making it ideal for applications that demand detailed and accurate sound reproduction. As a result, you can expect clarity and precision in audio output, especially at higher frequencies.

Recommended Crossover Settings:

The titanium diaphragm is attached to a 1.4″ diameter copper-clad aluminum wire with Kapton® former for a 100 Watts RMS musical power handling, when used with recommended HPF

  • 2000 Hz at 12 dB per octave filter Crossover / BT12
  • 1800 Hz at 18 dB per octave filter Crossover / BT18

PRV 1″ Exit Bolt-on High Frequency Driver 100 Watts 8 Ohm D250Ti-S – Titanium Diaphragm 1.4” Voice Coil, DJ Cabinet Replacement, Lightweight

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Exit Throat Diameter 1” (25.4mm)
  • Nominal Impedance 8 Ohm
  • Continuous Program Power (RMS)** 100 Watts
  • Program Power*** 100 Watts
  • Max Peak Power*** 200 Watts

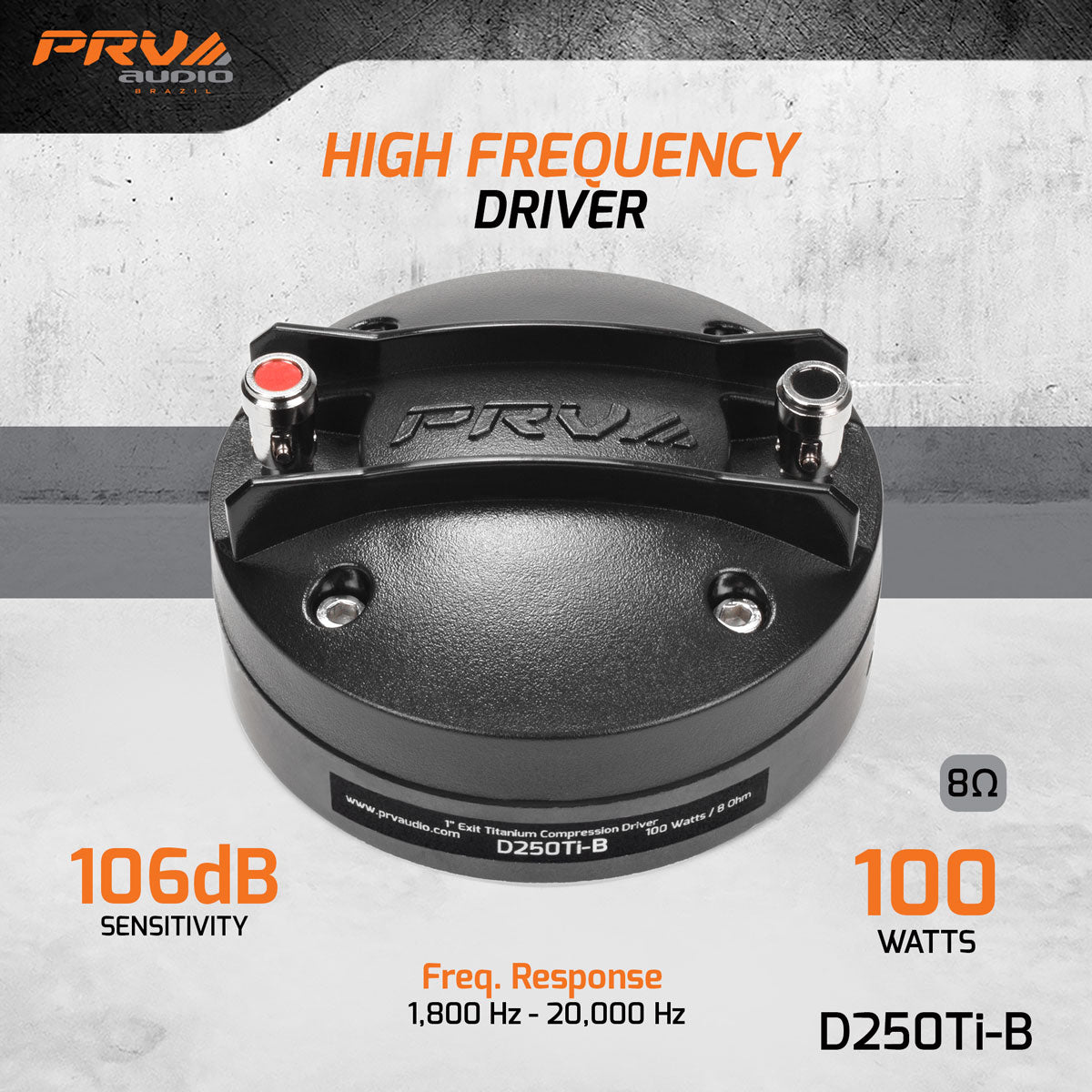

  • Sensitivity 2.83V at 1m106 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 2000 Hz 12db/oct Crossover
  • Frequency Response at -10dB 1,800 – 20,000 Hz
  • Voice Coil Diameter 1.4” (35.5mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Diaphragm Titanium
  • Flux Density 1.65 T
  • Magnet Type Ferrite

EXTRA INFO

PRV D250Ti-B Driver DATASHEET Download

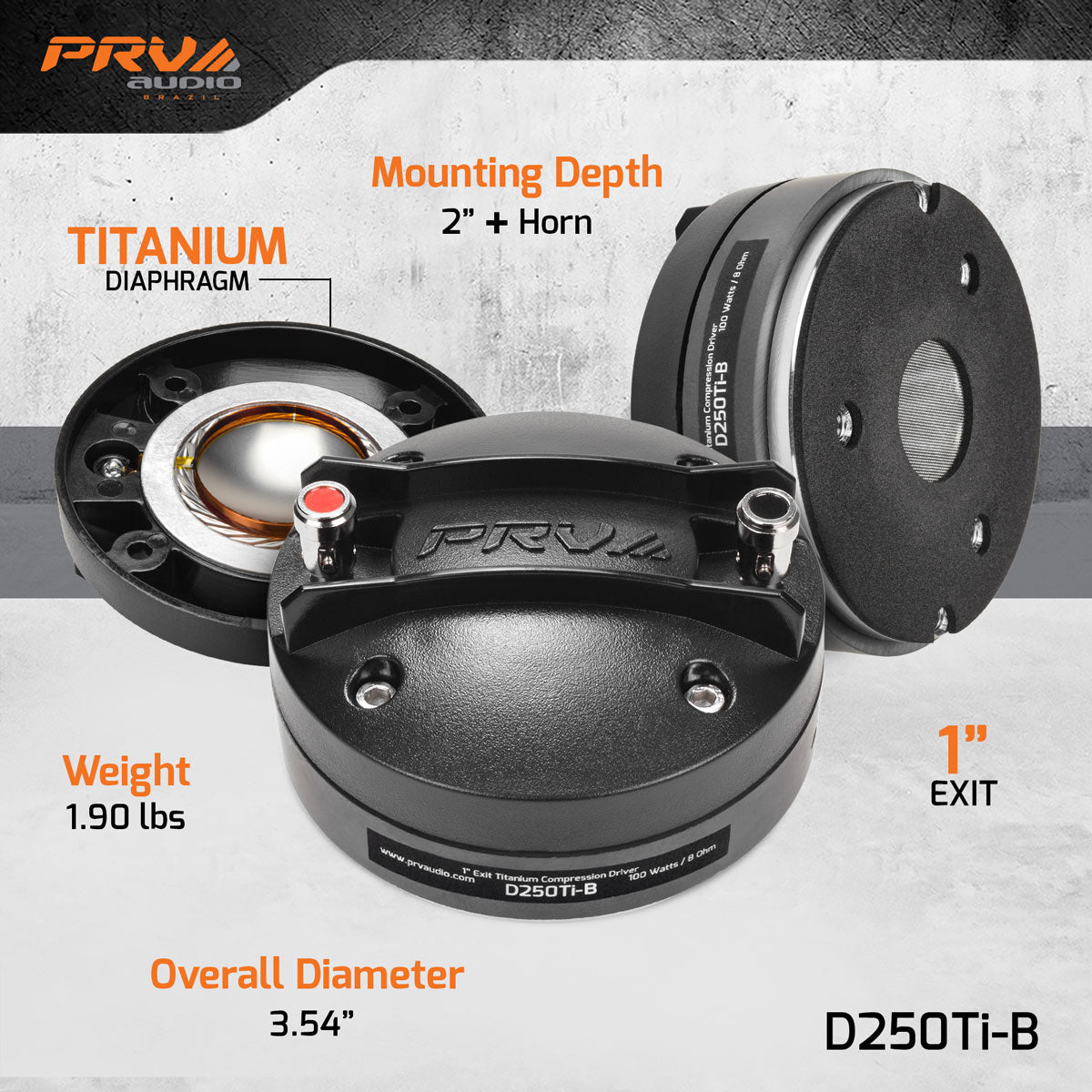

  • Overall Depth 3.54″ (90 mm)
  • Net Weight 1.90 lbs (0.86 kg)
  • Shipping Weight 2.20 lbs (1.00 kg)
  • Carton Dimensions WxLxH 3.74” x 3.74” x 3.66” (95 x 95 x 93 mm)
PRV D250Ti-B Driver DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

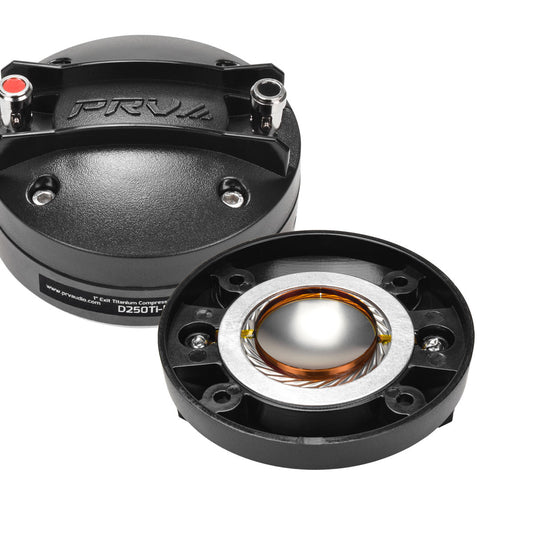

  • PRV RPD250Ti

    PRV RPD250Ti

    PRV RPD250Ti

    RPD250Ti

    Price:
    $17.91
    $21.49 $17.91
