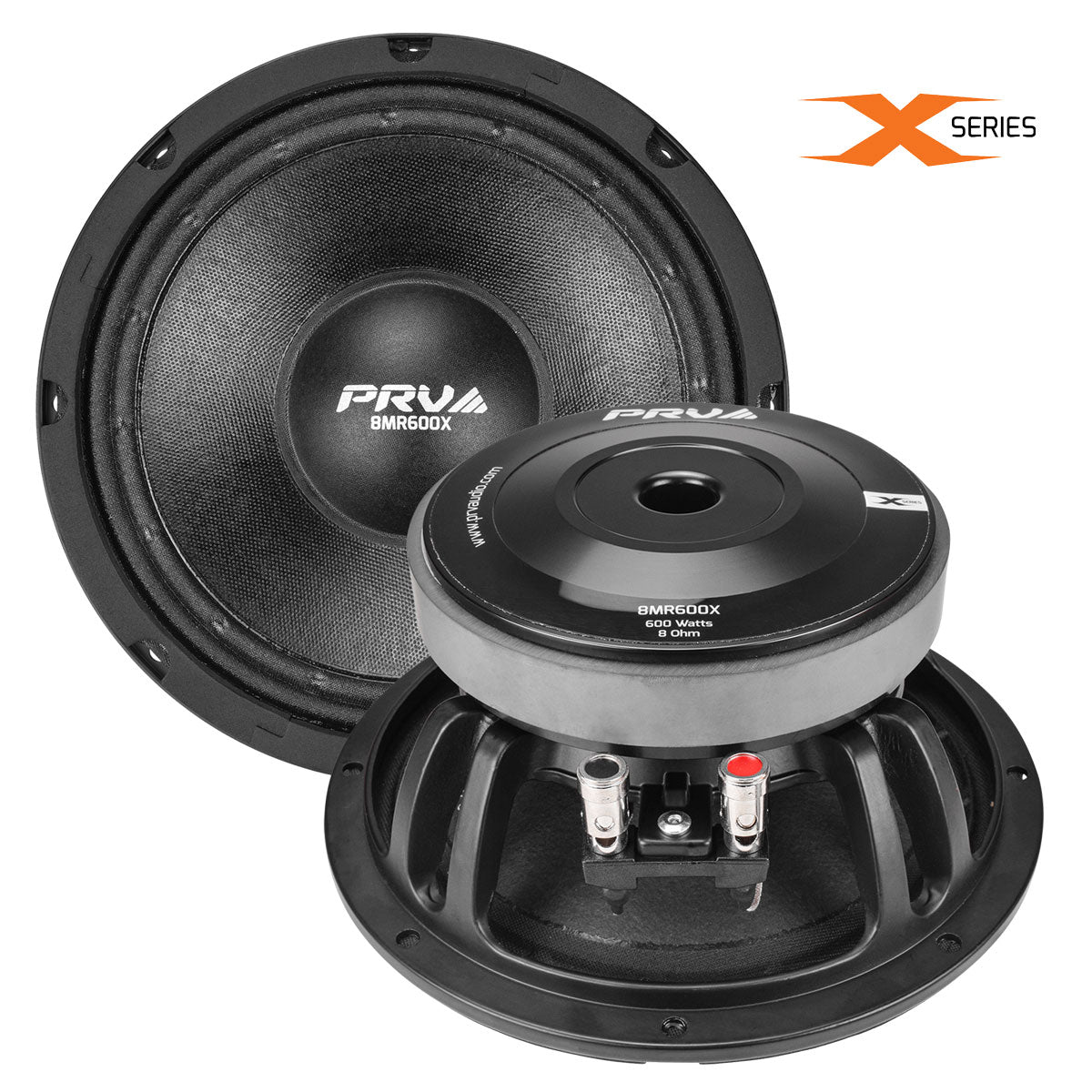

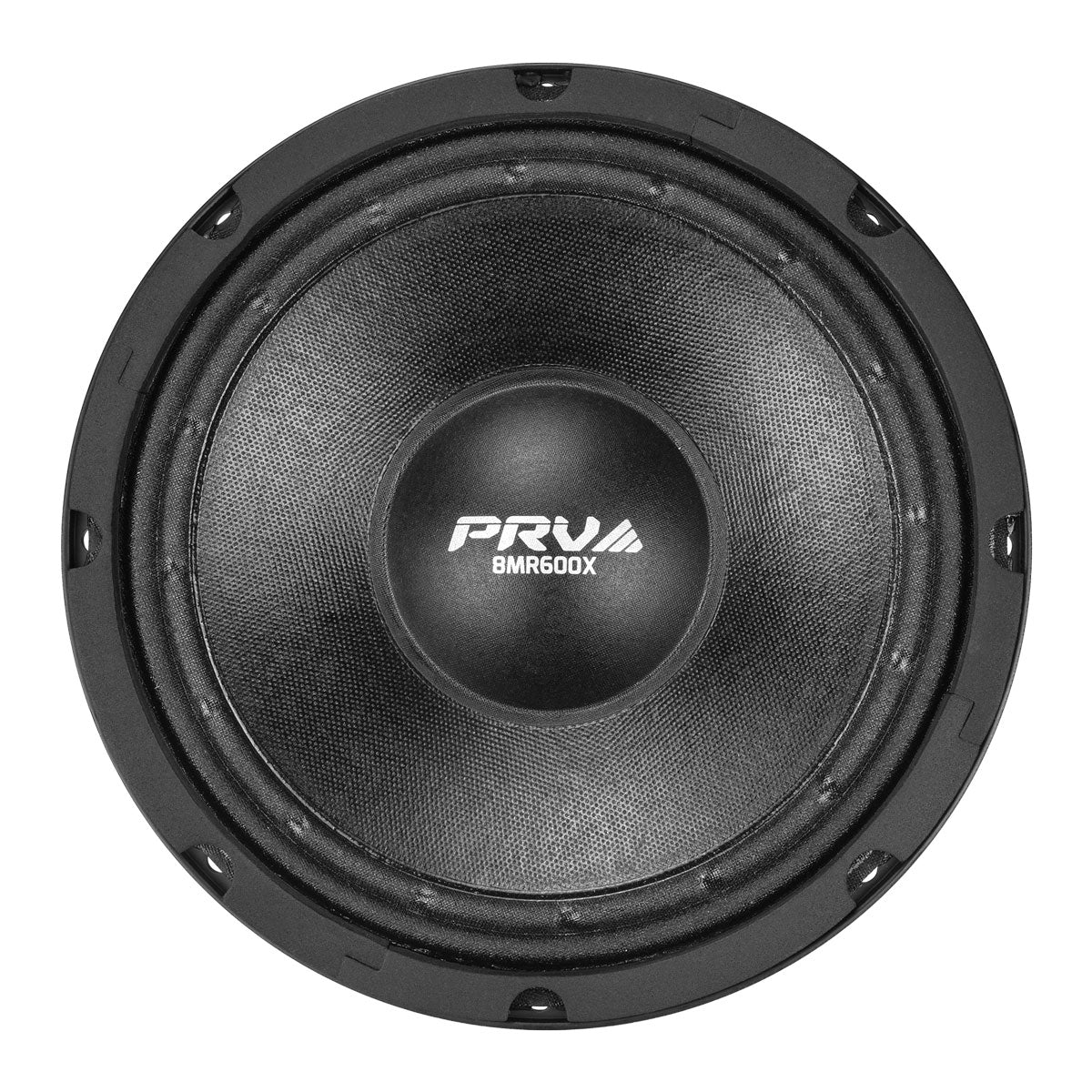

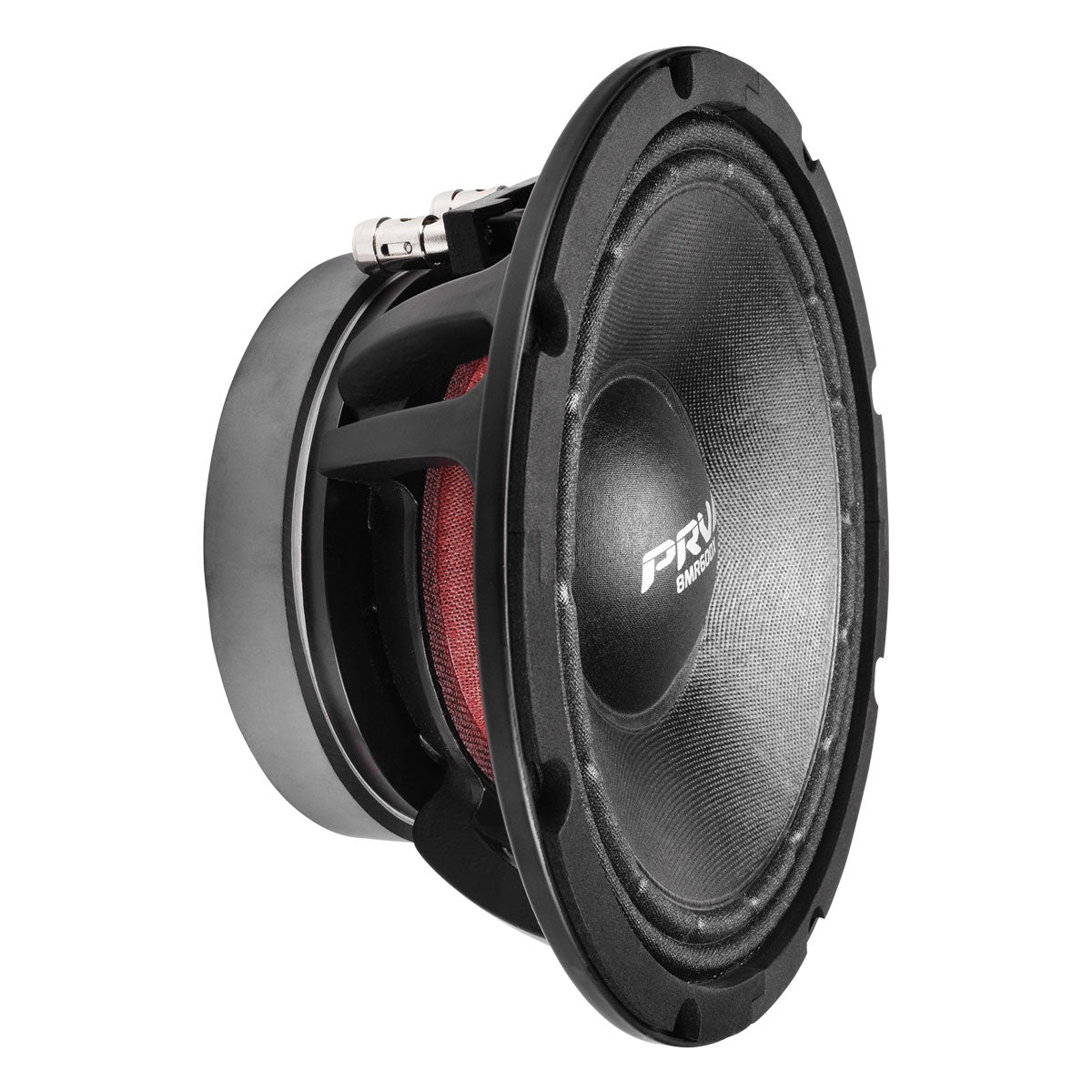

PRV 8MR600X Midrange
PRV 8MR600X Midrange
SKU: SKU:8MR600X
PRV 8MR600X Midrange
PRV 8MR600X Midrange
SKU: SKU:8MR600X

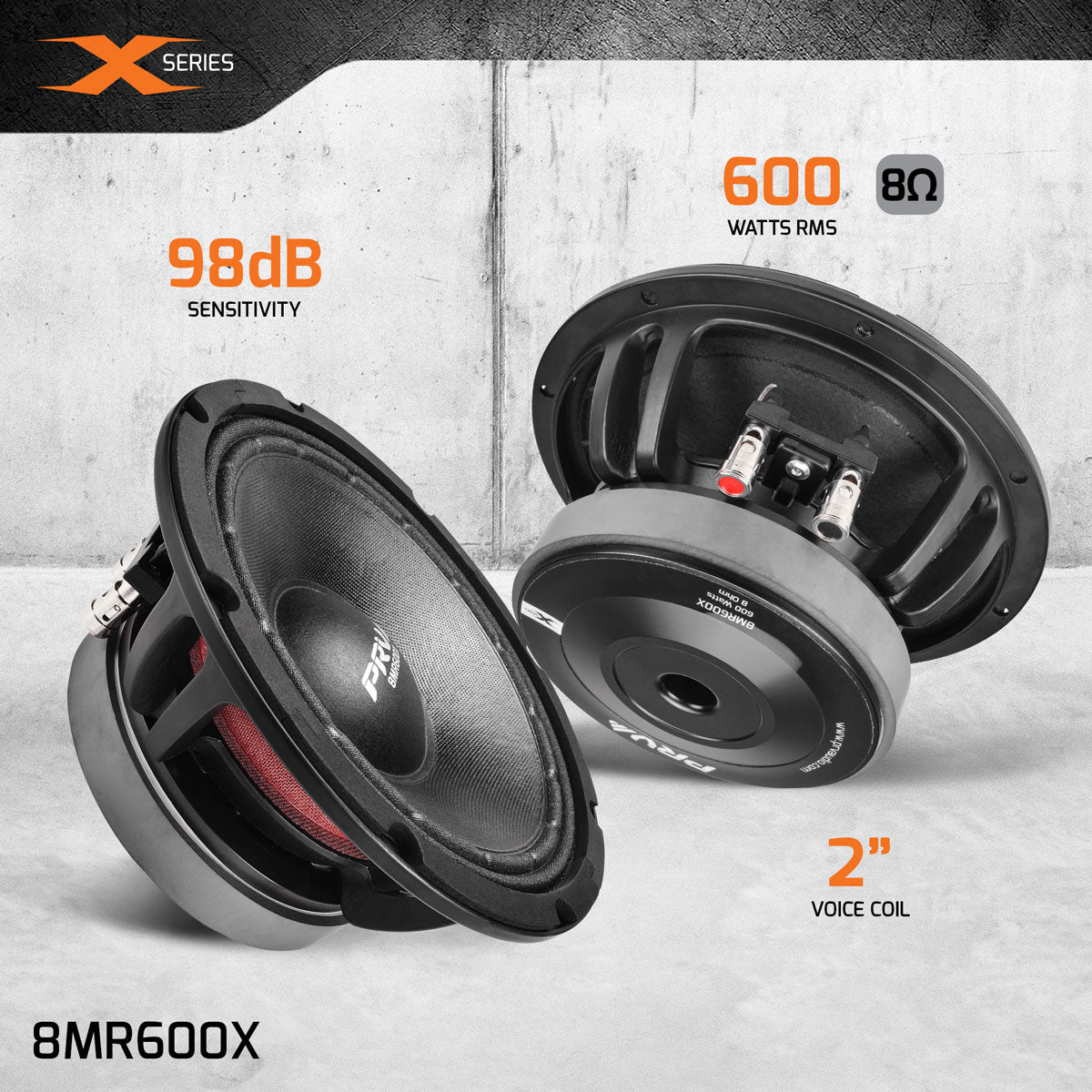

- 8″ Midrange – 8 Ohm
- Ferrite Magnet
- 98 dB – 600 Watts
Out of stock
- 8″ Midrange – 8 Ohm
- Ferrite Magnet
- 98 dB – 600 Watts
Free Shipping available on orders over $1,500.00 in the U.S.
Features
X-treme midrange performance is what PRV Audio’s 8MR600X is all about. Made to be a class leading midrange in the pro audio realm, this driver has a sensitivity of 98 dB and only weighs 7 pounds. This low frequency driver is optimized for professional audio or MI (musical instrument) speaker system applications, a car audio version is available at 4ohms 8MR600X-4

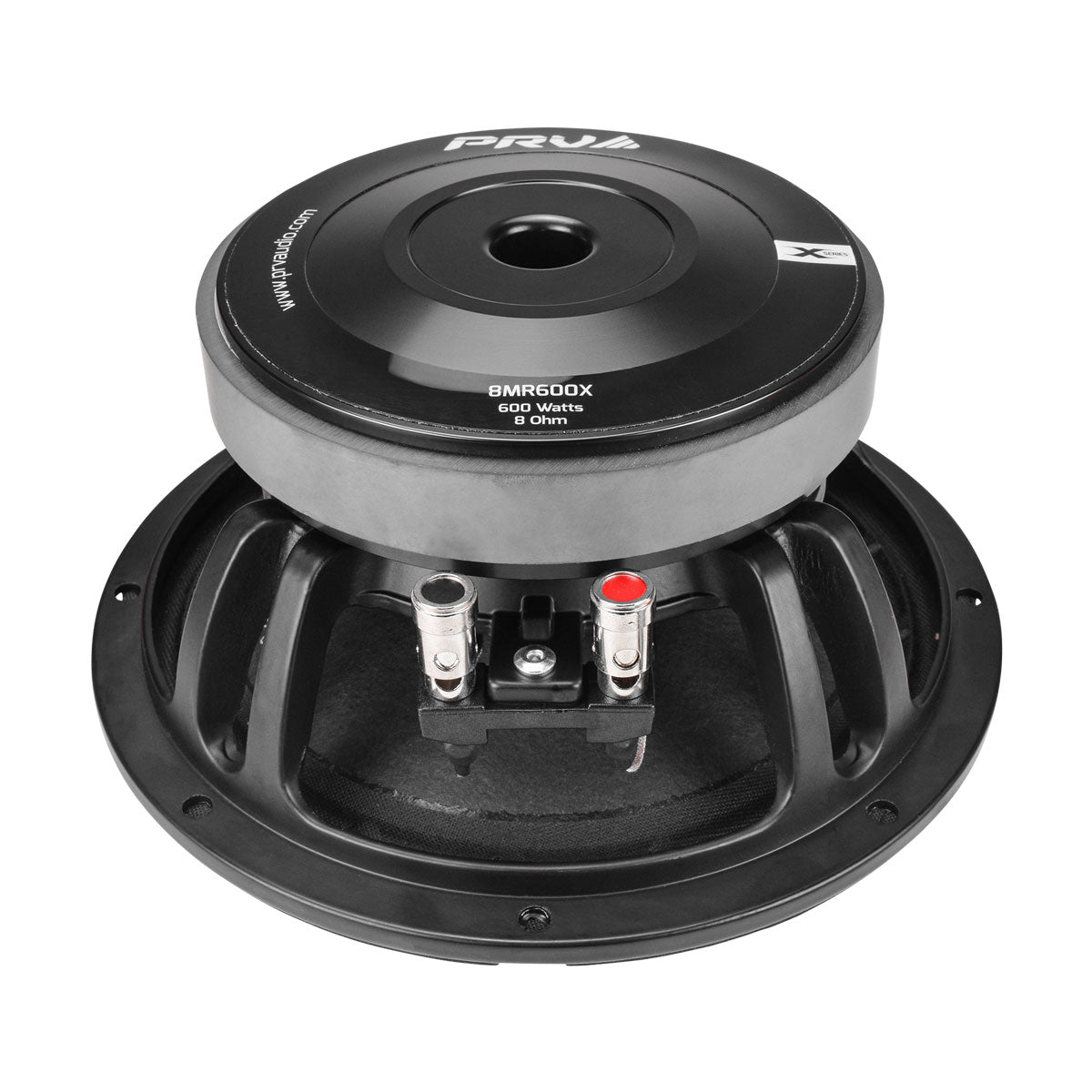

The powerful magnet assembly assures high flux concentration. The ventilated basket designed between the basket and the magnetic structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression.
Capable of high output and low distortion, this midrange is perfect for filling in the important midrange response in any high output sound system.
- 2″ DUAL layer CCAW voice coil wound on polyimide former, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Mid bass output
- 600 watts continuous program power rating makes high acoustical output
- Excellent performance in 2-way or 3-way systems

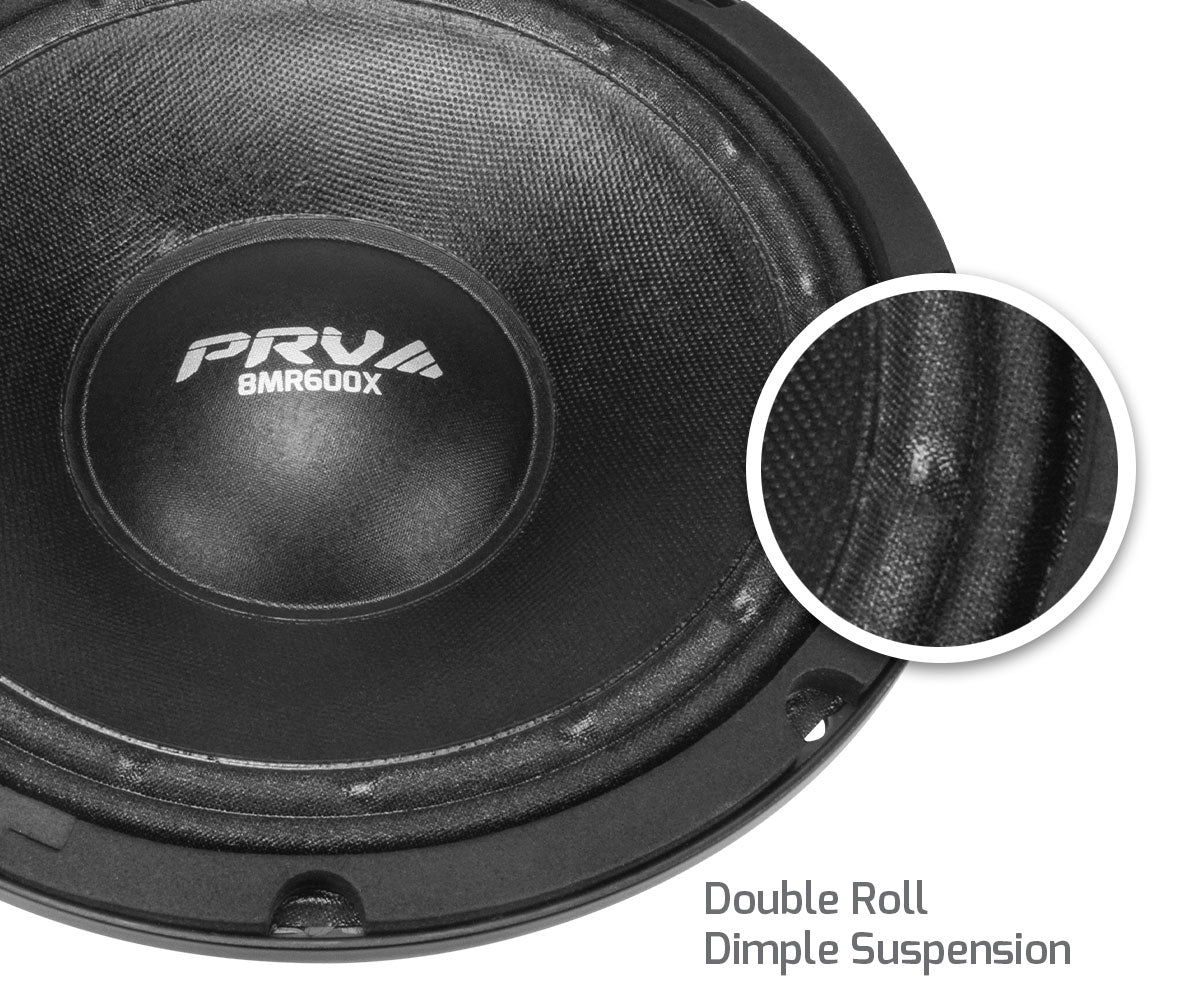

- Unique double roll dimple suspension design
The 51 mm (2 in) copper clad aluminum wire is wound in a double layer using a high temperature resin adhesive on a strong polyimide former and features a generous 14.5 mm winding length for extended Xmax and less distortion.
The 2″ voice coil also ensures high heat dissipation and the necessary motor strength to deliver high sensitivity even on high power with the minimum distortion.
A Qts of 0.37 and an unique double roll dimple suspension design allows for a flat response from 200Hz to 2500Hz, even at high excursion controlling well its natural paper cone at its 5.25 mm Xmax. Its composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound.
Technical Details
- Nominal Diameter 8″ (203 mm)
- Nominal Impedance 8 Ohm
- Rated AES Power Handling (RMS)** 300 Watts
- Program Power*** 600 Watts
- Sensitivity 2.83V at 1m98 dB
- Recommended Hi Pass Crossover" "For Full Power Handling 160 Hz** **12db Per Octave Crossover
- Frequency Response at -10dB 85 – 8,500 Hz
- Voice Coil Diameter 2.0″ (51 mm)
- Voice Coil Wire CCAW
- Voice Coil Winding Depth14.5 mm
- Former Material Polyimide
- Magnetic Gap Depth 8.0 mm
- Frame Material Die cast aluminum
- Magnet Type Ferrite
- Equivalent Volume
- Vas
- 19.99 l
- Excursion (mathematical)**
- Xmax
- 5.25 mm
- Free Air Resonance
- Fs
- 76.90 Hz
- Mechanical Factor
- Qms
- 7.07
- Electrical Factor
- Qes
- 0.43
- Total Factor
- Qts
- 0.40
- Cone Area
- Sd
- 241 cm²
- Mechanical Mass
- Mms
- 17.31 g
- BI Factor
- Bl
- 10.54 Tm
- Dc Resistance
- Re
- 5.7 Ohms
- Inductance
- Le
- 0.49 mH at 1 kHz
- Mechanical Mass Without Air
- Mmd
- 15.19 g
- Mechanical Compliance
- Cms
- 0.247 mm/N
- Overall Depth 4.03” (102.5 mm)
- Mounting Depth 3.75” (95.5 mm)
- Overall Diameter 8.21” (208.5 mm)
- Front Mount Baffle Cutout 7.29” (185.3 mm)
- Net Weight 7.04 Lbs (3.20 kg)
- Shipping Weight 11.90 Lbs (3.45 kg)
- Carton Dimensions WxLxH 8.85” x 8.85” x 4.92” (225 x 225 x 125 mm)
WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.
Repair Parts
-
Rubber Cement Speaker Glue
BLACK CEMENT GLUE
Price:Regular price $19.99Regular priceUnit price / perOut of Stock -

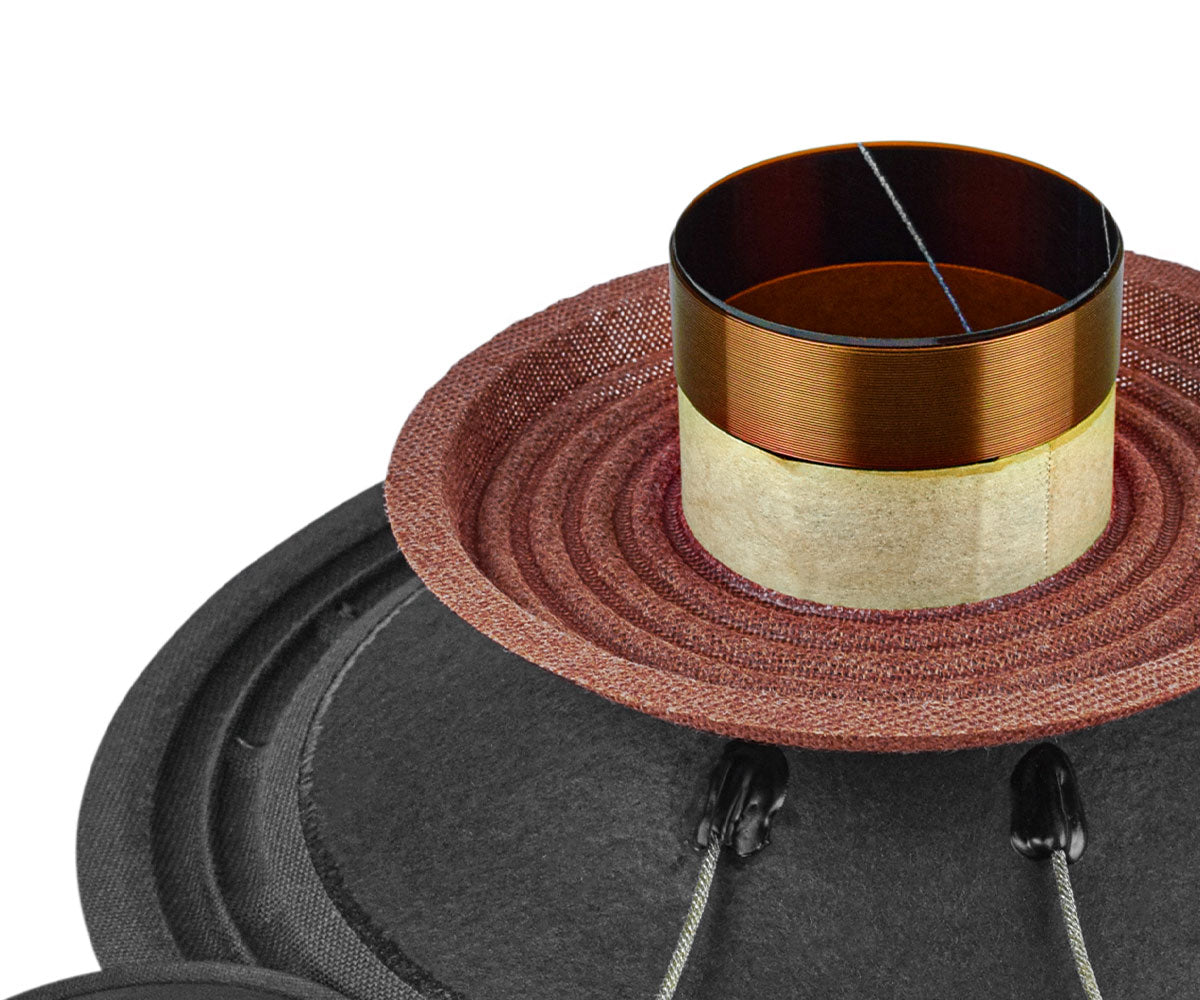

PRV RK8MR600X
