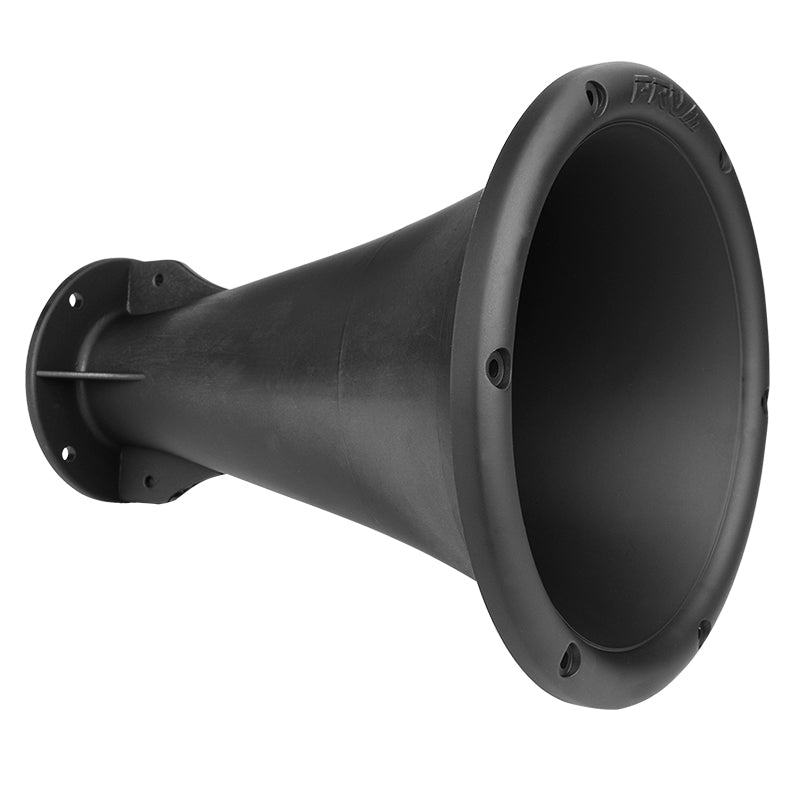

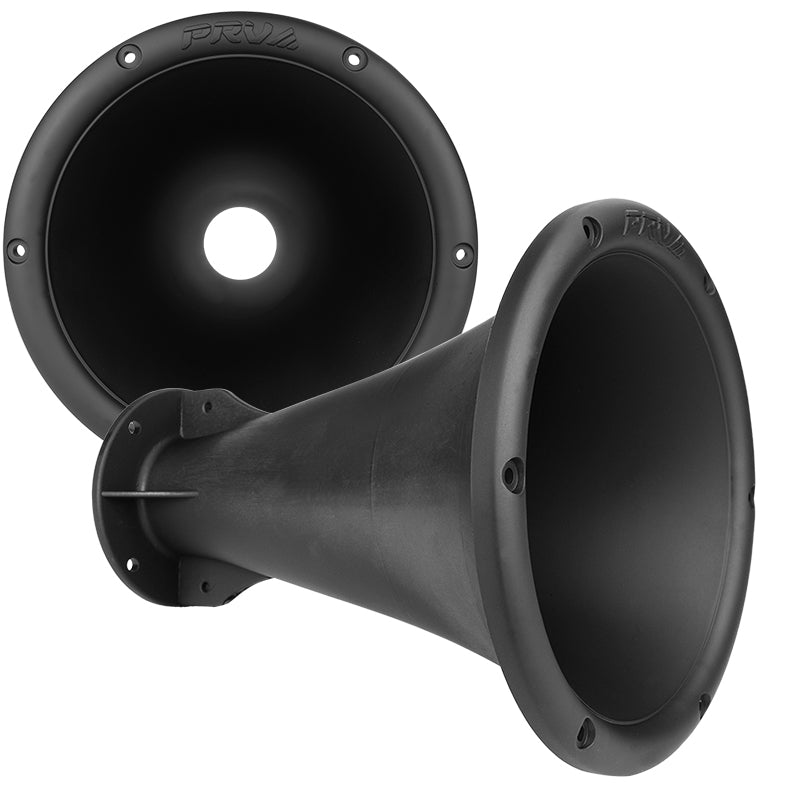

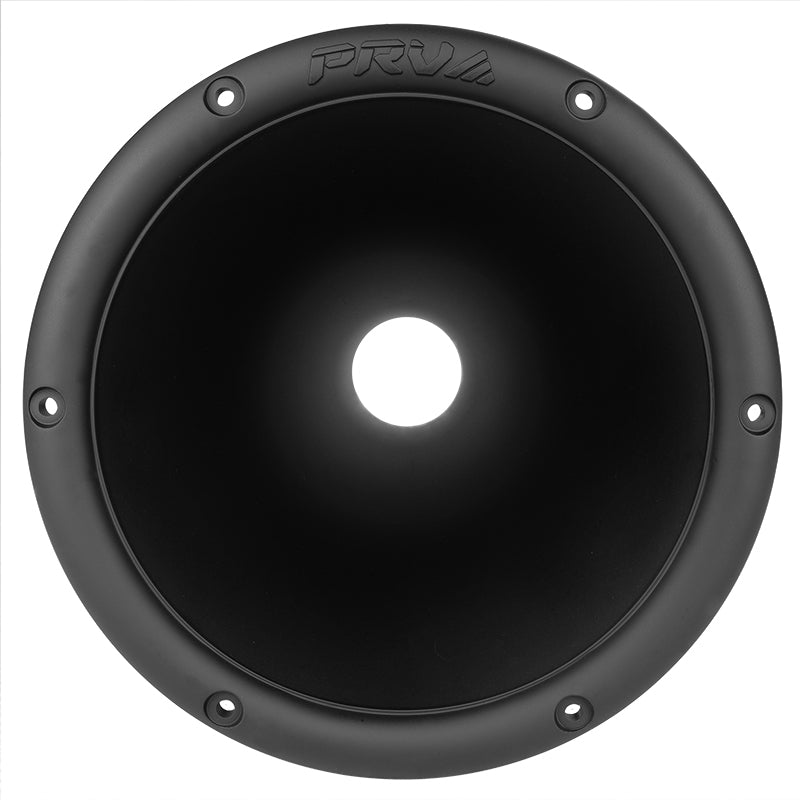

PRV WGP22-50 Waveguide

PRV WGP22-50 Waveguide

SKU: WGP22-50

PRV WGP22-50 Waveguide

PRV WGP22-50 Waveguide

SKU: WGP22-50

  • 2" Exit Bolt-On
  • 10.32" Mount Depth
  • Matte Black Finish
$39.91
$56.14

In stock
  • 2" Exit Bolt-On
  • 10.32" Mount Depth
  • Matte Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

2″ Exit – ABS Plastic Wave Guide – Bolt-on

  • 2” Throat Diameter
  • Light weight
  • Bolt-on
  • 60° x 60° Nominal Coverage

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 2” (50.8 mm)
  • Mounting Type: Bolt-on
  • Hole Dimensions: 0.33″ (8.3 mm)
  • Bolt Circle: 4″ (101.6 mm)
  • Nominal Coverage:
  • Horizontal: 30°
  • Vertical: 30°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Black
  • Dimensions:
  • Height: 9.01″ (229 mm)
  • Width: 9.01″ (229 mm)
  • Depth: 10.86″ (275 mm)
  • Mounting Depth: 10.32″ (262 mm)
  • Baffle Cutout:
  • Diameter Circle: 7.5″ (190.5 mm)
  • Net weight: 1.25 lb (0.57 kg)

EXTRA INFO

PRV WGP22-50 Waveguide DATASHEET Download
PRV WGP22-50 Waveguide DATASHEET Download
