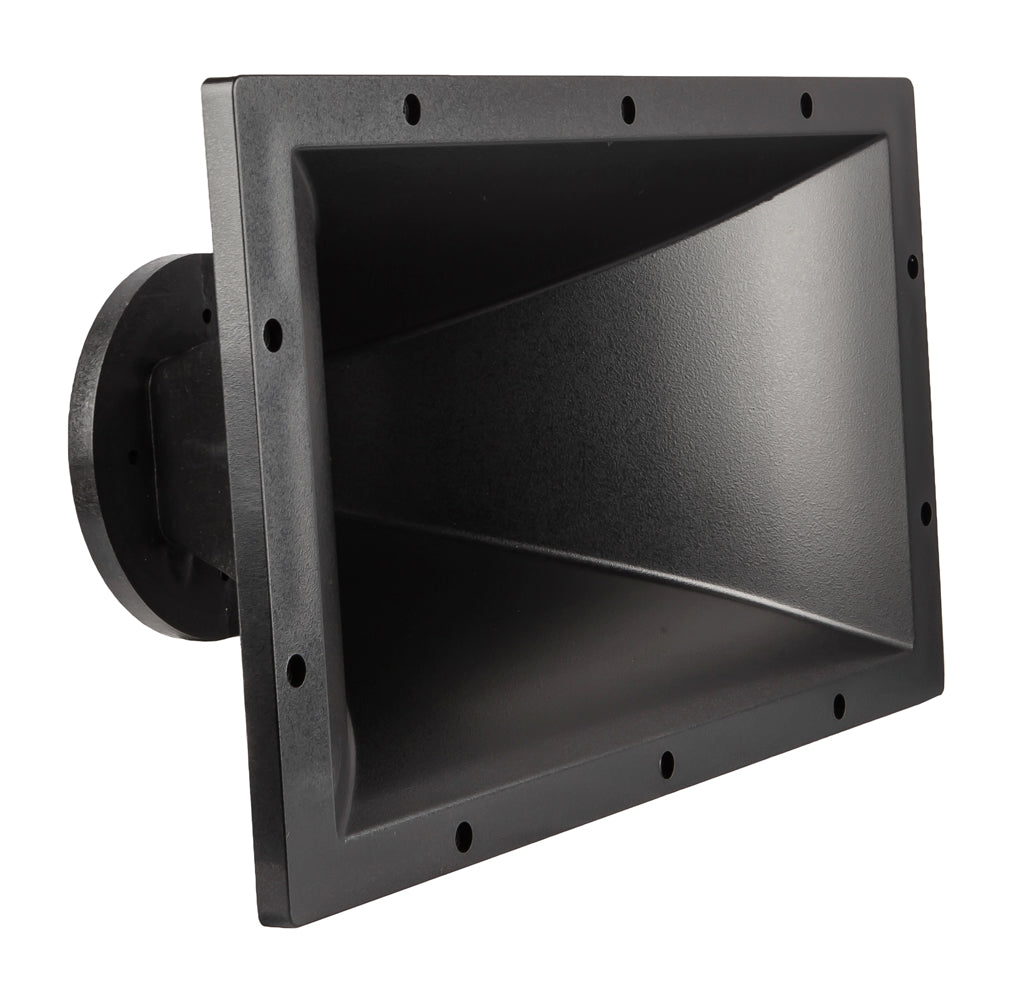

PRV WG45-50 Waveguide

PRV WG45-50 Waveguide

SKU: WG45-50

PRV WG45-50 Waveguide

PRV WG45-50 Waveguide

SKU: WG45-50

  • 2″ Exit Bolt-On
  • 7.48″ Mount Depth
  • Black Finish
$49.91
$74.26

In stock
  • 2″ Exit Bolt-On
  • 7.48″ Mount Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

2″ Exit – ABS Plastic Wave Guide – Bolt-on

  • 2” Throat Diameter
  • Bolt-on
  • 90° x 40° Nominal Coverage

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 2” (50.8 mm)
  • Mounting Type: Bolt-on
  • Hole Dimensions: 0.24″ x 0.31″ (6 x 8 mm)
  • Bolt Circle: 3.62″ to 4.25″ (92 to 108 mm)
  • Nominal Coverage:
  • Horizontal: 90°
  • Vertical: 40°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Black
  • Dimensions:
  • Height: 9.84″ (250 mm)
  • Width: 17.71″ (450 mm)
  • Depth: 7.95″ (202 mm)
  • Mounting Depth: 7.48″ (190 mm)
  • Baffle Cutout:
  • Width: 15.75″ (400 mm)
  • Height: 8.46″ (215 mm)
  • Net weight: 3.63 lb (1.69 kg)

EXTRA INFO

PRV WG45-50 Waveguide DATASHEET Download
PRV WG45-50 Waveguide DATASHEET Download
