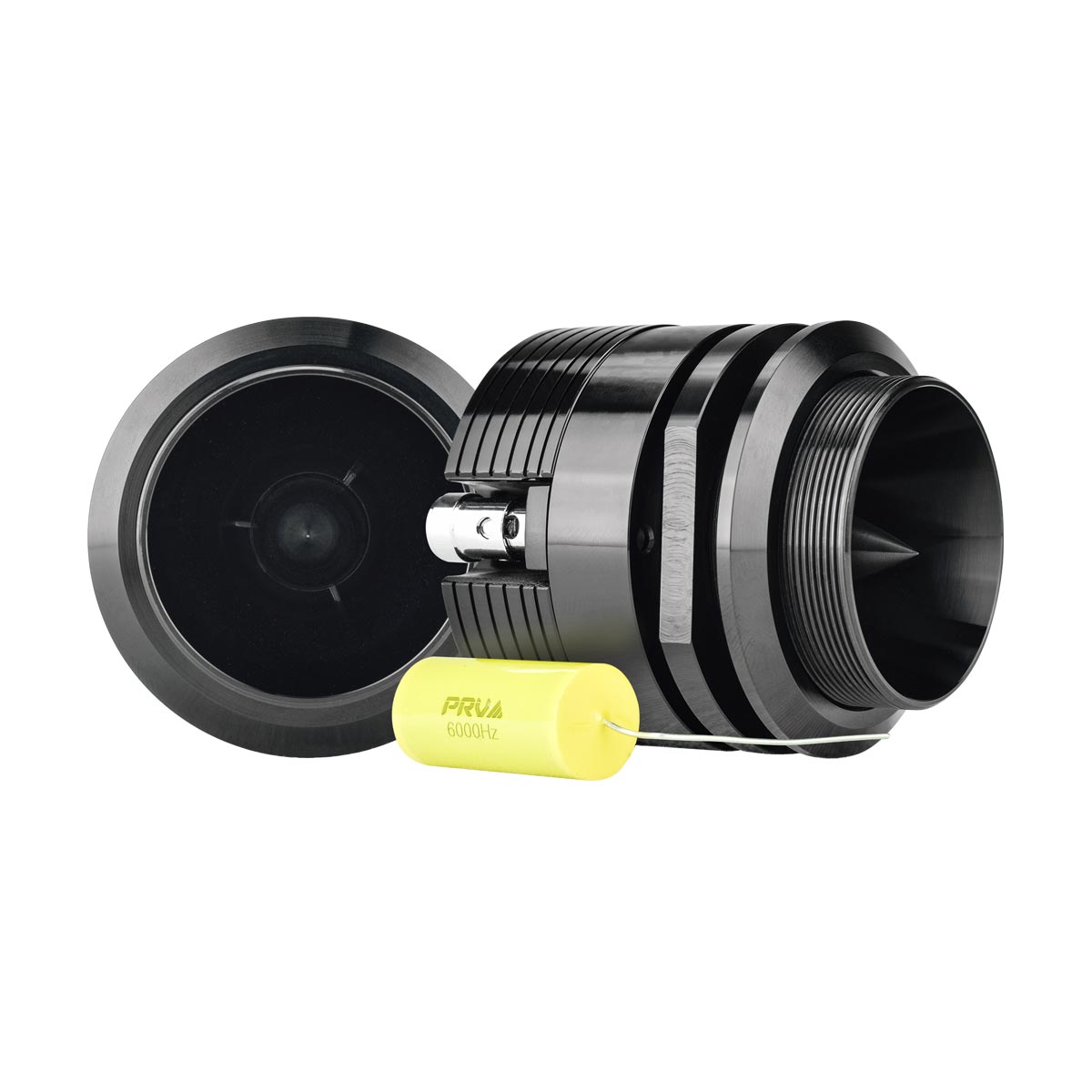

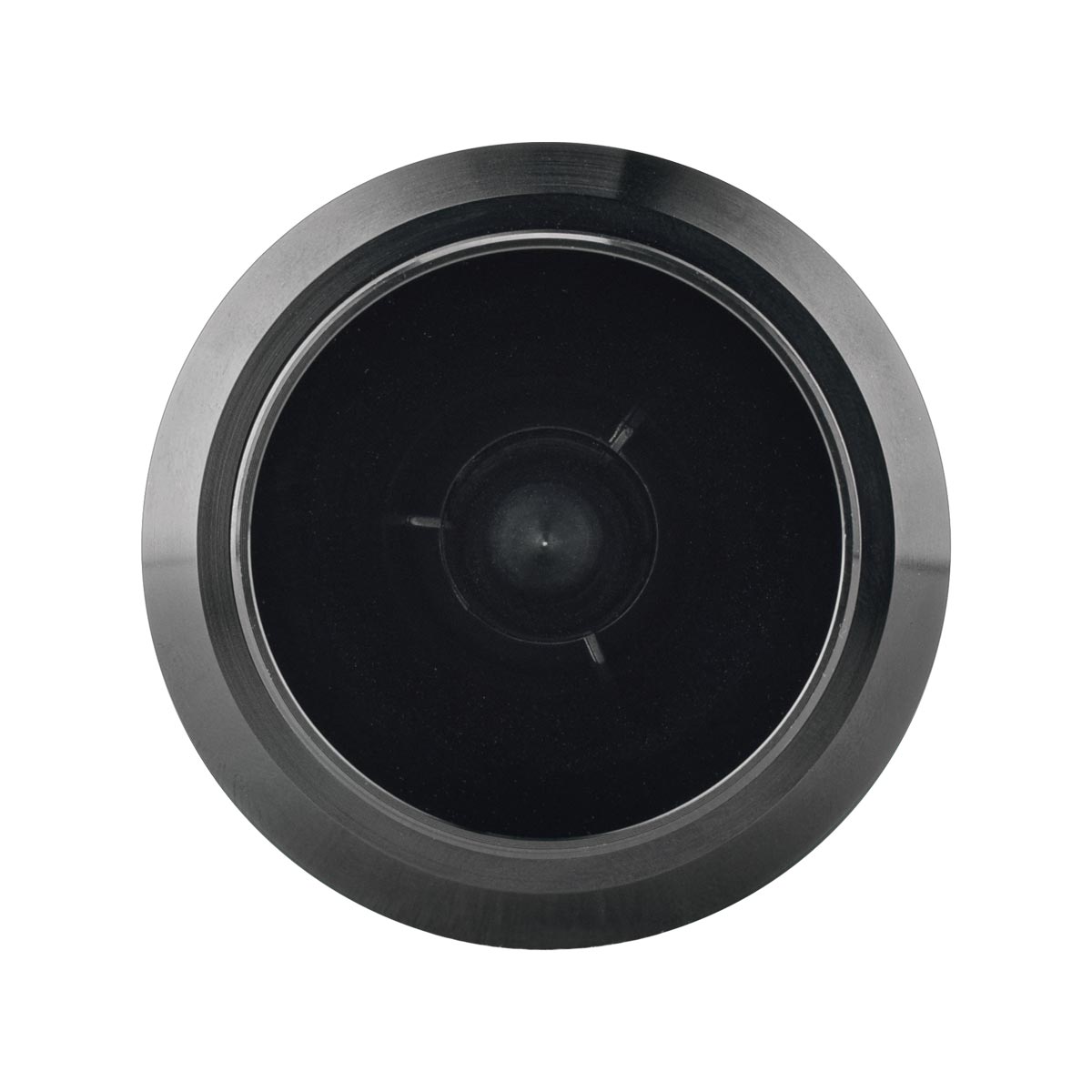

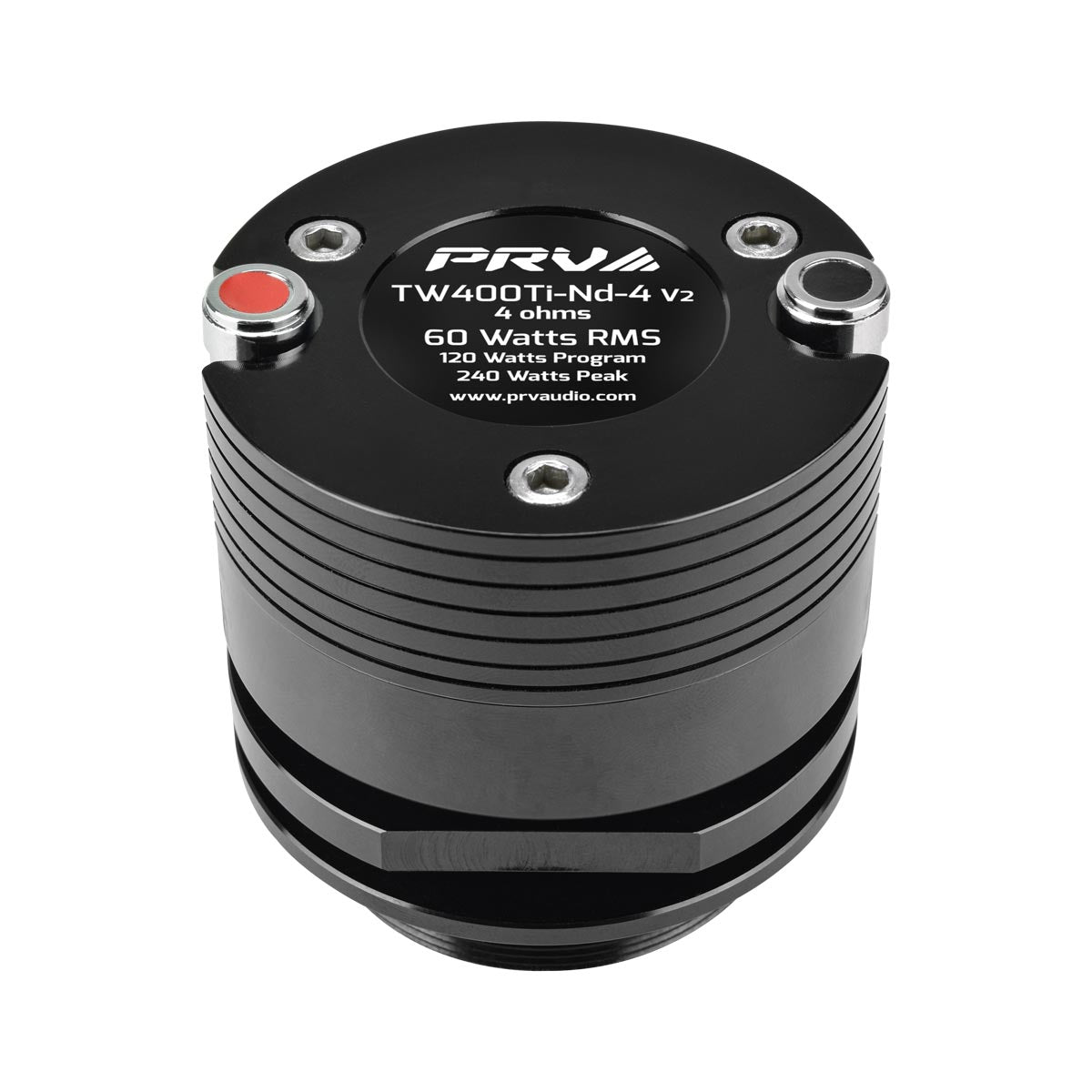

PRV TW400Ti-Nd-4 v2 (PAIR) Tweeter

PRV TW400Ti-Nd-4 v2 (PAIR) Tweeter

SKU: TW400Ti-Nd-4 v2

PRV TW400Ti-Nd-4 v2 (PAIR) Tweeter

PRV TW400Ti-Nd-4 v2 (PAIR) Tweeter

SKU: TW400Ti-Nd-4 v2

  • Titanium Tweeter
  • Neodymium Magnet
  • 106 dB - 120 Watts
$99.91
$124.89

In stock
  • Titanium Tweeter
  • Neodymium Magnet
  • 106 dB - 120 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

New Evolution of our 1″ exit neodymium bullet tweeters!

  • Smaller– Motor has been re-designed to be more compact on its total mounting depth.

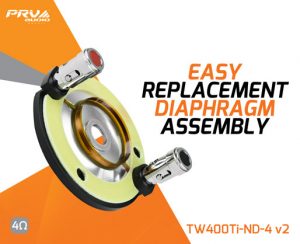

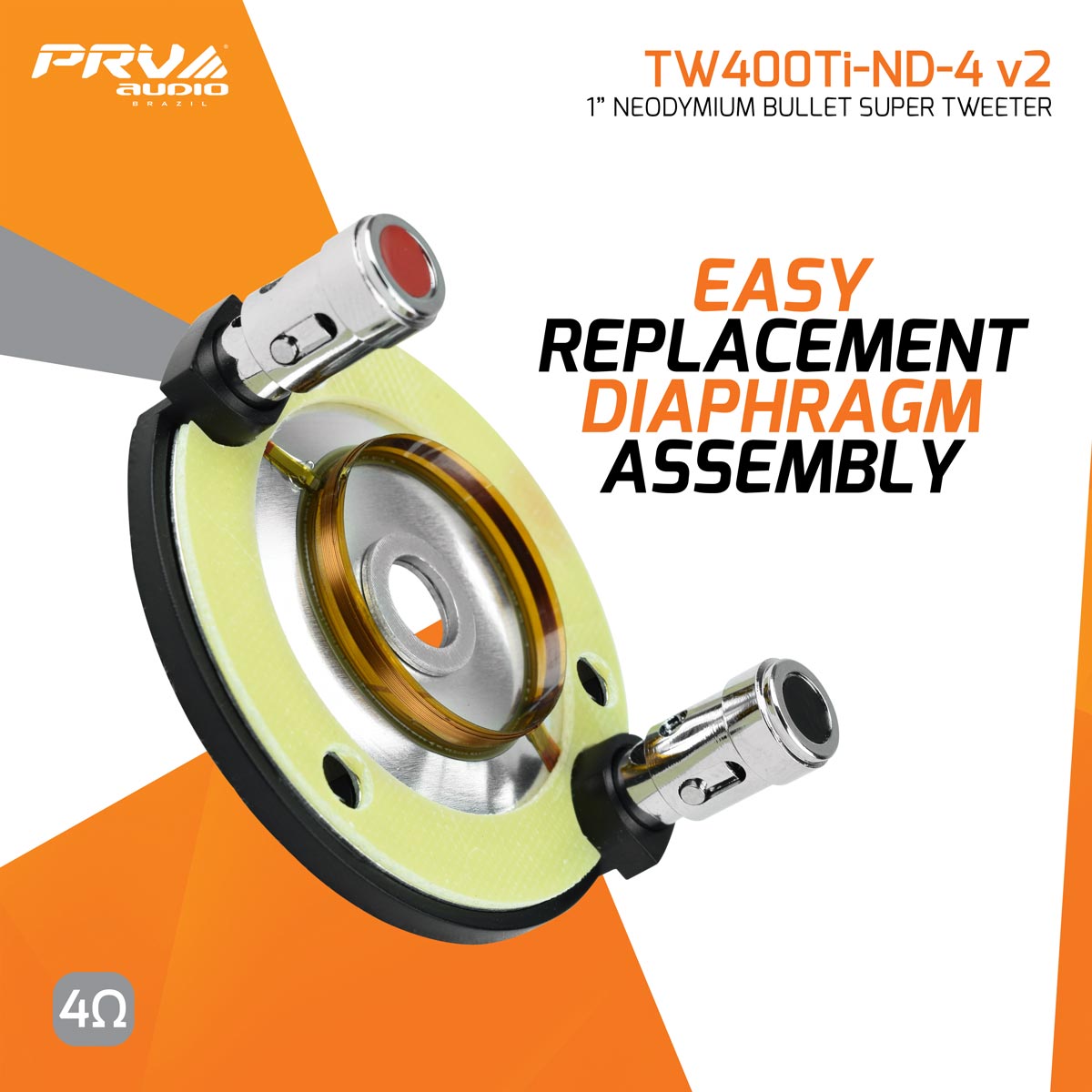

  • Improved Designed– Featuring a new concept, easy to replace diaphragm ( solderless )

PRV Audio’s TW400Ti-Nd-4 v2 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz.

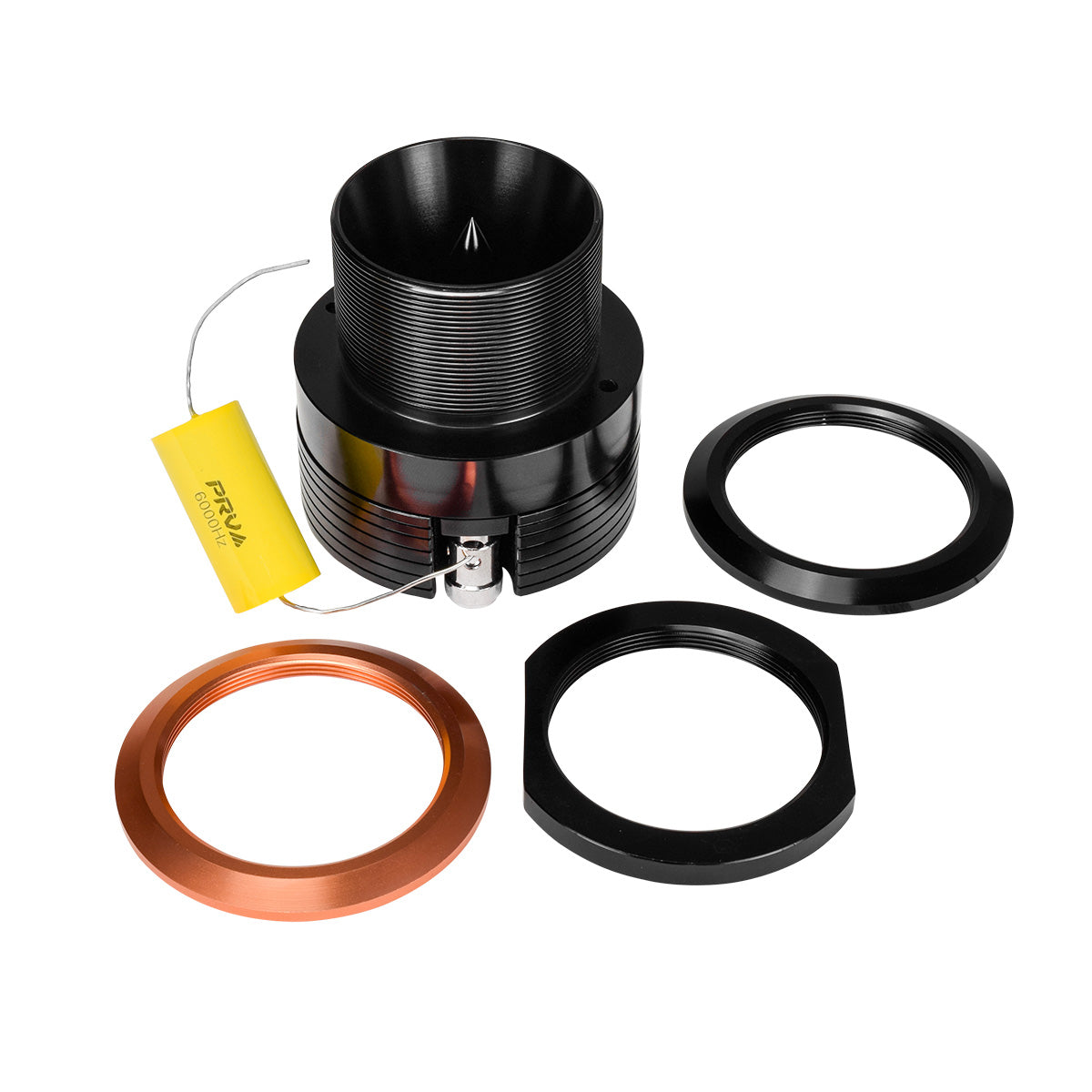

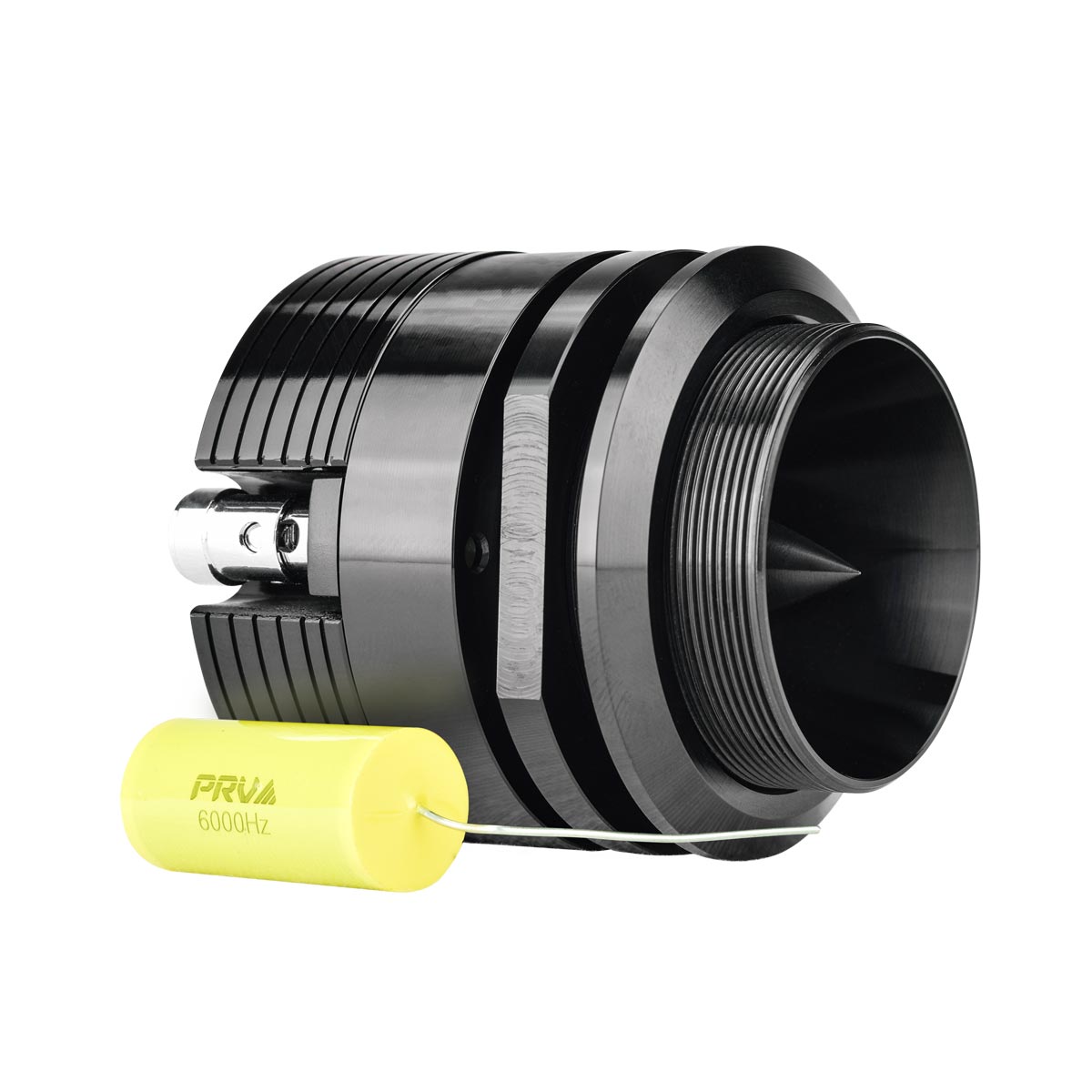

Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.

Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 v2 titanium bullet super tweeter!

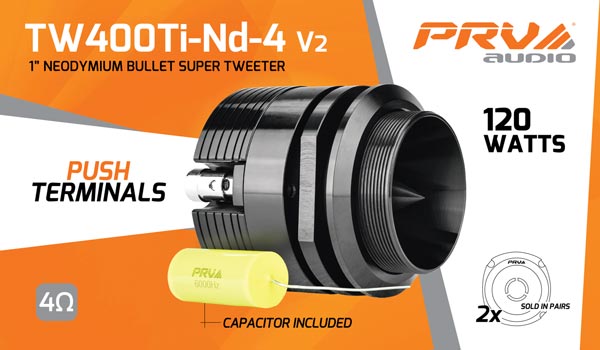

  • 1″ Bullet Super Tweeter
  • Nominal Impedance: 4Ω
  • Titanium diaphragm for an accurate and detailed response
  • Screw fittings make rear mounting easy and simple
  • Voice Coil Diameter: 1″

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 60 Watts
  • Continuous Program Power (RMS)** 120 Watts
  • Max Peak Power*** 240 Watts
  • Sensitivity 2.83V at 1m106 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 6000 Hz 12db/oct Crossover
  • Frequency Response at -10dB 4,500 – 20,000Hz
  • Voice Coil Diameter 1.0″ (25.4 mm)
  • Voice Coil Wire Aluminum
  • Former Material Kapton
  • Diaphragm Titanium
  • Flux Density 1.45 T
  • Magnet Type Neodymium

EXTRA INFO

PRV TW400Ti-Nd-4 v2 (PAIR) Tweeter DATASHEET Download

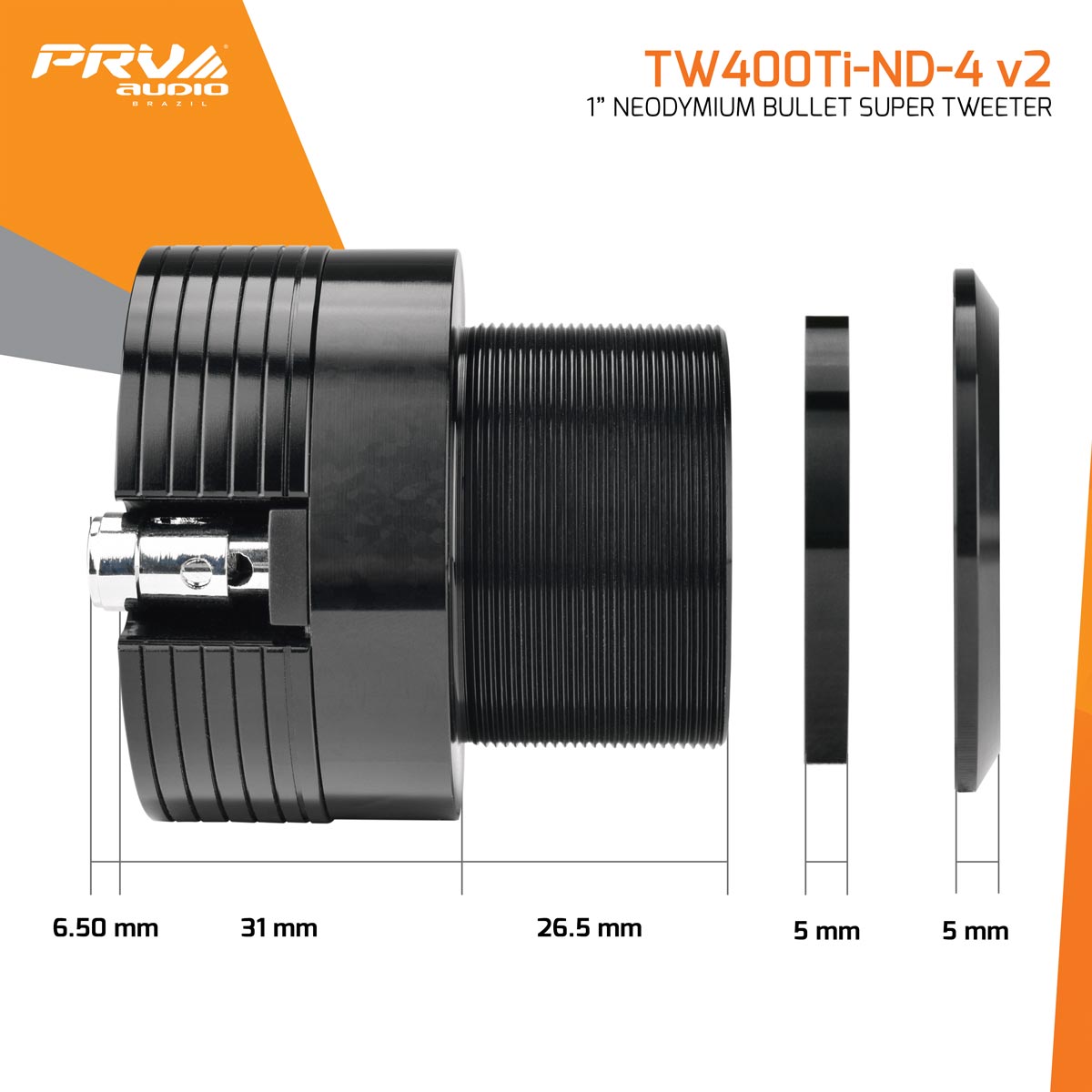

  • Overall Depth 2.58″ (65.5 mm)
  • Mounting Depth 1.51″ (38.5 mm)
  • Overall Diameter 2.19″ (55.7 mm)
  • Cutout Diameter 1.69″ (43 mm)
  • Net Weight 0.72 lbs (0.33 kg)
  • Shipping Weight (pair) 2.14 lbs (0.97 kg)
  • Carton Dimensions WxLxH 6.02″ x 3.26″ x 3.54″ (153 x 83 x 90 mm)
PRV TW400Ti-Nd-4 v2 (PAIR) Tweeter DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

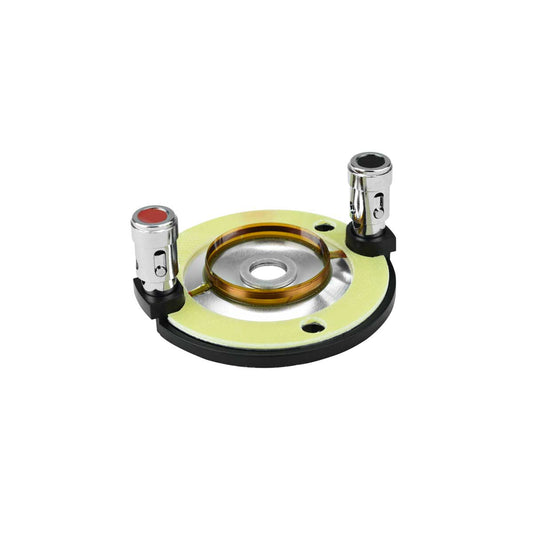

  • PRV RPTW400Ti-Nd-4 v2

    PRV RPTW400Ti-Nd-4 v2

    PRV RPTW400Ti-Nd-4 v2

    RPTW400Ti-Nd-4 v2

    Price:
    $19.91
    $24.89 $19.91
