PRV TW400Ti-Nd-4 SLIM (PAIR) Tweeter

PRV TW400Ti-Nd-4 SLIM (PAIR) Tweeter

SKU: SKU:TW400Ti-Nd-4 SLIM

Skip to product information

PRV TW400Ti-Nd-4 SLIM (PAIR) Tweeter

PRV TW400Ti-Nd-4 SLIM (PAIR) Tweeter

SKU: SKU:TW400Ti-Nd-4 SLIM

  • Titanium Tweeter
  • Neodymium Magnet
  • 105 dB - 120 Watts
$49.91
$62.39

In stock

  • Titanium Tweeter
  • Neodymium Magnet
  • 105 dB - 120 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

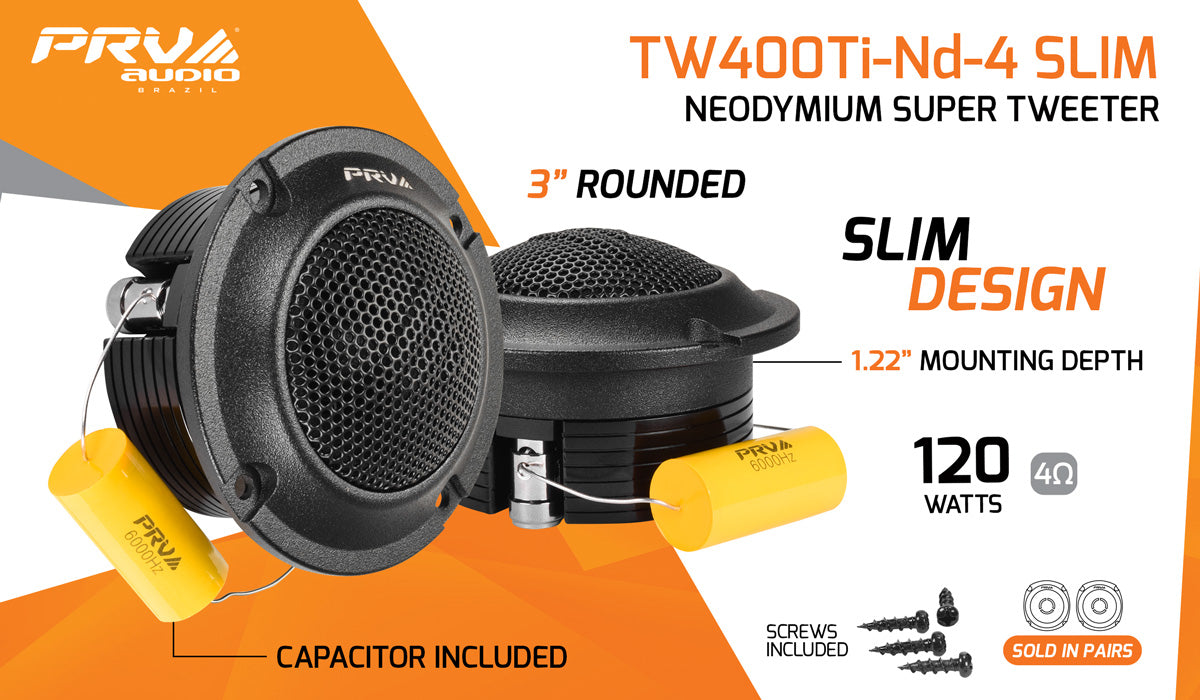

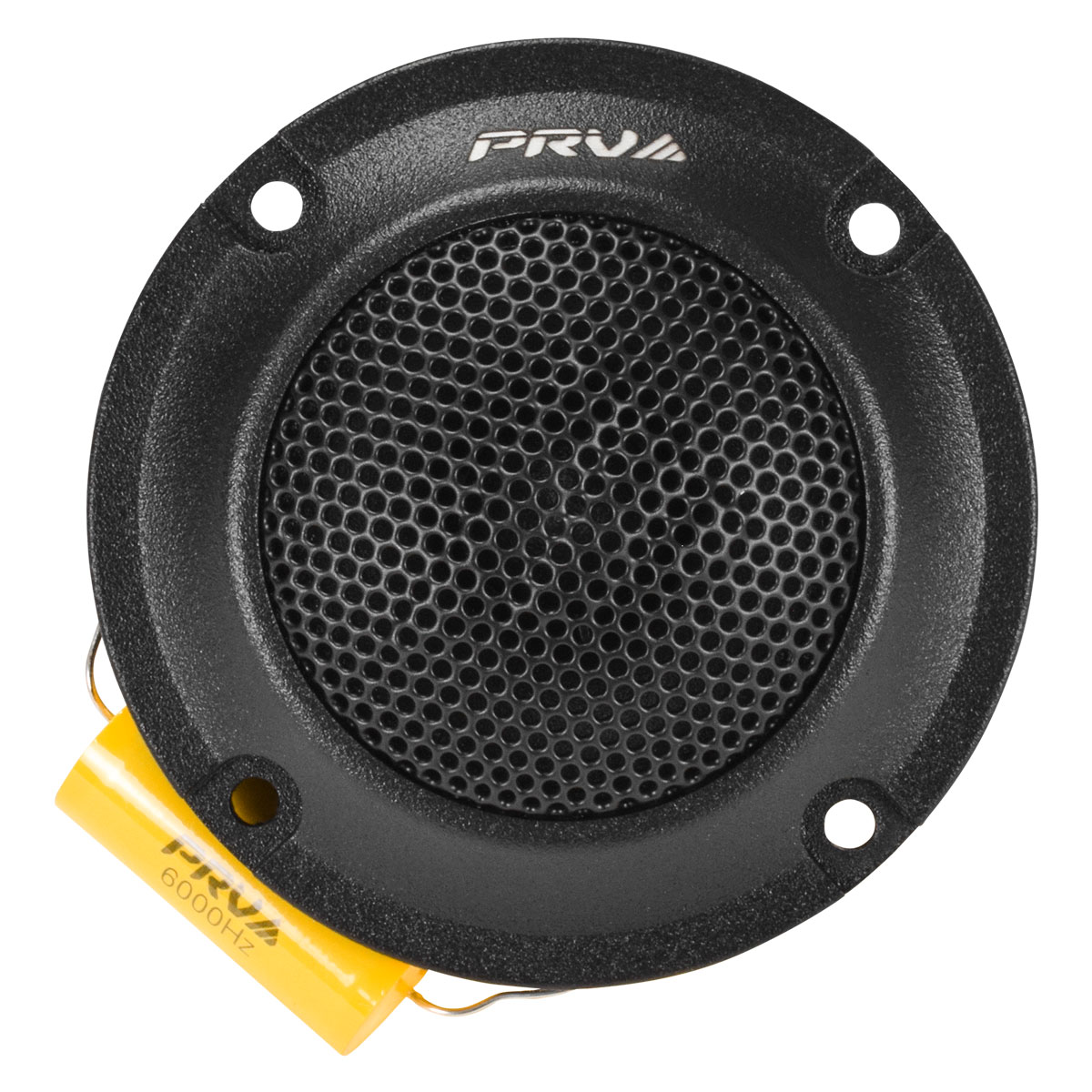

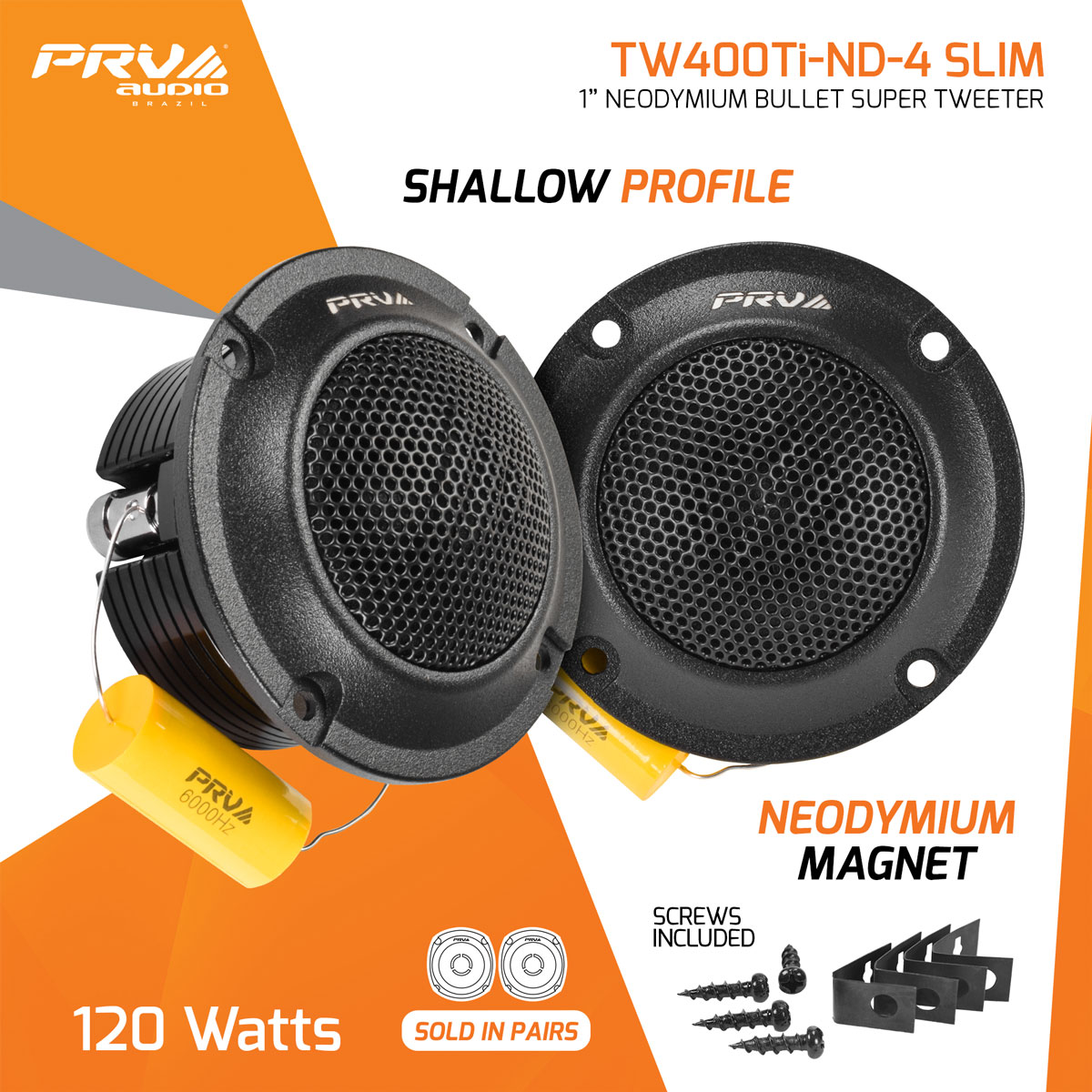

PRV Shallow Car Audio Bullet Tweeter TW400Ti-Nd-4 SLIM BLACK Neodymium 4 Ohm 3″ Rounded – Ultra Slim Easy to Mount Tweeters (Pair)

The PRV Audio TW400Ti-Nd-4 SLIM Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight and size dramatically without compromising any performance.

  • Designed to fit in tight spaces without any major modifications
  • Titanium diaphragm for an accurate and detailed response
  • Designed to add high output, high frequency response to any interior system
  • Hidden push terminal connection, takes less space on installation

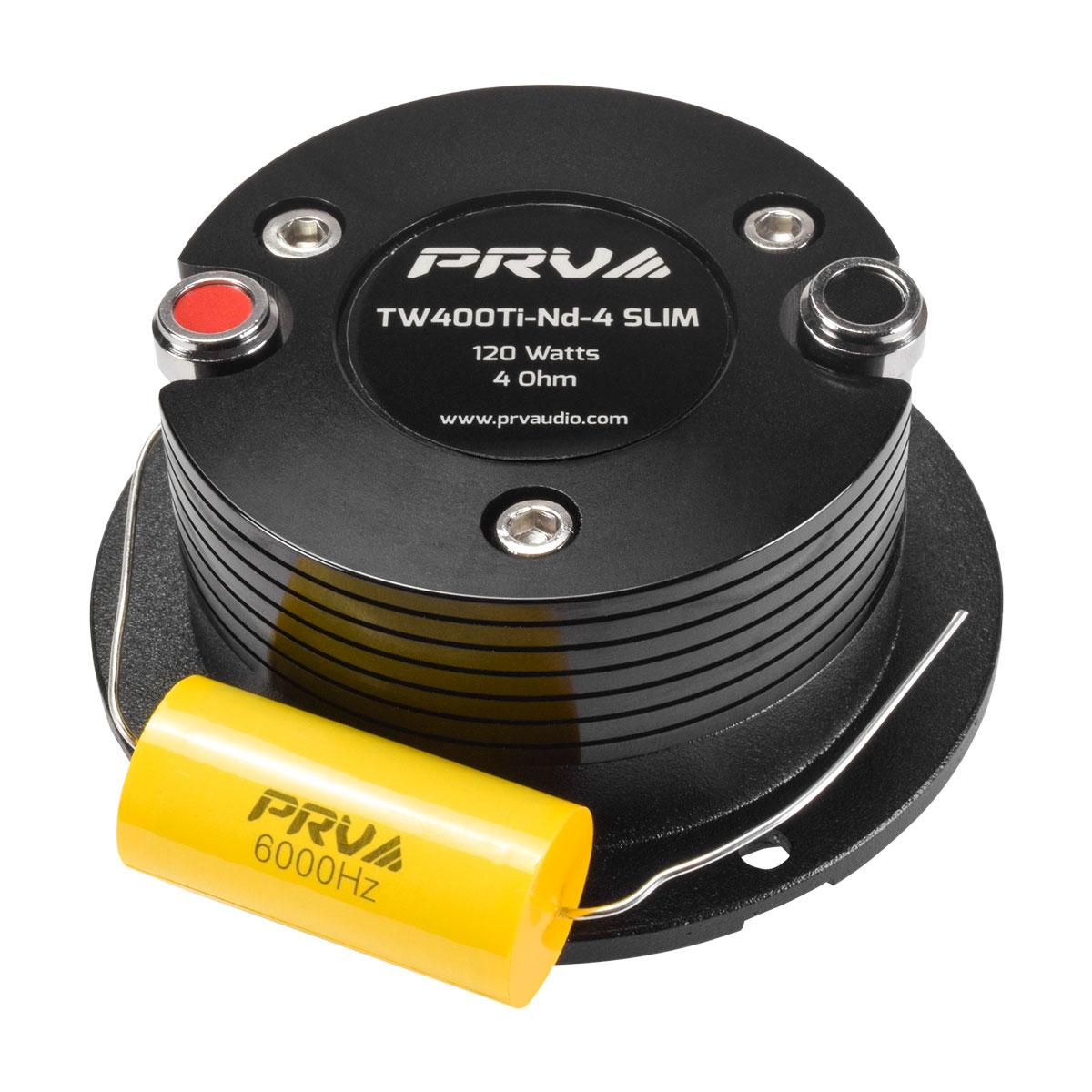

  • Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
  • Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz

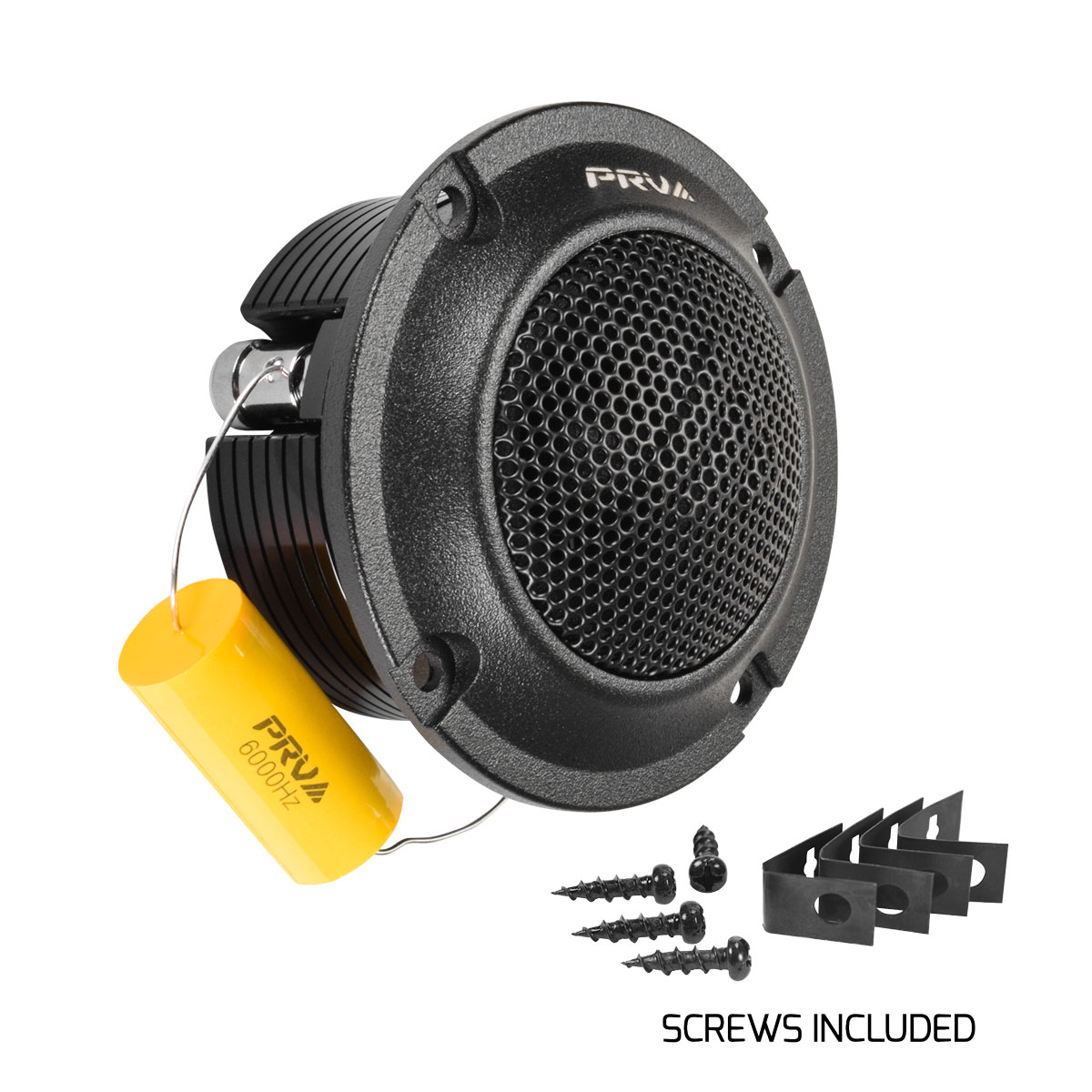

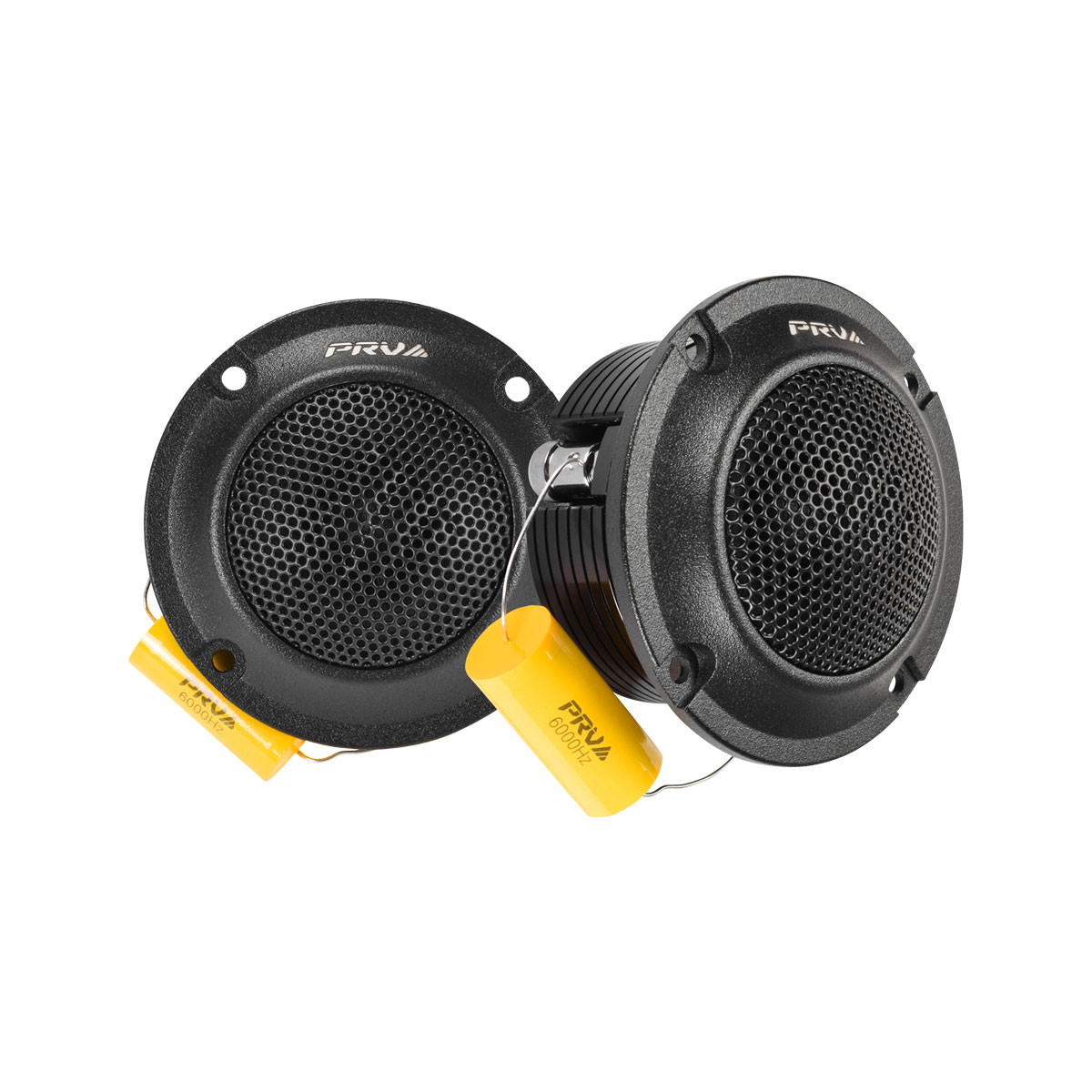

  • Sold in Pairs – Mounting Screws are included, Also available in White

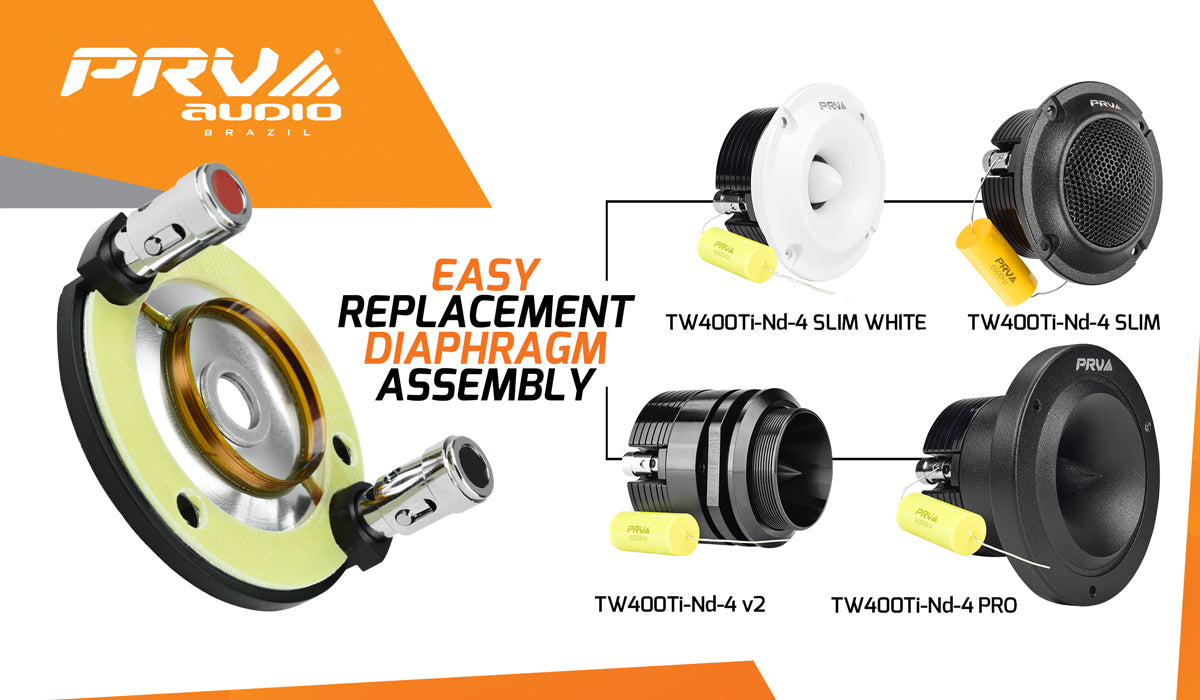

After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for theTW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.

Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 SLIM 1″ exit titanium compact bullet super tweeter!

The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 105 dB from 4,500 to 20,000 Hz.. The tweeter is perfect for Pro Audio On Wheels® applications.

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 60 Watts
  • Continuous Program Power (RMS)** 120 Watts
  • Max Peak Power*** 240 Watts
  • Sensitivity 2.83V at 1m105 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 6000 Hz 12db/oct Crossover

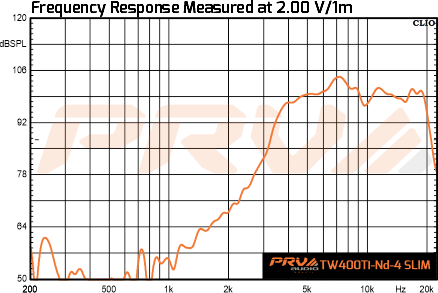

  • Frequency Response at -10dB 4,500 – 20,000Hz
  • Voice Coil Diameter 1.0″ (25 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Diaphragm Titanium
  • Flux Density 1.45 T
  • Magnet Type Neodymium

EXTRA INFO

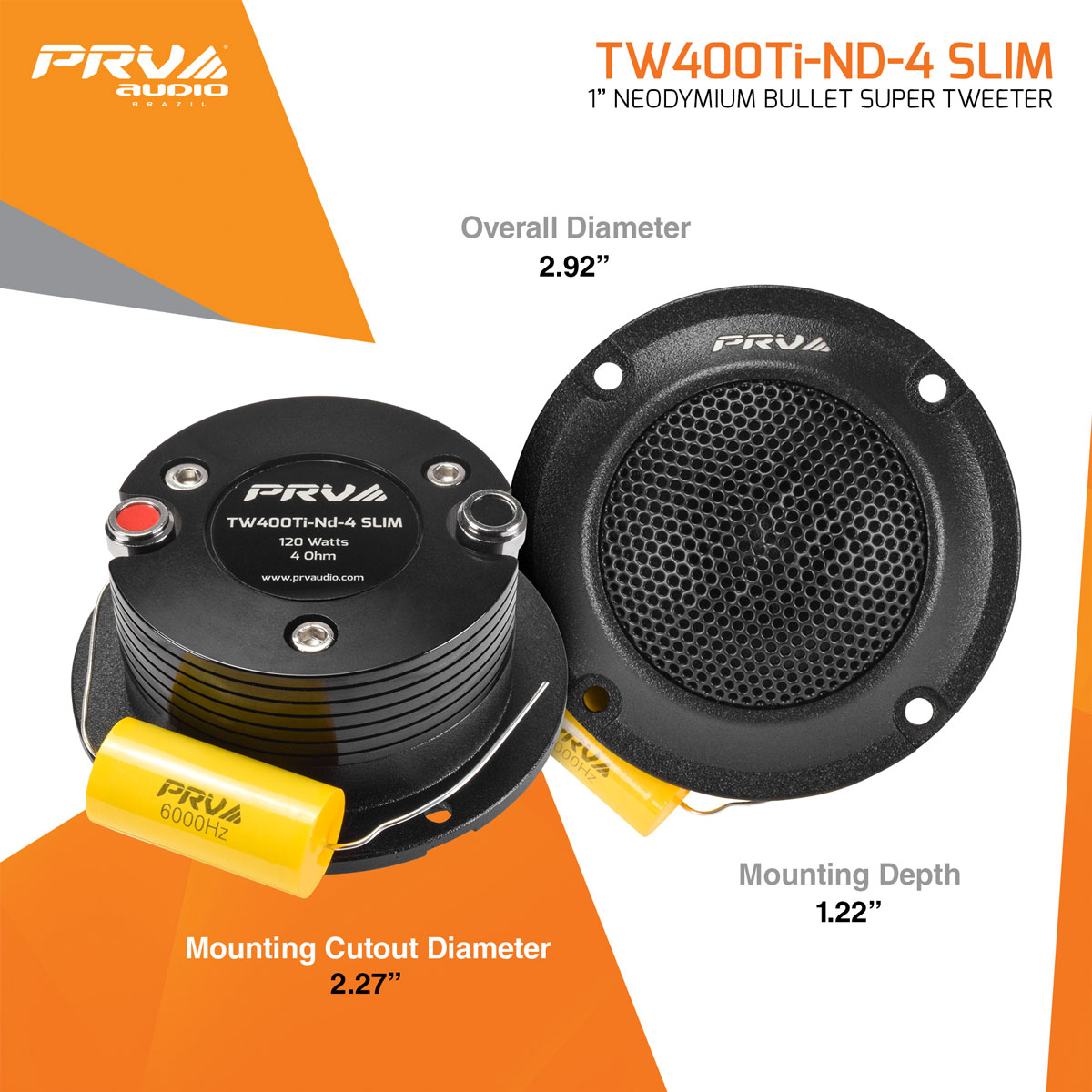

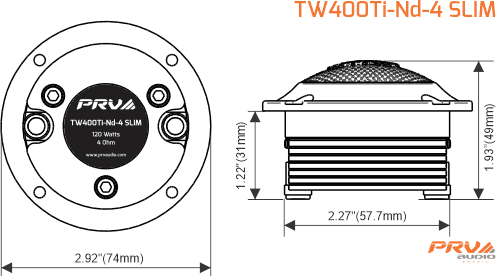

  • Overall Depth 1.61″ (41 mm)

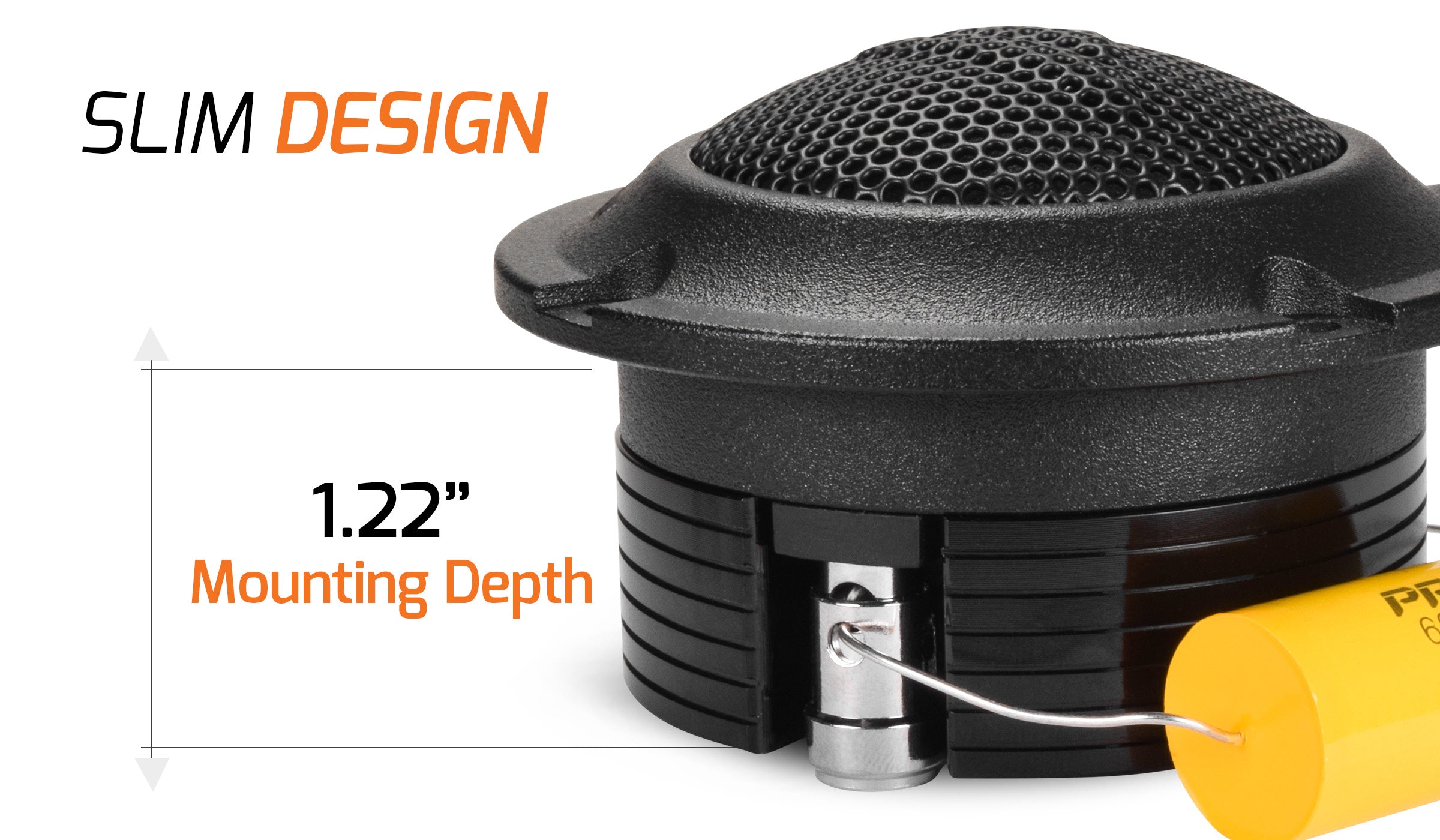

  • Mounting Depth 1.22″ (31 mm)
  • Overall Diameter 2.92″ (74 mm)
  • Cutout Diameter 2.27″ (57.7 mm)
  • Net Weight 0.66 lbs (0.30 kg)
  • Shipping Weight 1.54 lbs (0.70 kg)
  • Carton Dimensions WxLxH 6.77″ x 3.15″ x 1.99″ (172 x 80 x 50 mm)
