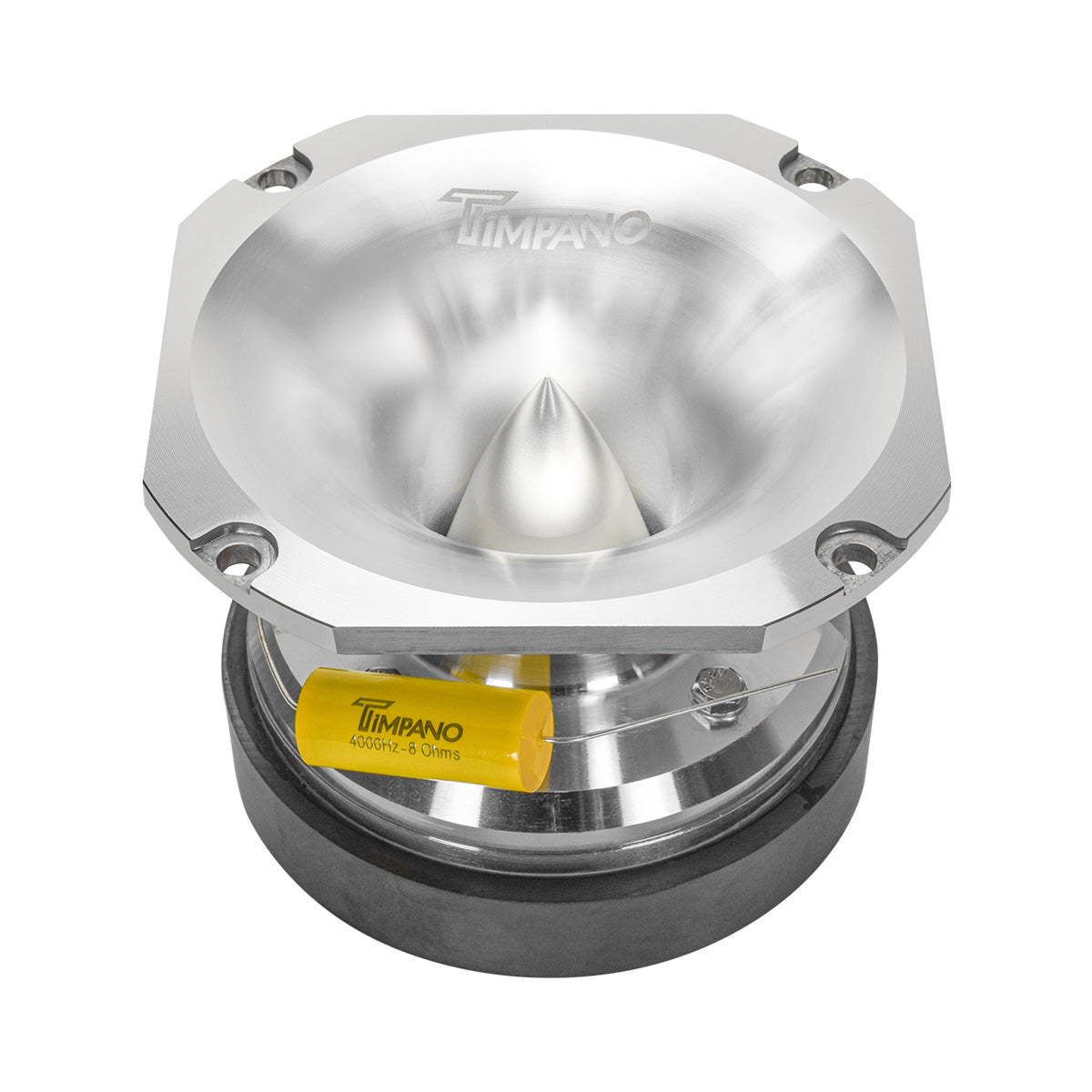

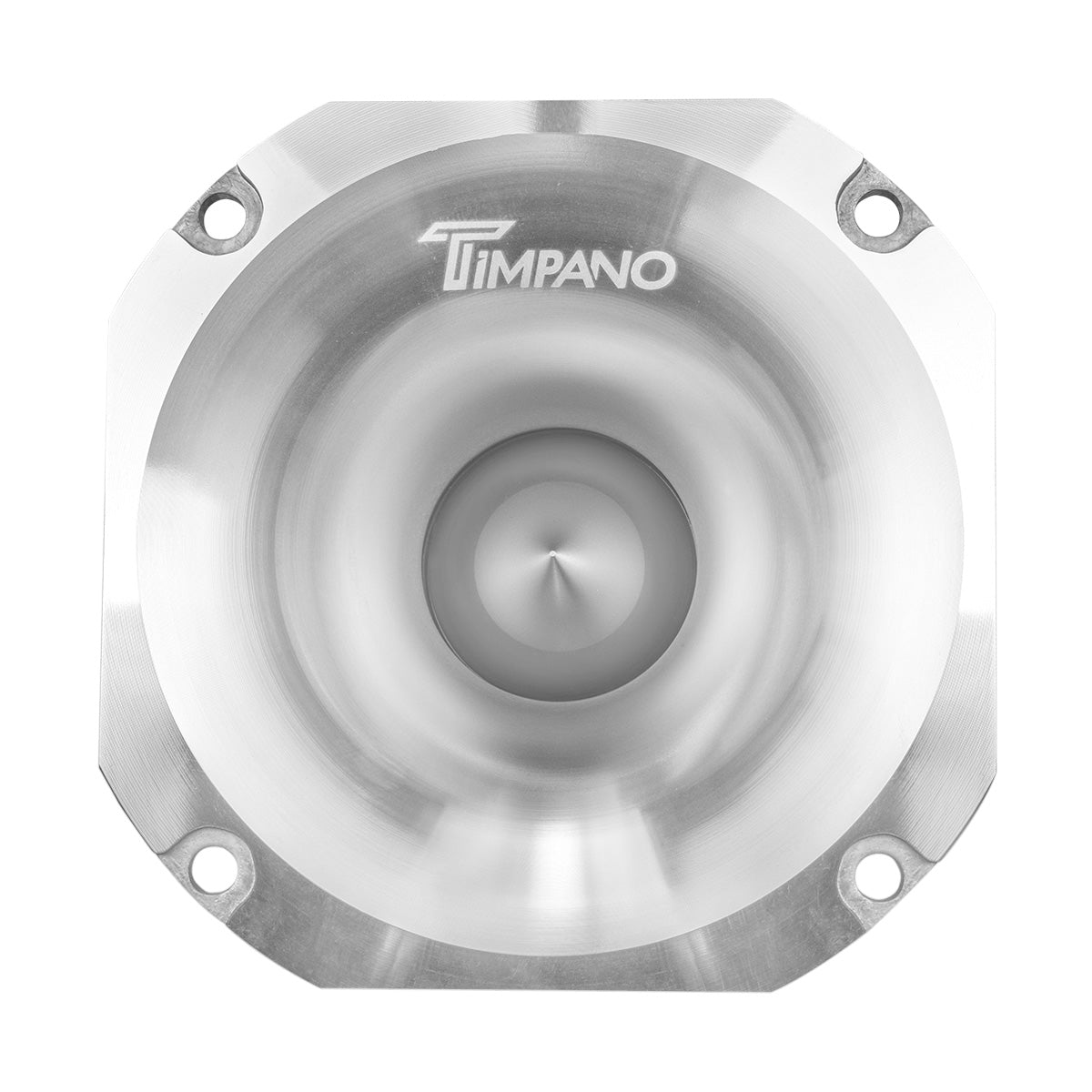

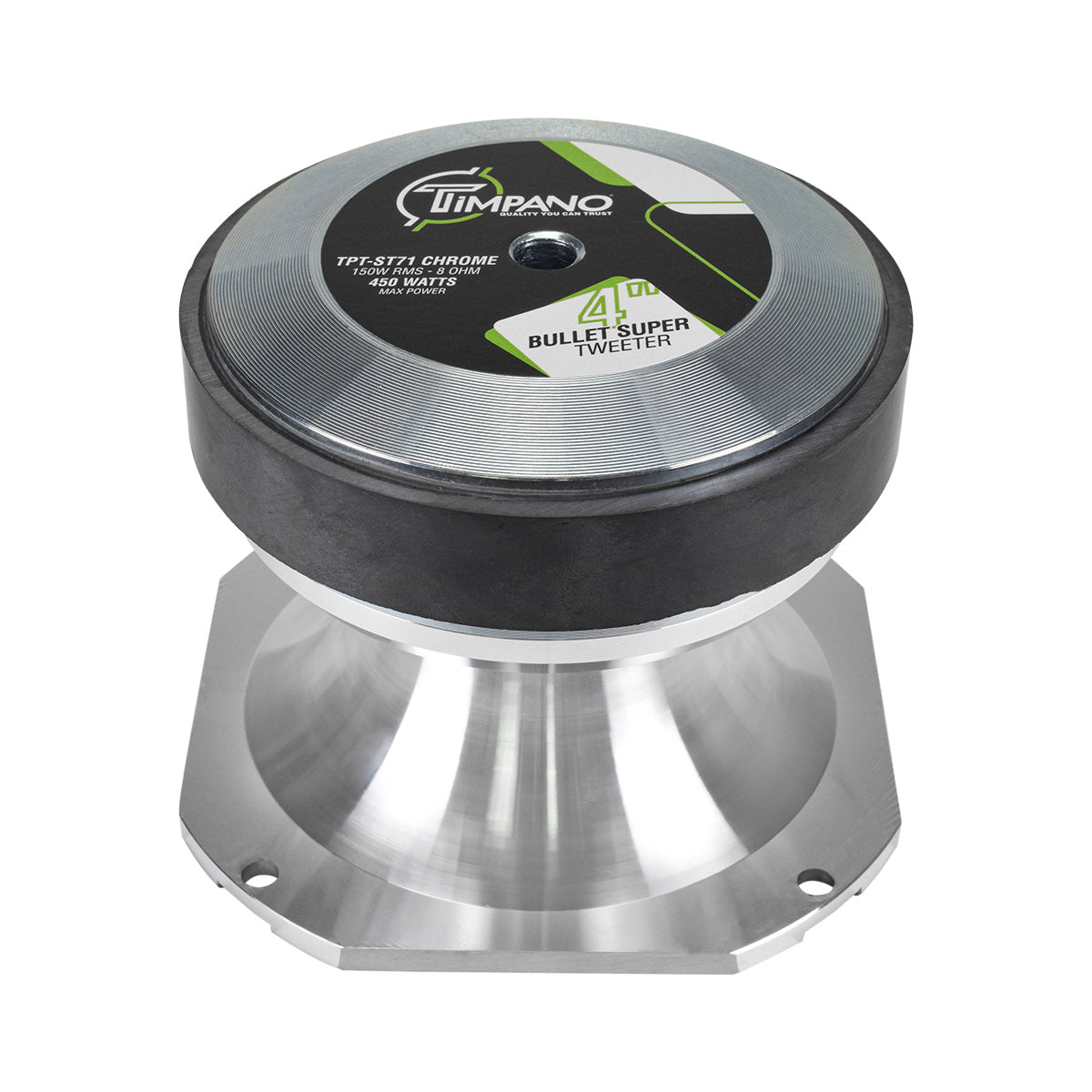

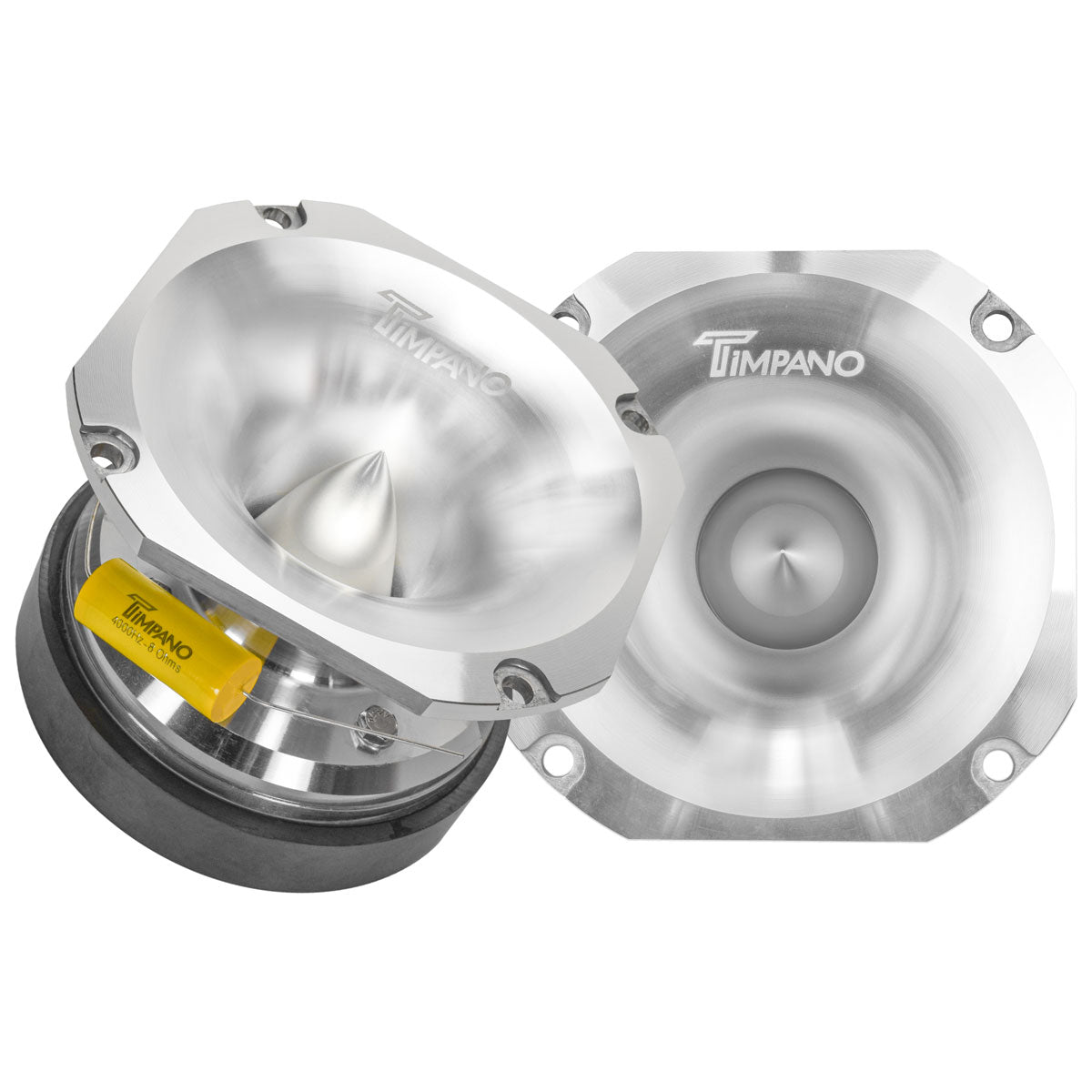

Timpano’s TPT-ST71 bullet tweeter is ideal for two-way speakers and applications that require controlled directivity, high output, and smooth frequency response on high frequencies.

• Its diaphragm features the lastest technology on high frequency tweeters with a 1.5″ voice coil
• They handle 300 watts RMS to provide continuous high output levels
• High sensitivity output designed for pro audio systems

With an aluminum 40° conical dispersion horn, the bullet super tweeter is not your typical bullet tweeter. It has an average sensitivity of 108 dB and a smooth frequency response from 4,000 to 20,000 Hz using a ferrite ring magnet assembly driving an annular ring diaphragm made from mylar diaphragm.

Built In Crossover – Capacitor that acts as a crossover to attenuate low end frequencies that might otherwise harm the super tweeters.

These tweeters are capable of generating high end frequencies at extremely loud volume, to keep up in the high SPL systems. Built with high strength magnet and a mylar diaphragm are designed to reproduce the brightest and crispest sound.

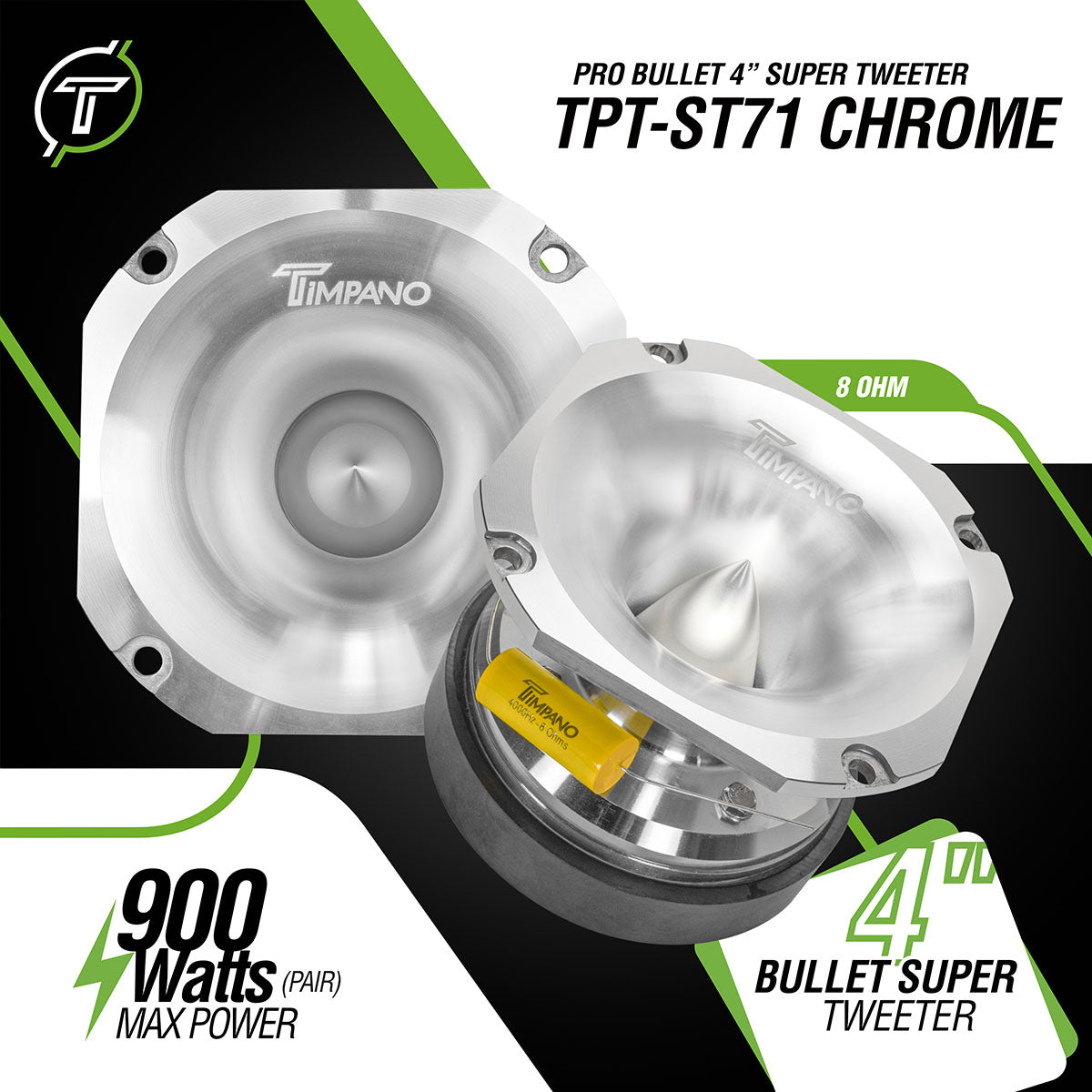

Specs:

• 900 Watts Max Power per pair / 450 Watts each
• 300 Watts RMS Power per pair / 150 Watts each
• Impedance: 8 Ohm each tweeter
• Sensitivity: 108 dB
• Frequency Response: 4,000 – 20,000Hz
• Mylar Diaphragm with a 1.5" voice coil

Recommended High Pass Filter on TPT-SP4BT DSP, Based on Power per Tweeter:

• 7000 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope
• 5000 Hz under 150 Watts of Amplifier RMS Power with 12dB Slope

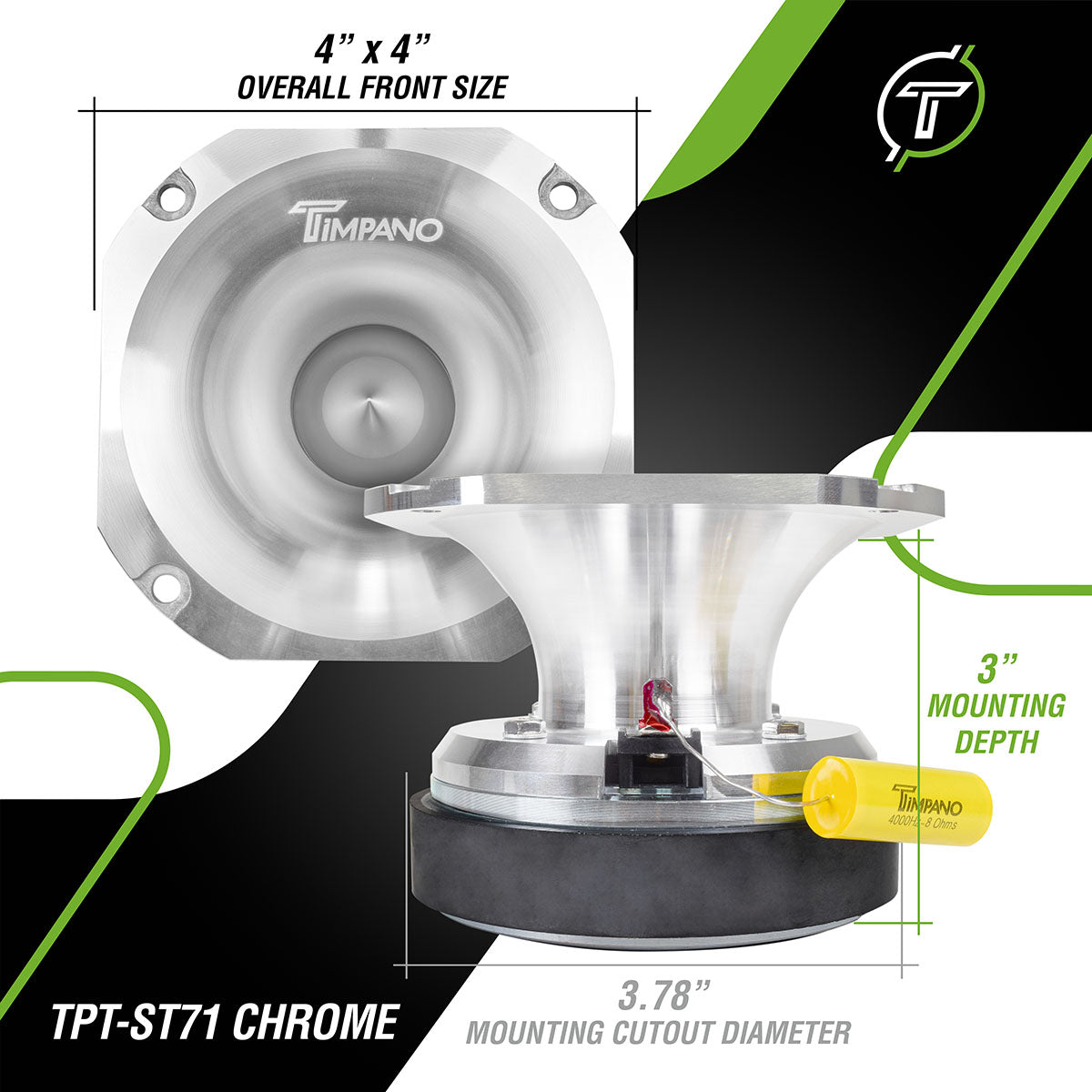

Sizing:

• Mounting: 3”
• Mounting Cutout Diameter: 3.78″
• Overall Size: 4" x 4" x 3.17″
• Weight: 3 Lbs each tweeter

Accessories Included:

• HPF Capacitor attached per tweeter
• 1x Timpano Logo Sticker

With a great price-to-performance, these tweeters provides output of professional systems without breaking the bank. Sold as a set of 2 tweeters (pair).

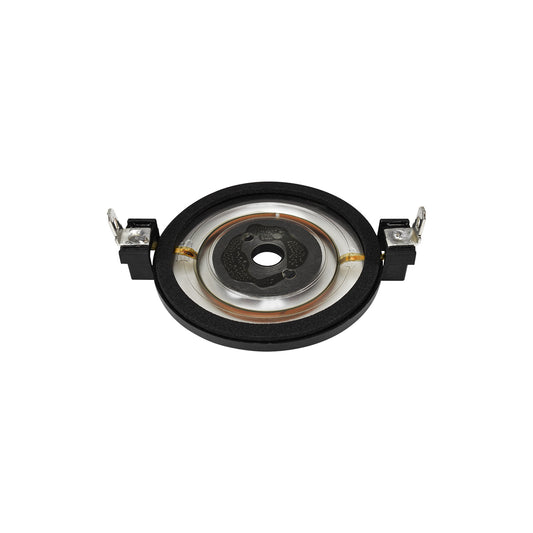

Replacement Diaphragm:TPT-RPST71
