TPT-T1500-10 D4 Subwoofer

TPT-T1500-10 D4 Subwoofer

SKU: SKU:TPT-T1500-10 D4

Skip to product information

TPT-T1500-10 D4 Subwoofer

TPT-T1500-10 D4 Subwoofer

SKU: SKU:TPT-T1500-10 D4

  • 1500 Watts Max Power
  • 750 Watts RMS Power
  • Impedance: Dual 4 Ohm
  • 2.6″ Voice Coil 4-Layer High Temperature
  • Frequency Response: 28 Hz – 300 Hz
  • Fs: 43 Hz
$104.95
$174.94

In stock

  • 10″ Subwoofer
  • 1500 Watts Max
  • Dual 4 Ohm
  • 1500 Watts Max Power
  • 750 Watts RMS Power
  • Impedance: Dual 4 Ohm
  • 2.6″ Voice Coil 4-Layer High Temperature
  • Frequency Response: 28 Hz – 300 Hz
  • Fs: 43 Hz

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

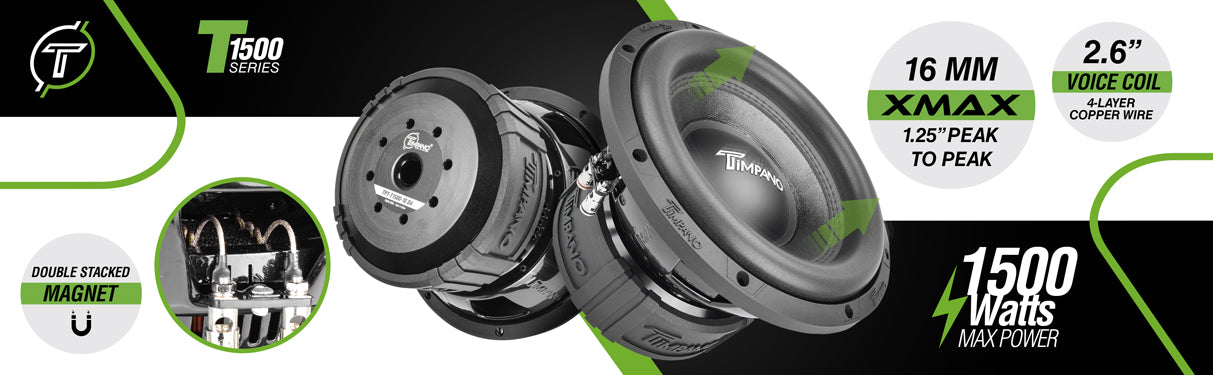

Timpano 10″ Car Audio Subwoofer 1500 Watts Dual 4 Ohm TPT-T1500-10 D4 Daily Banger– 4-Layer 2.6″ Copper Wire Voice Coil– Double Stacked Magnet at unbeatable Price Range

Timpano T1500 is a great entry point for a higher performance subwoofer that brings hard-hitting bass in a small powerful package. These subs will perform like a boss on a small amount of power. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high-energy, double-stack motor paired with a high foam surround stitched to a heavy-duty competition-grade pressed paper cone, it allows this woofer to play the low notes it was designed for.

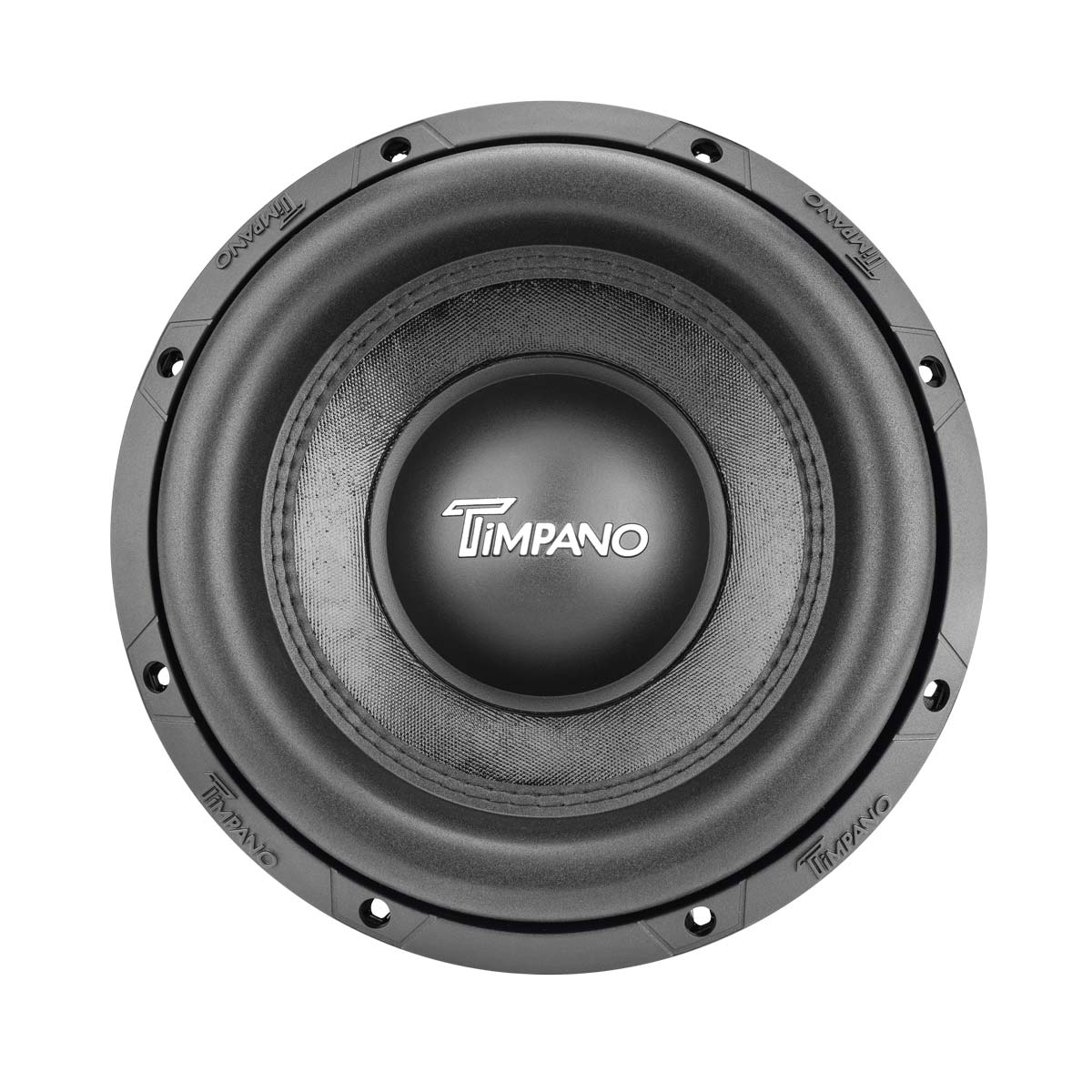

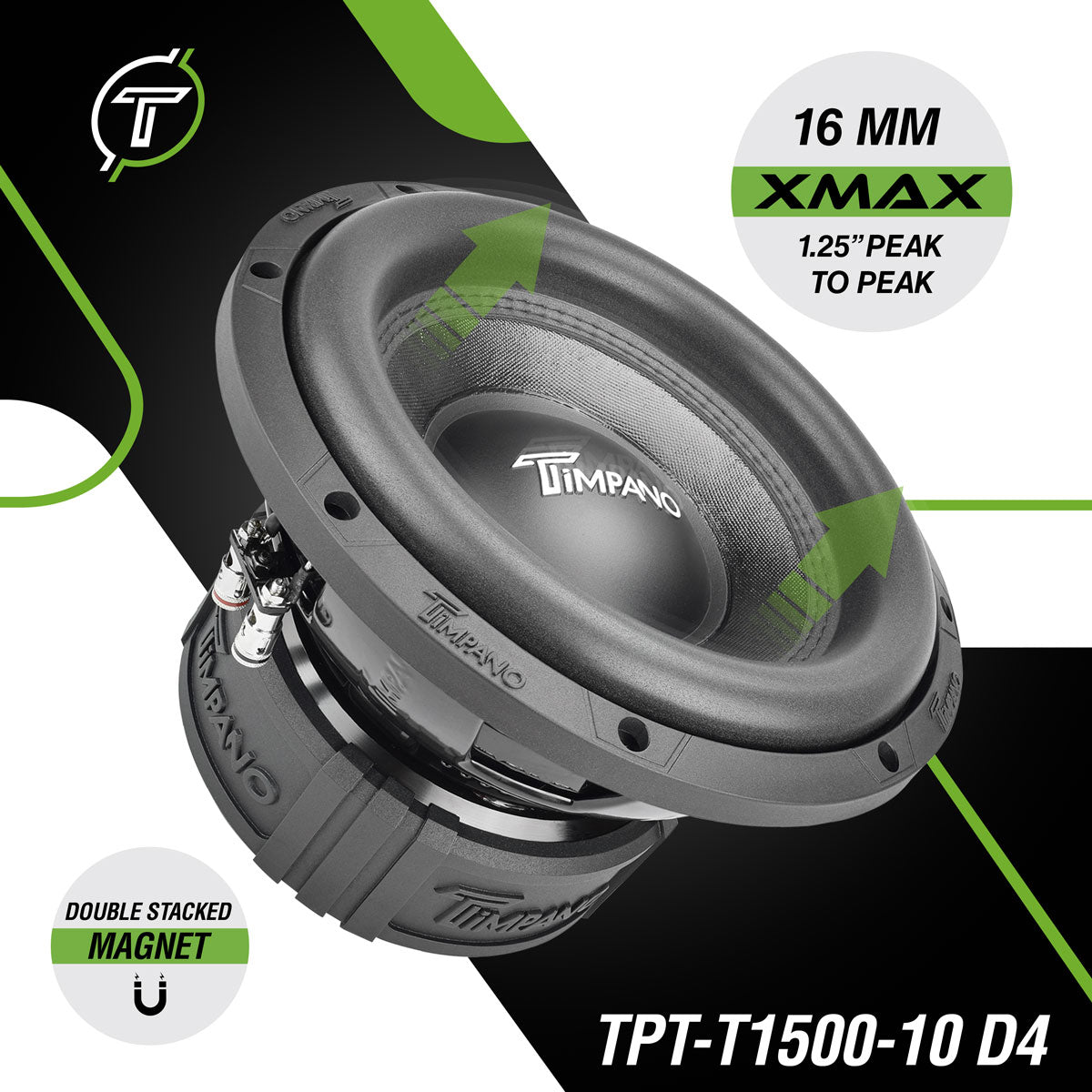

– Competition Grade Pressed Paper Cone with Flexible High Foam Surround capable of 16 mm Xmax – 1.25″ Peak to Peak Excursion before damage

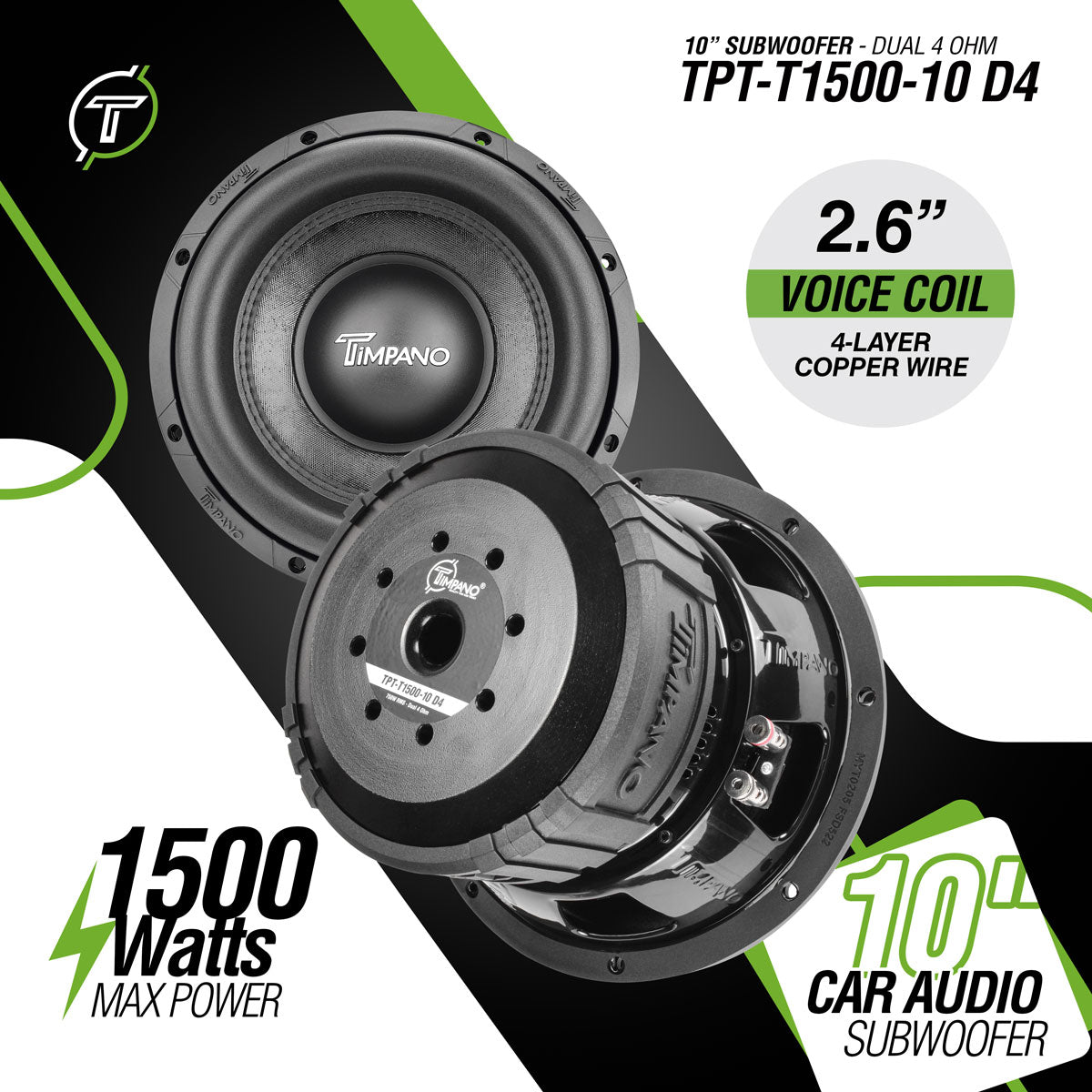

– Its large 2.6″ voice coil is wound in 4 layers at 40 mm height of pure copper wire, giving reliable performance at 750 Watts RMS

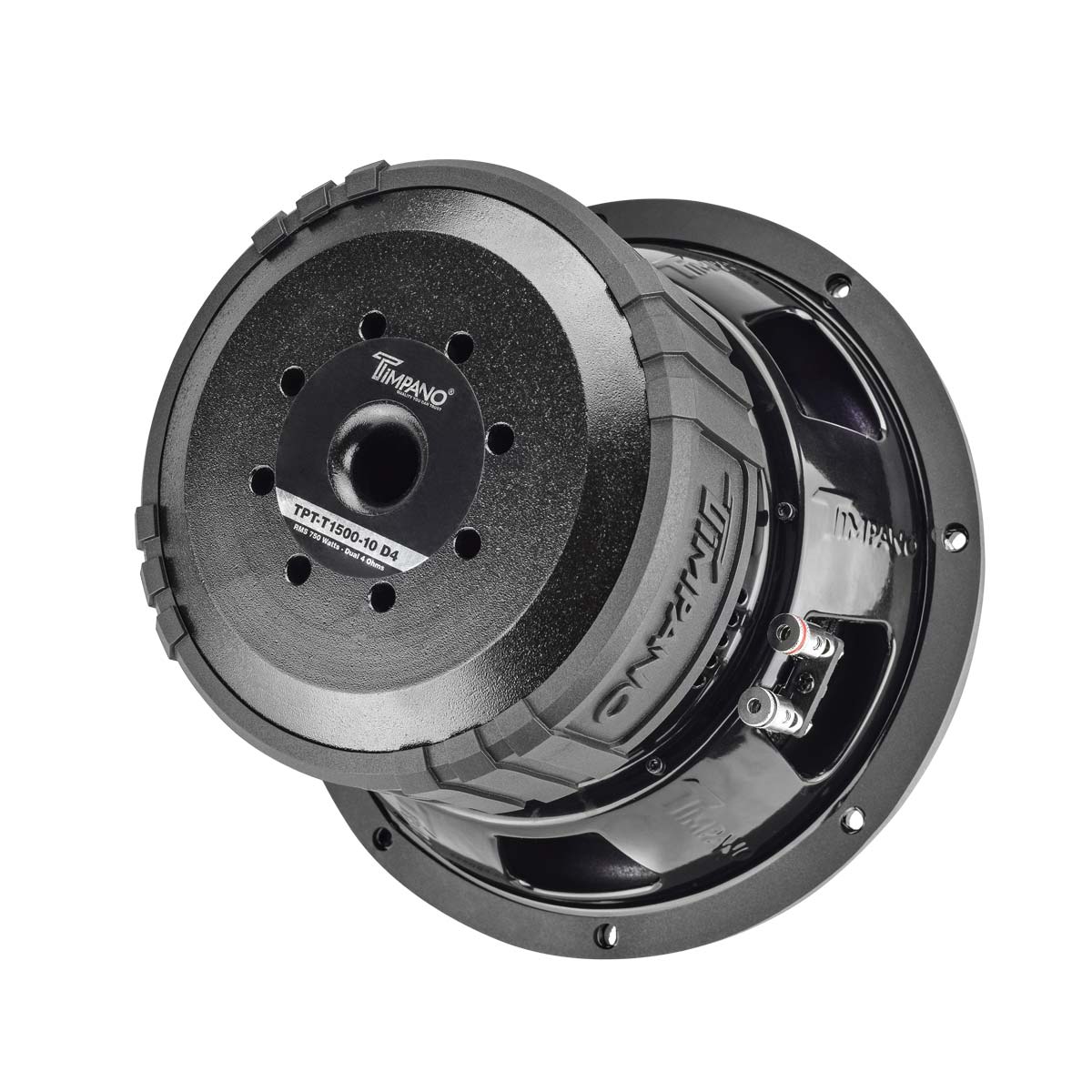

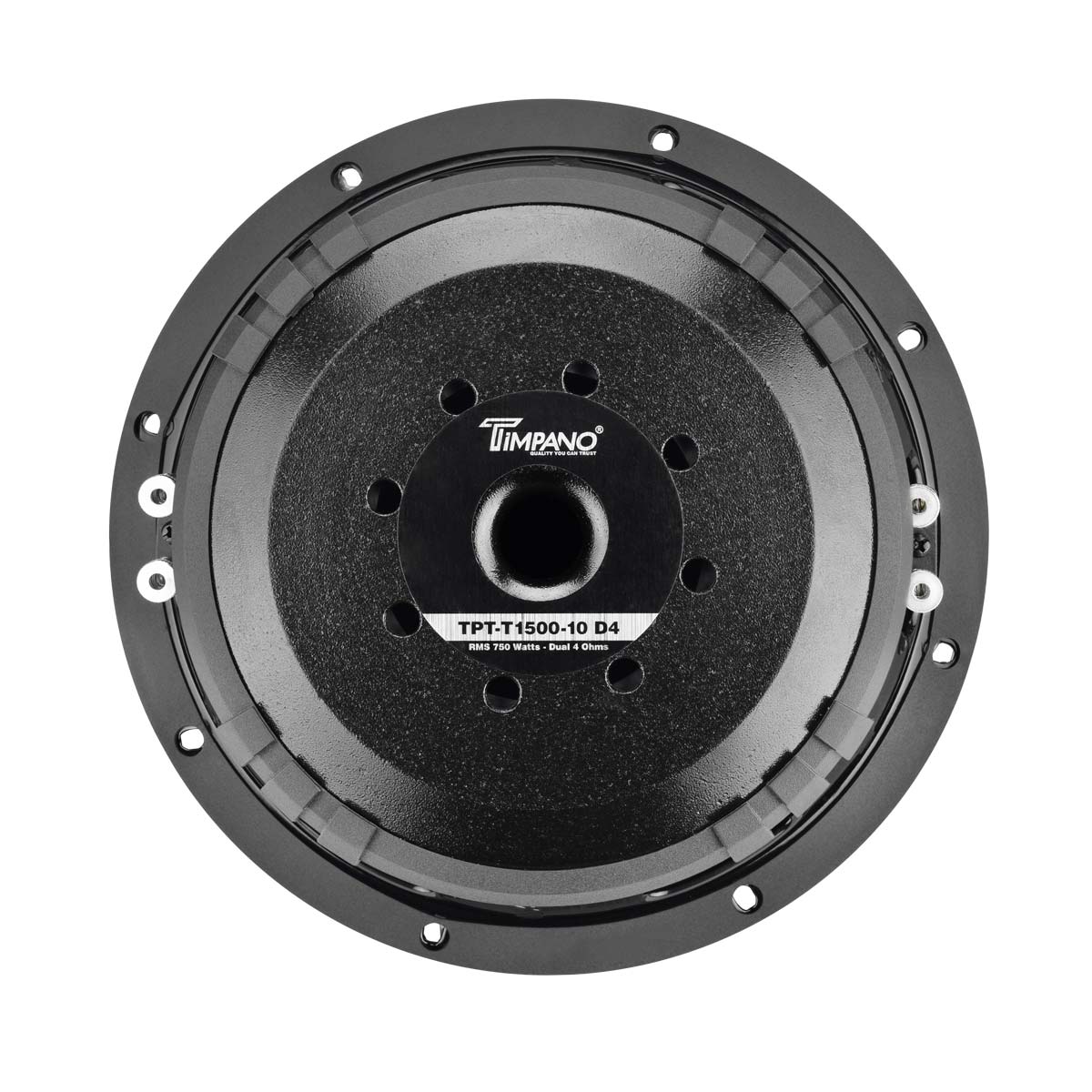

– Its motor force comes from a double ferrite magnet covered by a rubber Timpano Boot on a heavy gauge stamped steel basket
– With a total weight of 21.72 Lbs this bass machine will reproduce low-end frequencies with authority.

All the top quality components featured in this sub, as well as its advanced 3-way air flow cooling system, are what ultimately allow for the incredible responsiveness & power handling.

Timpano T1500 series subwoofers will play deeper, with more dynamic range, and increase output after you properly break in your subwoofer. Its suspension is designed to provide a high level of excursion and linear control in ported boxes. A brand-new sub is always a little stiff but with a proper break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones.

Technical Details

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 9.29 Liters
  • Excursion (mathematical)**
    • Xmax
    • 16 mm
  • Free Air Resonance
    • Fs
    • 43 Hz
  • Mechanical Factor
    • Qms
    • 7.80
  • Electrical Factor
    • Qes
    • 0.64
  • Total Factor
    • Qts
    • 0.59
  • BI Factor
    • Bl
    • 7.81 Tm
  • Max Mechanical Excursion
    • Xmech
    • 22 mm
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

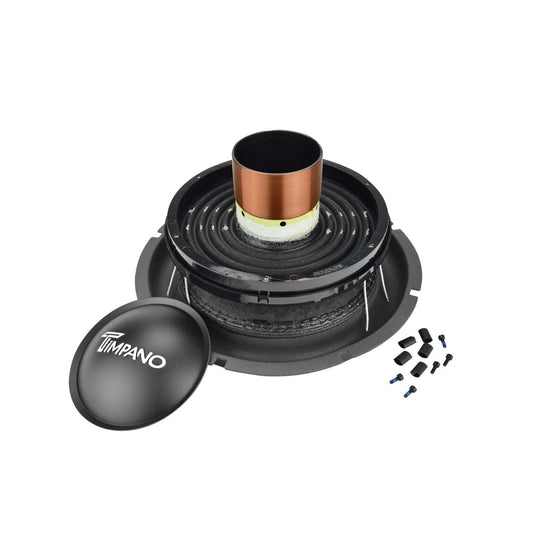

Repair Parts

  • TPT-RPT1500-10 D4

    TPT-RPT1500-10 D4

    Price:
    Regular price $51.95
    Regular price $64.94 Sale price $51.95
    Sale
