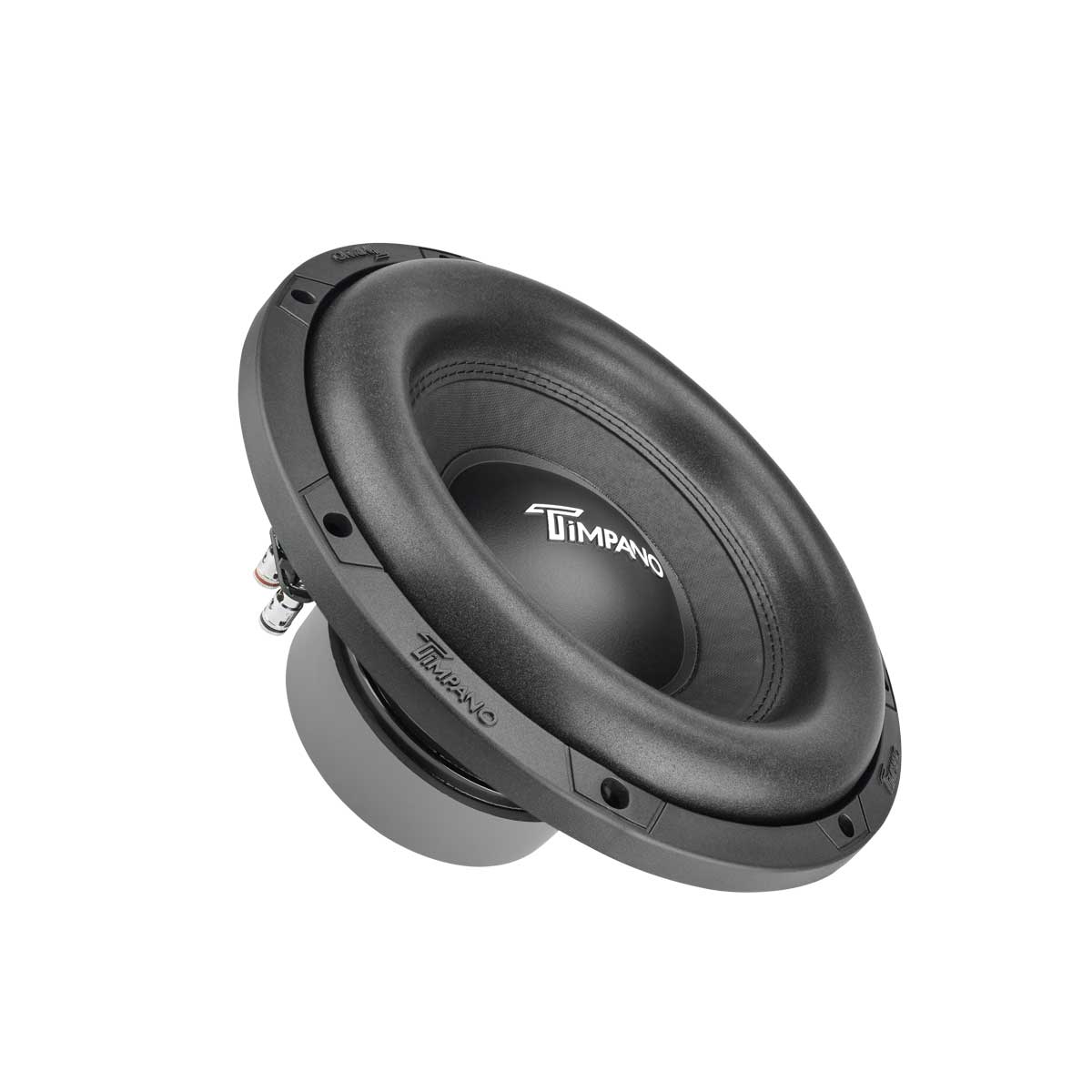

TPT-T1000-12 D4 Subwoofer

TPT-T1000-12 D4 Subwoofer

SKU: SKU:TPT-T1000-12 D4

Skip to product information

TPT-T1000-12 D4 Subwoofer

TPT-T1000-12 D4 Subwoofer

SKU: SKU:TPT-T1000-12 D4

  • 1200 Watts Max Power
  • 600 Watts RMS Power
  • Impedance: Dual 4 Ohm
  • 2.4″ Voice Coil 4-Layer
  • Frequency Response: 20 Hz – 280 Hz
  • Fs: 32 Hz
$89.95
$124.94

In stock

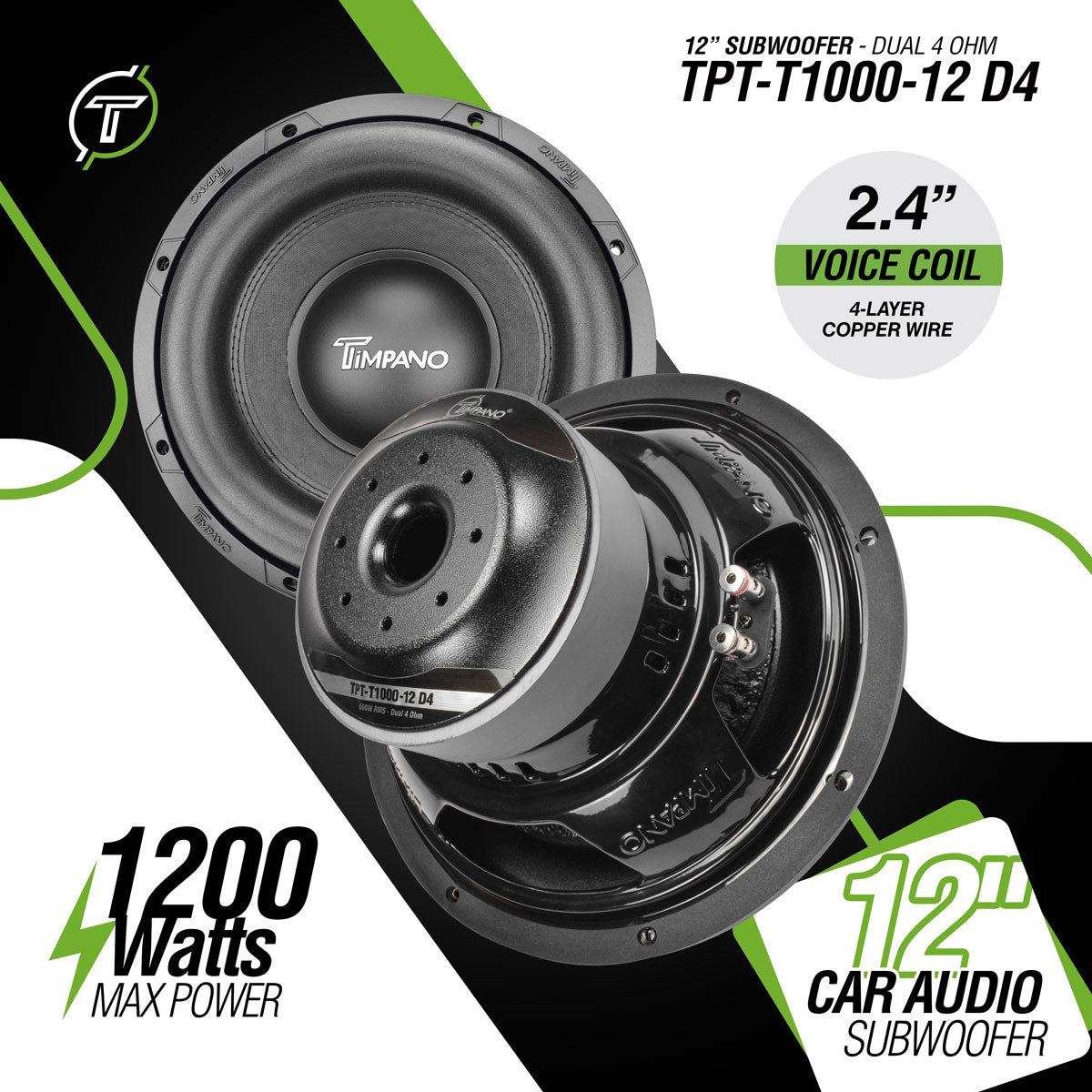

  • 12″ Subwoofer
  • 1200 Watts Max
  • Dual 4 Ohm
  • 1200 Watts Max Power
  • 600 Watts RMS Power
  • Impedance: Dual 4 Ohm
  • 2.4″ Voice Coil 4-Layer
  • Frequency Response: 20 Hz – 280 Hz
  • Fs: 32 Hz

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

Timpano 12″ Car Audio Subwoofer 1200 Watts Dual 4 Ohm TPT-T1000-12 D4 Deep Low Tones– 4-Layer 2.4″ Copper Wire Voice Coil– Oversized Single Magnet Design– Entry-Level, low tone bass

Timpano T1000 is all about deep low tones for small efficient systems. These subs deliver incredible low tones with a small amount of power, This keeps electrical upgrades minimal with less added strain on the vehicle. With high energy, oversized single magnet motor paired with a high foam surround stitched to a heavy-duty competition-grade pressed paper cone, it allows this woofer to play the low notes it was designed for.

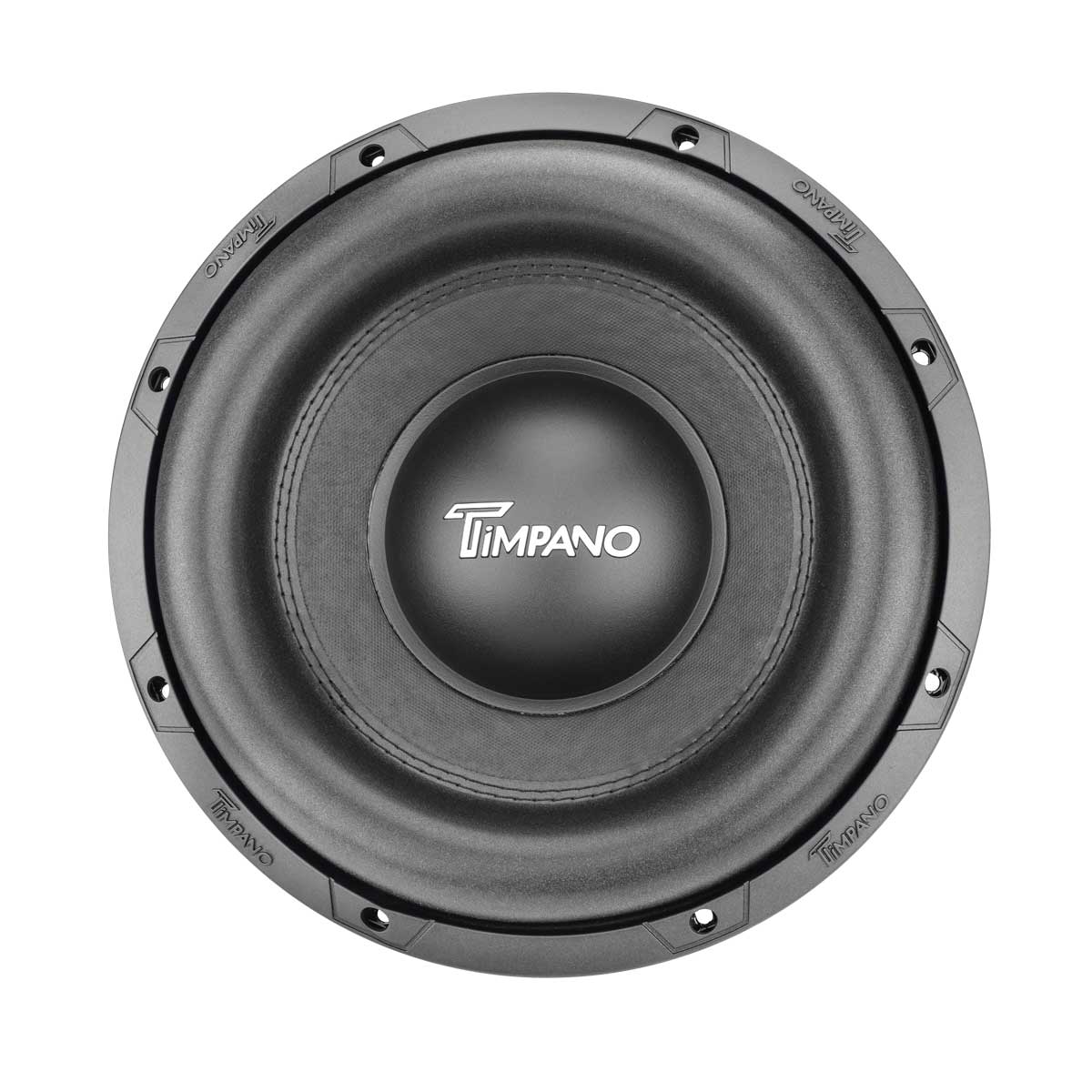

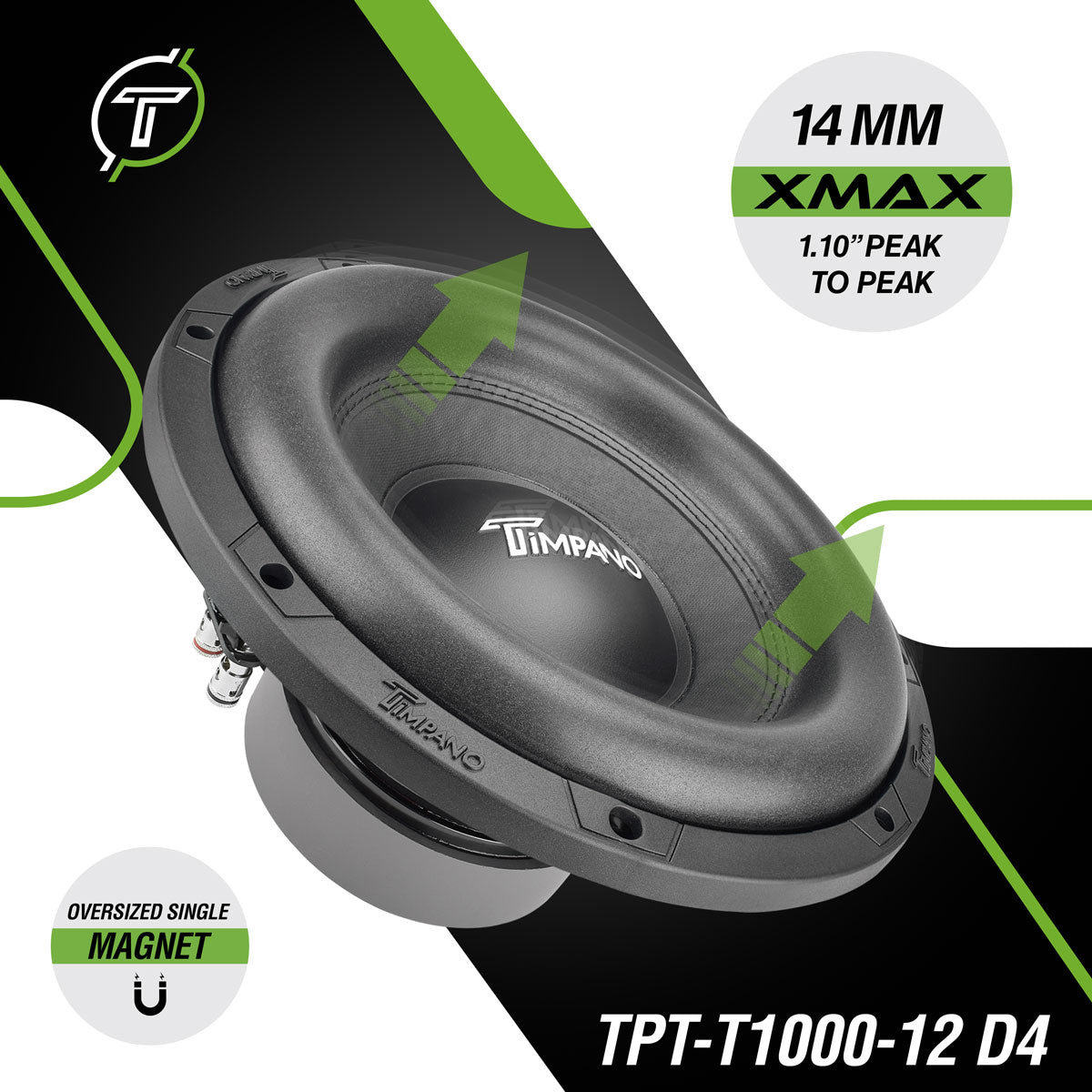

– Competition Grade Pressed Paper Cone with Flexible High Foam Surround capable of 14 mm Xmax – 1.10″ Peak to Peak Excursion before damage
– Its efficient 2.4″ voice coil is wound in 4 layers at 36 mm height of pure copper wire, giving reliable performance at 600 Watts RMS

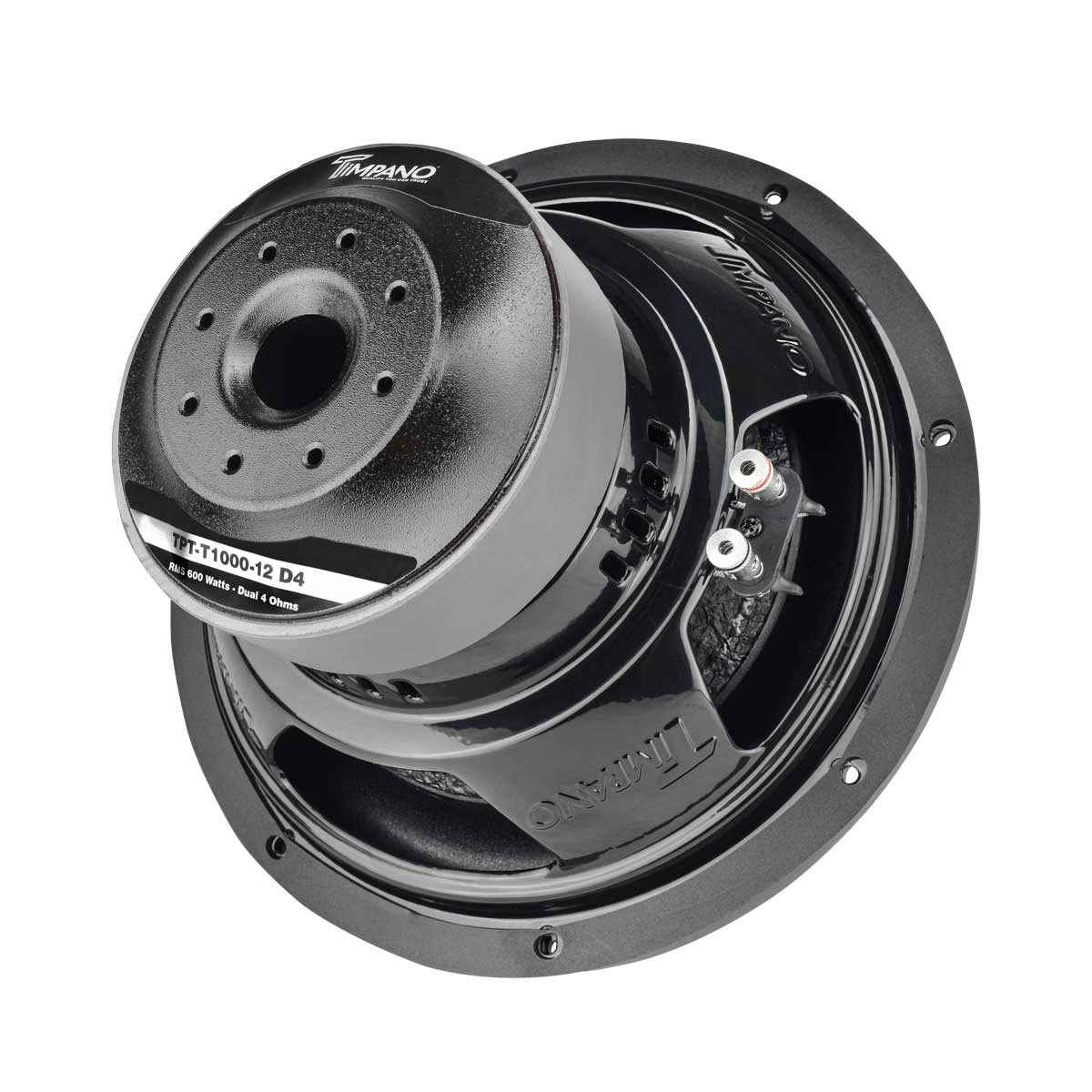

– Its motor force comes from a single oversized 40 mm height magnet on a heavy gauge stamped steel basket
– With a total weight of 15.00 Lbs this entry-level subwoofer is the perfect choice for the basshead on a budget

All the top quality components featured in this sub, as well as its advanced 3-way air flow cooling system, are what ultimately allow for the incredible responsiveness & power handling.

Timpano T1000 series subwoofers will play deeper, with more dynamic range, and increase output after you properly break in your subwoofer. Its suspension is designed to provide a high level of excursion and linear control in ported boxes. A brand-new sub is always a little stiff but with a proper break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones.

Technical Details

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 39.32 Liters
  • Excursion (mathematical)**
    • Xmax
    • 14 mm
  • Free Air Resonance
    • Fs
    • 32 Hz
  • Mechanical Factor
    • Qms
    • 7.32
  • Electrical Factor
    • Qes
    • 0.72
  • Total Factor
    • Qts
    • 0.65
  • BI Factor
    • Bl
    • 9.88 Tm
  • Max Mechanical Excursion
    • Xmech
    • 20 mm
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
