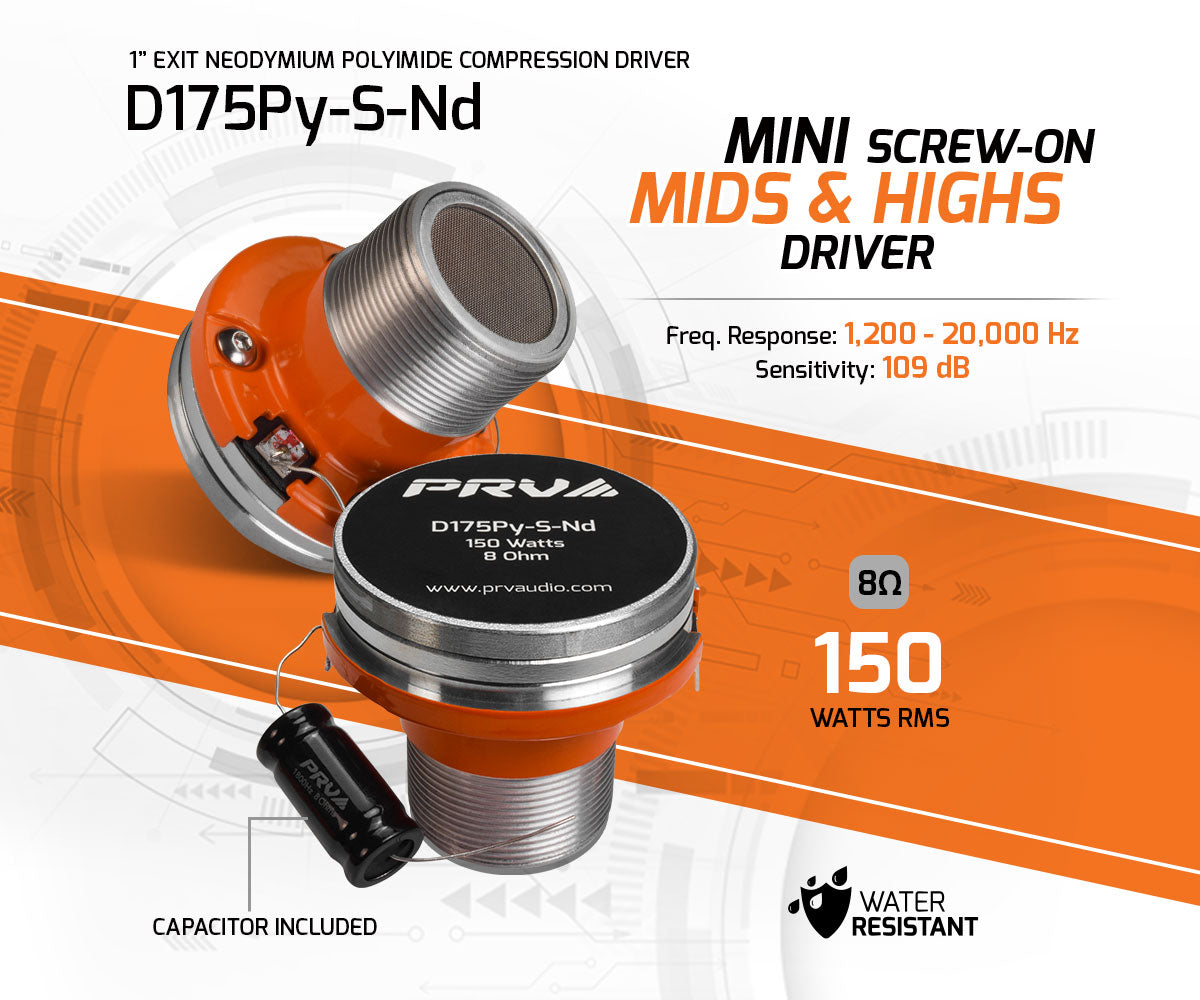

PRV D175Py-S-Nd Driver

PRV D175Py-S-Nd Driver

SKU:

New

PRV D175Py-S-Nd Driver

PRV D175Py-S-Nd Driver

SKU:

  • 1” Mids & Highs Driver
  • Polyimide Diaphragm
  • 109 dB – 150 Watts
$87.39

Out of stock

  • 1” Mids & Highs Driver
  • Polyimide Diaphragm
  • 109 dB – 150 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

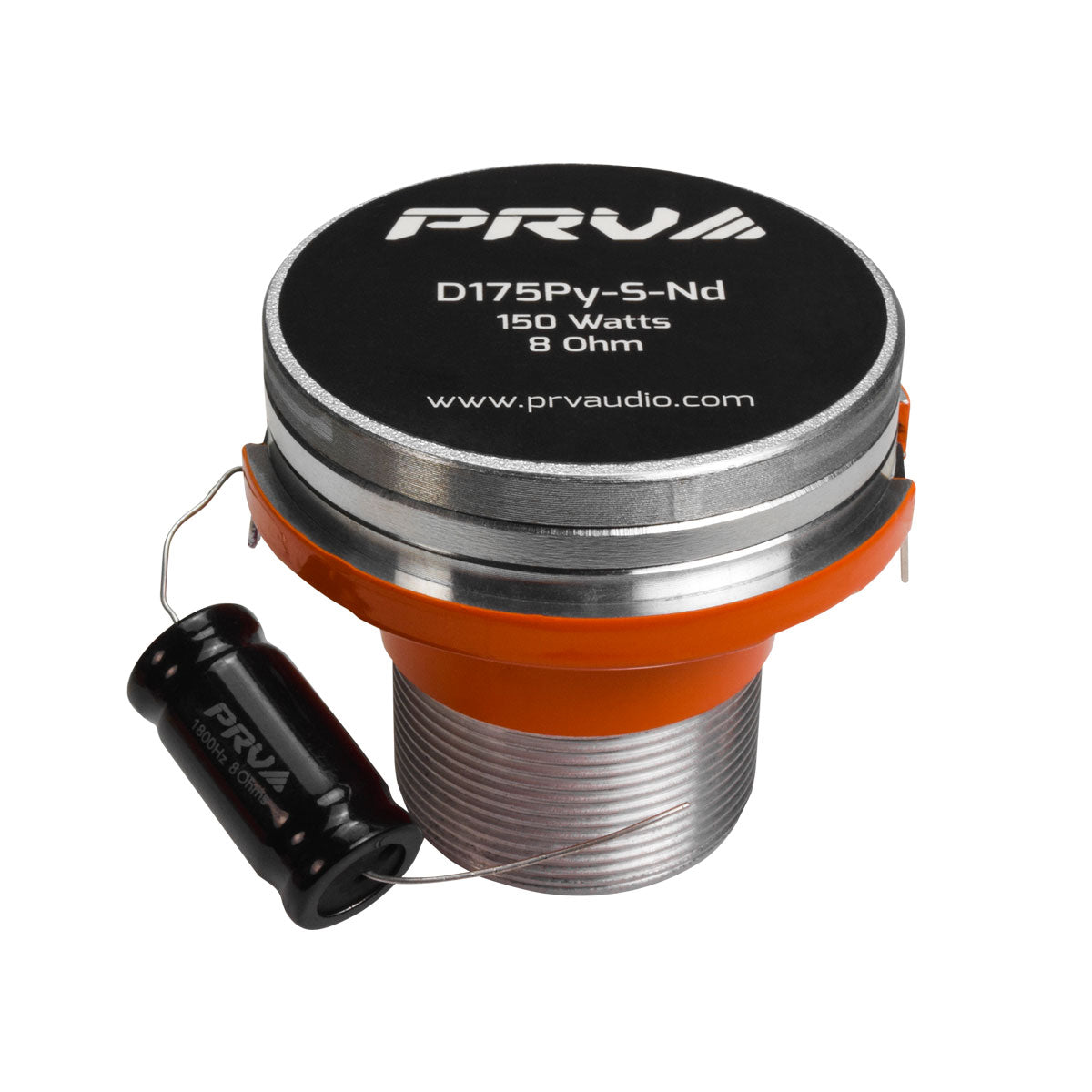

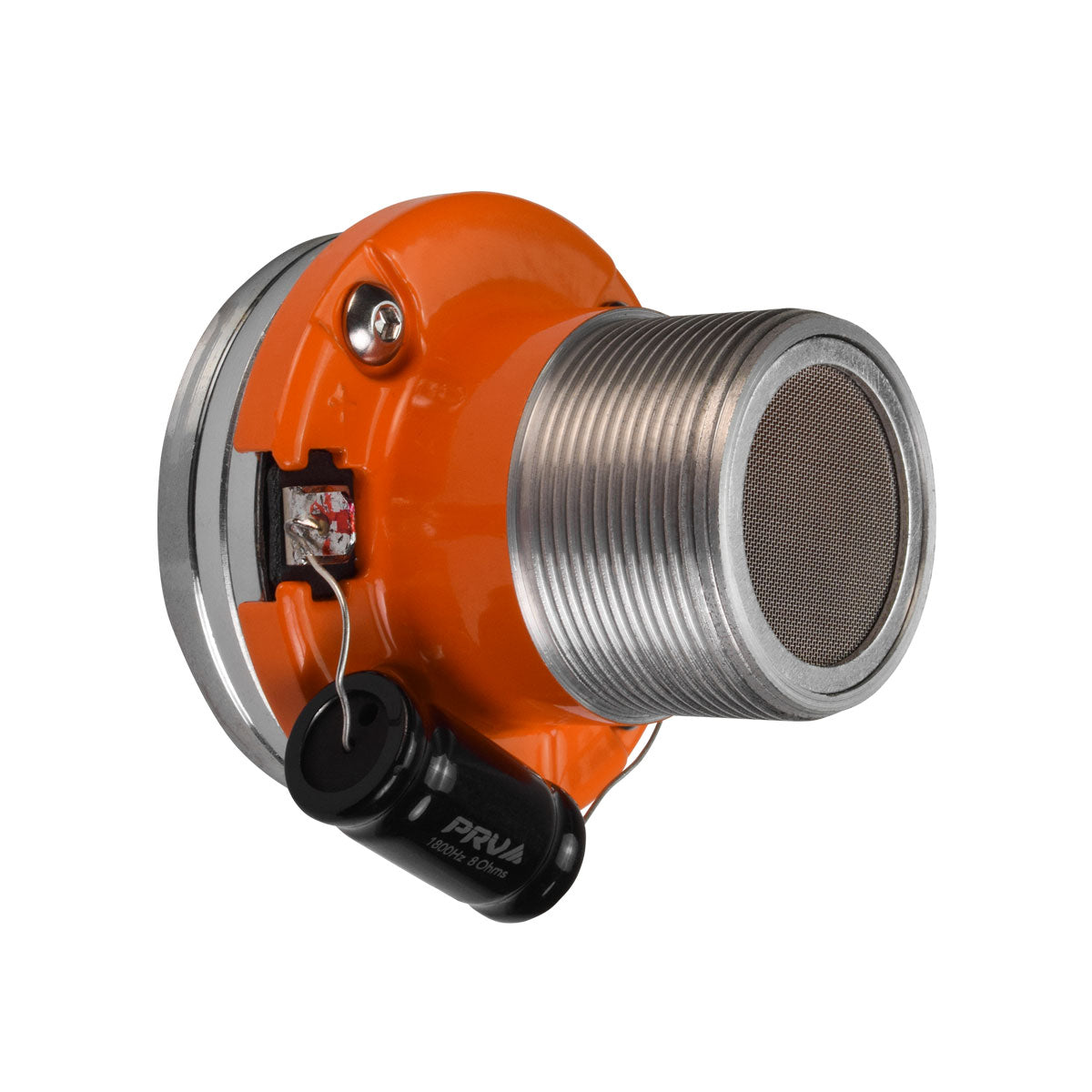

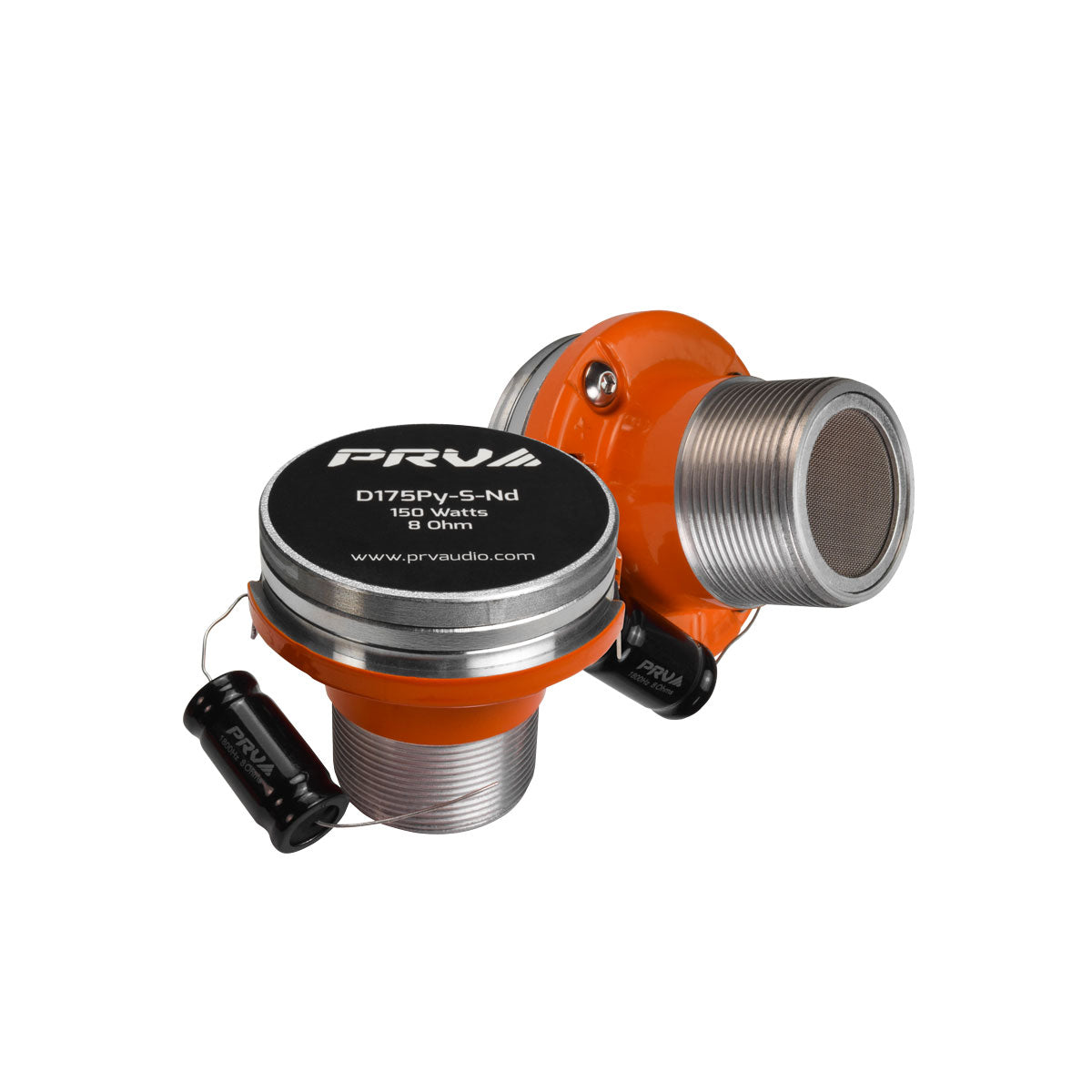

The D175Py-Nd-S is a Mini Mids & Highs Driver featuring a unique Polyimide diaphragm with an 8 Ohm voice coil.

This is a top-of-the-line compression driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

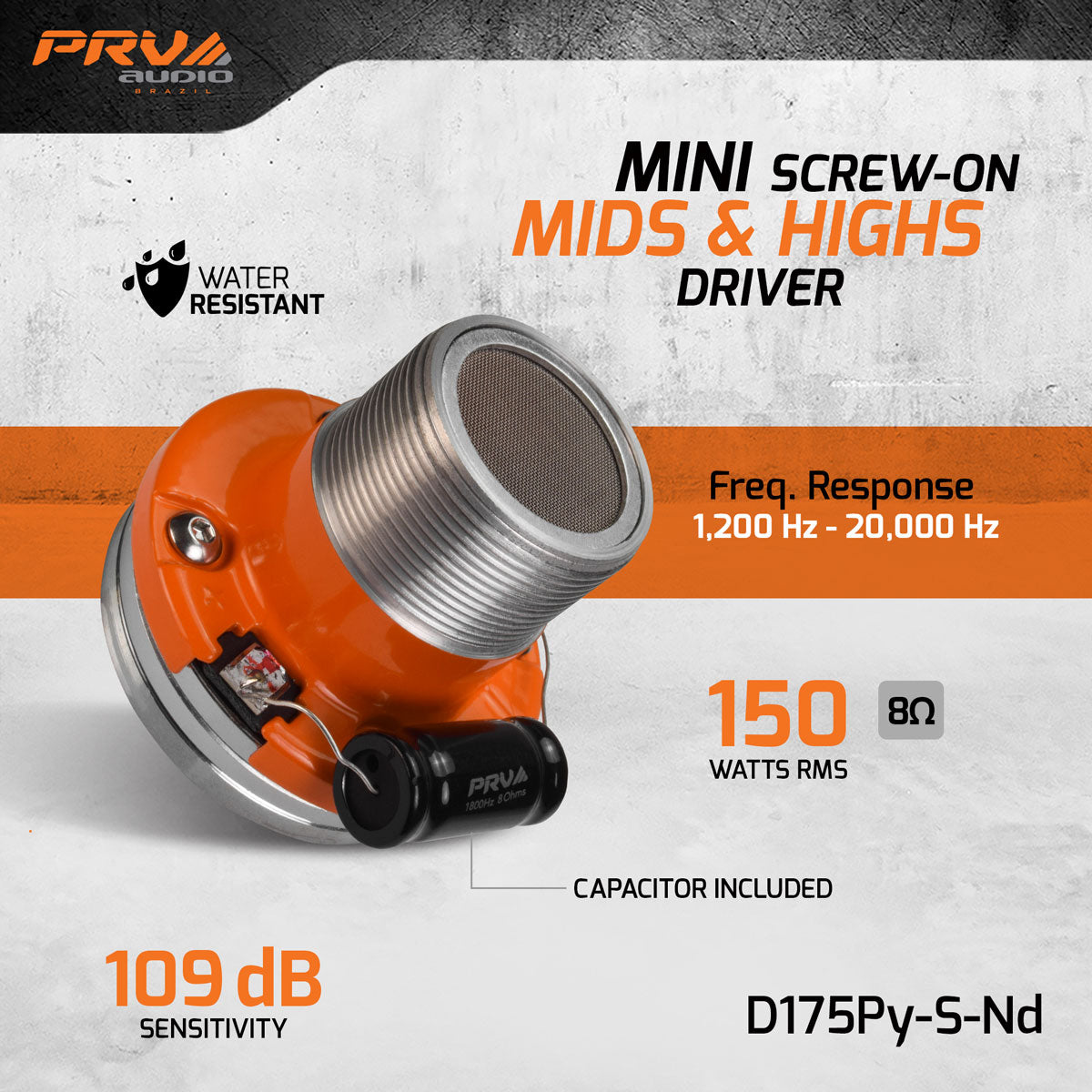

  • Crystal clear natural sound with wider response from 1,200 to 20,000 Hz - Polyimide diaphragm is a new technology that supersedes titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
  • Polyimide diaphragm with 1″ Voice Coil, providing high output along with excellent efficiency – 109 dB Sensitivity
  • Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
  • Mini neodymium driver, ideal for tight spaces, Great choice for custom car audio door panels where the space is limited. 8 Ohm voice coil making it easier to have multiple drivers wired to one amplifier.
  • The D175Py-Nd-S is manufactured with a standard 1 3/8” screw for easy replacement with current 1” screw-on horns

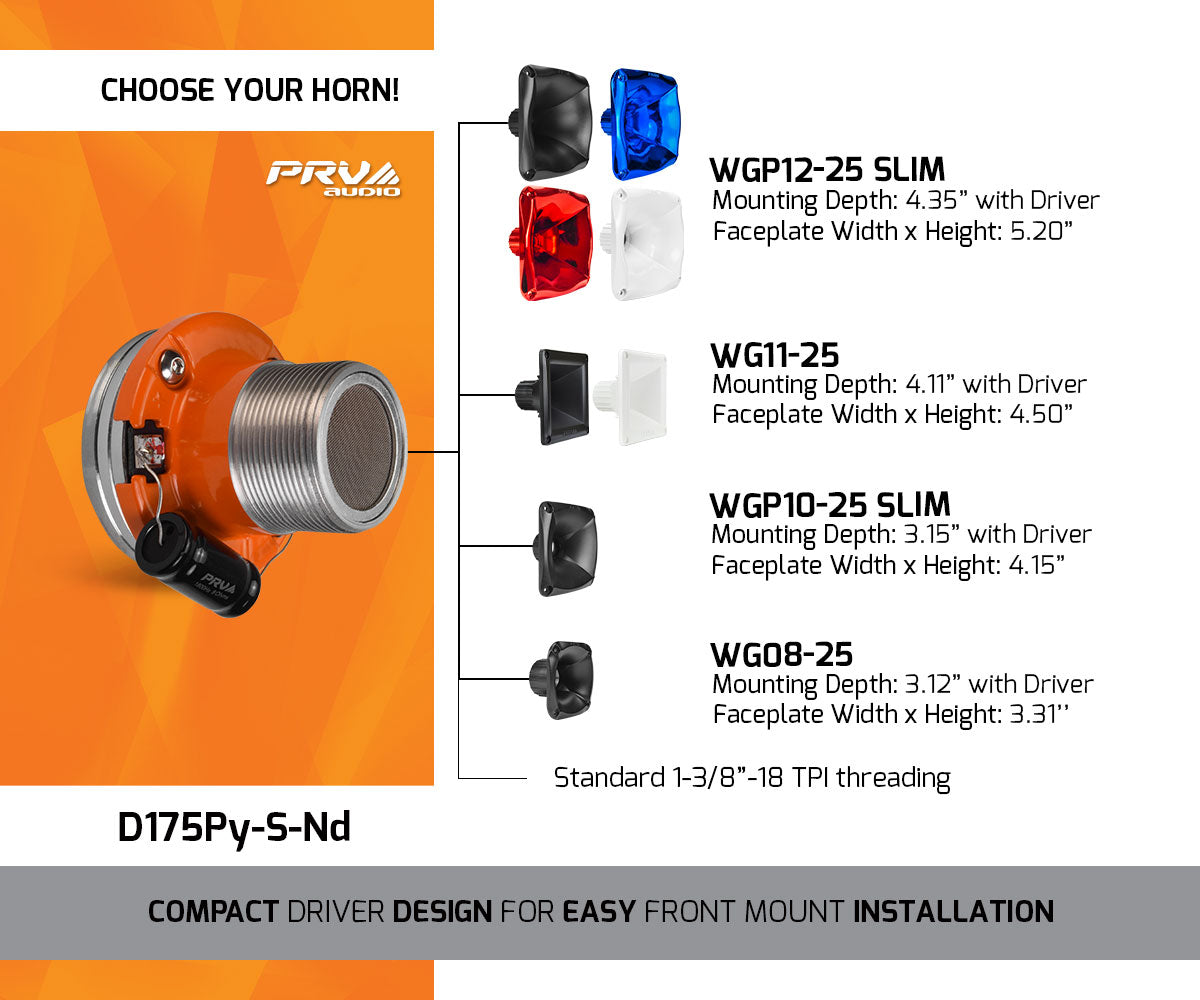

The small diameter of the driver allows for front mounting, making it a very popular choice in car audio builds for its easy installation, without having to detach the driver from the horn.The WGP12-25 SLIM is the ideal horn, when mounting depth is an issue, and you need a shallow horn with high output performance.

The WGP10-25 SLIM is a mid size horn that combines a small faceplate and slim profile.

The WG08-25 is mini ultra compact horn design that fits perfect on this driver, best option to mount drivers between speakers.

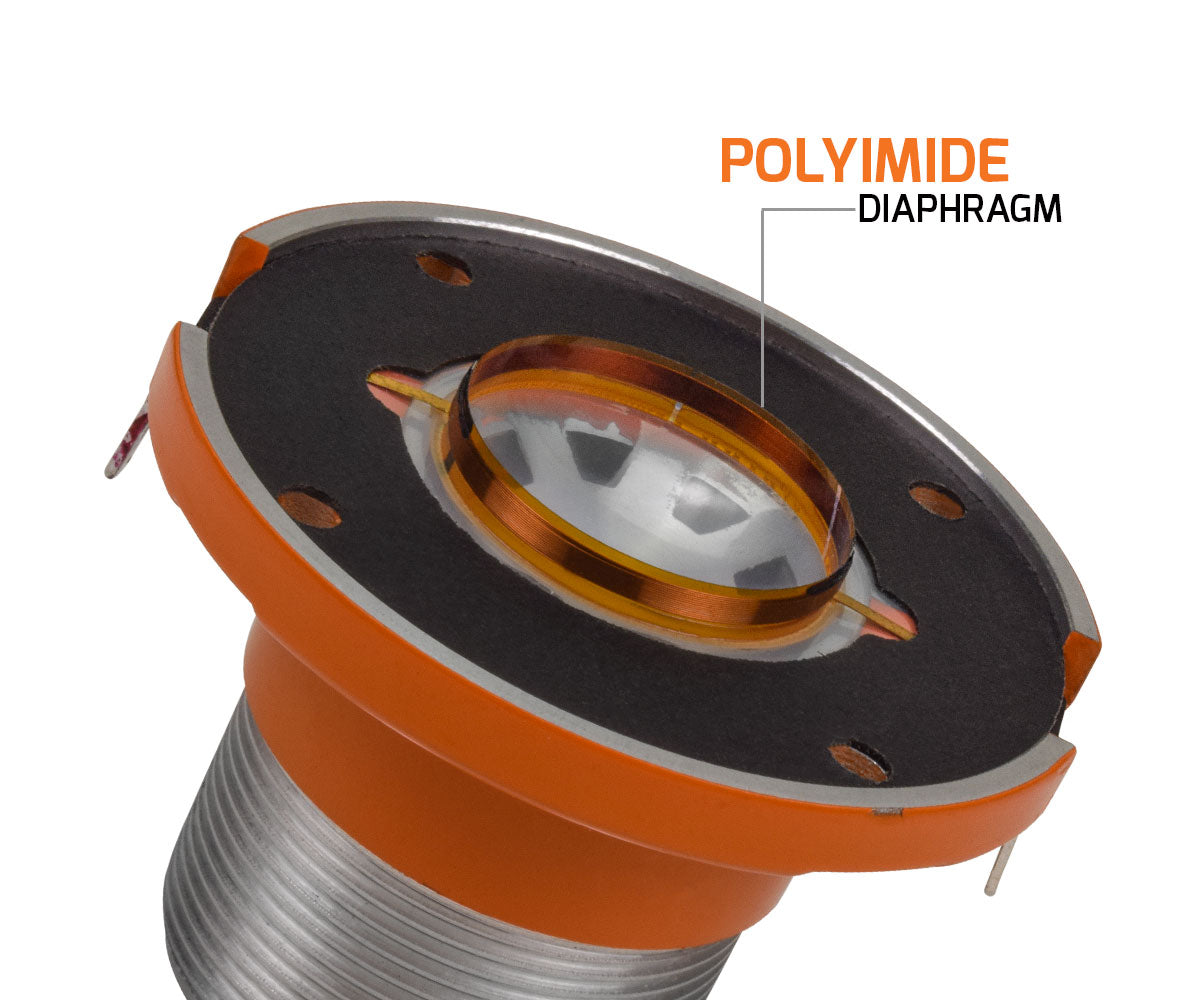

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. This driver is built to resist the elements, perfect for outdoor use. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.

The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

PRV Mids & Highs Driver D175Py-Nd-S 1″ Exit Screw-On 150 Watts 8 Ohm Polyimide

4 Drivers – 1x MDX1200.2 2 Ohm, 4 speakers in parallel
8 Drivers – 1x QS3000 1 Ohm, 8 speakers in parallel

Recommended Crossover Settings:
The polyimide diaphragm is attached to a 1″ diameter copper-clad aluminum wire with Kapton® former for a 150 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

• 1800 Hz at 12 dB per octave filter Crossover / BT12
• 1700 Hz at 18 dB per octave filter Crossover / BT18

Technical Details

GENERAL SPECIFICATIONS

  • Imdedance 8 Ohm
  • Exit Throat Diameter 1" (25.4 mm)
  • Type High Pass
  • Nominal Impedance 8 Ohm
  • Recommended High Pass Filter 1200 Hz, 12 dB/oct
  • Nominal Power Handling* 75 Watts
  • Continuous Program Power (RMS)** 150 Watts
  • Rated AES Power Handling (RMS)** 75 Watts
  • Continuous Program Power (RMS)** 150 Watts
  • Program Power*** 150 Watts
  • Max Peak Power*** 300 Watts
  • Sensitivity 2.83V at 1m109 dB (2.83V/1m)
  • Recommended Hi Pass Crossover" "For Full Power Handling 1200 Hz, 12 dB/oct
  • Recommended Amplifier Impedance 8 Ohm
  • Frequency Response at -10dB 1,200 – 20,000 Hz
  • Voice Coil Diameter 1" (25 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton®
  • Diaphragm Polyimide
  • Flux Density 1.75 T

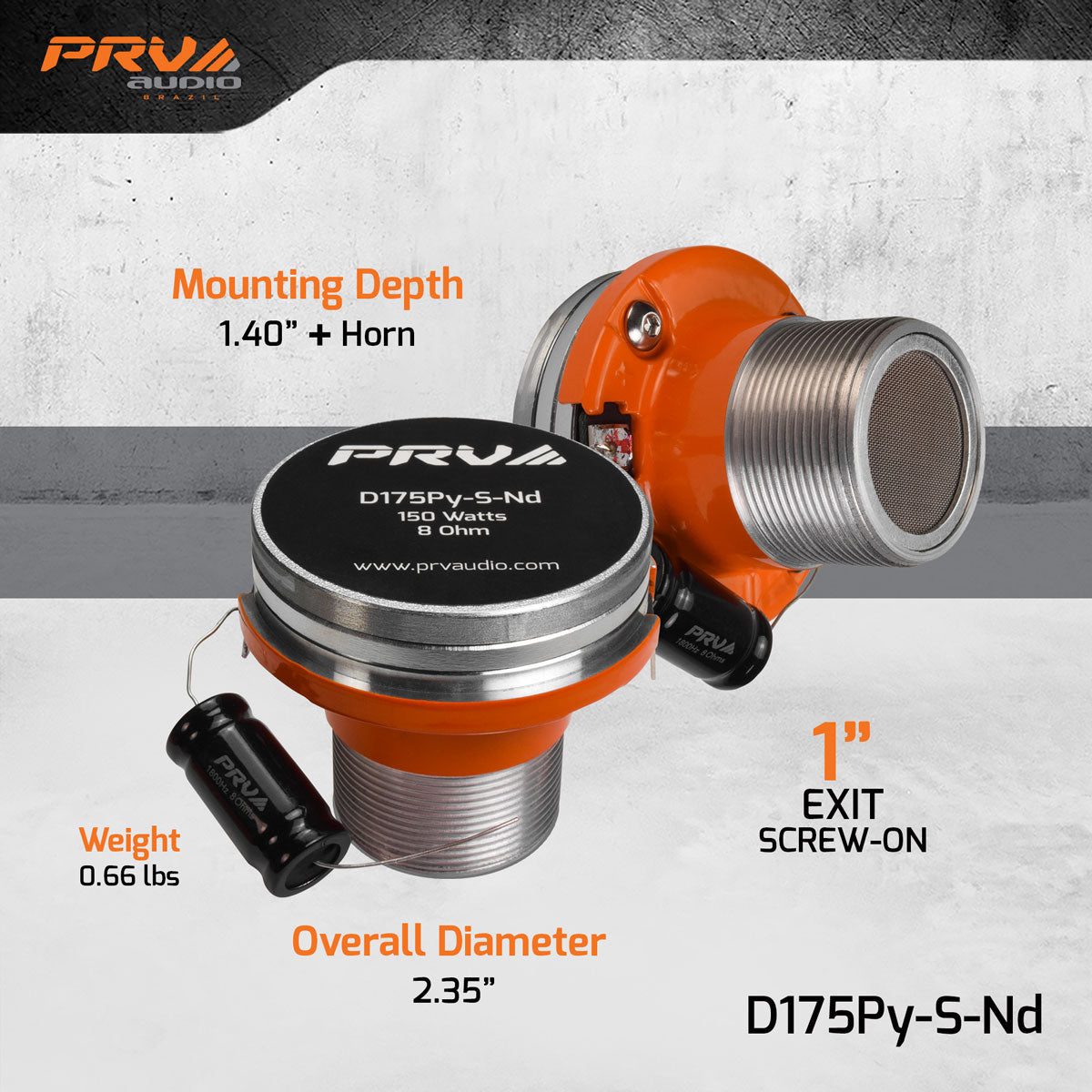

  • Dimensions (W x D x H) 2.36" × 2.07" × 2.36" (60 × 52.5 × 60 mm)
  • Weight 0.66 lbs (0.30 kg)
  • Magnet Type Neodymium
  • Octave (dB) 12

EXTRA INFO

PRV D175Py-S-Nd Driver DATASHEET Download
  • Overall Depth 2.07" (52.5 mm)
  • Overall Diameter 2.36" (60 mm)
  • Overall Width 2.36" (60 mm)
  • Overall Height 2.36" (60 mm)
  • Net Weight 0.66 lbs (0.30 kg)
  • Shipping Weight (pair) 1.54 lbs (0.70 kg)
  • Shipping Weight 0.77 lbs (0.35 kg)
  • Carton Dimensions WxLxH 2.56" × 2.56" × 2.36" (65 × 65 × 60 mm)
  • Overall Size 2.36" × 2.07" × 2.36" (60 × 52.5 × 60 mm)
PRV D175Py-S-Nd Driver DATASHEET Download
