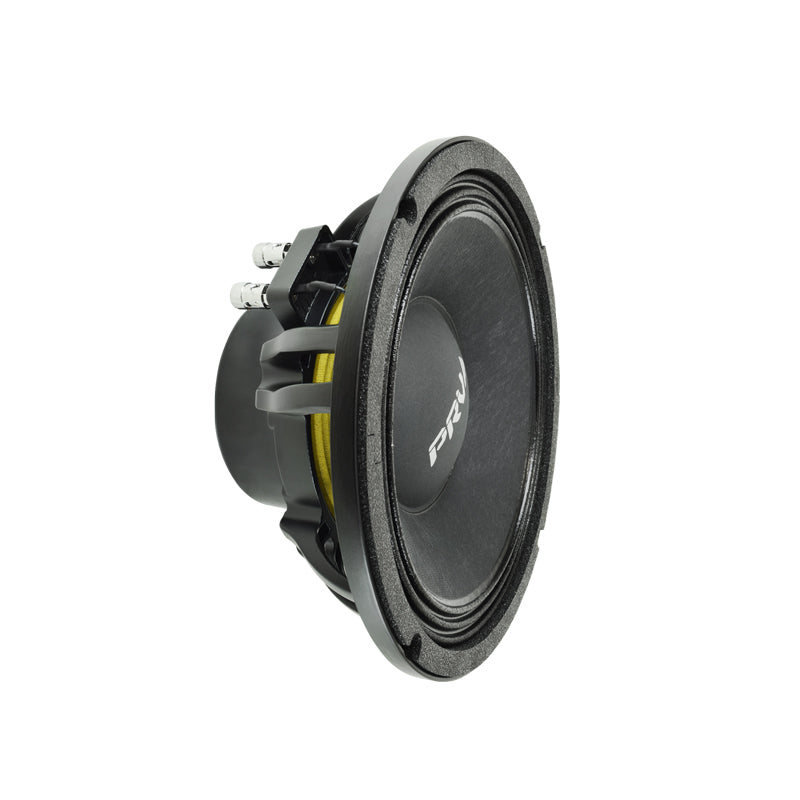

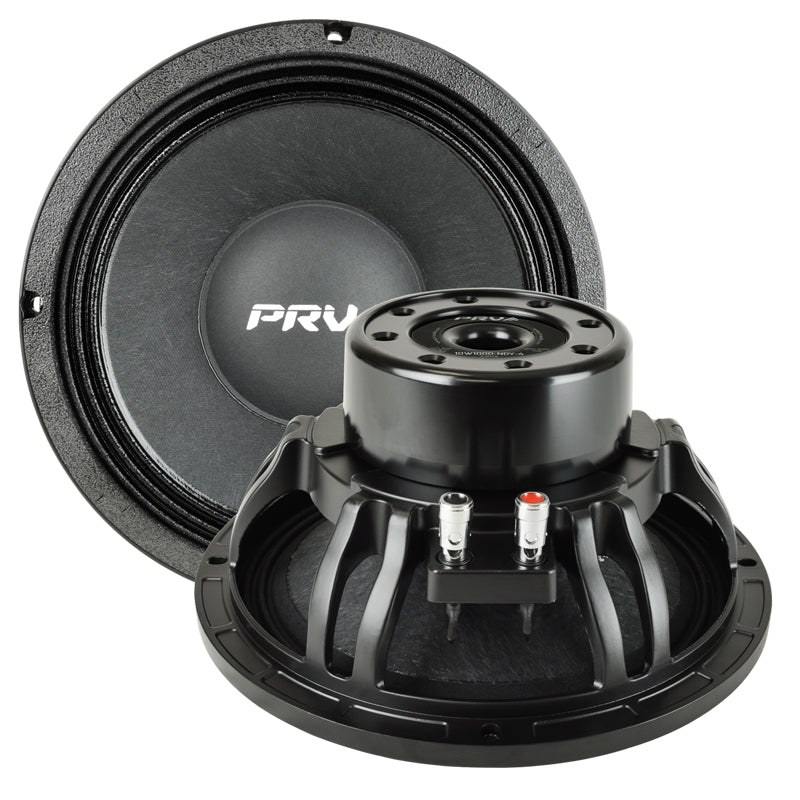

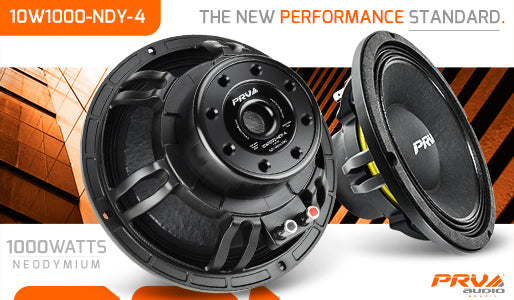

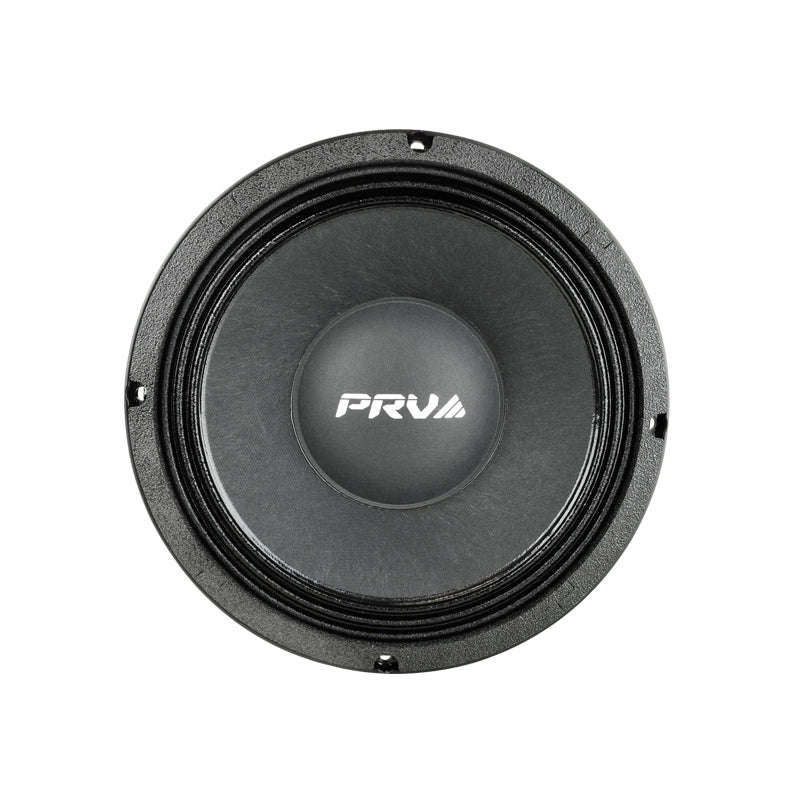

PRV 10W1000-NDY-4 Woofer

PRV 10W1000-NDY-4 Woofer

SKU: SKU:10W1000-NDY-4

Skip to product information

PRV 10W1000-NDY-4 Woofer

PRV 10W1000-NDY-4 Woofer

SKU: SKU:10W1000-NDY-4

  • 10″ Woofer – 4 Ohm
  • Neodymium Magnet
  • 97 dB – 1000 Watts
$199.91
$249.89

In stock

  • 10″ Woofer – 4 Ohm
  • Neodymium Magnet
  • 97 dB – 1000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

PRV Audio’s 10W1000-NDY-4 Neodymium woofer loudspeakers were carefully crafted to reproduce a natural, smooth sound, while remaining dynamic. The PRV Audio 10W1000-NDY-4 is the evolution of our mid bass loudspeakers, our R&D department pushed the output limits on a mid bass driver, creating this unique sound reproduction.

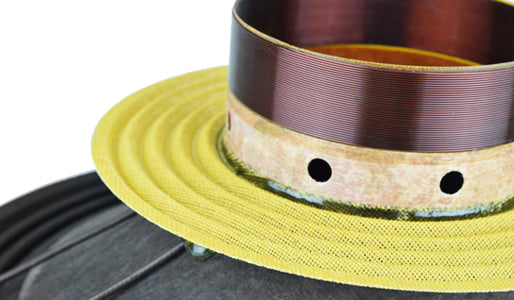

  • 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 4 ohm
  • 500 watts continuous program power rating makes high acoustical output
  • 36 mm peak-to-peak excursion before damage
  • 97 dB sensitivity, which makes it capable of generating a lot of output!
  • Detailed vocal reproduction on a wide frequency band response

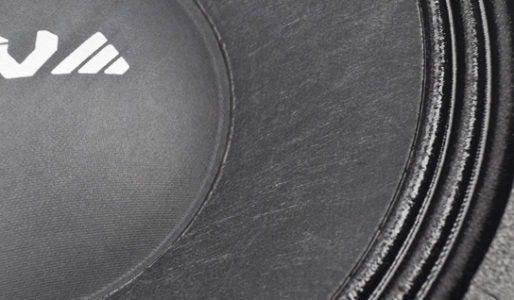

To get superior fidelity, the special composite cone is built with non-pressed paper for reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.

The 10W1000-NDY-4 is an extremely efficient 10″ woofer from PRV Audio. To stand up to the use and abuse of the professional sound environment we designed a 3″ CCAW voice coil that is wound inside-outside on a fiberglass former and features a generous 18 mm winding length for extended Xmax and less distortion. (with a suggested 80 Hz, 12 dB/octave high pass filter in place)!

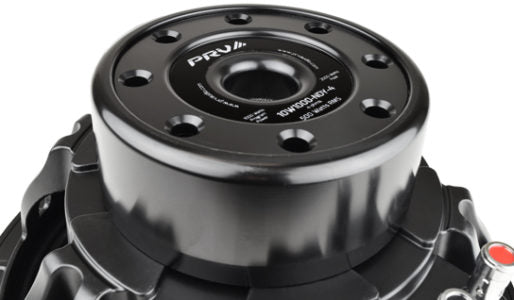

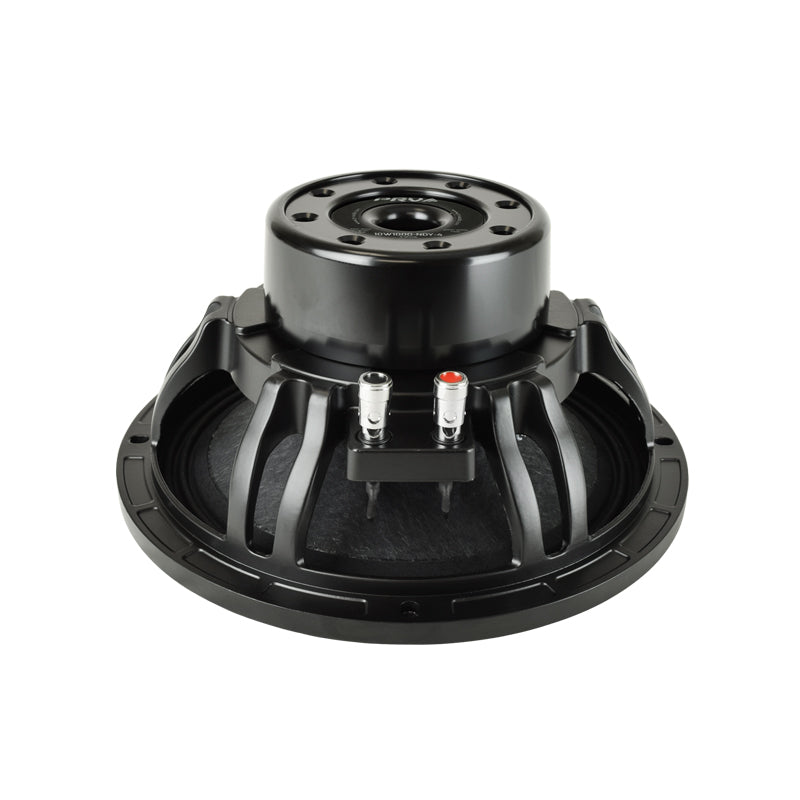

Its powerful optimized neodymium motor is vented to provide excellent cooling.

The large 3″ voice coil allows for the high 1,000-watt power handling, and warrants the outstanding cooling system implemented into the motor.

High sensitivity rating of 97 dB 1W/1M which makes it capable of generating a lot of output!

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 10″ (254 mm)
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 500 Watts
  • Program Power*** 1000 Watts
  • Sensitivity 2.83V at 1m97 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 80 Hz** **12db Per Octave Crossover

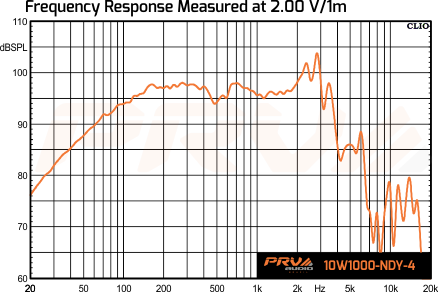

  • Frequency Response at -10dB 50 – 5,000 Hz
  • Voice Coil Diameter 3″ (76 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth18.0 mm
  • Former Material Fiber Glass
  • Magnetic Gap Depth 10.0 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 46.36 l
  • Excursion (mathematical)**
    • Xmax
    • 6.5 mm

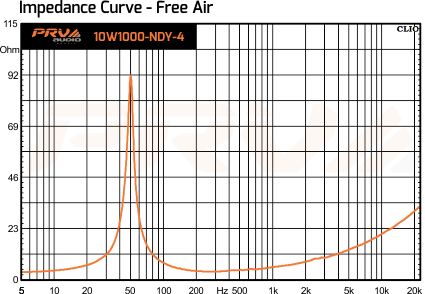

  • Free Air Resonance
    • Fs
    • 50.19 Hz
  • Mechanical Factor
    • Qms
    • 8.37
  • Electrical Factor
    • Qes
    • 0.28
  • Total Factor
    • Qts
    • 0.27
  • Cone Area
    • Sd
    • 380 cm²
  • Mechanical Mass
    • Mms
    • 43.36 g
  • BI Factor
    • Bl
    • 12.03 Tm
  • Dc Resistance
    • Re
    • 3.0 Ohm
  • Inductance
    • Le
    • 0.47 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 39.17 g
  • Mechanical Compliance
    • Cms
    • 0.232 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

  • Overall Depth 5.00” (127 mm)
  • Mounting Depth 4.49” (114 mm)
  • Overall Diameter 10.27” (261 mm)
  • Front Mount Baffle Cutout 9.05” ( 230 mm)
  • Net Weight 8.38 Lbs (3.8 kg)
  • Shipping Weight 9.70 Lbs (4.4 kg)
  • Carton Dimensions WxLxH 11.2” x 11.2” x 5.71” (285 x 285 x 145 mm)

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

  • Rubber Cement Speaker Glue

    BLACK CEMENT GLUE

    Price:
    Regular price $19.99
    Regular price Sale price $19.99
    Out of Stock

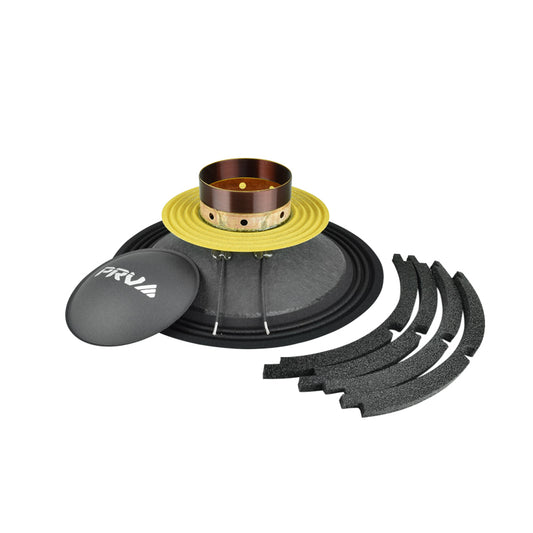

  • PRV RK10W1000-NDY-4
