PRV 12MR2000-NDY Midrange

PRV 12MR2000-NDY Midrange

SKU: 12MR2000-NDY

PRV 12MR2000-NDY Midrange

PRV 12MR2000-NDY Midrange

SKU: 12MR2000-NDY

  • 12″ Midrange – 8 Ohm
  • Neodymium Magnet
  • 98 dB – 2000 Watts
$269.91
$337.39

In stock
  • 12″ Midrange – 8 Ohm
  • Neodymium Magnet
  • 98 dB – 2000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The PRV Audio 12MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, chuchero boxes, custom car doors and stuntwalls.

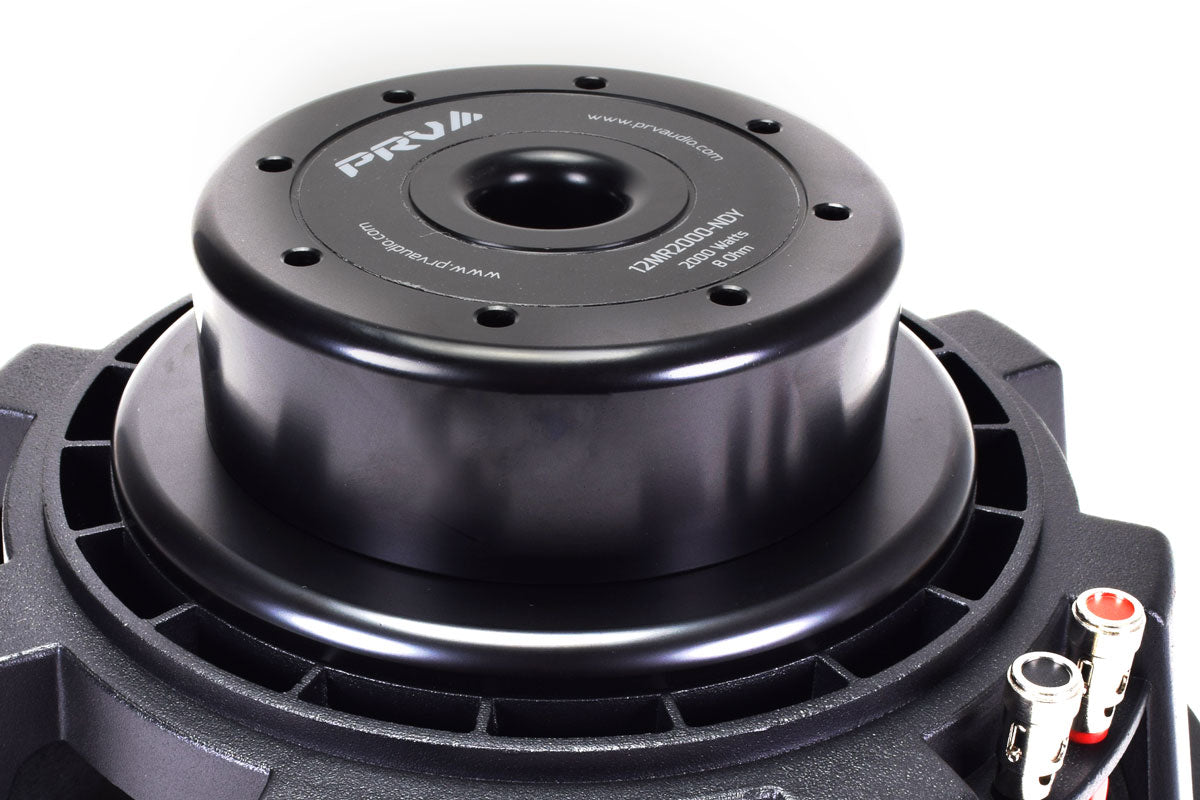

A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short of space.

  • 4″ Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance – 8 Ohm
  • One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 12″ midrange is one beast of a speaker!
  • Excellent performance in compact enclosures such as Chuchero® and custom car door panels.
  • During hard play, the large 4″ voice coil provides very high efficiency while providing smooth and accurate midbass response.
  • Built to perform vocals with punchy midbass, a great option for custom chuchero speaker box, where weight and performance needs to have the perfect balance.

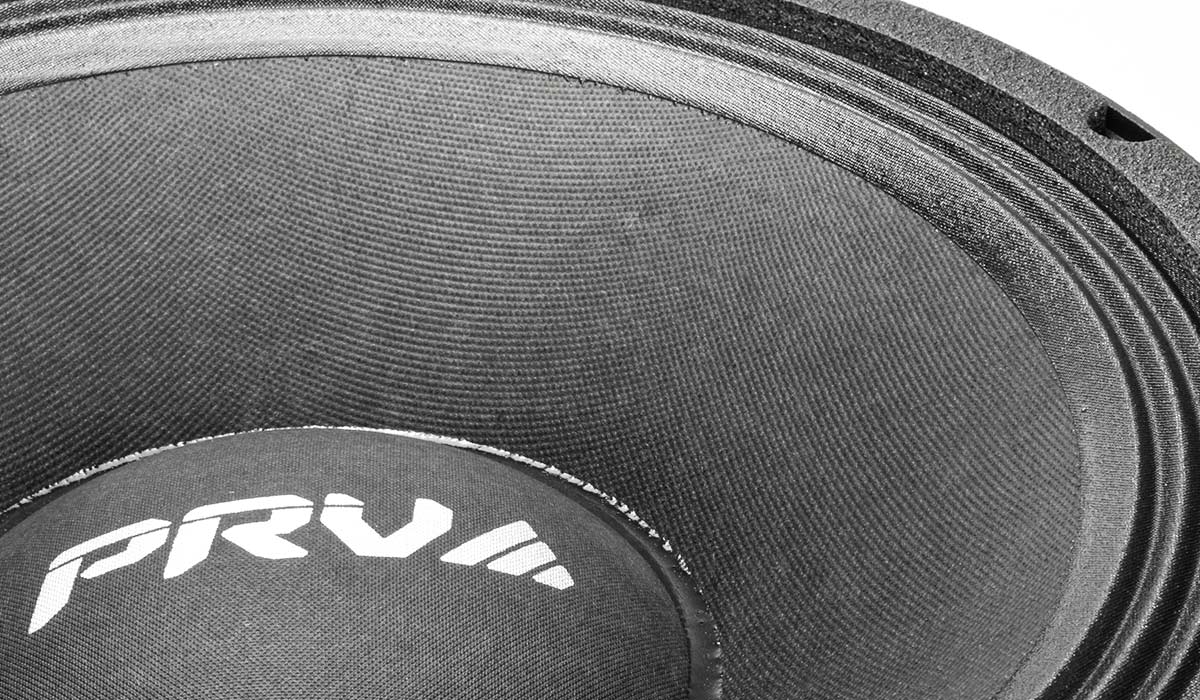

With excellent damping characteristics, the lightweight paper cone and accordion surround gives this mid smooth response up to 4,800 Hz for that incredibly clear vocal response that PRV midranges are known for.Developed to perform well in tight enclosures, its triple roll surround keeps its cone travel linear at high mibdass excursion.

Featuring a large 4″ voice coil, it provides exceptional sound clarity and ensures durability and consistent performance over time.

Featuring high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most musicologos and custom builders in the car audio.

The extensive venting through the motor and cast aluminum frame helps to dissipate that heat to keep power compression low even after extended periods of high output.

When it comes to custom chuchero speaker boxes, this midrange has been trusted by many musicologos in their HV systems, because of its large 4″ voice coil that can take 2000 watts at ease all day.

The PRV Audio 12MR2000-NDY speaker is the best option for keeping your chuchero boxes compact and light at the highest performance.

Although this is a very popular choice for speaker boxes, it can also be used as door speakers because of its great size to performance ratio.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 12″ (305 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 1000 Watts
  • Continuous Program Power (RMS)** 2000 Watts
  • Max Peak Power*** 4000 Watts
  • Sensitivity 2.83V at 1m98 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 145 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 68 – 4,800 Hz
  • Voice Coil Diameter 4″ (100 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth16.8 mm
  • Former Material Glass Fiber
  • Magnetic Gap Depth 9.0 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 48.16 l
  • Excursion (mathematical)**
    • Xmax
    • 6.15 mm
  • Free Air Resonance
    • Fs
    • 54.48 Hz
  • Mechanical Factor
    • Qms
    • 17.61
  • Electrical Factor
    • Qes
    • 0.35
  • Total Factor
    • Qts
    • 0.34
  • Cone Area
    • Sd
    • 573 cm²
  • Mechanical Mass
    • Mms
    • 81.11 g
  • BI Factor
    • Bl
    • 22.77 Tm
  • Dc Resistance
    • Re
    • 6.6 Ohm
  • Inductance
    • Le
    • 0.69 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 73.35 g
  • Mechanical Compliance
    • Cms
    • 0.105 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 12MR2000-NDY Midrange DATASHEET Download
  • Overall Depth 5.94” (151 mm)
  • Mounting Depth 5.51” (140 mm)
  • Overall Diameter 12.32” (313 mm)
  • Front Mount Baffle Cutout 11.12” (282.5 mm)
  • Net Weight 13.93 Lbs (6.32kg)
  • Shipping Weight 18.27 Lbs (8.29 kg)
  • Carton Dimensions WxLxH 14.3” x 14.3” x 8.1” (363 x 363 x 205mm)
PRV 12MR2000-NDY Midrange DATASHEET Download
