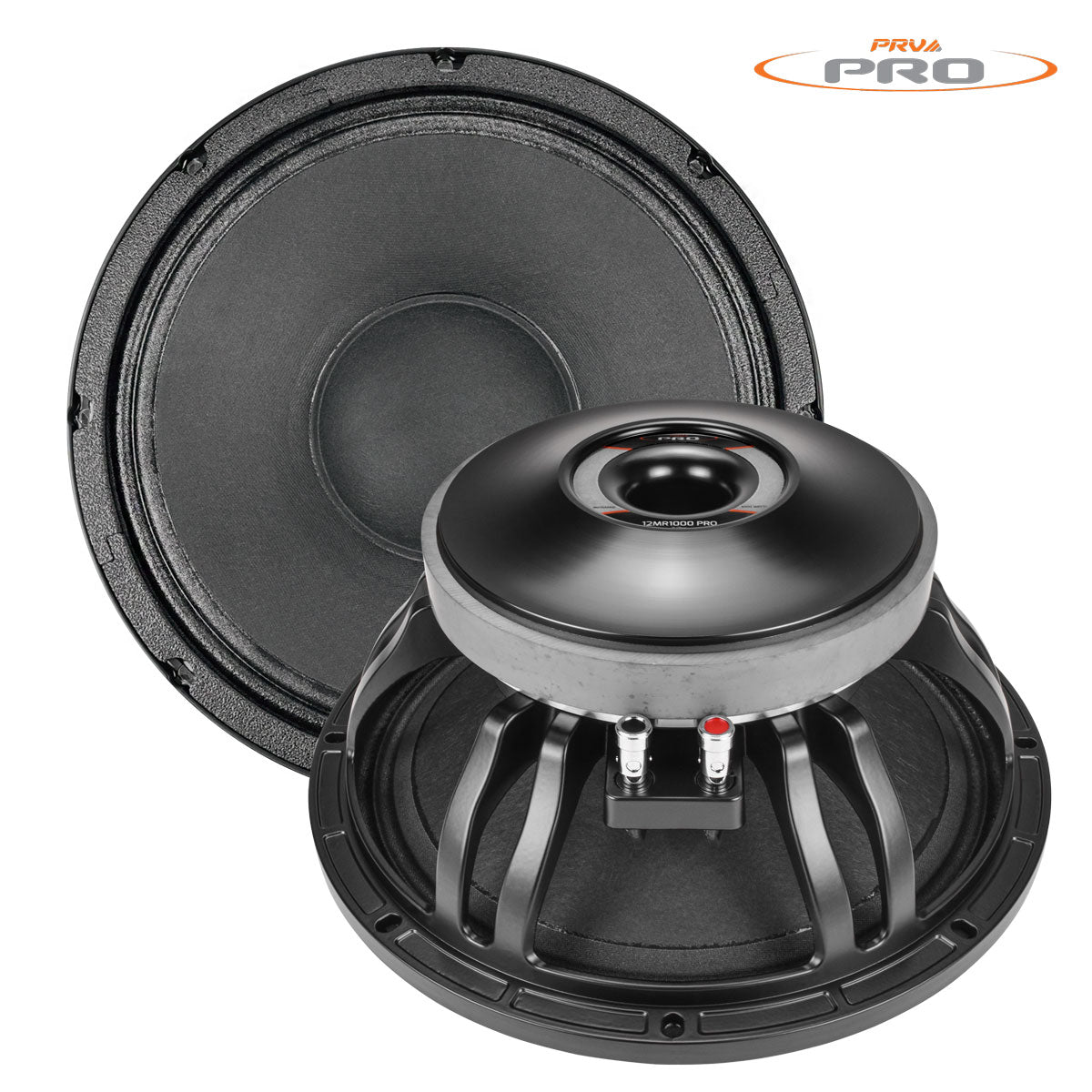

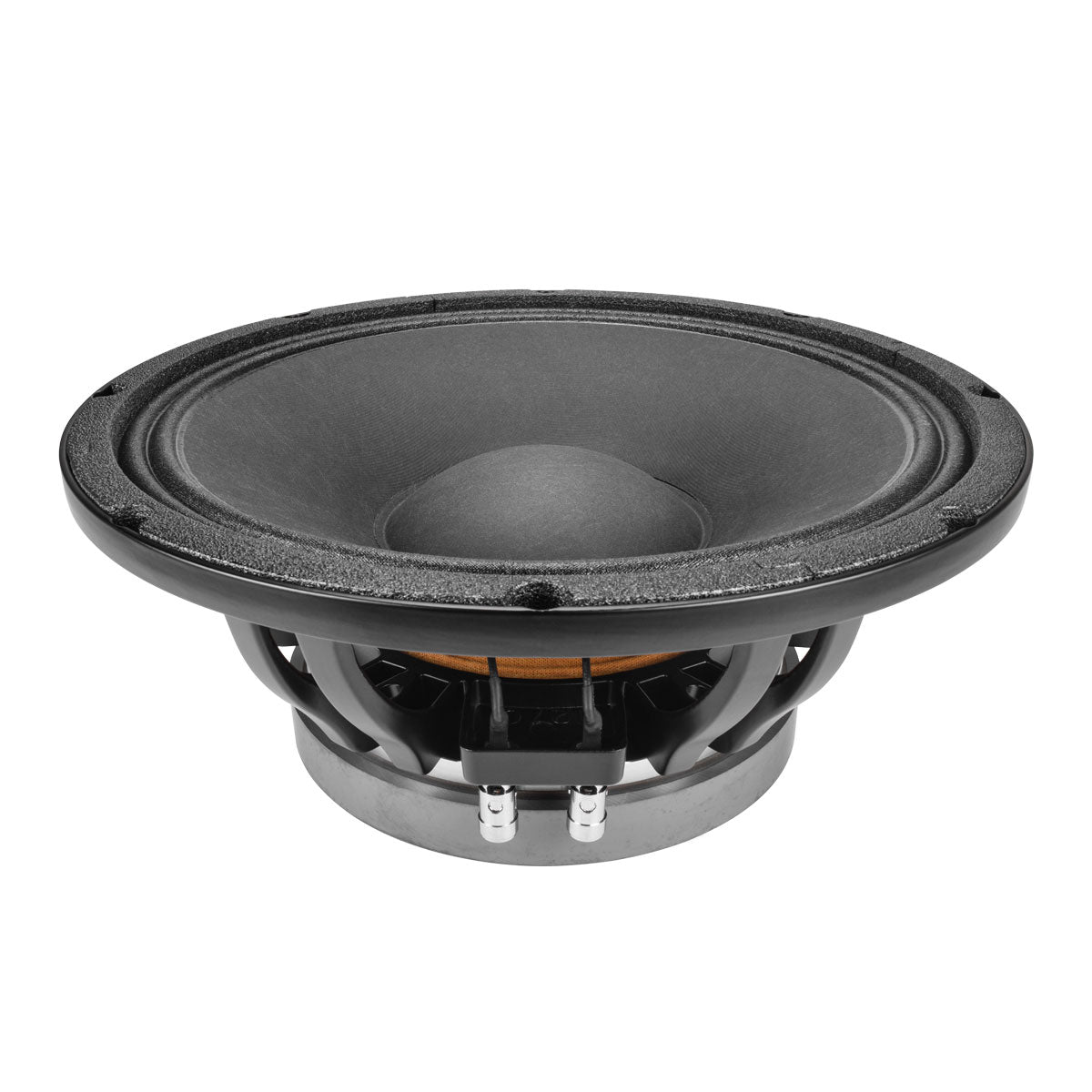

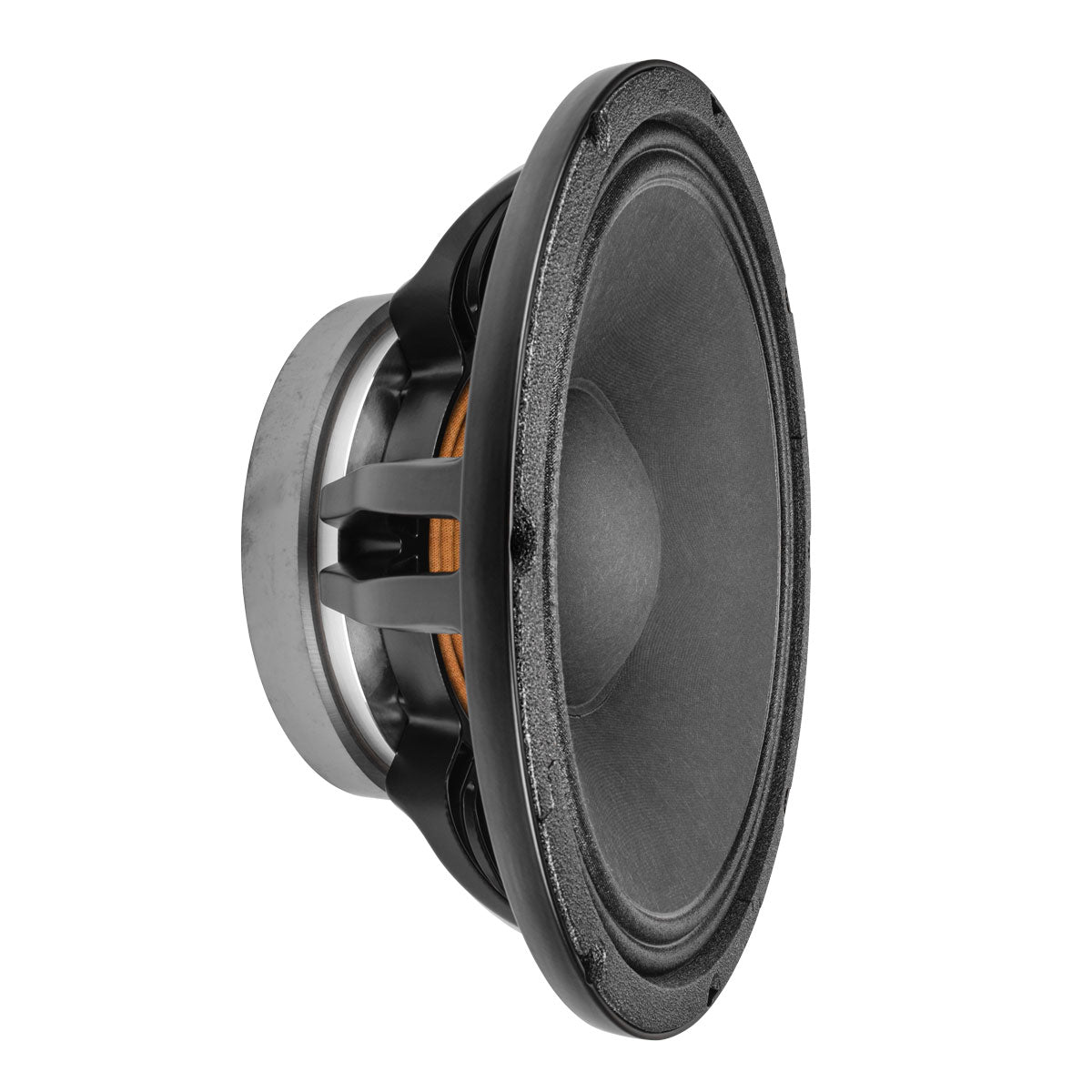

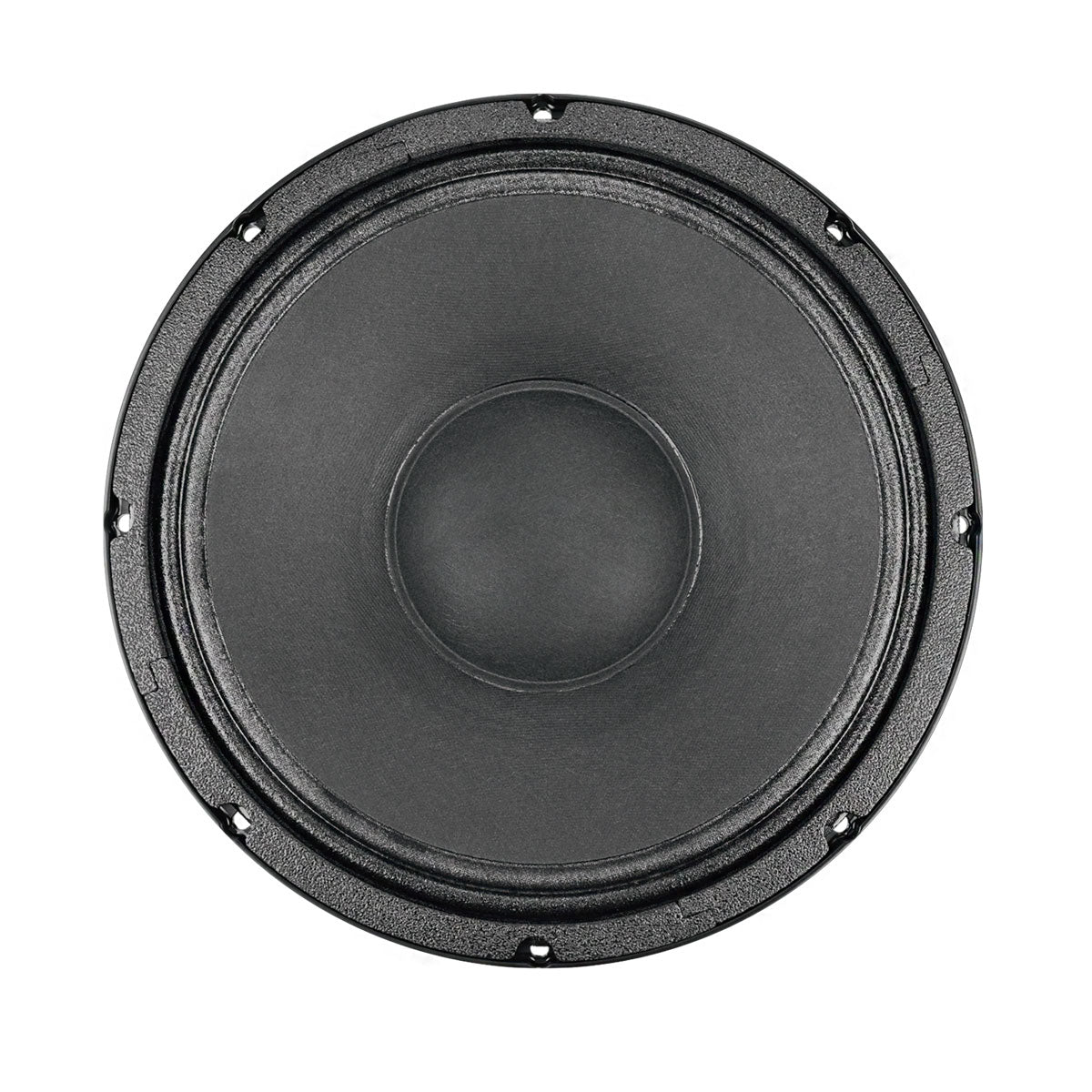

PRV 12MR1000 PRO Midrange

PRV 12MR1000 PRO Midrange

SKU: SKU:12MR1000 PRO

Skip to product information
New

PRV 12MR1000 PRO Midrange

PRV 12MR1000 PRO Midrange

SKU: SKU:12MR1000 PRO

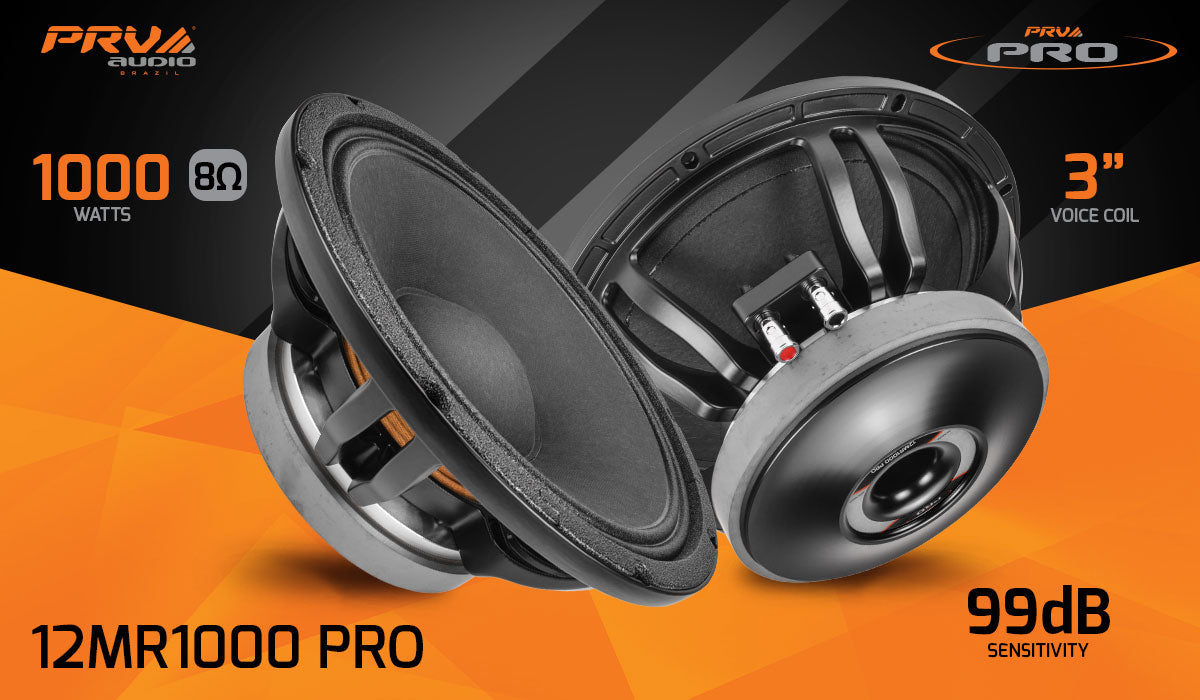

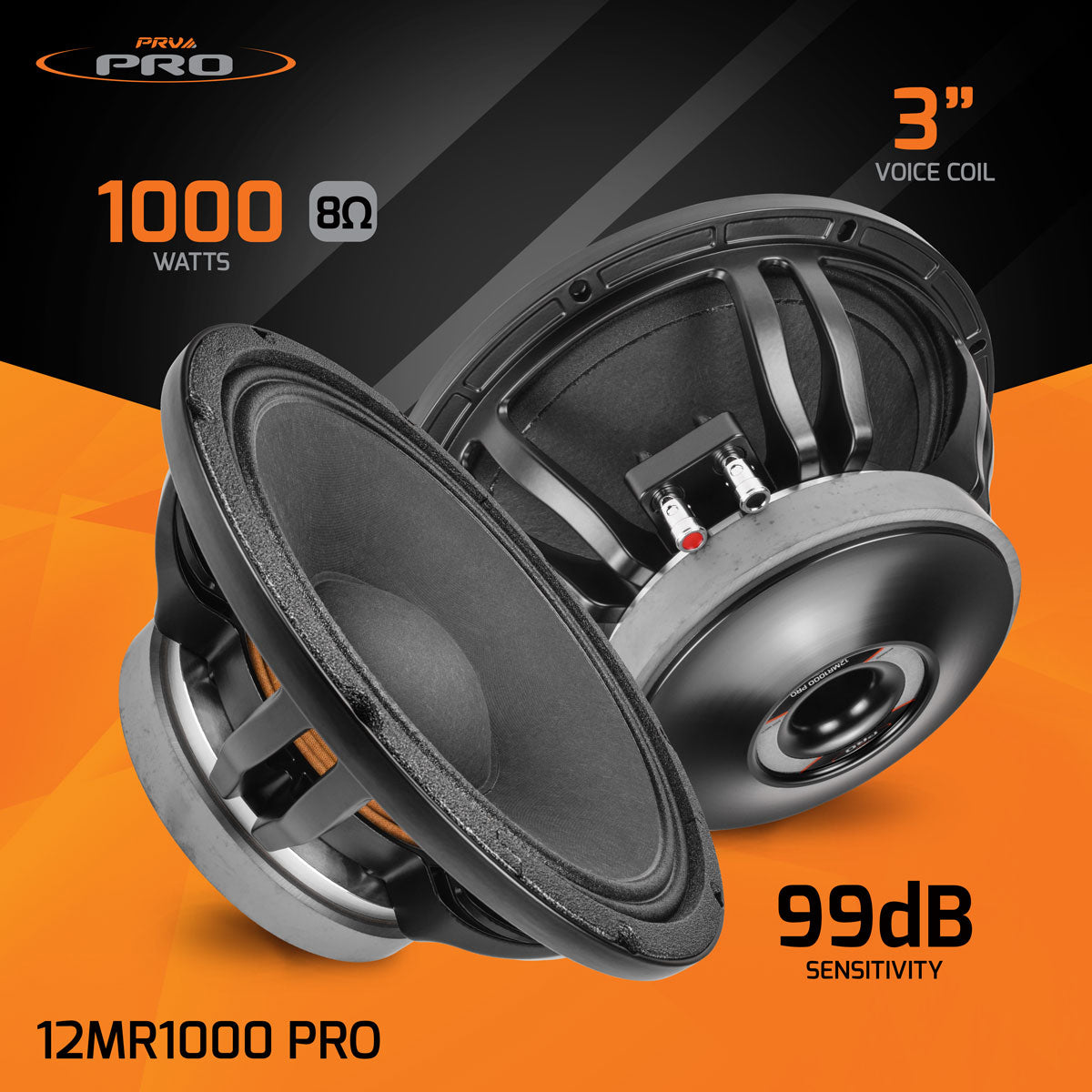

  • 12″ Midrange – 8 Ohm
  • Ferrite Magnet
  • 99 dB – 1000 Watts

$139.91
$199.89

In stock

  • 12″ Midrange – 8 Ohm
  • Ferrite Magnet
  • 99 dB – 1000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The 12MR1000 PRO is a high power, and high output 12” midrange from our PRO Series primarily designed to perform in small sealed, horn loaded and vented enclosures, making it the perfect choice for a variety of installations, including professional sound reinforcement, live sound, home audio speakers with high outputs, as well as high SPL car audio.

  • Excellent performance in 3-way systems, with high detailed percussion instruments tones at a high sensitivity of 99 dB

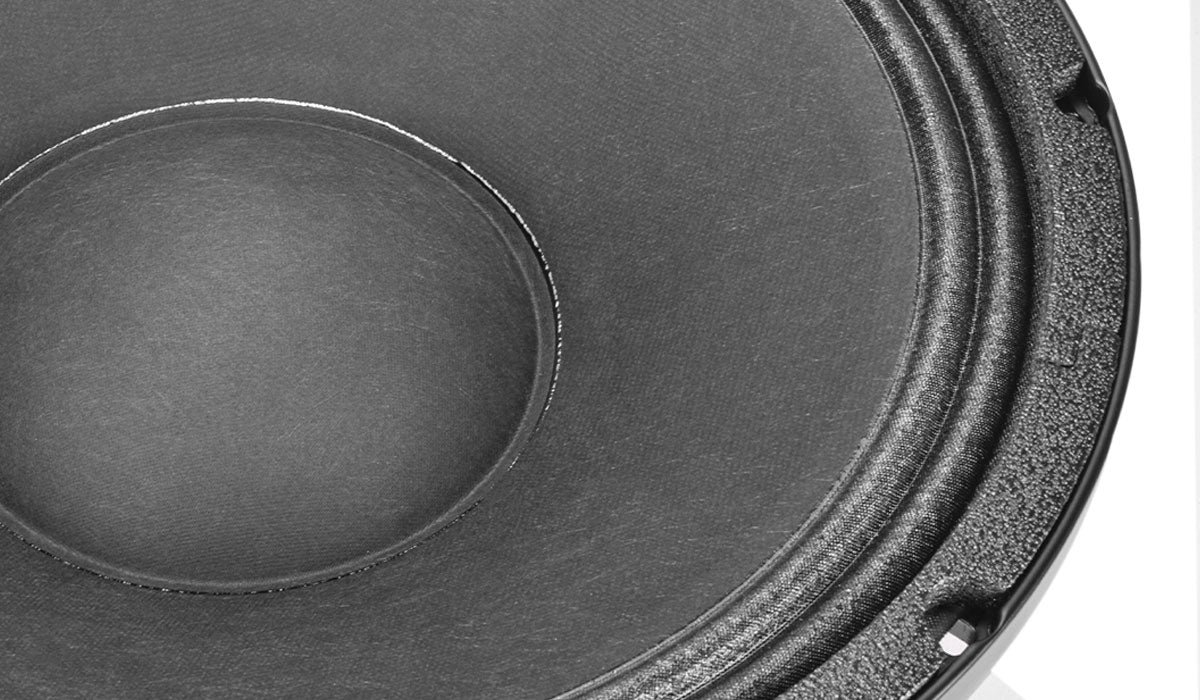

  • Premium paper cone and cloth surround for high clarity, smooth response, and linear excursion at high 1000 Watts RMS program power.
  • 3” Inside/outside wound CCAW voice coil leads on fiberglass former lend solid power handling capability
  • Under spider and rear periphery venting allows cool running voice coil on long-lasting playing sessions.
  • Low Qts means high damping and excellent performance in smaller boxes.

This professional midrange loudspeaker delivers smooth, clear vocals that will impress any listener! Its high efficiency makes it easy to power, all thanks to a specially light weight cone designed to deliver smooth vocals and well define midbass tones.

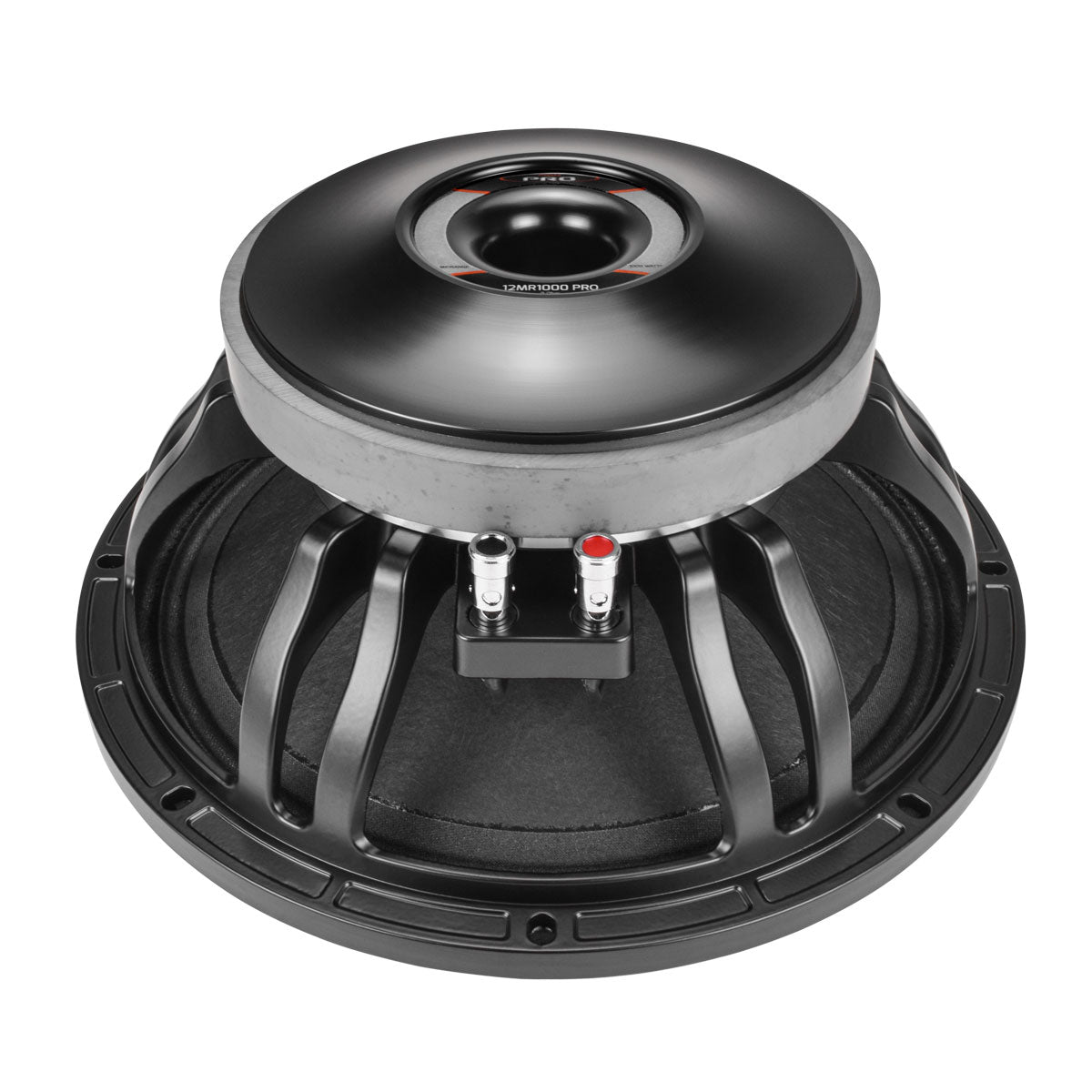

Cast aluminum frame adds structural integrity, while a paper/glass fiber cone attached to a large 3″ voice coil keeps everything under control at high level outputs, making an easy transition to a high frequency driver.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 12″ (305 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 500 Watts
  • Continuous Program Power (RMS)** 1000 Watts
  • Program Power*** 1000 Watts
  • Max Peak Power*** 2000 Watts
  • Sensitivity 2.83V at 1m99 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 125 Hz 12db Per Octave Crossover

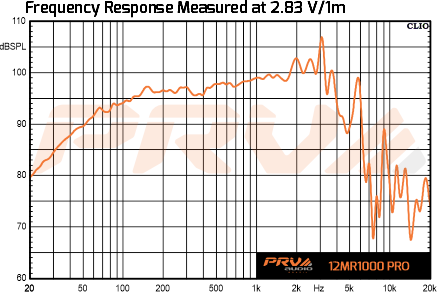

  • Frequency Response at -10dB 70 – 3,200 Hz
  • Voice Coil Diameter 3″ (75 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth11.0 mm
  • Former Material Glass Fiber
  • Magnetic Gap Depth 10 mm
  • Frame Material Die cast Aluminum

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • 92.3 l
  • Excursion (mathematical)**
    • 3.00 mm
  • Free Air Resonance
    • 49.4 Hz
  • Mechanical Factor
    • 12.05
  • Electrical Factor
    • 0.40
  • Total Factor
    • 0.39
  • Cone Area
    • 577 cm²
  • Mechanical Mass
    • 52.31 g
  • BI Factor
    • 15.89 Tm
  • Dc Resistance
    • 6.2 Ohm
  • Inductance
    • 0.60 mH at 1 kHz
  • Mechanical Mass Without Air
    • 44.5 g
  • Mechanical Compliance
    • 0.199 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

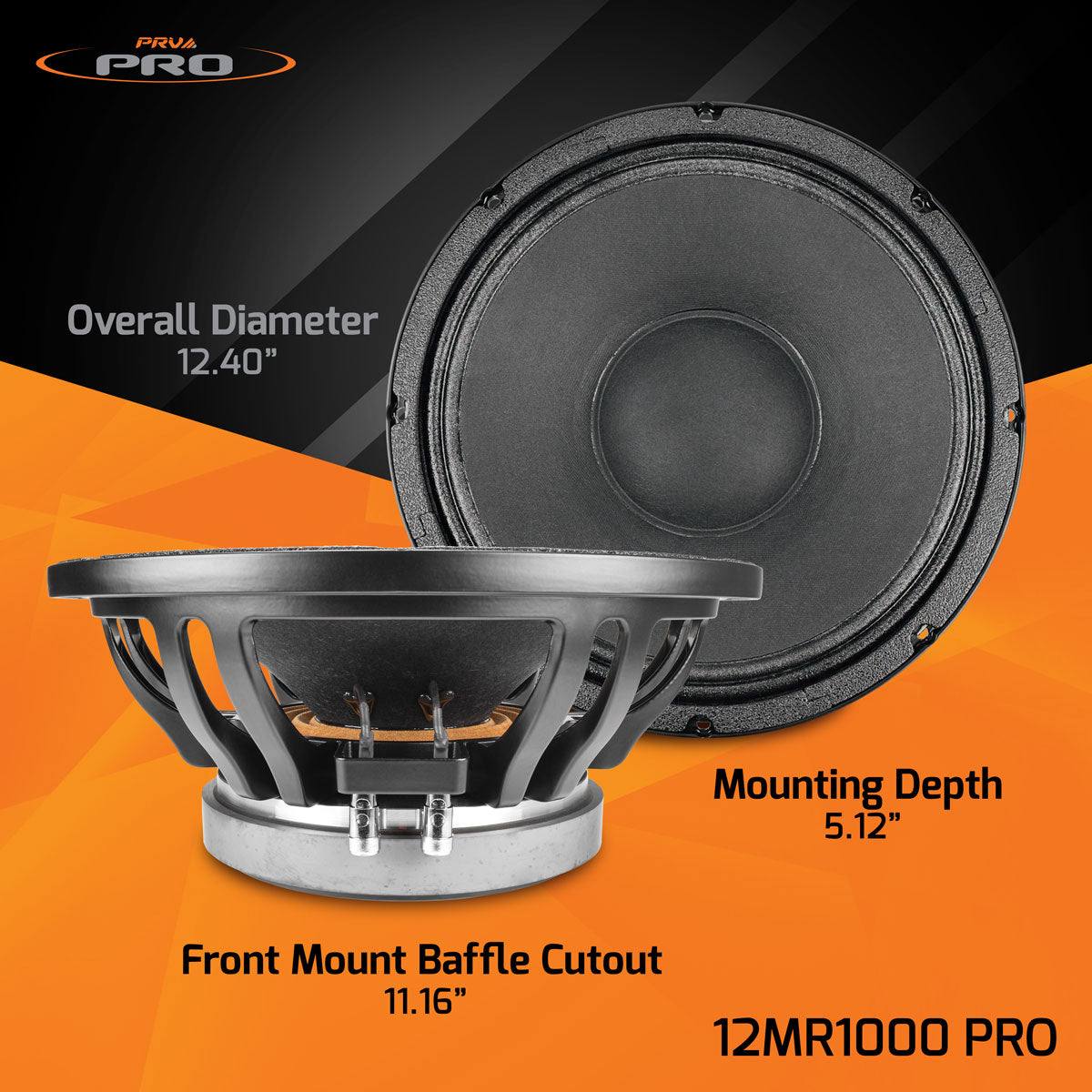

  • Overall Depth 5.61” (142.5 mm)
  • Mounting Depth 5.12” (130 mm)
  • Overall Diameter 12.40” (315 mm)
  • Front Mount Baffle Cutout 11.16” (283.5 mm)
  • Net Weight 16.30 Lbs (7.40 kg)

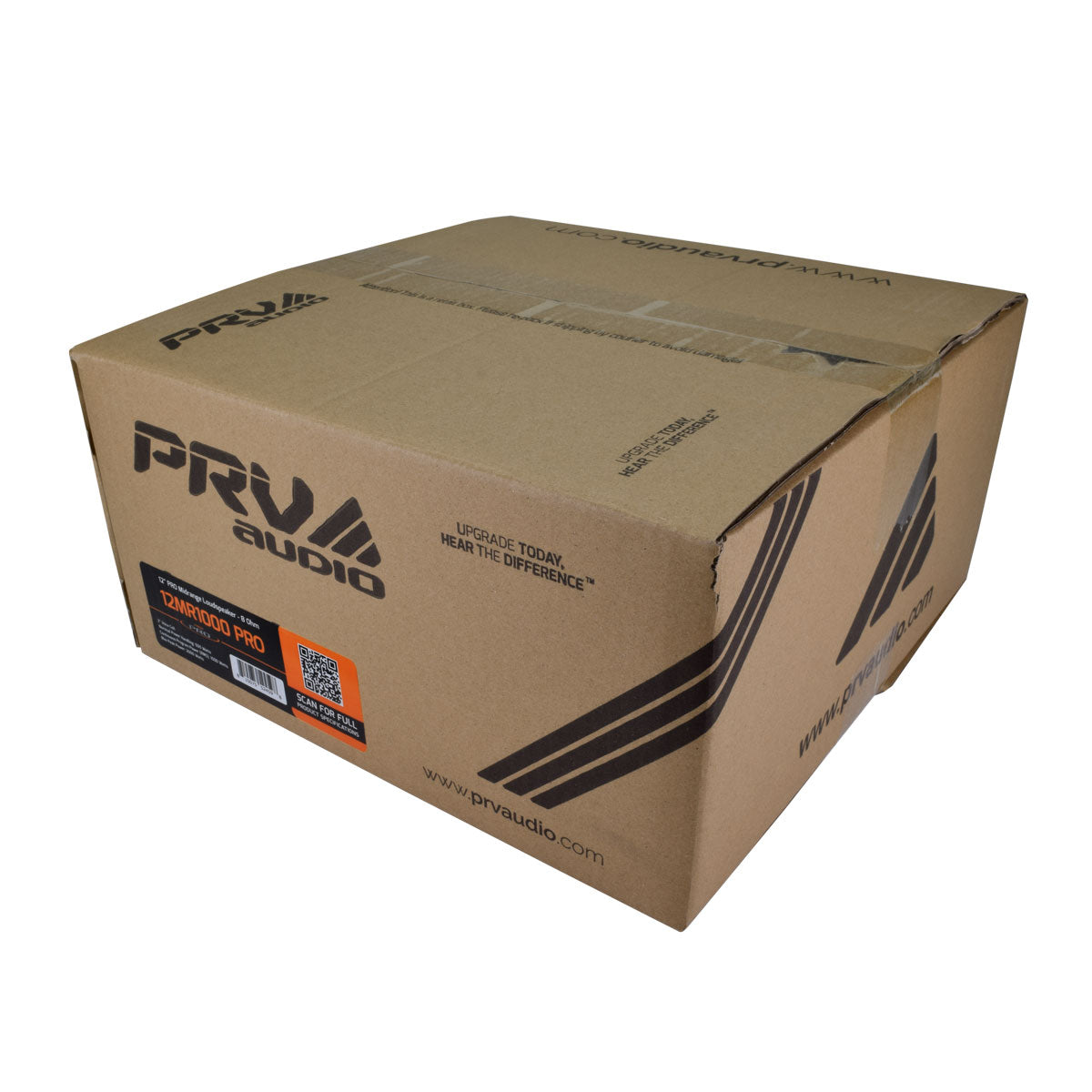

  • Shipping Weight 13.38”x 13.38” x 7.09” (340 x 340 x 180 mm)
  • Carton Dimensions WxLxH 17.80 Lbs (8.06 kg)

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

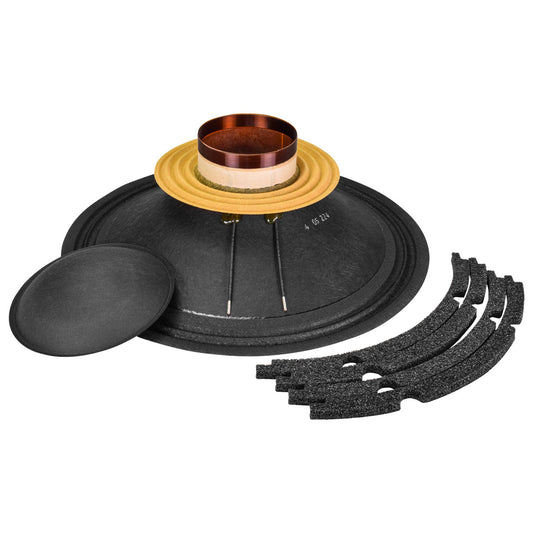

Repair Parts
