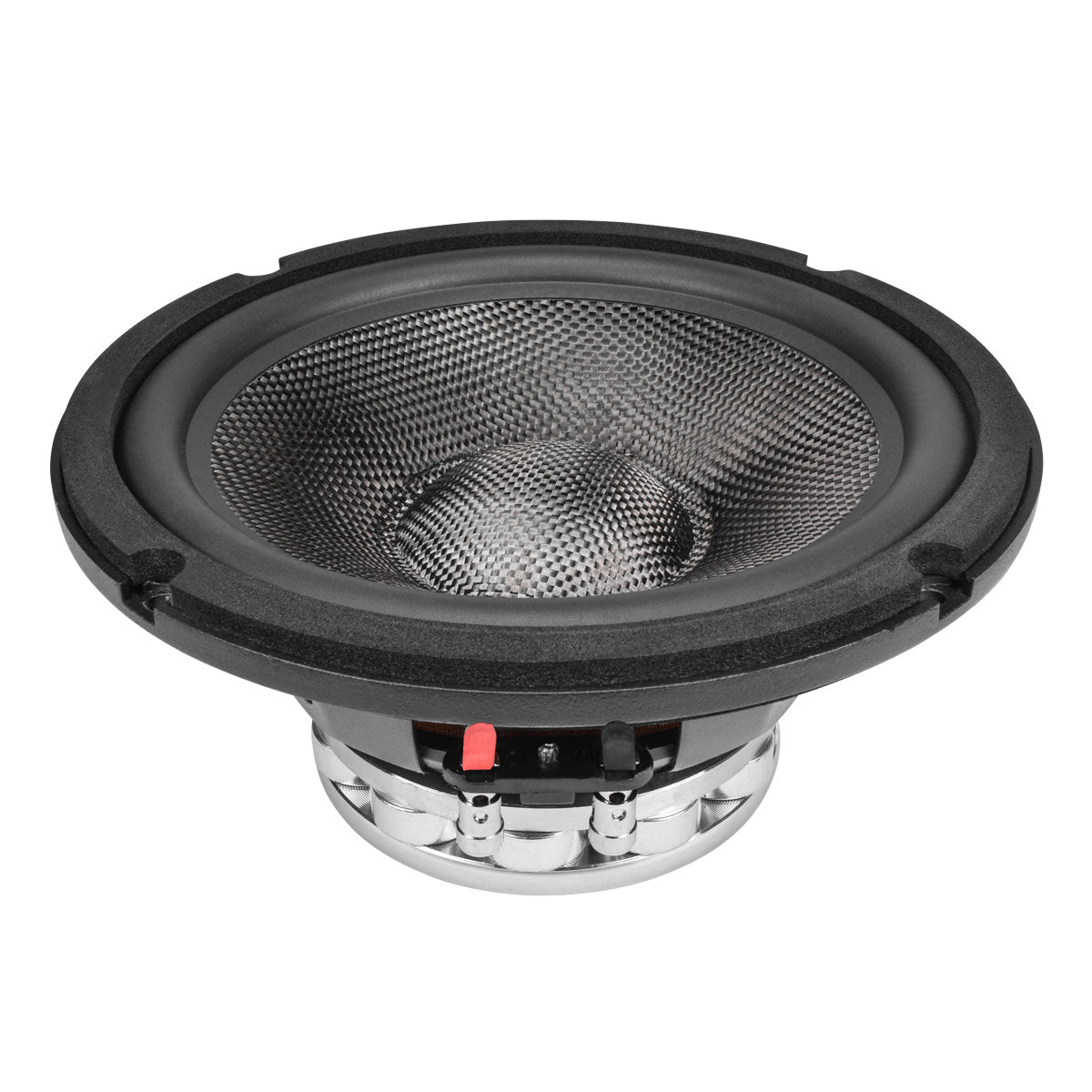

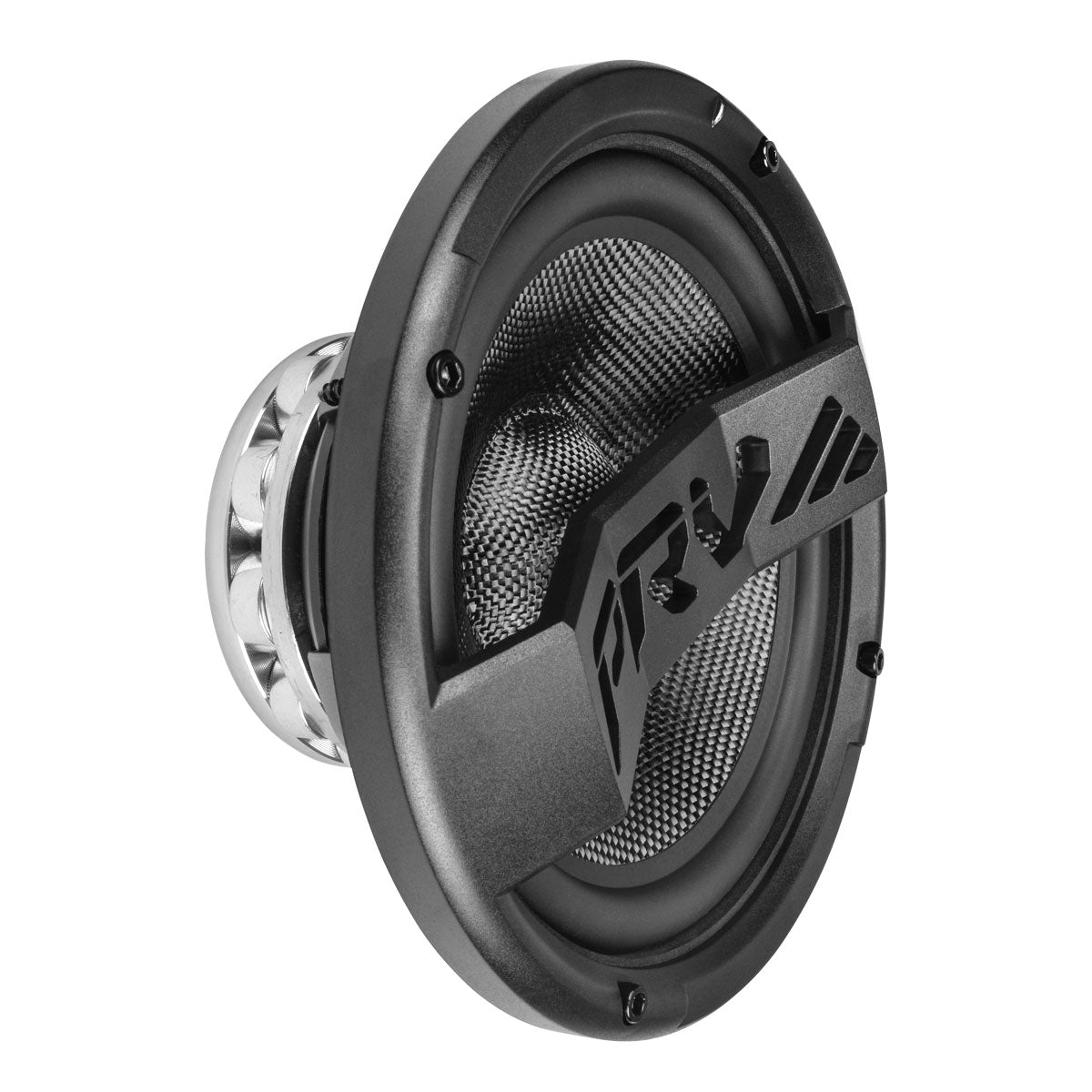

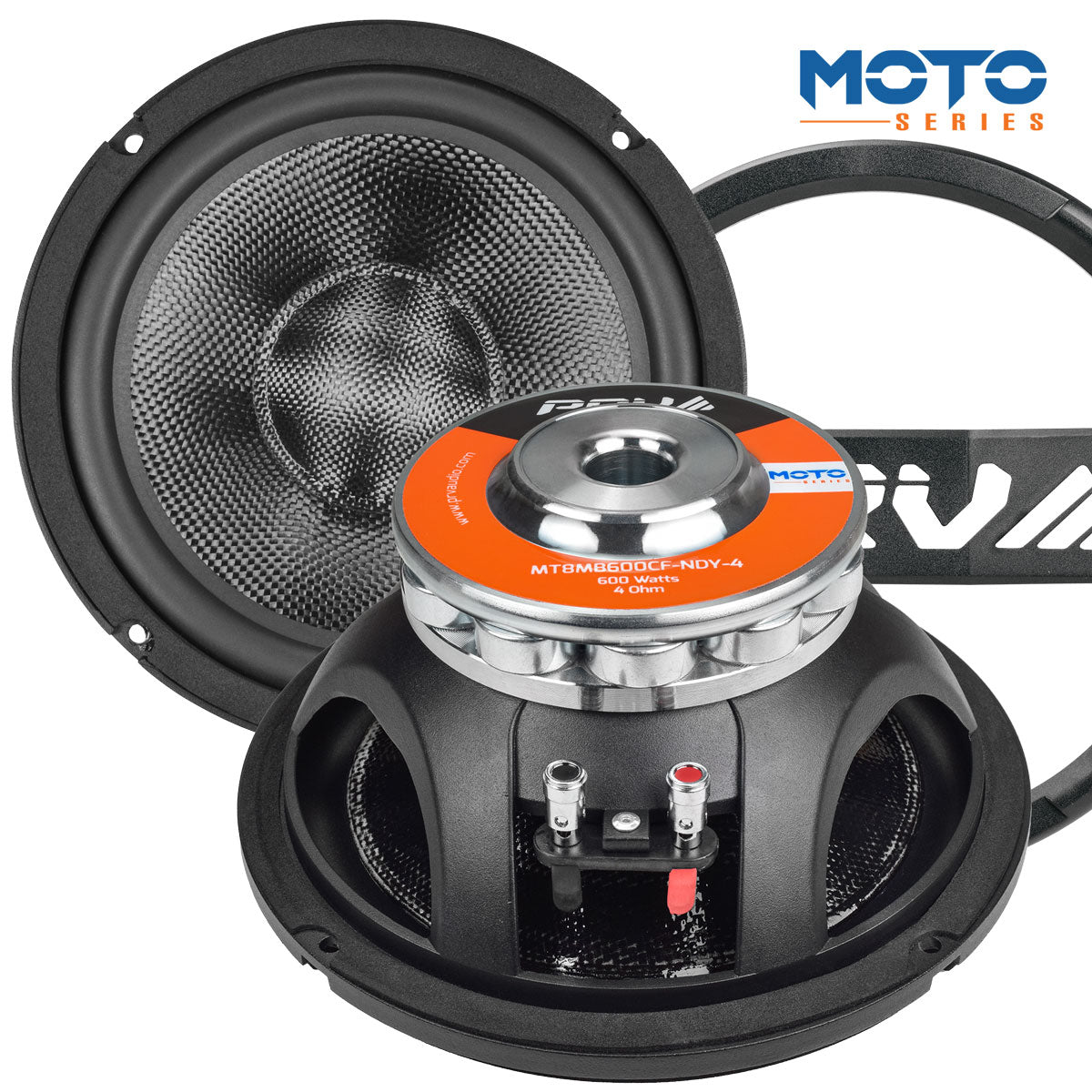

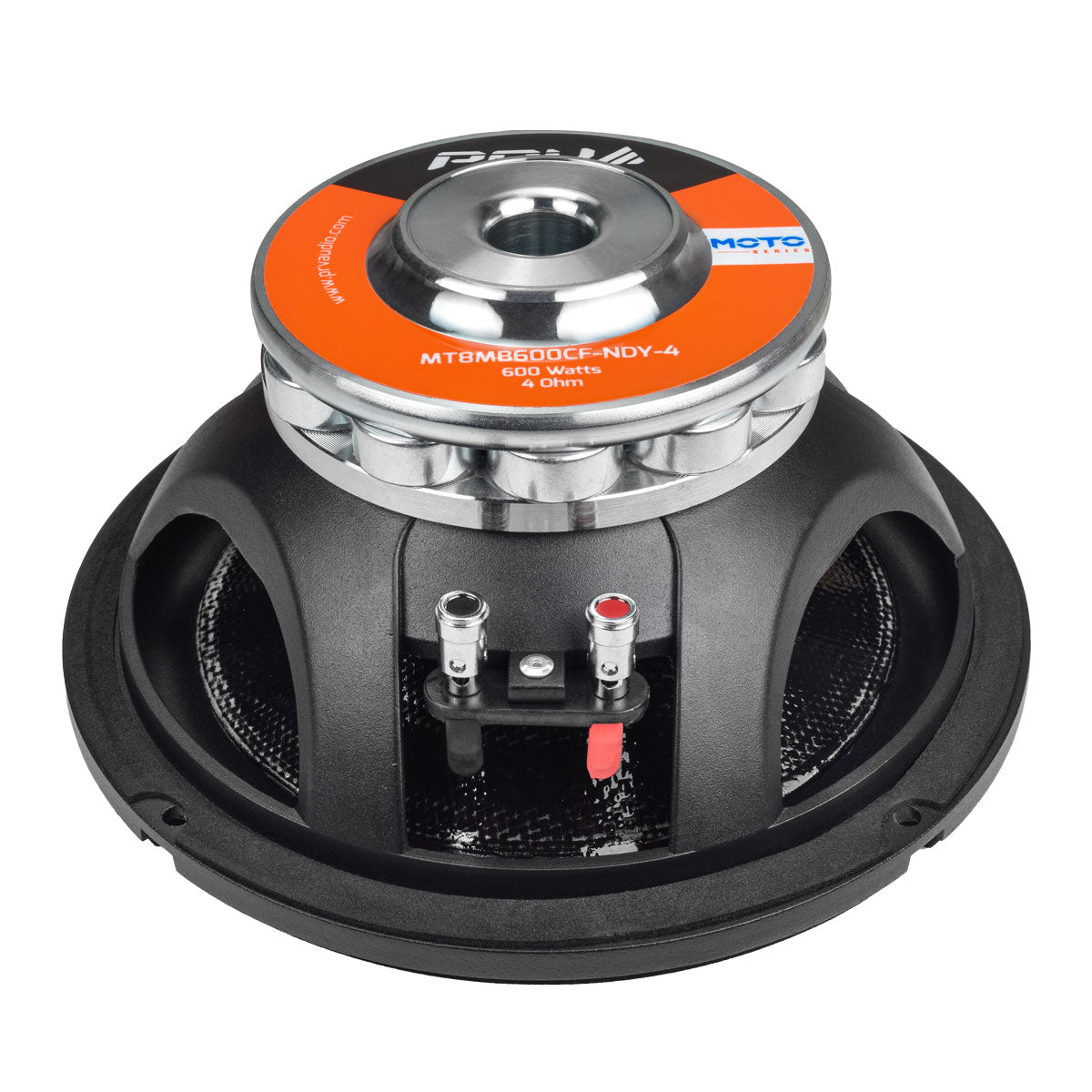

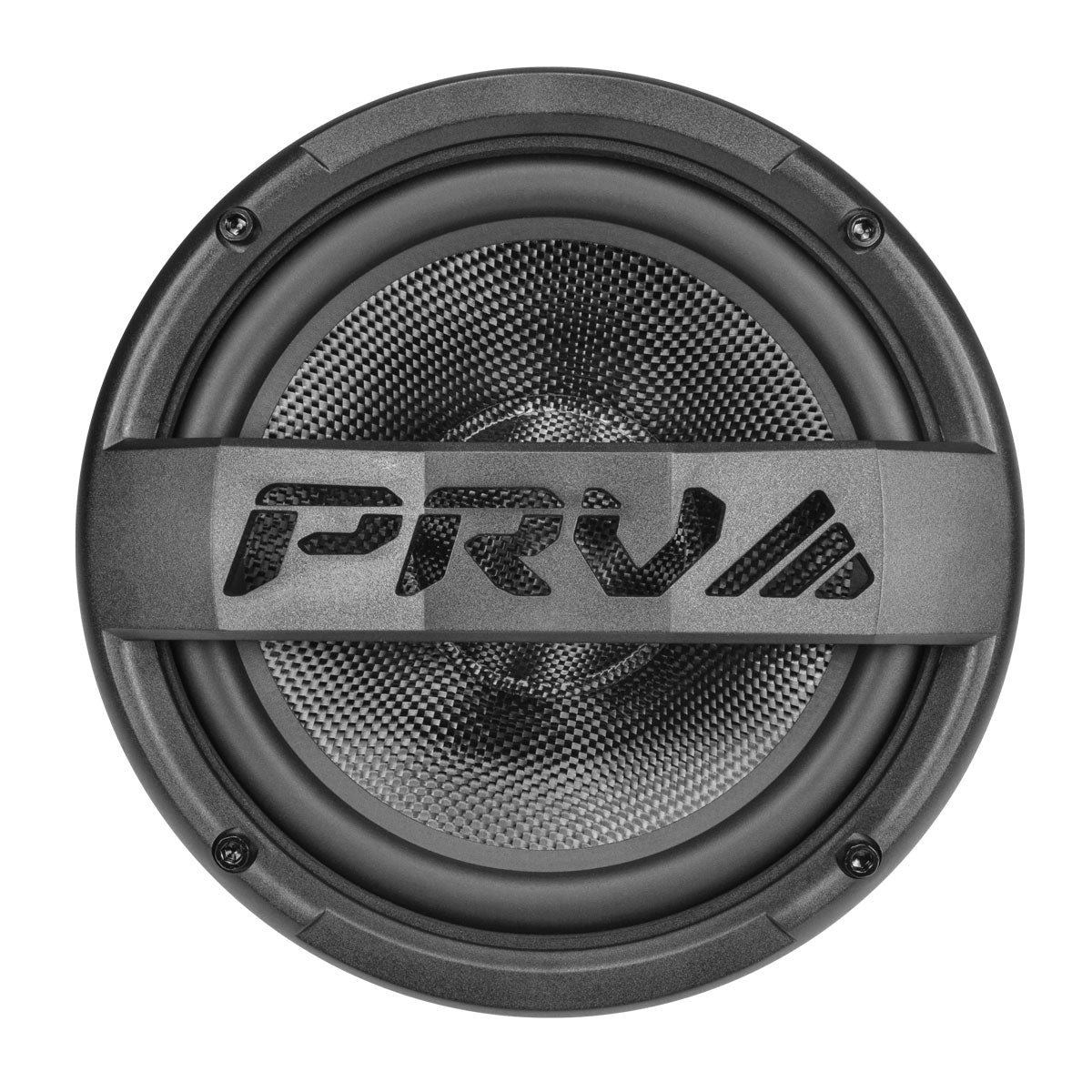

PRV MT8MB600CF-NDY-4 Midbass

PRV MT8MB600CF-NDY-4 Midbass

SKU: MT8MB600CF-NDY-4

PRV MT8MB600CF-NDY-4 Midbass

PRV MT8MB600CF-NDY-4 Midbass

SKU: MT8MB600CF-NDY-4

  • 8″ Midbass – 4 Ohm
  • Neodymium Magnet
  • 96 dB – 600 Watts
$239.91
$287.89

Out of stock

  • 8″ Midbass – 4 Ohm
  • Neodymium Magnet
  • 96 dB – 600 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.

This midrange loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.

Due to the premium materials used in its construction, such as a special treated carbon fiber cone, a high-temperature voice coil, and a strong neodymium magnet motor, this speaker produces its natural sound with remarkably low distortion.

  • Water Resistant Speaker with true PRO Audio Midbass low frequency performance
  • Coated lightweight carbon fiber cone lowers moving mass and minimizes unwanted resonances
  • 8″ PRO Audio Midbass loudspeaker designed for Low Frequencies at High Power – 4 Ohm
  • Able to handle 600 Watts RMS, with a 96 dB Sensitivity with a High Xmax of 4.75 mm
  • Premier Outdoor Speaker Designed for Sound Competition is perfect for applications with limited weight or space, such as slingshot pods, motorcycle fairings, and saddlebags

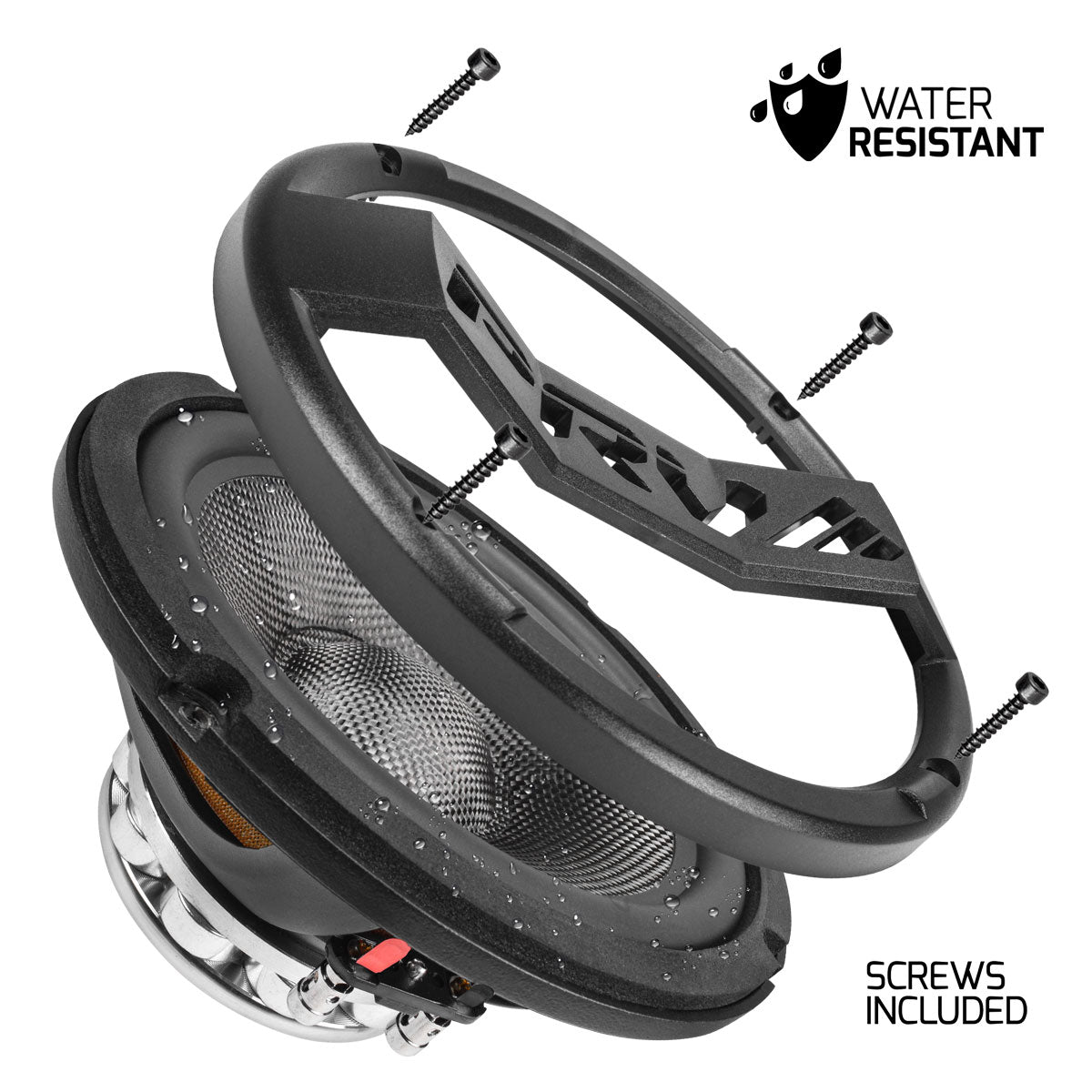

  • Grill and screws are included

Its low-mass yet stiff cone produces clean, detailed, high-impact sound reproduction and consistent high output levels in a low frequency bandwidth between 65 and 5,700 Hz, making sure to reproduce all low frequencies with authority!

This mid is perfect for applications where weight and space is limited, such as custom slingshot pods, motorcycle fairings and saddlebags, that make this driver a popular speaker choice among high output car and motorsport audio enthusiasts.

PRV 8″ Motorcycle Speaker MT8MB600CF-NDY-4 Water Resistant 600 Watts / 4 Ohm Neodymium Low Frequency Midbass High Power

Recommended Amplifier configurations and crossover points:

Recommended HPF using PRV Digital Signal Processor DSP when using up to 600 Watts RMS musical power

  • 80 Hz at 12 dB per octave filter Crossover / BT12
  • 70 Hz at 18 dB per octave filter Crossover / BT18

Recommended LPF is 2,200 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 8" (203 mm)
  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 300 Watts
  • Continuous Program Power (RMS)** 600 Watts
  • Max Peak Power*** 1200 Watts
  • Sensitivity 2.83V at 1m96 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 80 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 65 – 5,700 Hz
  • Voice Coil Diameter 2.0″ (51 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth13.0 mm
  • Former Material Kapton
  • Magnetic Gap Depth 7.0 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 18.8 l
  • Excursion (mathematical)**
    • Xmax
    • 4.75 mm
  • Free Air Resonance
    • Fs
    • 64.5 Hz
  • Mechanical Factor
    • Qms
    • 14.06
  • Electrical Factor
    • Qes
    • 0.38
  • Total Factor
    • Qts
    • 0.37
  • Cone Area
    • Sd
    • 227 cm²
  • Mechanical Mass
    • Mms
    • 23.32 g
  • BI Factor
    • Bl
    • 9.32 Tm
  • Dc Resistance
    • Re
    • 3.5 Ohm
  • Inductance
    • Le
    • 0.202mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 21.39 g
  • Mechanical Compliance
    • Cms
    • 0.261 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV MT8MB600CF-NDY-4 Midbass DATASHEET Download
  • Overall Depth 4.84 (123 mm)
  • Mounting Depth 3.52″ (89.5 mm)
  • Overall Diameter 8.13″ (206.5 mm)
  • Front Mount Baffle Cutout 7.17″ (182.2 mm)
  • Net Weight 4.55 Lbs (2.1 kg)
  • Shipping Weight 5.07 Lbs (2.3 kg)
  • Carton Dimensions WxLxH 10.35″ x 9.92″ x5.71″ (263 x 252 x 145 mm)
PRV MT8MB600CF-NDY-4 Midbass DATASHEET Download
