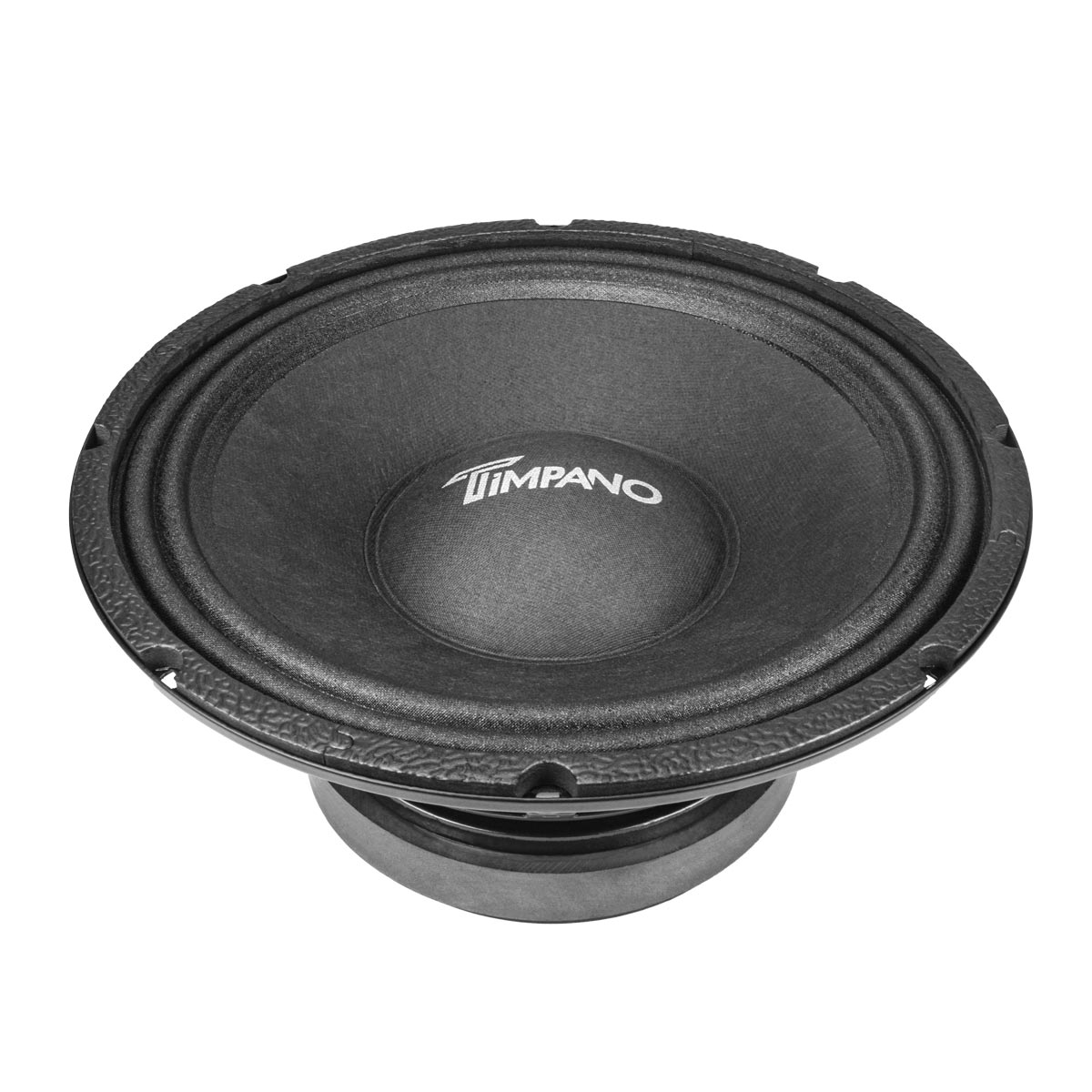

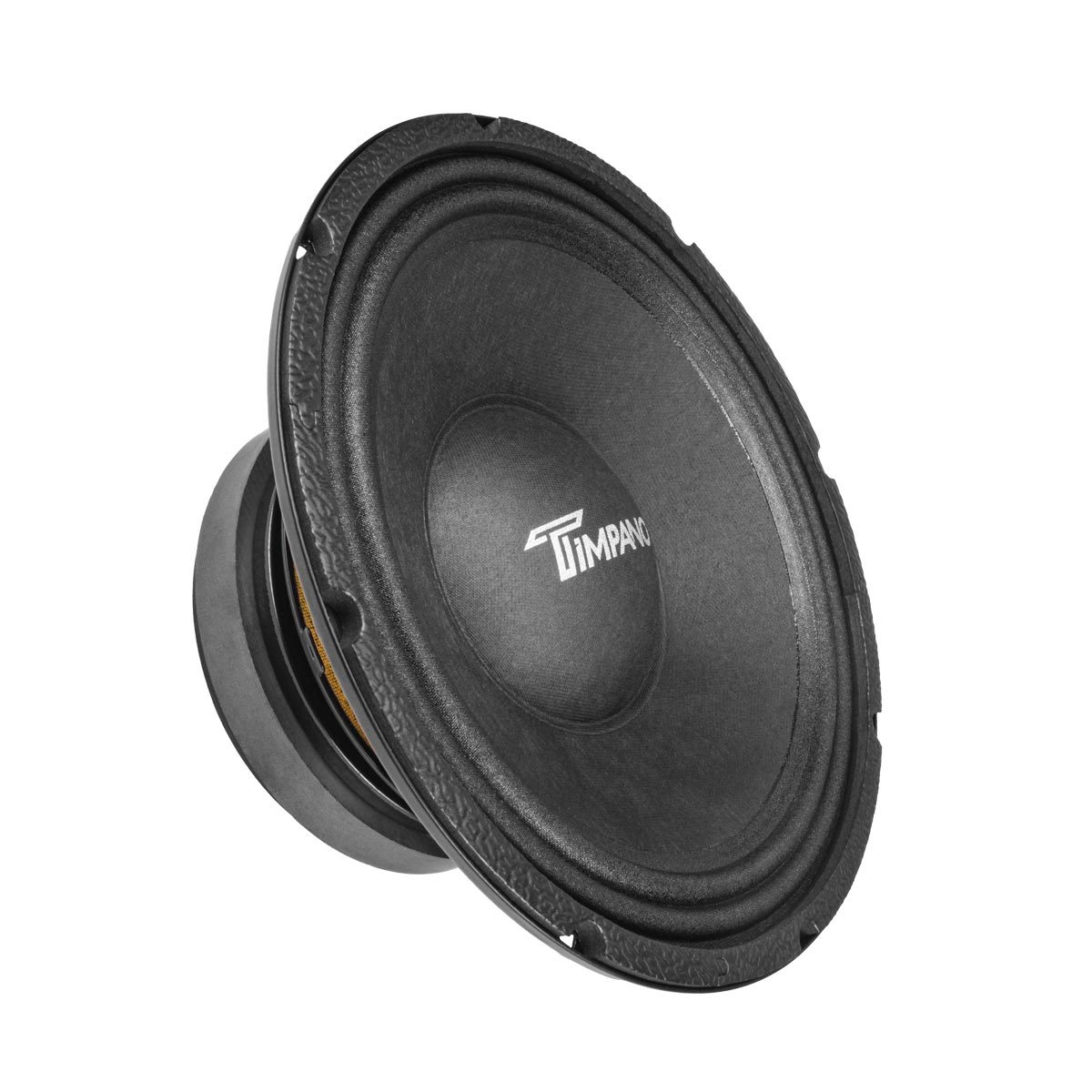

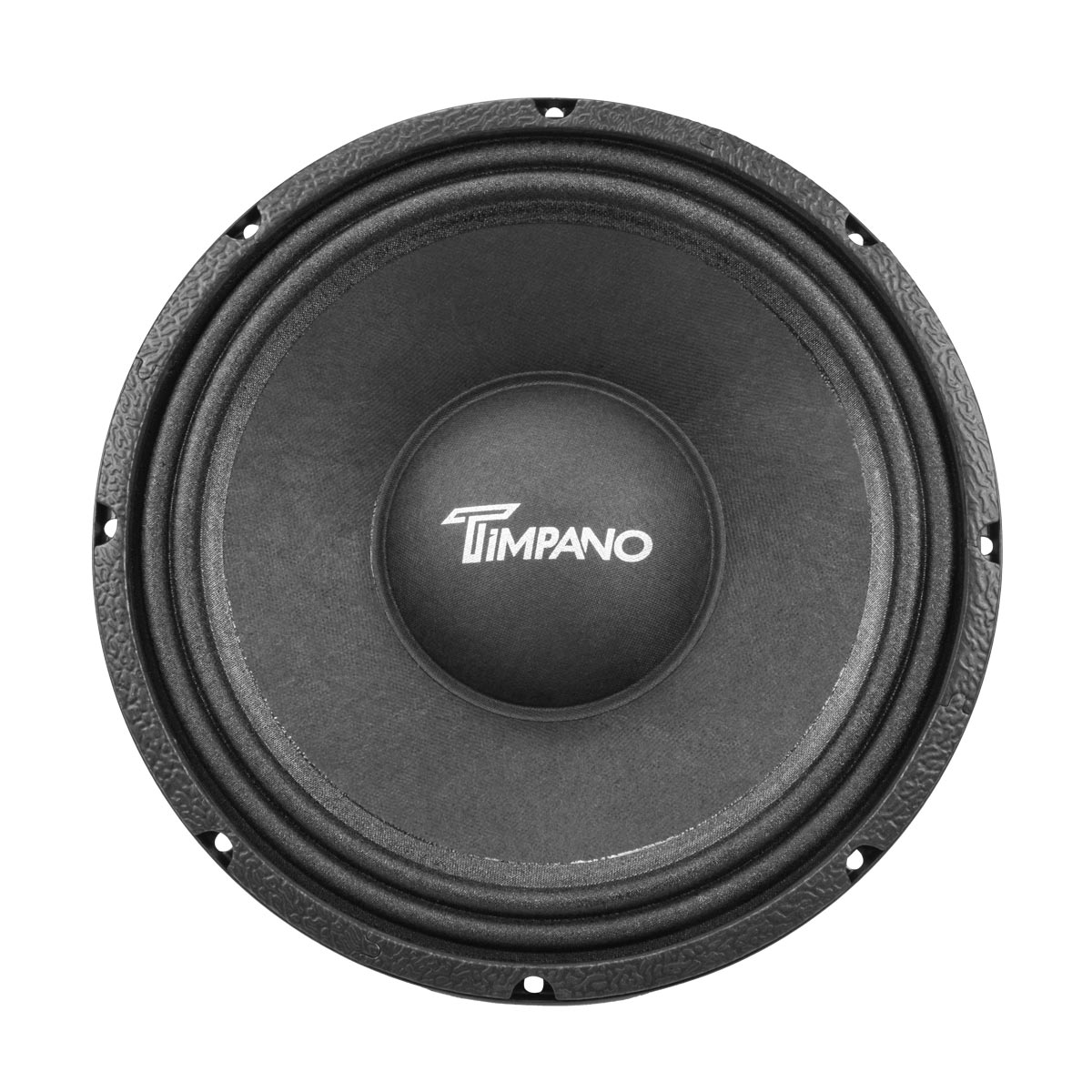

TPT-MD10 V2 10″ Pro Audio Midbass Loudspeaker

Timpano Audio’s TPT-MD10 v2 10″ midbass speaker is a great choice for adding some high output midbass to professional and automotive sound systems. With a large vented ferrite magnet and 2.5″ voice coil, this driver is ideal for use in high output applications. Capable of handling 325 Watts RMS and with a sensitivity of 97 dB.

When looking for a pro audio midbass speaker, the MD series is the obvious choice; combining power, sound clarity, and reliability.

Excellent for midbass, vocal reproduction, and musical instrument applications, the TPT-MD10 v2 10″ speaker has the power and reliability to cope with any pro sound demand.

• Wide 75 – 6,500 Hz frequency range for ultimate sound quality
• High 97 dB sensitivity for maximum output with minimal power

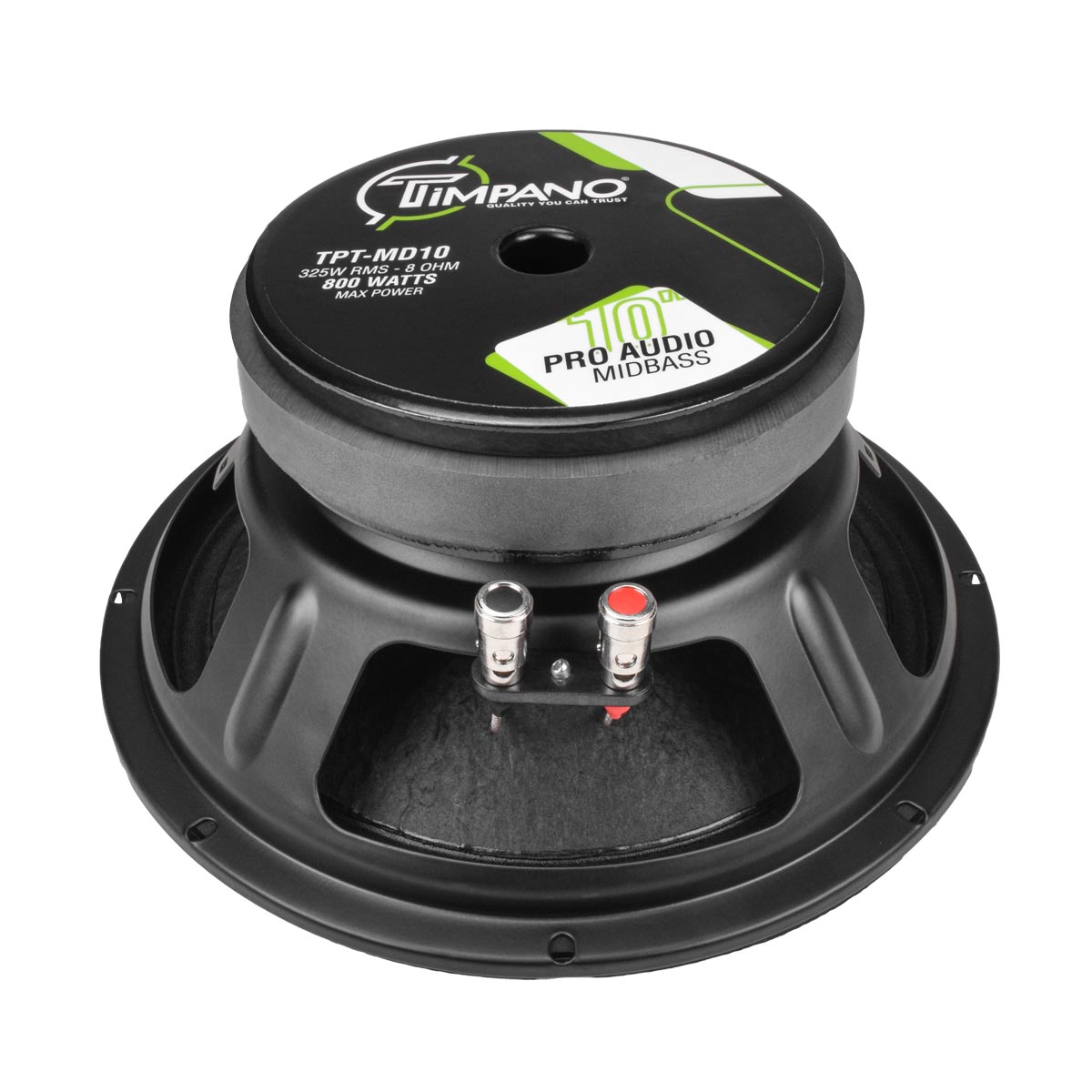

• Large vented ferrite motor for increased output and power handling
• Ideally suited for compact enclosures under 0.35 ft³ or custom car doors

Specs:

• 650 Watts Continuous Power
• 325 Watts RMS Power
• Impedance: 8 Ohms
• Sensitivity: 97 dB
• Frequency Response: 75 – 5,500 Hz
• Voice Coil: 2.5″
• Shallow Steel Basket with High Strength Ferrite Magnet
• Recommended High Pass Filter with 12db Slope:

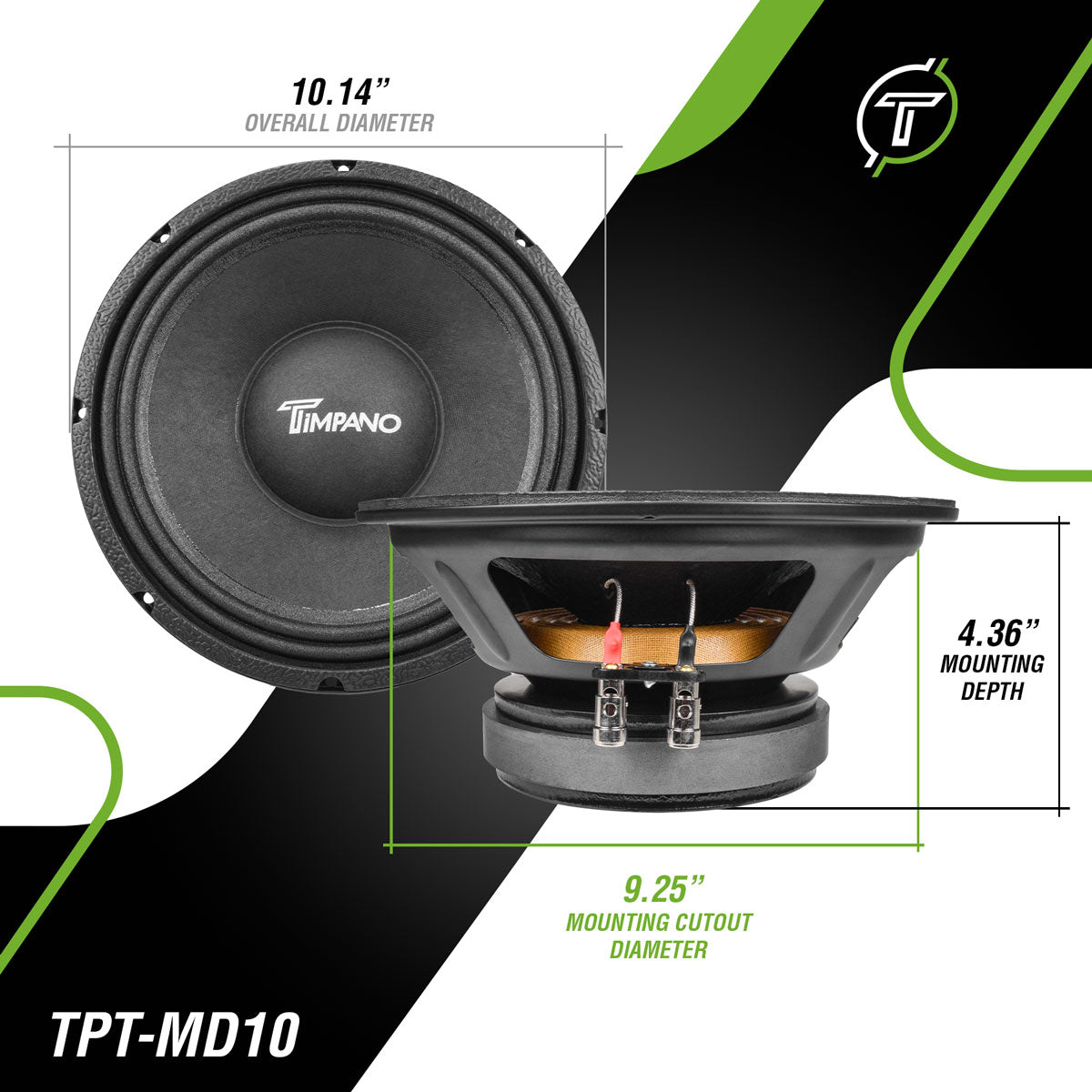

• Sizing:
