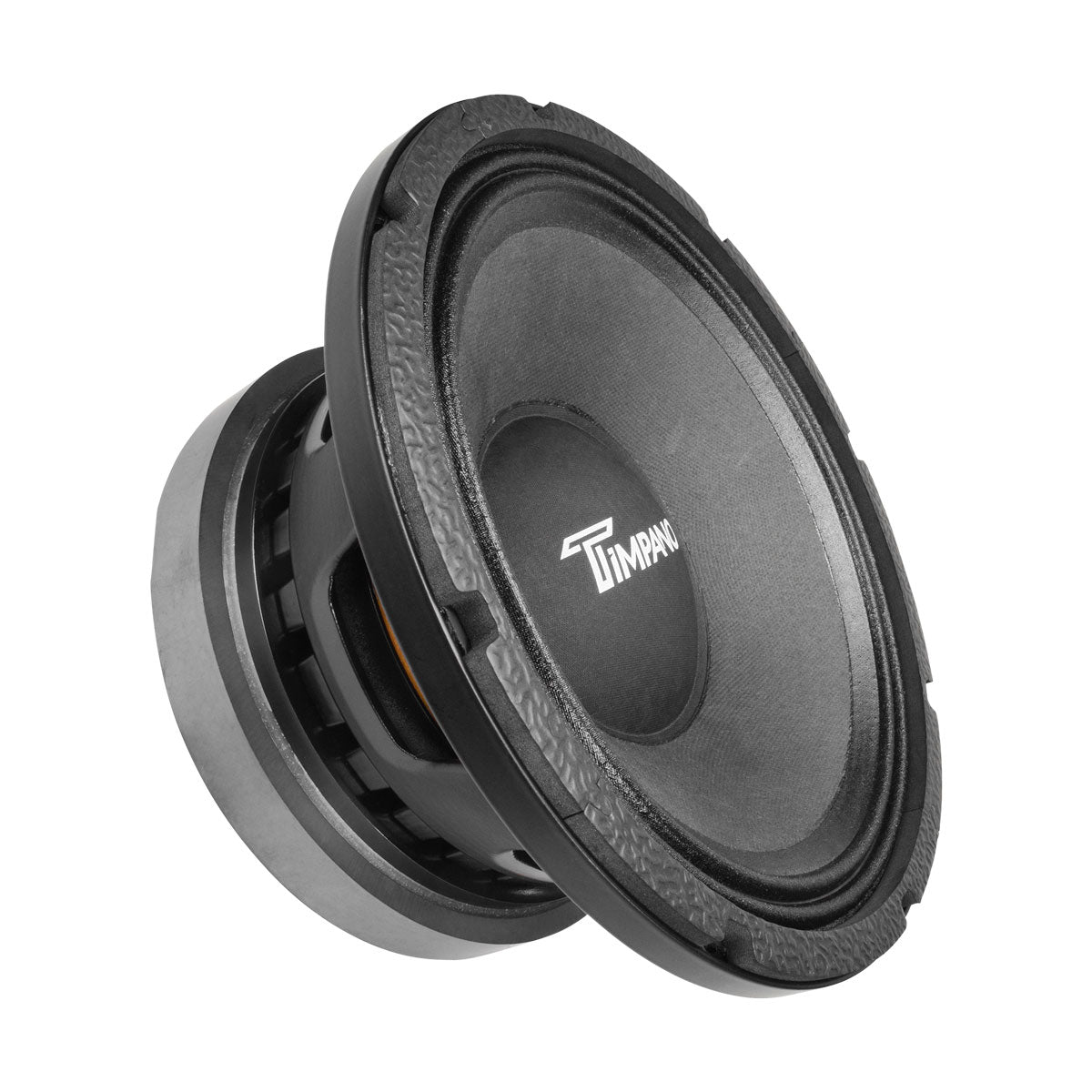

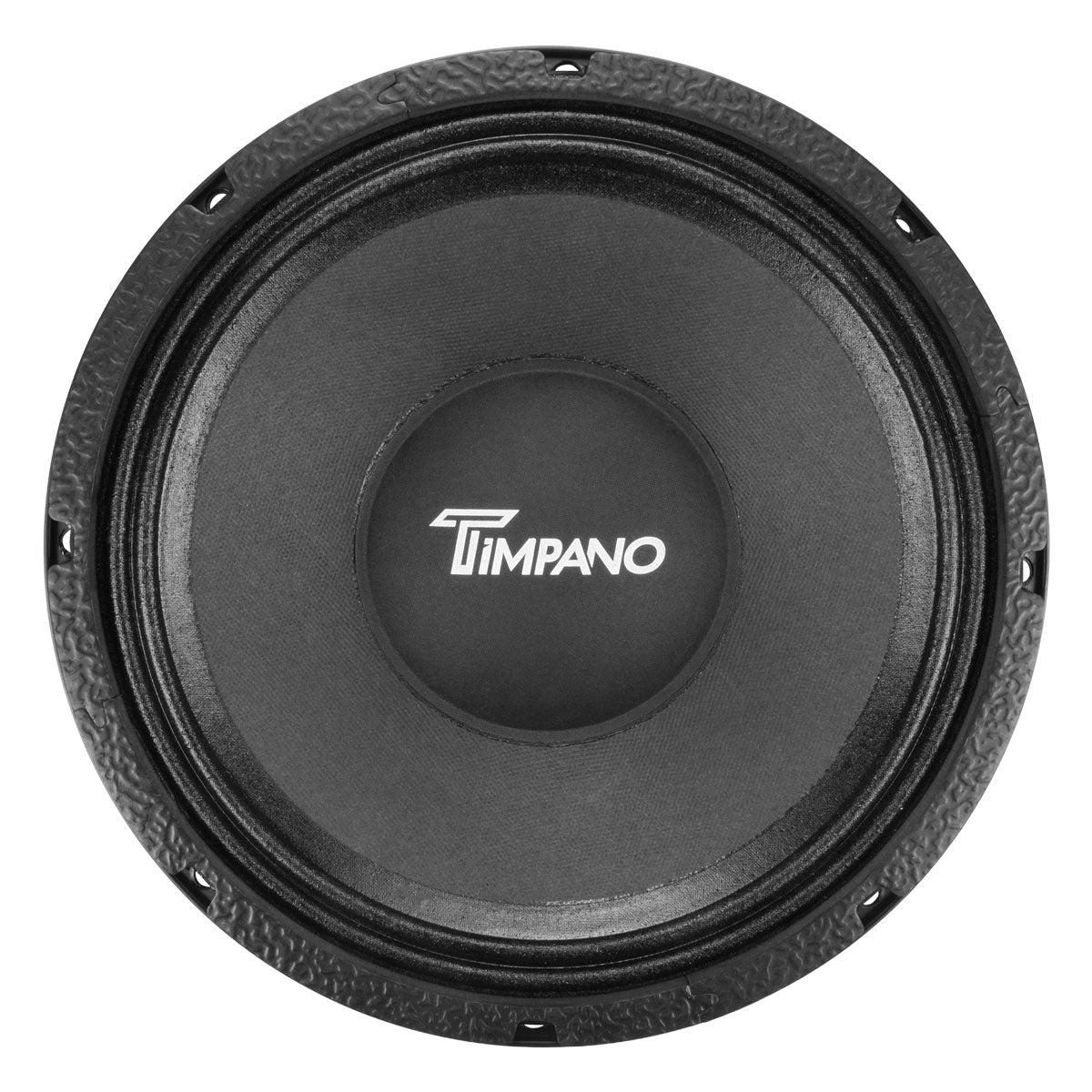

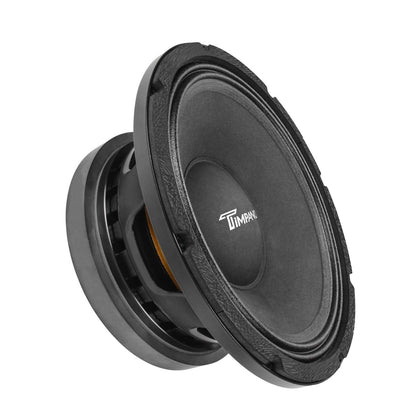

TPT-MB10 1K8 – 10″ High-Efficiency Competition PRO Audio Midbass Loudspeaker

The Timpano TPT-MB10 1K8 is a high-performance 10″ PRO Audio midbass loudspeaker engineered for competition level sound systems and large-scale car audio builds where maximum output and efficiency are essential.

• 1000 Watts RMS – Built for powerful, high-output midbass performance in demanding applications.
• Exceptional 100 dB Sensitivity – Delivers impressive sound output with high efficiency, making it an excellent choice for large speaker configurations.
• Wide Frequency Response of 70 – 4,500 Hz – Provides powerful midbass impact and detailed midrange reproduction.
• 3” Copper Voice Coil – Dissipates heat and prevents sensitivity loss. 8 Ohm Impedance offers flexibility when configuring multiple loudspeakers in large sound systems.

Among Timpano's highest-sensitivity midbass loudspeakers, the TPT-MB10 1K8 delivers effective high-impact performance thanks to its impressive 100 dB sensitivity and 1800 watts of maximum power handling.

This 10″ speaker is engineered to produce strong, aggressive midbass while maintaining detailed sound reproduction across a wide frequency range. Whether installed in a massive stuntwall, or a custom door panel, this speaker is built for a sound system where volume, projection, and performance matter.

Specs:
1800 Watts Max Power
1000 Watts RMS Power with Digital DSP
700 Watts RMS Power with Car Audio Crossover
Impedance: 8 Ohm
Sensitivity: 100 dB
Frequency Response: 70 – 4,500 Hz
Voice Coil: 3”

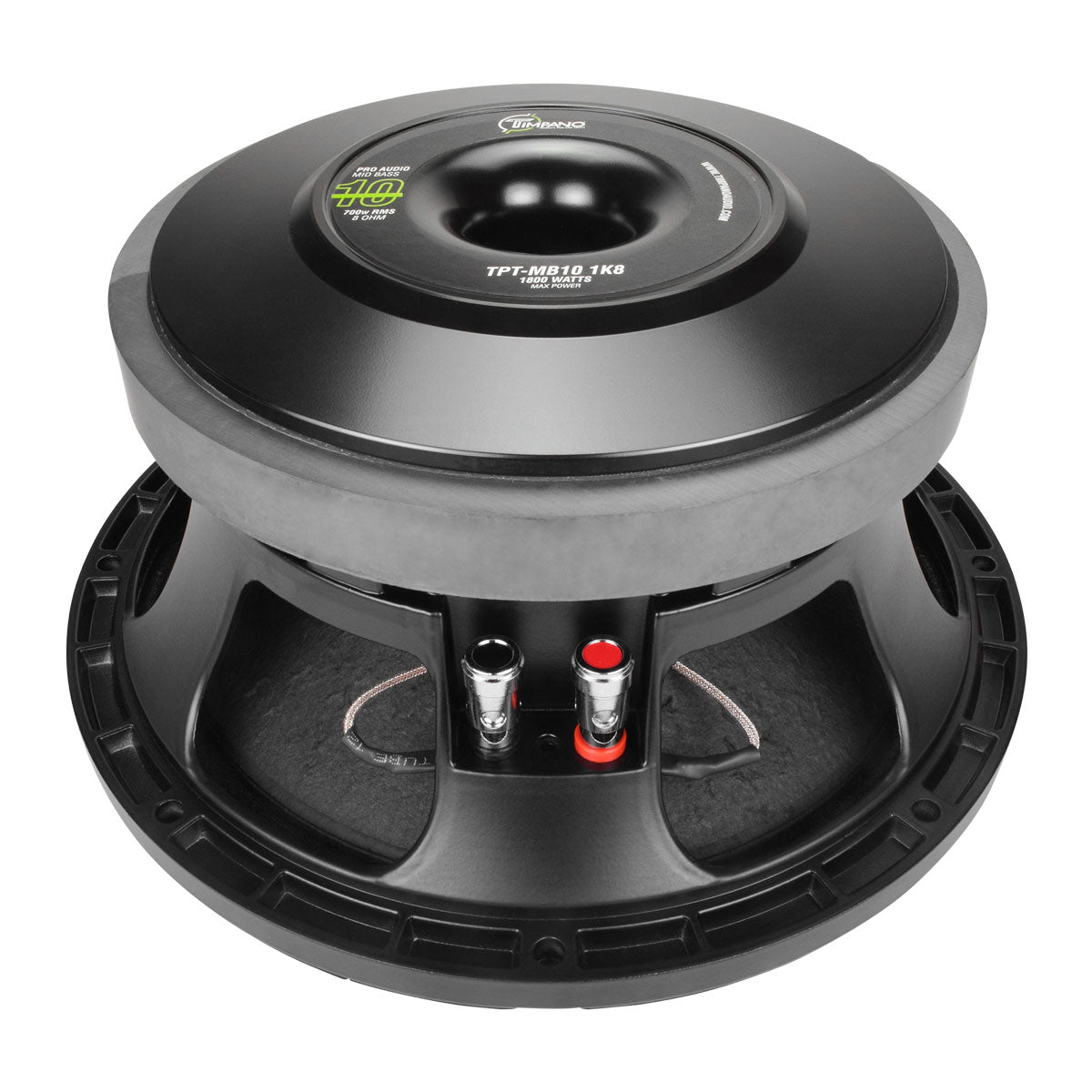

Aluminum Basket with High Strength Ferrite Magnet

Recommended High Pass Filter with TPT-SP4BT DSP:
120 Hz under 1000 Watts of Amplifier RMS Power with 18dB Slope
100 Hz under *700 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

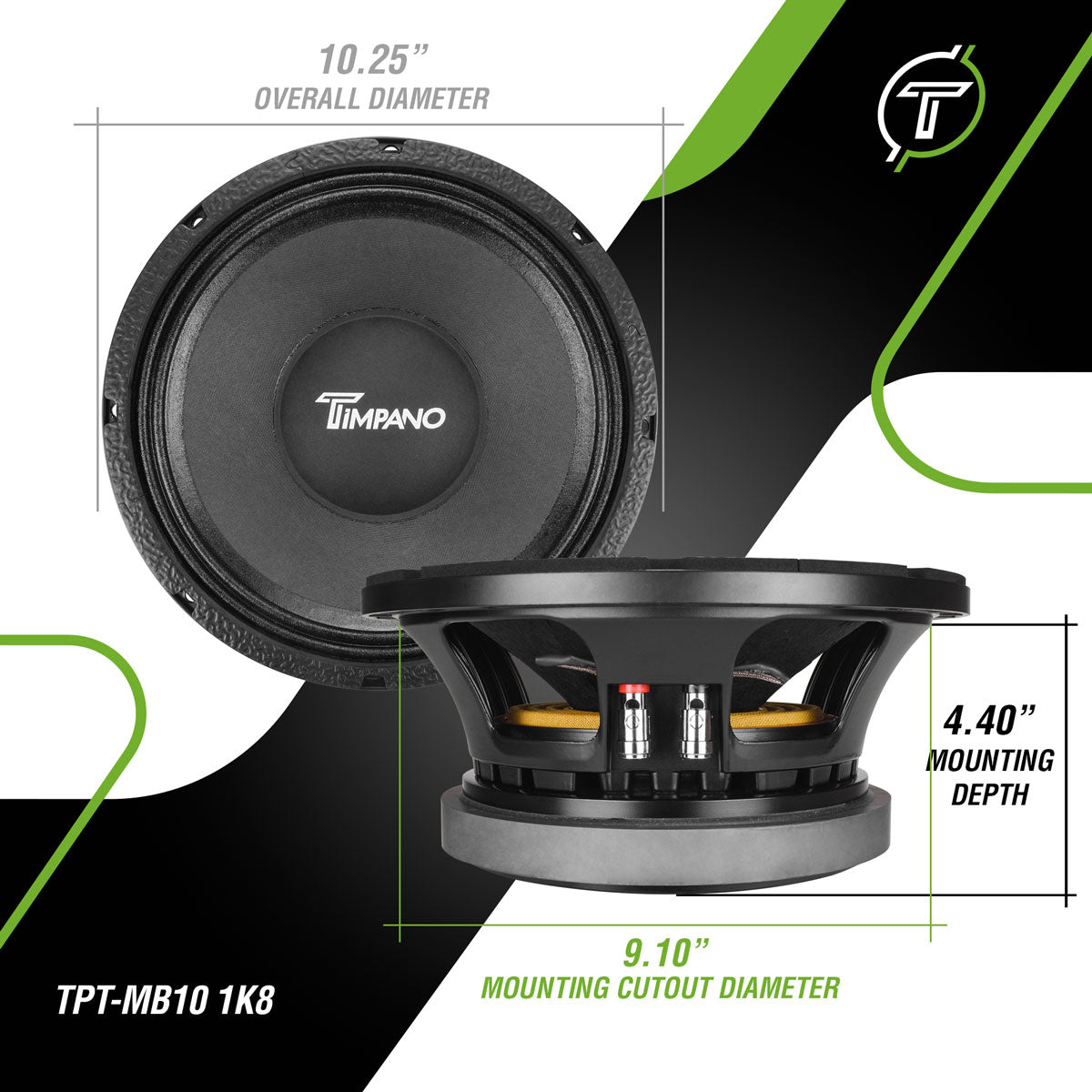

Sizing:
Mounting Depth: 4.40”
Mounting Cutout Diameter: 9.10″
Overall Diameter: 10.25″
Weight: 16.42 Lbs
