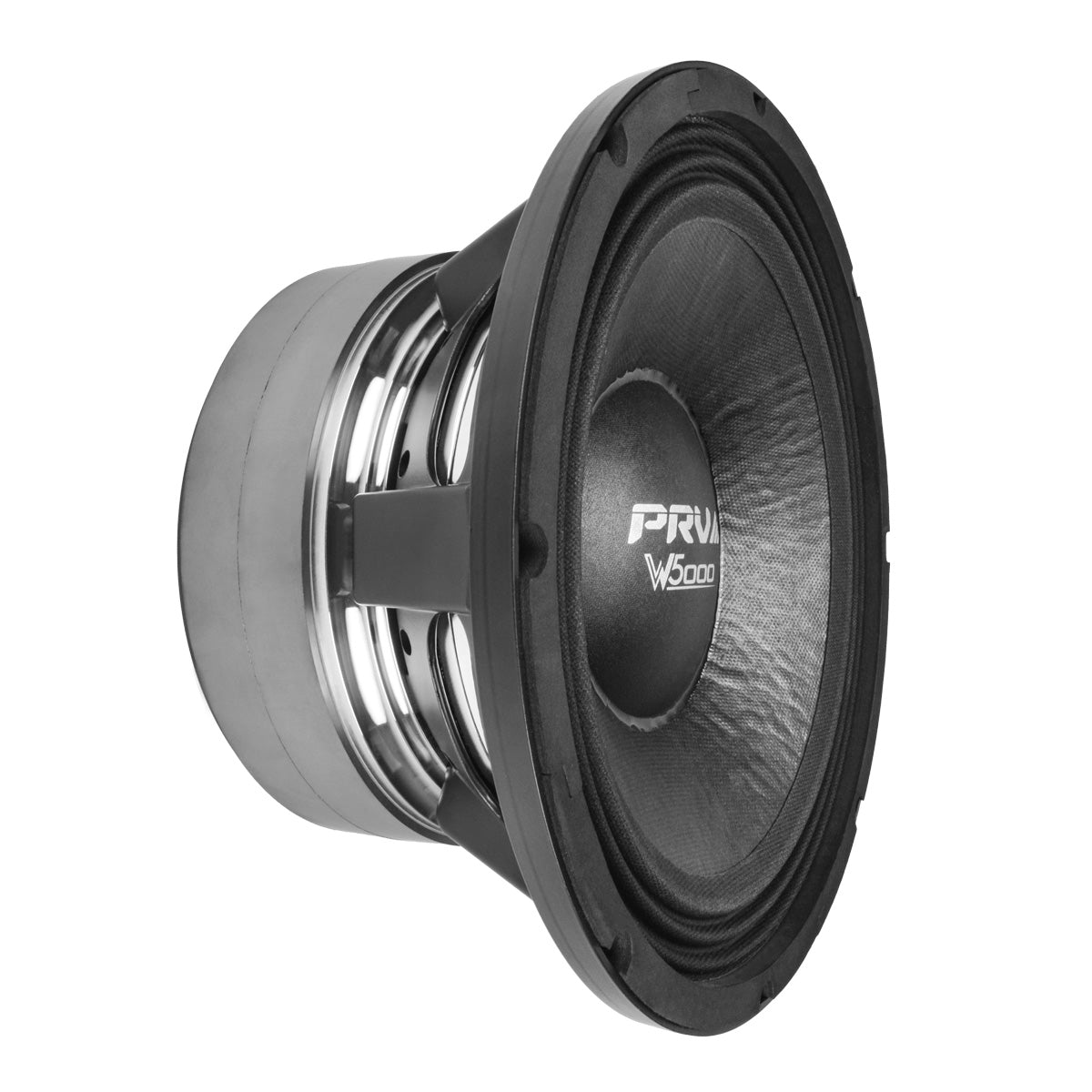

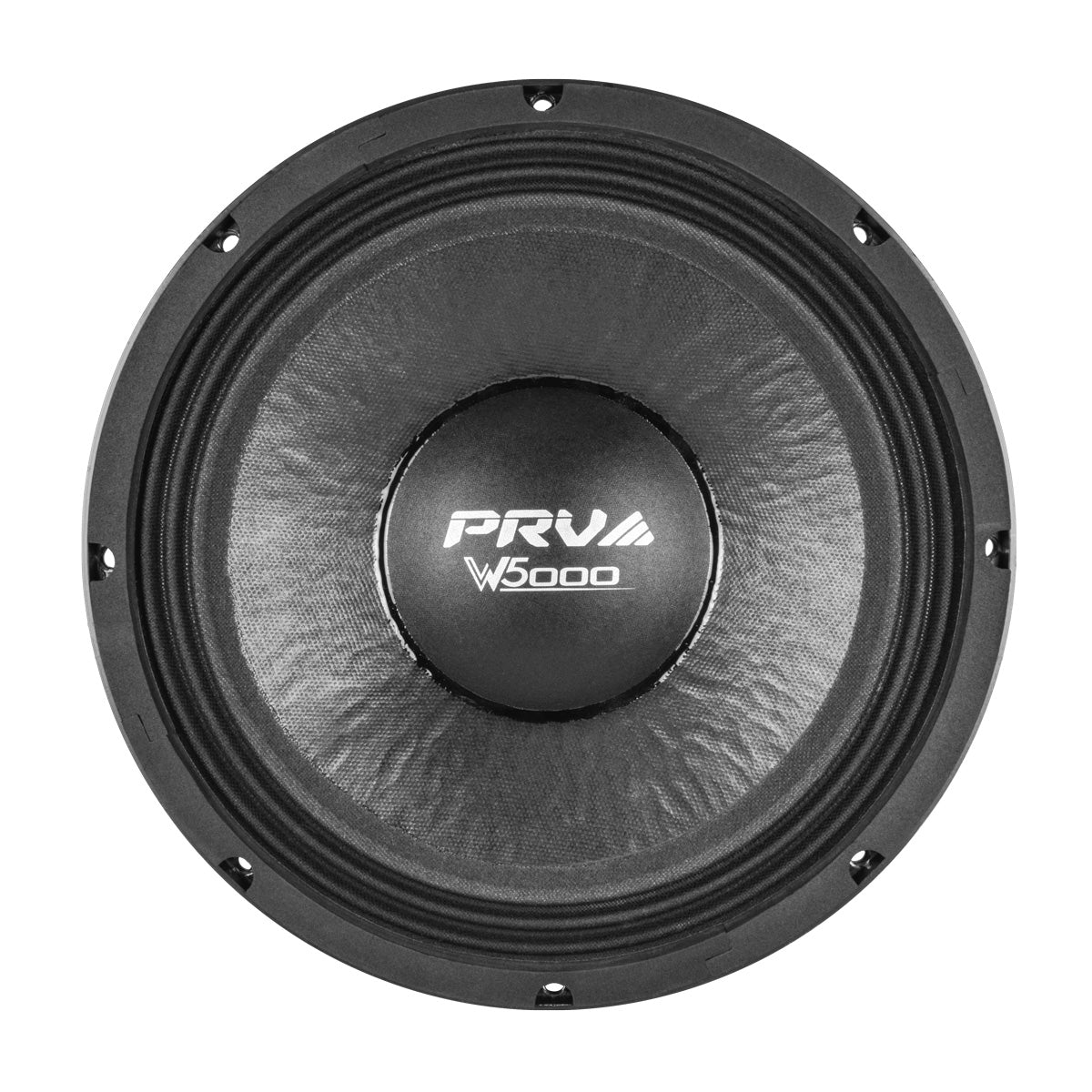

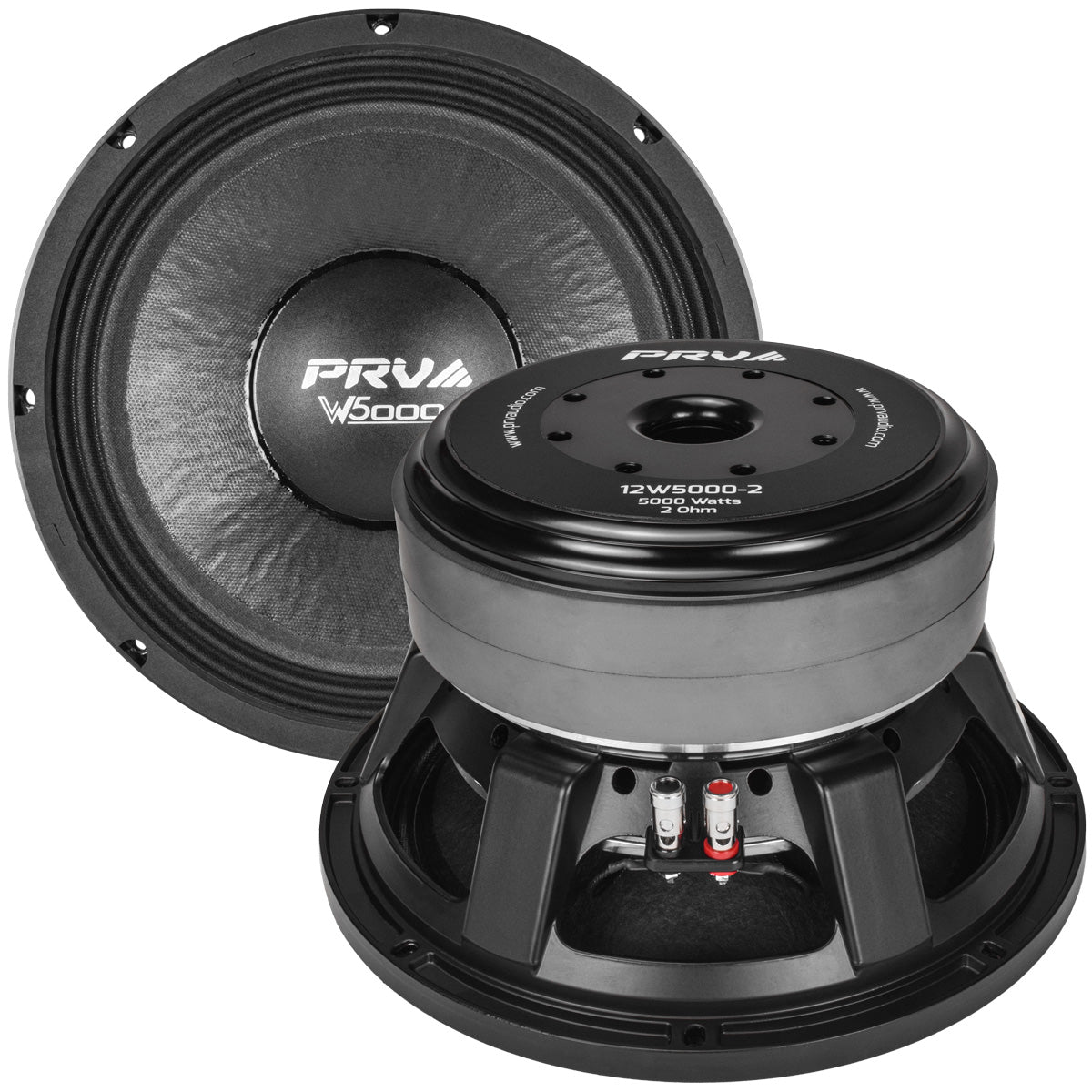

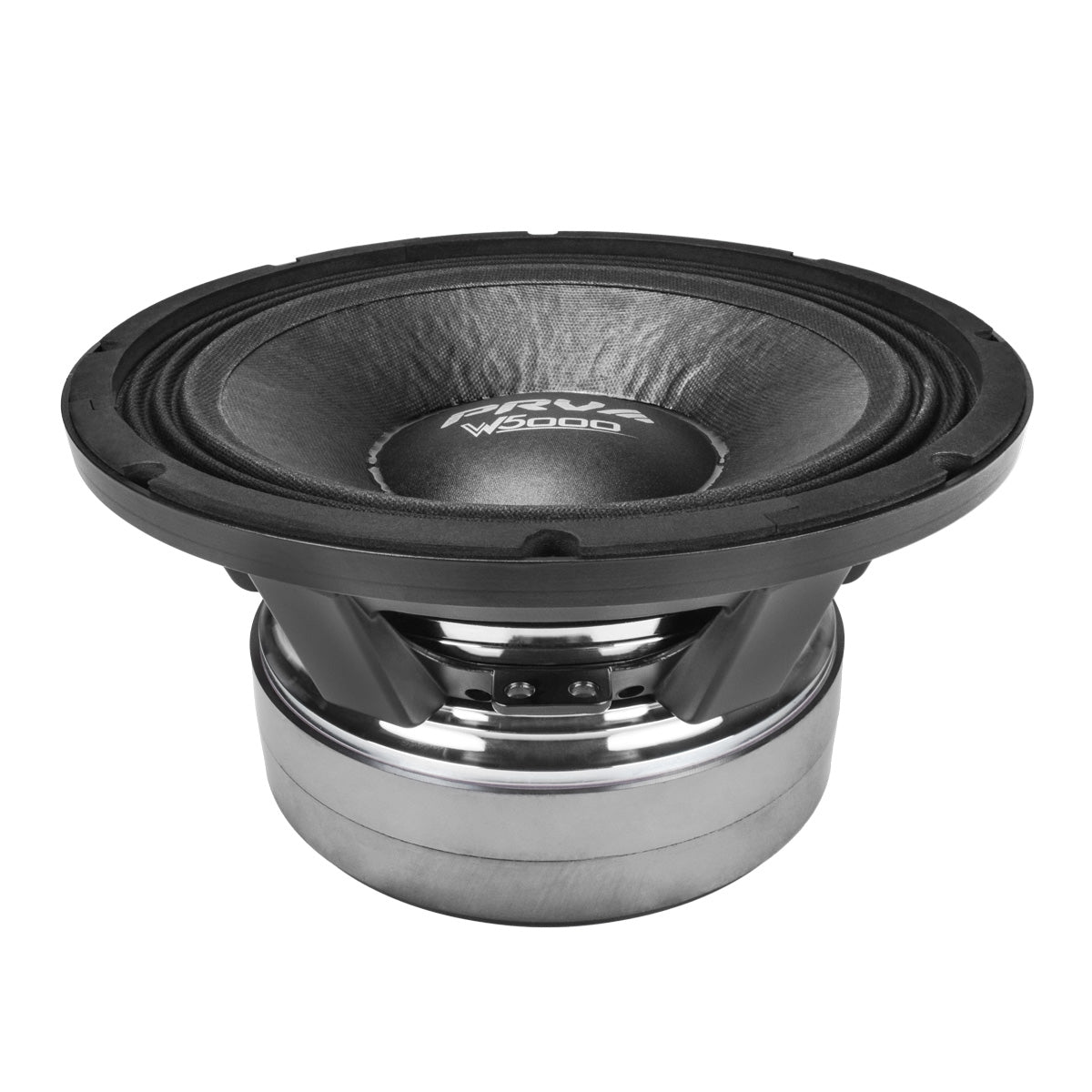

PRV 12W5000-2 Woofer
PRV 12W5000-2 Woofer
SKU: SKU:12W5000-2
PRV 12W5000-2 Woofer
PRV 12W5000-2 Woofer
SKU: SKU:12W5000-2

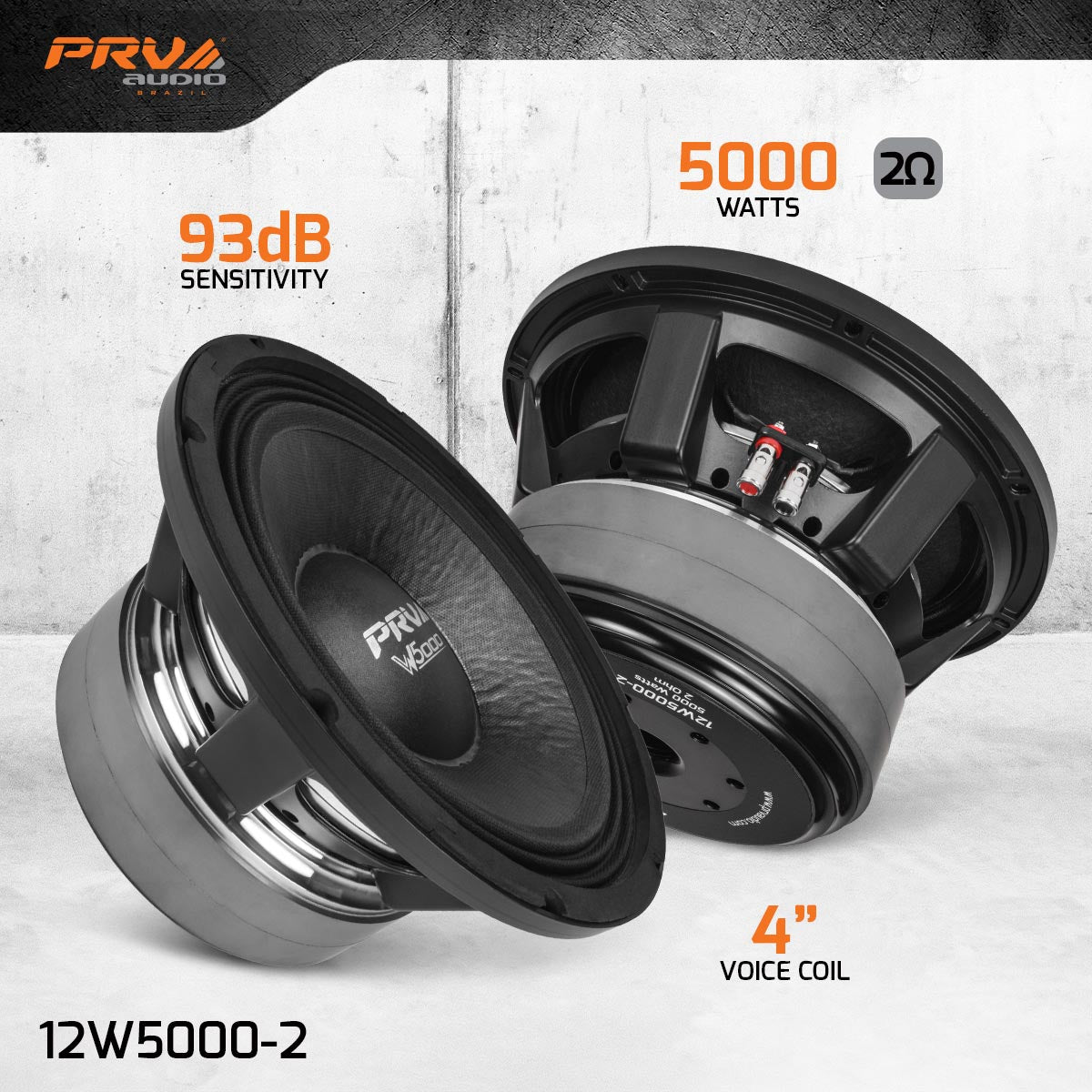

- 12” Woofer – 2 Ohm

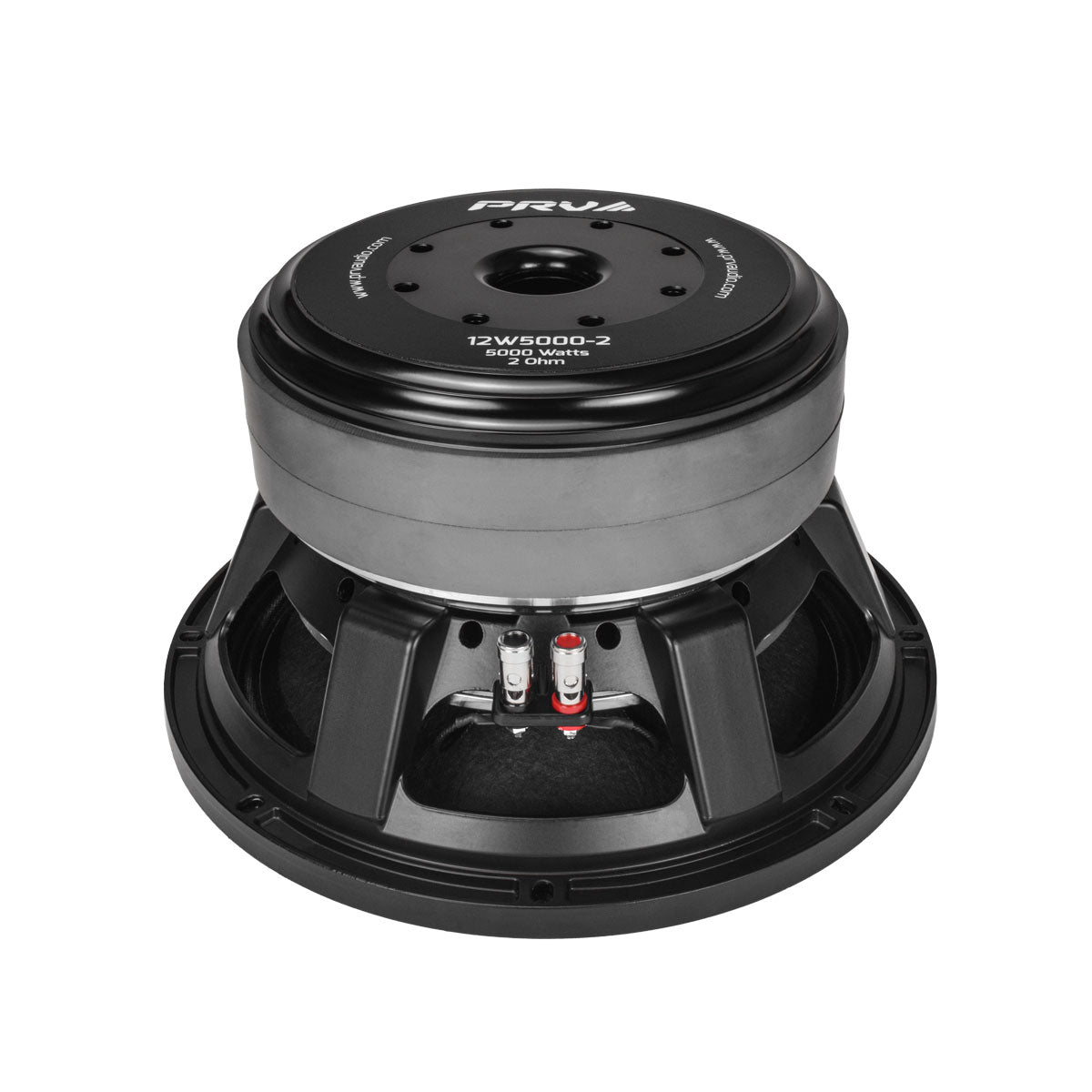

- Ferrite Magnet
- 93 dB – 5000 Watts
In stock
Couldn't load pickup availability
- 12” Woofer – 2 Ohm
- Ferrite Magnet
- 93 dB – 5000 Watts
Free Shipping available on orders over $1,500.00 in the U.S.
Features
Are you ready to experience a woofer designed for high-performance systems, delivering clean sound with powerful sound pressure in the low mid-bass range?
The 12W5000-2 is not your normal woofer, they are designed to produce low mid frequency in ported boxes in open air, such as stuntwall or "Cajón Brasileño".
Designed for extreme car audio systems that want to experience a whole new level of sound pressure! Whether you like to compete or just want to be the loudest in the parking lot, this woofer will take you to another level! Also available in 4 Ohm version.
Our goal with this woofer was to make it stand out from the competition by focusing on having the tonality of 12W1600 that can take high power handling! Unlike other high power woofers that can take power but not play music, you will be blown away by its wide range and very musical tonality.

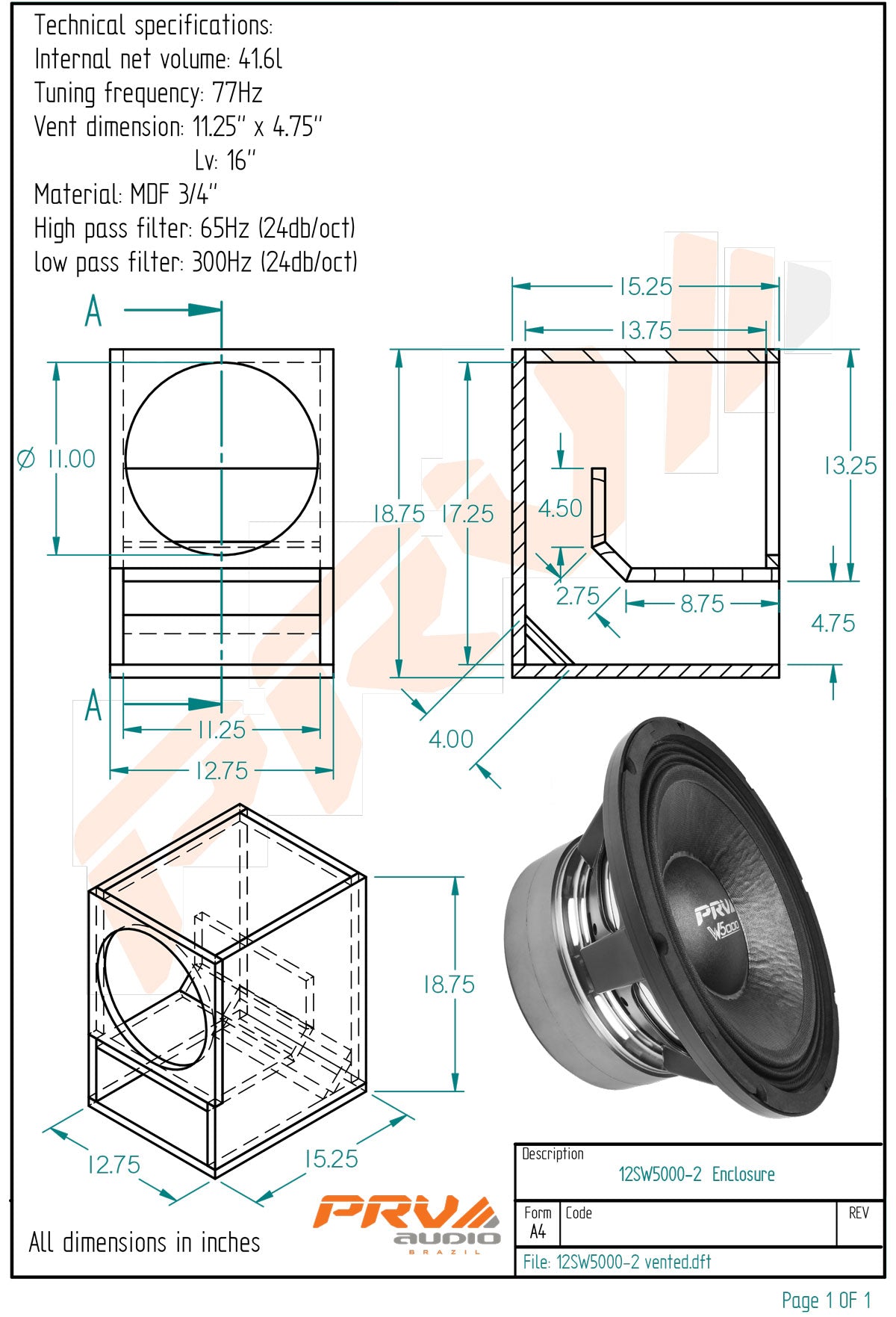

Easily capable of handling 5000 Watts RMS, its suspension, spider and cone are built to withstand intense sound pressure. When used with the recommended box and crossover points below.
Technical Details
GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
- Nominal Diameter 12″ (305 mm)
- Nominal Impedance 2 Ohm
- Nominal Power Handling* 2500 Watts
- Continuous Program Power (RMS)** 5000 Watts
- Max Peak Power*** 10000 Watts
- Sensitivity 2.83V at 1m93 dB
- Recommended Hi Pass Crossover" "For Full Power Handling 65 Hz (BT24)* *24db Per Octave Crossover

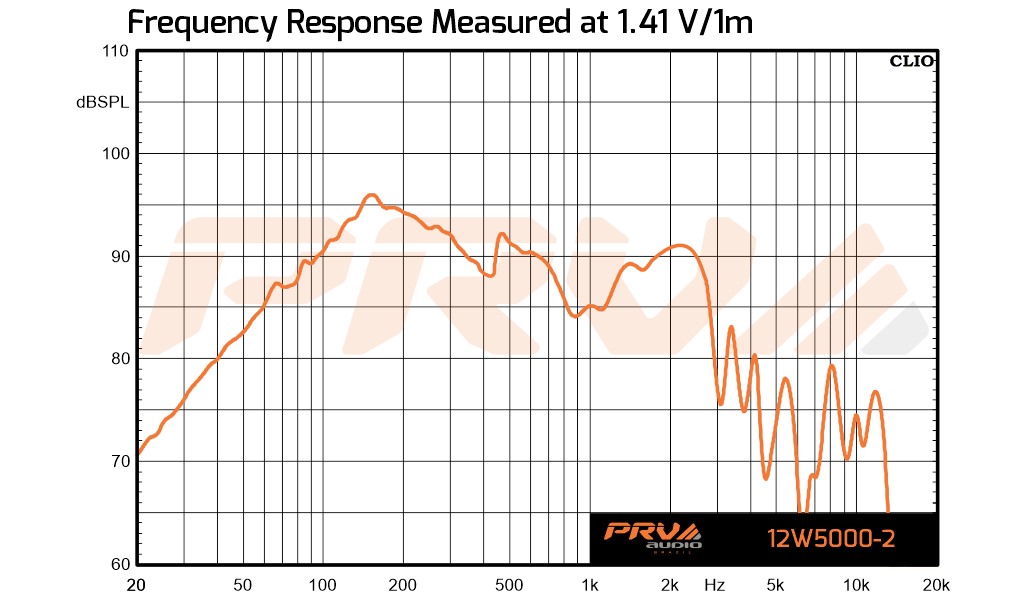

- Frequency Response at -10dB 60 - 800 Hz
- Voice Coil Diameter 4" (100 mm)
- Voice Coil Wire CCAW
- Voice Coil Winding Depth29.0 mm
- Former Material Glass Fiber
- Magnetic Gap Depth 18.0 mm
- Frame Material Die cast aluminum
THIELE-SMALL PARAMETERS
- Equivalent Volume
- Vas
- 11.76 l
- Excursion (mathematical)**
- Xmax
- 10.00 mm
- Free Air Resonance
- Fs
- 86.9 Hz
- Mechanical Factor
- Qms
- 19.19
- Electrical Factor
- Qes
- 0.44
- Total Factor
- Qts
- 0.43
- Cone Area
- Sd
- 573 cm²
- Mechanical Mass
- Mms
- 138.3 g
- BI Factor
- Bl
- 17.01 Tm

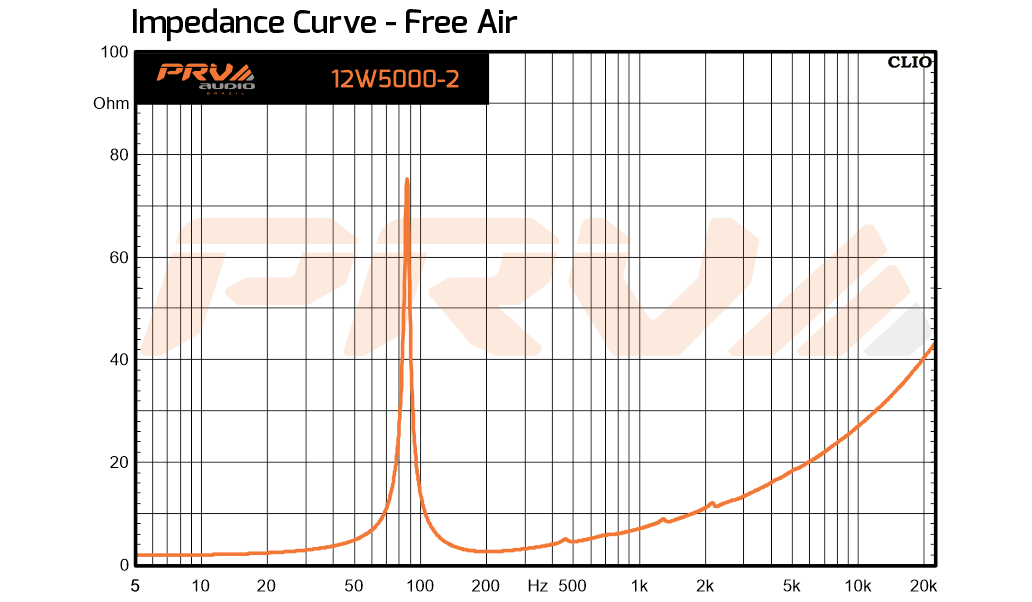

- Dc Resistance
- Re
- 1.7 Ohm
- Inductance
- Le
- 0.81 mH at 1 kHz
- Mechanical Mass Without Air
- Mmd
- 130.6 g
- Mechanical Compliance
- Cms
- 0.024 mm/N
EXTRA INFO

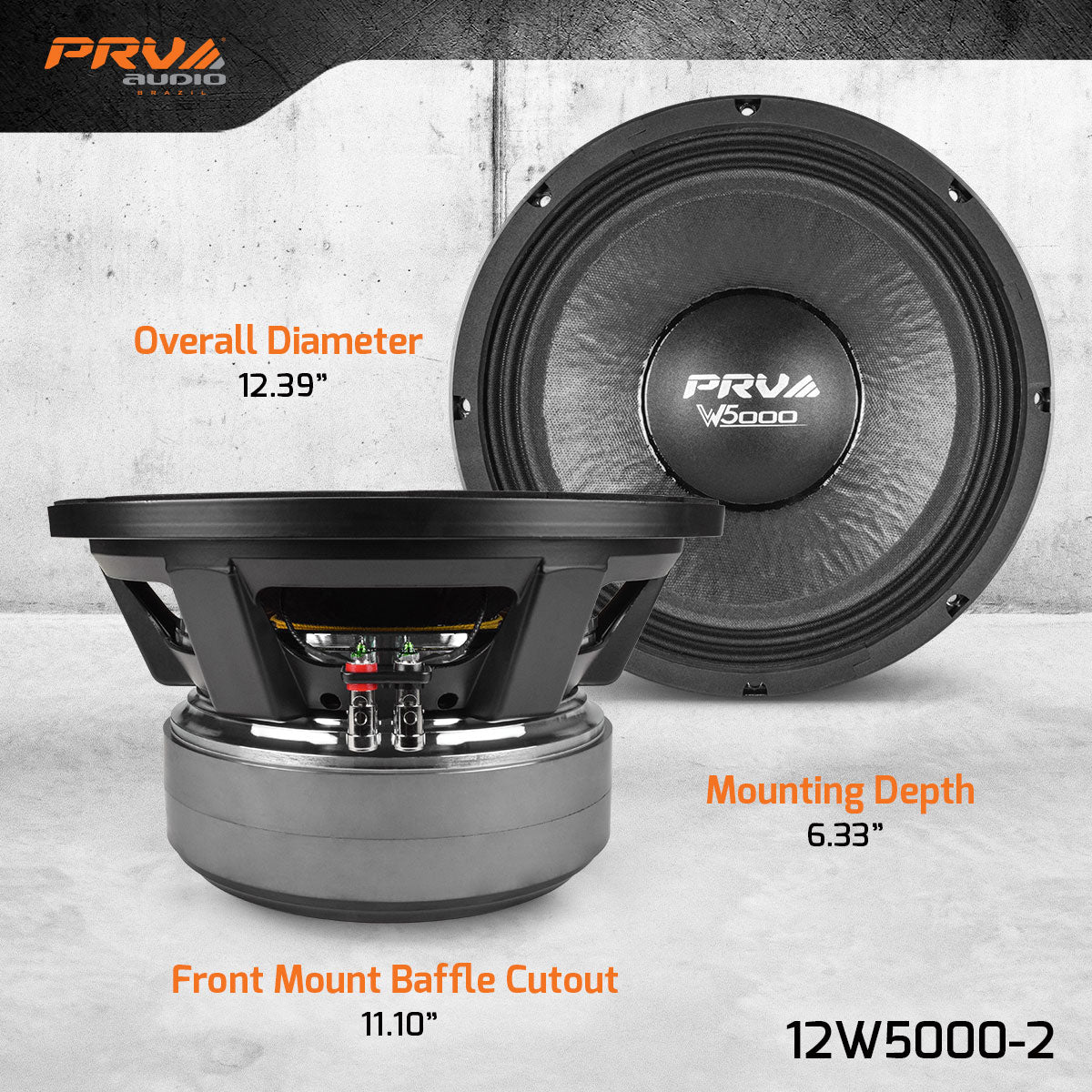

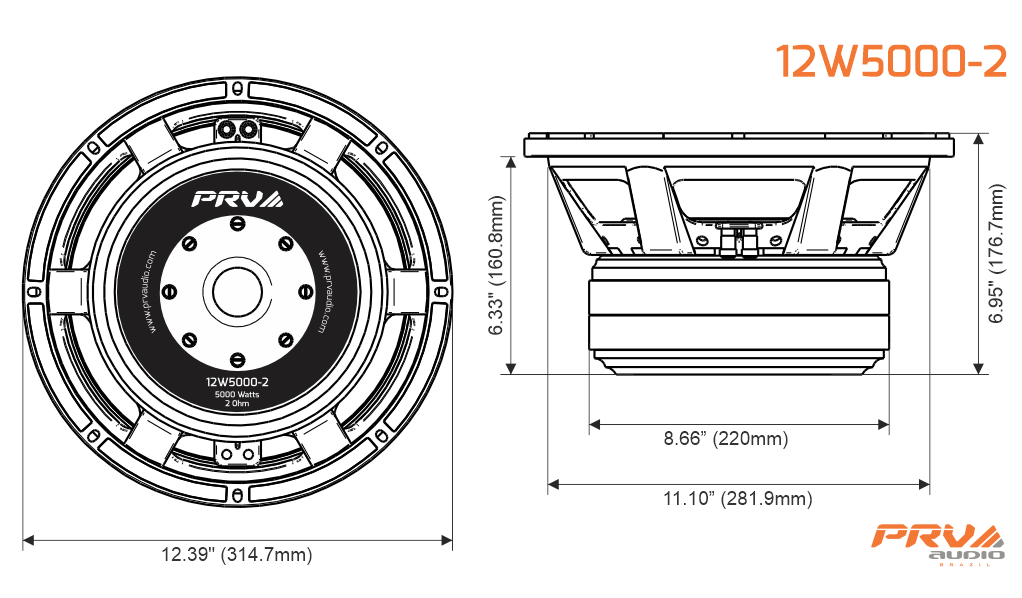

- Overall Depth 6.95" (176.7 mm)
- Mounting Depth 6.33" (160.8 mm)
- Overall Diameter 12.39" (314.7 mm)
- Front Mount Baffle Cutout 11.10” (281.9 mm)
- Net Weight 43.87 Lbs (19,90 kg)
- Shipping Weight 47.87 Lbs (21.70 kg)

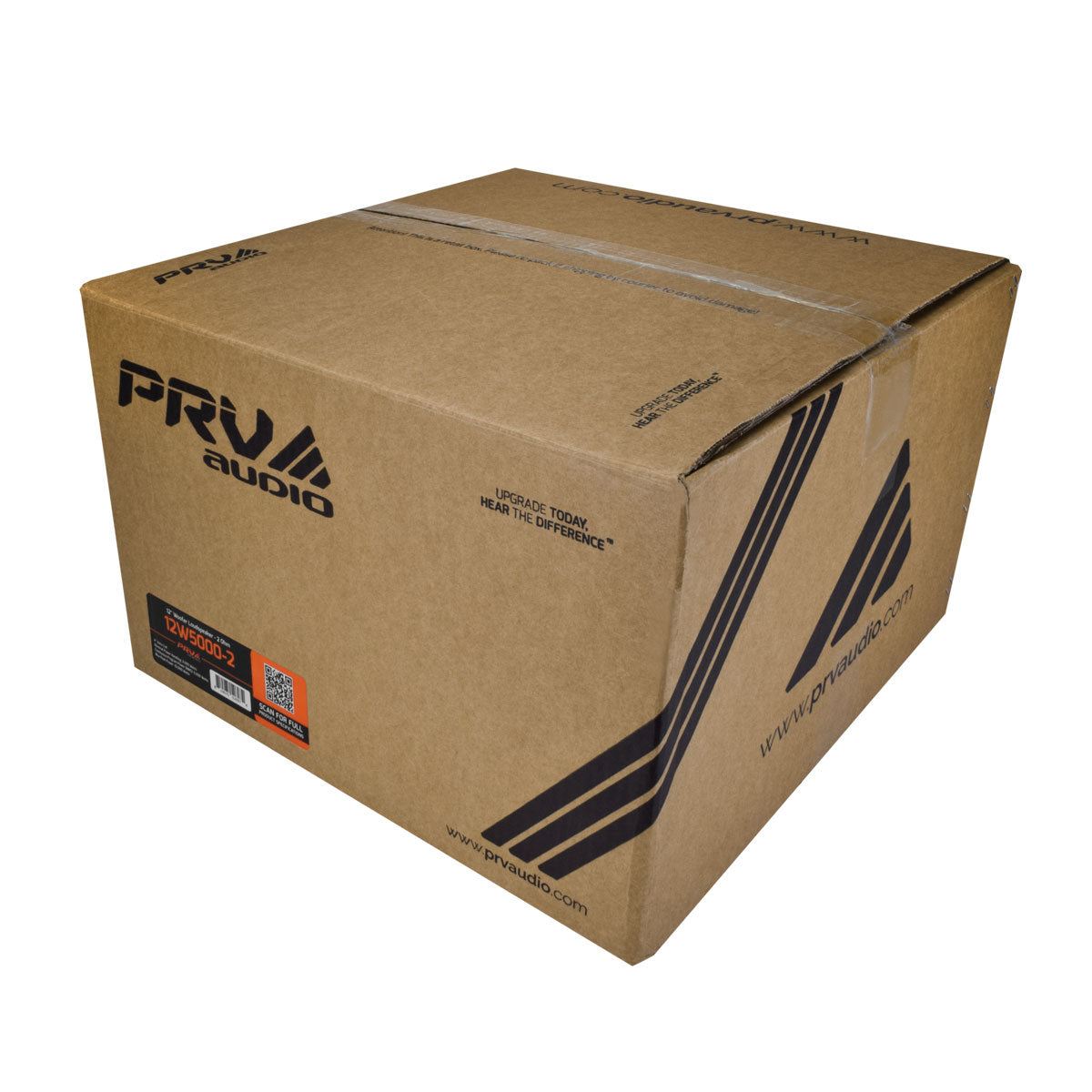

- Carton Dimensions WxLxH 16.73" x 16.85" x 11.42” (425 x 428 x 290 mm)
WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

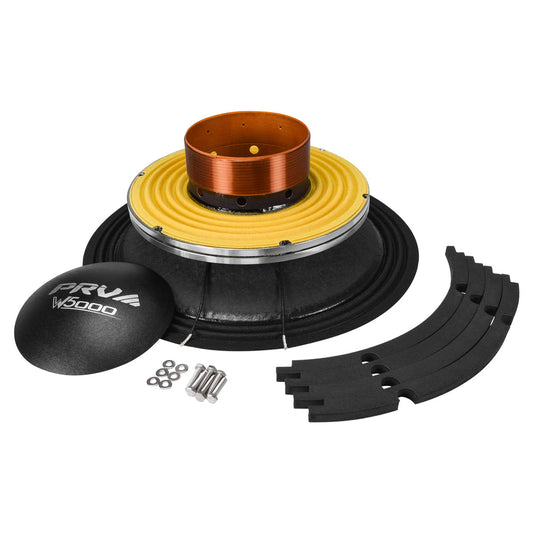

Repair Parts
-
