Monthly Special

PRV 6MR400-4 BULLET Midrange

PRV 6MR400-4 BULLET Midrange

SKU: 6MR400-4 BULLET
Monthly Special

PRV 6MR400-4 BULLET Midrange

PRV 6MR400-4 BULLET Midrange

SKU: 6MR400-4 BULLET

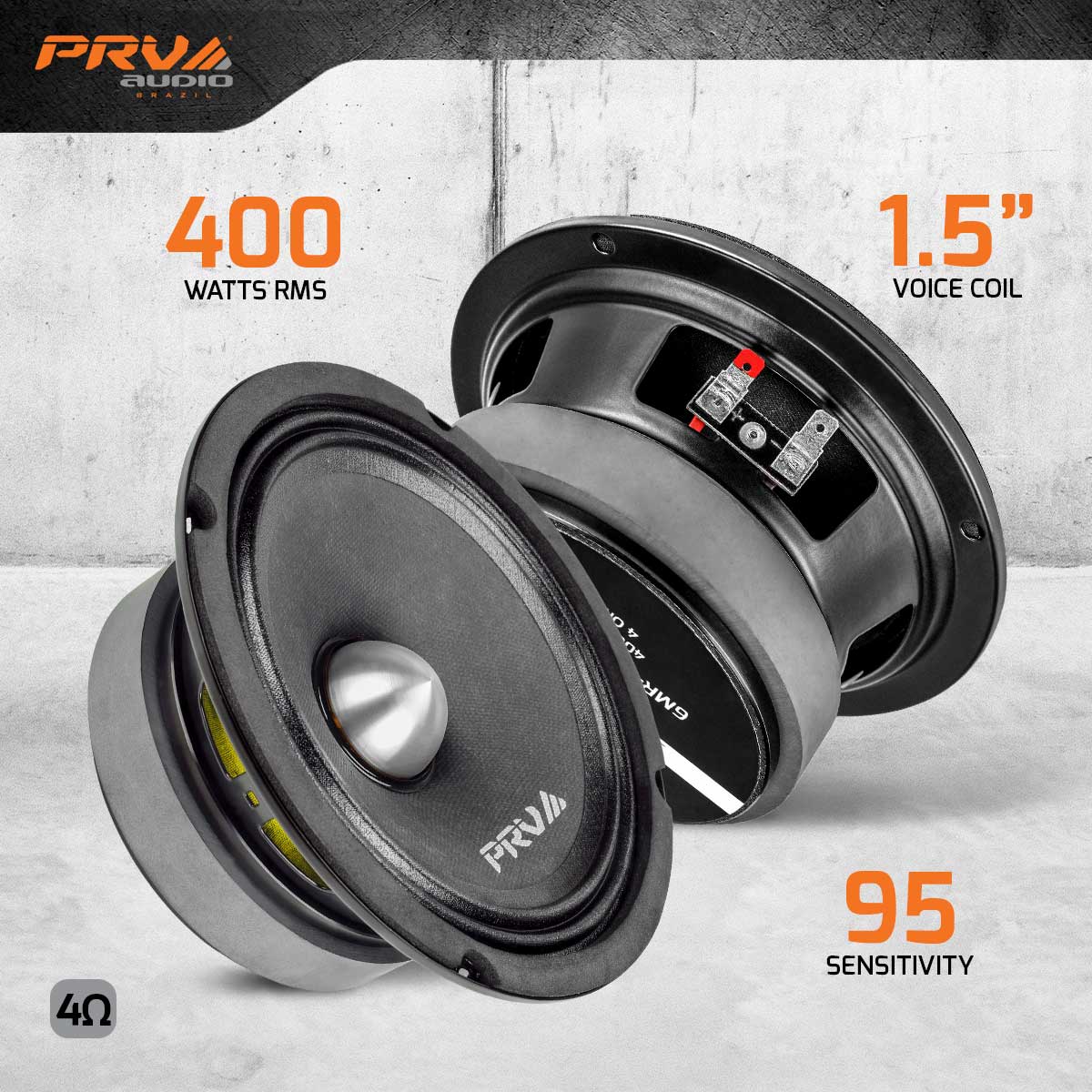

  • 6.5" Mid Range - 4 Ohm
  • High Performance Bullet
  • 95 dB - 400 Watts

$54.91
$65.89

In stock
  • 6.5" Mid Range - 4 Ohm
  • High Performance Bullet
  • 95 dB - 400 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The MR BULLET was conceived with one goal in mind: High-Performance!

Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door.

  • Built to Perform at Wide Frequency Range: 145 – 12,500 Hz
  • Highest Quality Speaker with bullet design available
  • High efficiency: 95 dB guarantees High Output Levels
  • Handles 400 Watts – Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohm Impedance

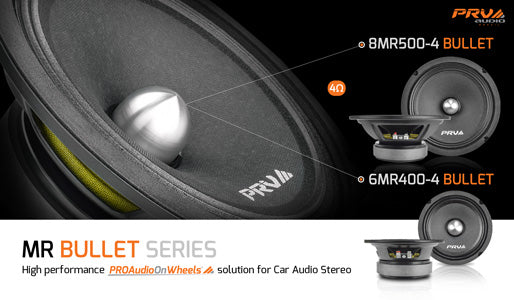

  • Also available in 8″ – 8MR500-4 BULLET
    and 6×9″ – 69MR500-4 BULLET

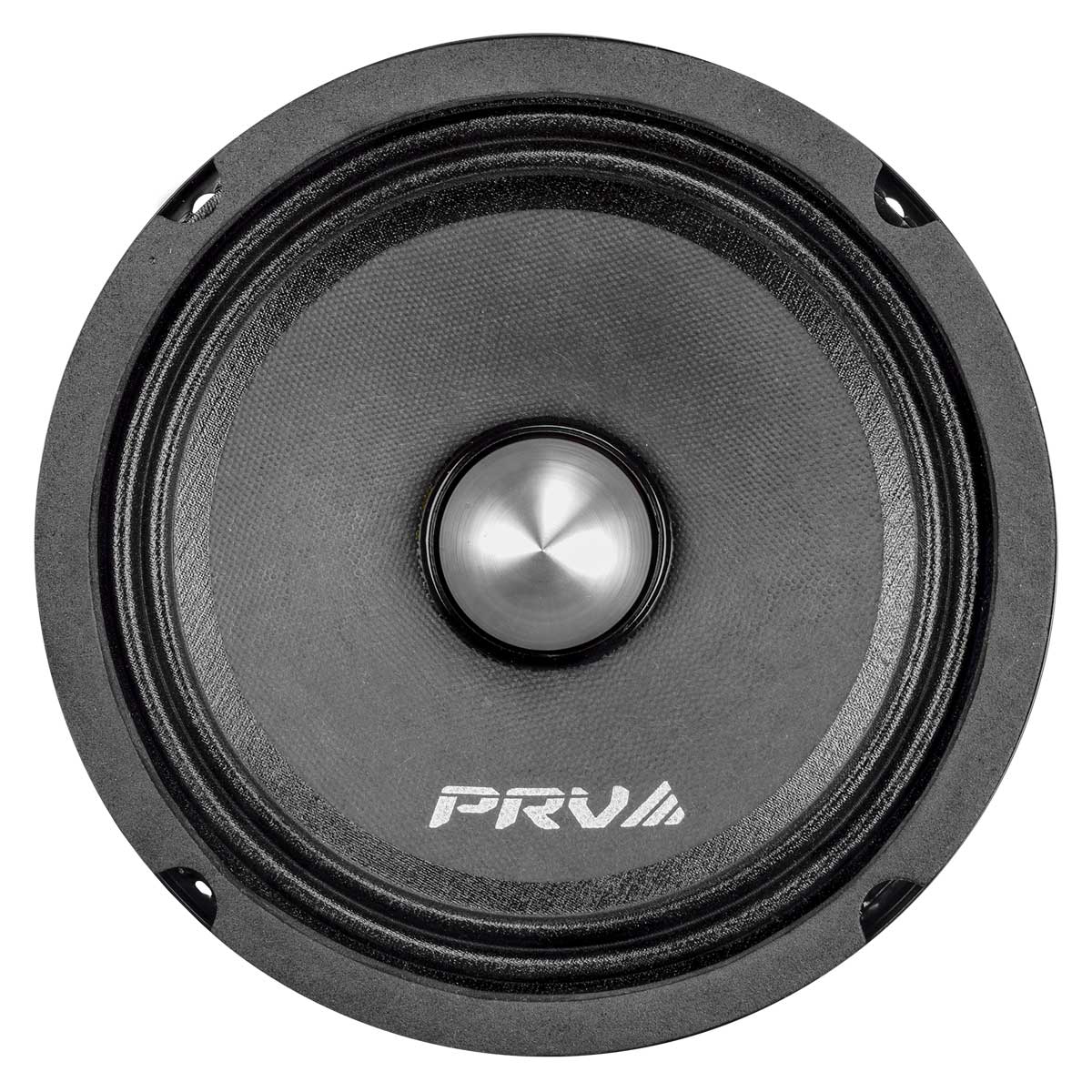

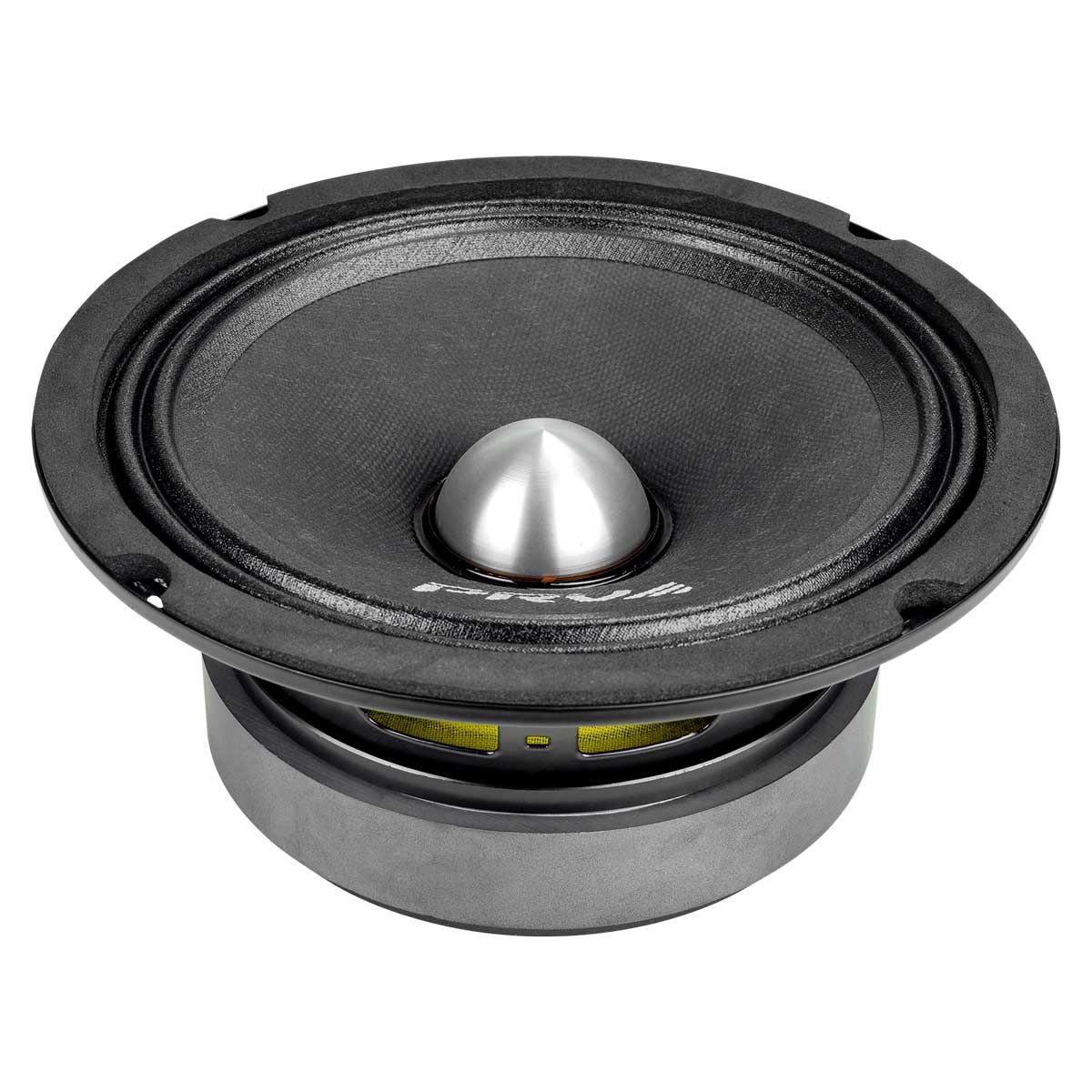

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!

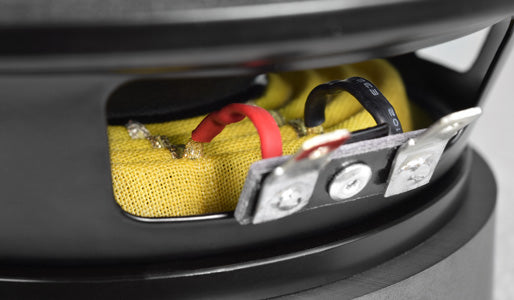

The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.

Built to perform and able to handle 400 watts of continuous power, this mid range is the perfect match on 3-way custom door system such as:

10W1000-NDY-4 + 6MR400-4 BULLET + TW450Ti-ND-4 making the ultimate sound reproduction machine, with unbeatable sound quality and output.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 6″ (152 mm)
  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 200 Watts
  • Continuous Program Power (RMS)** 400 Watts
  • Max Peak Power*** 800 Watts
  • Sensitivity 2.83V at 1m95 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 145 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 145 – 12,500 Hz
  • Voice Coil Diameter 1.5″ (38 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth9.5 mm
  • Former Material Kapton
  • Magnetic Gap Depth 6.0 mm
  • Frame Material Stamped Steel

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 4.40 l
  • Excursion (mathematical)**
    • Xmax
    • 3.25 mm
  • Free Air Resonance
    • Fs
    • 144.1 Hz
  • Mechanical Factor
    • Qms
    • 11.98
  • Electrical Factor
    • Qes
    • 0.64
  • Total Factor
    • Qts
    • 0.60
  • Cone Area
    • Sd
    • 143 cm²
  • Mechanical Mass
    • Mms
    • 7.94 g
  • BI Factor
    • Bl
    • 6.37 Tm
  • Dc Resistance
    • Re
    • 3.6 Ohm
  • Inductance
    • Le
    • 0.136 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 6.97 g
  • Mechanical Compliance
    • Cms
    • 0.154 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 6MR400-4 BULLET Midrange DATASHEET Download

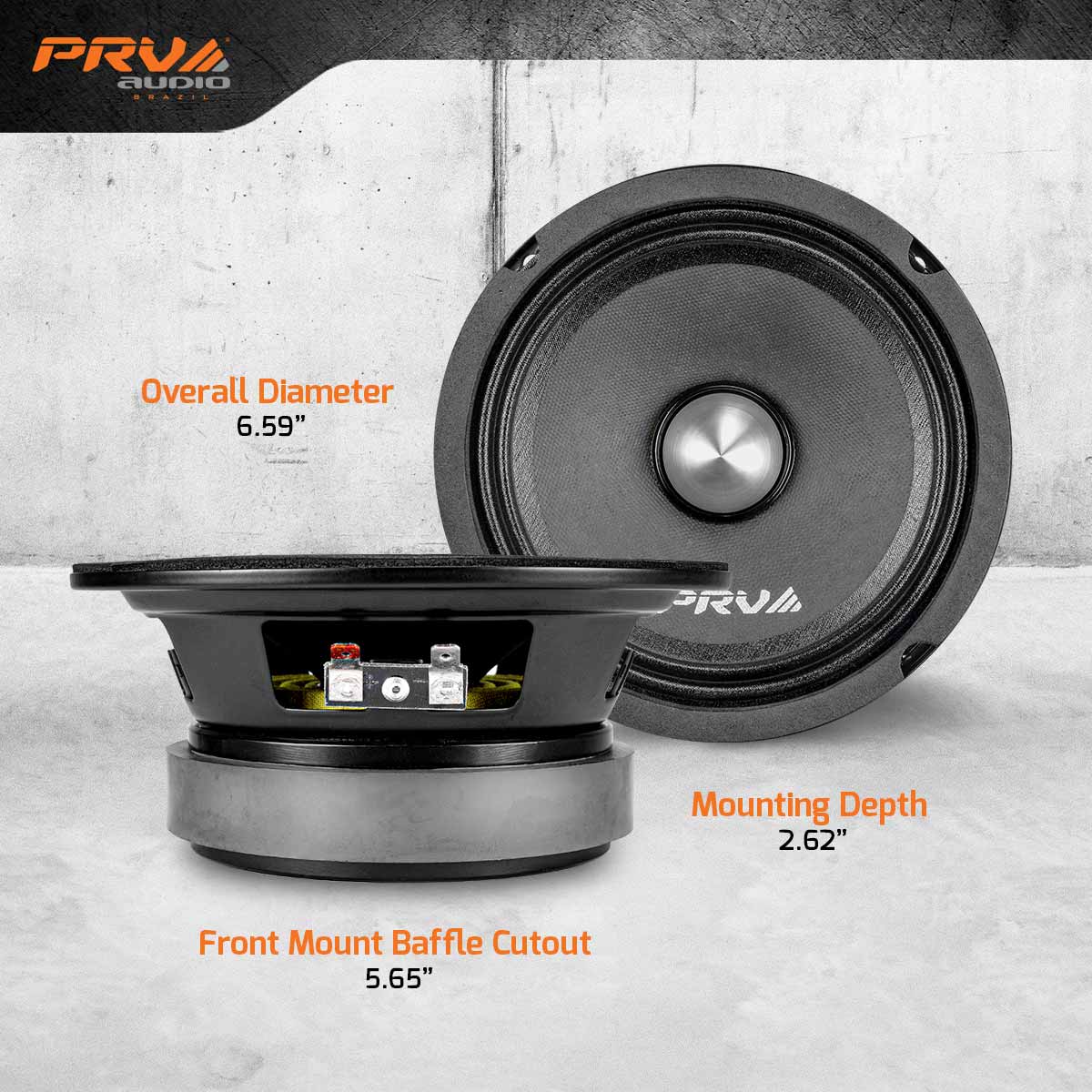

  • Overall Depth 2.99″ (73.5 mm)
  • Mounting Depth 2.62″ (66.5 mm)
  • Overall Diameter 6.59″ (167.5 mm)
  • Front Mount Baffle Cutout 5.65″ (143.5 mm)
  • Net Weight 4.81 Lbs (2.18 kg) unit
  • Shipping Weight 5.18 Lbs (2.35 kg)
  • Carton Dimensions WxLxH 8.50″ x 8.50″ x 3.35″ (175 x 175 x 85 mm)
PRV 6MR400-4 BULLET Midrange DATASHEET Download
