PRV EX3.5 STEREO Crossover

PRV EX3.5 STEREO Crossover

SKU: EX3.5 STEREO
Black Friday Special

PRV EX3.5 STEREO Crossover

PRV EX3.5 STEREO Crossover

SKU: EX3.5 STEREO

  • 3-Way Electronic Crossover
  • 2 Inputs Channels
  • 3 Output Channels

$34.65
$74.89

In stock
  • 3-Way Electronic Crossover
  • 2 Inputs Channels
  • 3 Output Channels

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX3.5 STEREO electronic crossover, giving you the power to customize your sound with a frequency of filter adjustments. Featuring 3-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!

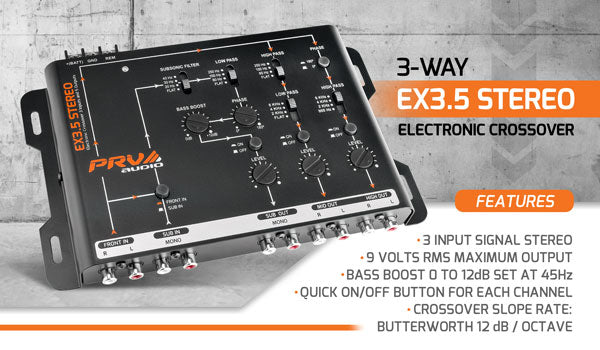

Highlights

  • 2/4 RCA Input Signal Options
  • 9 Volts RMS maximum output
  • Bass Boost 0 to 12dB set at 45Hz
  • Quick On/Off button for each channel
  • Crossover slope rate: Butterworth 12 db/Octave

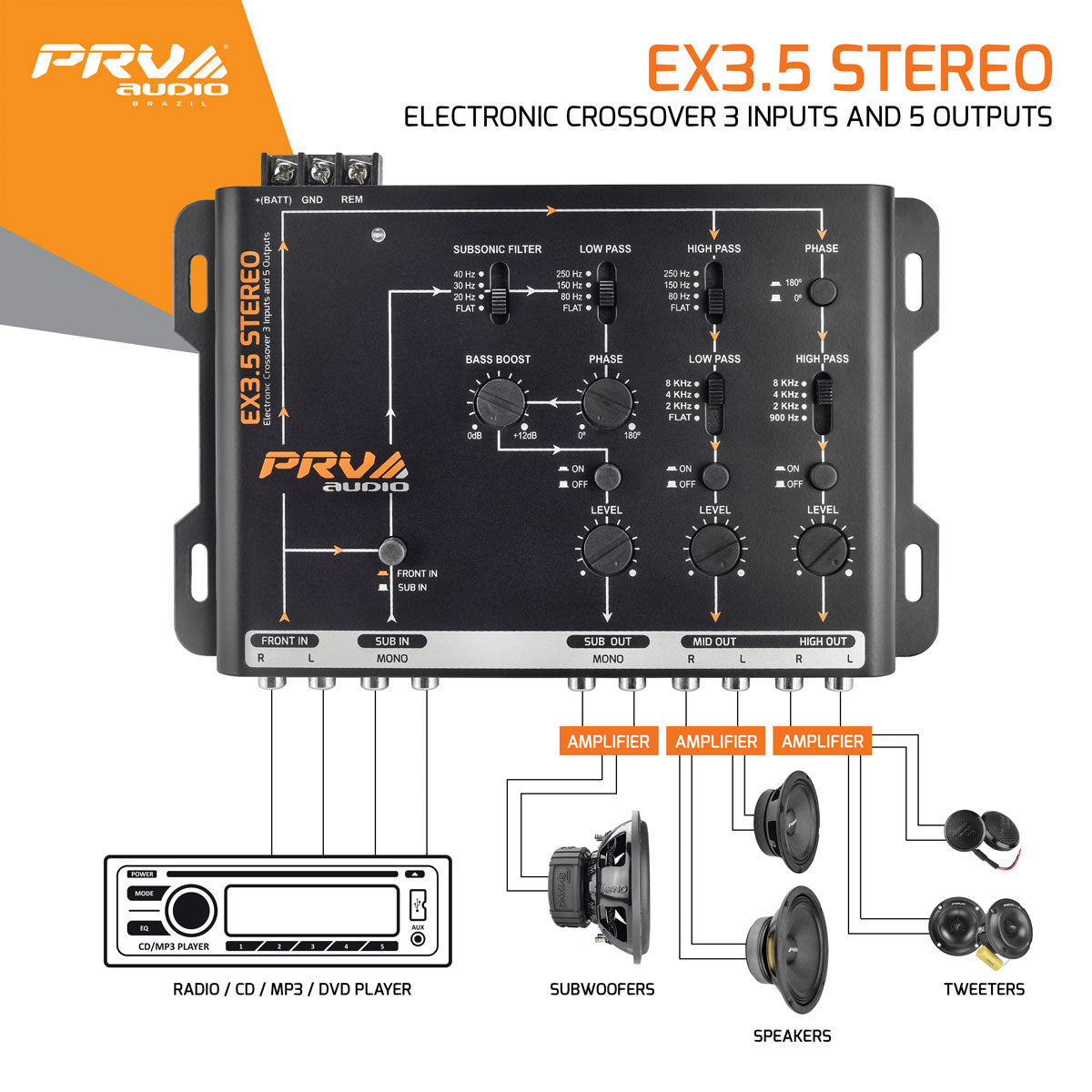

Input and output Functions:

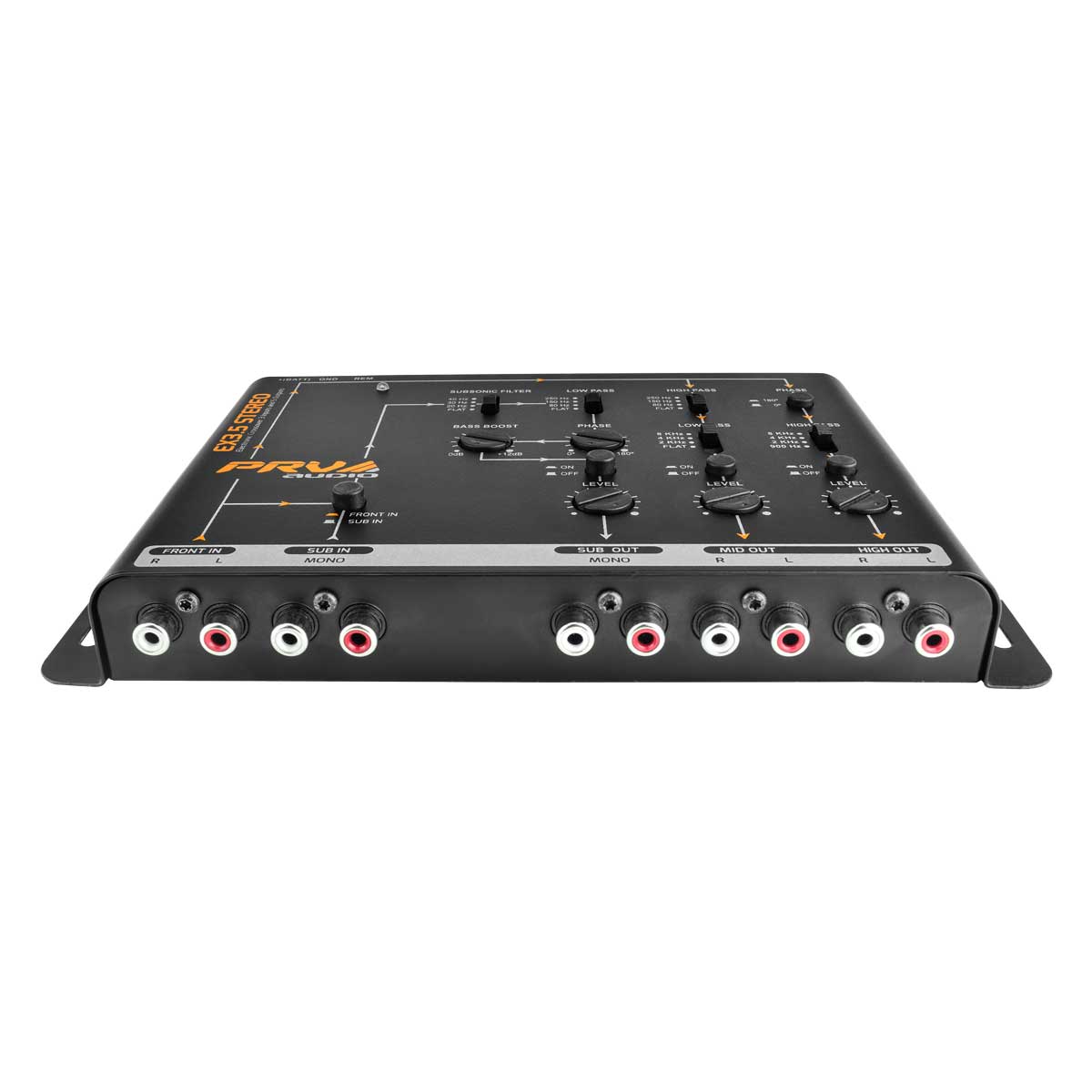

– 2/4 RCA inputs for 2 Channels – 1 Stereo and 1 Mono
– 6 RCA outputs for 3 Channels – 2 Stereo and 1 Mono

Crossover Functions:

–High Pass Filter allows adjustment:
It determines the beginning of the channel operating frequency.
This filter allows the amplifier to work with many different applications such as: Woofer / Midbass / Midrange / Compression Driver components allows the elimination of low frequency sounds, delivering the right frequency range to avoid damage to the components.


–Low Pass Filter allows adjustment:
It determines the end of the channel operating frequency.
This filter allows you to fine tune the amplifier frequency response to match to the components’ frequency response. This ensures that only the lowest frequencies are reproduced by the amplifier.


–Bass Boost allows adjustment:
Bass Equalizer: provides a “gain attenuation” 0 to + 12dB at center frequency of 45Hz .


–On/Off Buttons:
This button allows to quick turn On and Off each individual channel.


–Level knobs:
This control adjusts the output signal on channel; which allows an optimal adjustment to the output signal levels to the amplifiers.

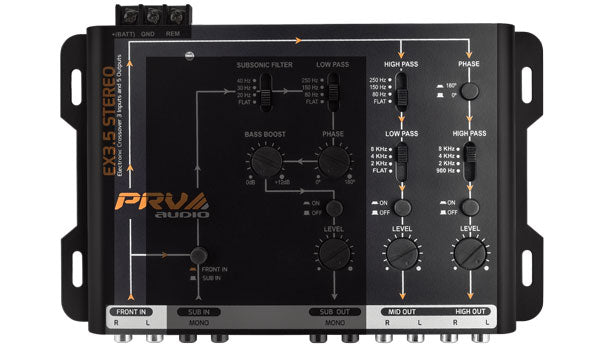

HIGH OUT channel:This Stereo output channel take signal from the FRONT IN stereo inputs
– Selectable HIGH PASS filter options:  8000Hz / 4000Hz / 2000Hz / 900Hz
Recommended application: High Frequency Compression Drivers and Super Tweeters.


MID OUT channel: This Stereo output channel take signal from the FRONT IN stereo inputs
– Selectable HIGH PASS filter options:  250Hz / 150Hz / 80Hz / FLAT ( no filter )
– Selectable LOW PASS filter options: 8000Hz / 4000Hz / 2000Hz / FLAT ( no filter )
Recommended application: Woofer, Mid Bass and Mid Range Speakers.

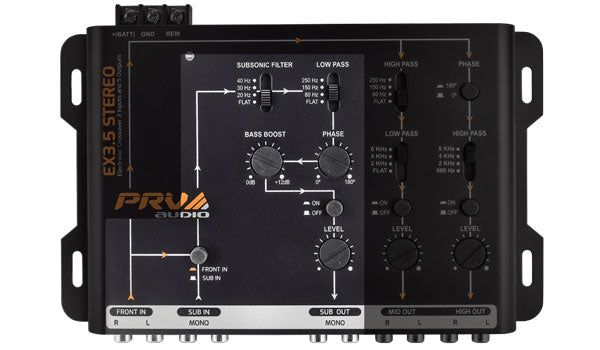

SUB OUT channel: This mono output channel take signal from the FRONT IN or SUB IN input.
– Selectable SUBSONIC filter options:  40Hz / 30Hz / 20Hz / FLAT ( no filter )

– Selectable LOW PASS filter options: 250Hz / 150Hz / 80Hz / FLAT ( no filter )
– BASS BOOST gain + 12dB at center frequency of 45Hz and Phase Control
Recommended application: Woofer and Subwoofers.

High Out Channel:

  • High Pass: 8000Hz / 4000Hz / 2000Hz / 900Hz (12dB/8a)

Mid Out Channel:

  • High Pass: 250Hz / 150Hz / 80Hz / FLAT (12dB/8a)
  • Low Pass: 8000Hz / 4000Hz / 2000Hz / FLAT

Sub Out Channel:

  • Low Pass: 250Hz / 150Hz / 80Hz / FLAT (12dB/8a)
  • Bass Boost: 25Hz – 110Hz (0 – +12dB; 45Hz)
  • Maximum Output Voltage: 9V RMS
  • Maximum Input Voltage: 4V RMS
  • Signal to Noise: >90dB
  • Input Impedance: 10K Ohms
  • Harmonic Distortion: < 0.02% THD
  • Channel Separation: > 80dB
  • Frequency Response: 20Hz-200KHz
  • Supply Voltage: 10V – 16V DC
  • Current Consumption: 200mA
  • Impedance Output: 470 Ohms

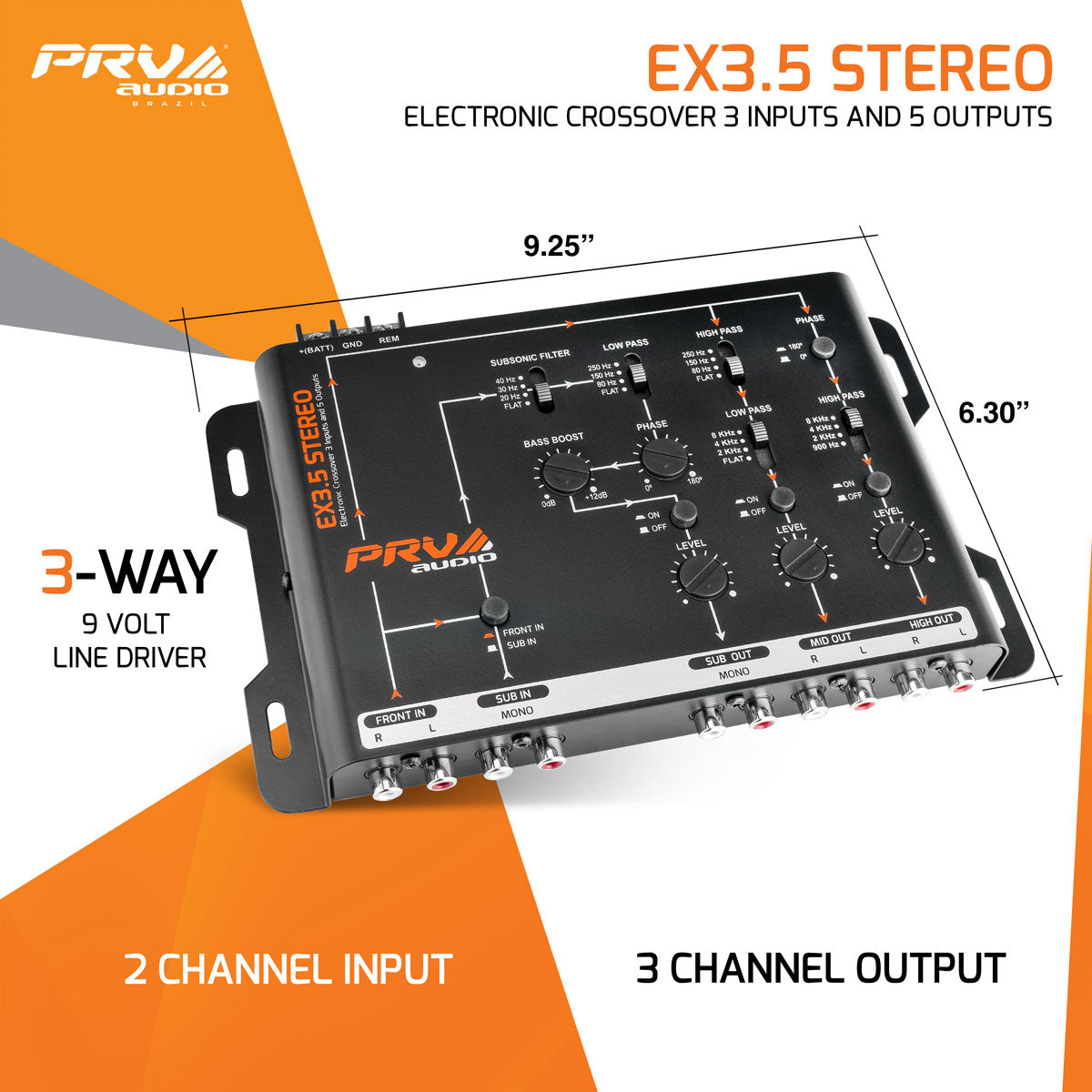

  • Dimensions (H x W x L): 1.30″ x 9.25″ x 6.30″
  • Weight: 1.45 Lbs
