Monthly Special

PRV Vocal Horn Driver + Tweeters Bundle

PRV Vocal Horn Driver + Tweeters Bundle

SKU: KIT1xD2200Ph+1xWGP14-50COPPERDUAL+2xTW700Ti
MONTHLY SPECIAL

PRV Vocal Horn Driver + Tweeters Bundle

PRV Vocal Horn Driver + Tweeters Bundle

SKU: KIT1xD2200Ph+1xWGP14-50COPPERDUAL+2xTW700Ti

Horn Color
  • 2” Midrange Horn Driver
  • 5 Horn Color Options
  • 4” Super Tweeters
$175.64
$219.05

In stock
  • 2” Midrange Horn Driver
  • 5 Horn Color Options
  • 4” Super Tweeters

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

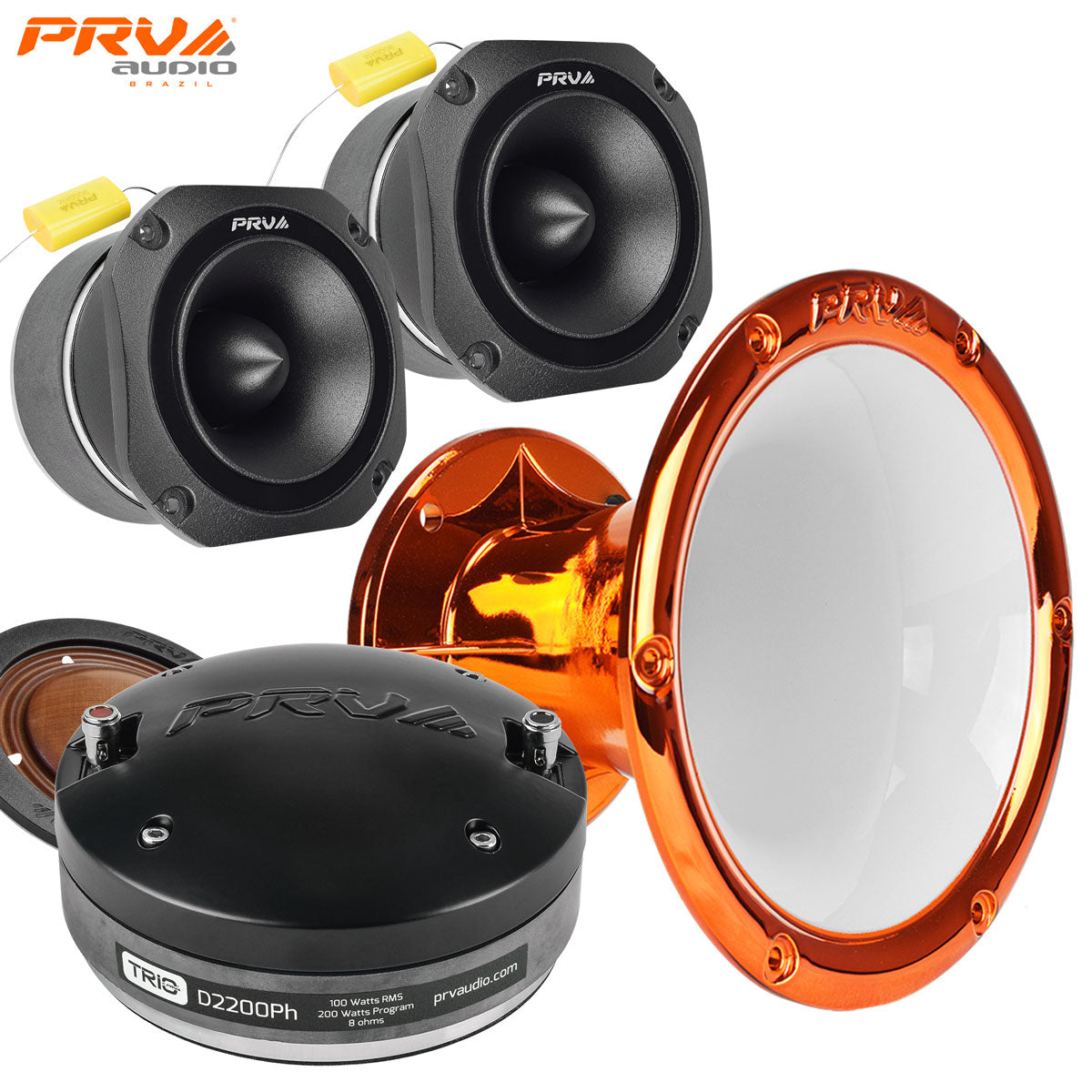

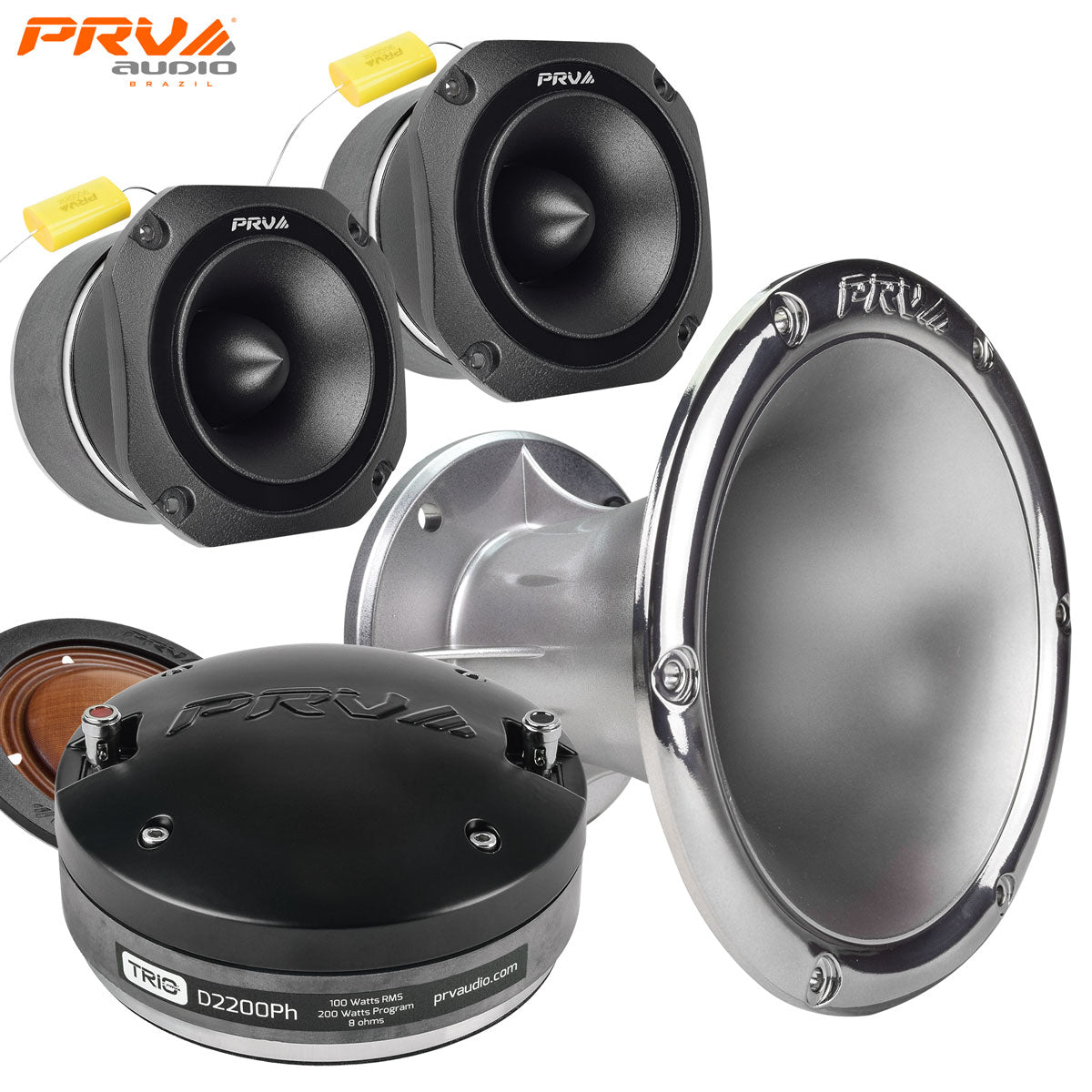

2” Exit Midrange PRO Rounded Horn Driver + 2x Super Tweeter Bundle

High Output bundle solution for mid-high vocals and crisp Highs that offers a great response on vocals from 800 to 20,000Hz. Perfect components for a 3 or 4-Way sound system.

Its high output and smooth midrange frequency response allows you to use this bundle in almost any high output audio application for vocal reinforcement. Such as: stuntwalls, custom door panels, chuchero ® and designed to make the PROAudioOnWheels® audio system.

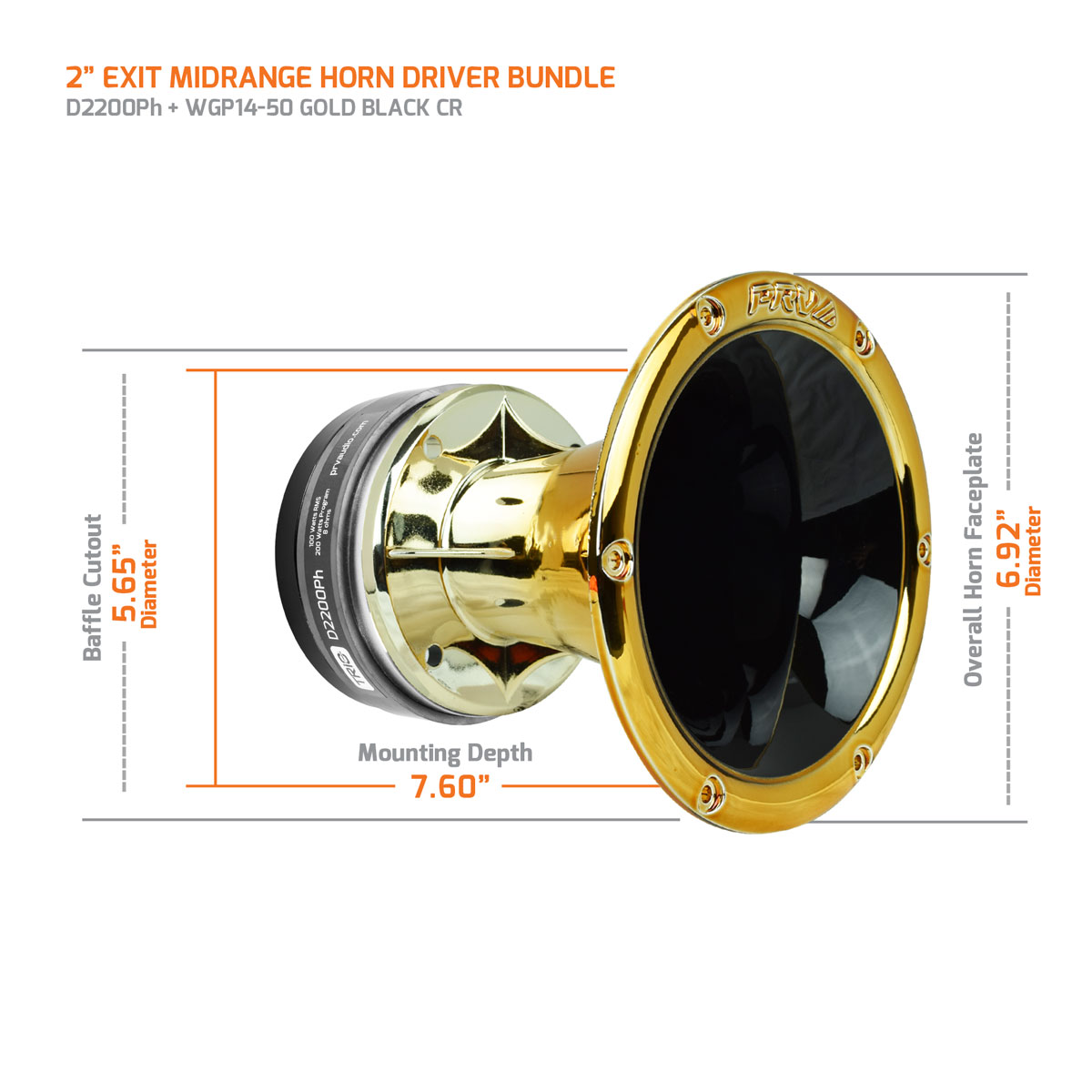

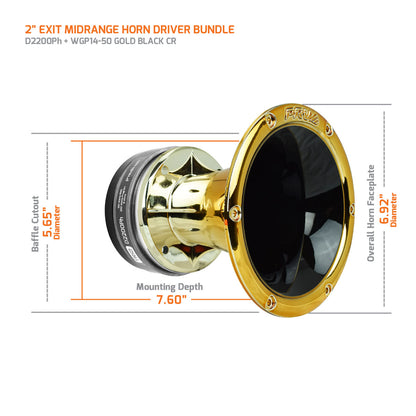

The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn, it requires a baffle cutout of 5.65” and a mounting depth of 7.60" deep. Overall horn faceplate is only 6.92” Diameter. Mounting hardware is included.

Bundle Components:

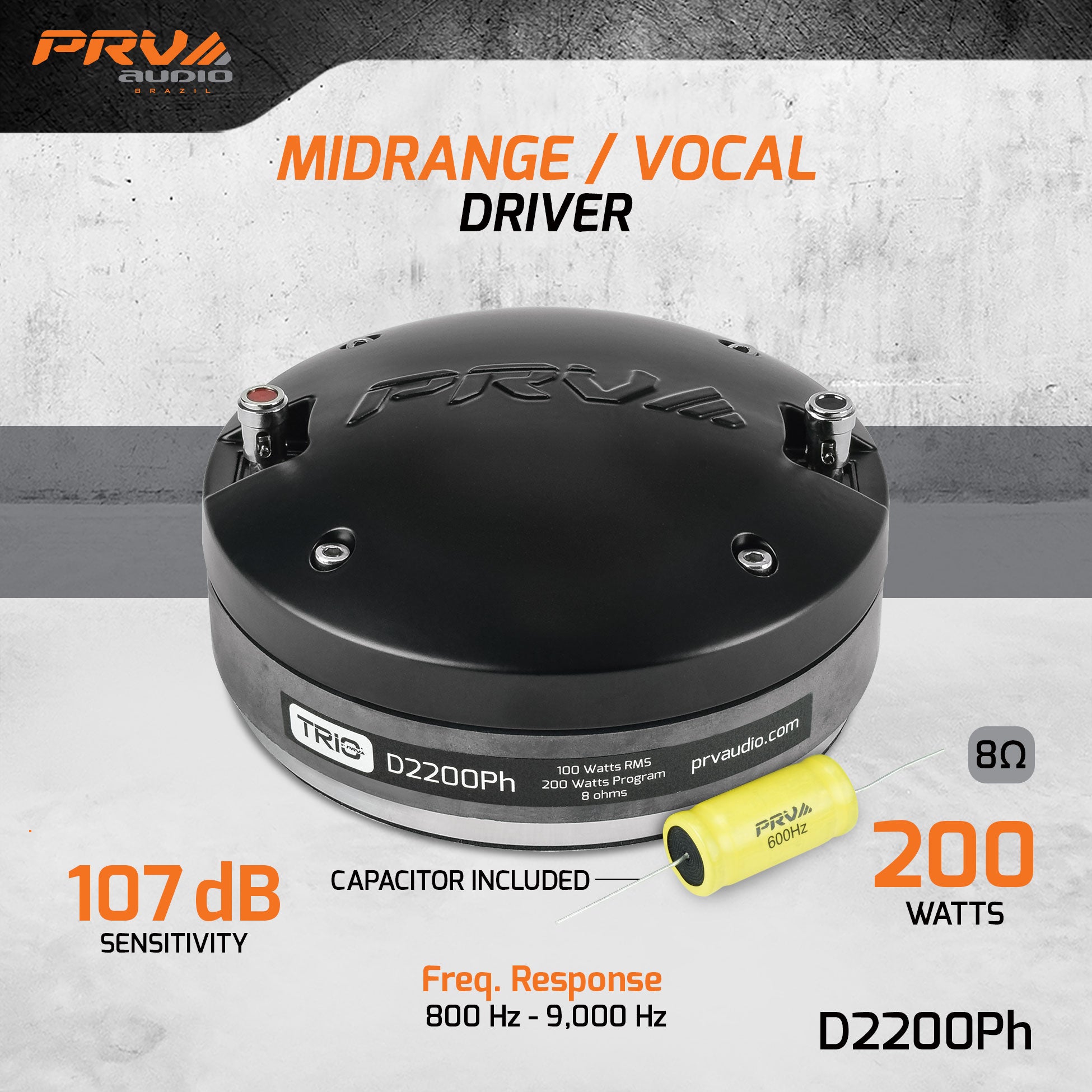

1x D2200Ph Midrange Driver
2” Exit Phenolic Compression Driver
800 – 9,000 Hz / 107 dB
200 Watts / 8 Ohm

Recommended HPF using PRV Digital Signal Processor DSP
• 650 Hz at 18 dB per octave filter Crossover / BT18

1x WGP14-50 Horn Series, color of your choice
2” throat Waveguide

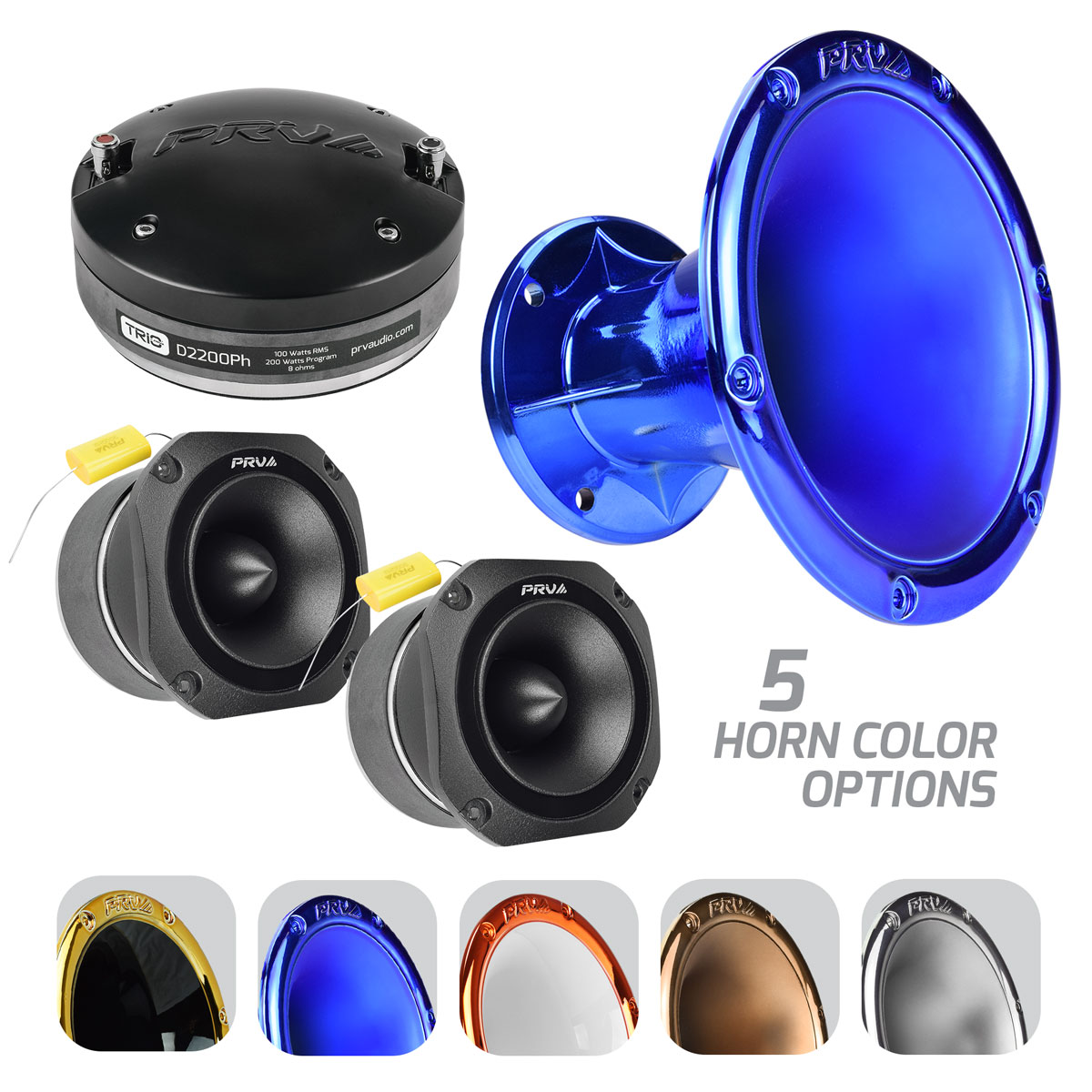

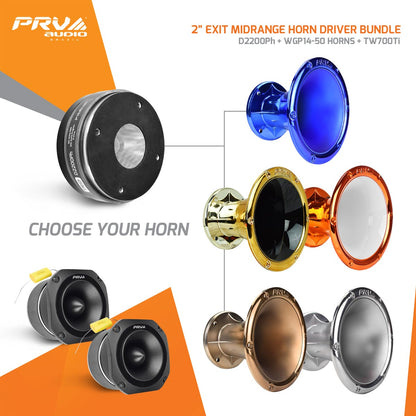

Bundle is available in 5 Different Colors

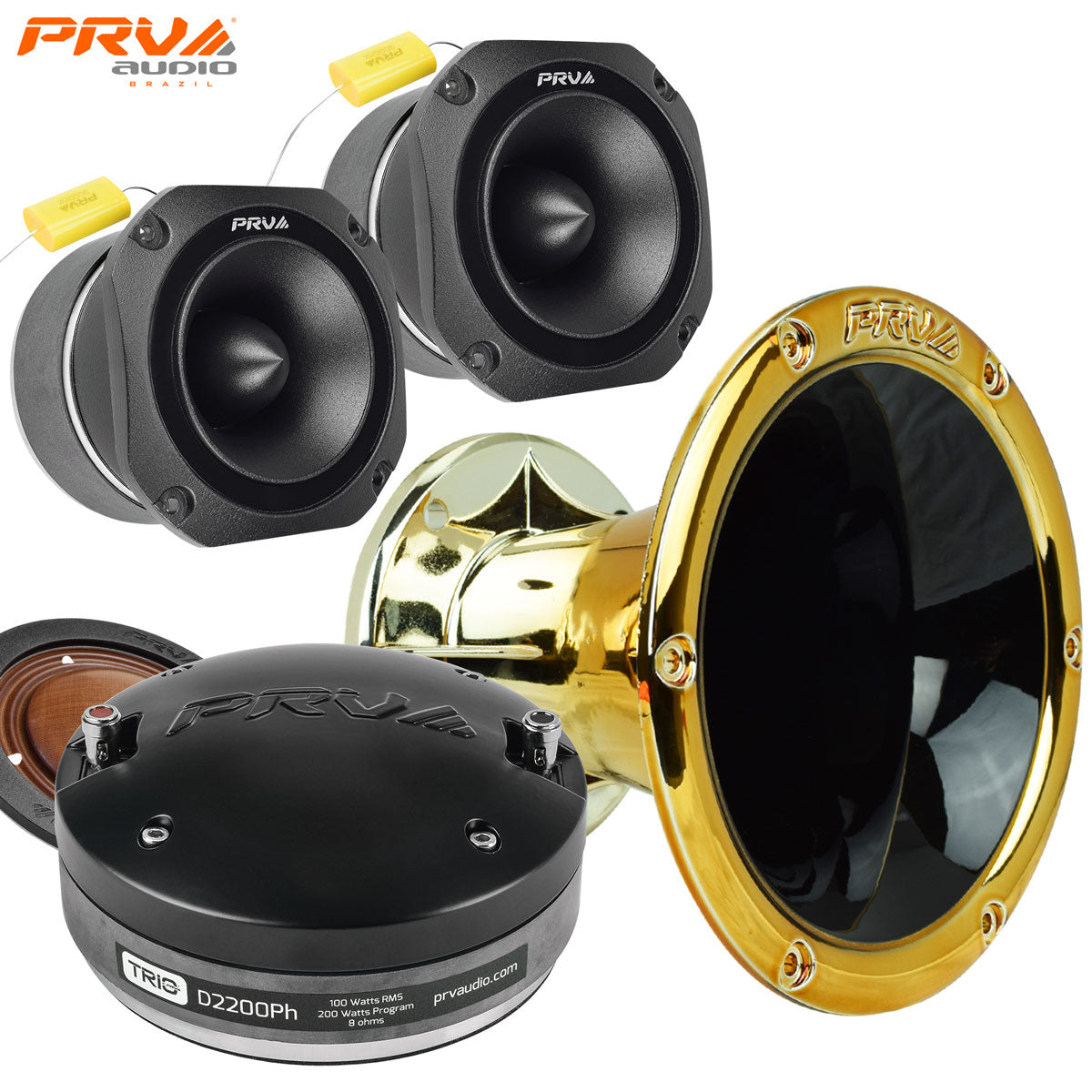

- Black Color with Chrome Gold lid with UV resistant finish
- White Color with Chrome Orange lid with UV resistant finish

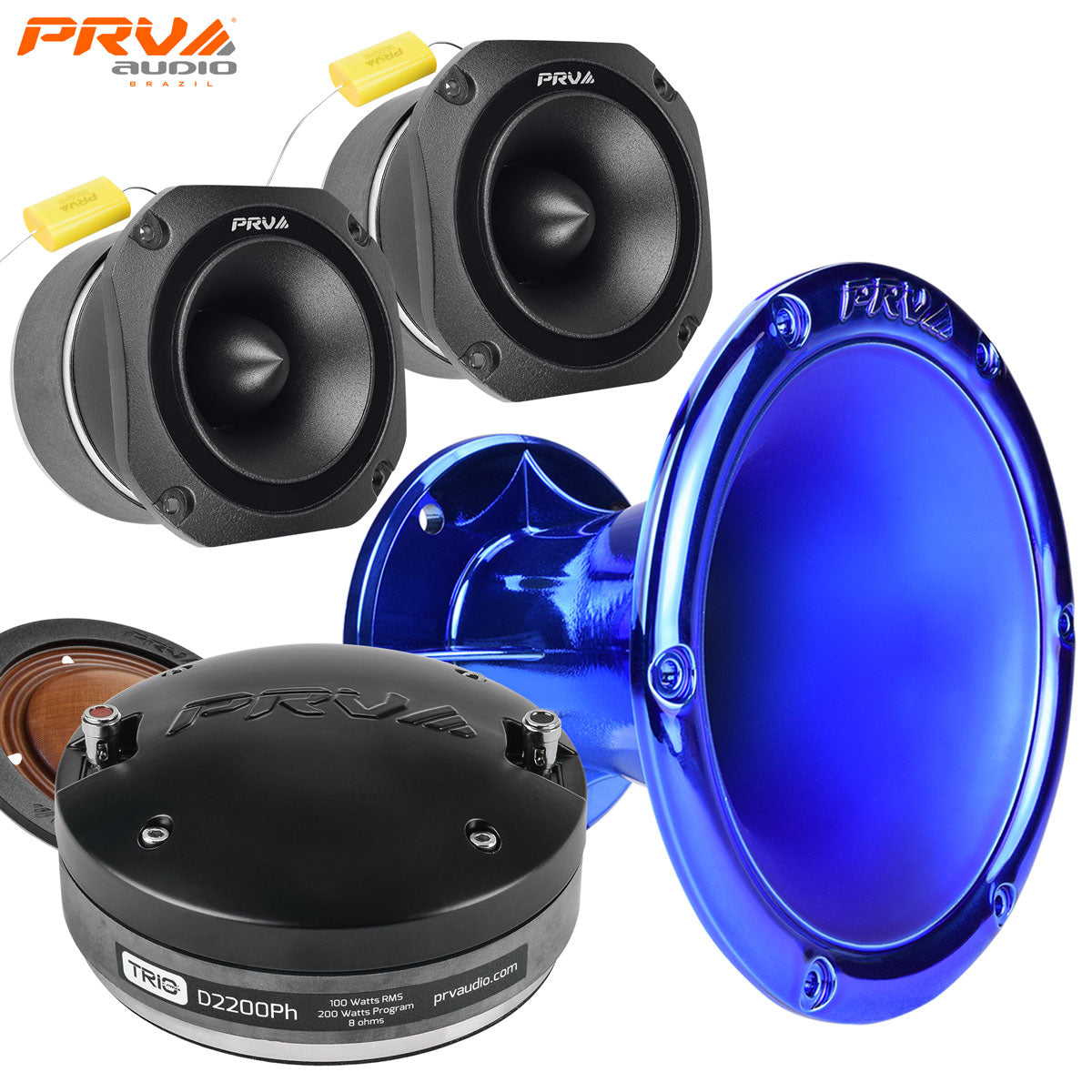

- Blue Color with Chrome lid with matte UV resistant finish

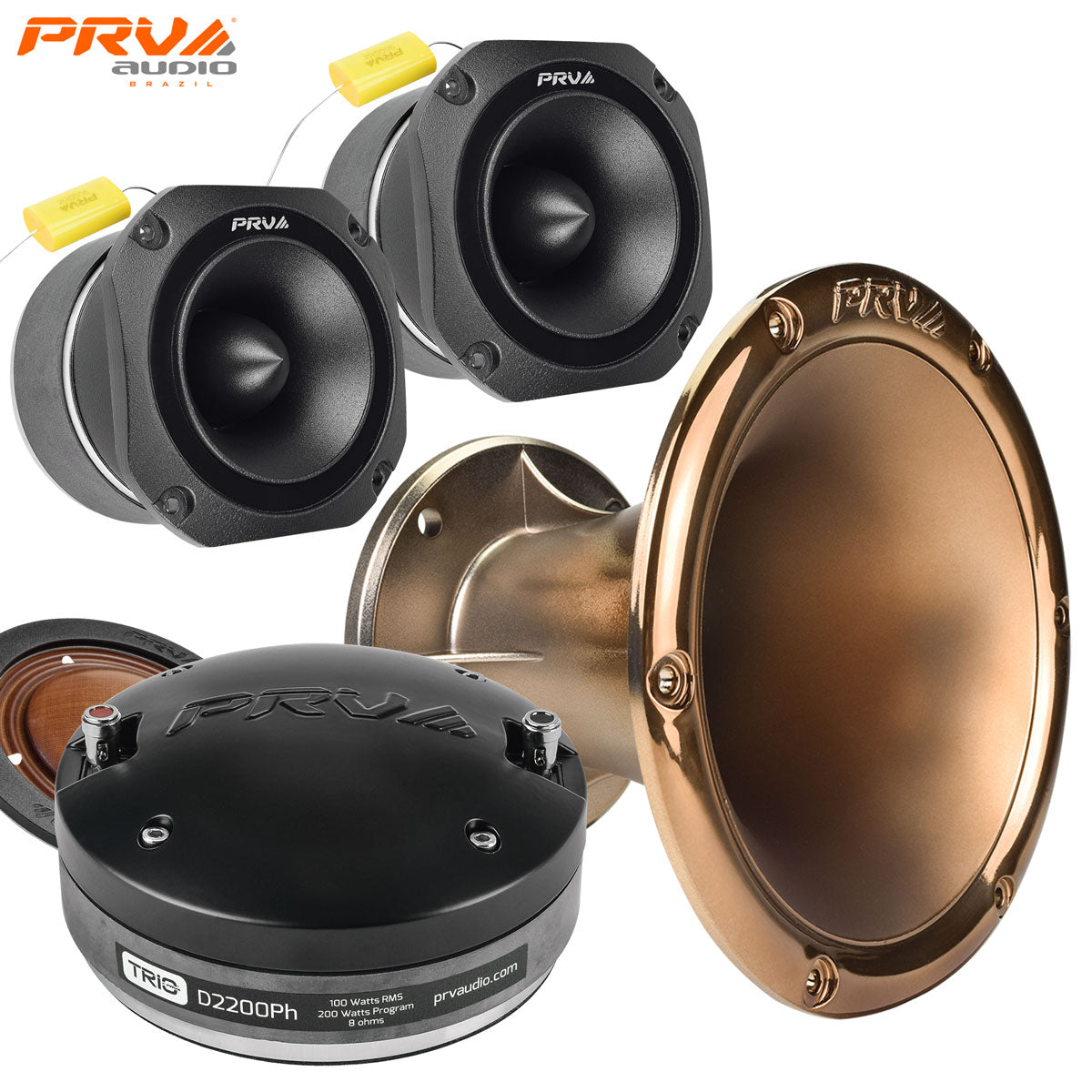

- Copper Color with Chrome lid with matte UV resistant finish
- Grey Color with Chrome lid with matte UV resistant finish

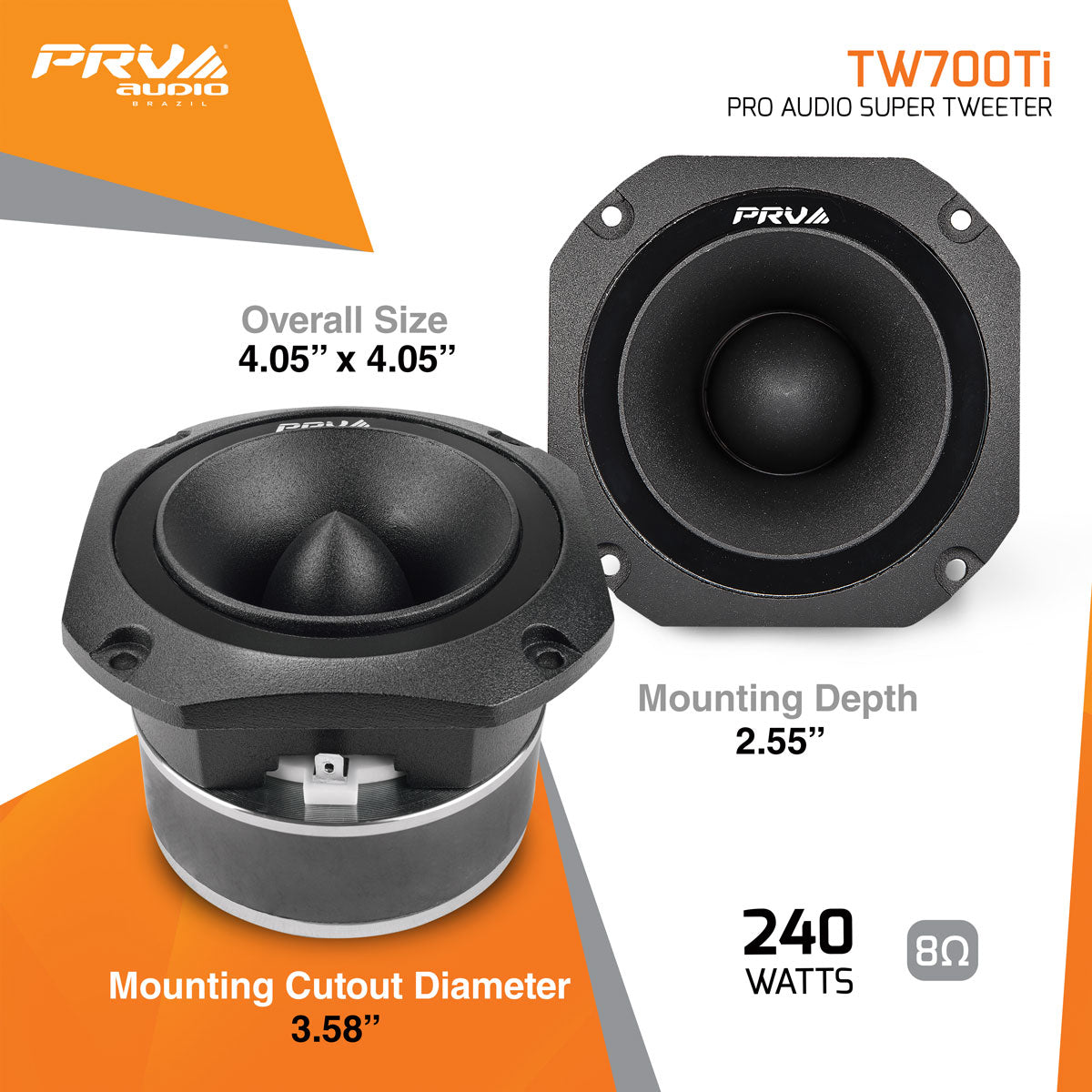

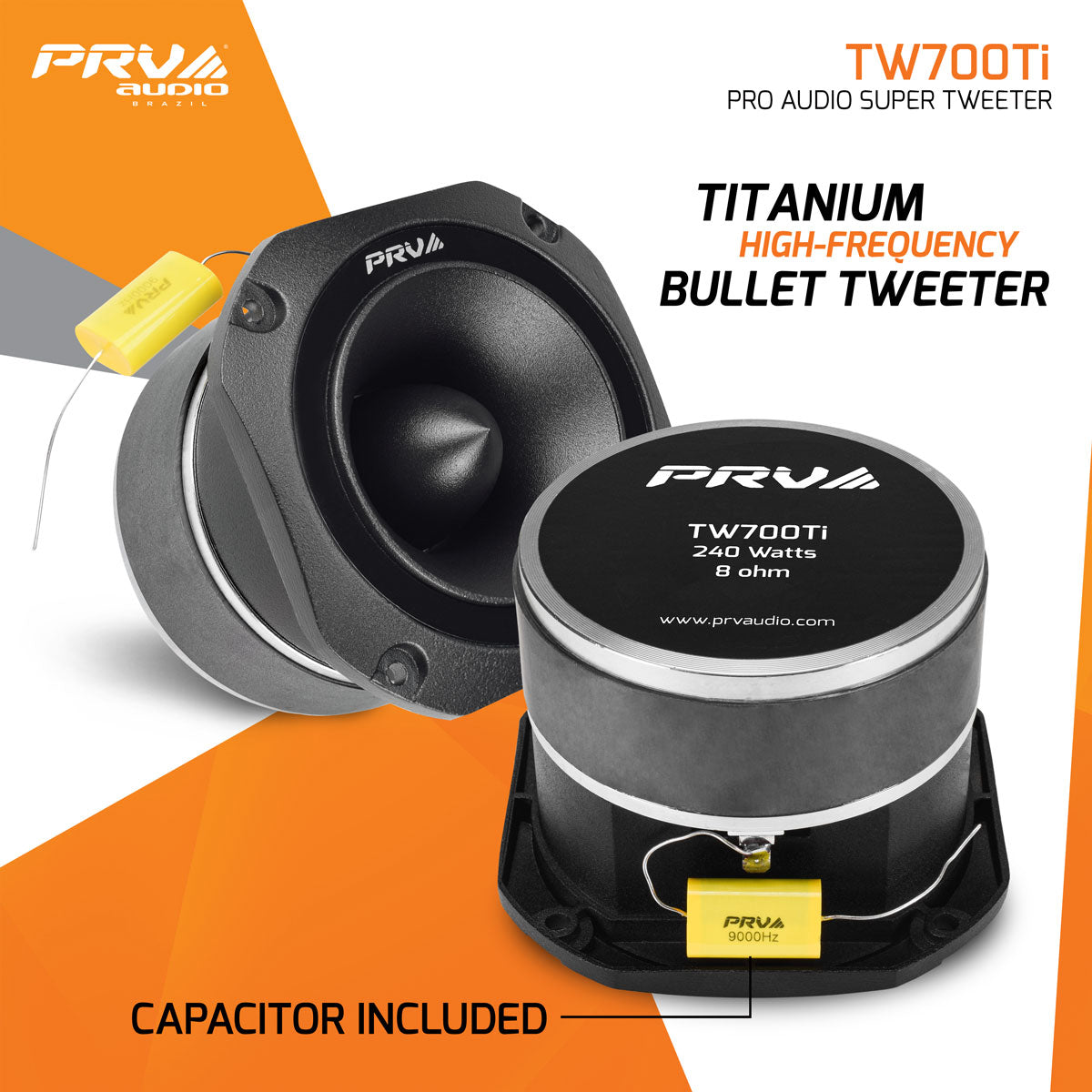

2x TW700Ti Super Tweeters
4″ Square PRO Audio Super Tweeter
3,500 – 20,000 Hz / 107 dB
240 Watts / 8 Ohm

Recommended HPF using PRV Digital Signal Processor DSP
• 7000 Hz at 24 dB per octave filter Crossover / LR24

Different Ways to Set them according to different amount of components:

1 or 2 Drivers and 2 Tweeters Setupamplifier recommendation: (For 1 Bundle)
QS800.4 2 Ohm– Wire 1 or 2 Drivers in parallel to a bridged channel(CH1&CH2), leaving the other bridged channel for 2xSuper Tweetersall wired in parallel.

2 or 4 Drivers and 4 Tweeters Setup amplifier recommendation: ( For 2 Bundles)
MDX2000.2 at 2 Ohm – Wire 2 or 4 Drivers in parallel to one channel, leaving the other channel for 4x Super Tweeters all wired in parallel.

When you use a 2 Channel amp, use separated RCA Signal inputs for CH1 for drivers and CH2 for tweeters to crossover them to its required high pass filter.

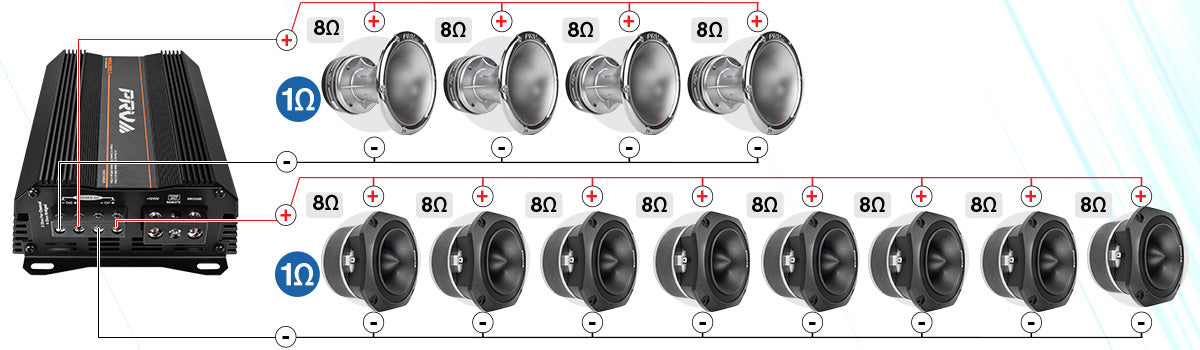

4 or 8 Drivers and 8 Tweeters Setup amplifier recommendation: ( For 4 Bundles)
MDX2000.2 1 Ohm – Wire 8x Tweeters in parallel to CH1 and 4 or 8x Drivers in parallel to CH2.

Use separated RCA Signal inputs for CH1 for Tweeters and CH2 for drivers to crossover them to its required high pass filter.
