1200 Watts Vocals & Highs Bundle

1200 Watts Vocals & Highs Bundle

SKU: KIT1xMDX1200.22Ohm+4xWG270Ph+4xTW350Tiv2

1200 Watts Vocals & Highs Bundle

1200 Watts Vocals & Highs Bundle

SKU: KIT1xMDX1200.22Ohm+4xWG270Ph+4xTW350Tiv2

• Amplifier + Drivers + Tweeters
• 4x Midrange Horn Drivers
• 4x Titanium Super Tweeters
• 1x 2 Channel Amp



$416.57
$499.88

Out of stock

• Amplifier + Drivers + Tweeters
• 4x Midrange Horn Drivers
• 4x Titanium Super Tweeters
• 1x 2 Channel Amp



Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

1200 Watts Vocals & Highs Bundle

Combine this bundle with any 6.5″ and 8″ loudspeakers when building a stuntwall or custom door panel! A combination of midrange (vocals) Horn drivers and Super tweeters will cover all your vocals and highs with a high output, so you can hear them from a distance.

This package is also very affordable, so it’s an excellent option for people looking to get high output sound from a custom car system.

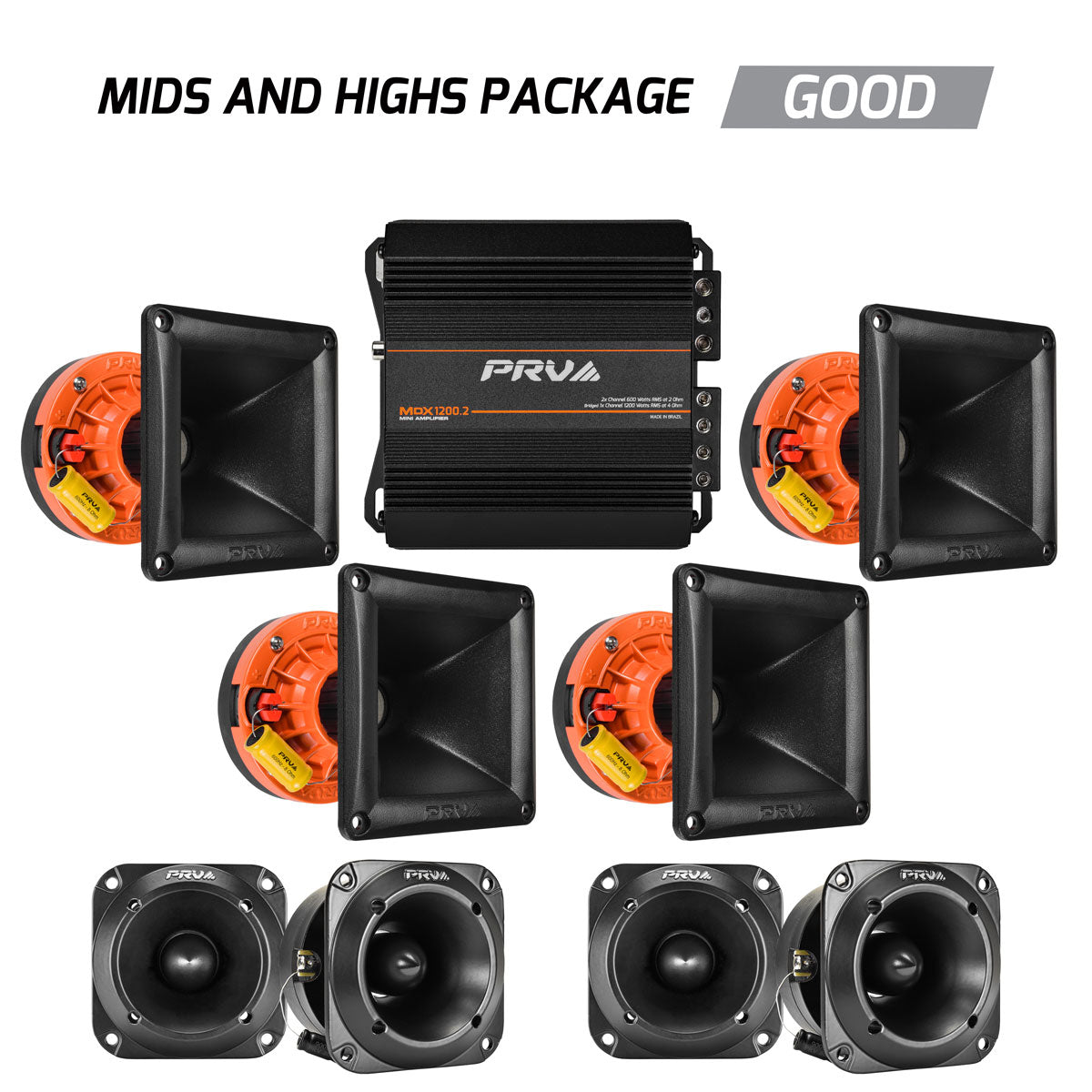

Bundle Components:
4x WG270Ph
1” Exit Midrange Horn Drivers
600 – 8,000 Hz / 106.5 dB

4x TW350Ti v2
3×3” Titanium Super Tweeters
4,500 – 20,000 Hz / 105 dB

1x MDX1200.2 2 Ohm
Mini 2 Channel Amplifier
2x 600 Watts at 2 Ohm

How to Install them:

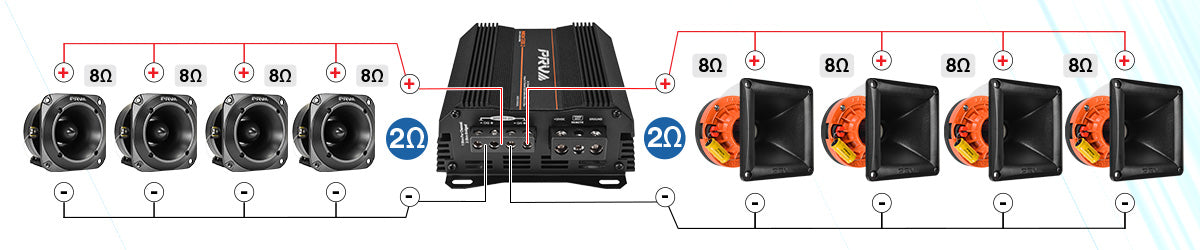

Please follow the diagram below on how to wire each component to the amplifier:

Each horn drivers and tweeters will be wired together in parallel separated on each channel of the amplifier. Amplifier has two RCA inputs – CH1 and CH2, make sure to have your Crossover / DSP signal inputs in the right channel to provide the proper frequency range for each component.

If you wire the horns drivers to Channel 1, make the RCA cable with the crossover setting plugged-in the Channel 1 RCA Input! Follow below for the recommended crossover points:

WG270Ph – HPF Setting – 500 Hz at 18 dB per octave filter Crossover / BT18
TW350Ti v2 – HPF Setting – 5000 Hz at 18 dB per octave filter Crossover / BT18

Amplifier recommended fuse or circuit breaker – 60A
Power Wire Inputs – (OFC) 4 Gauge wire
Speakers Wire Output – ( OFC) 14 Gauge wire
