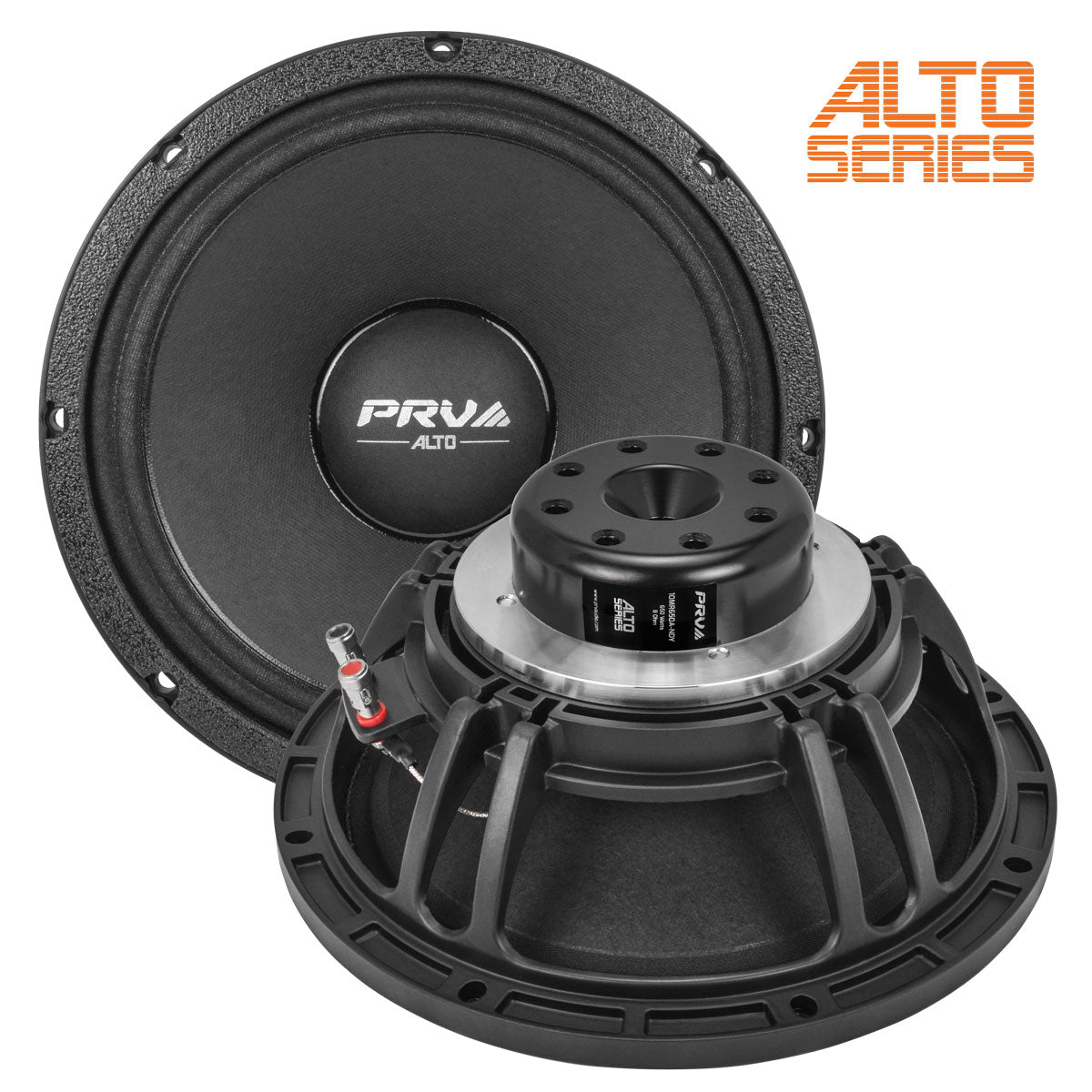

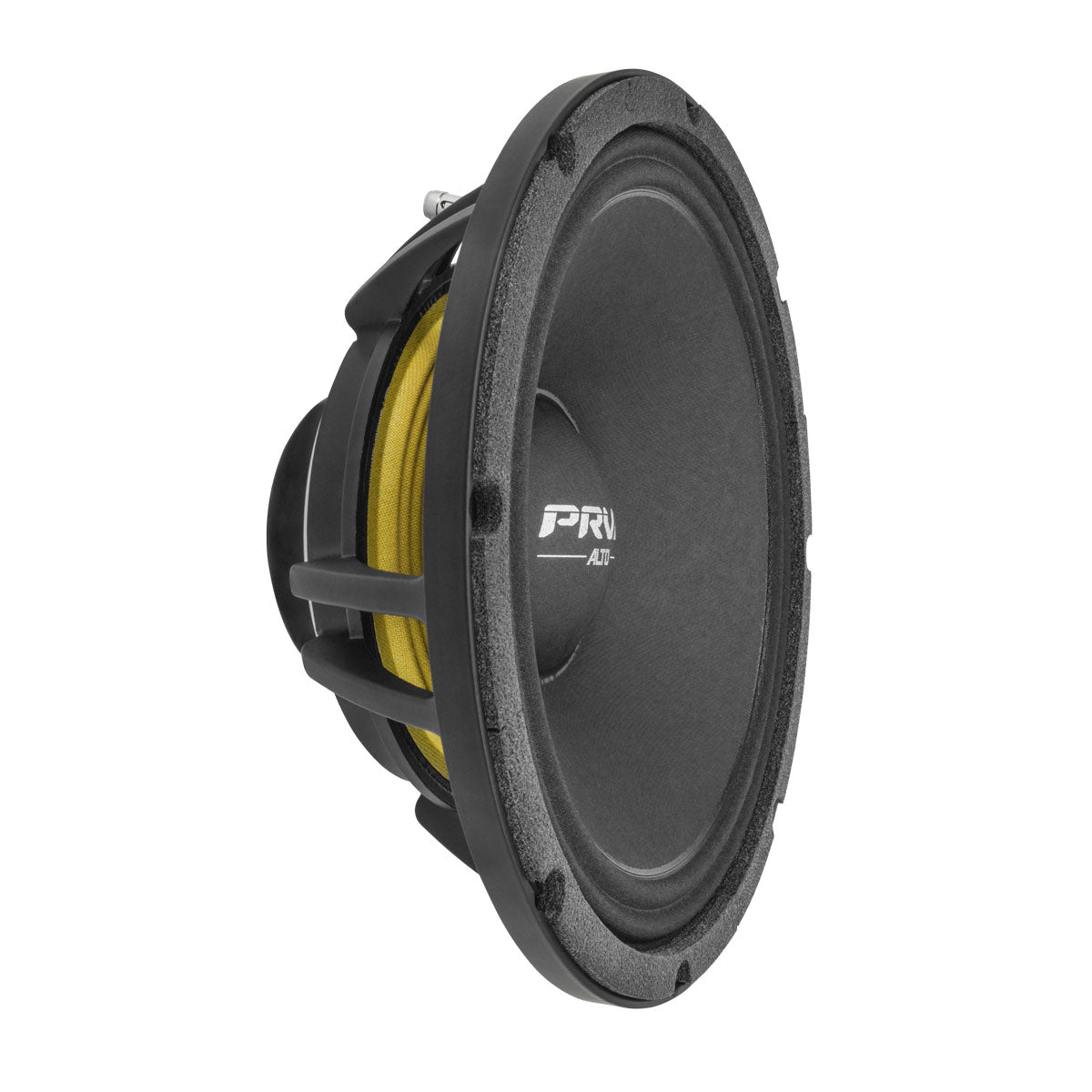

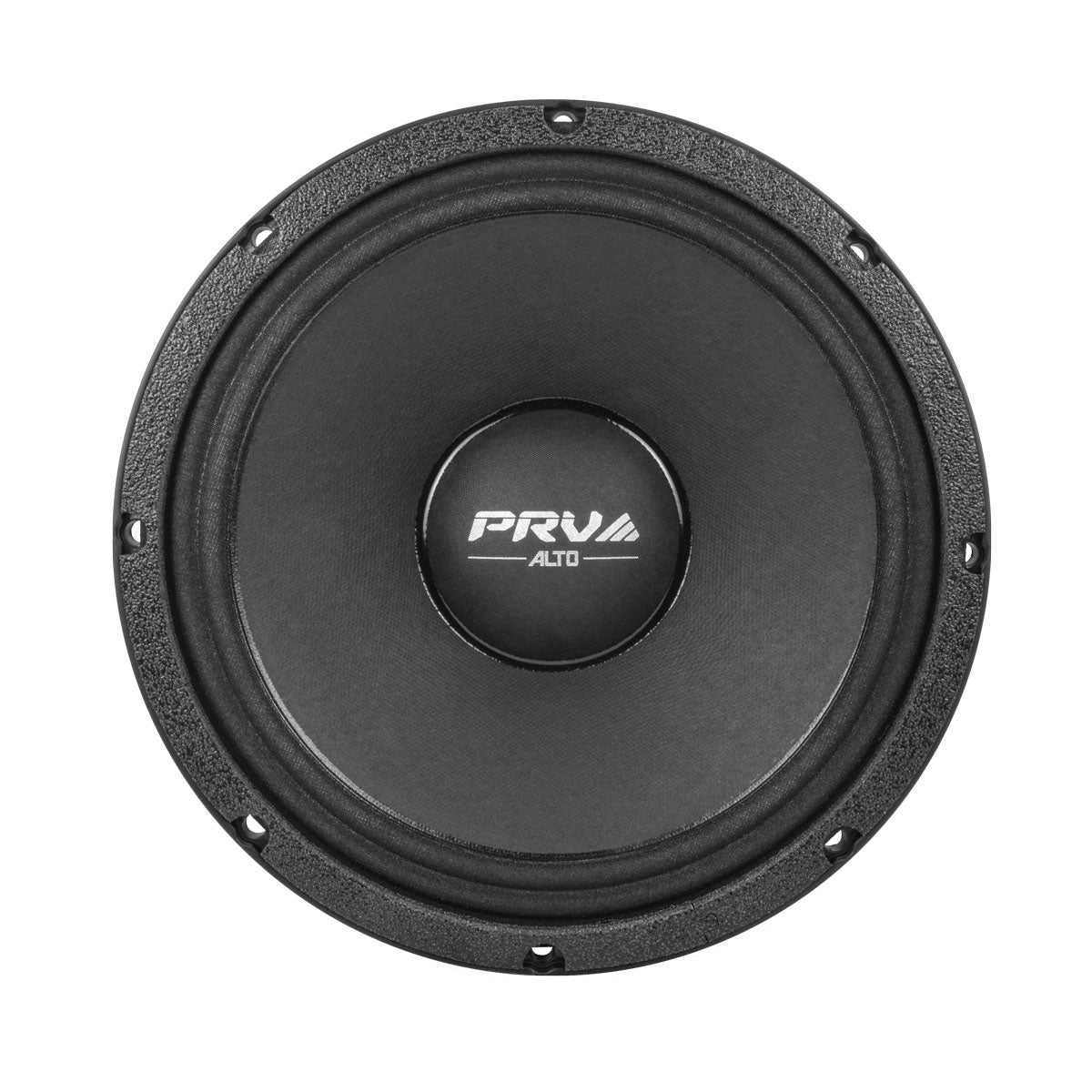

PRV 10MR650A-NDY Midrange

PRV 10MR650A-NDY Midrange

SKU: 10MR650A-NDY
New

PRV 10MR650A-NDY Midrange

PRV 10MR650A-NDY Midrange

SKU: 10MR650A-NDY

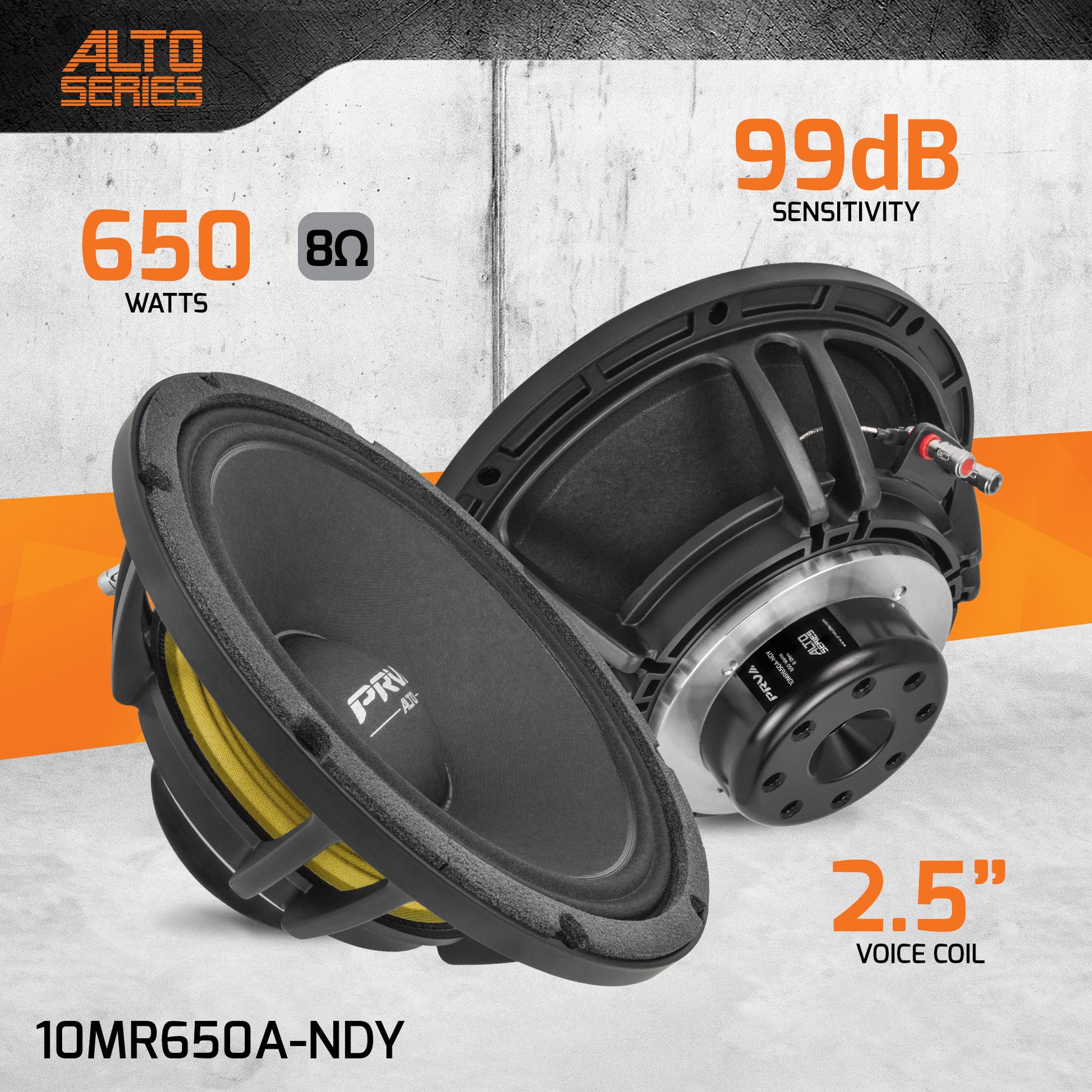

  • 10" Midrange – 8 Ohm
  • Neodymium Magnet
  • 99 dB – 650 Watts
$199.91
$239.89

In stock
  • 10" Midrange – 8 Ohm
  • Neodymium Magnet
  • 99 dB – 650 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The 10MR650A-NDY is designed to deliver exceptional performance in an incredibly compact profile. Its small, yet powerful rare-earth neodymium motor ensures it can drive its voice coil with authority, being the most effective in its class in size-to-output ratio.

Meet the new improved version of 10MR650A a phenomenal addition to the ALTO Series loudspeakers. There’s no doubt that the 10MR650A-NDY will make a mark as one of the best in this series.

  • 650 Watts RMS continuous program power rating
    makes high acoustical output, with a 99 dB Sensitivity, capable of
    generating very high output!
  • Built for compact applications with only 4′′ of overall mounting depth without sacrificing quality or performance
  • 80 to 6,500 Hz frequency response makes this great midrange with low midbass response
  • Vented pole piece and gap dissipate excess heat to minimize power compression
  • Covers the majority of the vocal range allow easy system integration with a tweeter

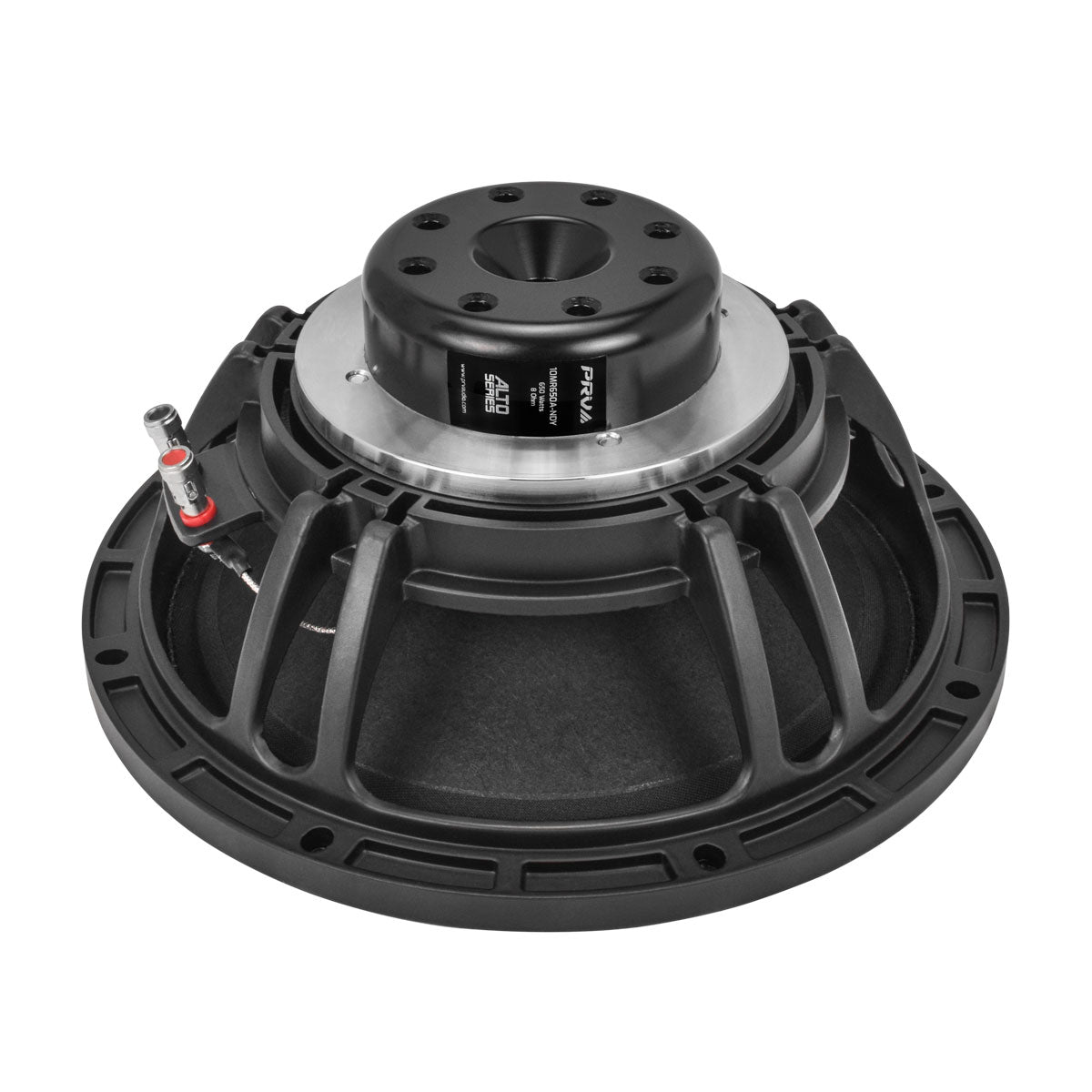

  • Premium neodymium motor with slim profile, makes
    this the BEST Door Speaker, easy-to-fit 10” for custom doors, having
    minimum space requirement.

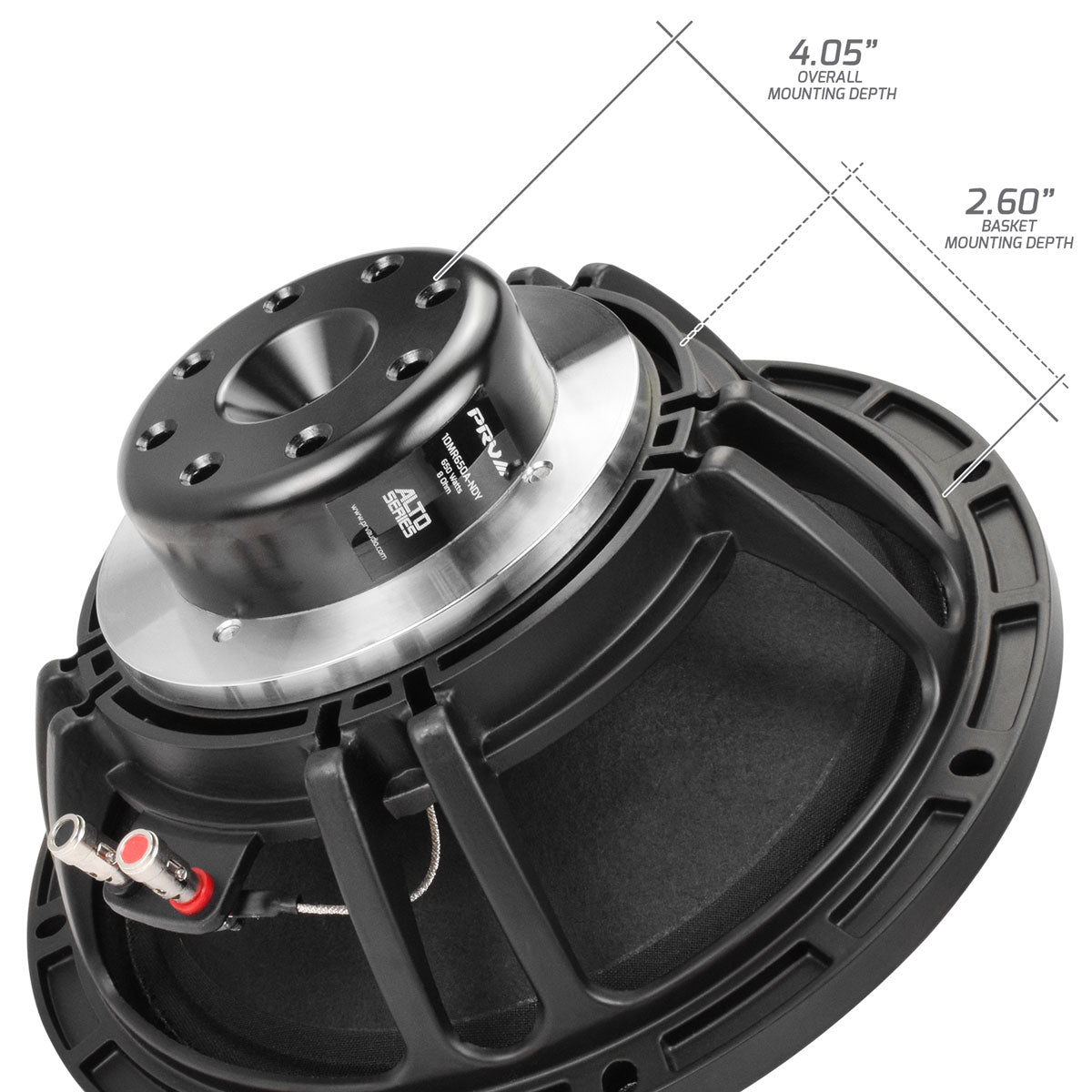

Everything you need in a pro audio loudspeaker for custom door
panels, without sacrificing performance we have designed a compact and
overall footprint of only 4” of mounting depth or only 2.60” of mounting
depth when you measure only its basket since its motor is small and
easy to tuck inside of the doors.

This loudspeaker opens up the possibility of having a slim custom
door panel with a high performance speaker without having to cut up your
whole door away!

It is an easy-to-fit 10″ shallow speaker for custom doors and requires minimal space, thanks to its premium neodymium motor with a slim profile.

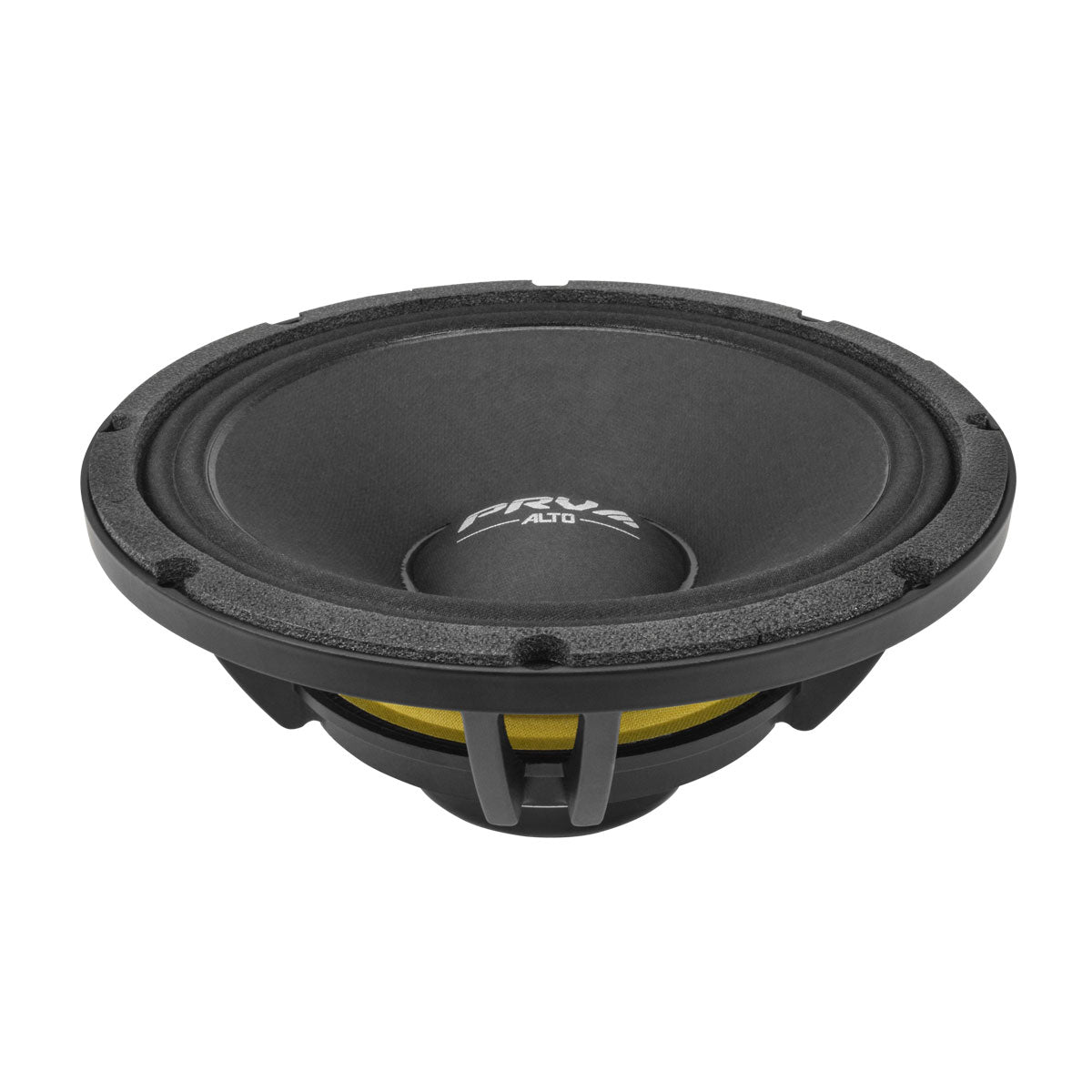

Supporting the cone is a heavy duty spider M roll treated cloth surround, designed for high excursion applications to handle short bursts of excessive power without damage.

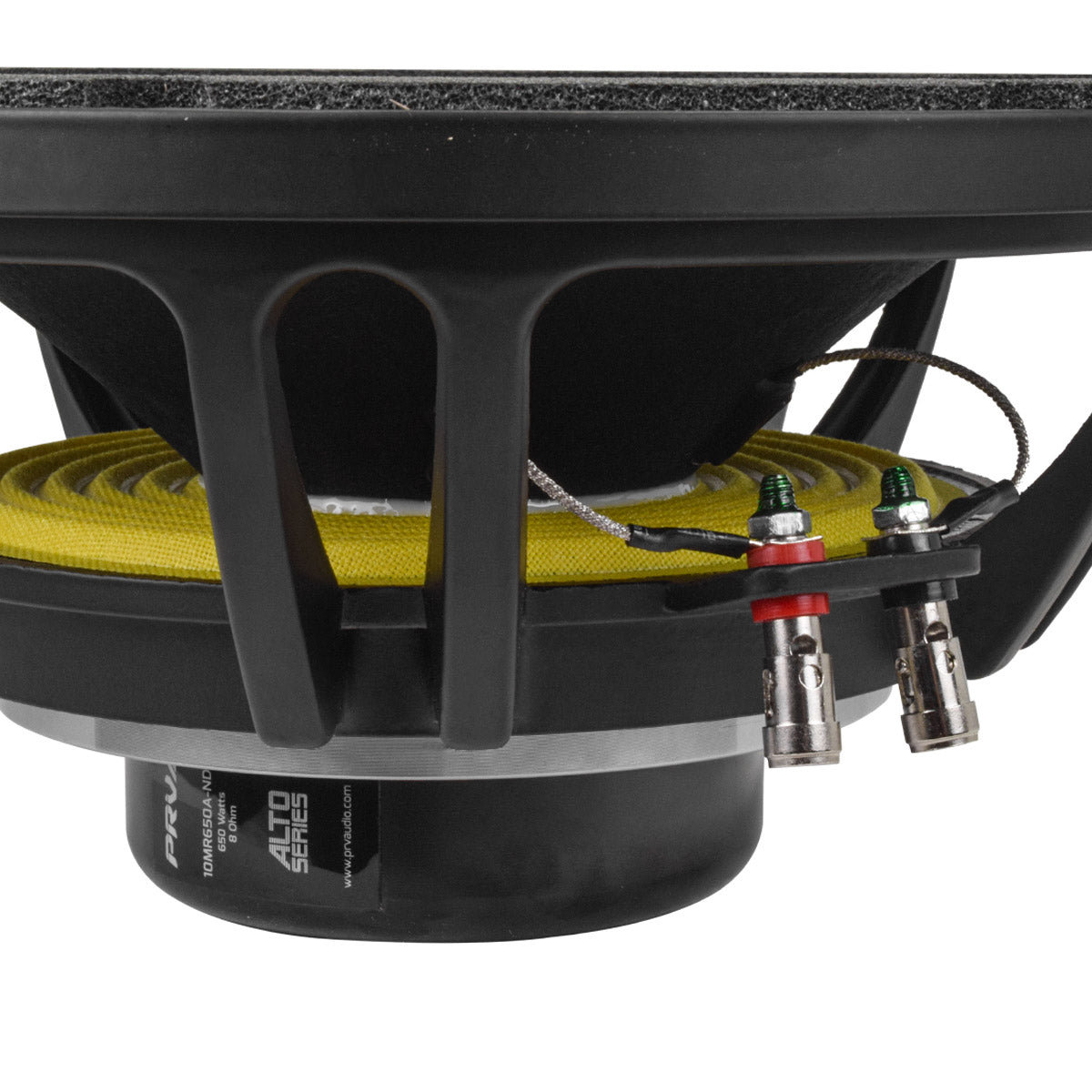

In addition to its large silicon spider system, the silver tinsel lead wire ensures excellent current transfer during large excursions of 0.75′′ peak-to-peak before damage occurs.

Combined with its premium neodymium motor, all these characteristics make this speaker unique and deliver high-performance with the best high-quality components that achieve exceptional clarity, detail, and dynamics on sound.

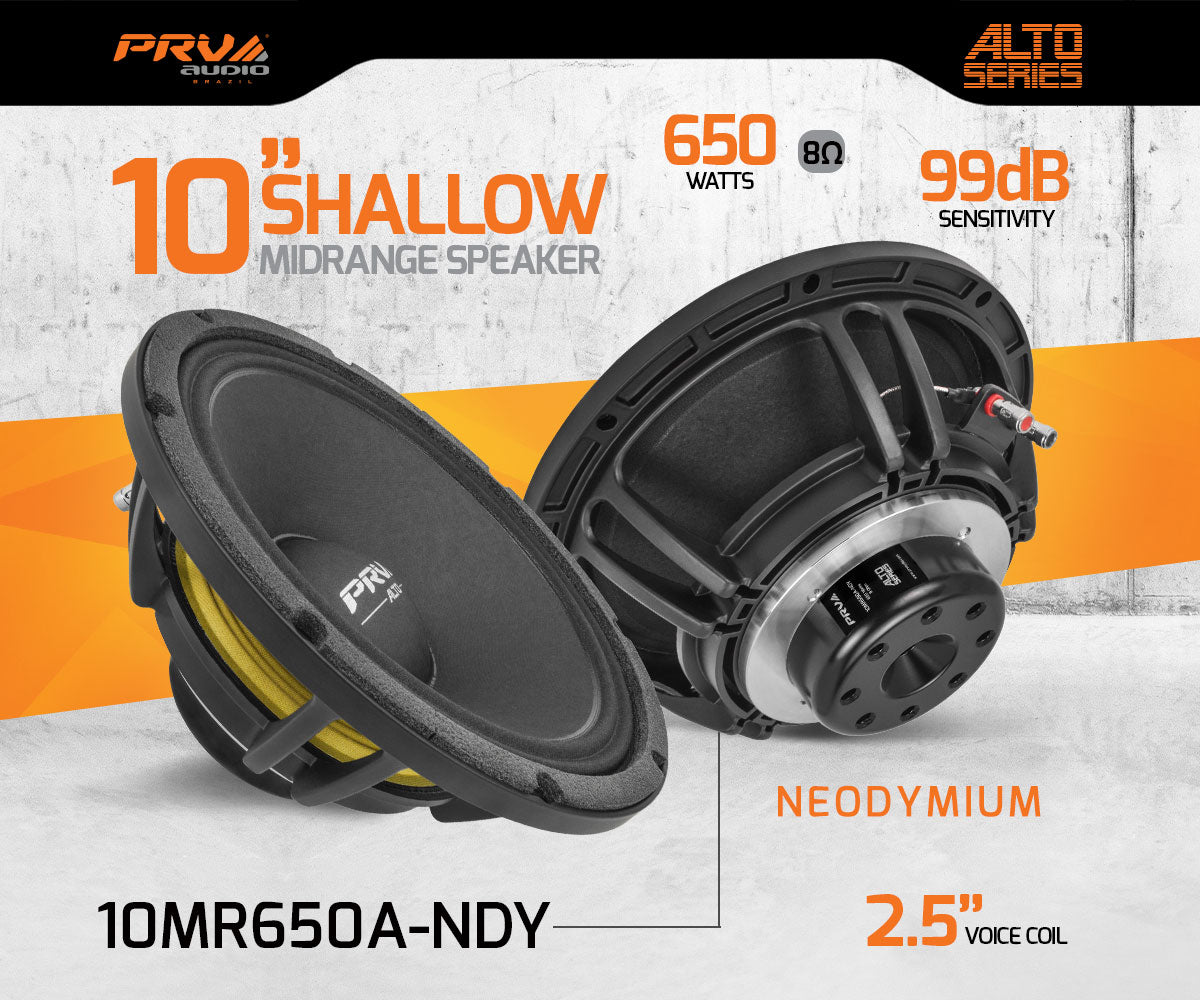

PRV 10″ Midrange Speaker 10MR650A-NDY 650 Watts / 8 Ohm – Slim Profile Door Speaker / Neodymium High Output Loudspeaker

2 Speakers – 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on the bridged channel

4 Speakers – 1x QS3000 at 2 Ohm, 4 speakers in parallel

8 Speakers – 1x QS5000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 650 Watts RMS musical power ( without clipping )

  • 110 Hz at 12 dB per octave filter Crossover / BT12
  • 100 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 2,200 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 10″ (254 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 325 Watts
  • Continuous Program Power (RMS)** 650 Watts
  • Max Peak Power*** 1300 Watts
  • Sensitivity 2.83V at 1m99 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 110 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 70 – 6,500 Hz
  • Voice Coil Diameter 2.5″ (65 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth11.0 mm
  • Former Material Glass fiber
  • Magnetic Gap Depth 8.0 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 40.7 l
  • Excursion (mathematical)**
    • Xmax
    • 3.50 mm
  • Free Air Resonance
    • Fs
    • 62.4 Hz
  • Mechanical Factor
    • Qms
    • 10.23
  • Electrical Factor
    • Qes
    • 0.40
  • Total Factor
    • Qts
    • 0.38
  • Cone Area
    • Sd
    • 380 cm²
  • Mechanical Mass
    • Mms
    • 32.24 g
  • BI Factor
    • Bl
    • 12.74 Tm
  • Dc Resistance
    • Re
    • 5.1 Ohm
  • Inductance
    • Le
    • 0.39 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 28.04 g
  • Mechanical Compliance
    • Cms
    • 0.202 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 10MR650A-NDY Midrange DATASHEET Download

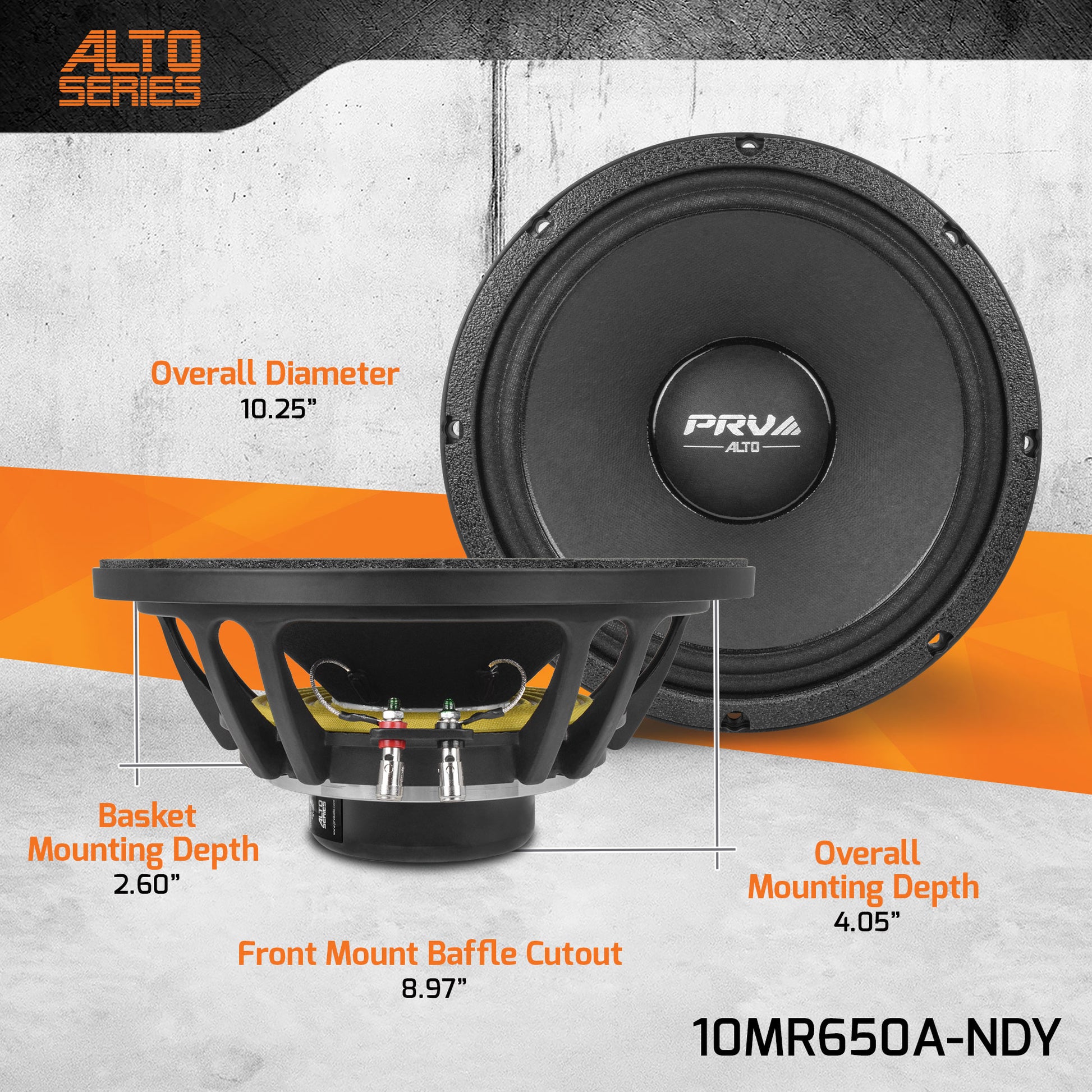

  • Overall Depth 4.60” (116.8 mm)
  • Mounting Depth 4.05″ (102.8 mm)
  • Overall Diameter 10.25″ (260.5 mm)
  • Front Mount Baffle Cutout 8.97″ (228 mm)
  • Net Weight 5.73 Lbs (2.60 kg)
  • Shipping Weight 6.83 Lbs (3.10 kg)

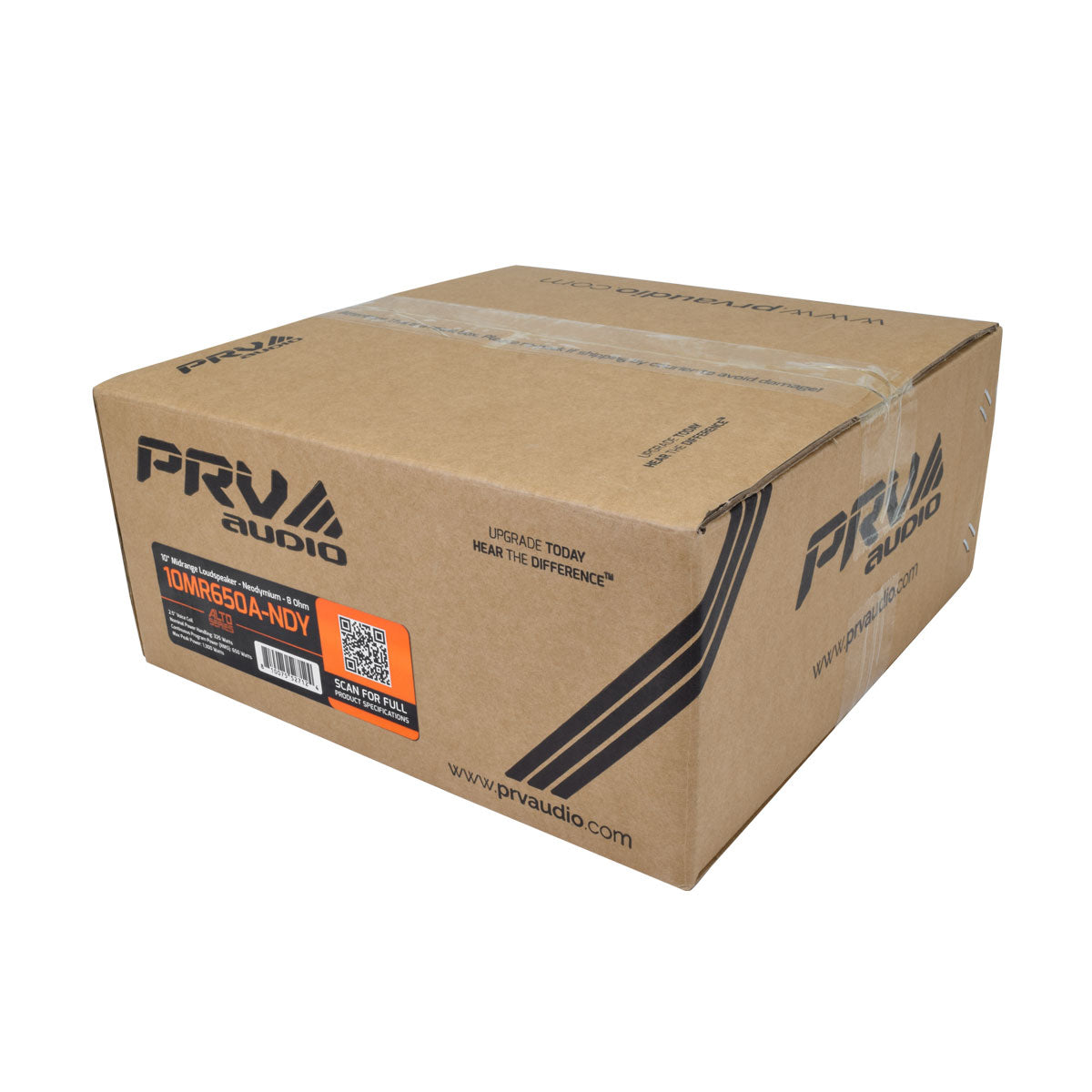

  • Carton Dimensions WxLxH 11.81″ x 11.81″ x 5.71″ (300 x 300 x 145 mm)
PRV 10MR650A-NDY Midrange DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

  • Rubber Cement Speaker Glue

    Rubber Cement Speaker Glue

    Rubber Cement Speaker Glue

    BLACK CEMENT GLUE

    Price:
    $19.99
    $19.99
    Out of Stock

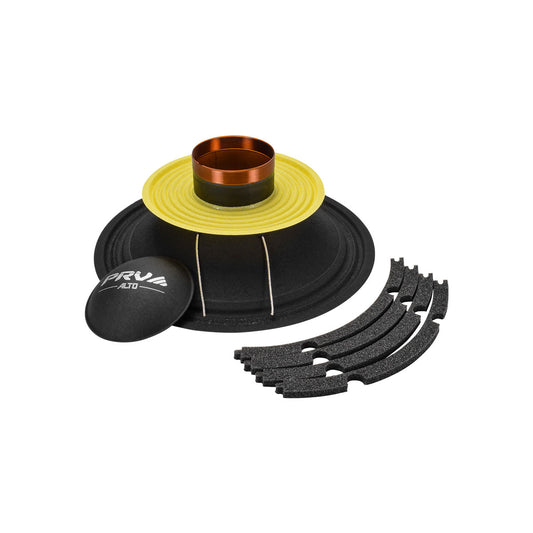

  • RK10MR650A-NDY
