New

TPT-MD8-8 Midrange

TPT-MD8-8 Midrange

SKU: SKU:TPT-MD8-8

Skip to product information
New

TPT-MD8-8 Midrange

TPT-MD8-8 Midrange

SKU: SKU:TPT-MD8-8

$34.95
$43.69

In stock

  • 700 Watts Max Power
  • 95 dB / 8 Ohm
  • 110- 8,500 Hz
  • Mounting Depth: 3.52″

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

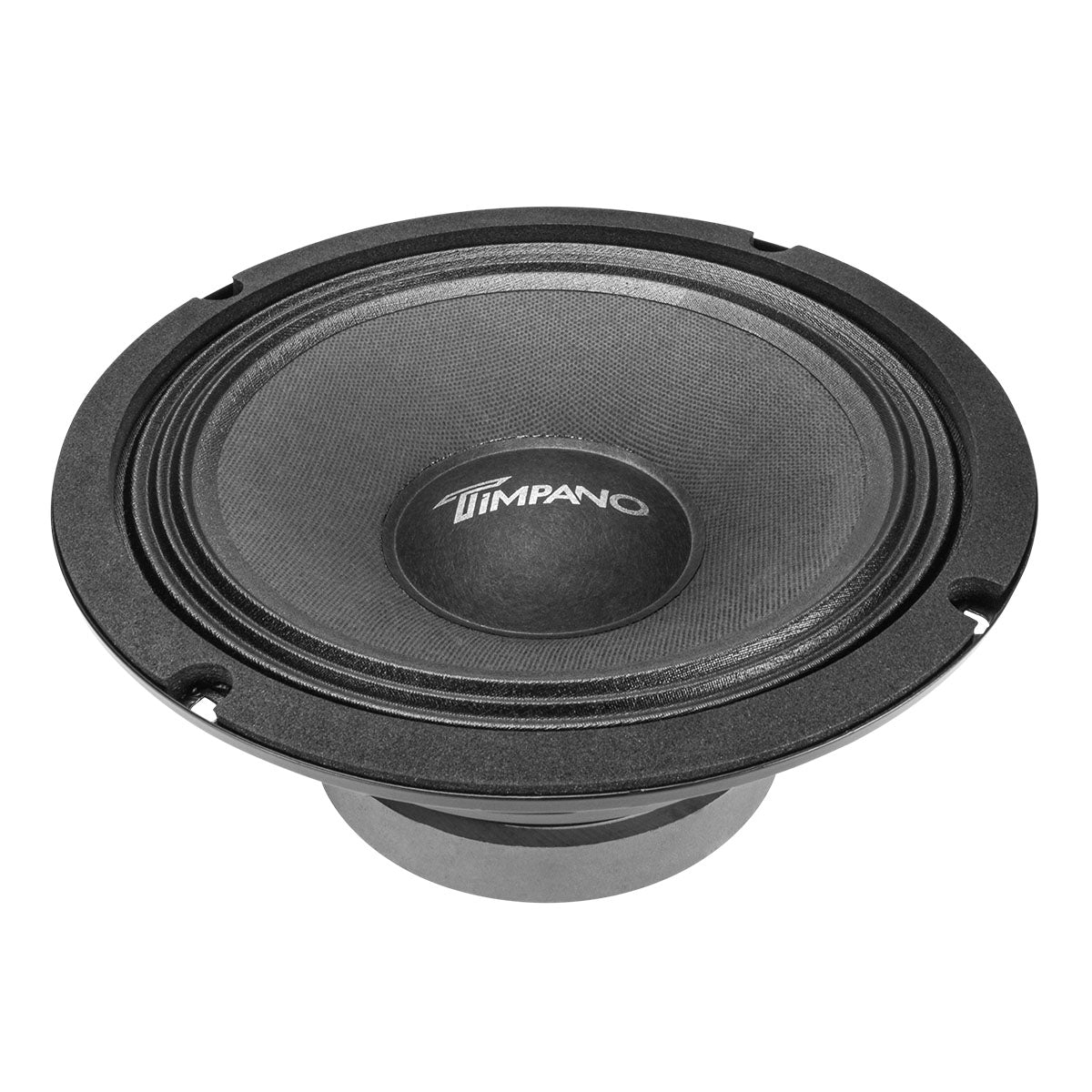

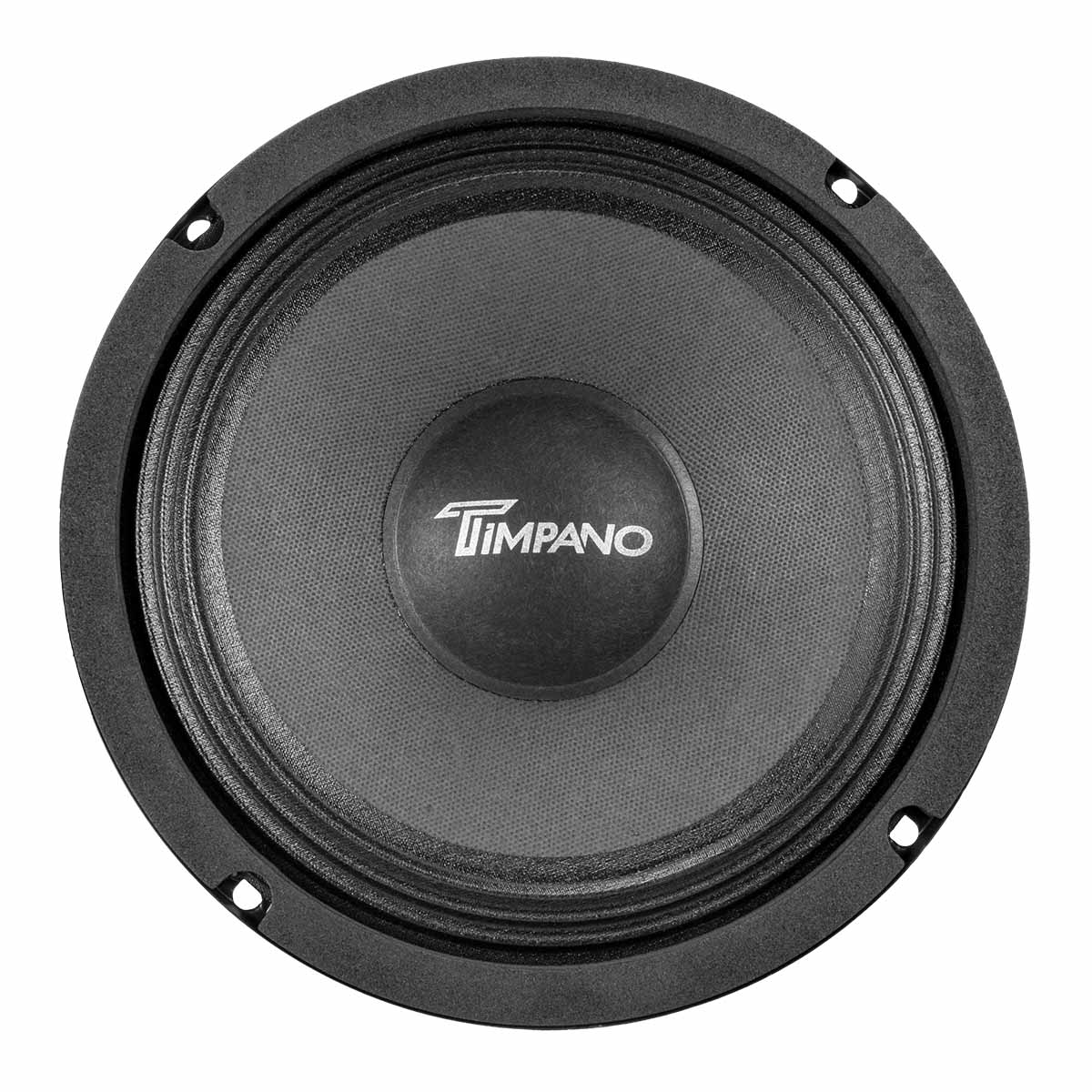

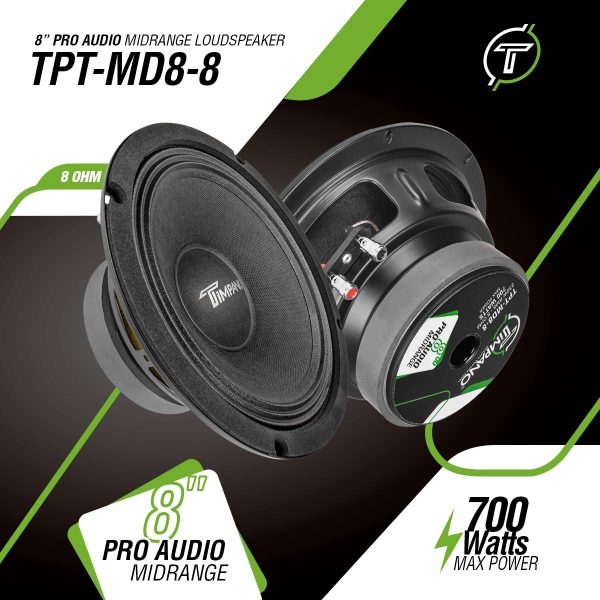

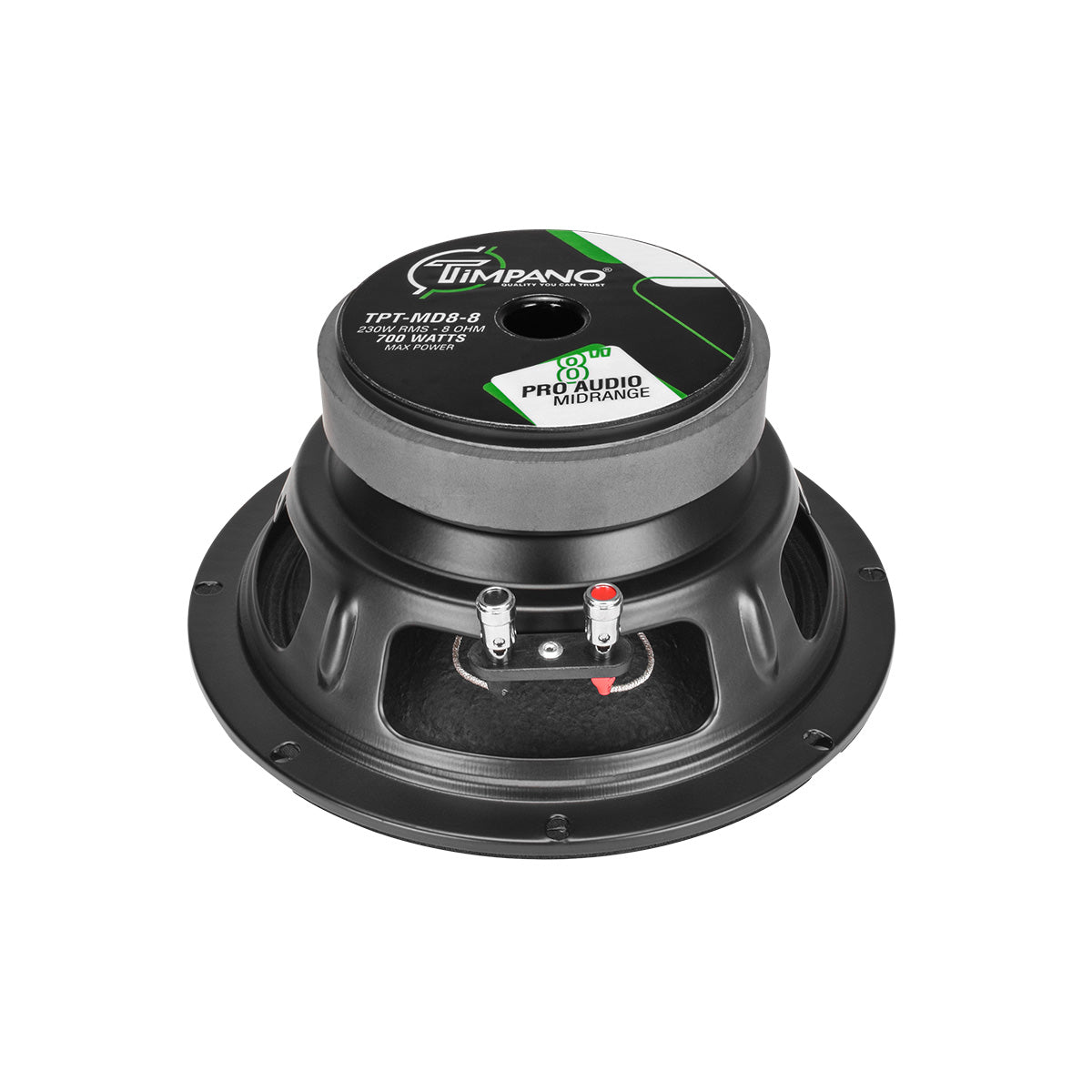

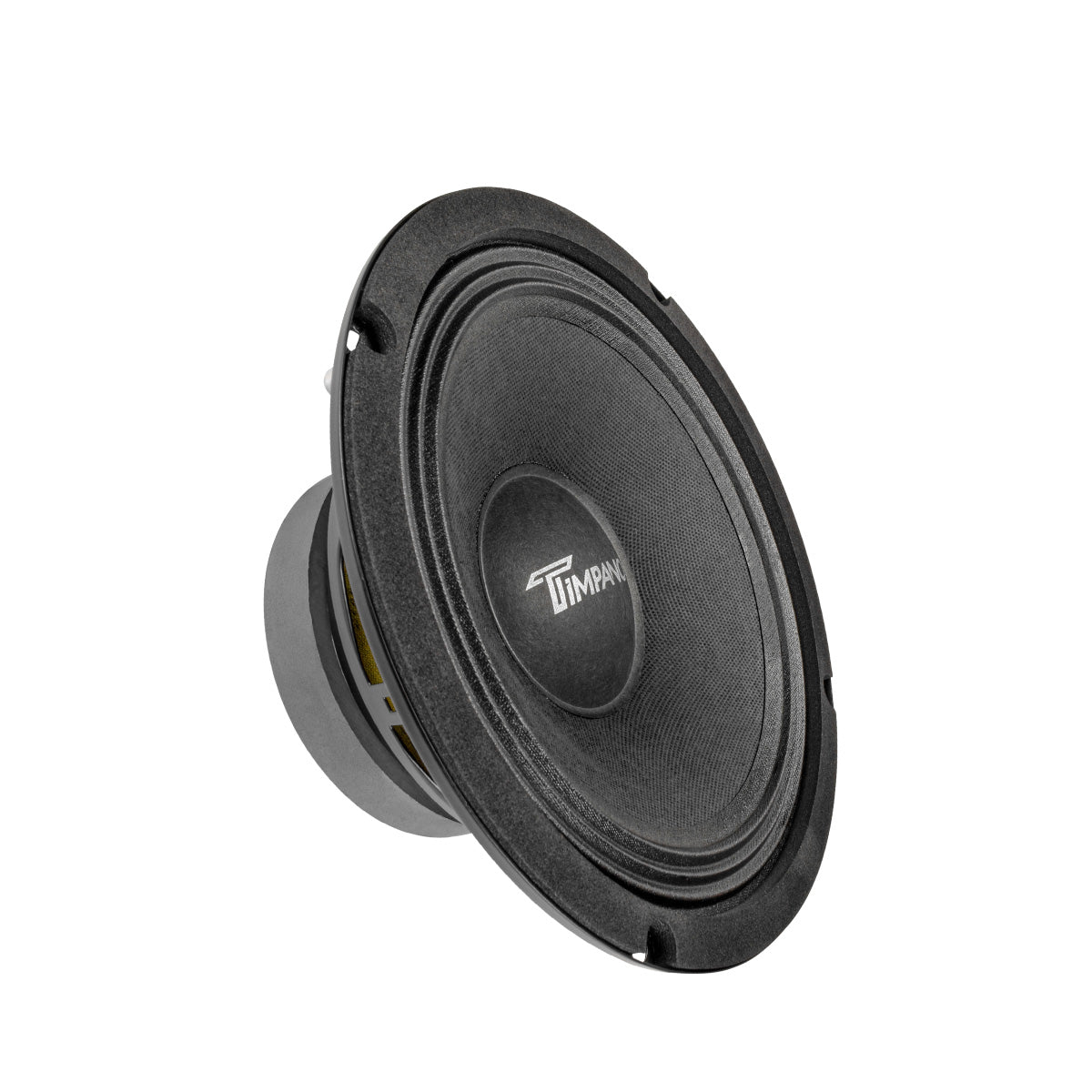

TPT-MD8-8 PRO 8” Midrange 700 Watts PRO Audio Loudspeaker 8 Ohm – Car Audio Premium Sound System Speaker

The MD series is our premium PRO Audio loudspeaker line, built as a professional midrange; combining high power handling, great sound output, and reliability. This 8″ mid range speaker is designed to provide the best performance to price value in the industry, Standing out as a great value for professional speakers, high output live sound systems, and custom car audio doors and trunk systems.

  • POWER YOU CAN RELY ON: Can handle up to 700 Watts Max power and continuous 230 Watts RMS, able to deliver tremendous amount of sound output
  • LATEST TECHNOLOGY: High efficiency voice coil allows, more output and high-impact sound
  • GREAT FOR: Custom sound systems designed for high output with high power amplifiers – 3-Way systems ( Subwoofer, Speaker & Tweeter )
  • QUALITY YOU CAN TRUST: Wide Frequency Response of 110 – 8,500 Hz provides the cleanest and most detailed vocal and sound reproduction.

Designated at 8 Ohm impedance to work great with our high power amplifiers, where you can install multiple speakers on a single system amplifier, you can easily wire 8x speakers in parallel to a TPT-3000 at 1ohm. Taking your custom system to the maximum output level, where you can drive with the windows down and still have your music heard over down on the block.

With this collection of reliable component parts, a high-temperature voice coil, and a high-strength motor, we believe we have found the sweet spot in terms of pricing and specifications in the pro audio industry. We bring to you a suitable option to upgrade your system to a high level of performance and SPL output at a reasonable price.

Specs:

  • 700 Watts Continuous Power
  • 230 Watts RMS Power
  • Impedance: 8 Ohm
  • Sensitivity: 95 dB
  • Frequency Response: 110 – 8,500 Hz
  • Voice Coil: 1.5″
  • Steel Basket with High Strength Ferrite Magnet

Recommended High Pass Filter:

  • 145 Hz under 350 Watts of Amplifier RMS Power with 18dB Slope
  • 130 Hz under 230 Watts of Amplifier RMS Power with 12dB Slope

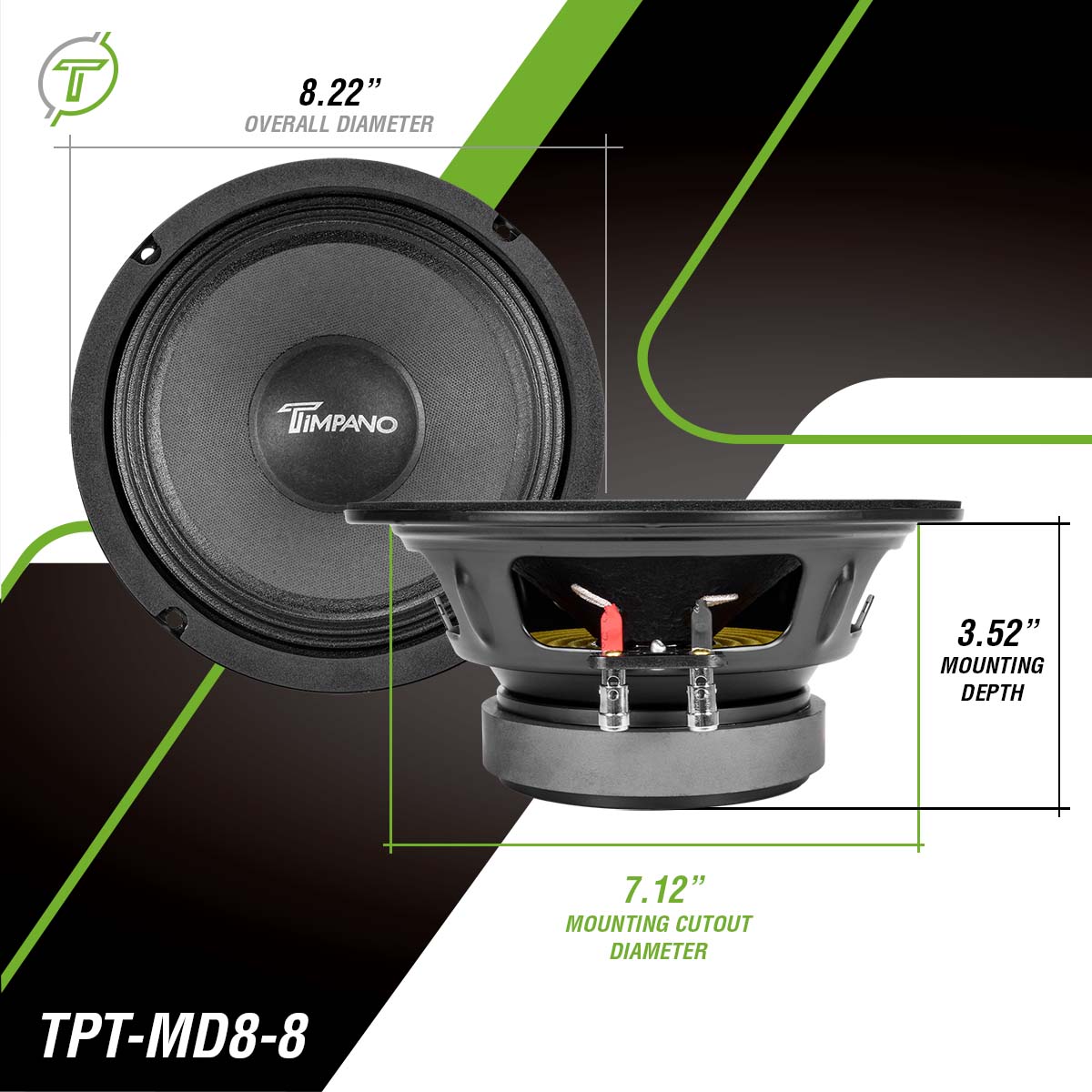

Sizing:

  • Mounting depth: 3.52″
  • Mounting Cutout Diameter: 7.12″
  • Overall Diameter: 8.22″
  • Weight: 4.85 Lbs

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 8″
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 230 watts
  • Program Power*** 700 watts
  • Sensitivity 2.83V at 1m95 dB
  • Frequency Response at -10dB 110 – 8,500 Hz
  • Voice Coil Diameter 1.5″
  • Magnet Type Ferrite

EXTRA INFO

  • Overall Depth 3.52"
  • Overall Diameter 7.12″
  • Net Weight 4.85 Lbs
  • Shipping Weight 4.85 Lbs
