Timpano Horn Driver TPT-DH175 SLIM, Car Audio 250 Watts 8 Ohm 1″ Exit High Frequency Compression Driver Shallow Design

The Timpano TPT-DH175 SLIM is a 1″ phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency.

Easy to install anywhere, even on car doors. In addition, the small diameter of the compression driver allows simple installation at the front. This shallow horn driver can deliver space filling sound at extremely high SPL levels, a great choice for high output for custom car audio systems.

• The wide frequency range ranges from 1,400Hz to 19,000Hz, and the high sensitivity of 108 dB makes it a very loud and efficient driver.

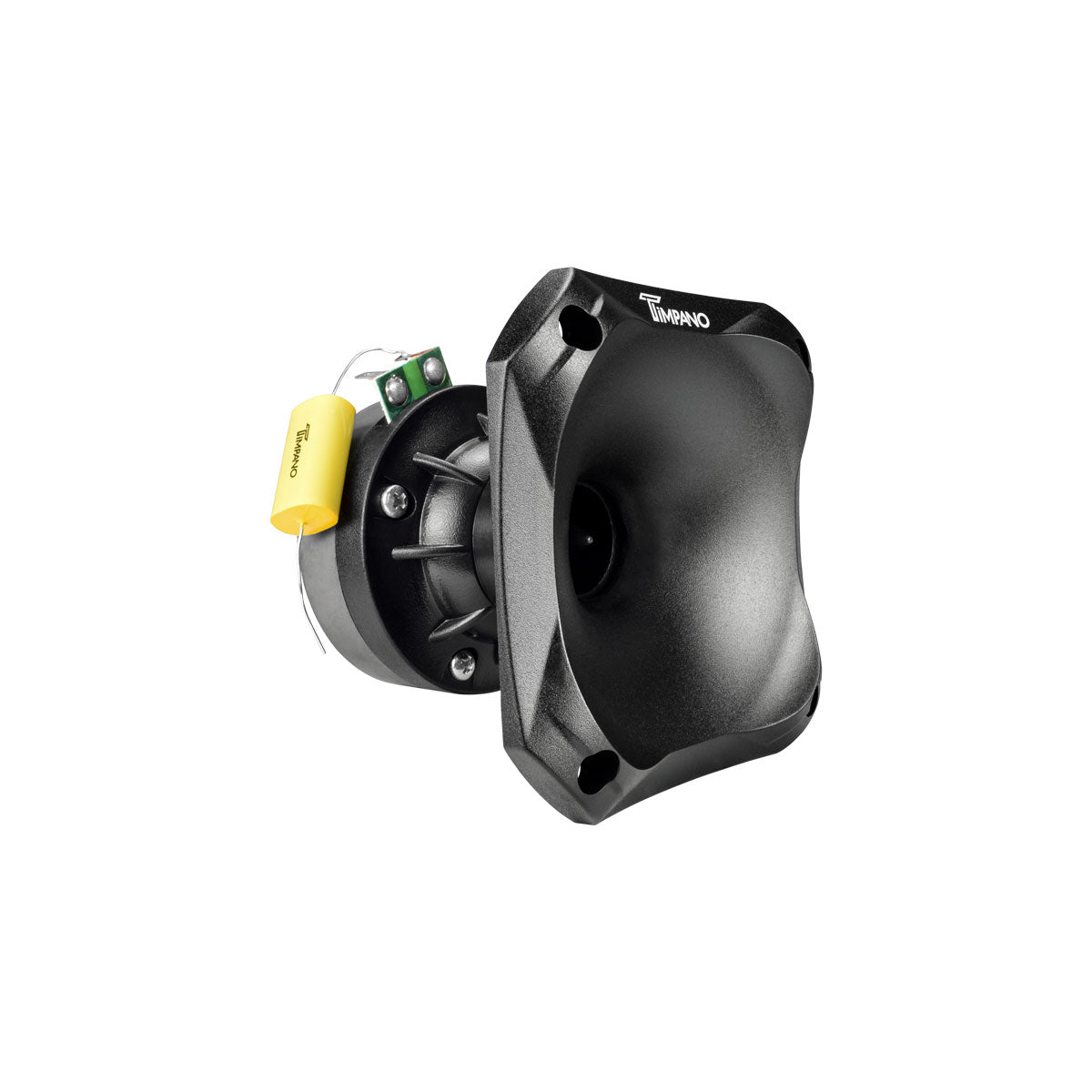

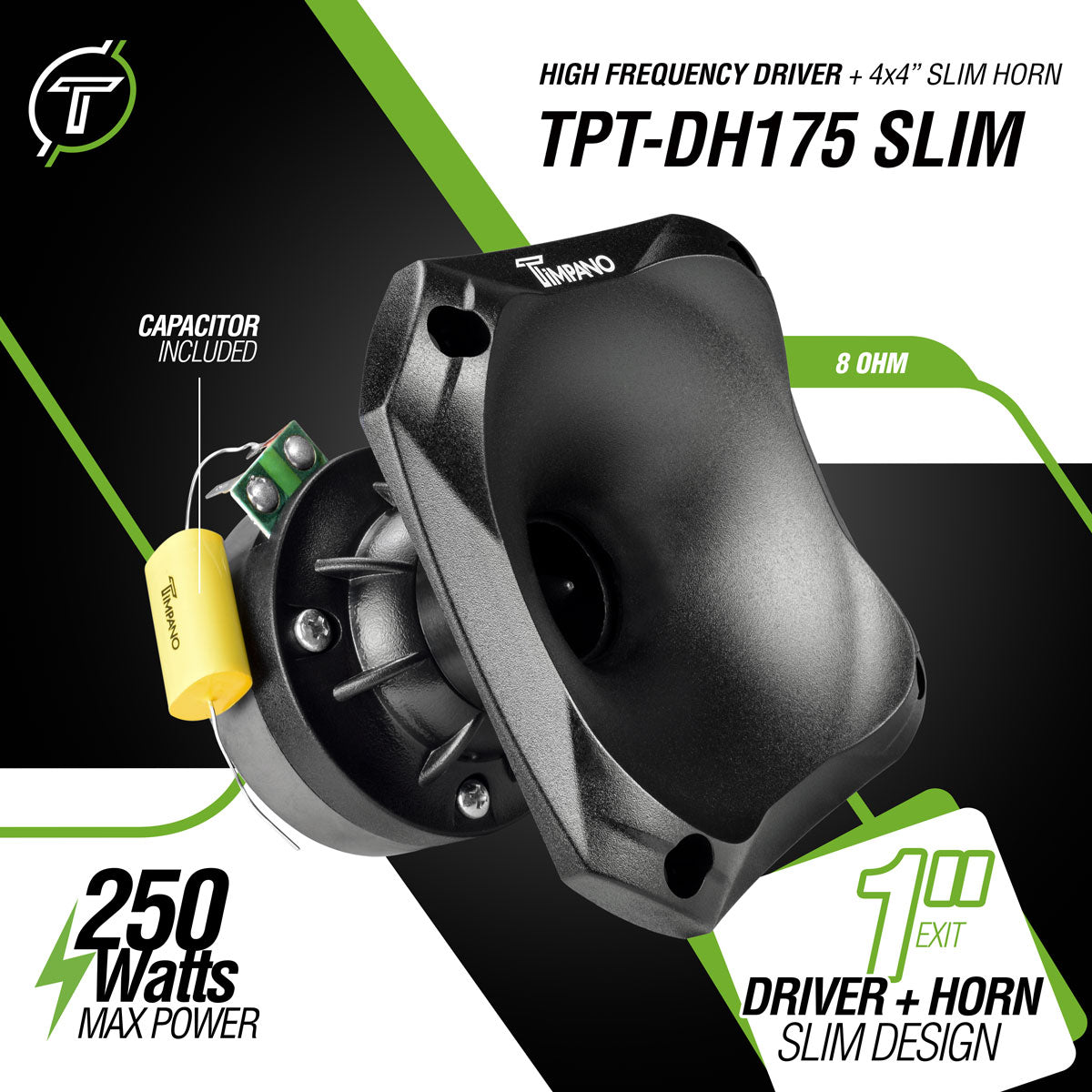

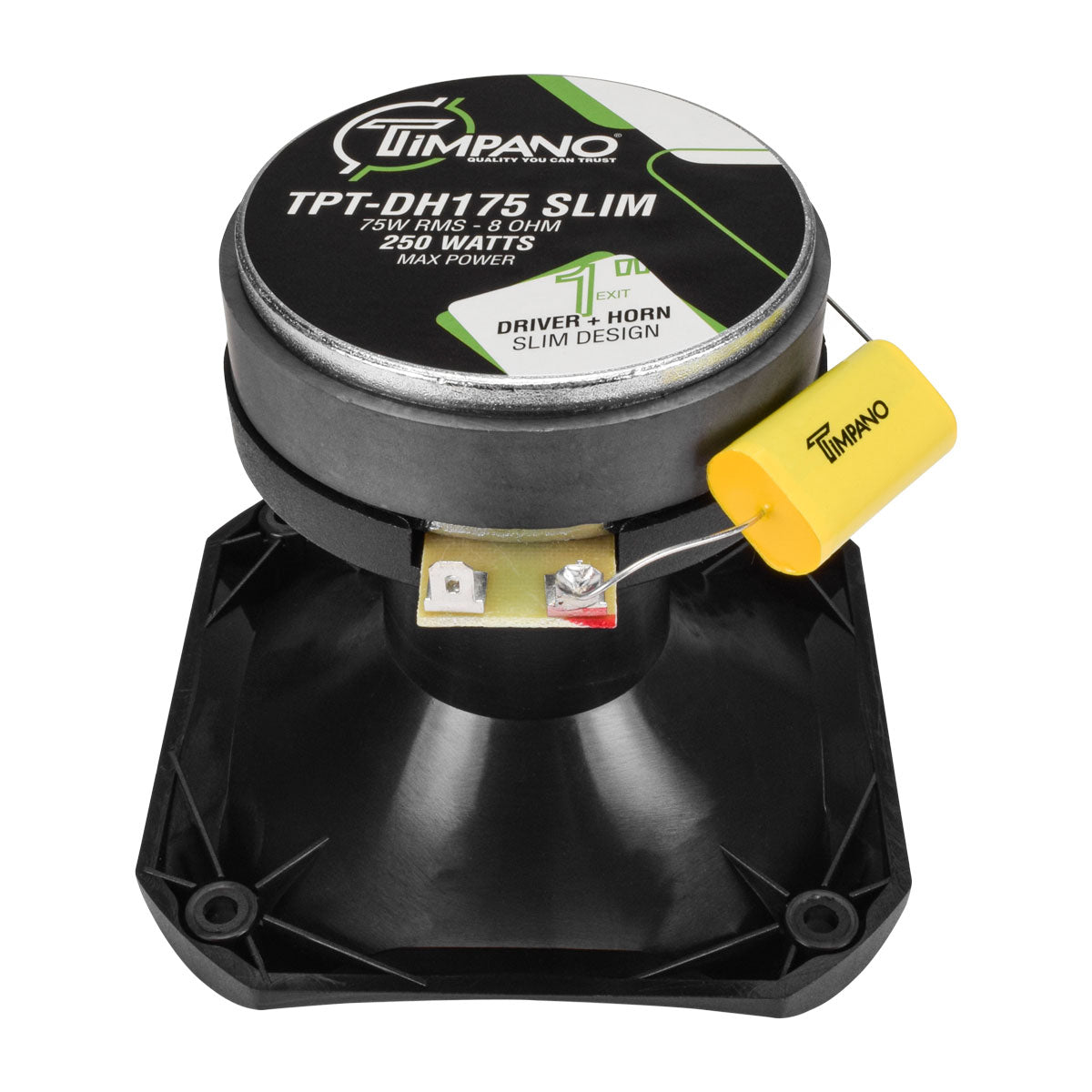

• Handles an impressive 250 Watts Max power and 75w RMS, ensuring that it effortlessly complements your entire audio system. Capacitor included. 8 Ohm Voice Coil.
• Complete your pro audio system with the TPT-DH175 SLIM. With its 1″ voice coil, this driver maximizes loudness per watt, delivering crisp and clear high frequency range sound.
• Mounting Depth: 3.60”. Extremely loud and clear highs with an amazing frequency response that can even play some mids. Shallow mounting depth for custom car audio door panels.

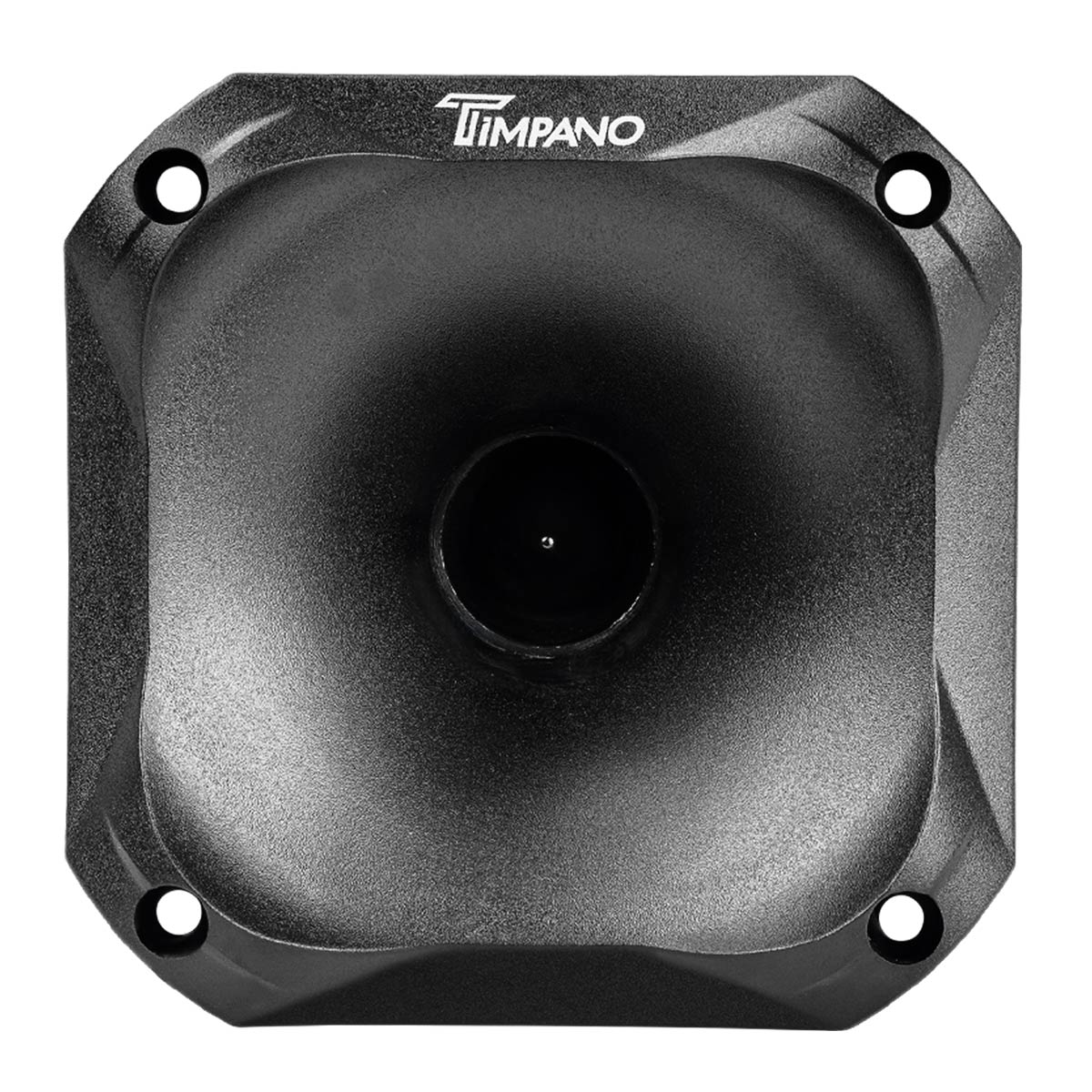

Ideal for compact 2 or 3-way systems. The 4.5″ x 4.5″ shallow horn produces a controlled 60° x 60° dispersion pattern to reduce unwanted reflections in a very wide dispersion as a super tweeter. Designed for car audio door panels.

Specs:
250 Watts Max Power
75 Watts RMS Power
Impedance: 8 Ohm
Sensitivity: 108 dB
Frequency Response: 1.4 kHz – 19 kHz
1″ Voice Coil
Phenolic Diaphragm
Ferrite Driver
Recommended High Pass Filter on TPT-SP4BT DSP Crossover
1400 Hz under 125 Watts of Amplifier RMS Power with 18dB Slope
1200 Hz under 75 Watts of Amplifier RMS Power with 12dB Slope

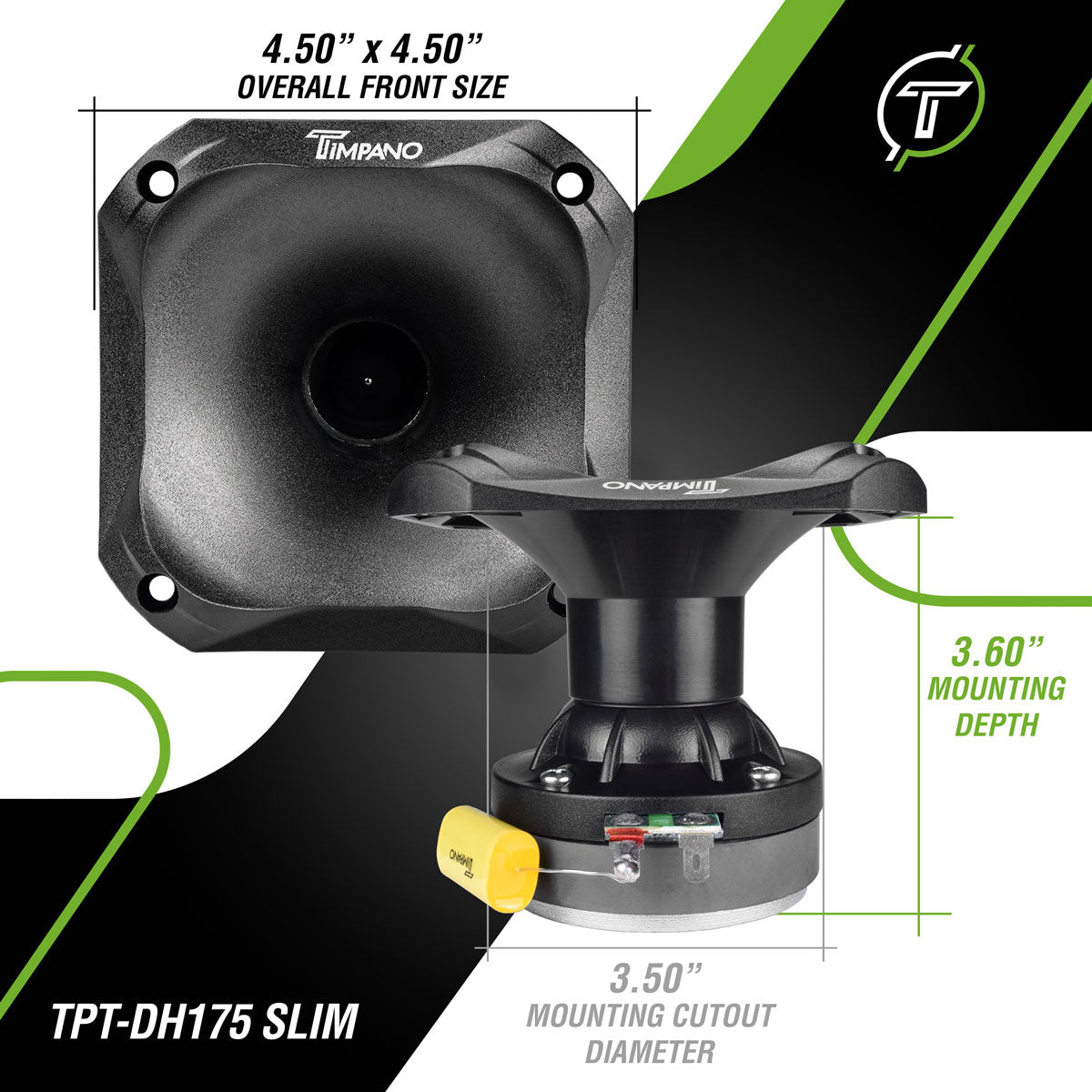

Sizing:
Mounting Depth: 3.60″ (91.5 mm)
Mounting Cutout size: 3.50″ x 3.50″ + Terminal
Overal size: 4.50″ Wide x 4.50″ Length x 4.17″ Height
Weight: 1.10 Lbs

Original Manufacturer Replacement Diaphragms that Maintain Peak Performance are available: TPT-RPDH175
