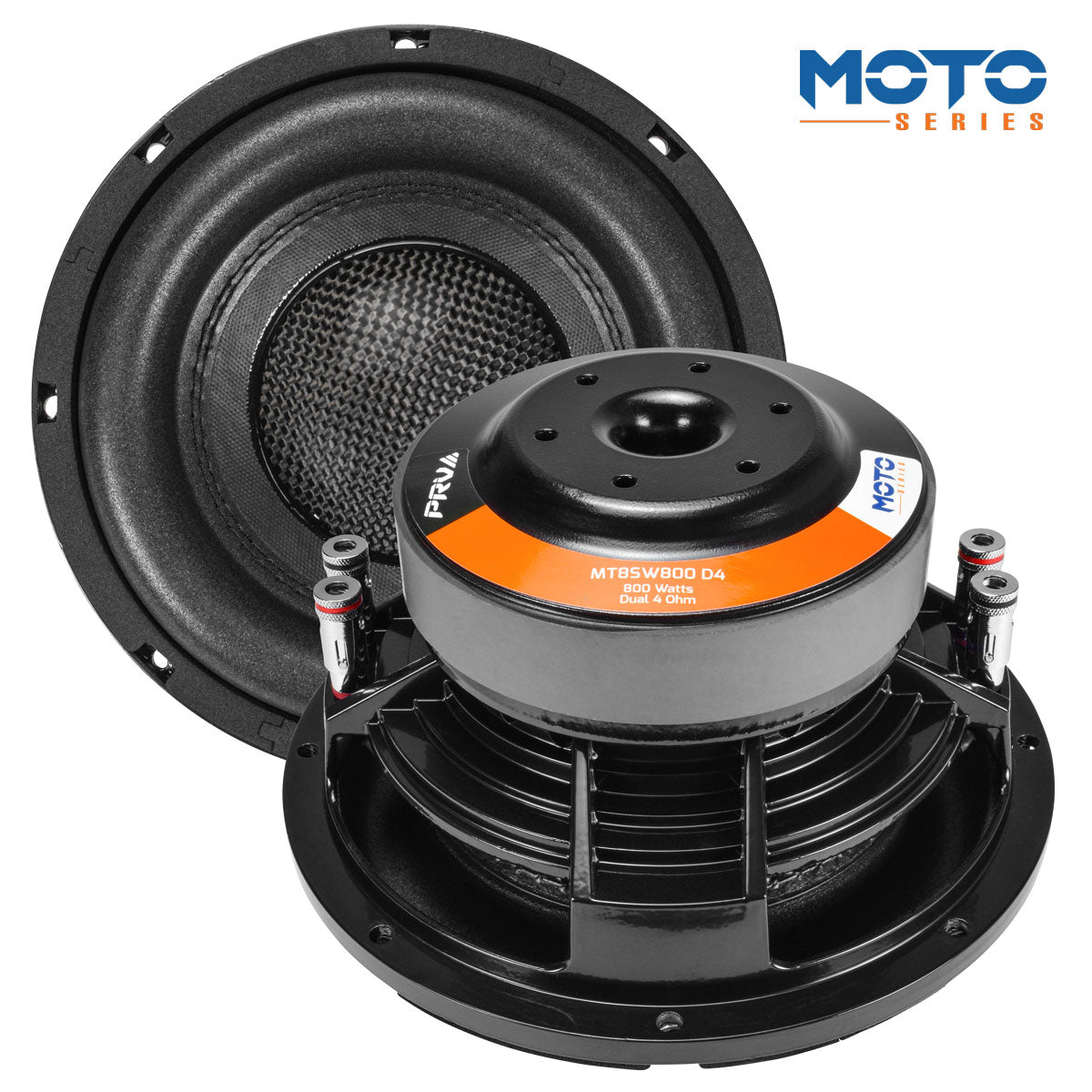

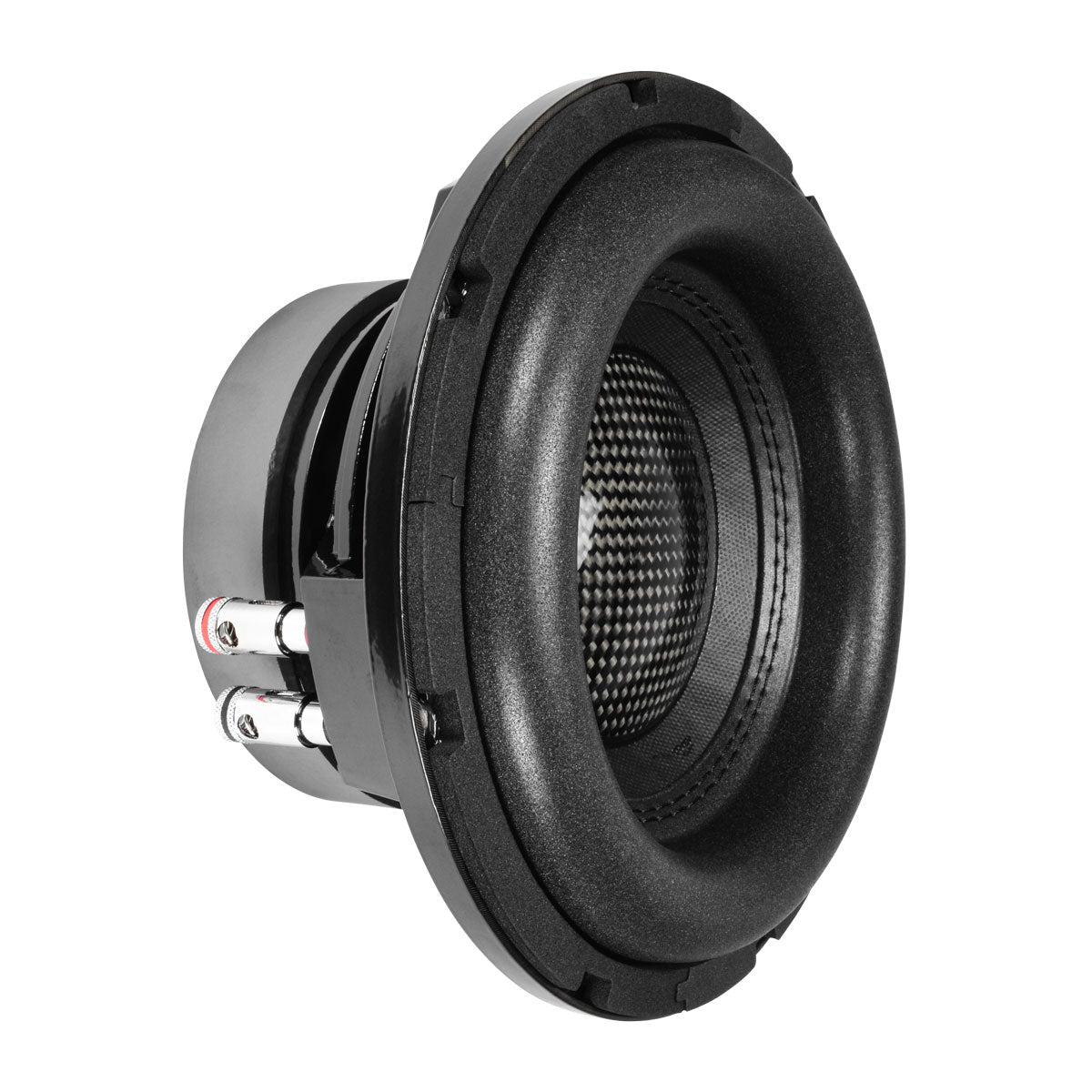

PRV MT8SW800 D4 Subwoofer

PRV MT8SW800 D4 Subwoofer

SKU: SKU:MT8SW800 D4

Skip to product information
New

PRV MT8SW800 D4 Subwoofer

PRV MT8SW800 D4 Subwoofer

SKU: SKU:MT8SW800 D4

  • 8" Shallow Subwoofer

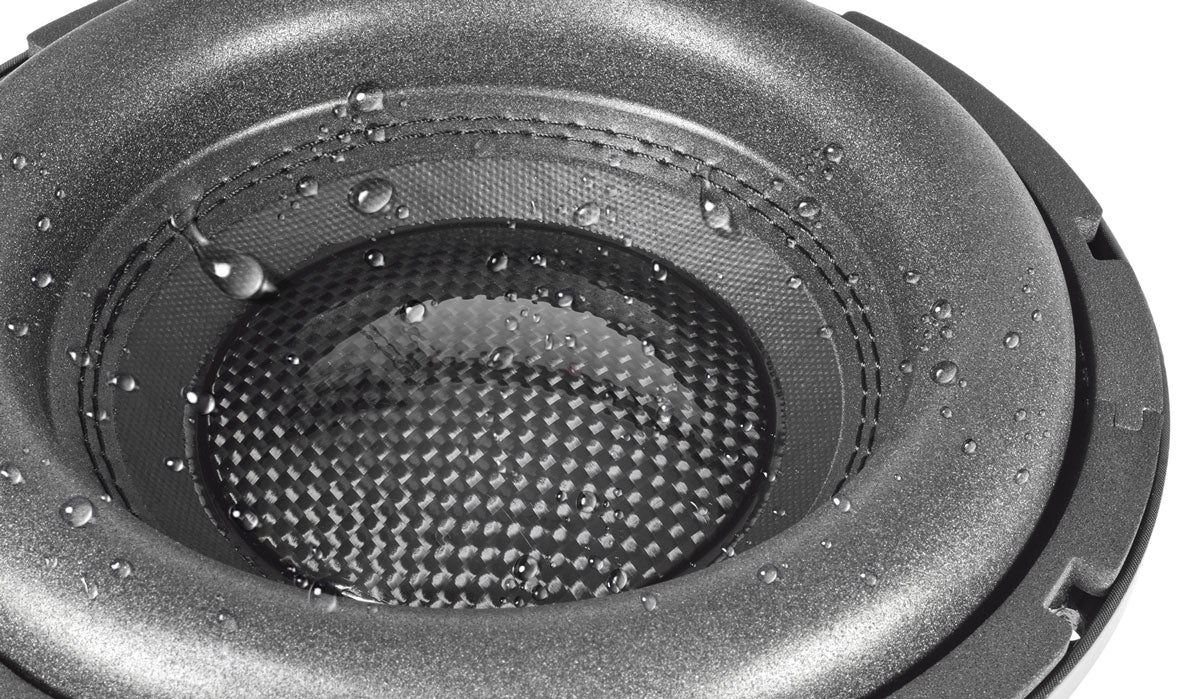

  • Waterproof
  • 800 Watts Dual 4 Ohm
$129.91
$162.39

In stock

  • 8" Shallow Subwoofer
  • Waterproof
  • 800 Watts Dual 4 Ohm

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

PRV Audio is proud to present our MT8SW800 D4 Subwoofer from the MOTO Series (MT), a high performance line dedicated to motorsport installations.

Designed for small enclosures, this subwoofer will work in motorcycle saddlebags, slingshot pods, or any other enclosure around 1 cubic foot in size. This sub is made from the best materials and components to withstand the elements, so you can enjoy the highest low frequency output while riding or sitting in an open parking lot.

  • Experience deep, powerful bass on the open road, without having to sacrifice the whole space inside your saddlebags.
  • 4 layer high-temperature copper voice coil capable of handling 800 watts RMS program power, which makes high acoustic output

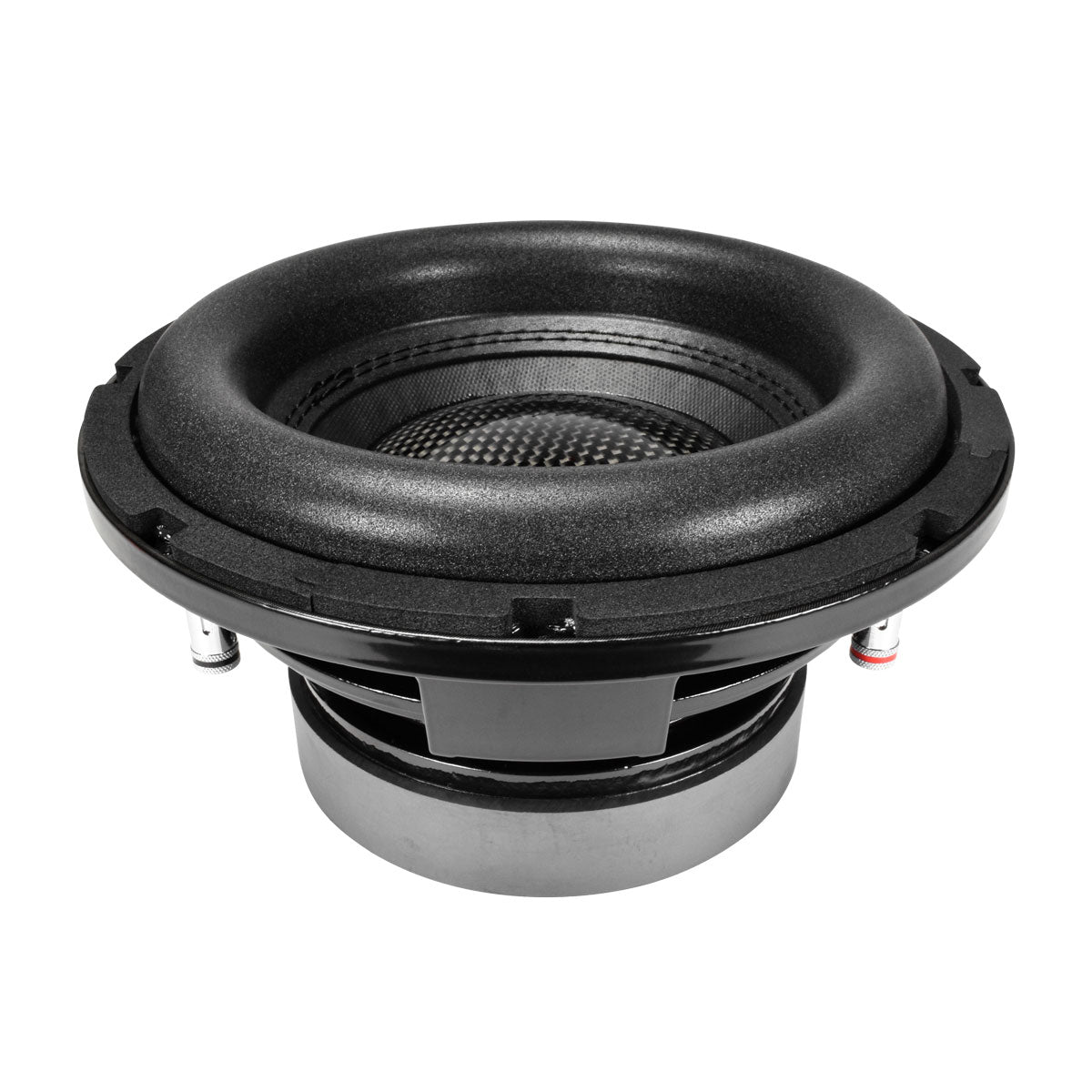

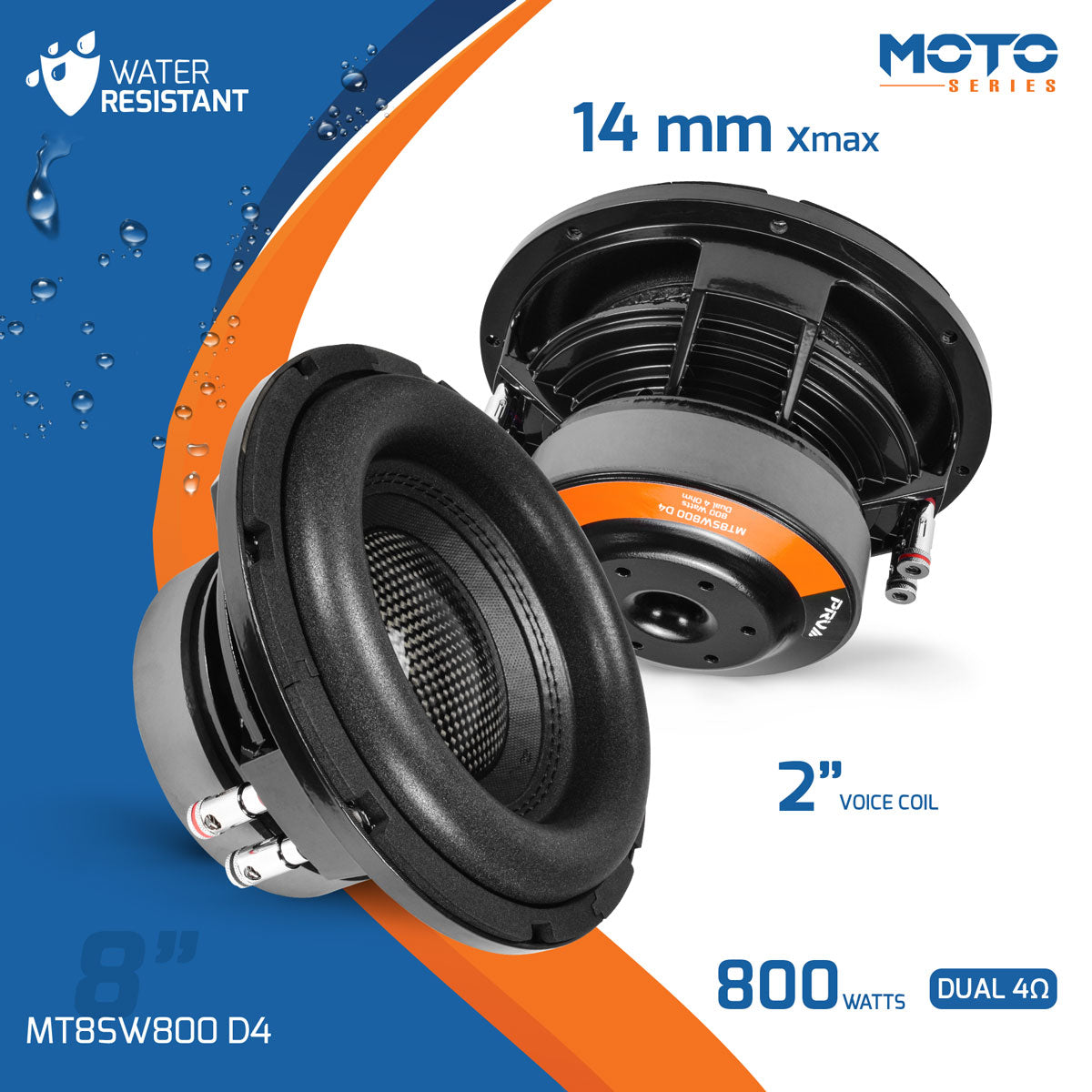

  • High roll U surround is attached to the cone with dual stitching allowing a generous 14 mm of Xmax for deep bass reproduction without any issues.
  • Another Key premium components that ensure power handling, durability at high excursion are its large premium grade spider with weaved copper tinsel lead.
  • Side Forced Cooling System with vented back plate Design for Better Heat Dissipation
  • Dual 4 Ohm, Works well with Mini MDX1800.1 1 Ohm Connect two subs in parallel to 1 ohm

Its shallow profile takes up very little space inside any enclosure. This compact design will fit and sound great in any saddlebag that has about 1 cubic foot.

Recommended enclosure:

Compact Sealed Box: 0.9 cubic feet
Compact Ported Box: 1 cubic foot with a 3″ Diameter by 6″ Long Port Tube tuned at 47Hz
Optimal Ported Box: 1.25 cubic feet with a 3″ Diameter by 9″ Long Port Tube tuned at 39Hz

This subwoofer established the new benchmark for low frequency for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4-wheeler, Slingshot or motorcycle.

This 8-inch subwoofer delivers the kind of bass output you feel outdoors, not just vibrations.

PRV 8” Motorsports Subwoofer MT8SW800 Dual 4 Ohm 800 Watts Shallow Sub for Motorcycle Slingshot Waterproof

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 8" (203 mm)
  • Nominal Impedance 4 + 4 Ohm
  • Nominal Power Handling* 400 Watts
  • Continuous Program Power (RMS)** 800 Watts
  • Program Power*** 800 Watts
  • Max Peak Power*** 1600 Watts
  • Sensitivity 1.41V at 1m81 dB (Parallel VC)
  • Voice Coil Diameter 2.0 (50 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth33.0 mm
  • Former Material Black Aluminum
  • Magnetic Gap Depth 10 mm
  • Frame Material Die cast Aluminum

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 8.44 l
  • Excursion (mathematical)**
    • Xmax
    • 14.00 mm
  • Free Air Resonance
    • Fs
    • 45.15 Hz
  • Mechanical Factor
    • Qms
    • 10.35
  • Electrical Factor
    • Qes
    • 1.00
  • Total Factor
    • Qts
    • 0.92
  • Cone Area
    • Sd
    • 213 cm²
  • Mechanical Mass
    • Mms
    • 96.23 g
  • BI Factor
    • Bl
    • 6.78 Tm
  • Dc Resistance
    • Re
    • 1.7 Ohm
  • Inductance
    • Le
    • 1.18 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 94.43 g
  • Mechanical Compliance
    • Cms
    • 0.129 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

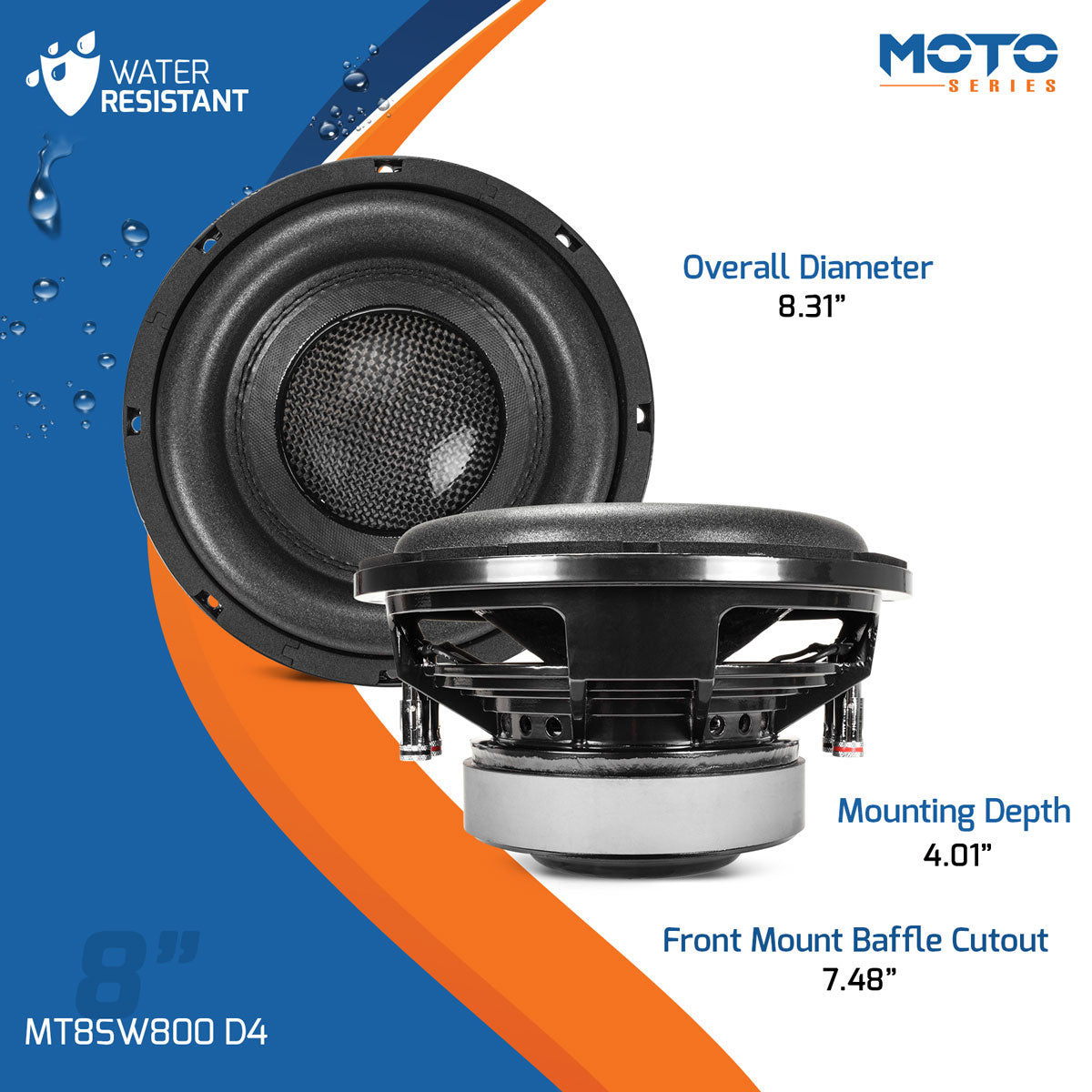

  • Overall Depth 5.00" (127 mm)

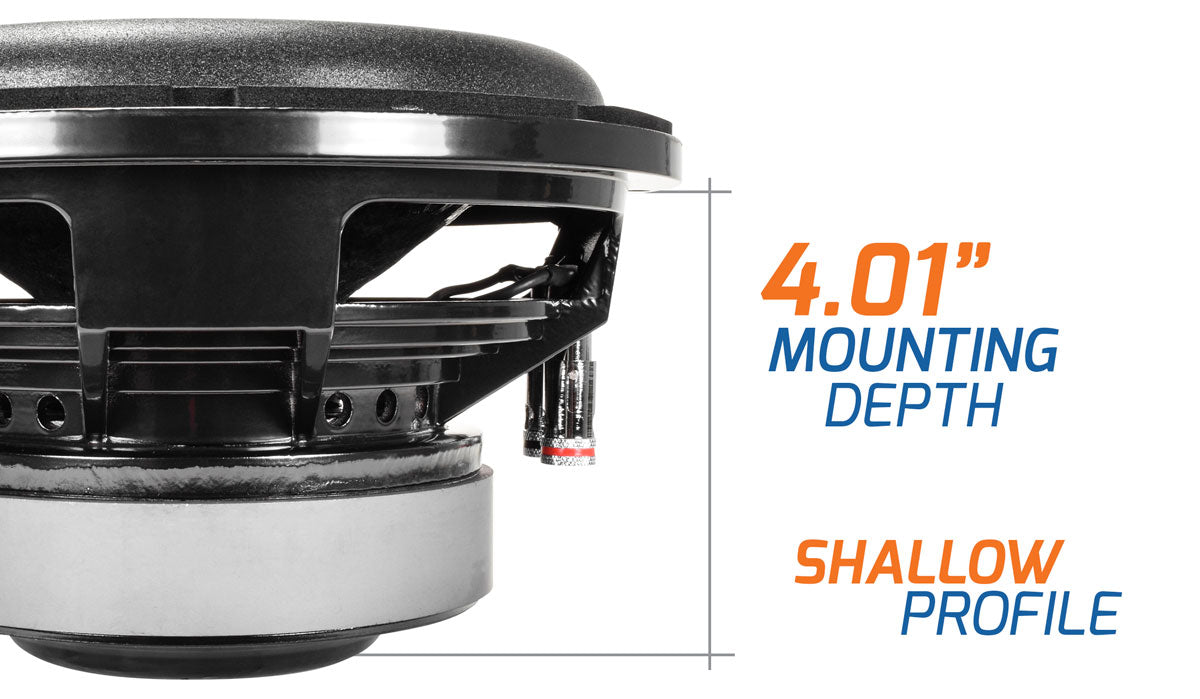

  • Mounting Depth 4.01" (102 mm)
  • Overall Diameter 8.31" (211 mm)
  • Front Mount Baffle Cutout 7.48" (190 mm)
  • Net Weight 8.71 Lbs (3.95 kg)
  • Shipping Weight 9.92 Lbs (4.5 kg)
  • Carton Dimensions WxLxH 9.84" x 9.84" x 6.3" (250 x 250 x 160 mm)

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

  • Rubber Cement Speaker Glue

    BLACK CEMENT GLUE

    Price:
    Regular price $19.99
    Regular price Sale price $19.99
    Out of Stock

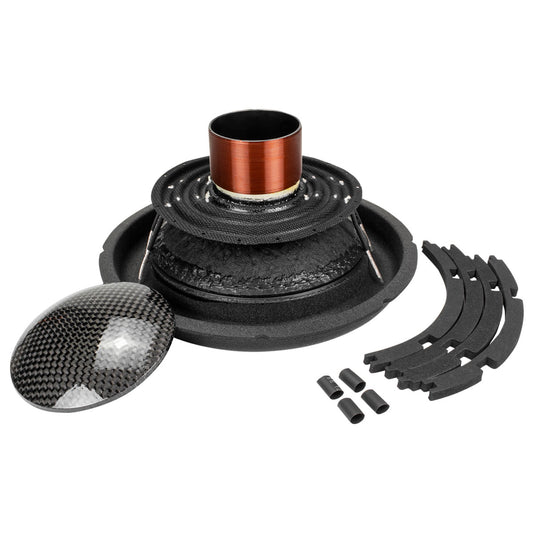

  • PRV RKMT8SW800 D4
