PRV D3220Ph Driver

PRV D3220Ph Driver

SKU: SKU:D3220Ph

  • 2" Midrange Driver
  • Phenolic Diaphragm
  • 108 dB - 300 Watts

$79.91
$99.89

In stock

  • 2" Midrange Driver
  • Phenolic Diaphragm
  • 108 dB - 300 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

Innovative technology for 3 inch compression drivers, the new high-strength compact motor, allows you to keep a large voice coil without sacrificing performance. With a smaller design and as powerful as ever, this midrange 2″ exit driver is taking the car audio industry to the next level!

The new D3220Ph design still retains the same diaphragm design as the previous model. This offers the famous PRV Audio low midrange response, with accuracy (from 650 to 7,500 Hz) with an emphasis on the vocal mid frequency range.

  • With a nearly indestructible phenolic diaphragm and a 3 inch voice coil, this Brazilian technology delivers natural vocal midrange response at an efficient of 108 dB sensitivity

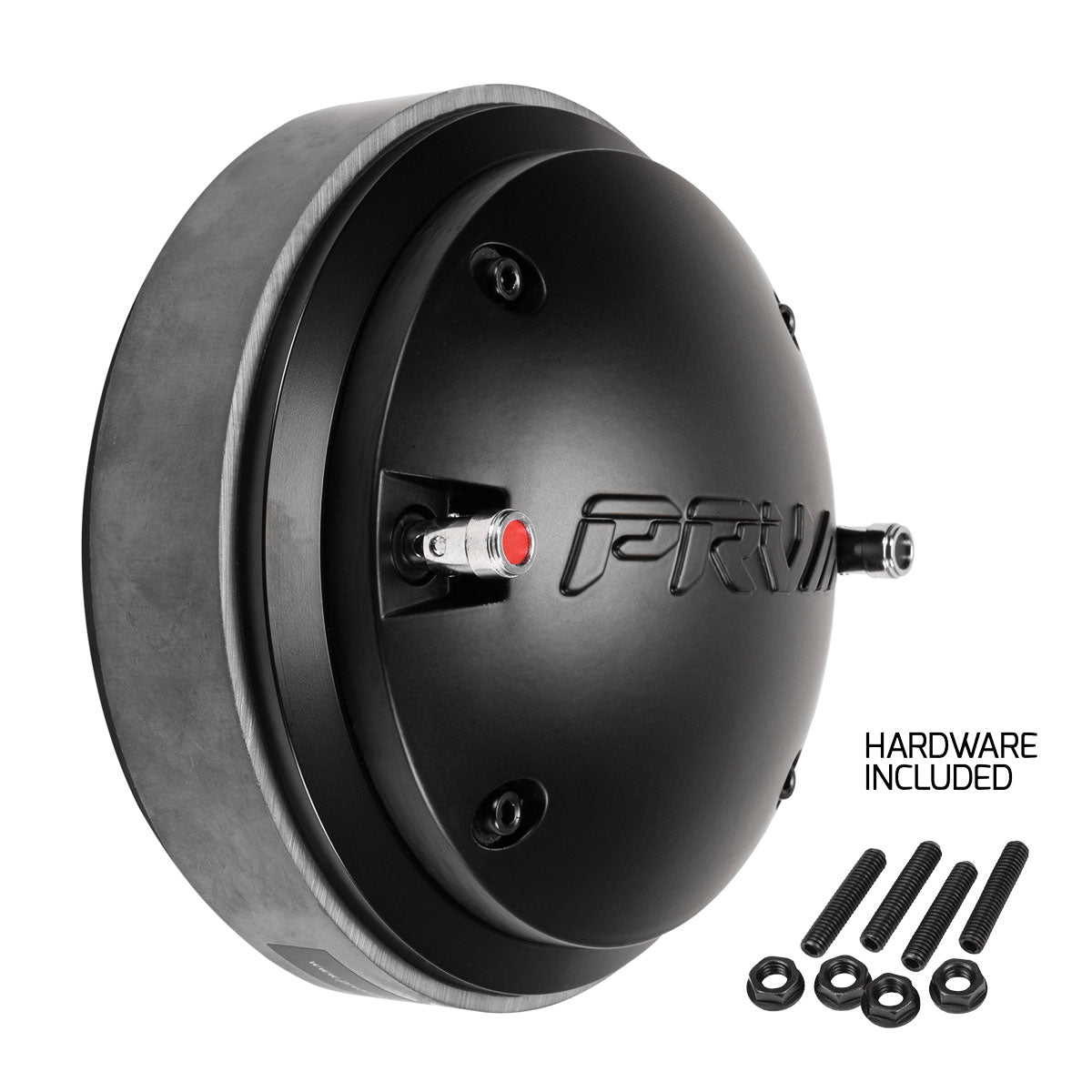

  • Works great with any Shallow Horn from WGP14-50X Series – Perfect as compression driver for car audio. Mounting hardware is included.
  • 2 Inch Exit horn Driver designed for vocal reinforcement on 3-Way car audio systems with a usable frequency response from 650 to 7,500 Hz
  • PRO Audio midrange driver, able to handle 300 Watts Continuous Program Power (RMS) with music for extreme output capability.

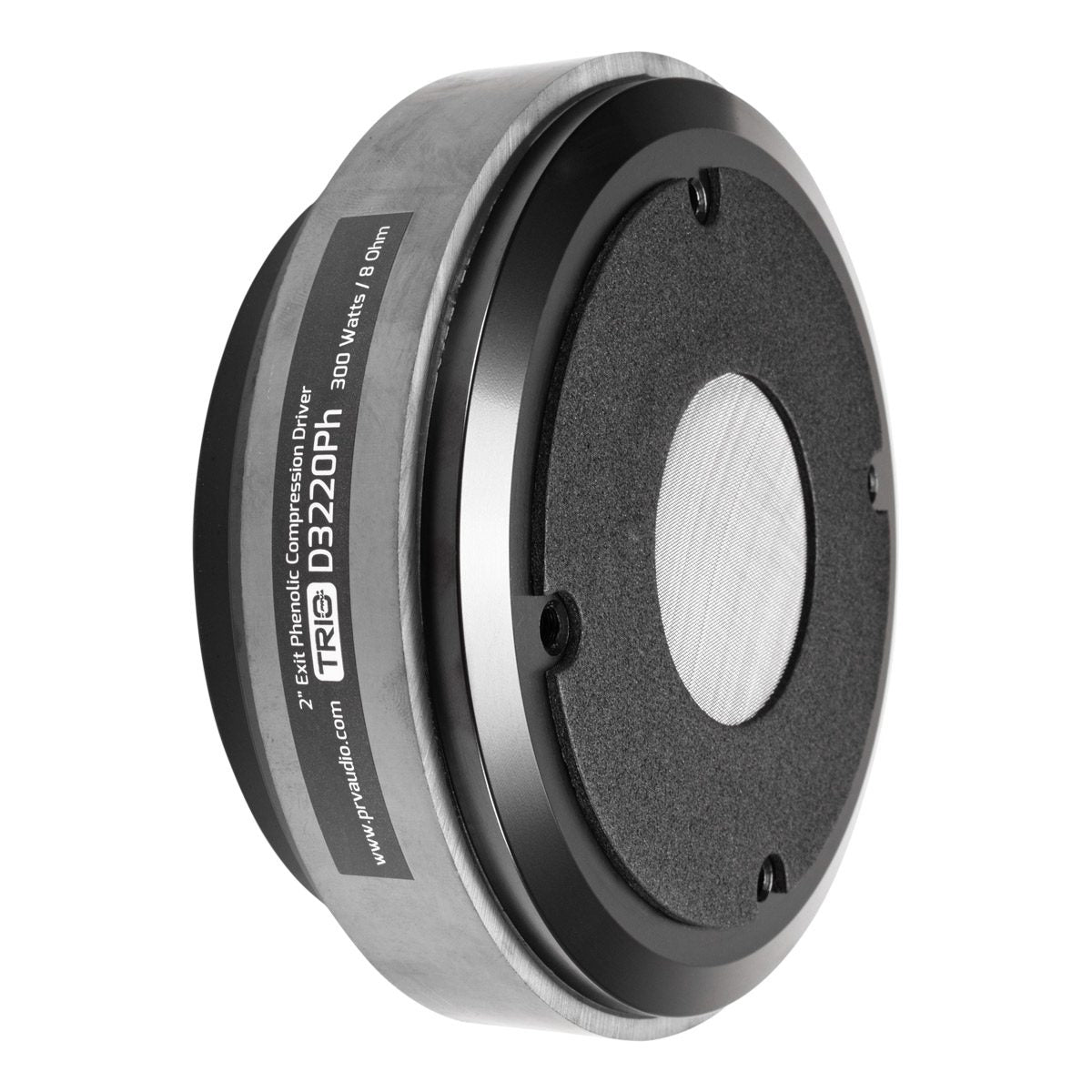

The D3220Ph ferrite phenolic compression horn driver, offers the best performance for the price, features a compact magnet motor.

This allows you to use this horn driver in custom doors and stuntwall systems for vocal reinforcement. We have created a compact and powerful driver that solves the critical component spacing and weight issue in large systems.

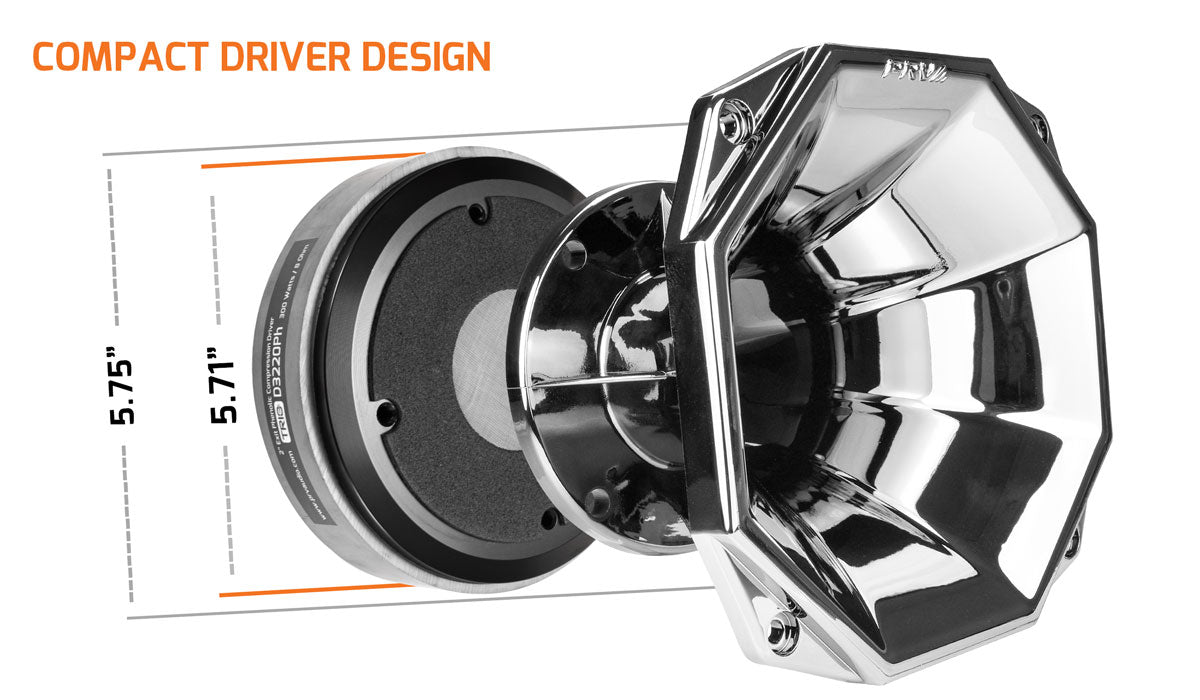

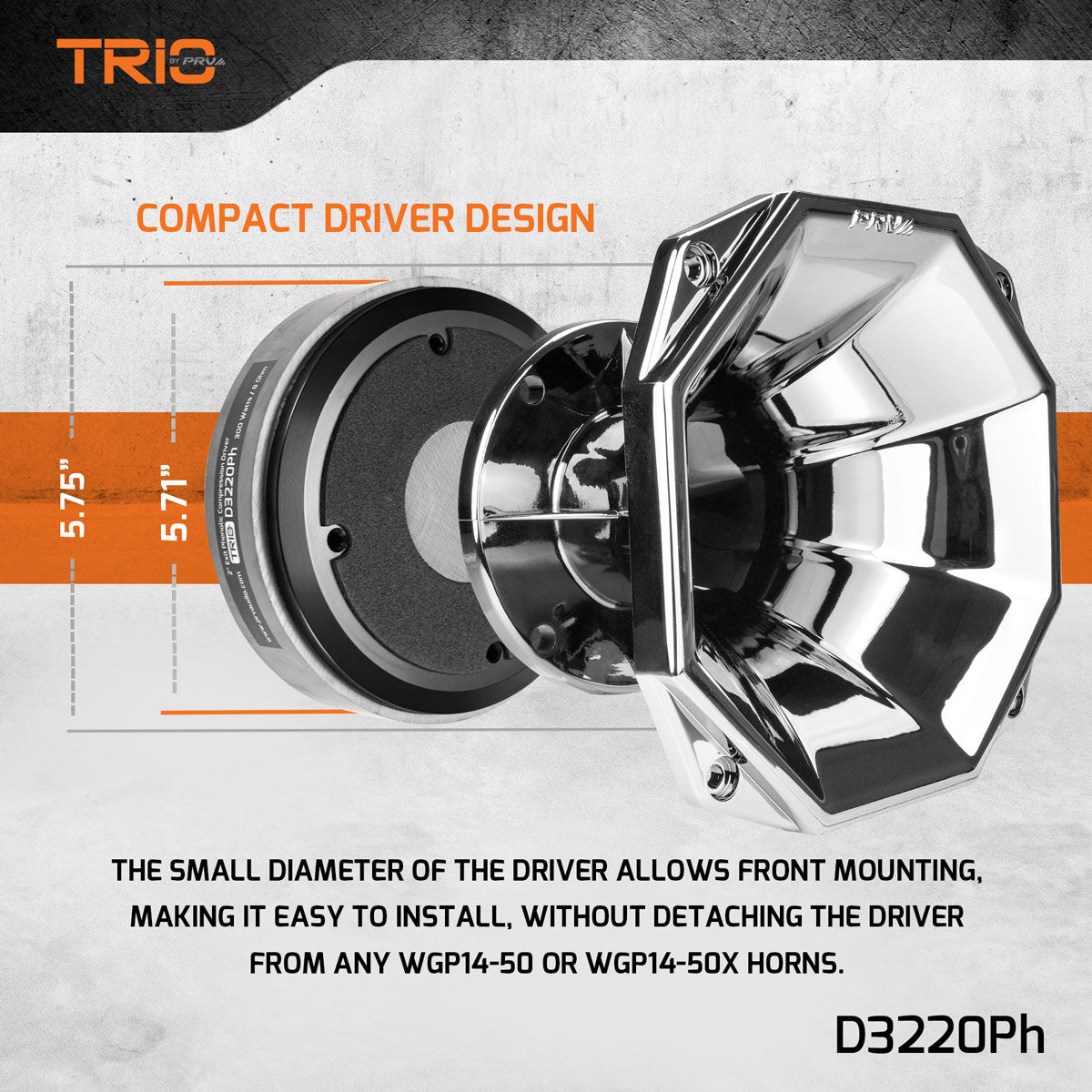

The special diameter allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The driver diameter measures only 5.71″ having enough clearance to fit inside the 5.75″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.

Make your system unique with our colored horns. Available on Single Color, Dual Color, and Dual Tone Finish.

TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.

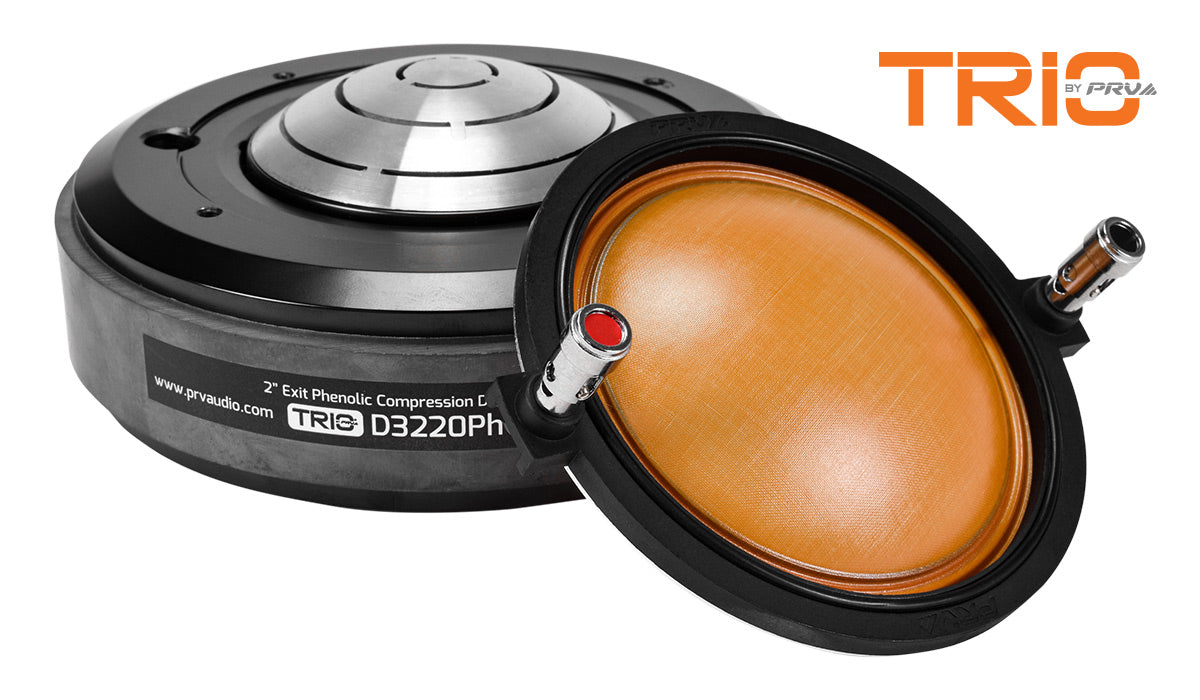

The phenolic diaphragm is attached to a 3″ diameter copper-clad aluminum wire with Kapton® former for a high 300 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP.

  • 800 Hz at 12 dB per octave filter Crossover / BT12
  • 700 Hz at 18 dB per octave filter Crossover / BT18

Its compact size combined with high power handling provides great output capabilities make this midrange driver one of the smallest 2” exit vocal driver in the market!

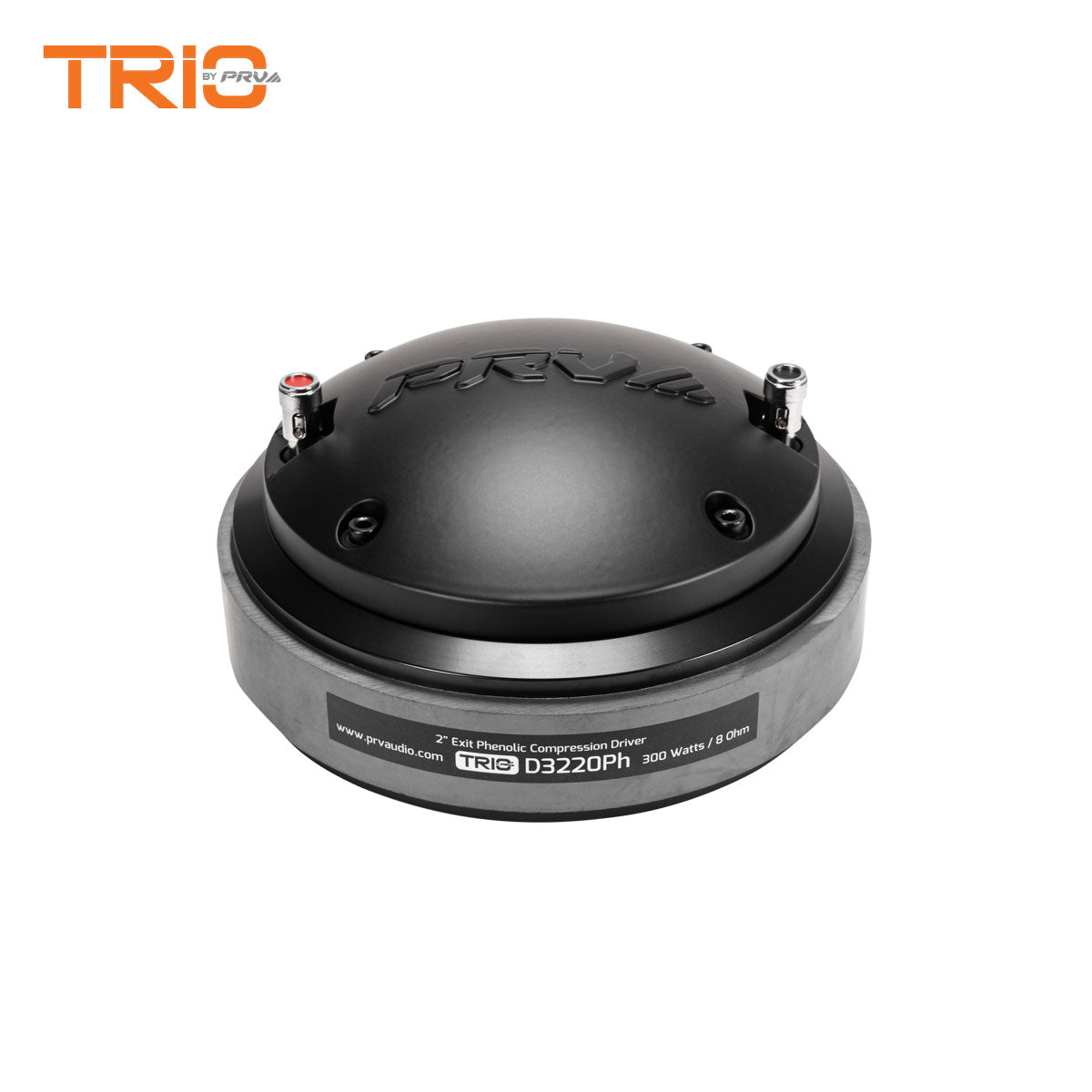

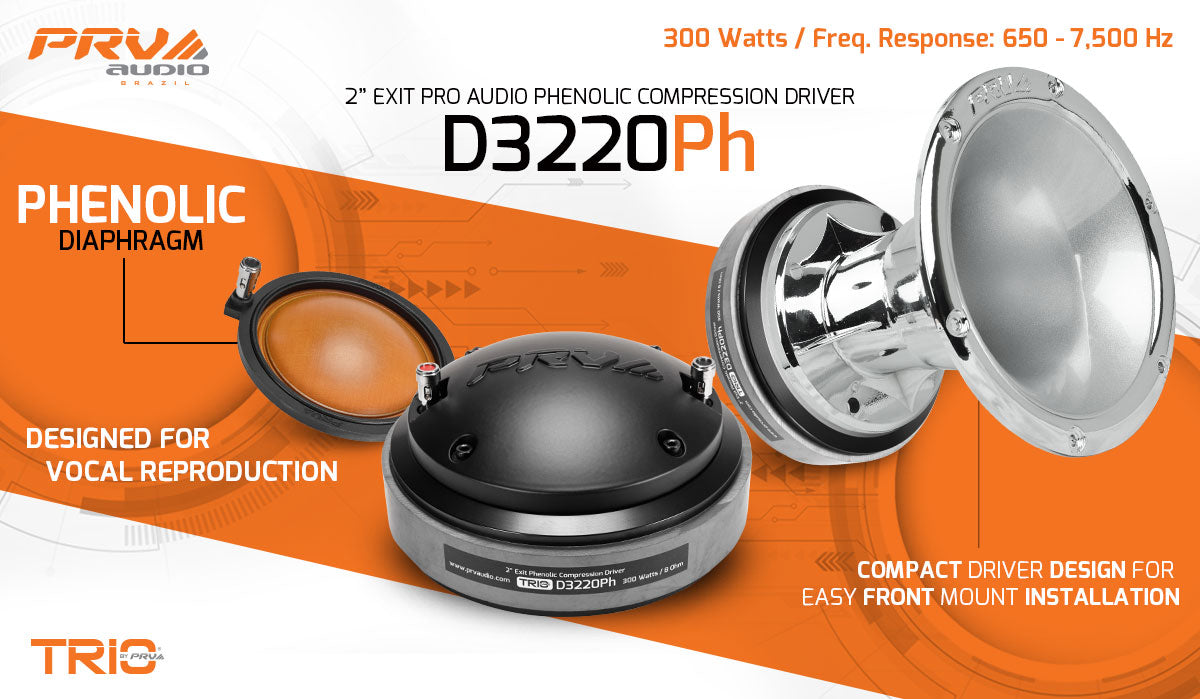

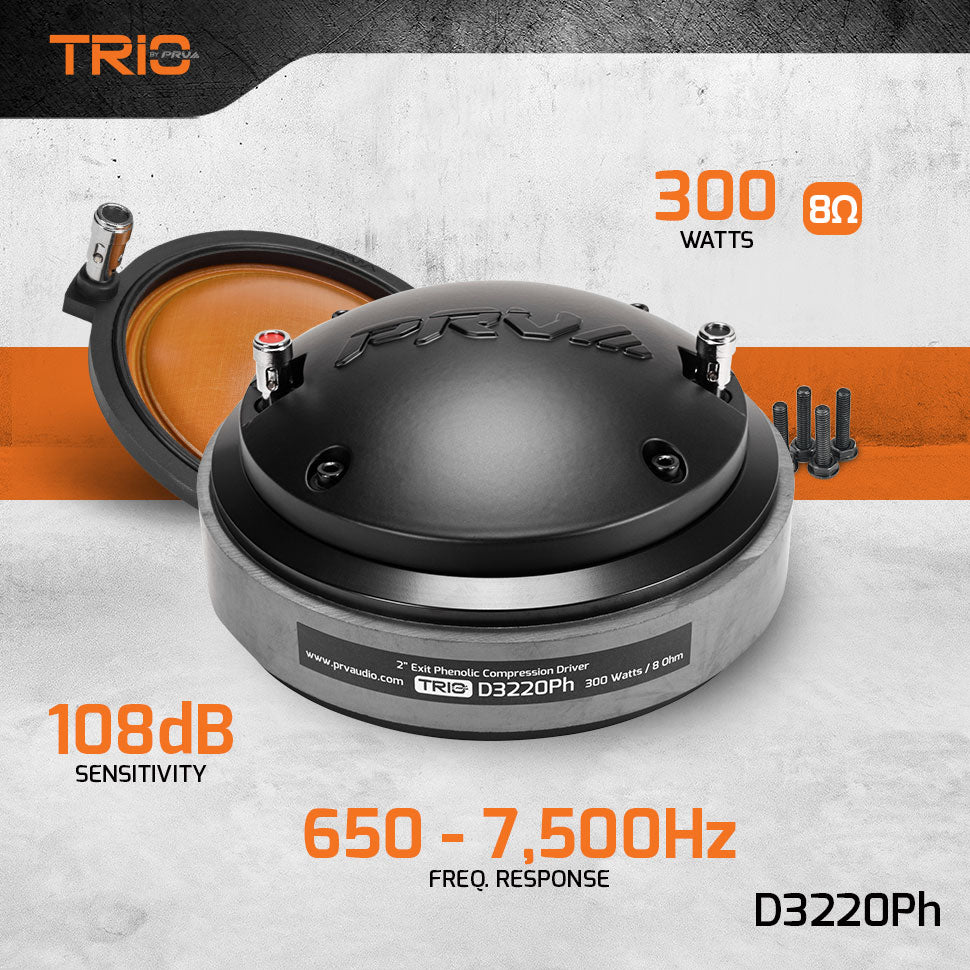

PRV D3220Ph 2″ Midrange Driver 300 Watts 8 Ohm – TRIO Phenolic Diaphragm

Technical Details

GENERAL SPECIFICATIONS

  • Exit Throat Diameter 2” (50 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 150 Watts
  • Rated AES Power Handling (RMS)** 300 Watts
  • Program Power*** 300 Watts
  • Sensitivity 2.83V at 1m108 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 800 Hz 12db/oct Crossover
  • Frequency Response at -10dB 650 – 7,500 Hz
  • Voice Coil Diameter 3” (76 mm)
  • Voice Coil Wire CCAW
  • Former Material Kapton
  • Flux Density 1.77 T
  • Magnet Type Ferrite

EXTRA INFO

  • Overall Depth 3.0″ (76 mm)
  • Overall Diameter 5.71″ (145 mm)
  • Net Weight 8.9 lbs (4.0 kg)
  • Shipping Weight 9.35 lbs (4.25 kg)
  • Carton Dimensions WxLxH 6.89″ x 6.3″ x 4.0″ (175 x 160 x 102 mm)
  • Mounting Bolt CircleM6 x 4″ (102 mm)
