PRV D275Ph-S Driver

PRV D275Ph-S Driver

SKU: SKU:D275Ph-S

Skip to product information

PRV D275Ph-S Driver

PRV D275Ph-S Driver

SKU: SKU:D275Ph-S


  • 1" Midrange Driver
  • Phenolic Diaphragm
  • 107 dB - 200 Watts

$32.91
$47.39

In stock


  • 1" Midrange Driver
  • Phenolic Diaphragm
  • 107 dB - 200 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

This powerful 1” Exit Phenolic driver, the D275Ph-S is all about midrange vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that are designed to reproduce the all-important vocal range with authority!

  • High Temperature copper voice coil and phenolic diaphragm for natural response
  • Designed for midrange and vocals from 500 to 6,500 Hz
  • High Output – 107 dB sensitivity
  • The large 2 inch voice coil can handle up to 200 watts of musical power.

TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.

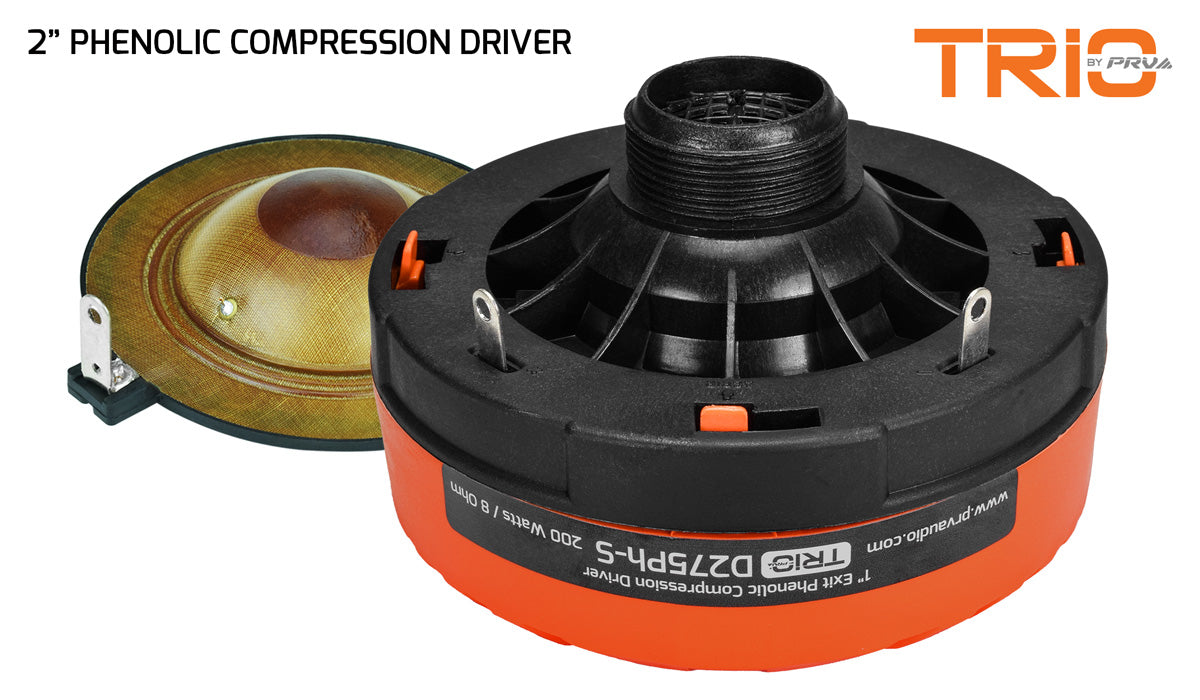

The phenolic diaphragm is attached to a 2″ diameter copper wire with Kapton® former for a high 200 Watts RMS musical power handling, when used with recommended HPF:

  • 600 Hz at 12 dB per octave filter Crossover / BT12
  • 500 Hz at 18 dB per octave filter Crossover / BT18

Its incredible output capabilities make this midrange driver one of the loudest vocal drivers on the market!

PRV Trio 1″ Midrange Driver D275Ph-S 200 Watts 8 Ohm – Phenolic Diaphragm

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Exit Throat Diameter 1” (25.4mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 100 Watts
  • Continuous Program Power (RMS)** 200 Watts
  • Max Peak Power*** 400 Watts
  • Sensitivity 2.83V at 1m106 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 600 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 500 – 6,500 Hz
  • Voice Coil Diameter 2″ (51 mm)
  • Voice Coil Wire Copper
  • Former Material Kapton
  • Diaphragm Phenolic Resin
  • Flux Density 1.1 T
  • Magnet Type Ferrite

EXTRA INFO

  • Overall Depth 2.67” (68 mm)
  • Mounting Depth 2.22” (56.4 mm)
  • Overall Diameter 4.61” (117 mm)
  • Net Weight 1.91 lbs (0.87 kg)
  • Shipping Weight 2.03 lbs (0.92 kg)
  • Carton Dimensions WxLxH 5.0” x 5.0” x 5.0” (127 x 127 x 75 mm)
